Complete Hardwood Cladding Solution

Wood Elements profiles collective features include; a straight-line edging process to ensure the cladding is machined to a fine tolerance and is extremely straight; relief grooves which are designed to take the stress out of the cladding, reducing the effect of warping and cupping; a specially designed ridge locater connects with the overlap line providing an effortless straight-line finish, simultaneously controlling the expansion allowance for any timber movement. Available in two apprearance options; Dressed Face a smooth surface or the new Sawn Brushed Face a rough texture and rustic look.

Coulee - Following a traditional shadowline profile, Coulee is about flow. The contemporary shadowline can be installed in either vertically or horizontally. This open profile enables water to drain away, ensuring a barrier to the wall.

Flume - th its narrow channel, Flume creates a clean square edged pencil shadowline for crisp definition between each board.

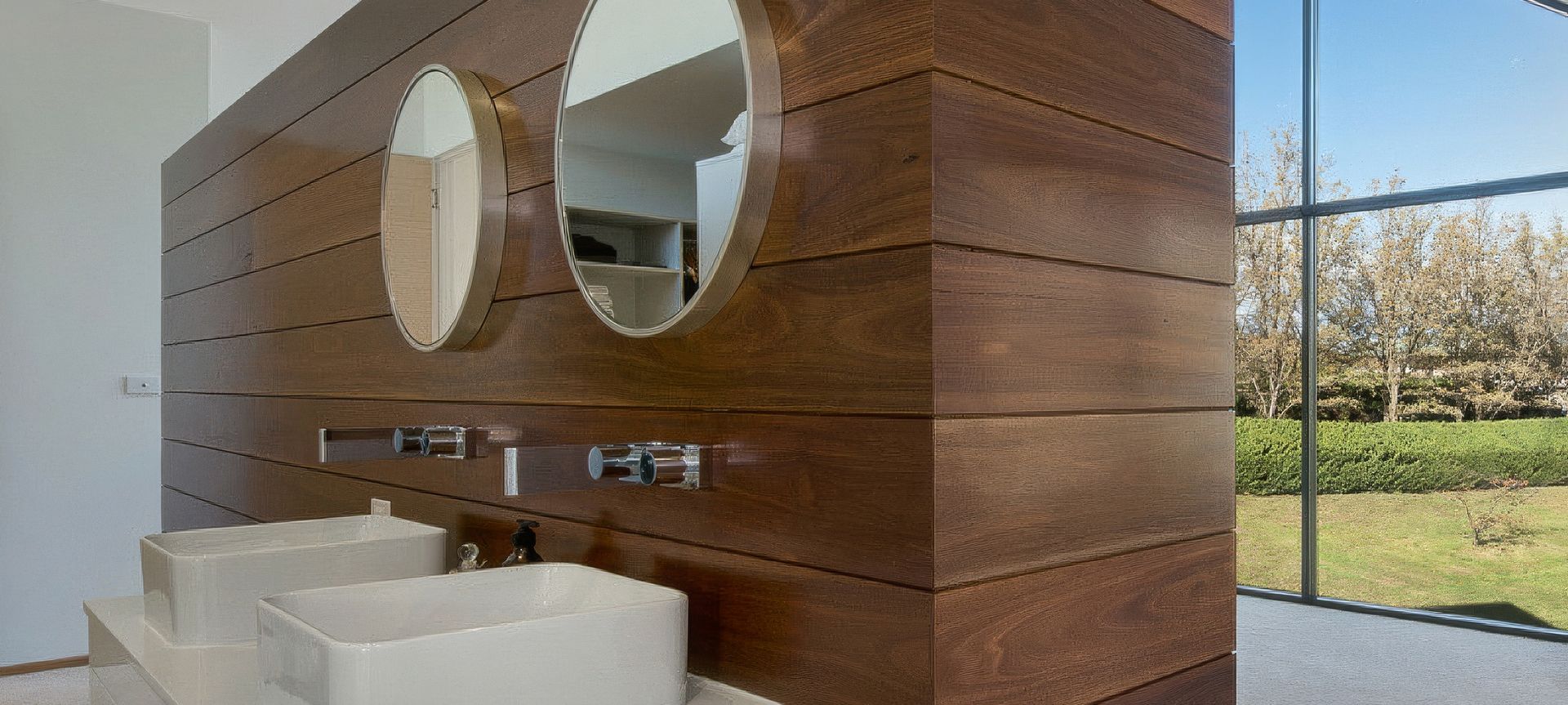

Ravine - A profile with a deep escarpment creating a distinctive “V” shaped ravine. The deep “V” shadowline will bring sophisticated clean lines to any interior.

Trims provide a streamline finish and play an integral part in ensuring a water tight finish. All aluminium trims are factory fitted with waterproof gaskets, designed to decrease the on-site sealing process, and delivery of loose materials. Satisfying different design aspects Wood Elements trims are available in both traditional matching timber and modern anodised aluminium. A chromate treated aluminium option is also available for powder coating.

Extreme care has been taken in all aspects of Wood Elements Refined Architectural Hardwood Cladding. From the environment to milling and drying, to the profile and trim design features, the species selection, right down to the finishes and accessories. Each element plays an important role in the performance of the cladding system.

Designed with concealed fixing in mind. Using a WURTH ASSY®PLUS A2 Decking Construction Screw 0166115550 along the pre machined “screw location” line enables the board to slip over the secured row quickly and easily, creating a clear face finish.

Hardware required to install Hurford’s Wood Elements:

WURTH AW® BIT

• Bit AW E 6.3 (1/4)
• BIT-AW20-LUMINOUSORANGE-1/4IN-L50MM (Art.-no.:06145220)

WURTH ASSY®PLUS A2 DECKING CONSTRUCTION SCREW

• AW20-5,5X50/23 (Art.-no.: 0166115550)

Available to purchase from Hurford Wholesale Pty Ltd or WURTH stockists.

*Please Note: Hurford Wholesale Pty Ltd will not be held liable, if fault shall occur when Hurford’s WOOD ELEMENTS is installed with a lesser size screw.

All the timber used to manufacture Wood Elements is air dried for up to 12 months to bring the moisture content down to “fibre” saturation. From this point the timber is kiln dried using double drying technology, developed by Hurfords to ensure significant added stability. This produces a finished product with a very narrow moisture variation.

When timber is milled and dried it builds stress and force, which translates into spring and bow. Steps can be taken during this process to limit the amount of bend in a board, but it can’t be totally eliminated at this stage. Hurfords uses a process to straighten the boards post drying to ensure the boards are straight and stay straight. This ensures that Wood Elements can be easily installed and all shadowlines remain as they have been designed – straight.

The Automatic Spacing System allows expansion to be placed between the boards, which is automatic and doesn’t require any special tools or spacers to get right. The specially designed ridge locator controls the expansion allowance and in addition helps with concealing the cladding screw if the boards were to lose moisture. The expansion is designed to take out any stress caused if the boards absorb or lose moisture.

All cladding profiles and trims in the Wood Elements range come with moisture sealing gaskets.* Wood Elements aluminium trims feature a factory fitted double seal, the foam gaskets compress and expand with timber movement, an extra safeguard against the Australian storm season. Factory fitted gaskets eliminate the on-site sealing process, reducing labour costs. Wood Elements Moisture Barrier System does not eliminate the need for good building practice and meeting the Building Code of Australia.

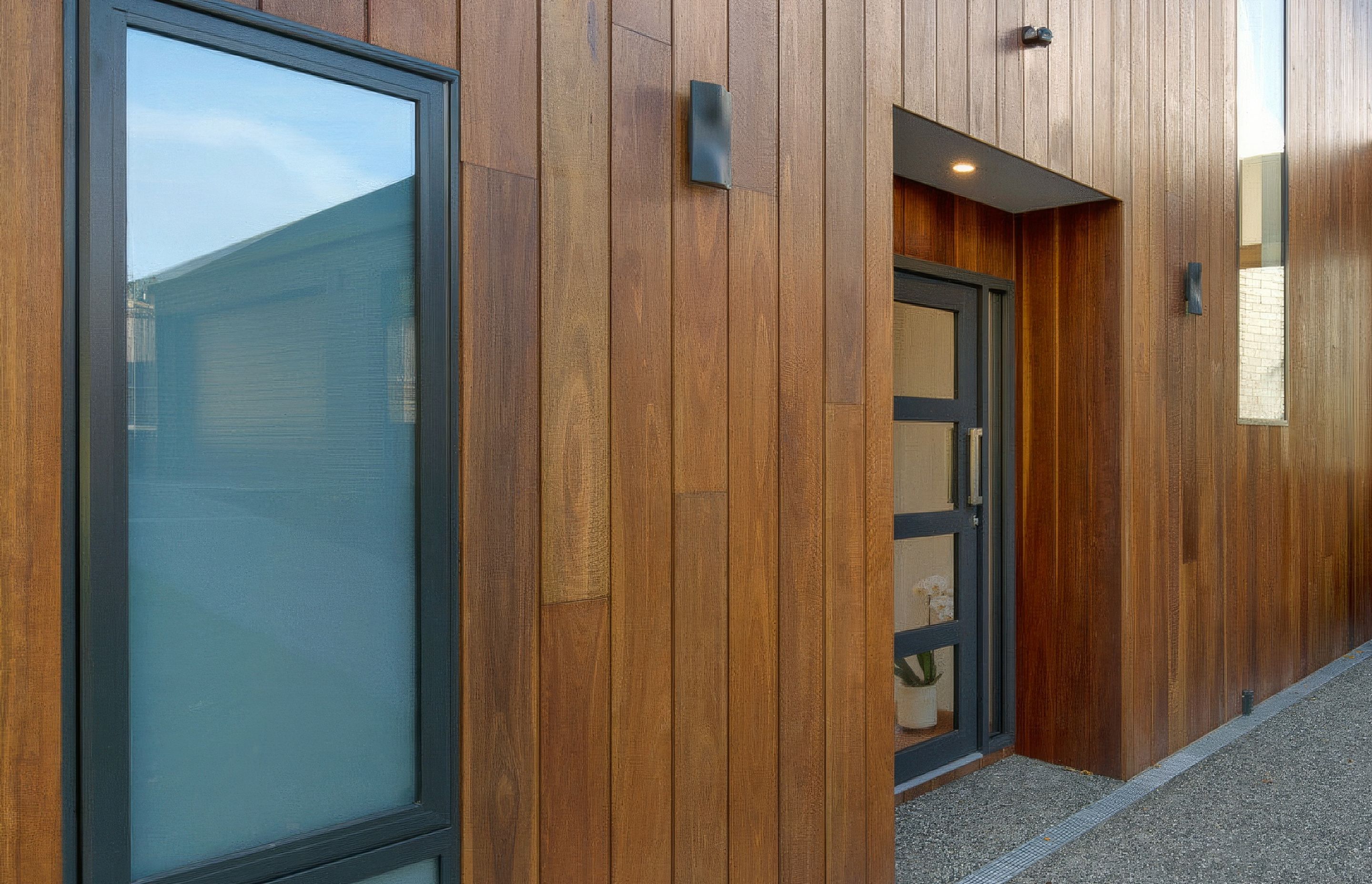

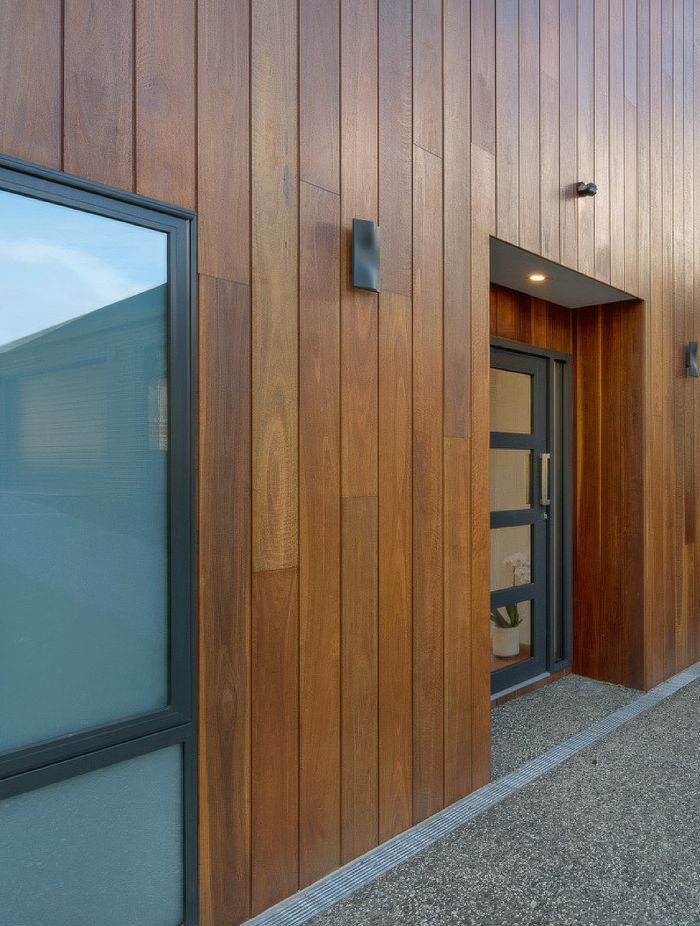

Utilising a specially developed end match system for external use Wood Elements endmatch profile has a micro bevel edge designed to encourage water to drain away from the join. A factory fitted seal has also been installed to eliminate moisture transfer and ensure a watertight connection. End matching the product means the boards can be fixed mid stud, eliminating the need to dock and create volumes of waste, saving up to 10% of the product that previously would have been thrown away. Not only does this save costs, it’s a better for our environment with less resource being used.
