JLG Architects: Five tips for embedding sustainability into design practice

Fifteen of the twenty largest global Architecture and Engineering (A/E) firms, responsible for over $100 billion in construction annually, have now adopted and implemented the 2030 Challenge. According to a recent poll of design industry leaders by the Design Futures Council, approximately forty percent (40%) of all U.S. architecture firms have adopted the challenge. For firms to incorporate sustainability into every project, their leaders need to actively champion and enable the change. Research shows that by delivering sustainable designs, building owners enjoy financial and non-financial business benefits, such as lower operating costs and significantly better occupant satisfaction, which influences productivity. Plus the financial benefits do not always come at the expense of higher first costs.

Delivering these multi-stakeholder benefits on high-value projects inevitably leads to repeat business for design firms. These outcomes illustrate that sustainable design is good for business.

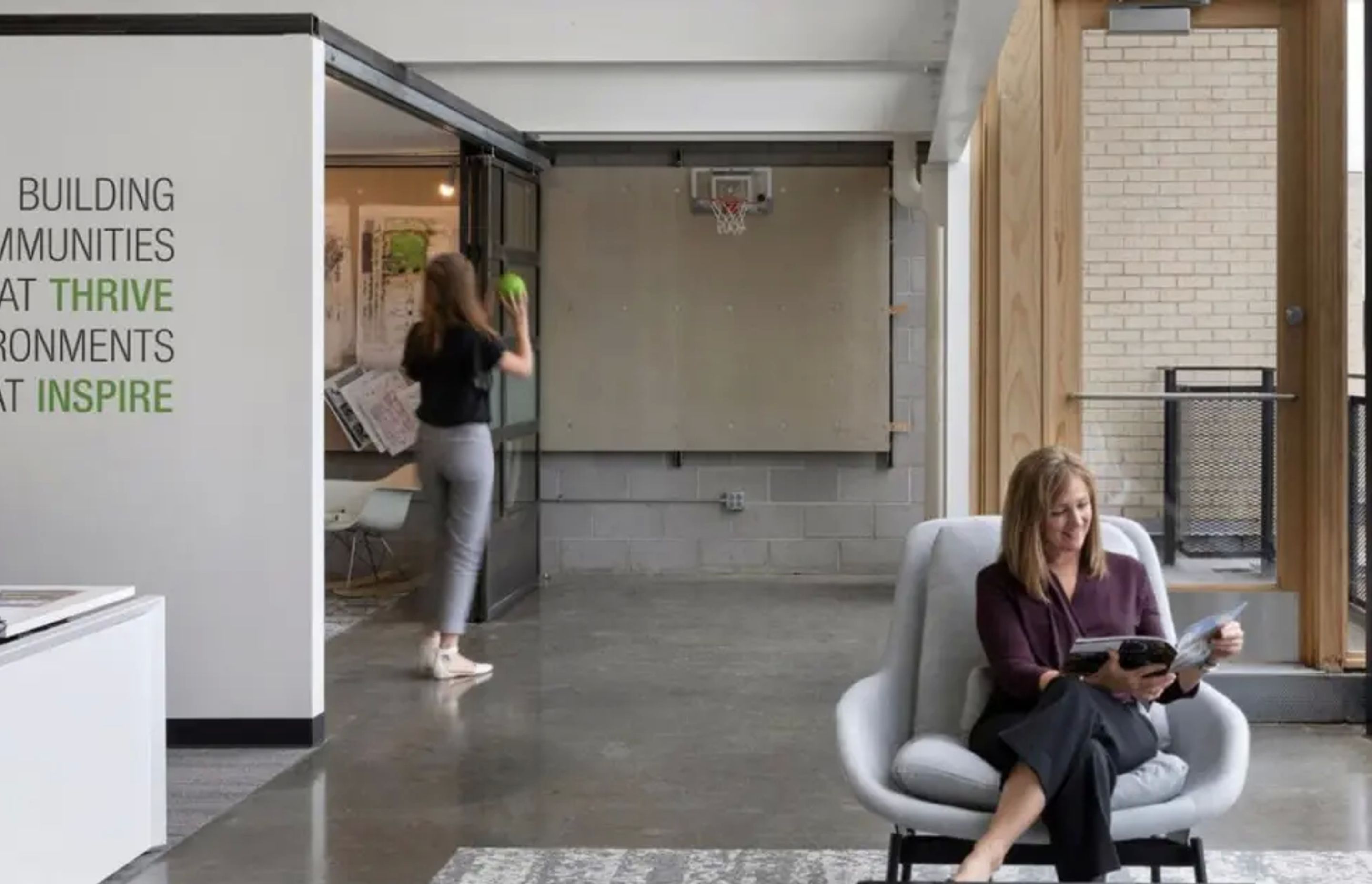

JLG Architects was established in 1989, is owned by its 150 employees, and has 13 North American offices. JLG Architects has received many AIA awards for projects ranging from healthcare centers, corporate offices, airport terminals, and education facilities to sports venues. It has achieved ambitious certifications such as the first LEED Platinum building in North Dakota, and LEED Gold and Silver for projects ranging from research centers to residential developments. It is currently pursuing Living Building Challenge Full Certification, Fitwell, LEED Platinum, the AIA Framework for Design Excellence, and exceptional energy performance for its own office in Grand Forks (shown above).

The excellence that permeates JLG’s work comes from pursuing its vision and core values in combination with impactful leadership. We sat down with Patrick Thibaudeau, long-time sustainability champion and Principal Sustainability Officer at JLG, to discuss how the firm successfully translated its vision and values to each team member's design process. Read on for five tips for successfully embedding sustainability into practice and process. All images are courtesy of JLG Architects.

Find the ‘why’: Why sustainability matters

At JLG, our vision is “Design for Life,” which means using design thinking and skills to help individuals and communities thrive. This vision is supported by five core values: design, community, relationships, stewardship, and integrity.  JLG lives these values by working to elevate the human experience by positively impacting occupant health, wellness, equity, and resilience for persons and place; by designing for positive performance: energy, carbon, water; and by responsibly using resources to achieve financial prosperity for communities, organizations, and individuals.

These goals have always been present throughout the firm’s 30-year history. They were embodied by its founders and are now written and passed down so that each team member embraces the vision, values, and approach, and understands the actionable steps they need to pursue on every project to make life better for all stakeholders.

Implementing sustainability in daily practice

To live our vision and values, we asked ourselves, “what do these aspirations look like on each person’s desk?” The values must translate into daily practice for each person and every project.

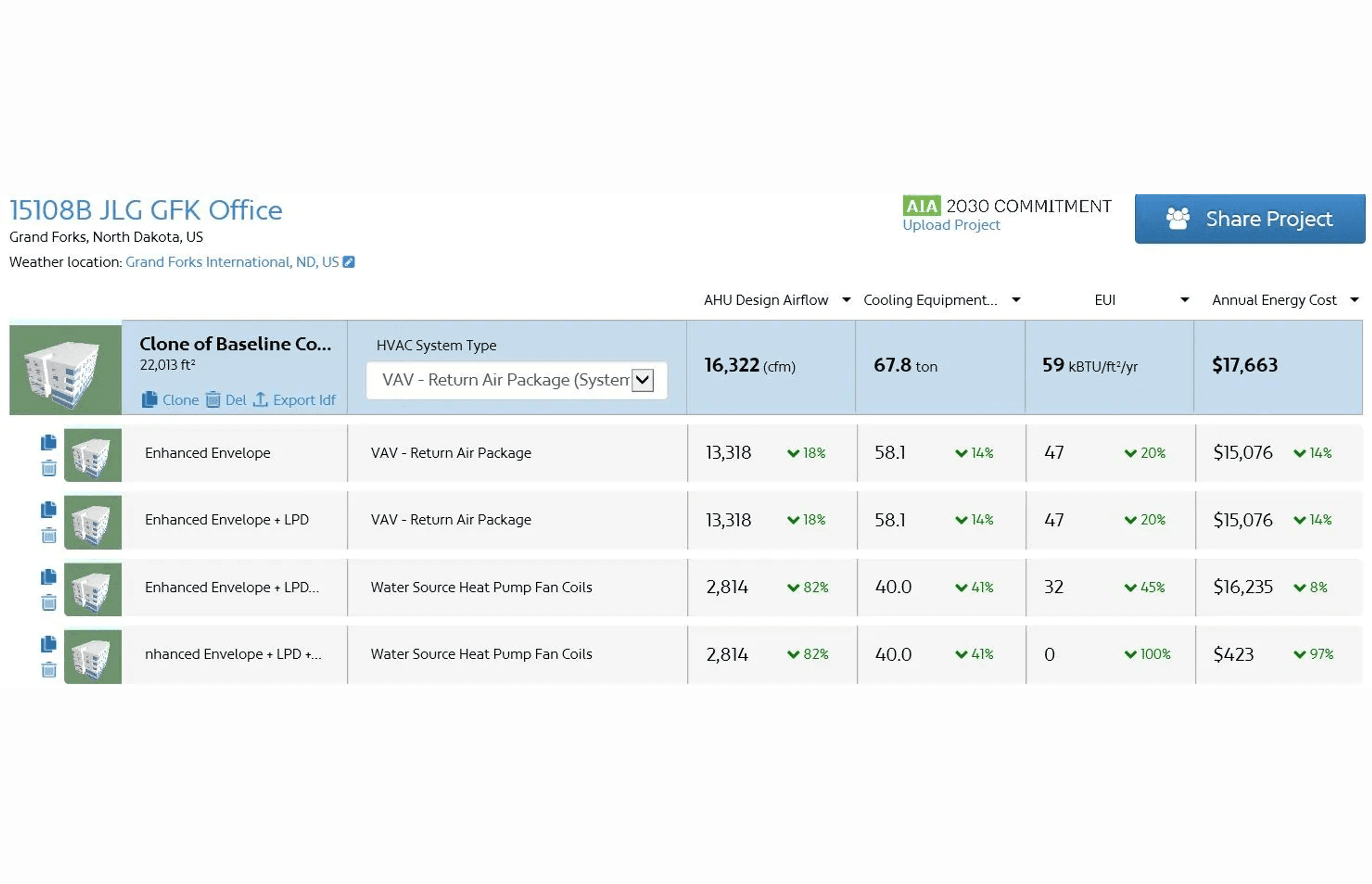

As part of this effort, JLG signed the Architecture 2030 commitment. Rather than only submit a report once a year, we’ve accelerated the integration of that commitment into our project process. We decided to take a game-changing leap by creating energy models for all 2030 reportable projects and completed an AIA framework for Design Excellence (FDE-10) spreadsheet for every project. We deployed Sefaira firmwide in June of 2020, and by the end of September, every project had an FDE-10 spreadsheet, and every 2030 reportable project had an energy model with performance targets established. All our staff received Sefaira training, and more than 100 energy models were prepared in approximately 90 days. We now have approximately 200 energy models.

Today, every project starts with an FDE-10 high-performance plan and an energy model; and each model has a net-zero design option.

Instead of targeting incremental improvements or focusing only on isolated projects, we went all in and performed analyses on every single project. Every project has a designated team member responsible for performance analysis. All ten topics in the AIA framework are addressed with high-performance targets that bring valuable options for clients to consider. As a result of this concerted effort, our 2020 report achieved a 55% energy reduction compared to the 2030 baseline.

Additionally, every team member is engaged in delivering design excellence. A staff quiz in the fall of 2020 showed that 100% of respondents knew what EUI stands for (Energy Use Intensity). [Read about the six metrics every designer should know.] They understand the key factors for optimizing the energy performance of a building’s envelope. Each person knows the target EUI for typical projects and has access to the zero baseline tool, and Sefaira energy and daylight simulation plugins on their desktop. JLG wrote a custom script to launch the Sefaira plug-in for SketchUp so that it is always on as design starts and continues.

JLG has a process to capture lessons learned so that they can be applied to future projects and help identify financial ROI. “We have produced nearly 200 energy models in less than a year, and we have seen the benefits, including improved design and positive financial return. One example has a projected ROI of over $200,000 of net positive revenue after 30 years of equipment life. Using Sefaira, we find that performance informs form. As we conduct design analysis, the performance simulation gives useful information that designers can leverage when determining building form.”

Preparing for success

Energy modeling specialists charge architects between $7,500 - $40,000 to complete a detailed energy model that typically lags behind the design, delaying progress, and has limited value.  JLG does not approach building performance as an add-on; it’s simply part of the way they work.

“Instead of designing a building like a stack of pancakes and then pouring sustainability syrup on after the fact, we’re mixing sustainability into the design ‘batter’ from the beginning on every project.  We have ended the syrup syndrome.”

JLG is driven to find affordable design excellence for every client. This makes it vital for us to keep design analysis fast, iterative, and affordable because it saves both time and costs for the team. We consider sustainability as inseparable from design excellence.”

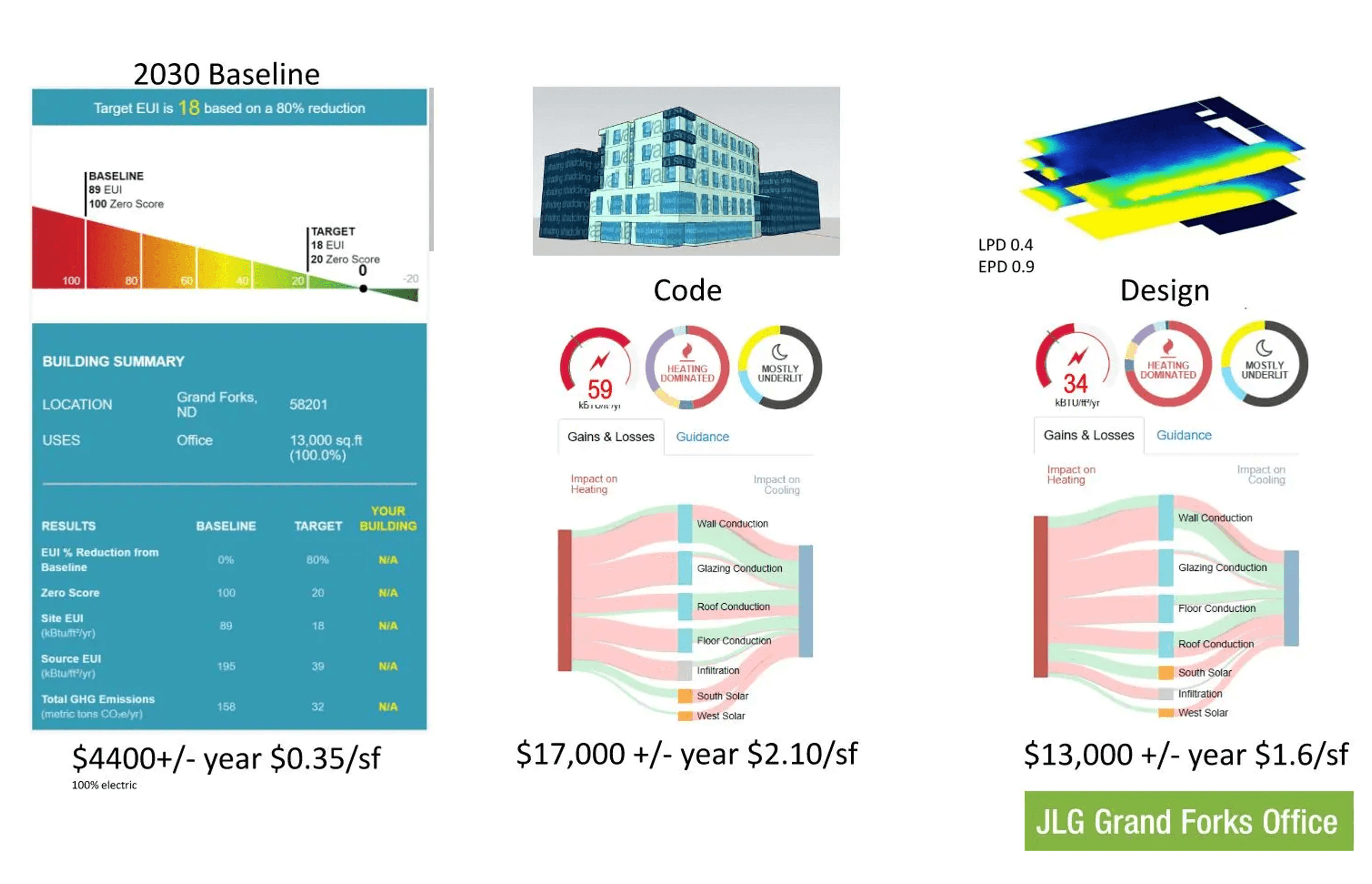

It takes only one to four hours to set up an early phase concept model and to establish a predicted Energy Use Intensity (EUI) target.  JLG typically spends an additional two to eight hours per design phase to optimize the design, which is much less than the old style of energy modeling which can take 100 to 200 hours over several weeks.

JLG has defined a starter file that contains presets such as the building code baseline and best practices for optimization, learned from its extensive database of energy models.  They study different massing types — long and narrow versus deep floor plates — and various orientation options. This allows them to know which sensitive factors to watch out for early on.

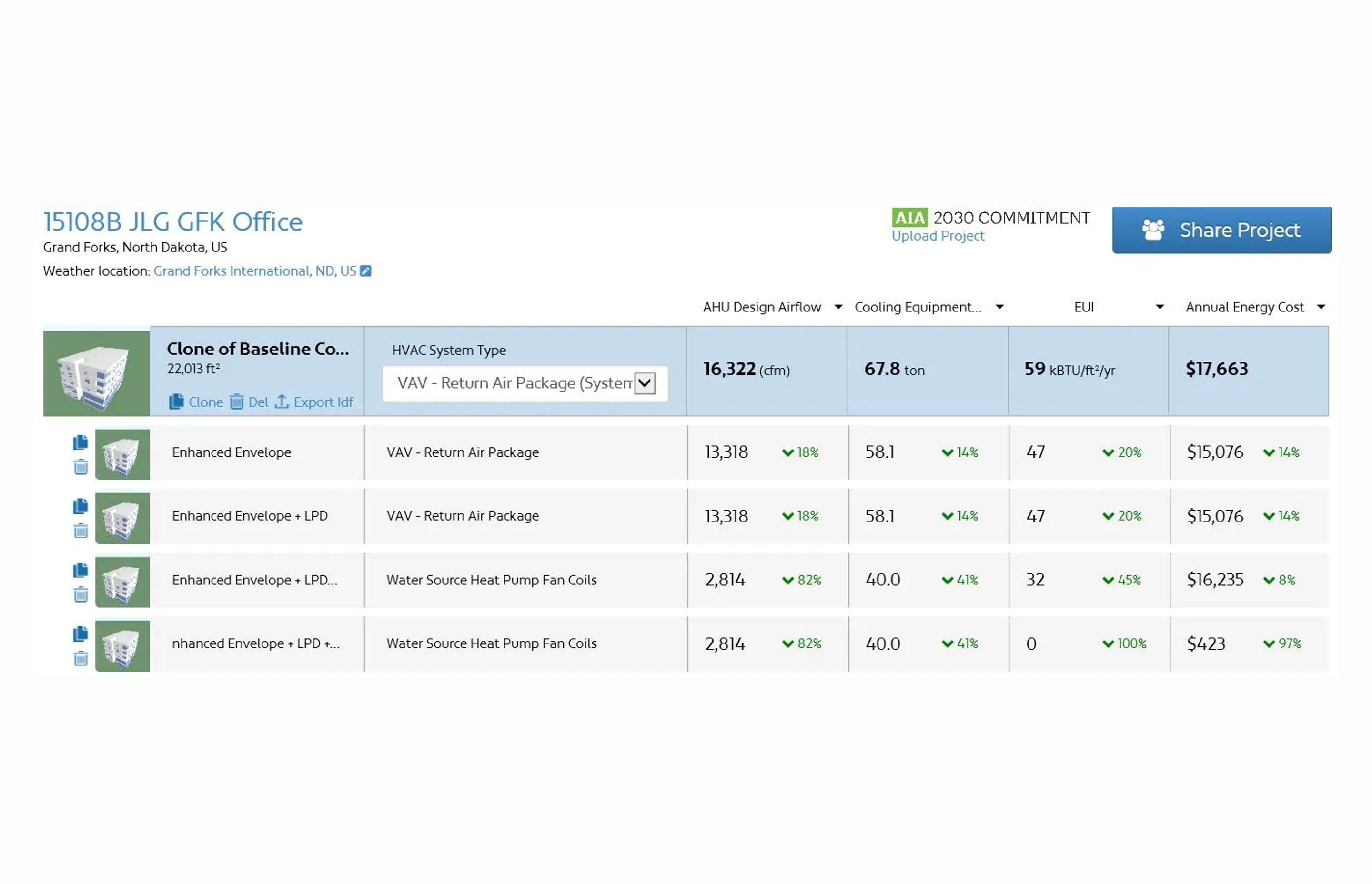

Next, JLG tackles envelope specifications, lighting power density, and investigates the impact of HVAC solutions that can contribute to net-zero energy options. With this information, JLG can have an informed conversation with the client about the opportunities and the value of net-zero goals and financial payback that often show a net positive total cost of ownership. Presenting options and value makes for better conversations with clients.

Sustainable design is more than just a checklist

Sustainability has often devolved into a checklist approach. JLG raises the bar by focusing on the outcome and applying an iterative, integrated approach that yields better results. JLG defines project aspirations first, then creates stretch goals that are actively pursued.

For technology to survive and become ubiquitous, it has to be fast and relatively inexpensive, or it won’t be used consistently.

SketchUp and Sefaira are both fast, relatively inexpensive, and flexible enough to allow us to push the envelope.

When we ask ourselves, “How far can we go with this tool?”, SketchUp allows us to go from ideation to development and daylight optimization. We leverage our SketchUp model deeper in the design process by exporting an IDF file or by using our SketchUp file as a linked file in Revit during construction documentation. By leveraging agile, adaptable skills, building owners get better value.

Overcoming industry challenges

In architecture, the way we think about sustainability is a big hurdle to implementing sustainable design.  Patrick Thibaudeau and the JLG team aim to make high-performance design excellence and net-zero buildings the norm rather than the exception. “We need to understand and believe that it can be done rather than thinking it can’t.  If we believe we can push the design boundaries for better, more sustainable outcomes, we do better.”
