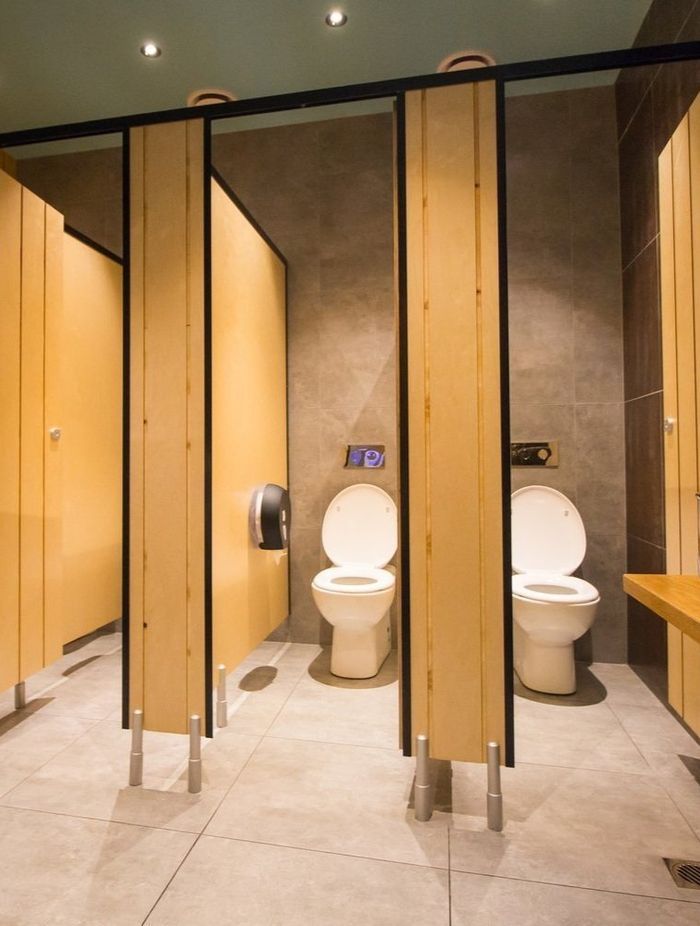

Classic
Classic by name classic by nature

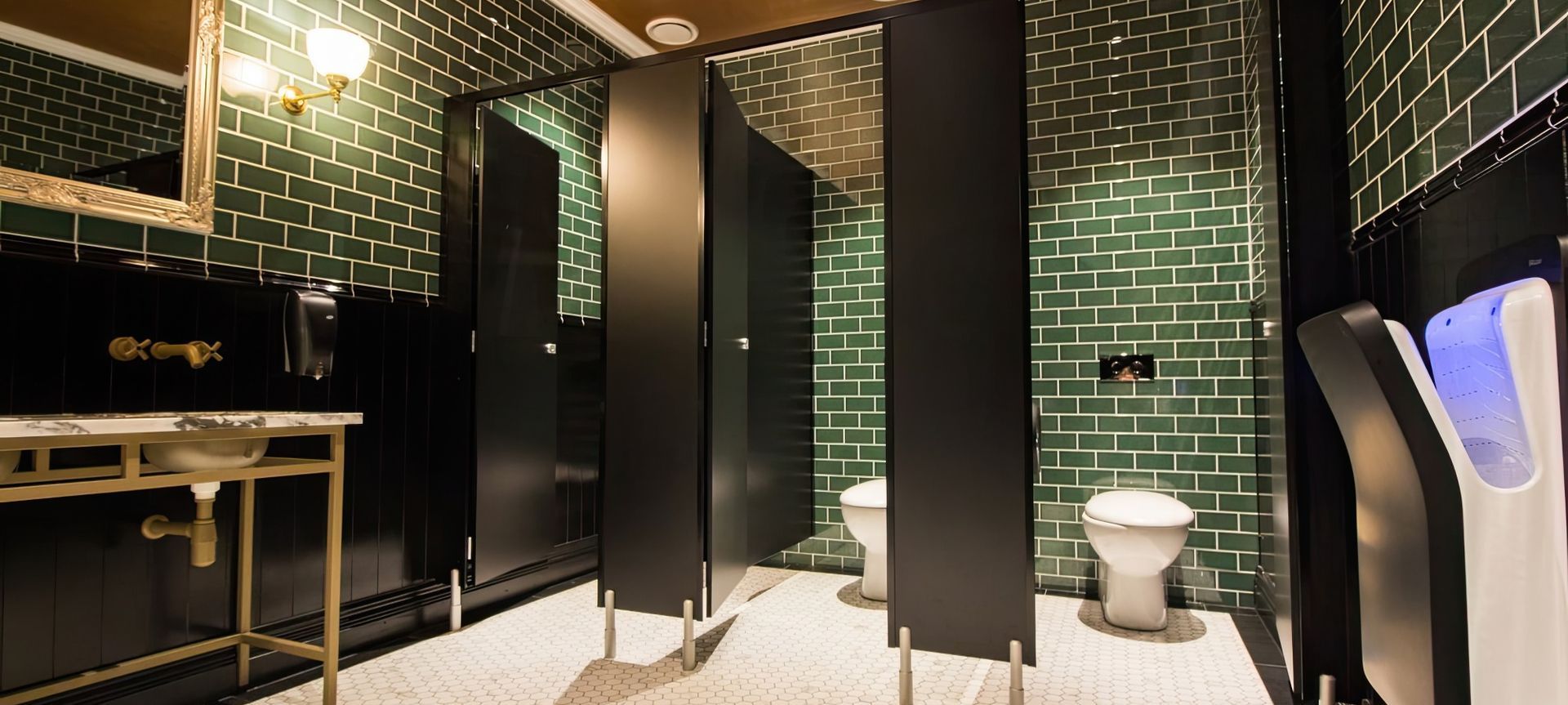

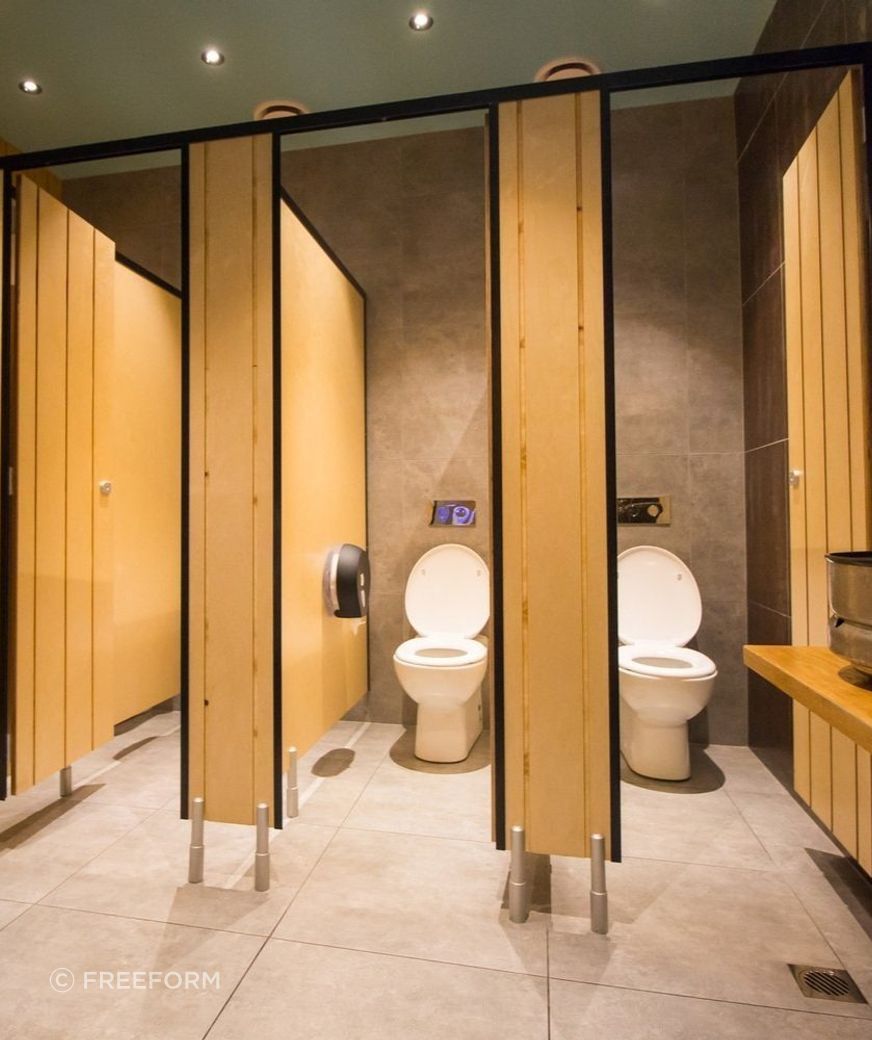

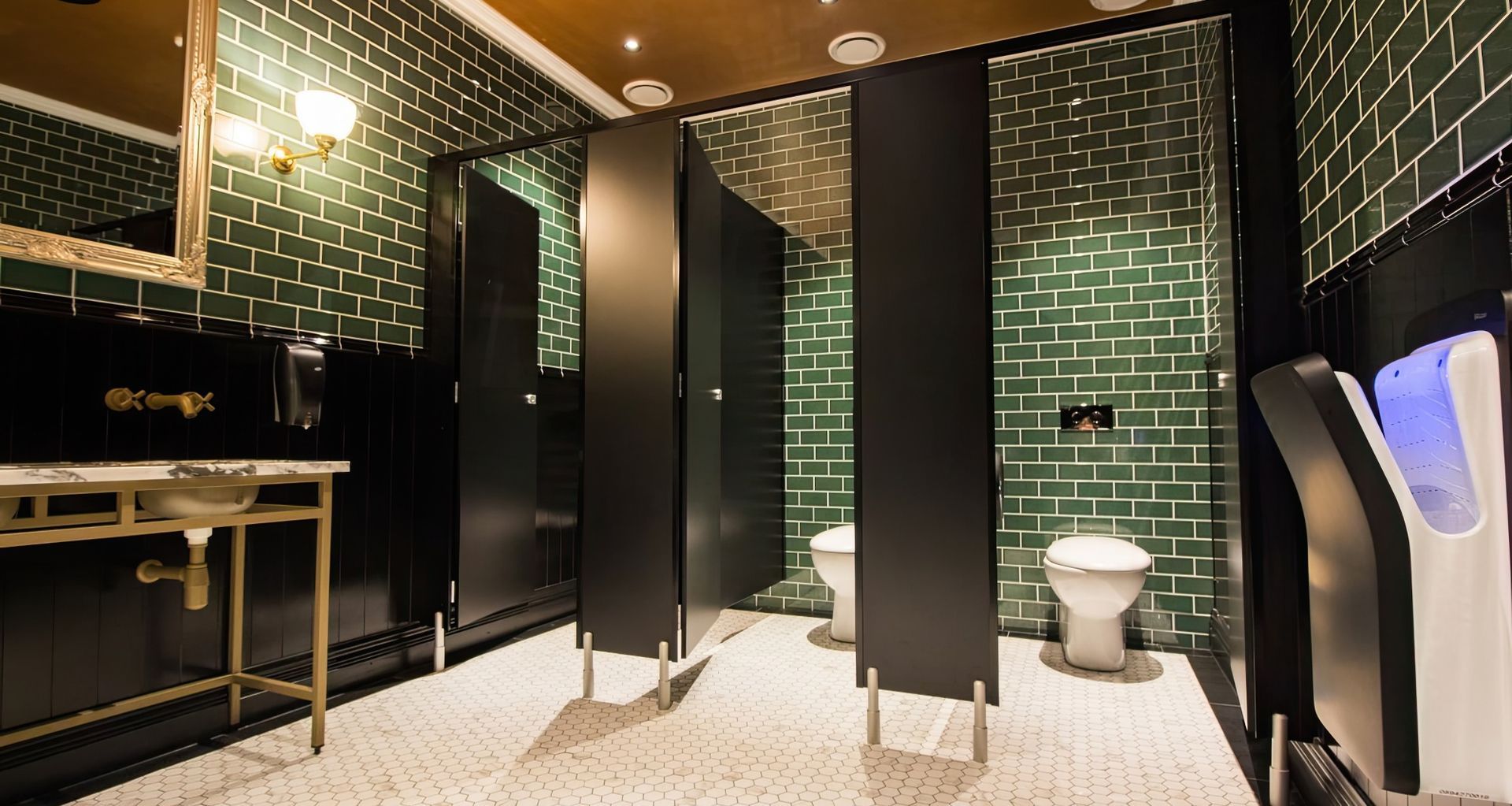

Our more traditional toilet cubicle option. With 1815 panels finishing above the floor and below the ceiling. This is a fully framed cubicle system, incorporating full height aluminium extruded door profiles, full height fixing U-channels, rounded corner posts and a headrail. Solid aluminium support legs & locking system, with emergency release checkouts providing safety and durability. Doors are supported by 3 heavy duty satin anodized aluminium hinges.
The following substrate options are available in our Classic Range.

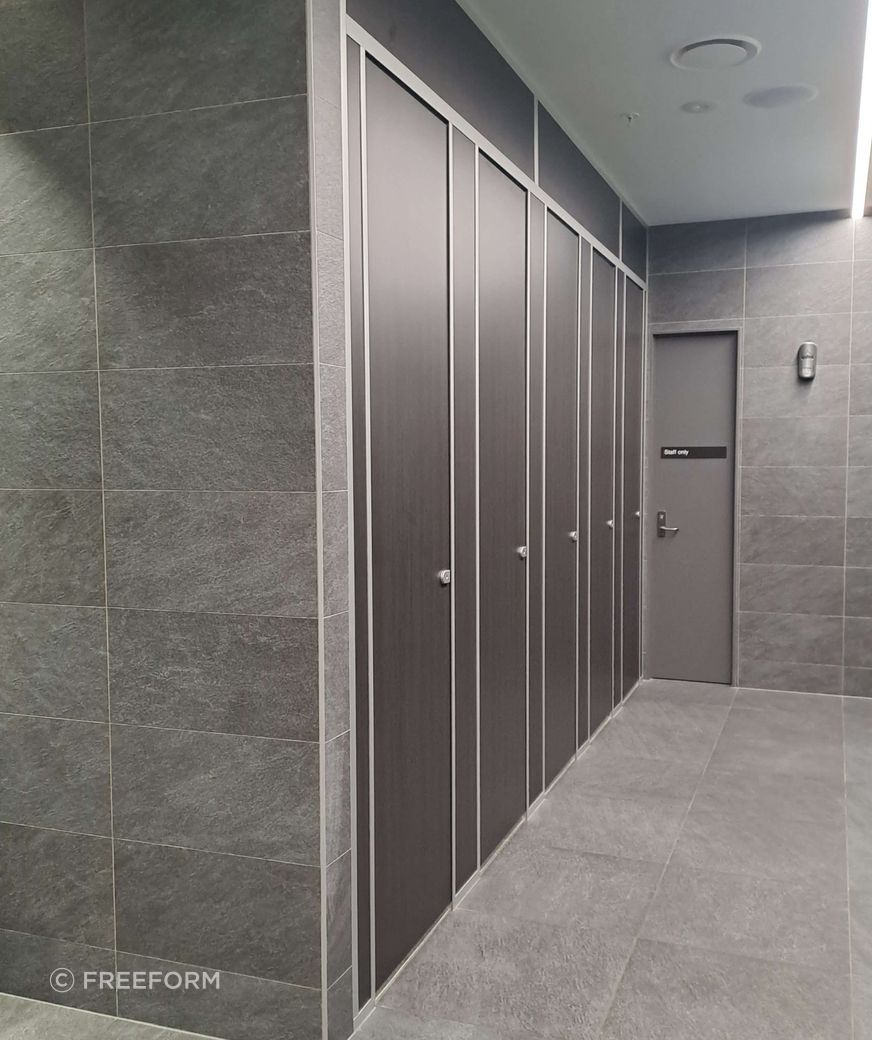

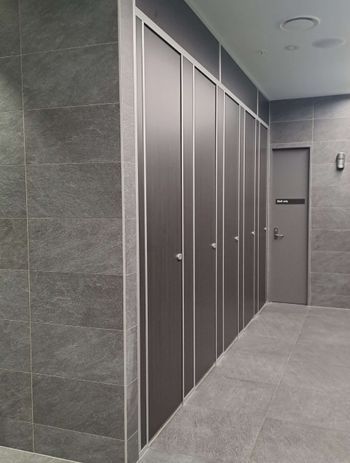

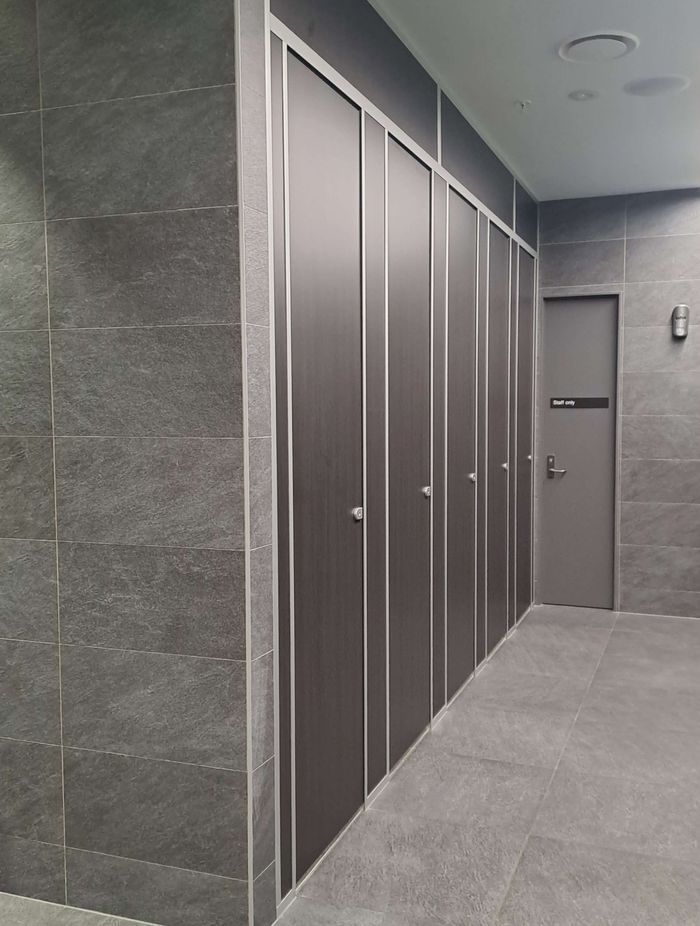

High Top
Our Classic range has a big brother
Hightop is designed for situations where optimum privacy is preferred. Panels stretch down to the floor and up to the ceiling, creating a completely private cubicle. This system comes standard with a 2-meter door; however, this can be adjusted if specified. Standard door clearance allowance is 35mm above the ground and 10mm below the headrail. Optional 10mm to floor clearance available if required.
The following substrate options are available in our High Top Range.

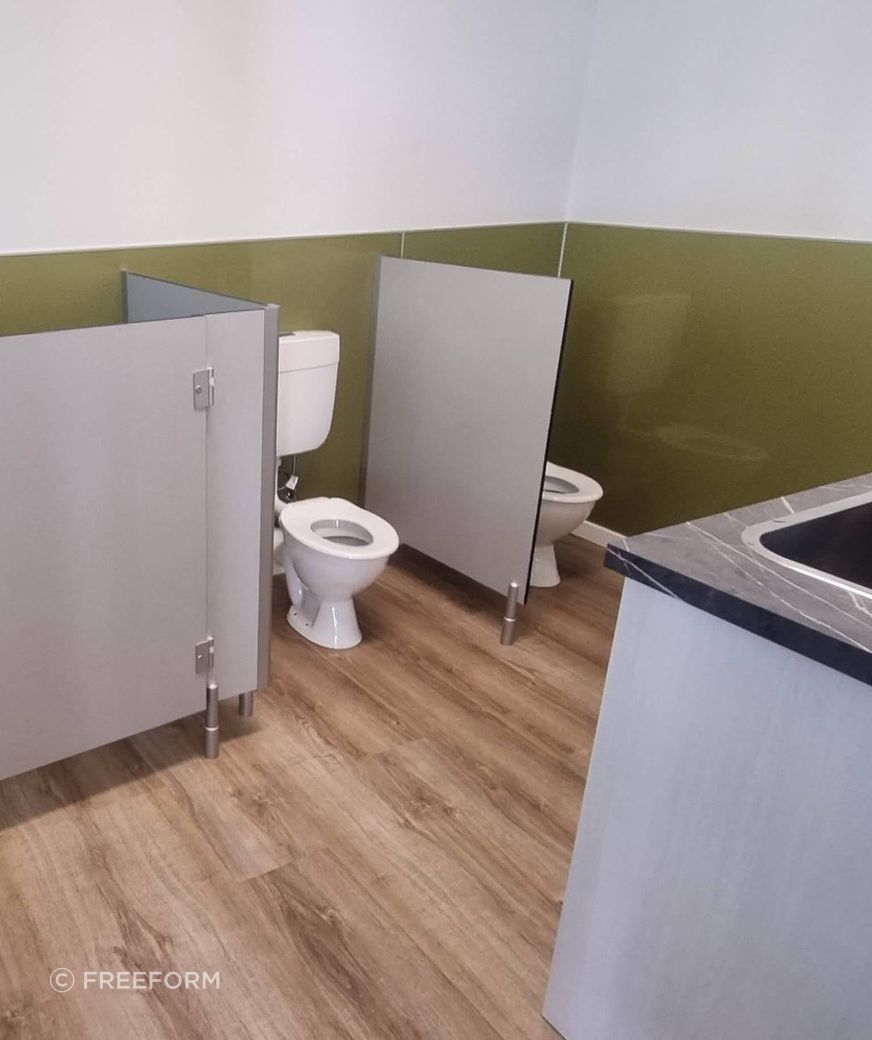

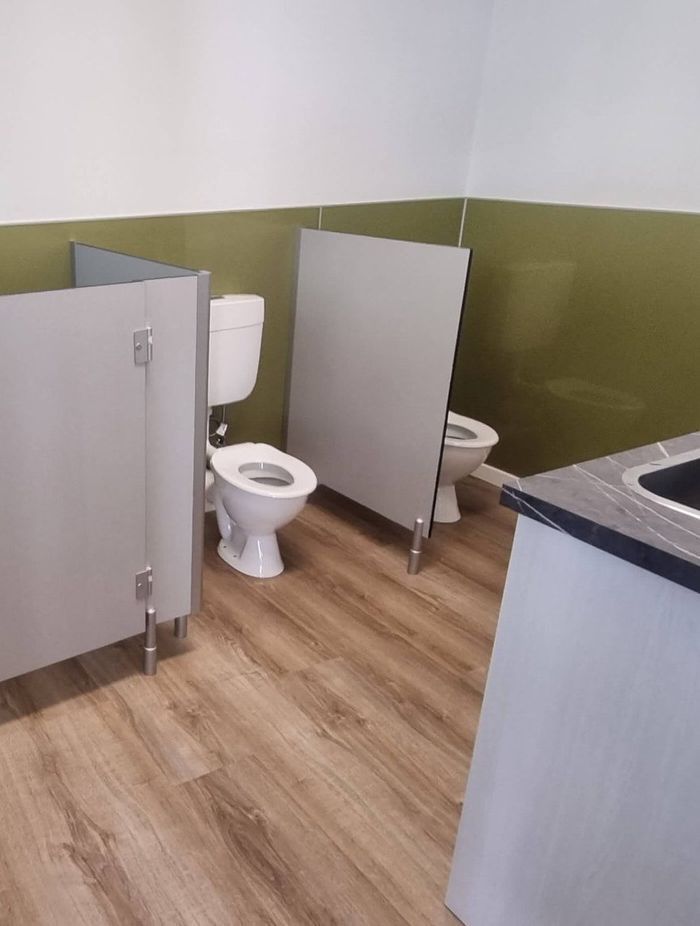

Pee-wee
Designed Specifically with Children in Mind
We deliver a cubicle range to support new entrants and pre-school children. Everyday activities away from the security of home can be daunting at this early age, Pee-wee is 100% child friendly and fun. Scaled down on size and available with options of door art or CNC cut-outs. Check out our Pee-wee range and see why it has become so popular with children and parents alike. Pee-wee cubicle doors are self-closing and without a locking component for safety. The Pee-wee cubicles can be customised with simple designs, programed and cut on our CNC.
The following substrate options are available in our Pewee Range.
13mm Compact Grade Laminate
- Suitable in wet or dry conditions.
- Tough & very durable.
- Sealing & protecting of sawn edges or the surface is NOT required.

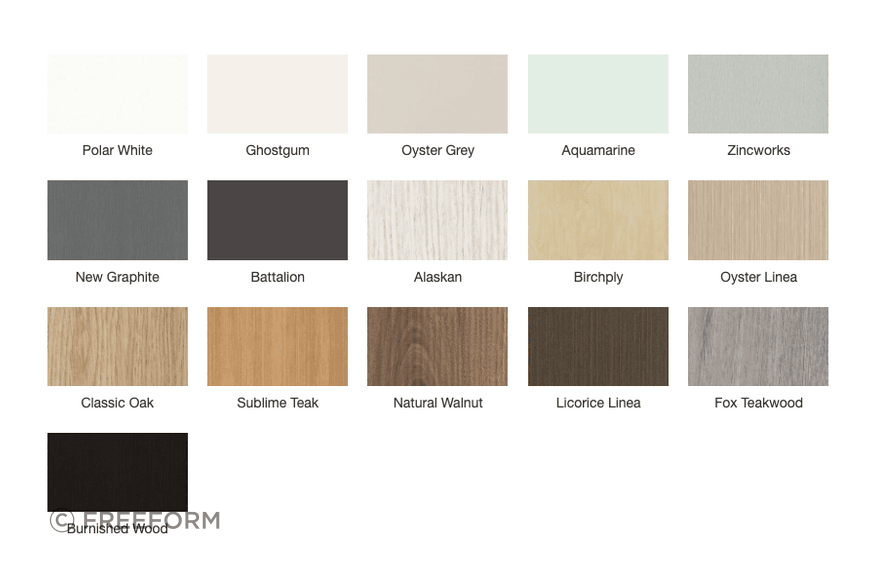

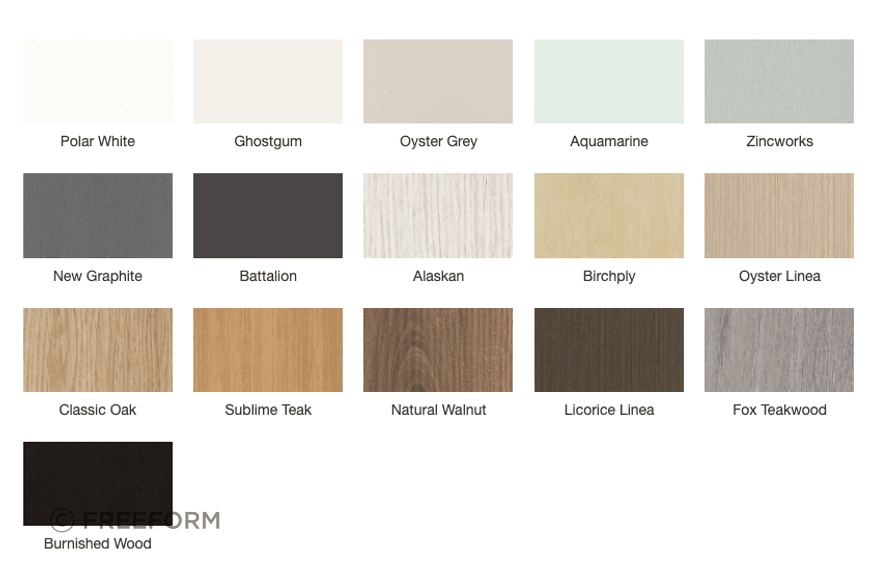

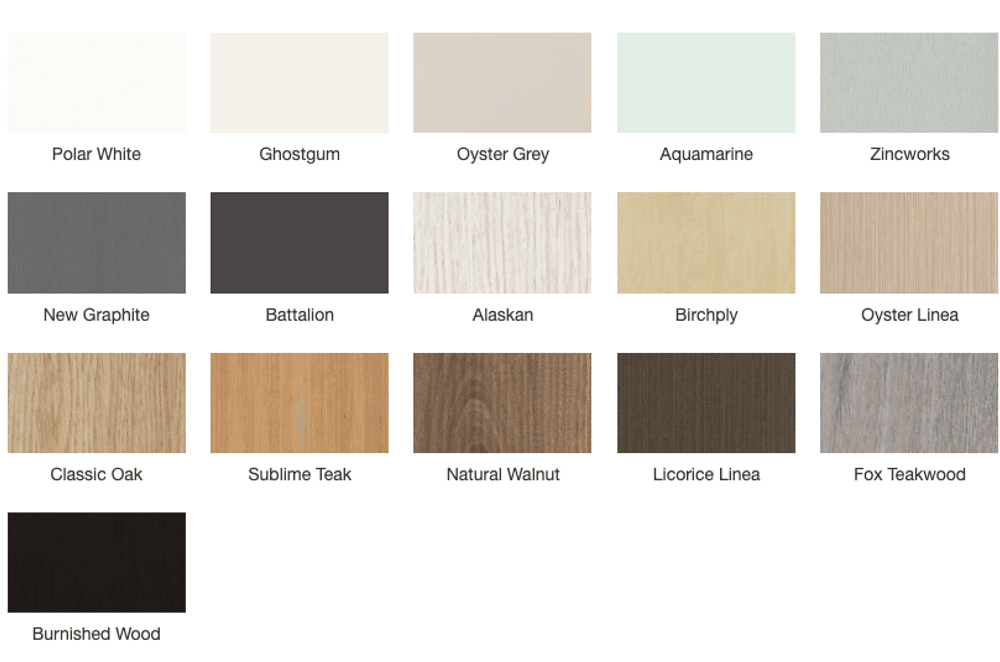

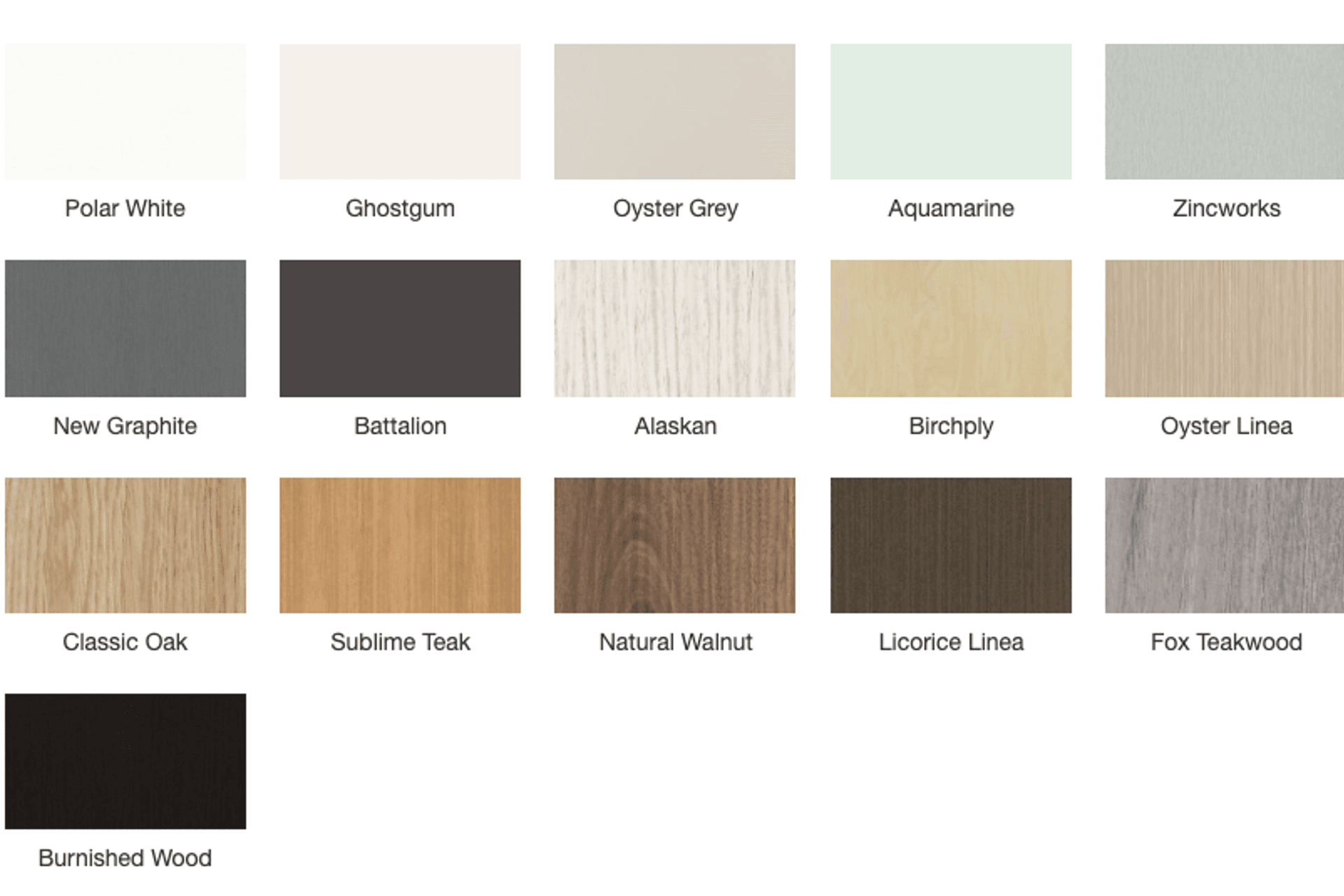

- Available in 16 colour choices.
- Fully framed panels
- Stain resistant.
- Impact resistant.
- Group 3 - Fire rating.
- UV stable indoor use.
- Antimicrobial surface inhibits the growth of bacteria & fungi.
- Ease of cleaning - Hosing down the cubical area is an option with this product.
18mm Melamine Faced MDF Panel
- Suitable for dry areas only.
- Good durability
- Exposed edges are finished with 2mm profiled PVC lipping.

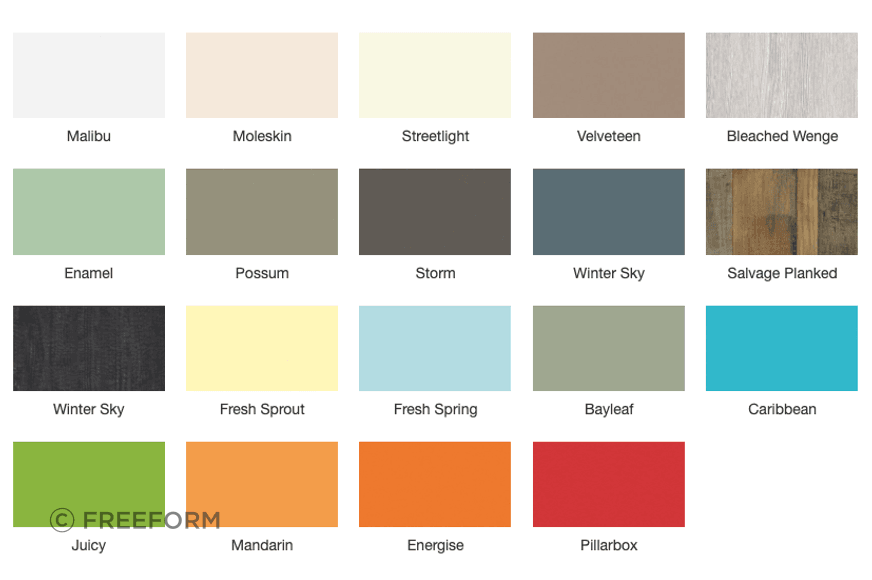

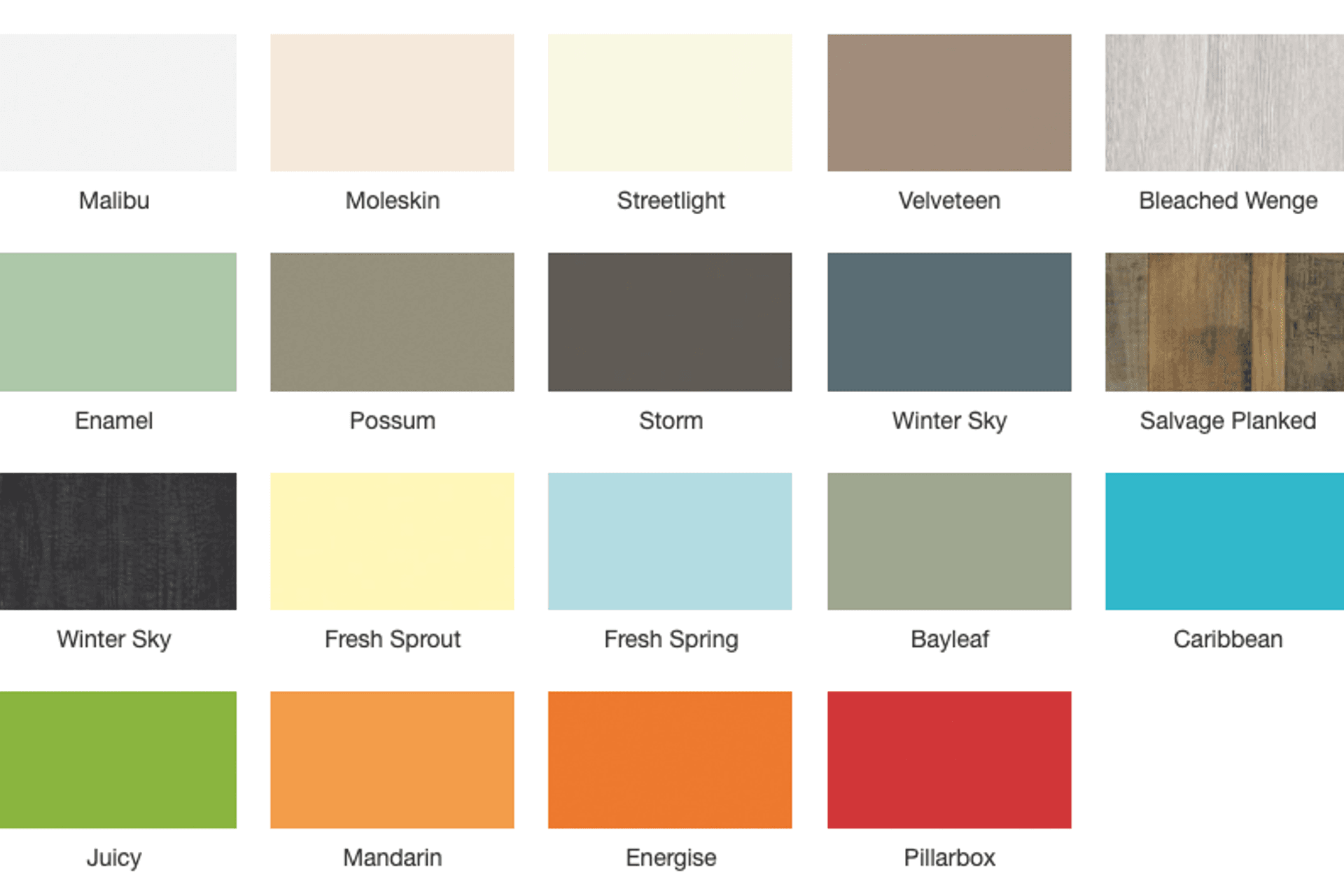

- Extensive colour choice
- Fully framed panels
- Cost effective pricing.
- Extruded aluminium door profiles give strength and rigidity to cubicle panels.
- Flush fitting door closure, along with our uniquely designed door profiles, assures complete privacy.
- Door and panels pre-drilled in our factory
- All end and centre pilasters, pre-fitted with door profiles. These simply requiring, specially designed satin anodized support legs, to be fitted to them on site.
- Dividing walls are fitted to centre pilasters and structural walls using full height satin anodised aluminium U-profiles, maximizing privacy, and allowing for hidden on site adjustments.
- The classic range is fitted with heavy duty aluminium hinges, door locking system, coat hocks and custom-made adjustable support.
Complementary Products
A full range of colour co-ordinated vanity units & urinal screens are available to compliment all our Freeform Ranges.
New Zealand Made
As a family-owned company, Freeform is proud to manufacture all cubicles in our Christchurch factory. Our components and hardware are designed and supplied exclusive to Freeform and manufactured in Christchurch.
Freeform has completed may large contracts over the years, one of which is the installation of HiTop cubicles in the Te Pae Convention Centre. Looking forward, we are eager to see the completion of the Metro Sports facility, where our cubicles will feature in this state-of-the-art Sorts Complex.
Environmental
As an environmentally conscious business, we are constantly striving for the best practice in our industry. This includes a commitment to regularly upgrade machinery & processes to protect the health of our team.
