100PASi20 | Linear Drainage System
by Stormtech
New South Wales
- 566.0K profile views
- 67 saves
Stainless steel linear drain grate and channel modular kit designed for architectural applications. Suitable for internal and external wet areas.

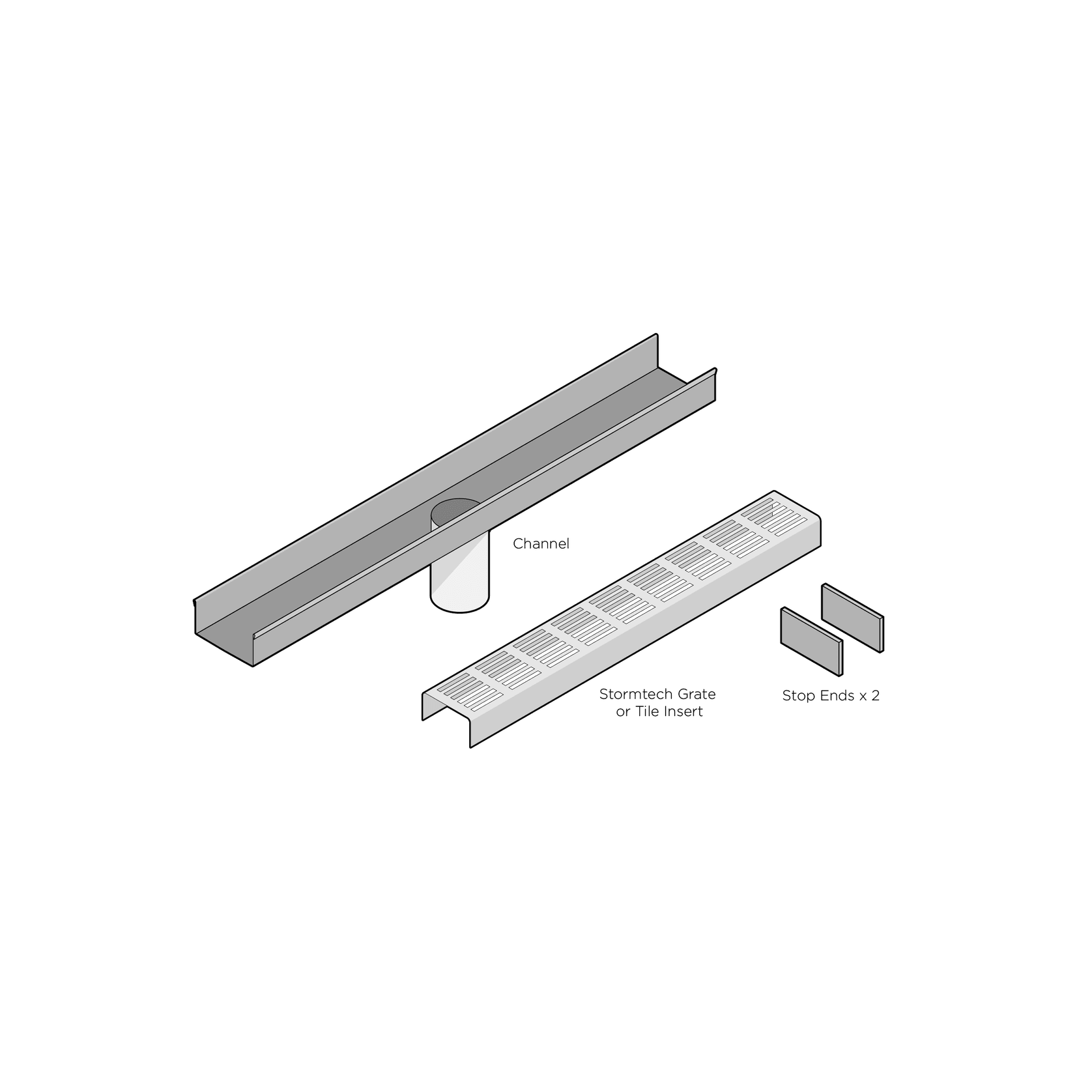

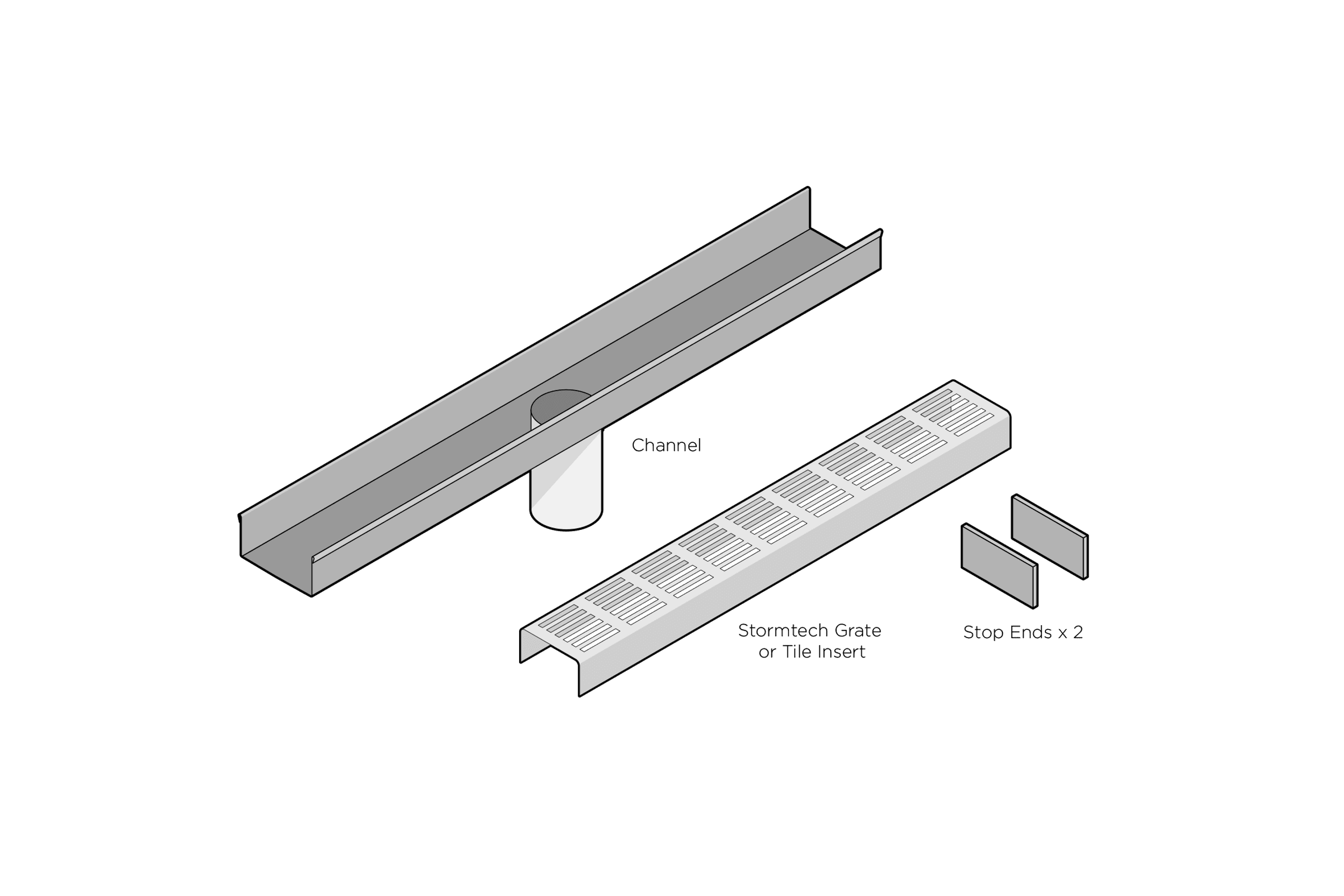

Stainless steel kits feature an oversized channel with a pre-punched outlet, allowing self-selection of outlet position before cutting the channel to size upon assembly. Kit contents include channel section, grate section, 2x end caps, and outlet extender.
Product Details
- Product
- 100PASi20 | Linear Drainage System
- Category
- Surface Drainage
- Sold by
- Stormtech
- Range
- 100
Product Variants
- Size
Stormtech is specified by
Cadence & CoArchitects
Windiate ArchitectsArchitects
Taylor KnightsArchitects
Whisker ArchitectureArchitects
BVNArchitects
Create ArchitectureArchitects
Tim Hodges ArchitectArchitects
Eliza Blair ArchitectureArchitects
J Mammone ArchitectureArchitects
djrd architectsArchitects
Chan ArchitectureArchitects
WexhausArchitects
Ian Moore ArchitectsArchitects
Greenaway ArchitectsArchitects
Winter ArchitectureArchitects
Bower ArchitectureArchitects
ArchierArchitects
Hive ArchitectureArchitects
Smyth & SmythArchitects
SJBArchitects
Tham ArchitectsArchitects
Utz Sanby ArchitectsArchitects
DX ArchitectsArchitects
Bryant Alsop ArchitectsArchitects
NTF ArchitectureArchitects
Rama ArchitectsArchitects
K.Holland Architectural InteriorsInterior Designers
Sici DesignInterior Designers
Seidler GroupDesign & Build
STUDIO GAXAInterior Designers
BeecraftBuilding Designers
Studio ApercuInterior Designers
Hutchinson BuildersBuilders
Stainless steel linear drain grate and channel modular kit designed for architectural applications.
Suitable for internal and external wet areas.
Stainless steel kits feature an oversized channel with a pre-punched outlet, allowing self-selection of outlet position before cutting the channel to size upon assembly. Kit contents include channel section, grate section, 2x end caps, and outlet extender.
- Specs

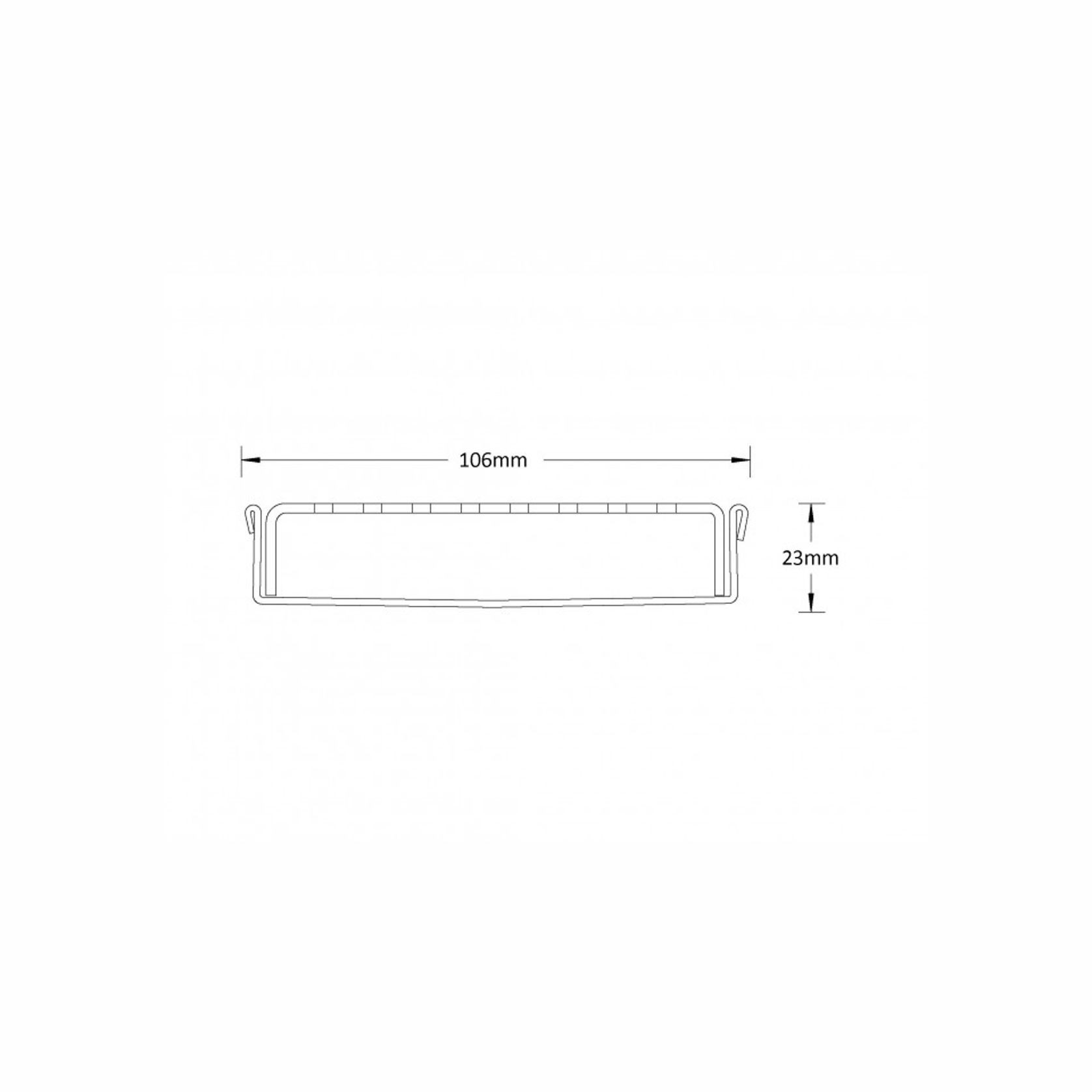

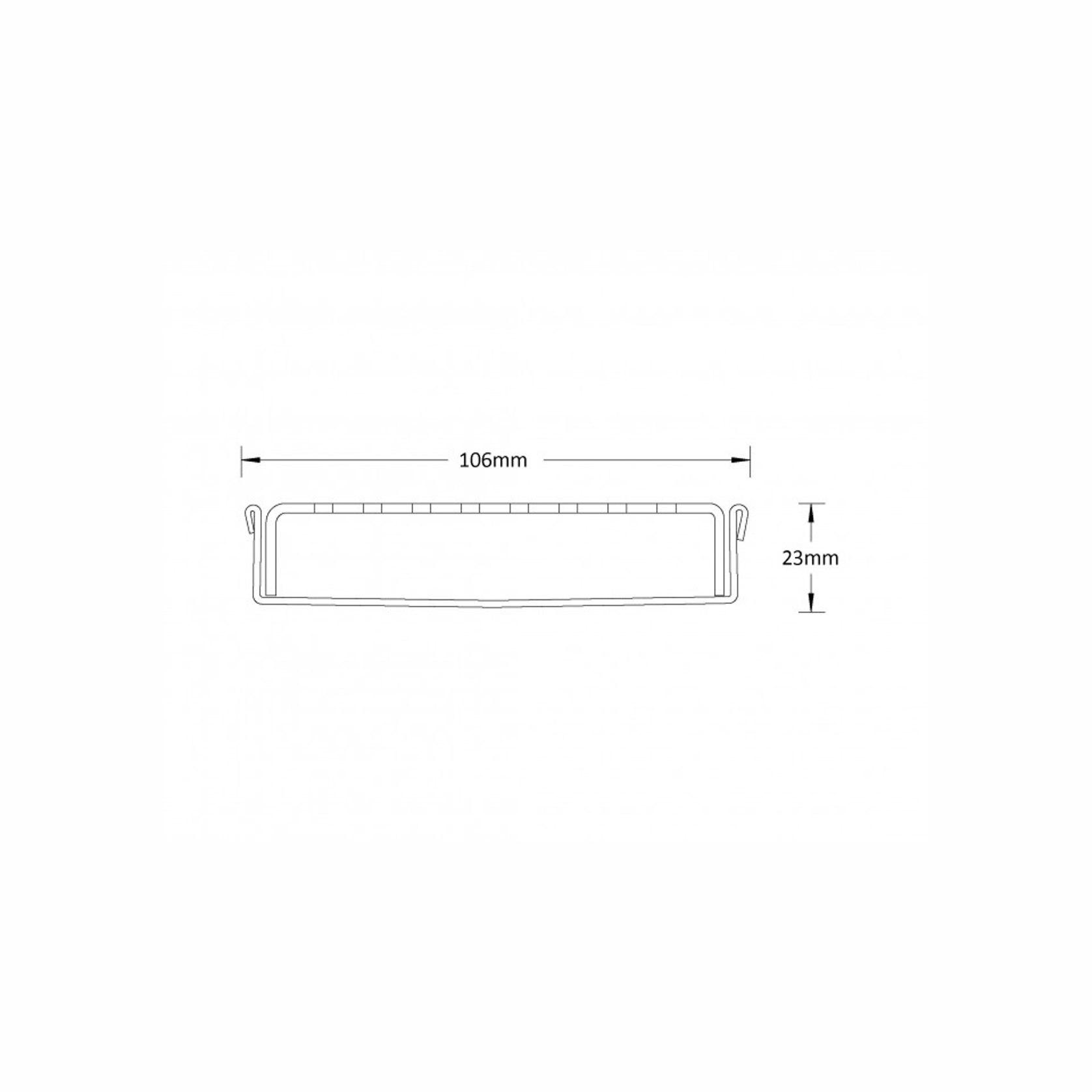

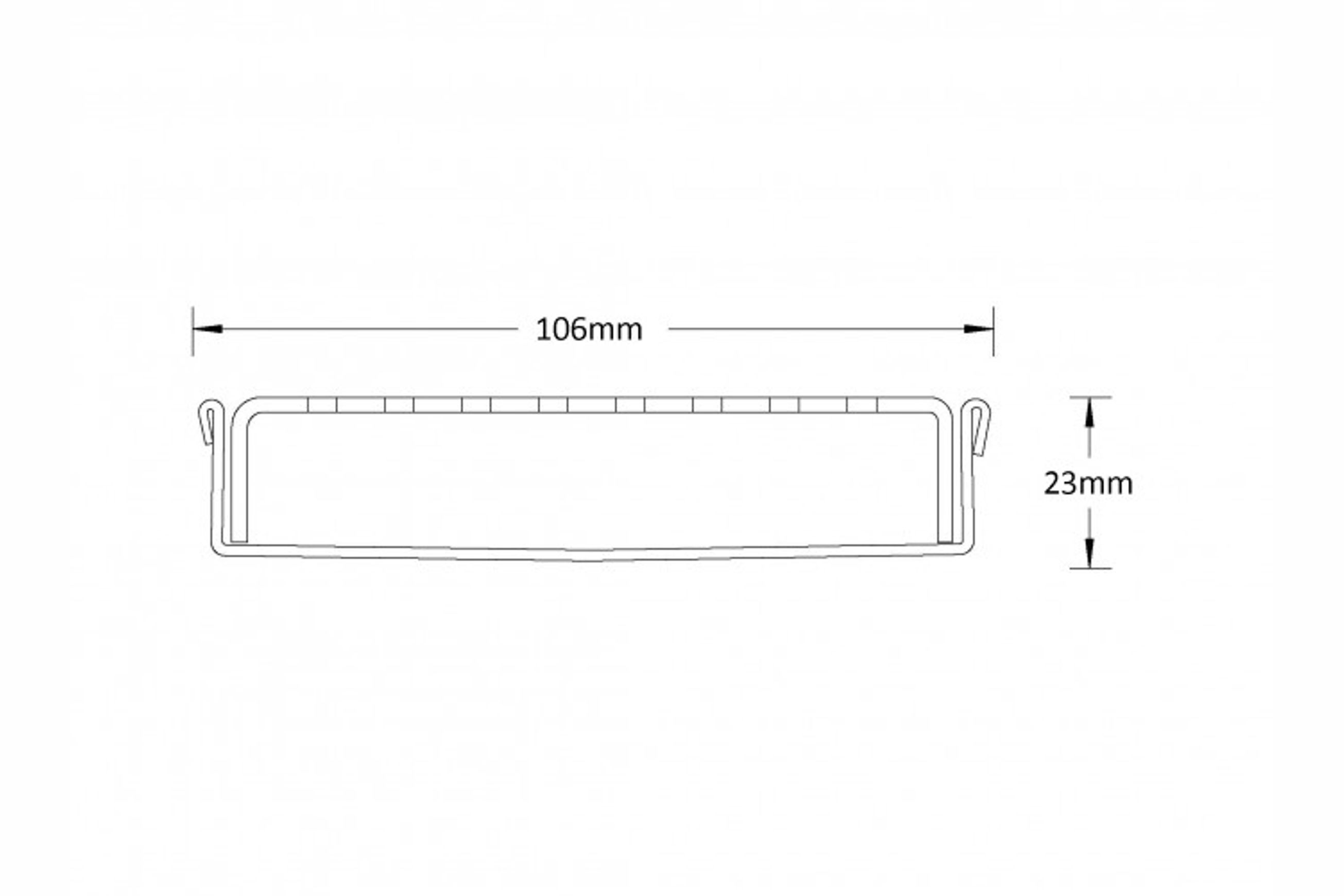

- Channel Width: 106mm
- Channel Depth: 23mm
- Length(s): 900mm, 1000mm, 1200mm, 1500mm, 1800mm, 1900mm, 2000mm, 2100mm, 2100mm, 2200mm, 2400mm, 2500mm, 2700mm, 2800mm, 2900mm, 3000mm
- Outlet Size: DN50, DN80, DN100
- Features

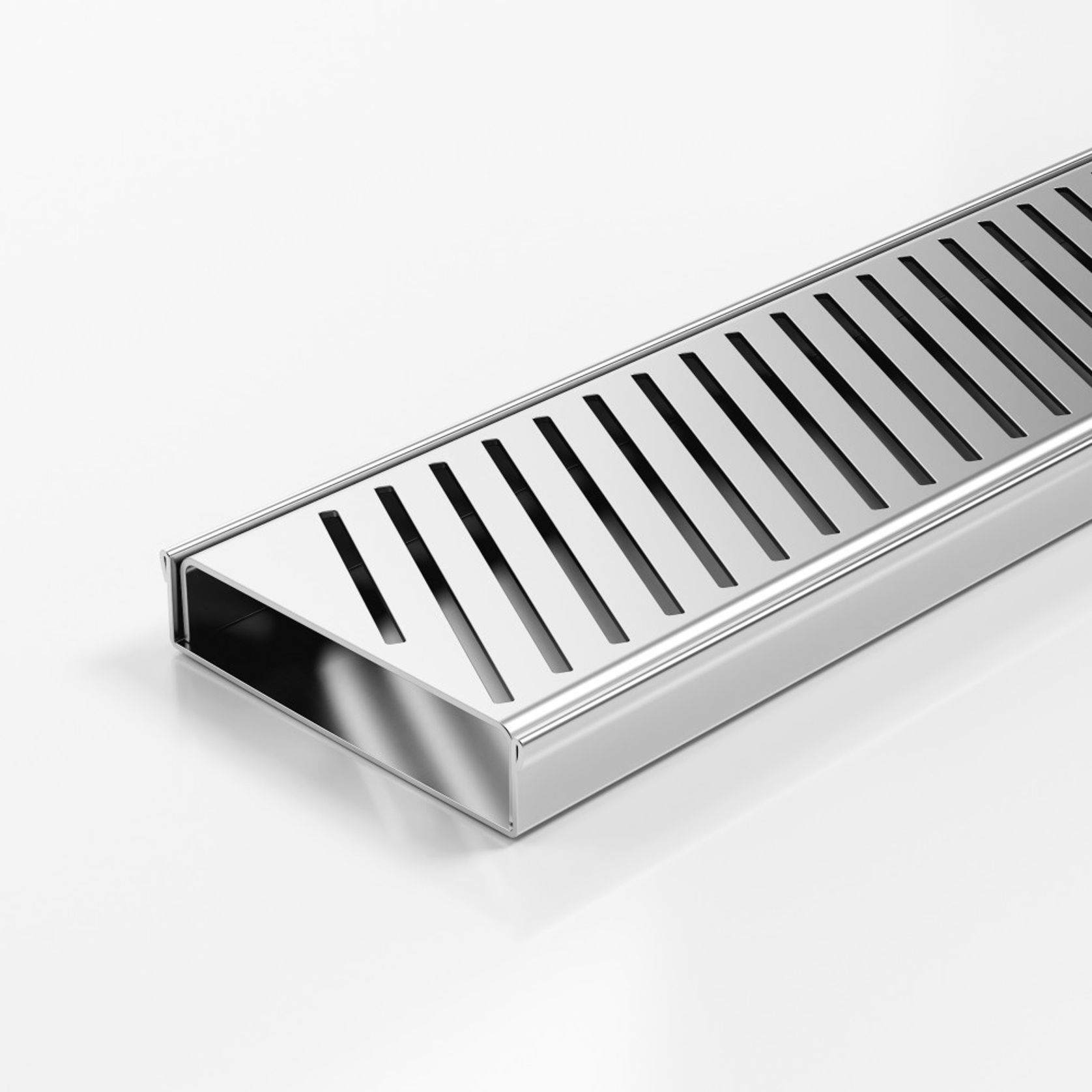

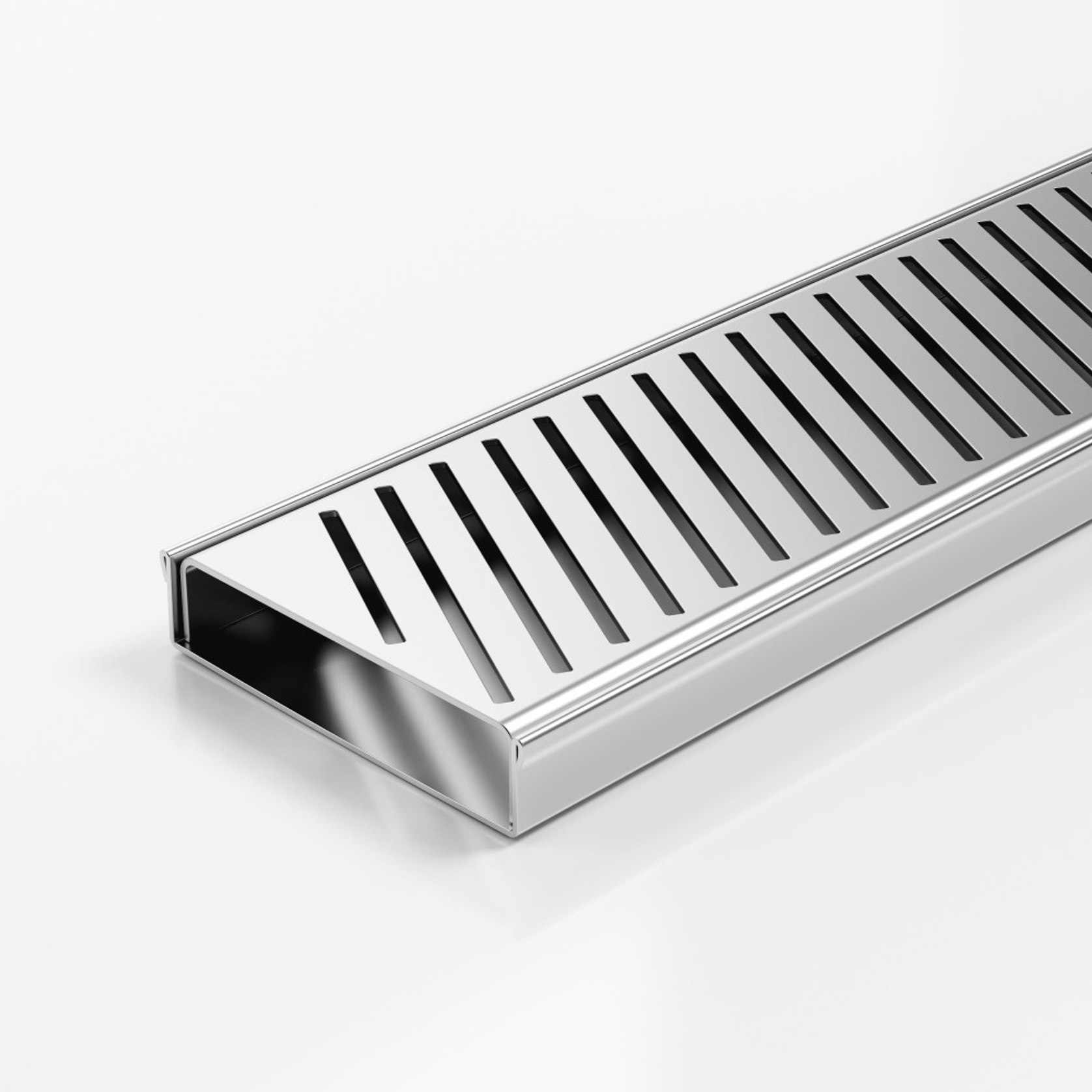

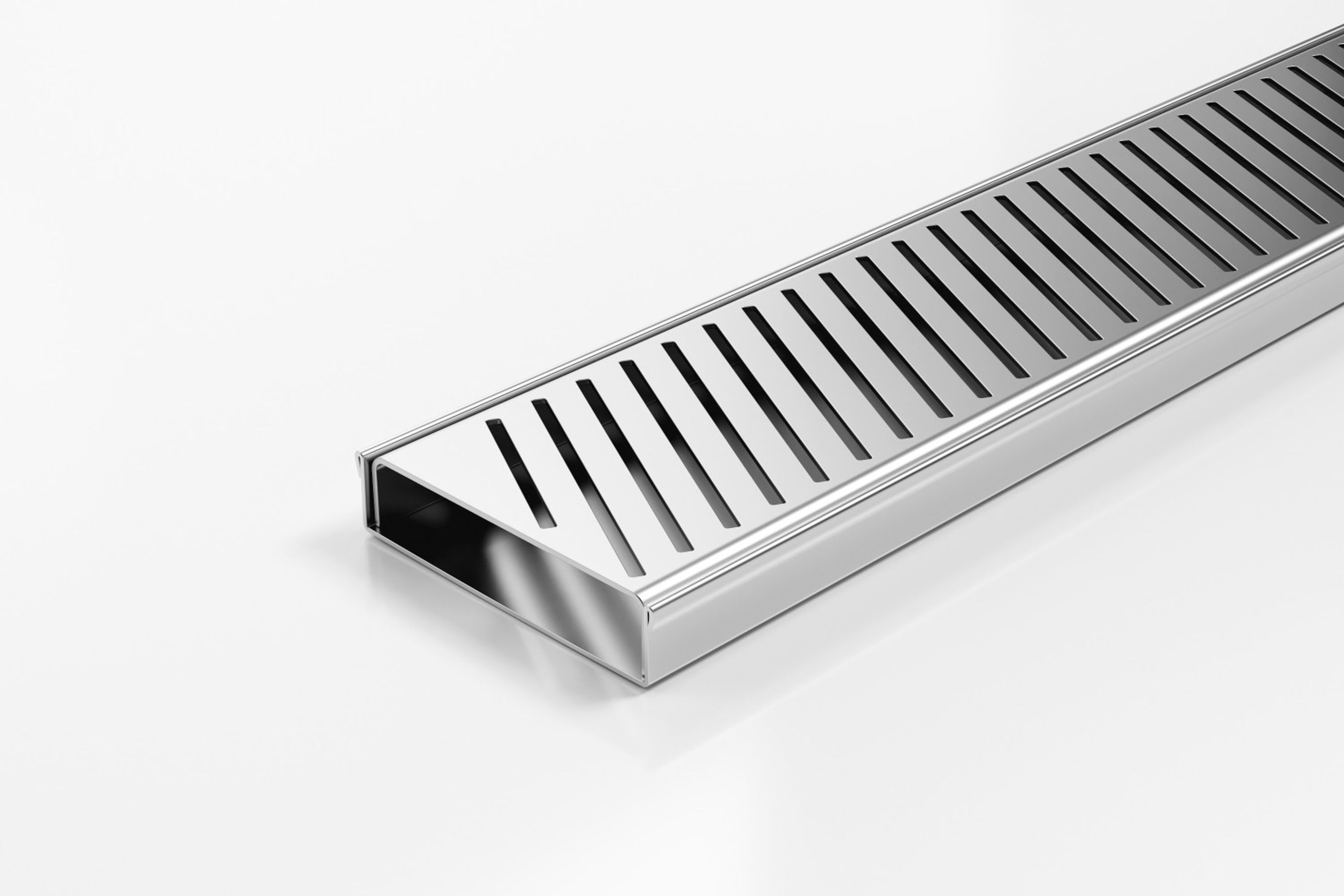

- 100mm Wide Punched Angle Slot Perforated Stainless Steel Grate with Stainless Steel Drainage Channel
- This punched angle slot perforated grate, manufactured from 316 marine-grade stainless steel combined with stainless steel channel, offers an affordable option for using the Slimline drainage system.
- Please be aware that, depending on the installation environment, for a pool installation or close to a surf beach, you may need to have your stainless steel grates electropolished.
