100TRGALLBL20 Linear Drainage System
by Stormtech
New South Wales
- 560.5K profile views
- 67 saves

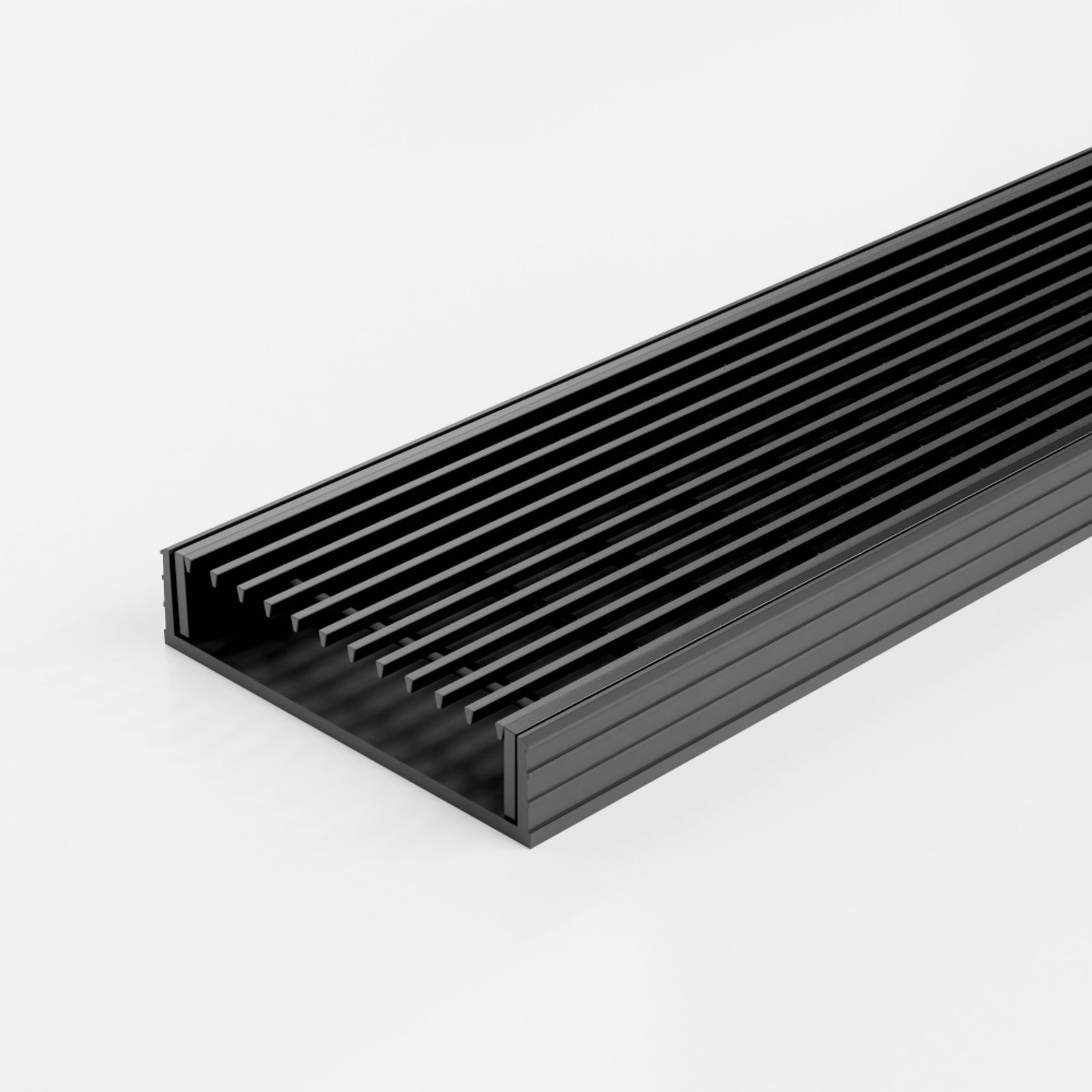

Stainless steel linear drain grate and black uPVC channel modular kit designed for architectural applications. Suitable for internal wet areas.
uPVC kits feature a slightly oversized channel with loose outlet, allowing self-selection of outlet position before cutting down channel to size upon assembly. Kit contents include channel section, grate section, 2x end caps, outlet and outlet extender.
Product Details
- Product
- 100TRGALLBL20 Linear Drainage System
- Category
- Surface Drainage
- Sold by
- Stormtech
- Range
- 100
Product Variants
- Size
Stormtech is specified by
WexhausArchitects
Eliza Blair ArchitectureArchitects
Windiate ArchitectsArchitects
Utz Sanby ArchitectsArchitects
Taylor KnightsArchitects
djrd architectsArchitects
Bryant Alsop ArchitectsArchitects
Winter ArchitectureArchitects
ArchierArchitects
SJBArchitects
Create ArchitectureArchitects
Ian Moore ArchitectsArchitects
NTF ArchitectureArchitects
Tham ArchitectsArchitects
Cadence & CoArchitects
DX ArchitectsArchitects
Bower ArchitectureArchitects
Rama ArchitectsArchitects
BVNArchitects
Chan ArchitectureArchitects
Hive ArchitectureArchitects
J Mammone ArchitectureArchitects
Greenaway ArchitectsArchitects
Whisker ArchitectureArchitects
Smyth & SmythArchitects
Tim Hodges ArchitectArchitects
Millboard DeckingManufacturers and Suppliers
Seidler GroupDesign & Build
Studio ApercuInterior Designers
BeecraftBuilding Designers
Sici DesignInterior Designers
Hutchinson BuildersBuilders
STUDIO GAXAInterior Designers
K.Holland Architectural InteriorsInterior Designers
Matic by DesignInterior Designers
Stainless steel linear drain grate and black uPVC channel modular kit designed for architectural applications.
Suitable for internal wet areas.
uPVC kits feature a slightly oversized channel with loose outlet, allowing self-selection of outlet position before cutting down channel to size upon assembly. Kit contents include channel section, grate section, 2x end caps, outlet and outlet extender.
- Specs

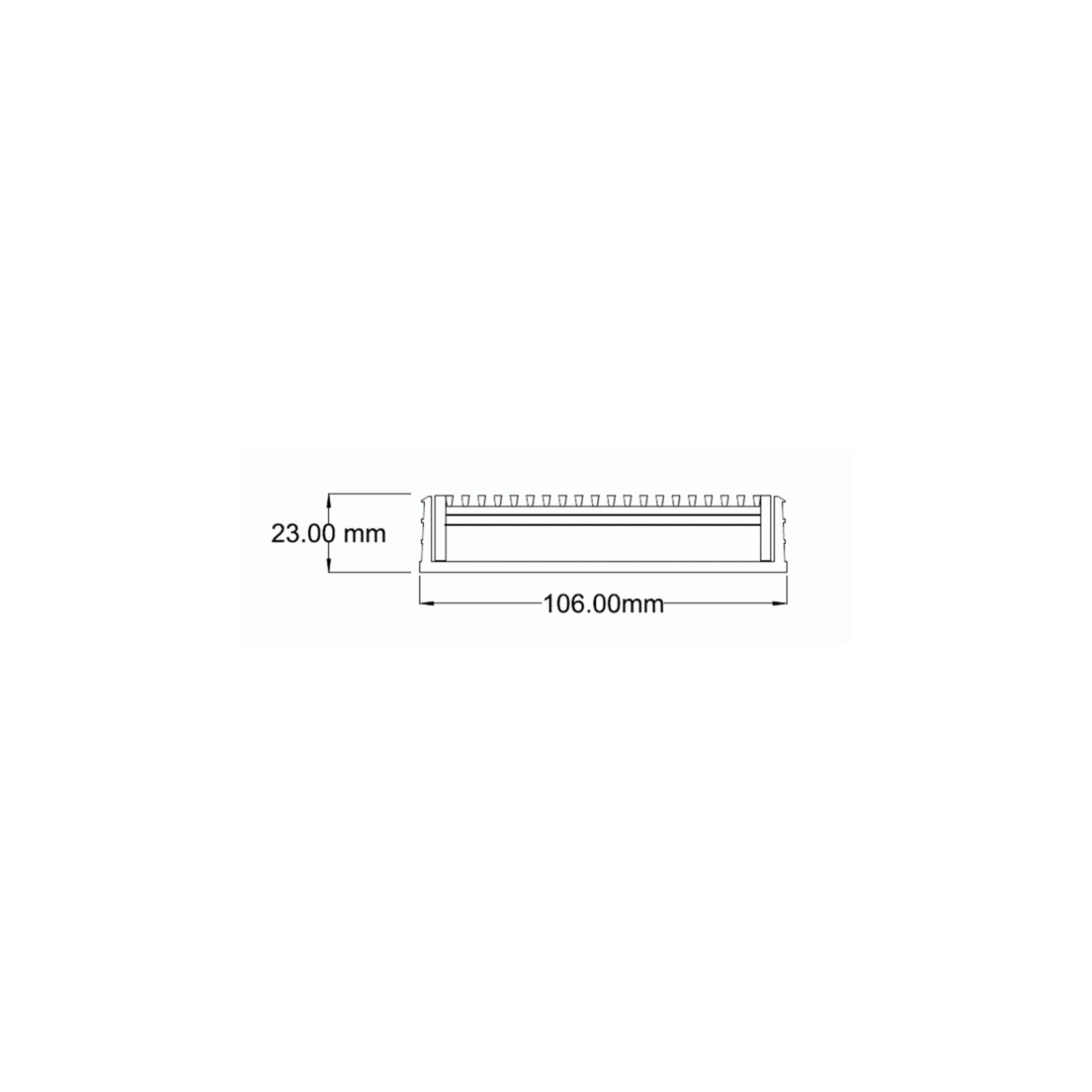

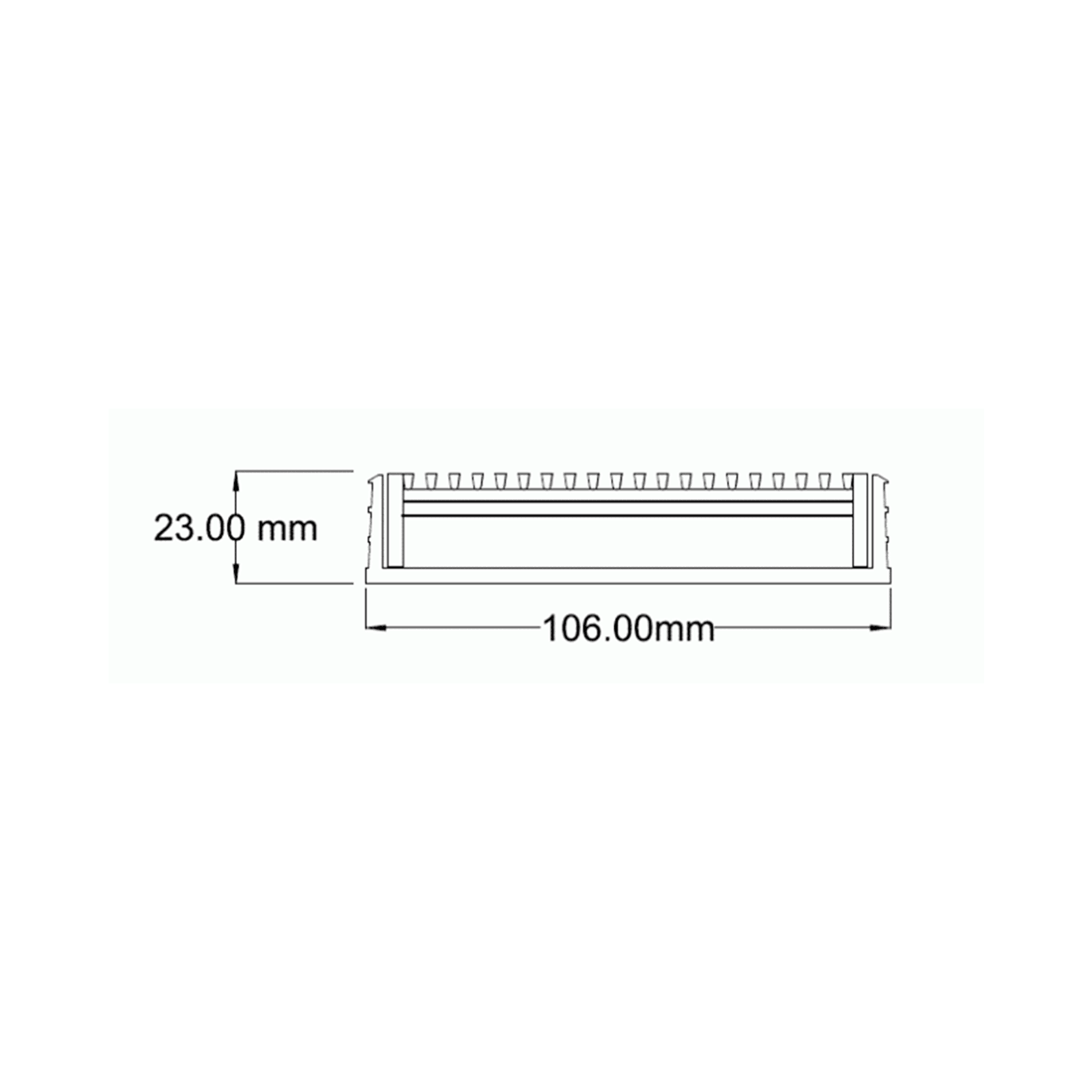

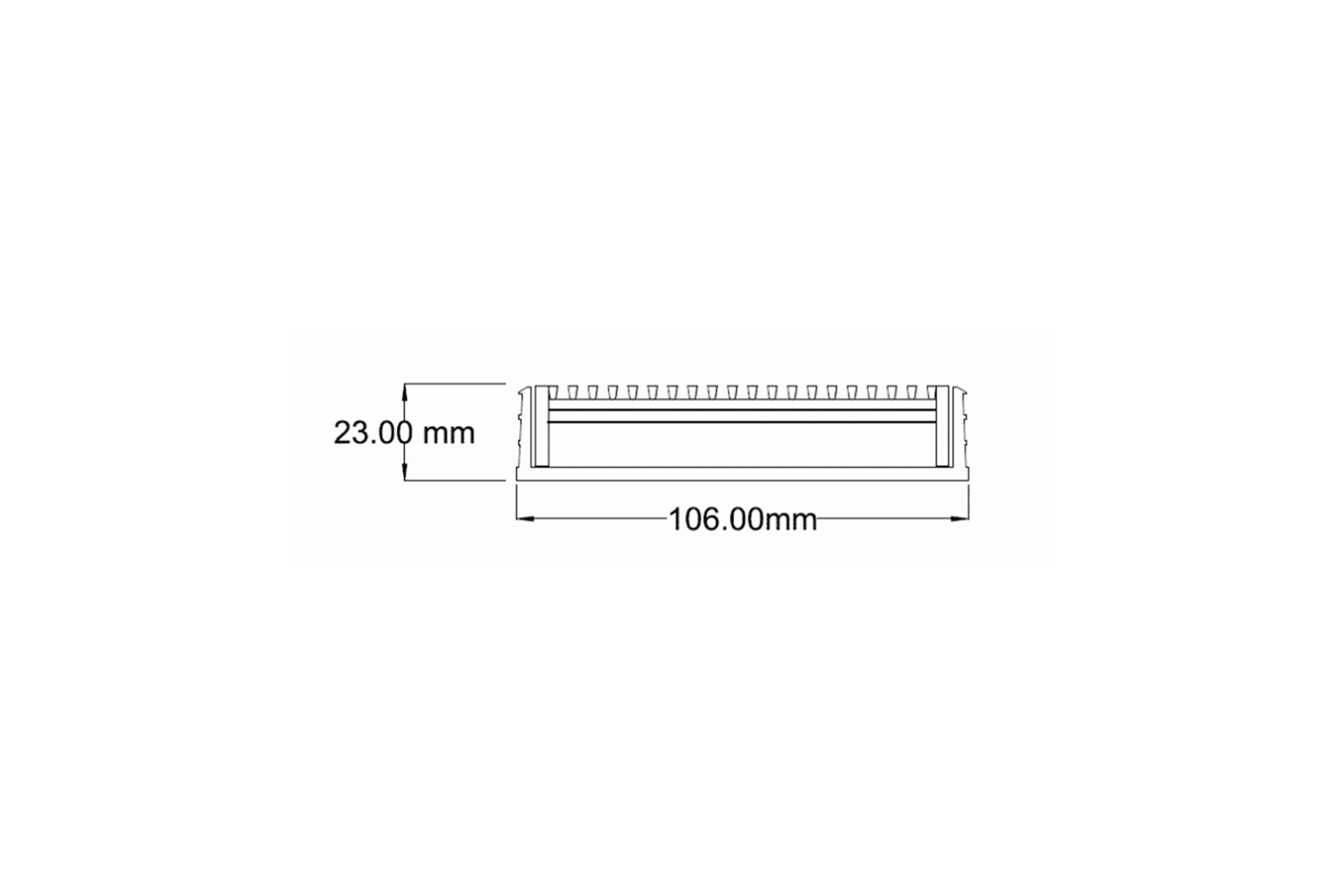

- Channel Width: 106mm
- Channel Depth: 23mm
- Length(s): 900mm, 1000mm, 1200mm, 1500mm, 1800mm, 1900mm, 2000mm, 2200mm, 2400mm, 2700mm, 3000mm
- Outlet Size: DN40, DN50, DN80, DN100
- Features
- 100mm wide Architectural Stainless Steel grate with Black UPVC channel & Black grate.
- Modular site finish system, wedge wire grate, manufactured from 316 grade stainless steel (powder coated black) combined with a black UPVC channel.
- The 100TR is our standard style grate featuring a 3mm/5mm wire gap.
- Manufactured from 316 marine-grade steel.
- Kits longer than 3000mm available on request.
- Black uPVC channel is suitable for Internal use only
