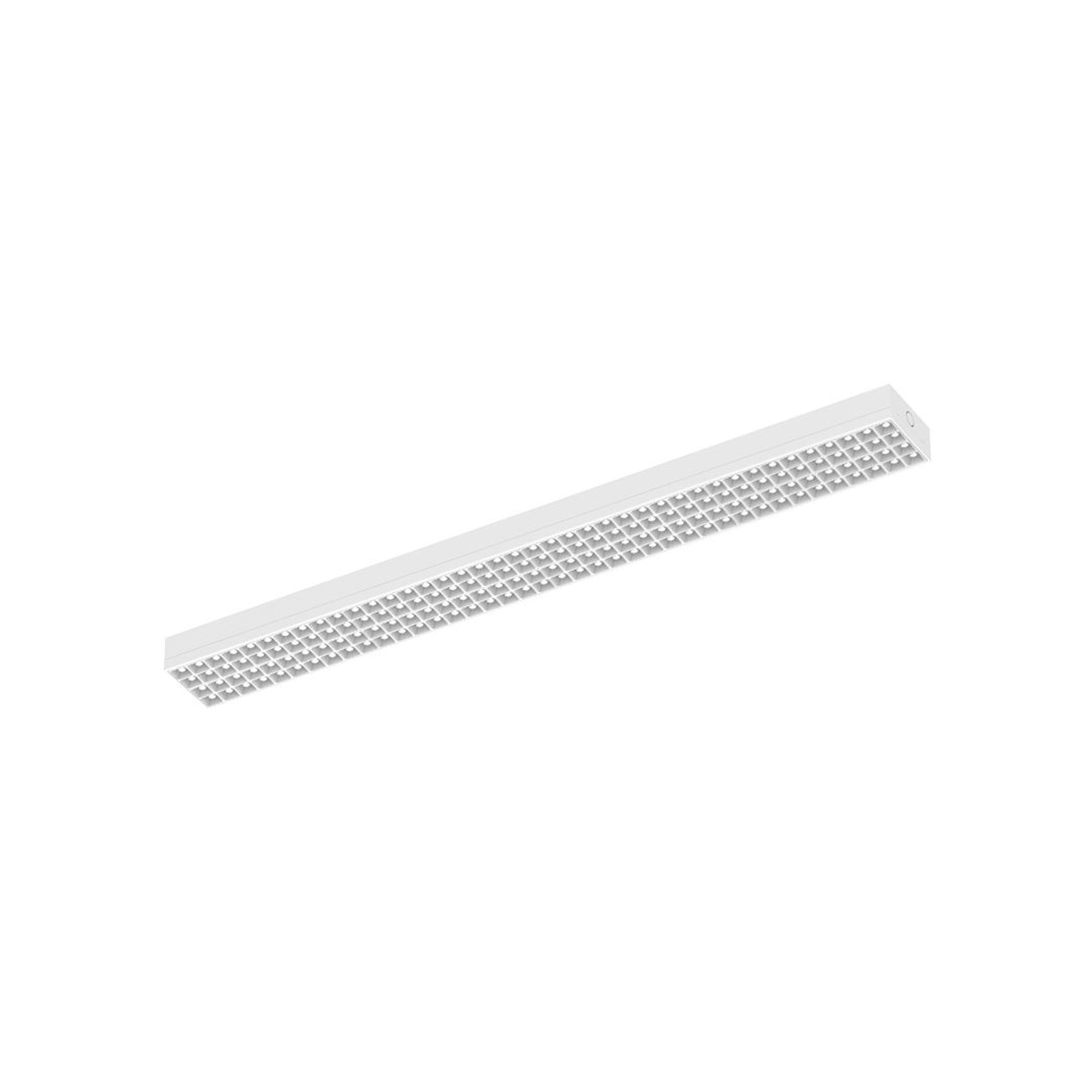

4ft LED Joinable Multi-Function Batten

4ft Joinable Multi-Function Batten
Pro Spec UGR <19

Select 3000K/4000K & Quad Wattage

  • Category
    Flush Mount Lights, Linear Lighting, Pendant Lights
  • Range
    Joinable Batten
  • Warranty
    5 years
  • Light bulb type
  • Fitting type

Dimensions L1200 × W120 × H59mm
Wattage Selectable 15W, 23W, 29W or 35W (default factory setting)
Colour Temp Selectable 3000K or 4000K
CRI 95 (R9 <98)
Lifespan 54,000 hours (L70 B50)
UGR Halcyon Pro Spec battens are suitable for installations requiring UGR of less than 19.
Beam Angle 80°
Binning 3-Step SDCM
Finish White RAL9016 / Black RAL9005
Material Aluminium + PC
IP Rating IP20
IK Rating IK08
Termination Multiple rear termination points, knockouts at both ends for alternative installation methods
Driver Incorporated, adjustable output non-dimmable flicker free driver
Operating Temp -20° - 45°
Weight 3.03kg
Warranty 5 Year Warranty

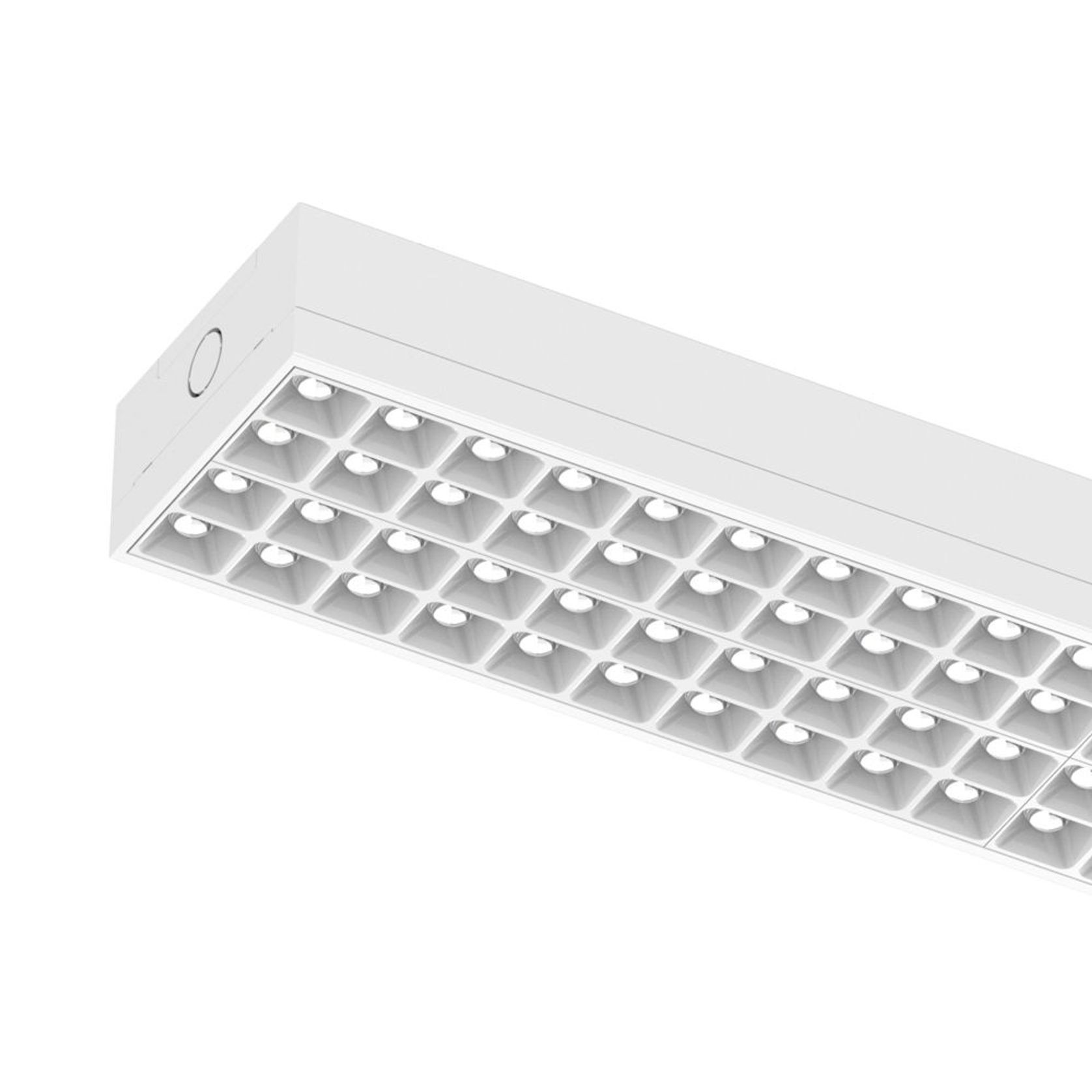

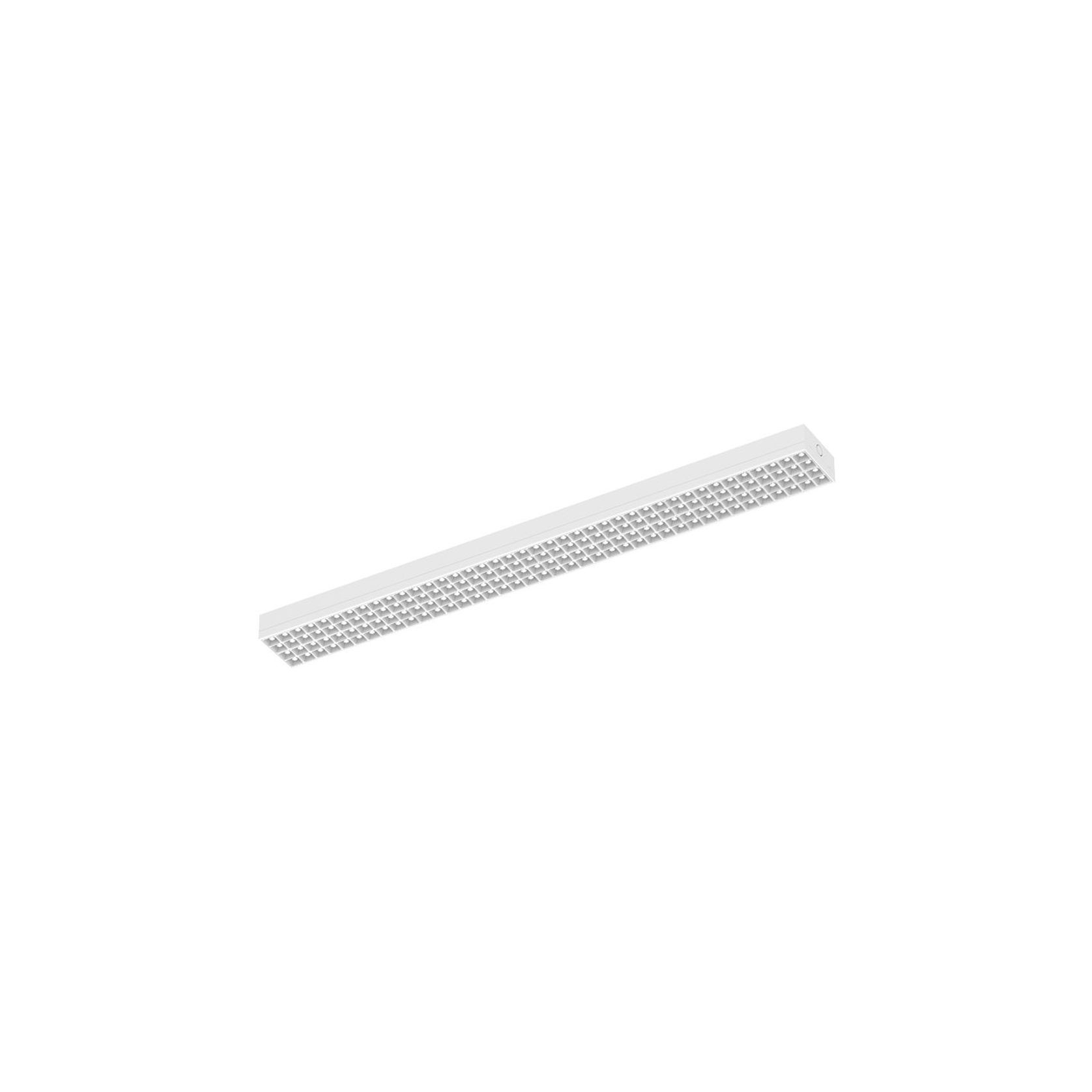

White with white reflector:
3000K: 15W-35W/1680lm-3840lm
4000K: 15W-35W/1760lm-4025lm

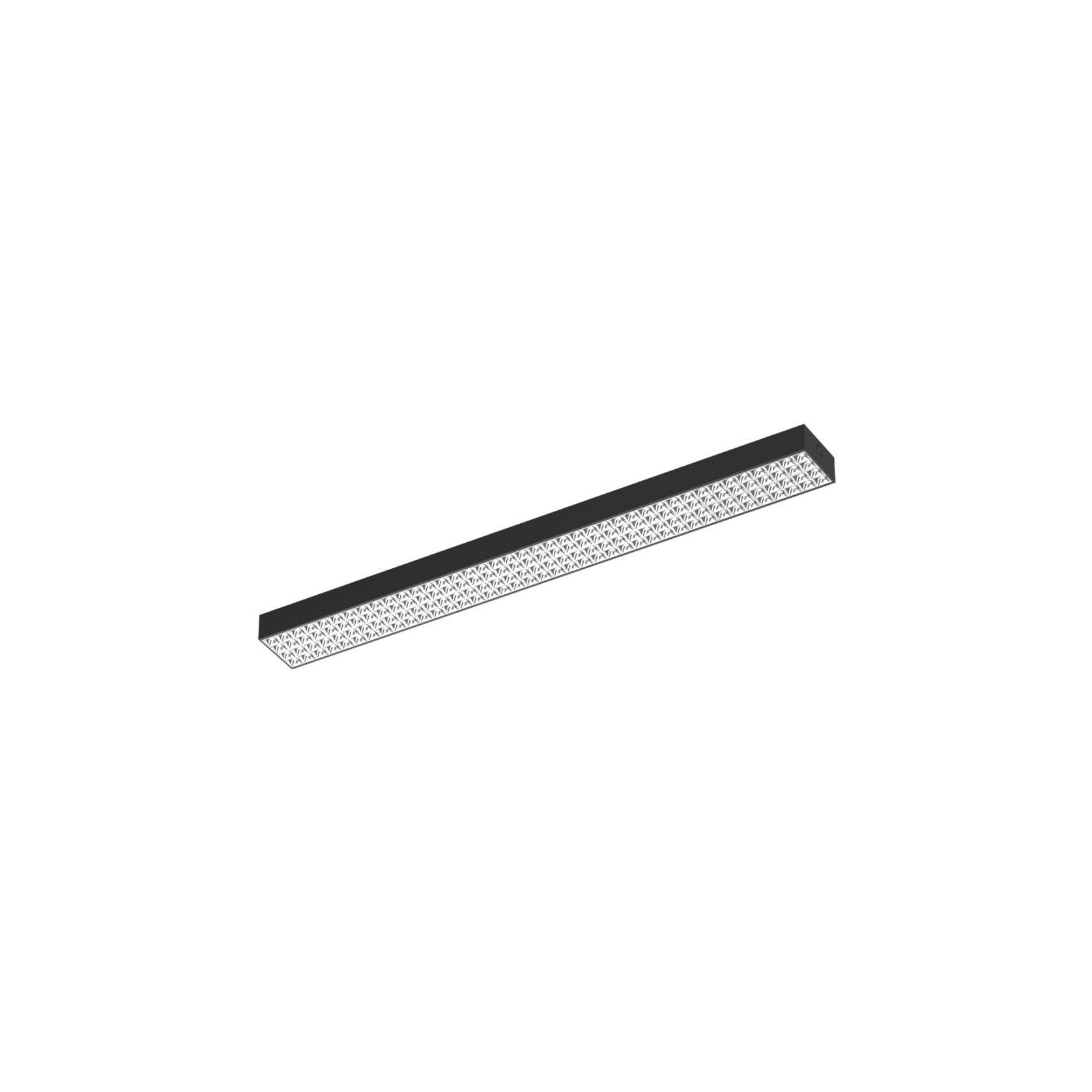

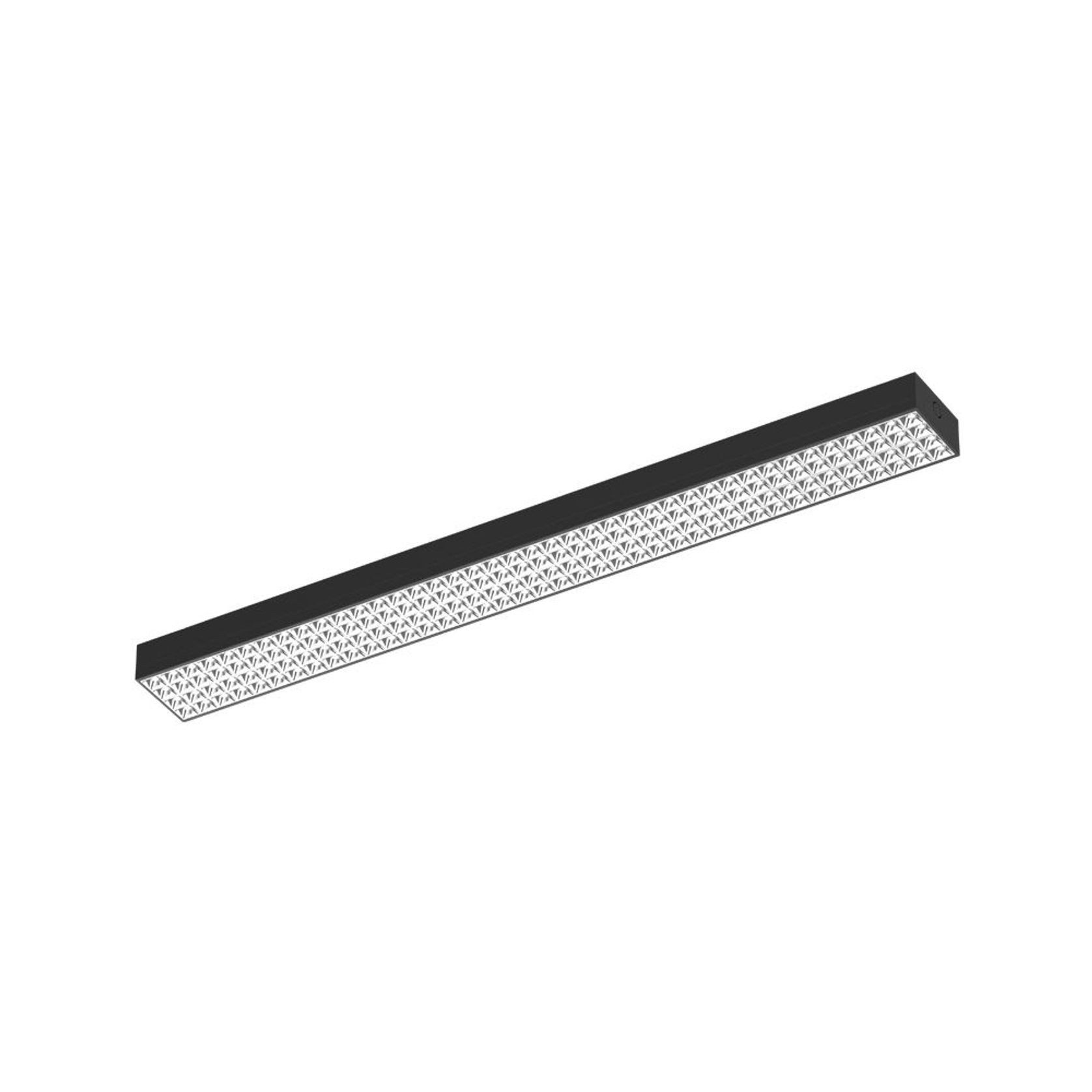

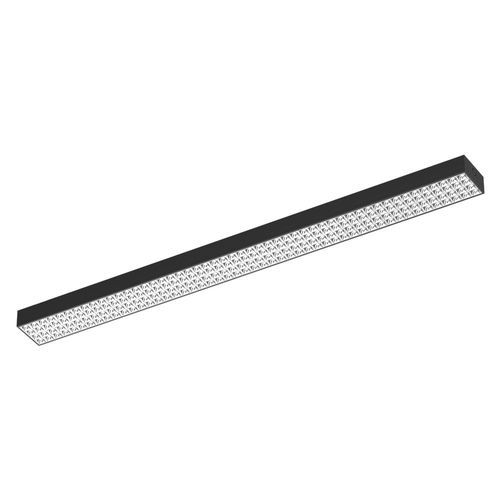

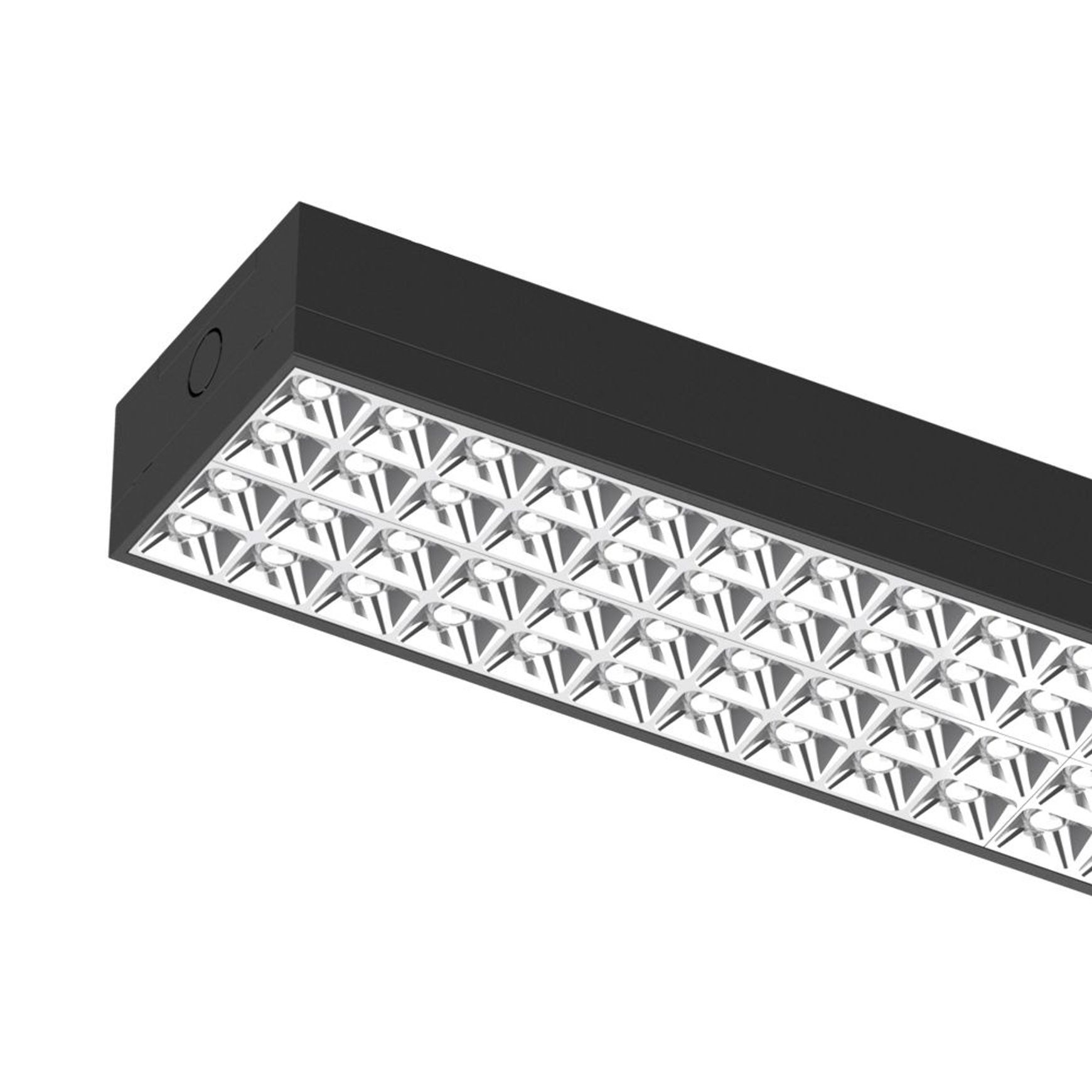

Black with silver reflector:
3000K: 15W-35W/1665lm-3750lm
4000K: 15W-35W/1750lm-3940lm

Scope of use

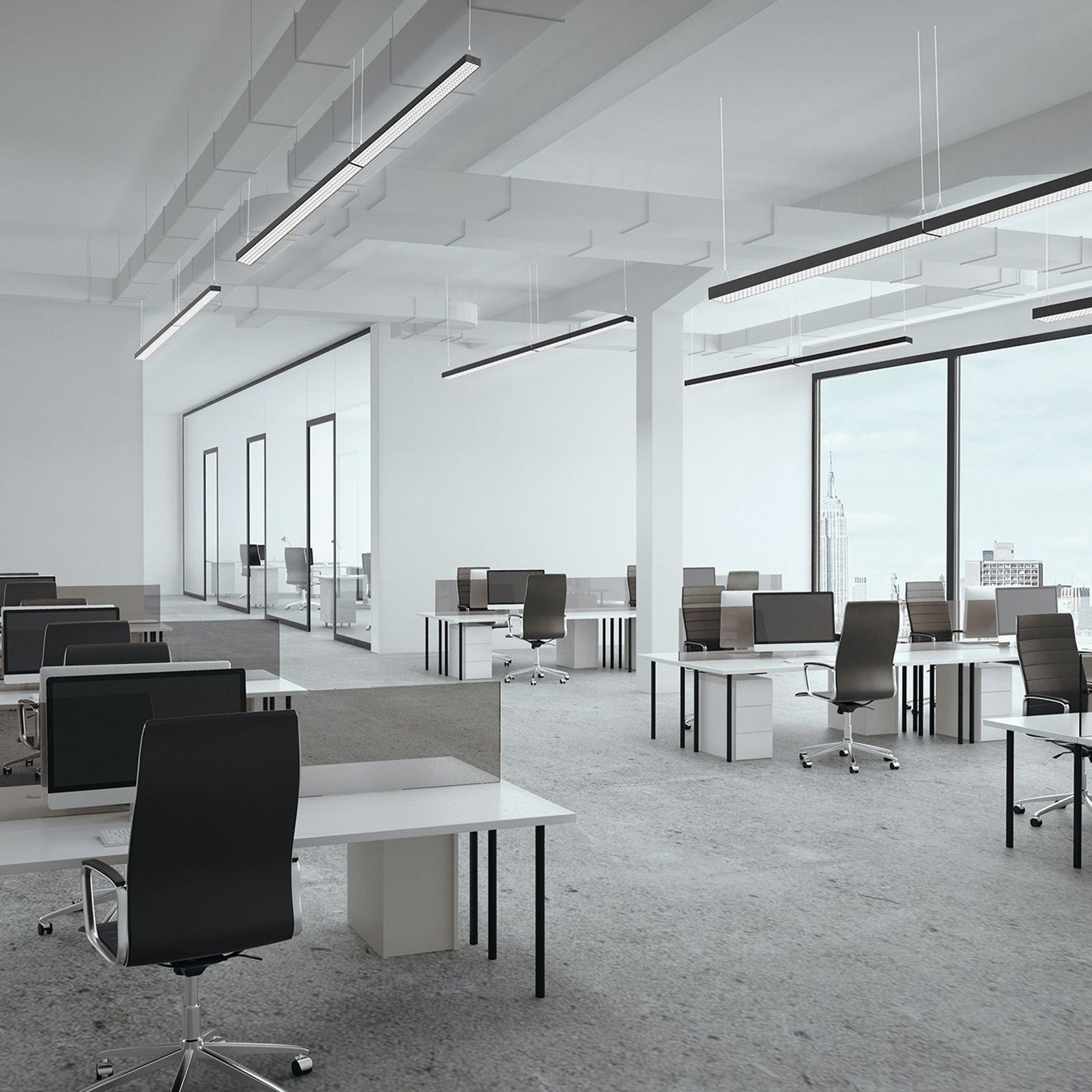

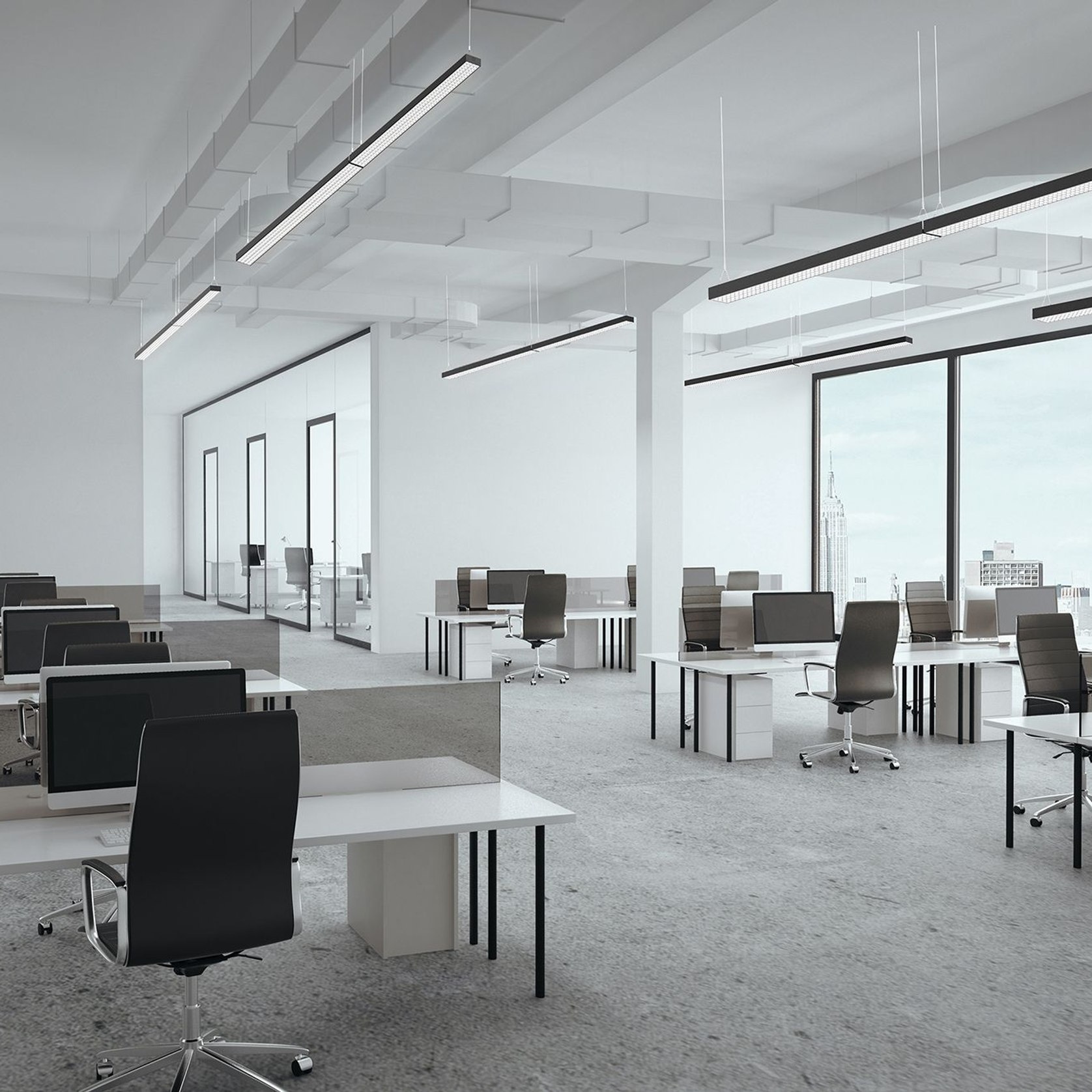

Interior education, commercial, office lighting

  • CRI95 (R9 <98)
  • 54,000 hour lifespan
  • IK08
  • Joinable
  • Selectable colour temperature - 3000K or 4000K
  • Selectable wattage - 15W, 23W, 29W or 35W
  • 5 year warranty
