5ft LED Joinable Multi-Function Batten

Halcyon Lighting
Visit Website
5ft LED Joinable Multi-Function Batten gallery detail image
5ft LED Joinable Multi-Function Batten gallery detail image
5ft LED Joinable Multi-Function Batten gallery detail image
5ft LED Joinable Multi-Function Batten gallery detail image
5ft LED Joinable Multi-Function Batten gallery detail image
5ft LED Joinable Multi-Function Batten gallery detail image

LED542

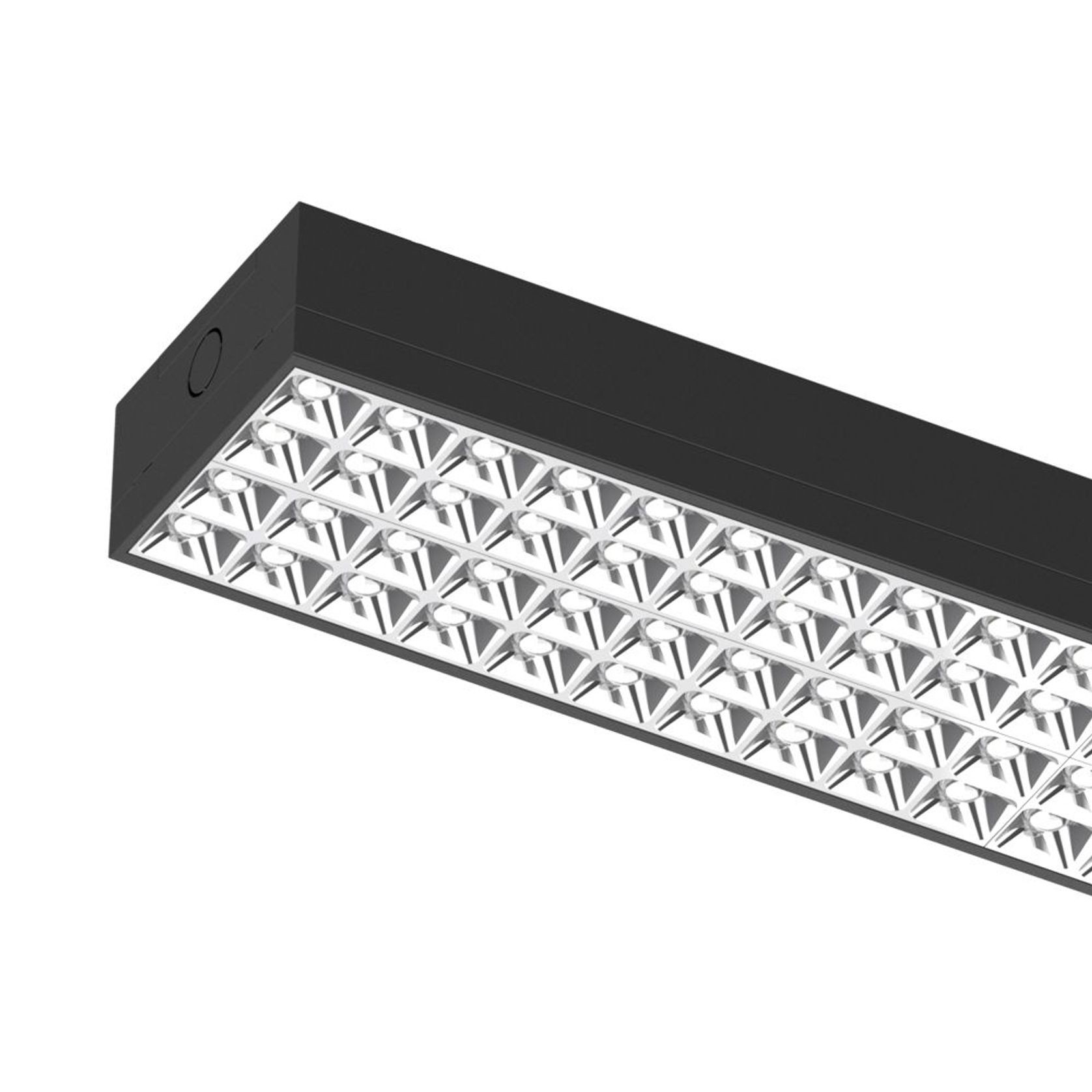

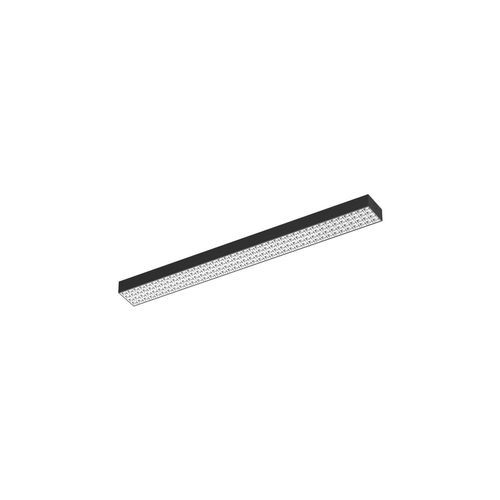

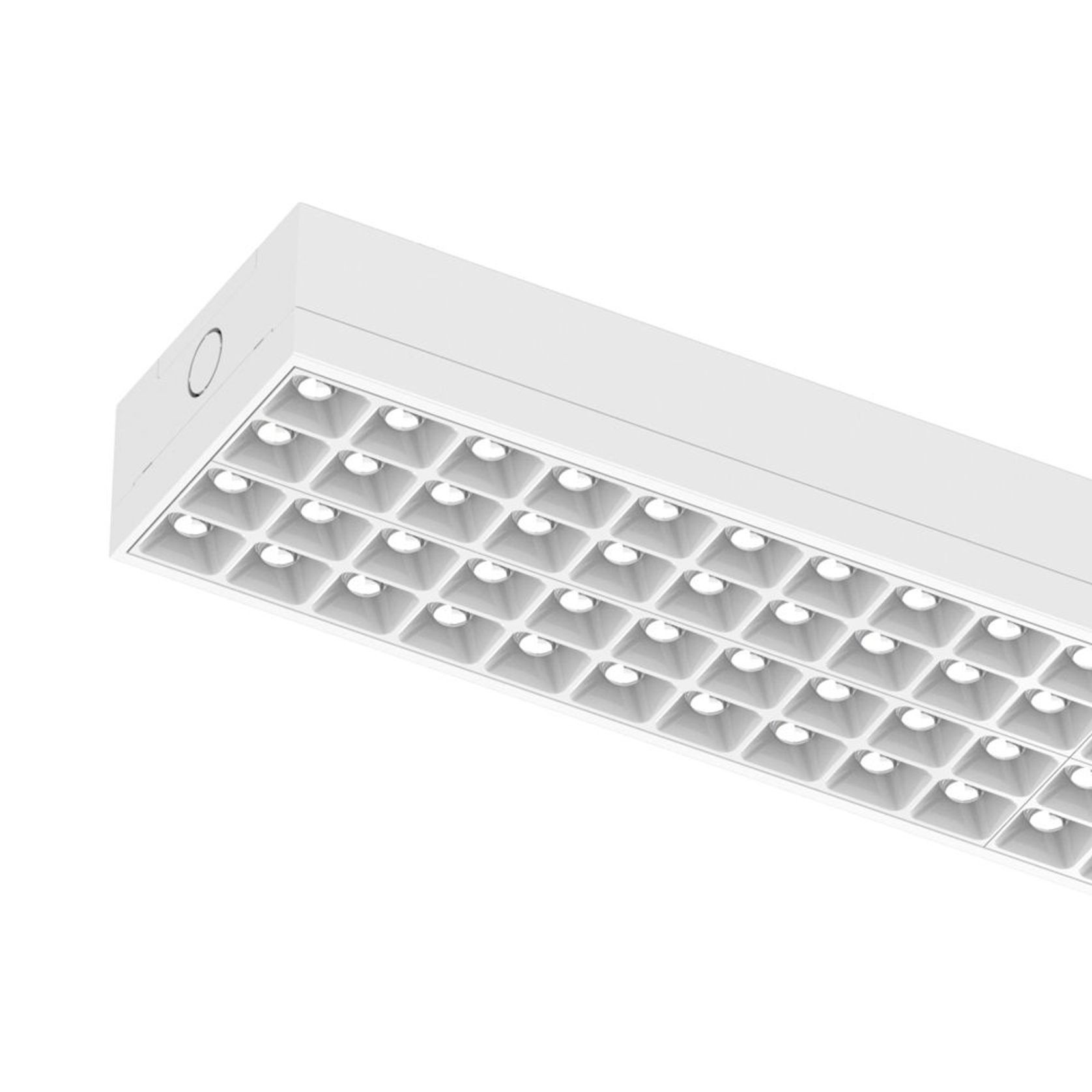

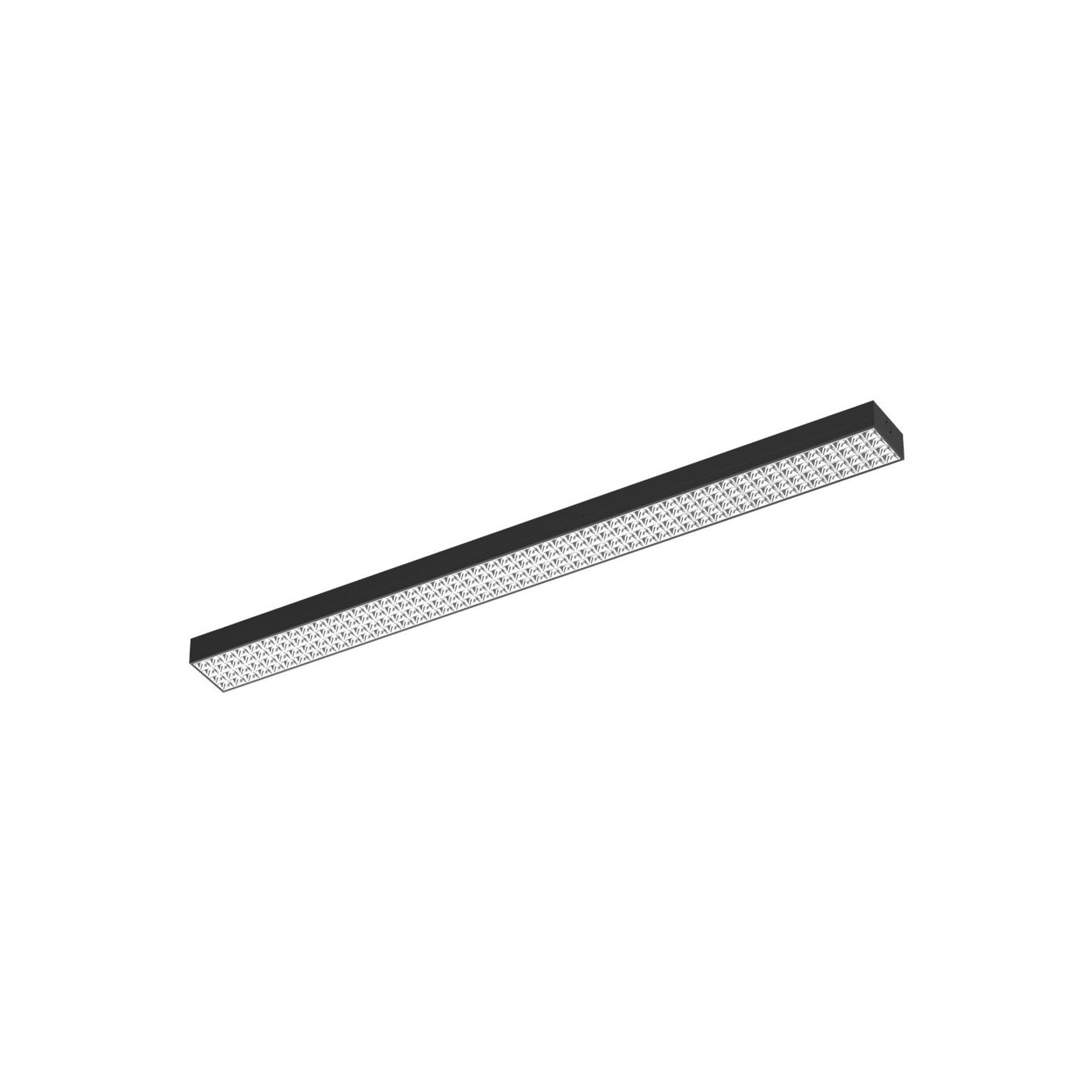

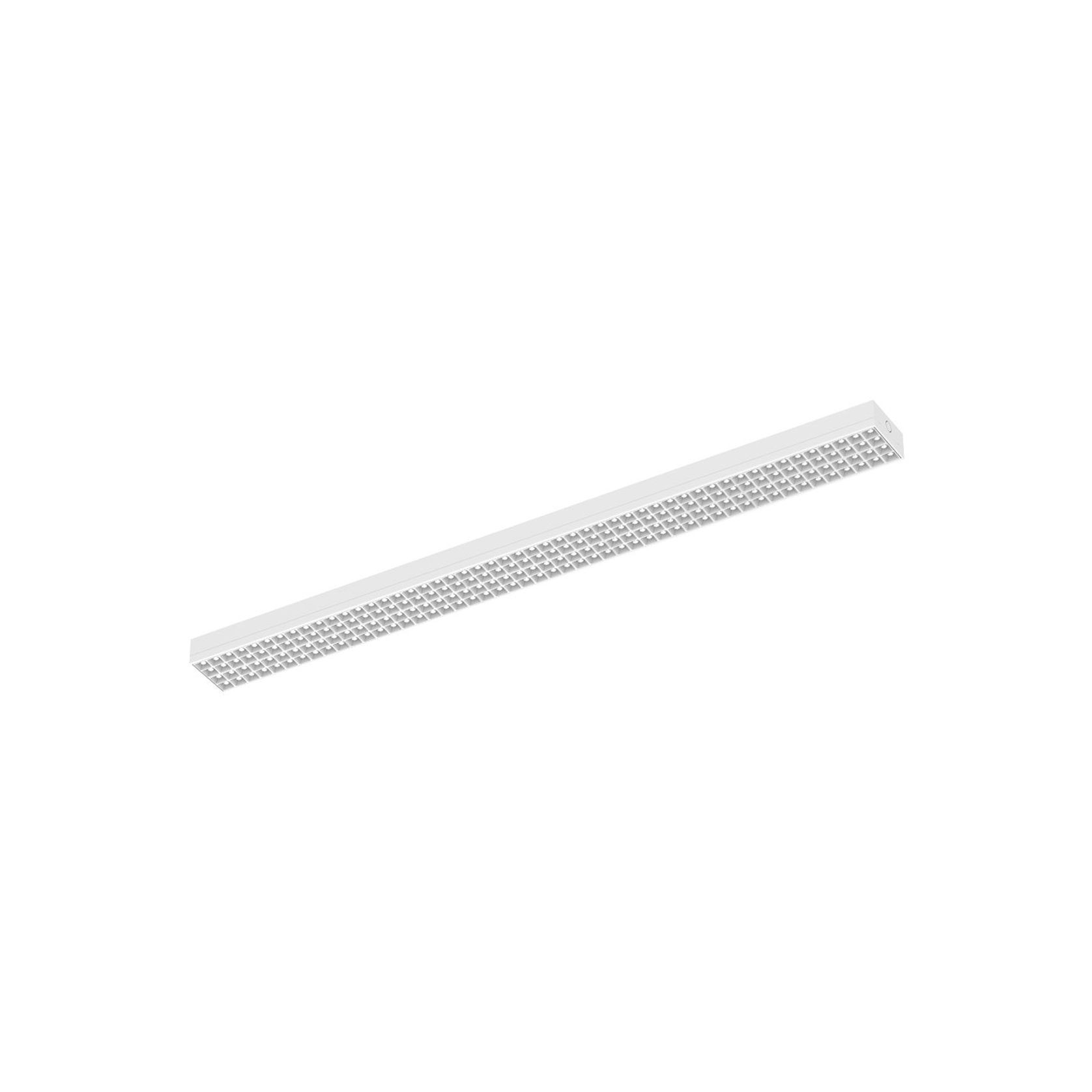

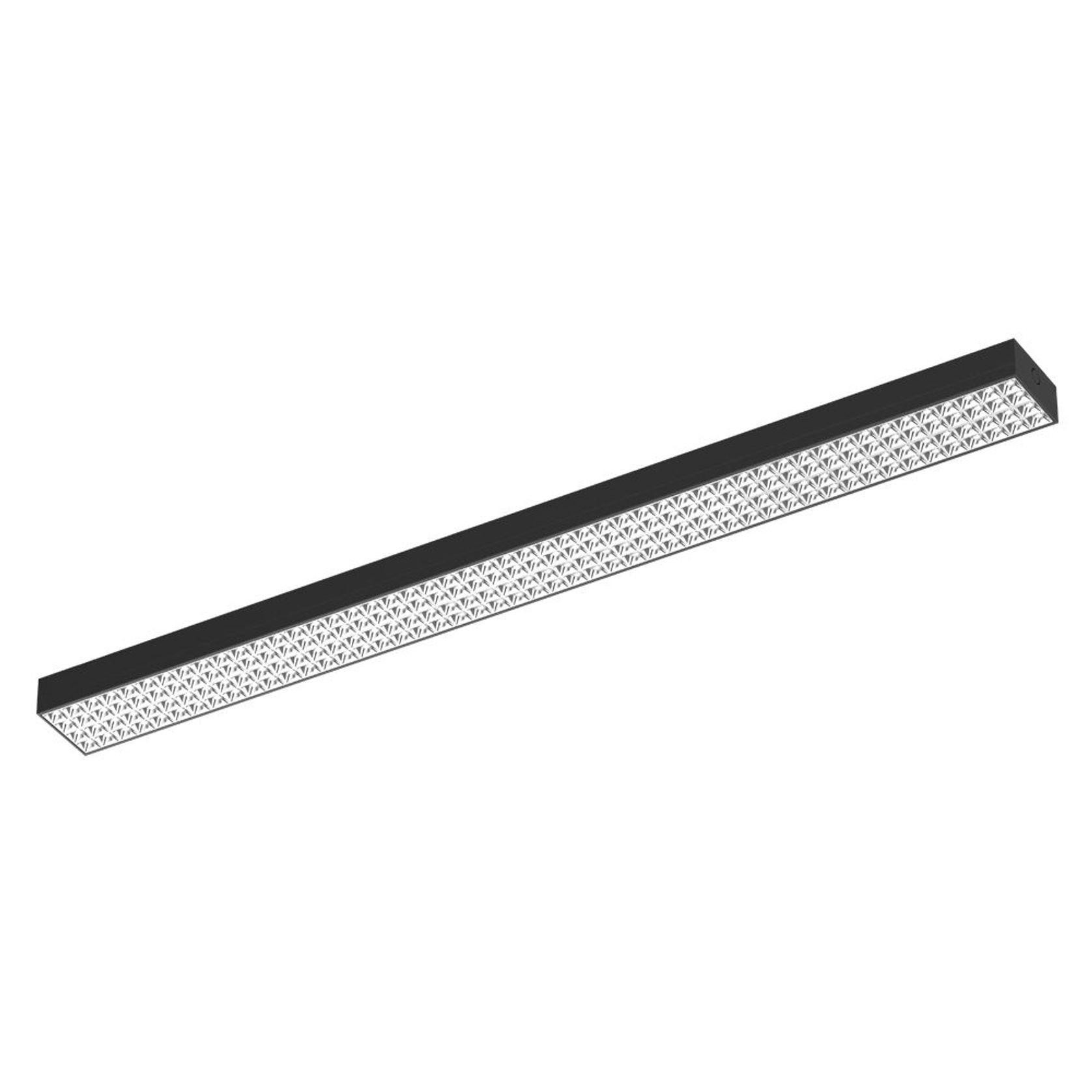

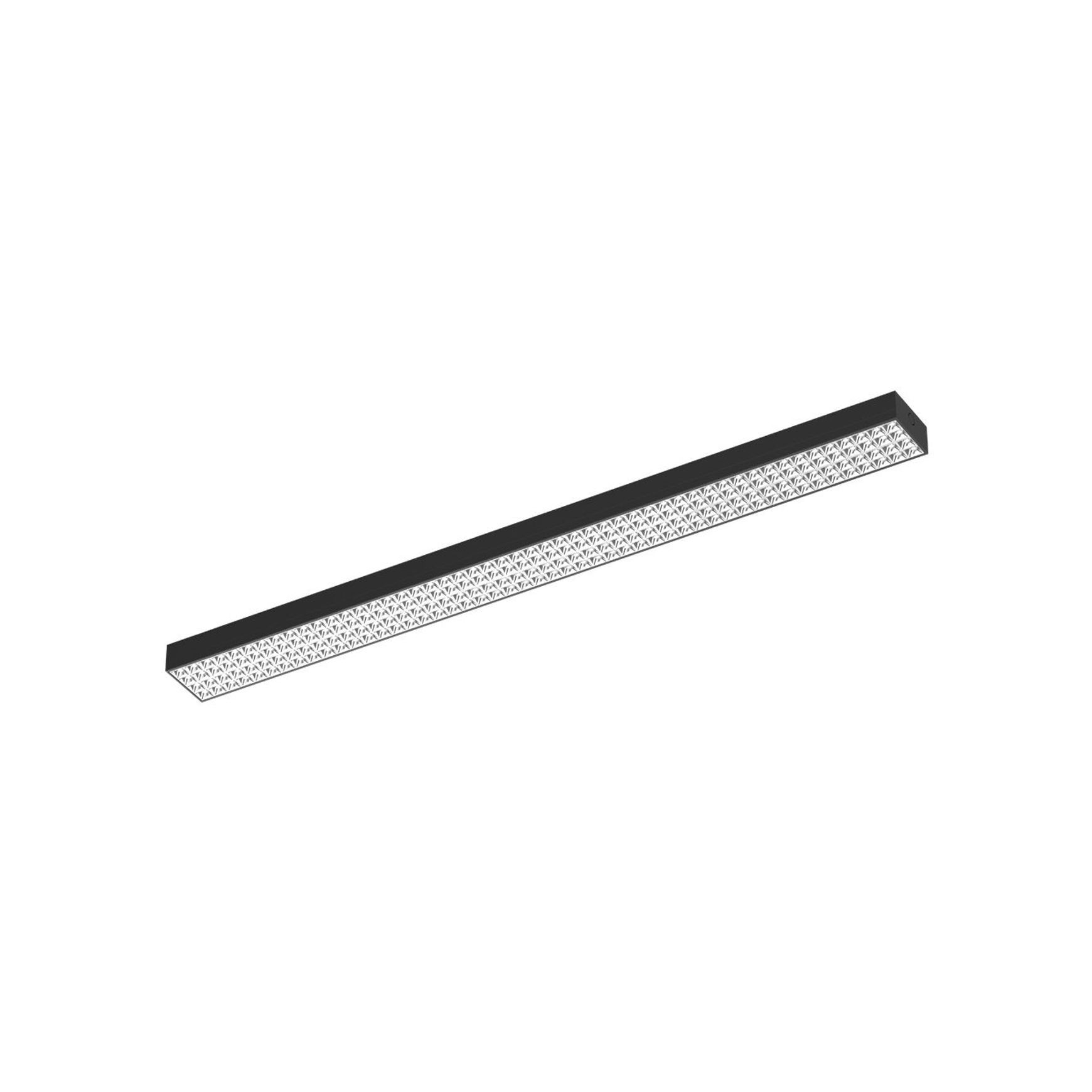

5ft Joinable Multi-Function Batten
Pro Spec UGR <19
Selectable 3000K or 3000K Quad Wattage

Details
  • Category
    Flush Mount Lights, Linear Lighting, Pendant Lights
  • Range
    Joinable Batten
  • Warranty
    5 years
Attributes
  • Light bulb type
    LED
  • Fitting type
    Surface-mounted
Specifications

Dimensions L1500 × W120 × H59mm
Wattage Selectable 35W, 40W, 45W, 50W (default factory setting)
Colour Temp Selectable 3000K or 4000K
CRI 95 (R9 <98)
Lifespan 54,000 hours (L70 B50)
UGR Halcyon Pro Spec battens are suitable for installations requiring UGR of less than 19.
Beam Angle 80°
Binning 3-Step SDCM
Finish White RAL9016 / Black RAL9005
Material Aluminium + PC
IP Rating IP20
IK Rating IK08
Termination Multiple rear termination points, knockouts at both ends for alternative installation methods
Driver Incorporated, adjustable output non-dimmable flicker free driver
Power Factor 0.9
Operating Temp -20° - 45°
Weight 3.63kg
Warranty 5 Year Warranty

Lumens White with white reflector:
3000K: 35W-50W/4115lm-5740lm
4000K: 35W-50W/4225lm-5850lm

Black with silver reflector:
3000K: 35W-50W/4035lm-5675lm
4000K: 35W-50W/4160lm-5875lm

Scope of use

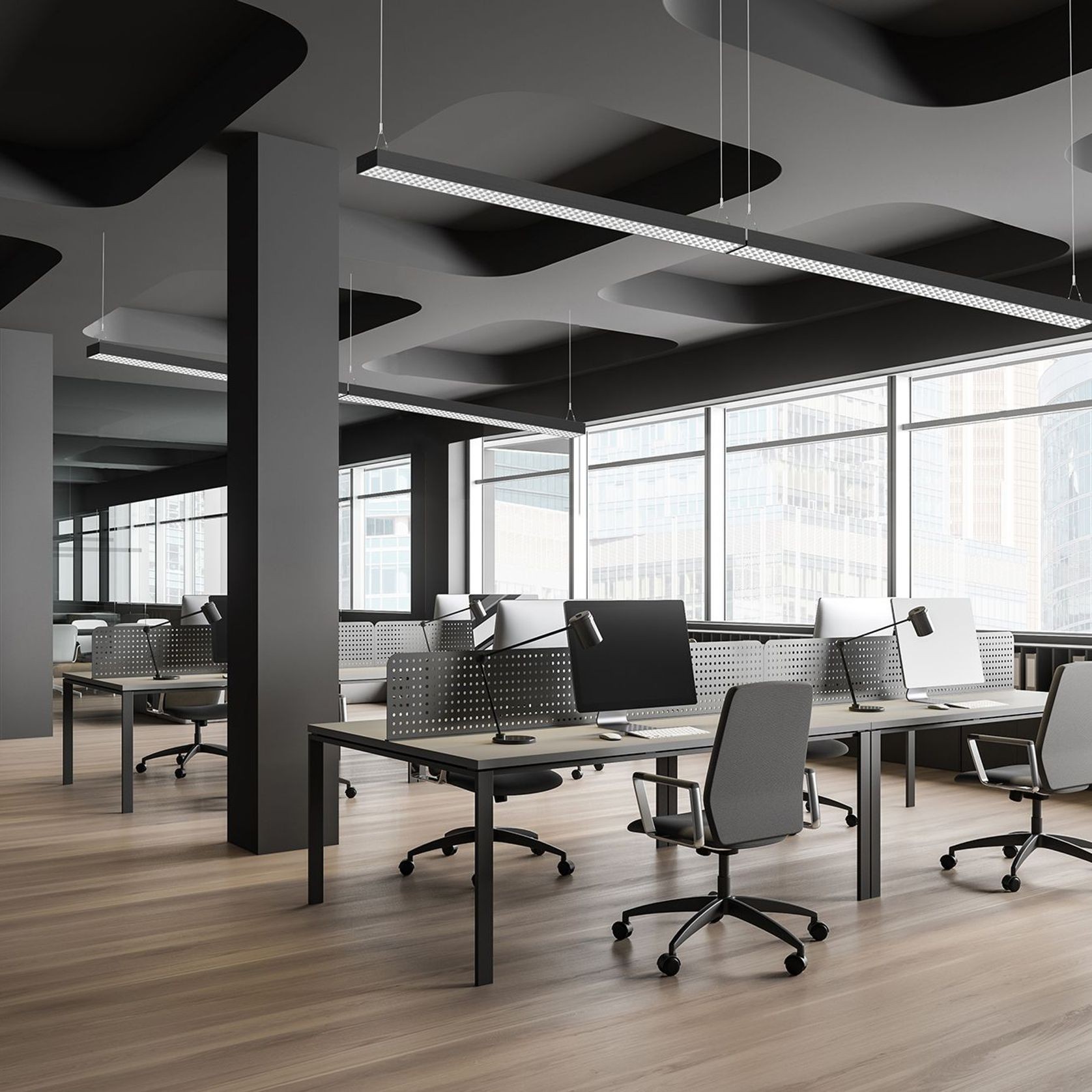

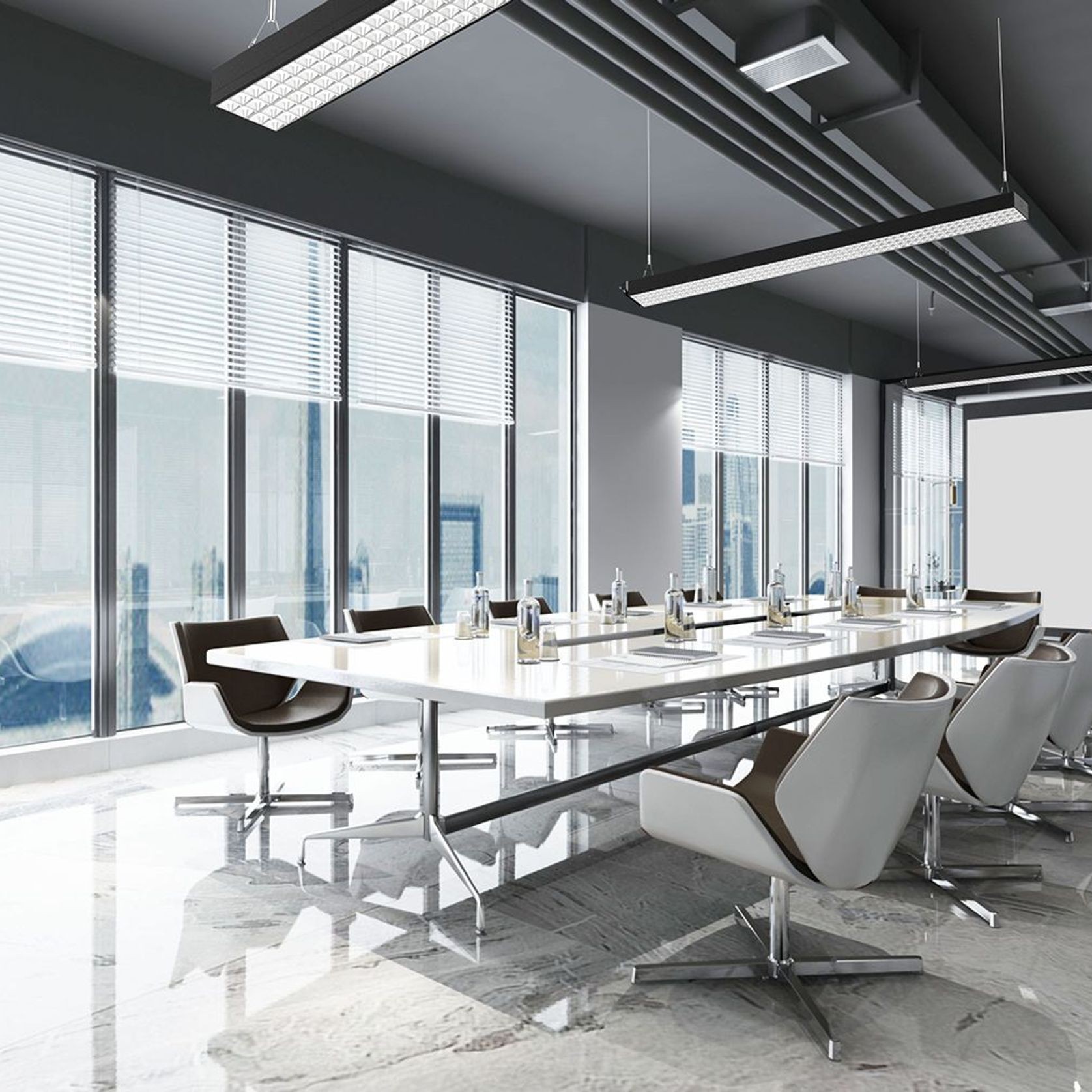

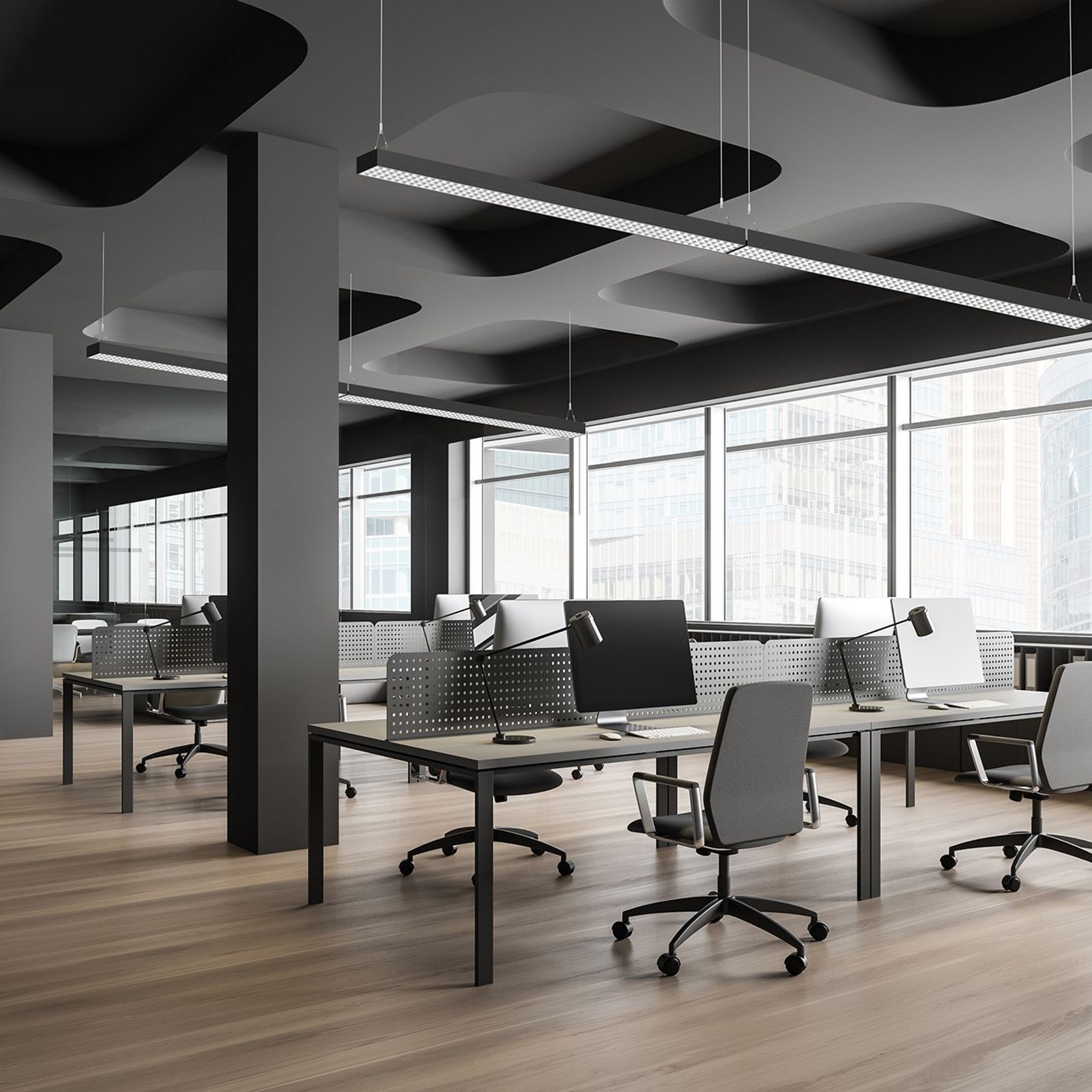

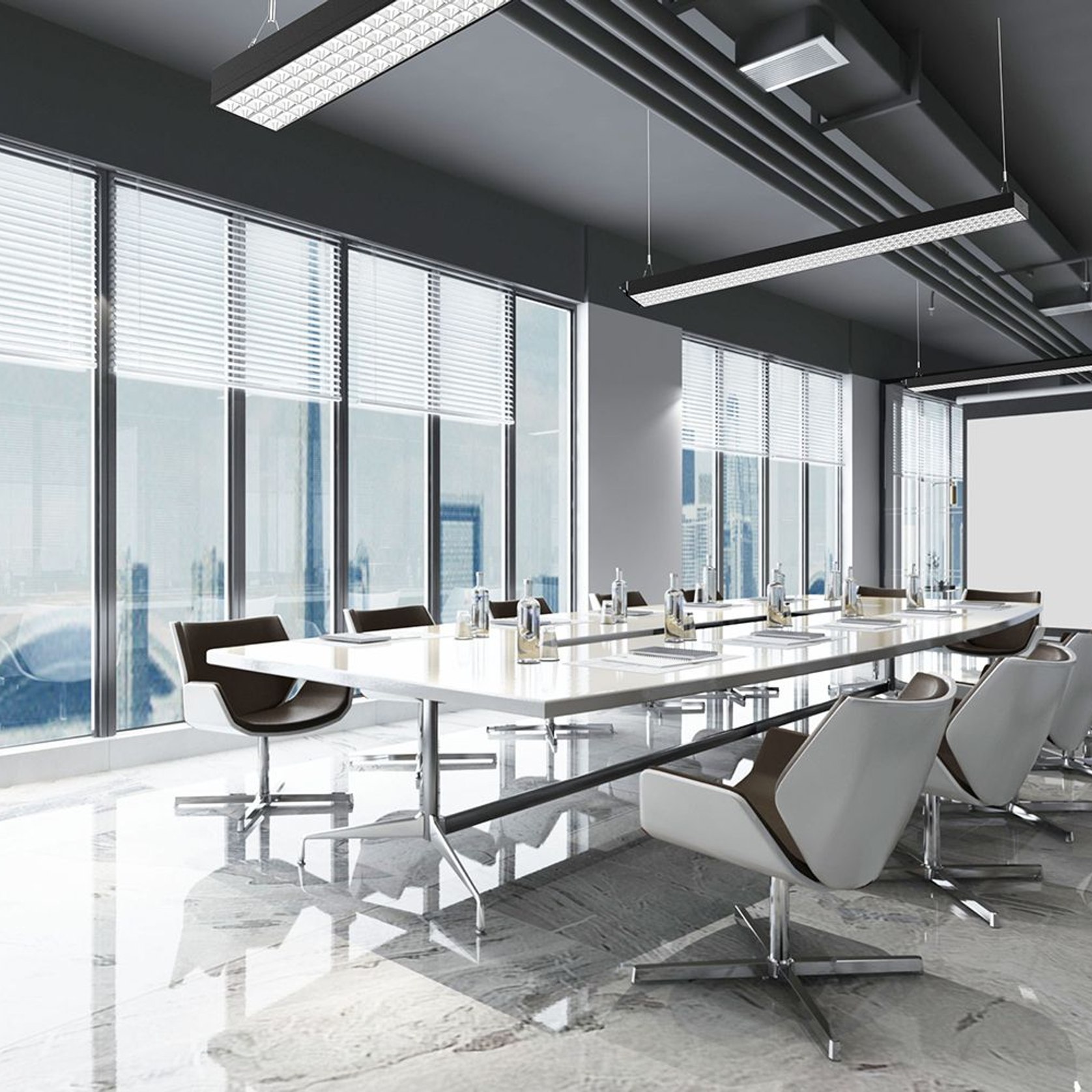

Interior education, commercial, office lighting

Performance

CRI95 (R9 <98)
54,000 lifespan
IK08
Joinable
Selectable colour temperature - 3000K or 4000K
Selectable wattage - 35W, 40W, 45W, 50W
5 Year warranty
