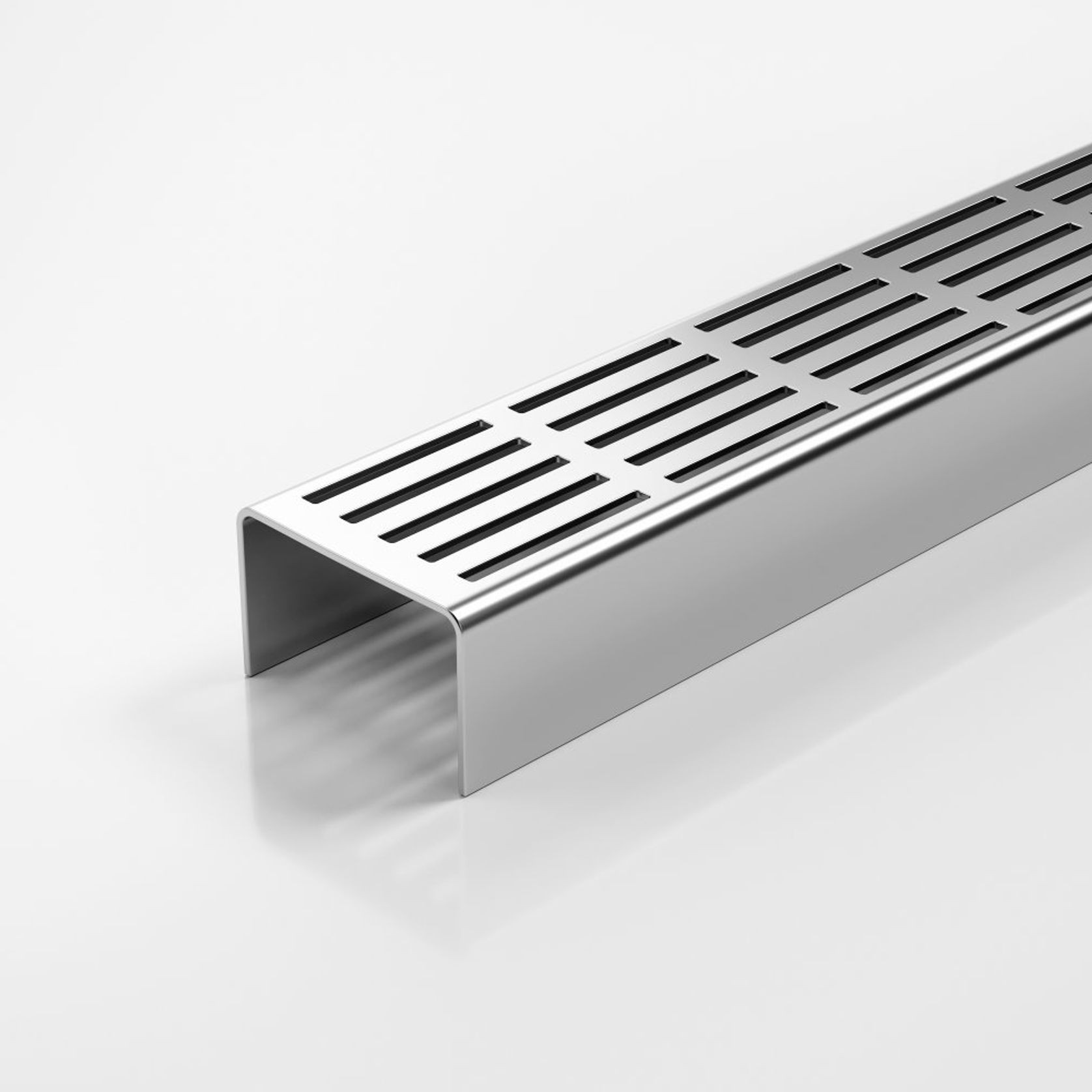

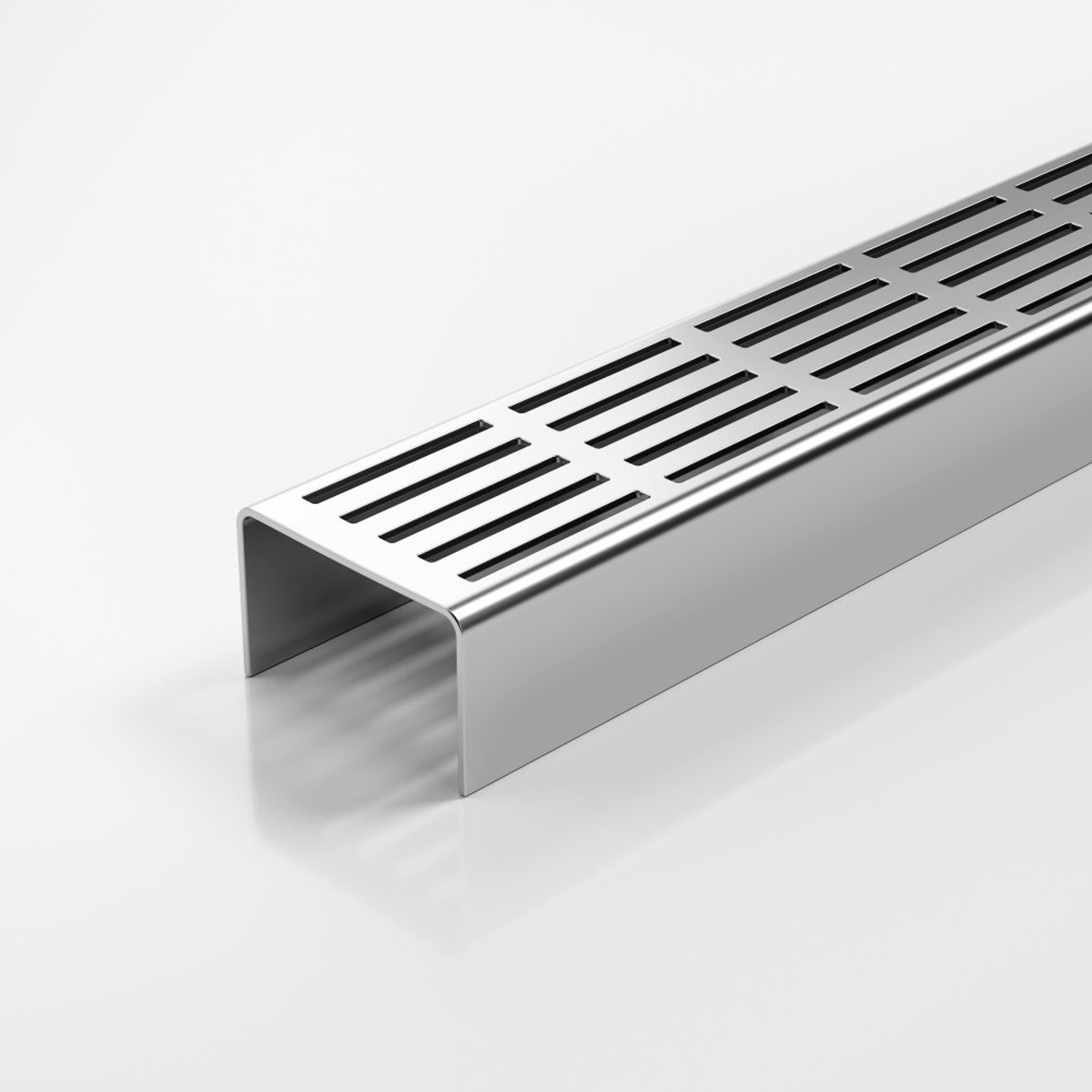

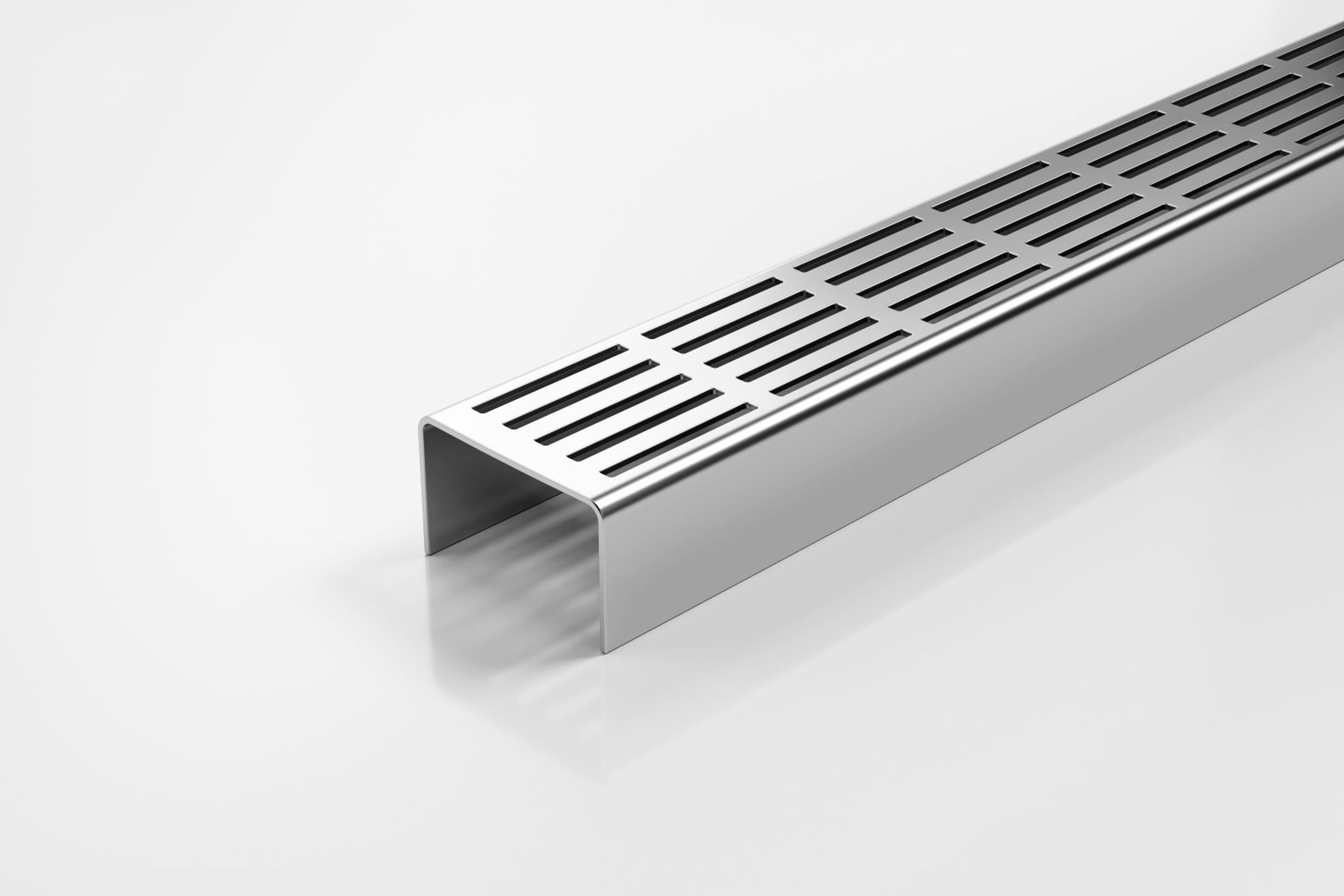

65PS40 for 65G100 and 65G90
The 65PS40 is our Punched Slot grate designed to be used with our Special Assembly units 65G100 and 65G90.
A 65mm wide UPVC channel is connected via downpipes at 200mm intervals to sockets in a 100mm drain below. This allows the channel to be installed level while the drainpipe is given sufficient fall to be self-cleaning.
Please be aware that depending on the installation environment, for a pool installation or close to a surf beach, you may need to have your stainless steel grates electropolished.
This unique drainage system was recognised for its innovation by a DesignMark at the Australian International Design Awards.
- CategorySurface Drainage
- RangeSpecial Assembly
Channel Width: 65mm
Channel Depth: 40mm
Length(s): 900mm, 1000mm, 1200mm, 1500mm
Outlet Size: N/A
More from
Stormtech
About the
Seller
Stormtech introduced Australia to linear drainage for bathrooms in the early 1990's and has since then provided efficient architectural drainage solutions.
Stormtech specialises in narrow trench drainage solutions for all areas of the house including pool surrounds, paved areas, courtyards and showers. The sleek, versatile design allows for the partition between ‘wet’ and ‘dry’ spaces of the bathroom, as well as creating a perfect integration between internal and external areas of the house.
All Stormtech grates are made of quality stainless steel manufactured in Australia. The system connects directly with all standard plumbing fittings and has a Watermark Standards Australia International certification.
