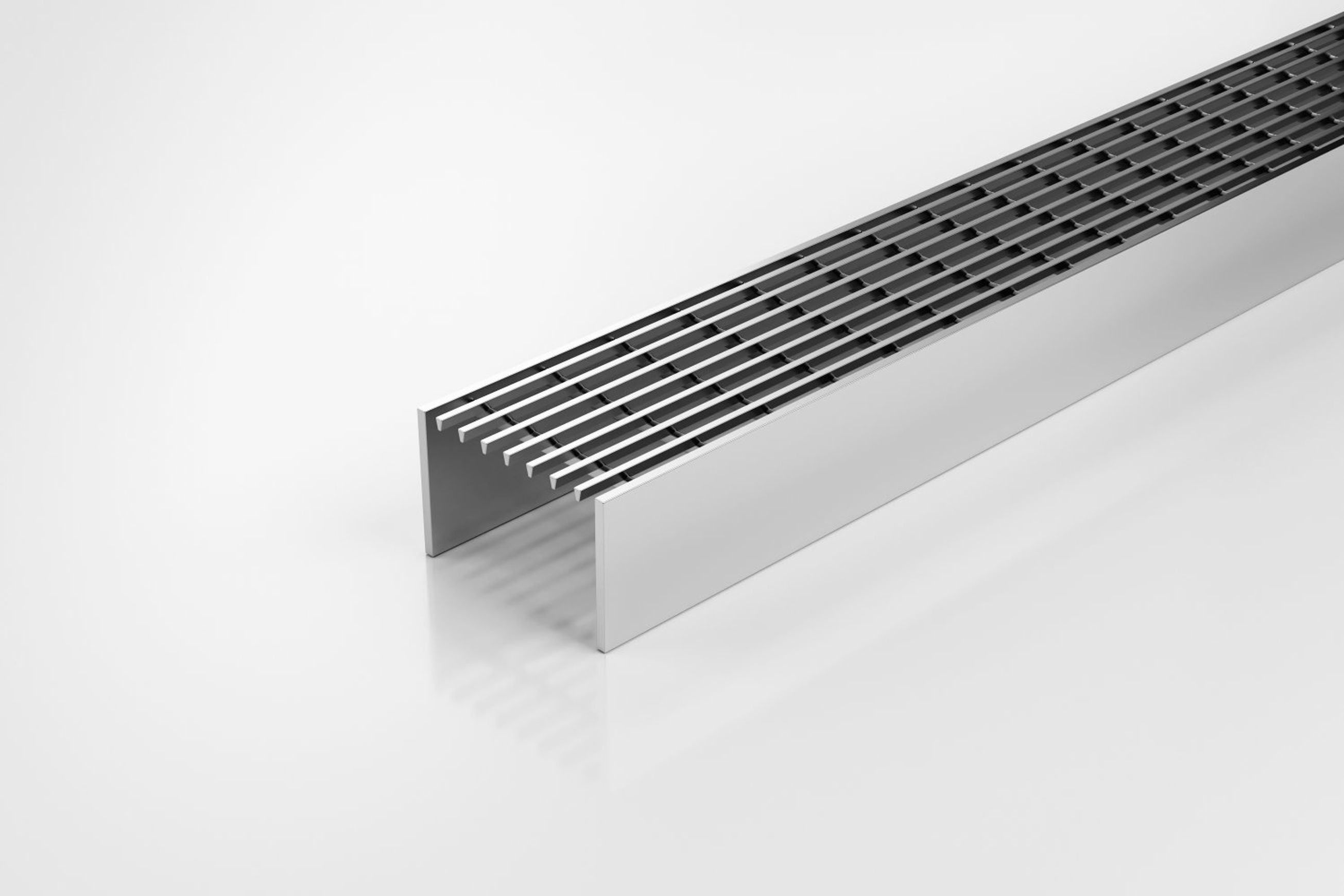

65TR40 for 65G100 and 65G90

By Stormtech
Visit Website
D40 x W65 mm

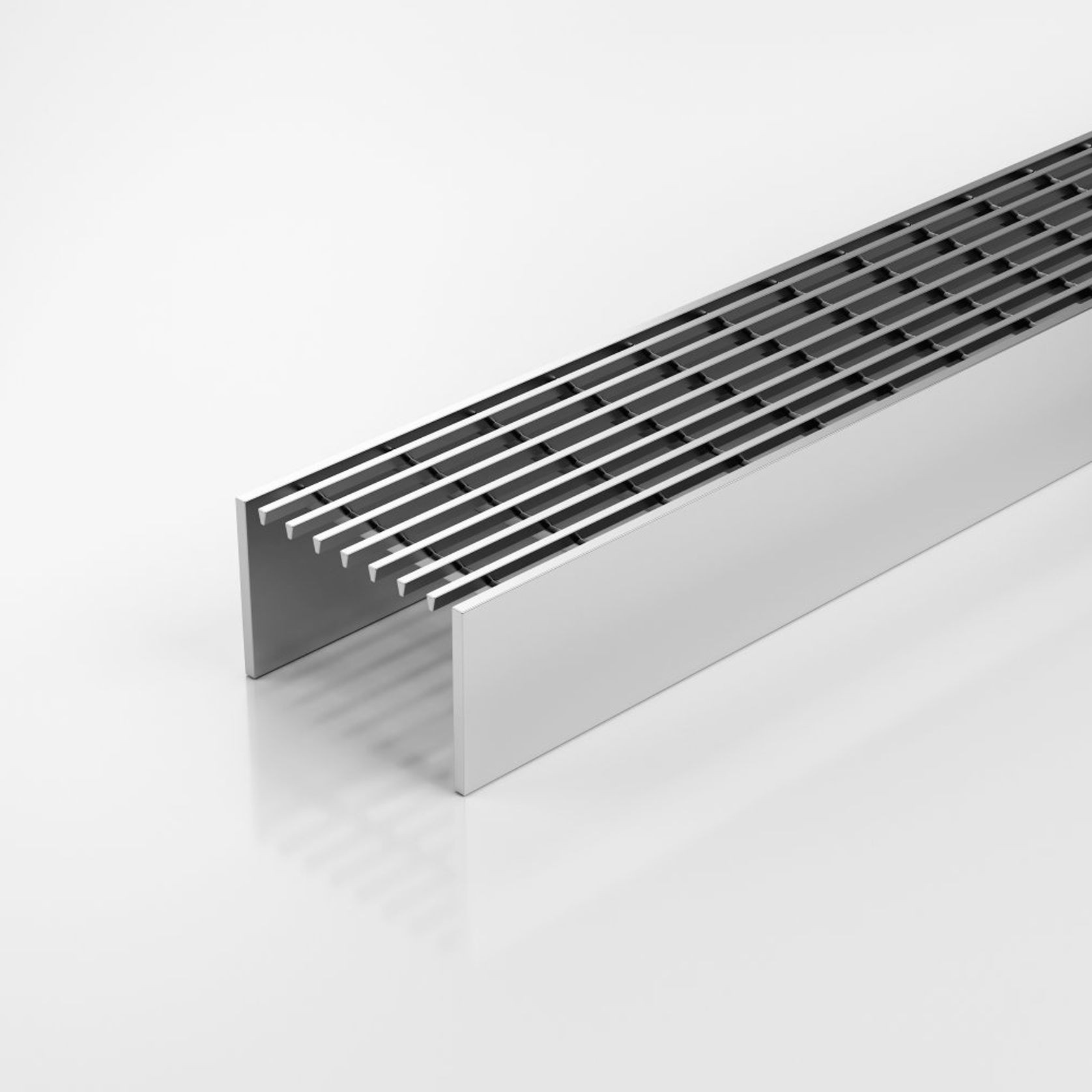

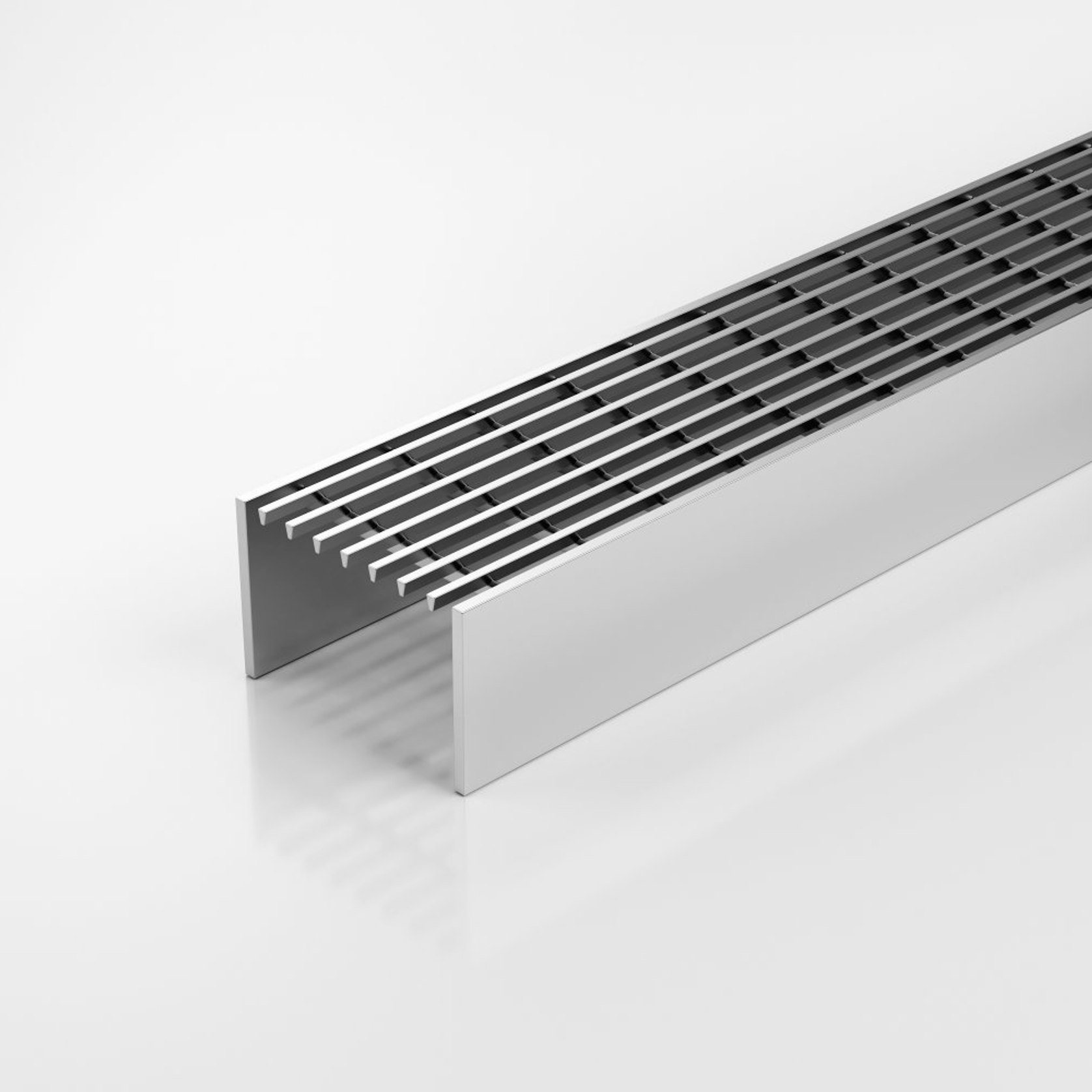

The 65TR40 is our standard grate designed to be used with our Special Assembly units 65G100 and 65G90.


65mm wide UPVC channel is connected via downpipes at 200mm intervals to sockets in a 100mm drain below. This allows the channel to be installed level while the drainpipe is given sufficient fall to be self-cleaning.


Please note that our TR grates have a non linished finish.


Please be aware that depending on the installation environment, for a pool installation or close to a surf beach, you may need to have your stainless steel grates electropolished.


This unique drainage system was recognised for its innovation by a DesignMark at the Australian International Design Awards.

Details
  • Category
    Surface Drainage
  • Range
    Special Assembly
Specifications

Channel Width: 65mm
Channel Depth: 40mm
Length(s): 900mm, 1000mm, 1200mm, 1500mm
Outlet Size: N/A

SKU: 65TR40
