65TRi40MTL | Linear Drainage System
by Stormtech
New South Wales
- 566.0K profile views
- 67 saves

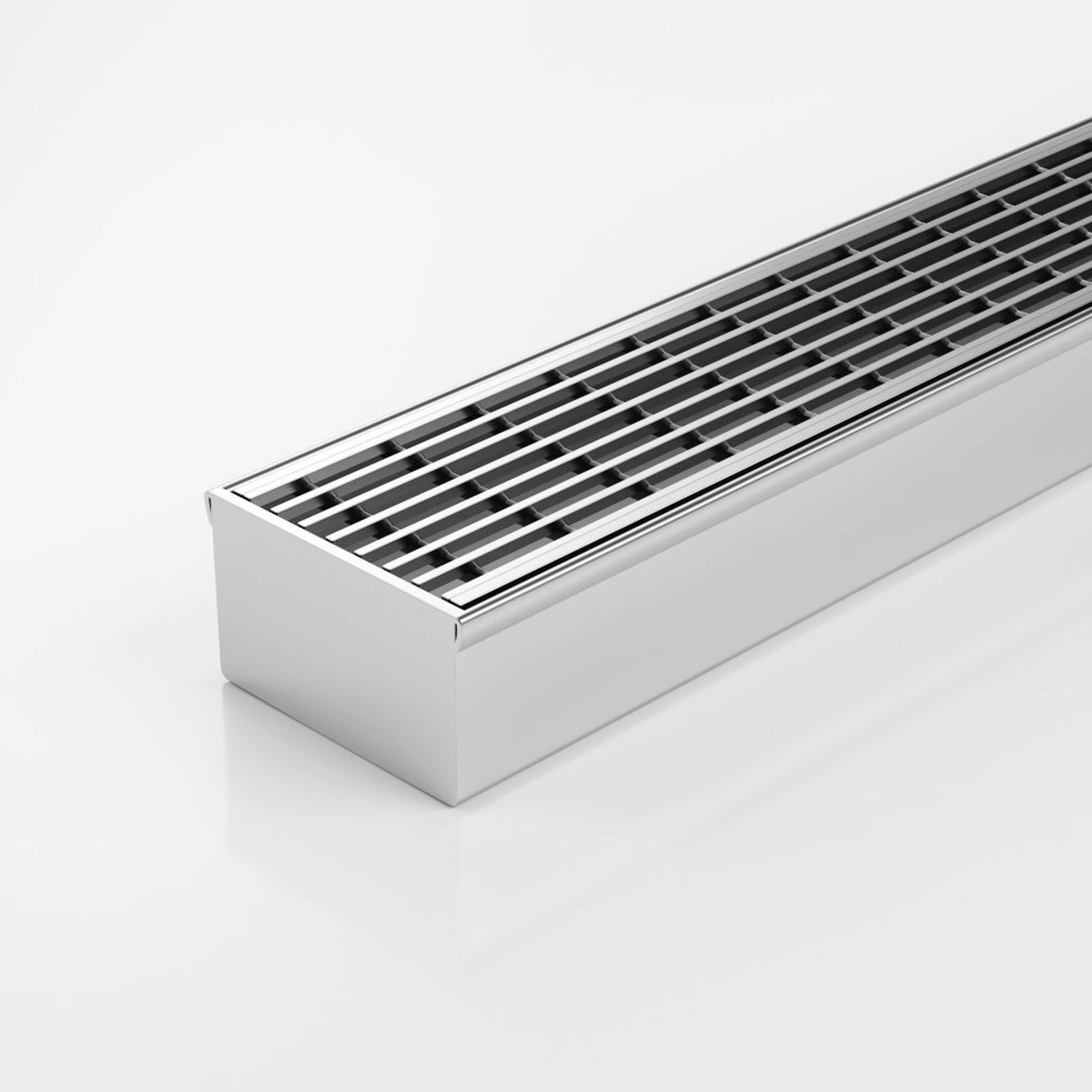

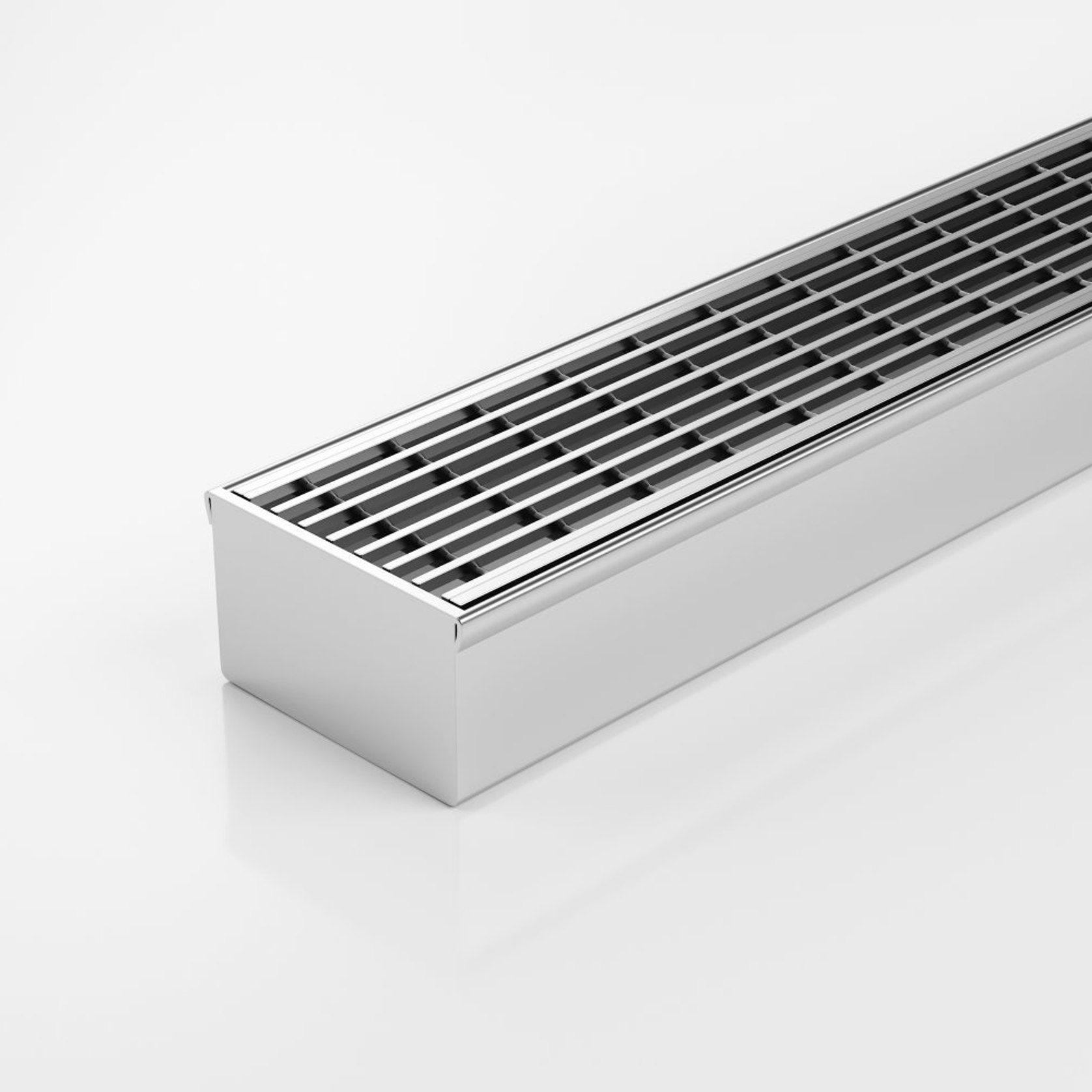

The Standard (TR) wedge wire grate style, feature a 3mm wire/5mm gap and offers an economical solution without compromising aesthetic elegance. Made from 316 marine grade stainless steel for excellent strength, durability and corrosion resistance.
Product Details
- Product
- 65TRi40MTL | Linear Drainage System
- Category
- Surface Drainage
- Sold by
- Stormtech
- Range
- 65
Product Variants
- Size
Stormtech is specified by
Cadence & CoArchitects
Windiate ArchitectsArchitects
Taylor KnightsArchitects
Whisker ArchitectureArchitects
BVNArchitects
Create ArchitectureArchitects
Tim Hodges ArchitectArchitects
Eliza Blair ArchitectureArchitects
J Mammone ArchitectureArchitects
djrd architectsArchitects
Chan ArchitectureArchitects
WexhausArchitects
Ian Moore ArchitectsArchitects
Greenaway ArchitectsArchitects
Winter ArchitectureArchitects
Bower ArchitectureArchitects
ArchierArchitects
Hive ArchitectureArchitects
Smyth & SmythArchitects
SJBArchitects
Tham ArchitectsArchitects
Utz Sanby ArchitectsArchitects
DX ArchitectsArchitects
Bryant Alsop ArchitectsArchitects
NTF ArchitectureArchitects
Rama ArchitectsArchitects
K.Holland Architectural InteriorsInterior Designers
Sici DesignInterior Designers
Seidler GroupDesign & Build
STUDIO GAXAInterior Designers
BeecraftBuilding Designers
Studio ApercuInterior Designers
Hutchinson BuildersBuilders
The Standard (TR) wedge wire grate style, feature a 3mm wire/5mm gap and offers an economical solution without compromising aesthetic elegance.
Made from 316 marine grade stainless steel for excellent strength, durability and corrosion resistance.
- Specs

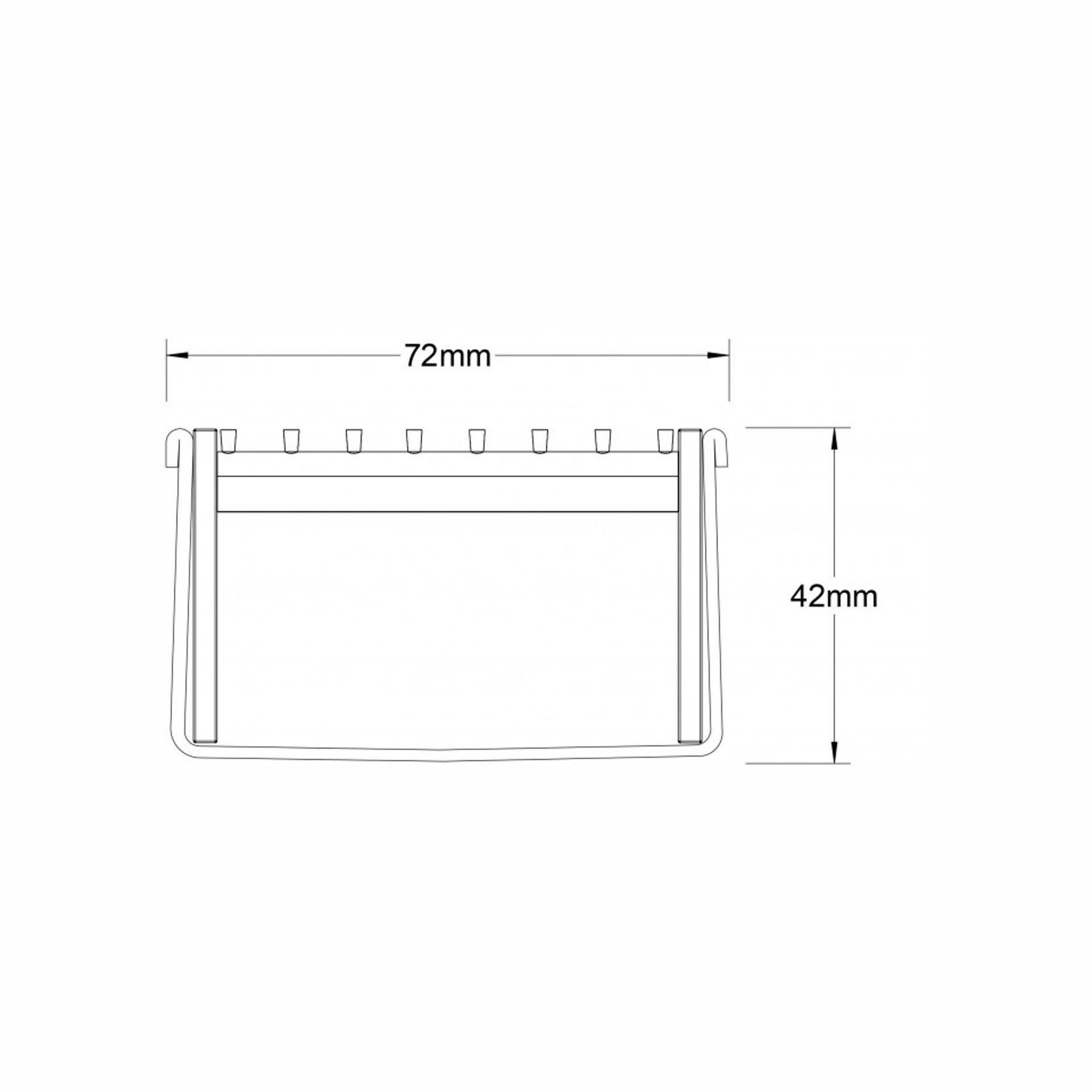

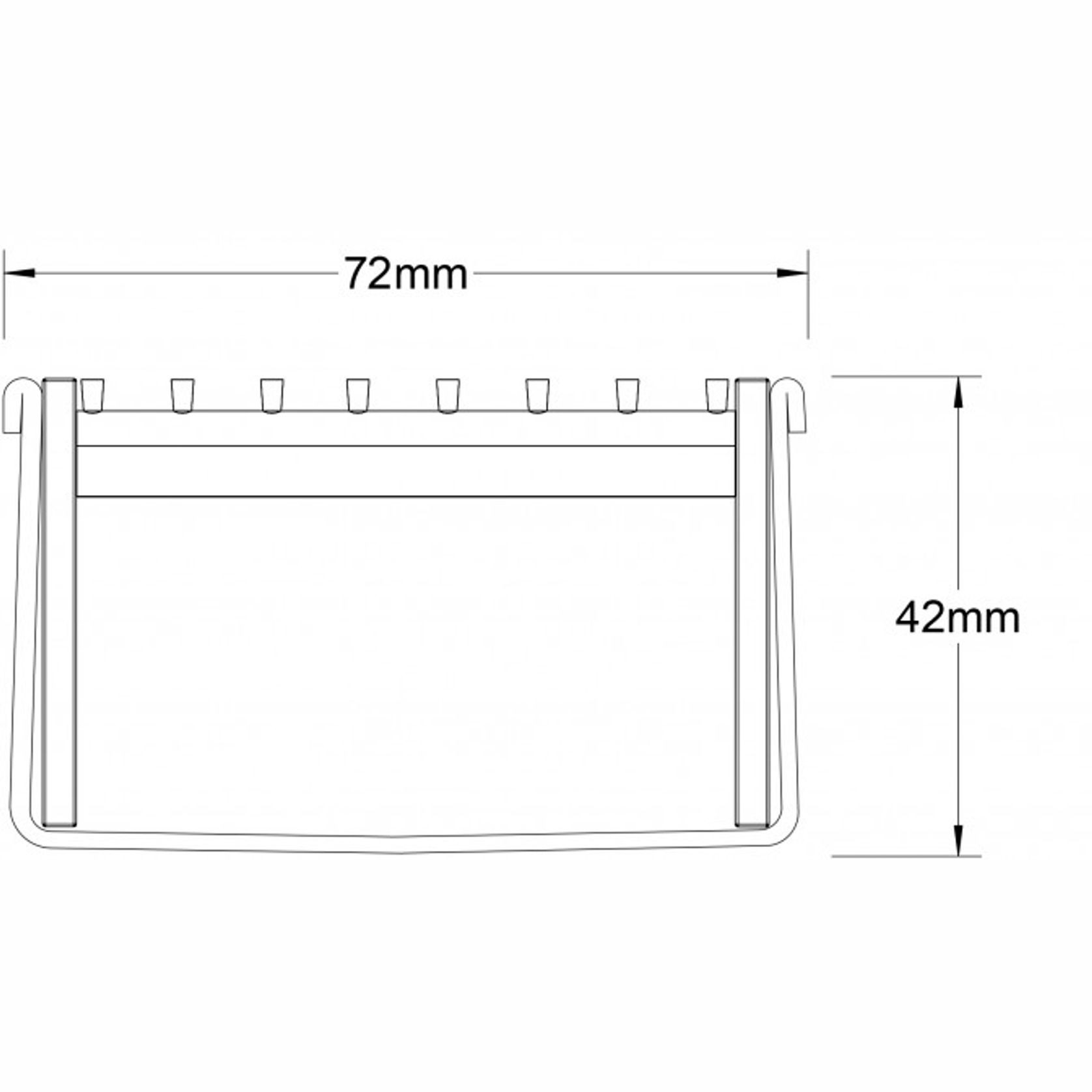

- Channel Width: 72mm
- Channel Depth: 42mm
- Length(s): As Required
- Outlet Size: DN40, DN50, DN65
- Features
- The 65TRi40MTL is made to specific lengths with a customised outlet position along the drain.
- The complete drainage unit is made of full 316 marine-grade stainless steel.
- Please be aware that depending on the installation environment, for a pool installation or close to a surf beach, you may need to have your stainless steel grates electropolished.
- Electropolishing will reduce the risk of tea staining caused by salt or chlorine.
- Please note that our TR grates have a non-finished finish.
