Access Panel - Paintable, Matt MDF

Masons
Visit Website
Access Panel - Paintable, Matt MDF gallery detail image
Access Panel - Paintable, Matt MDF gallery detail image
Access Panel - Paintable, Matt MDF gallery detail image

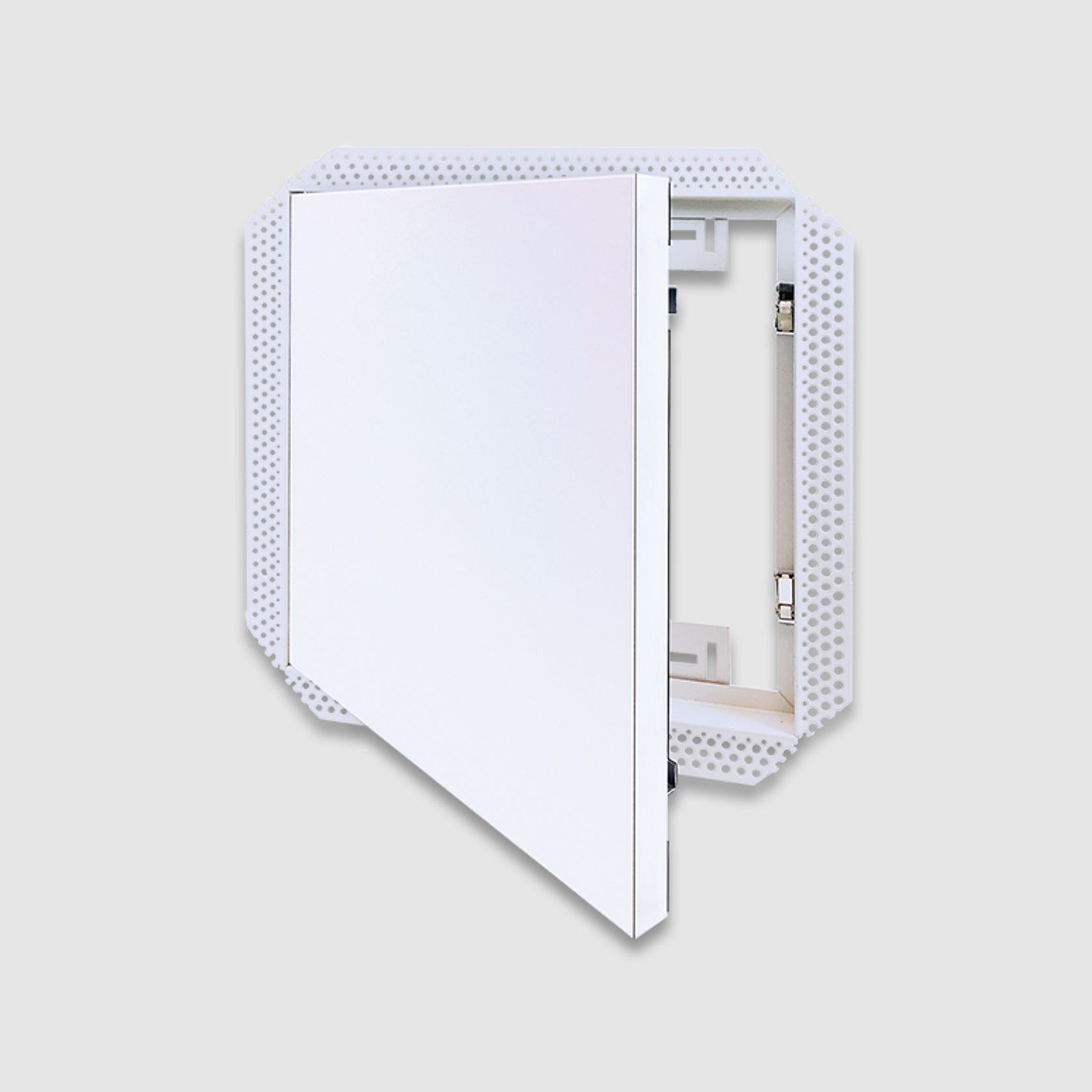

Masons Paintable Access Panel provides easy access through non-fire rated dry-lined walls and ceilings to concealed spaces. It is pre-primed and ready for painting and has a noise reducing liner.

This Panel is made from pre-finished matt MDF with a ‘push-catch’ closing system, a metal frame, beaded plaster-ready trim and a noise reducing liner. This hatch is perfect for both residential and commercial buildings.

Details
  • Category
    Construction 4.0, Wall & Ceiling Hatches
  • Range
    Masons Access Panel
Specifications

Access Panel, Matt, Paintable - 600 x 600mm

Installation Guide

  • Measure across the inner flanges for the access panel.
  • Cut a hole in the plaster board to match measured panel size adding 2.5mm each side to allow for clearance (e.g. 605 x 605mm for the 600mm panel).
  • For 600 x 600 mm access panel, frame out the cut opening on the hidden (non visible) side of the plasterboard. Check access panel fit before fixing off the opening framing.

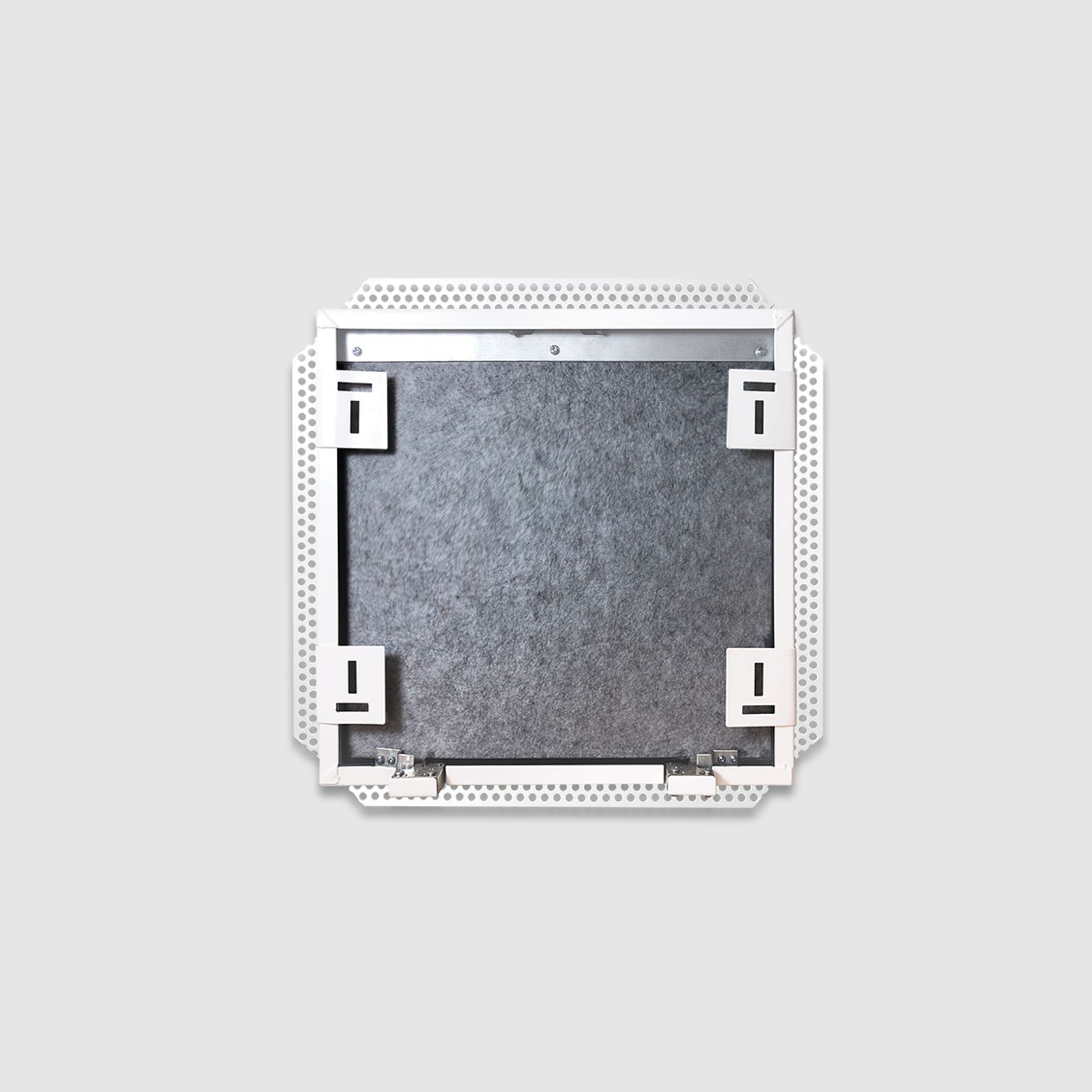

  • Bend the steel tie tags, located around the inside of the frame to the vertical position and slot the hatch (without door for easy installation) into the framed opening.
  • Secure the steel tie tags to the stud or support framing OR fold them over to secure to the plaster board.
  • Fix screws through the access panel frame and tags to the timber supporting framing until the access panel is flush and securely fixed.
  • Insert the door and secure with screws provided.
  • Plaster in the beaded trims surrounding the access panel.
  • Paint the access panel and plastered areas to match.
Scope of use

Application

Easy access to:

  • Ceiling spaces and bulk heads.
  • Roof spaces: Insulation, framing, inspection of underlay and roofing. Vermin control.

About the
Seller

Masons provide a range of quality trade building products from a complete Enclosure Building Wrap System and Exterior Cladding, to Brick Reinforcement, and are a crucial supplier in the New Zealand building industry.

Masons strive to be at the forefront of developing innovative products that raise the standards of New Zealand building products.
