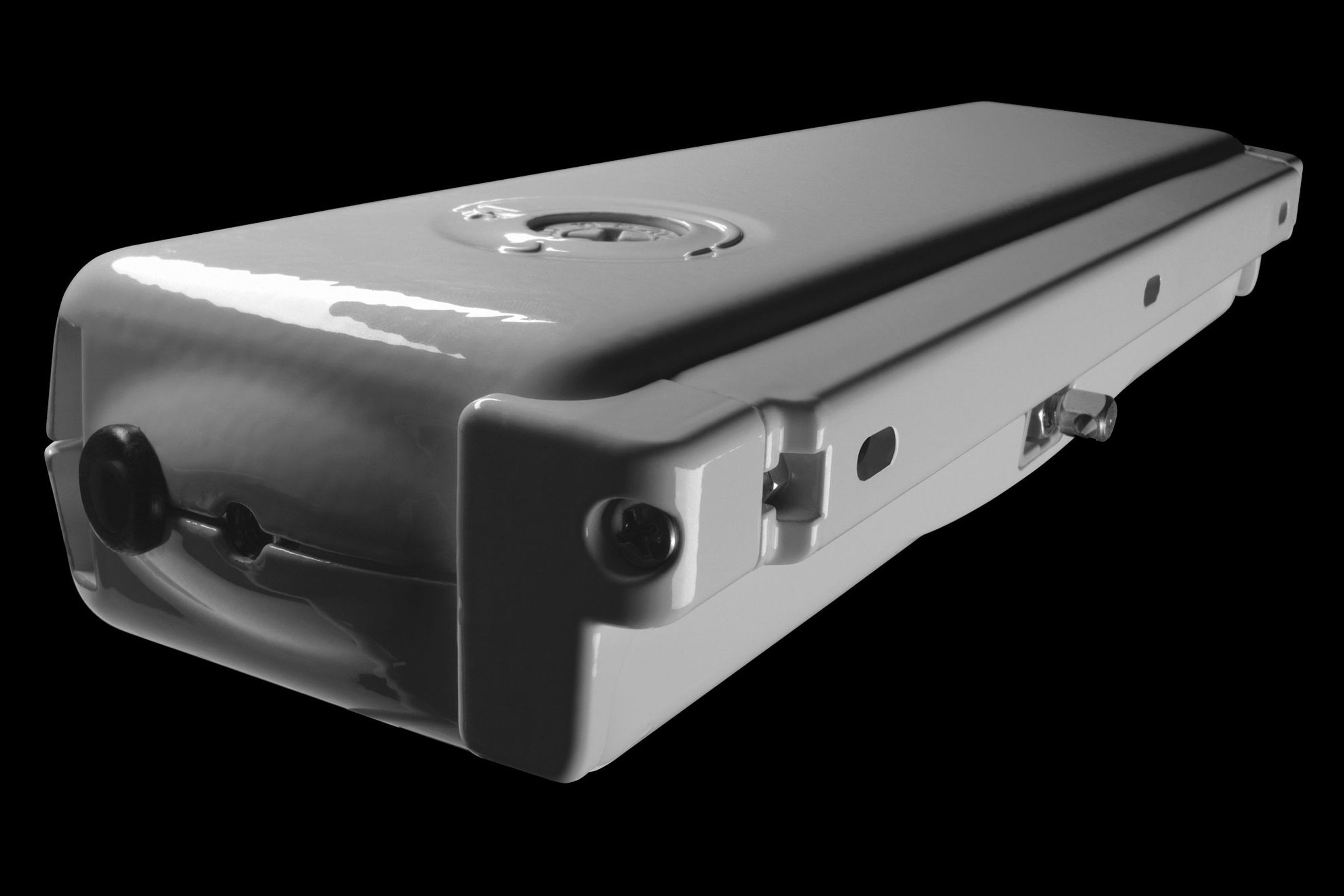

TOPP ACK4 Chain Actuator 230V

Website

TOPP ACK4 Chain actuator 230V DC

- Chain actuator
- Thrust force 300 N
- Adjustable stroke max.400 mm
- 230V DC

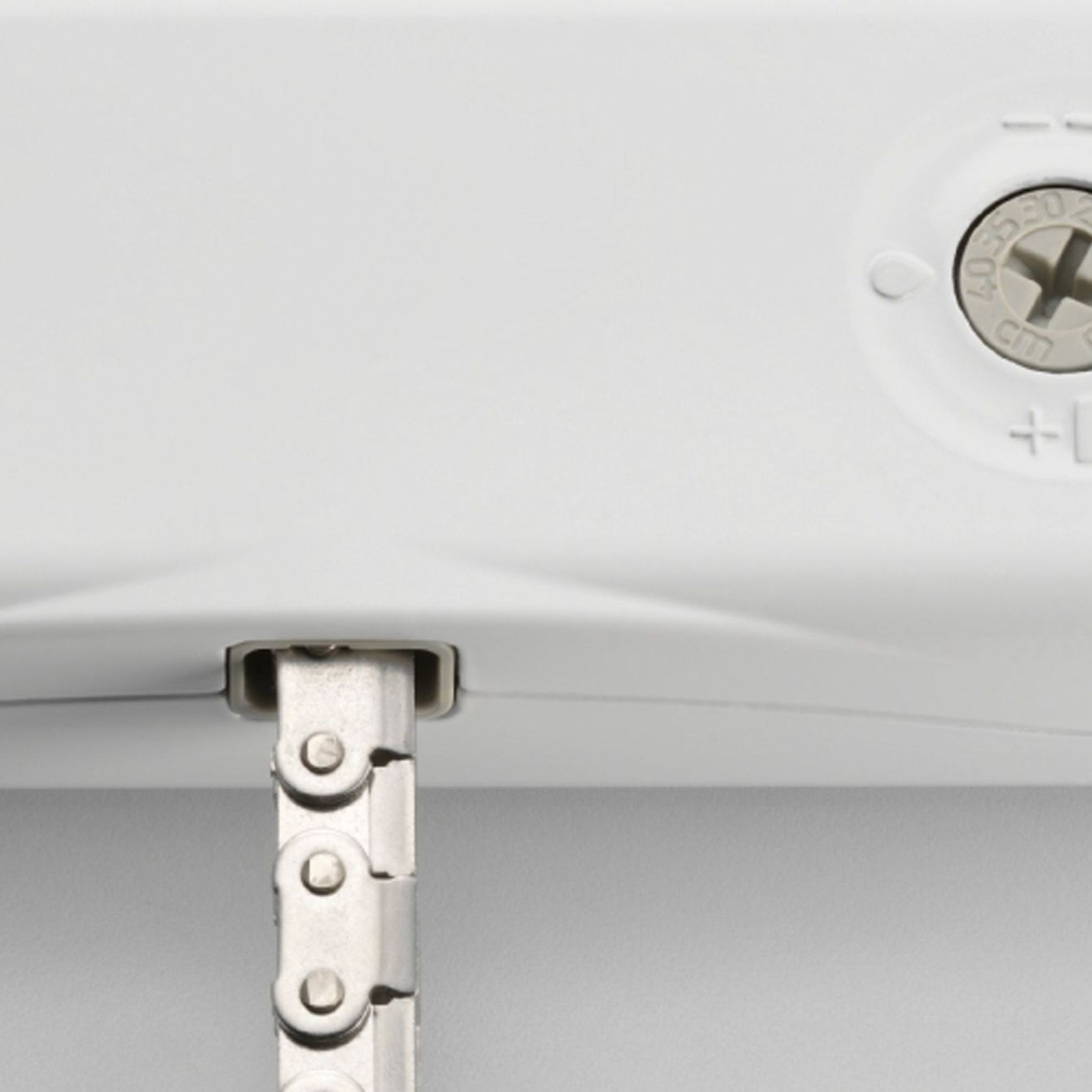

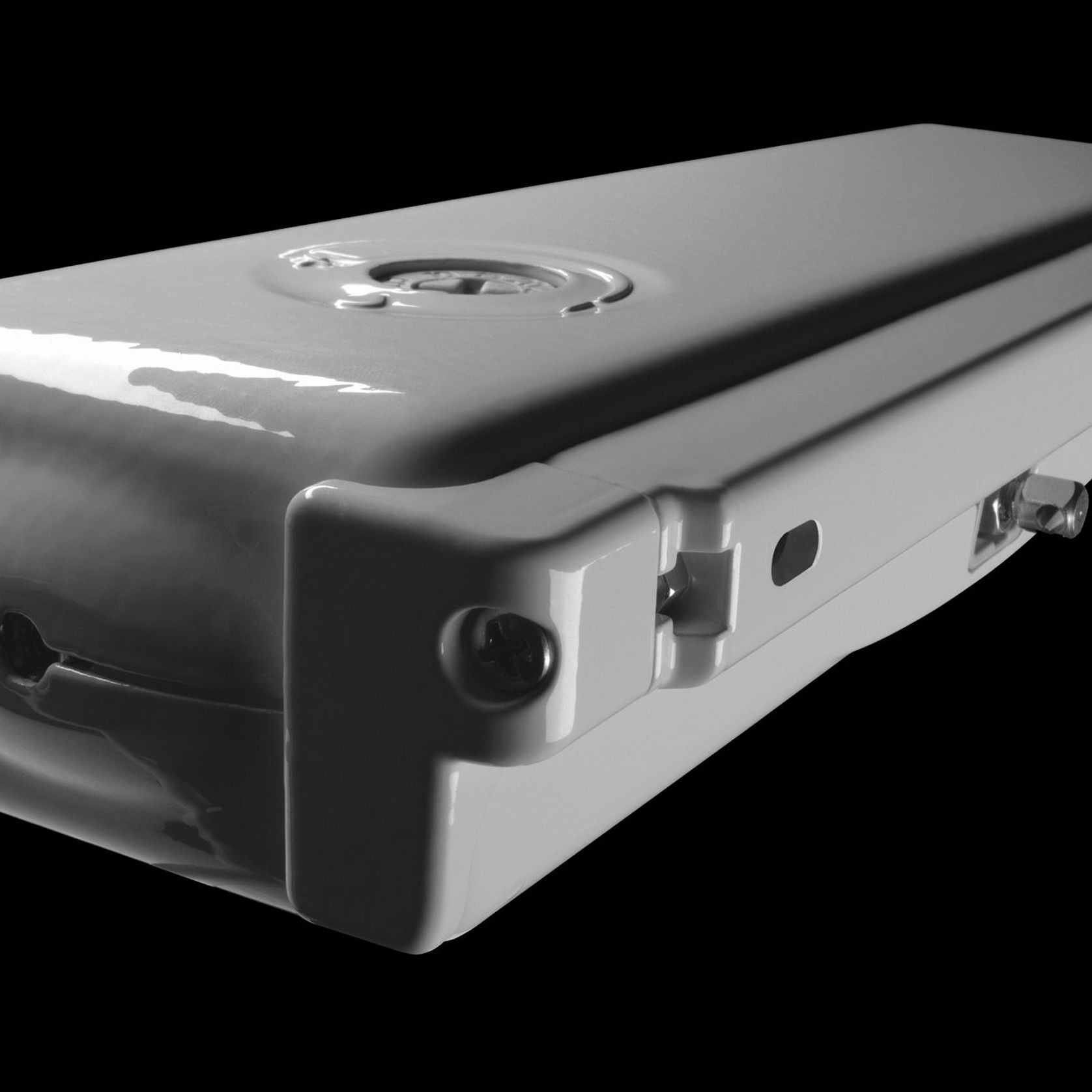

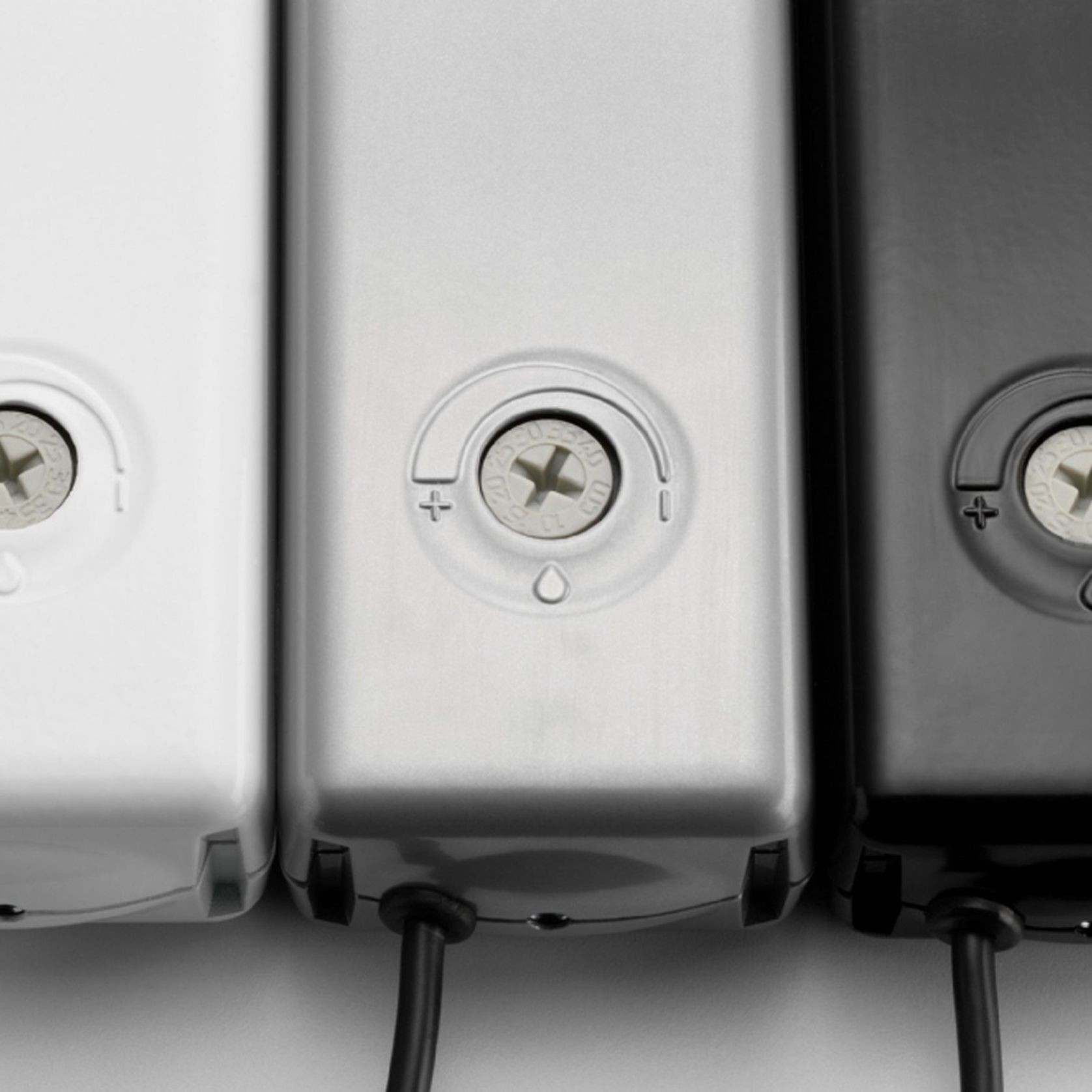

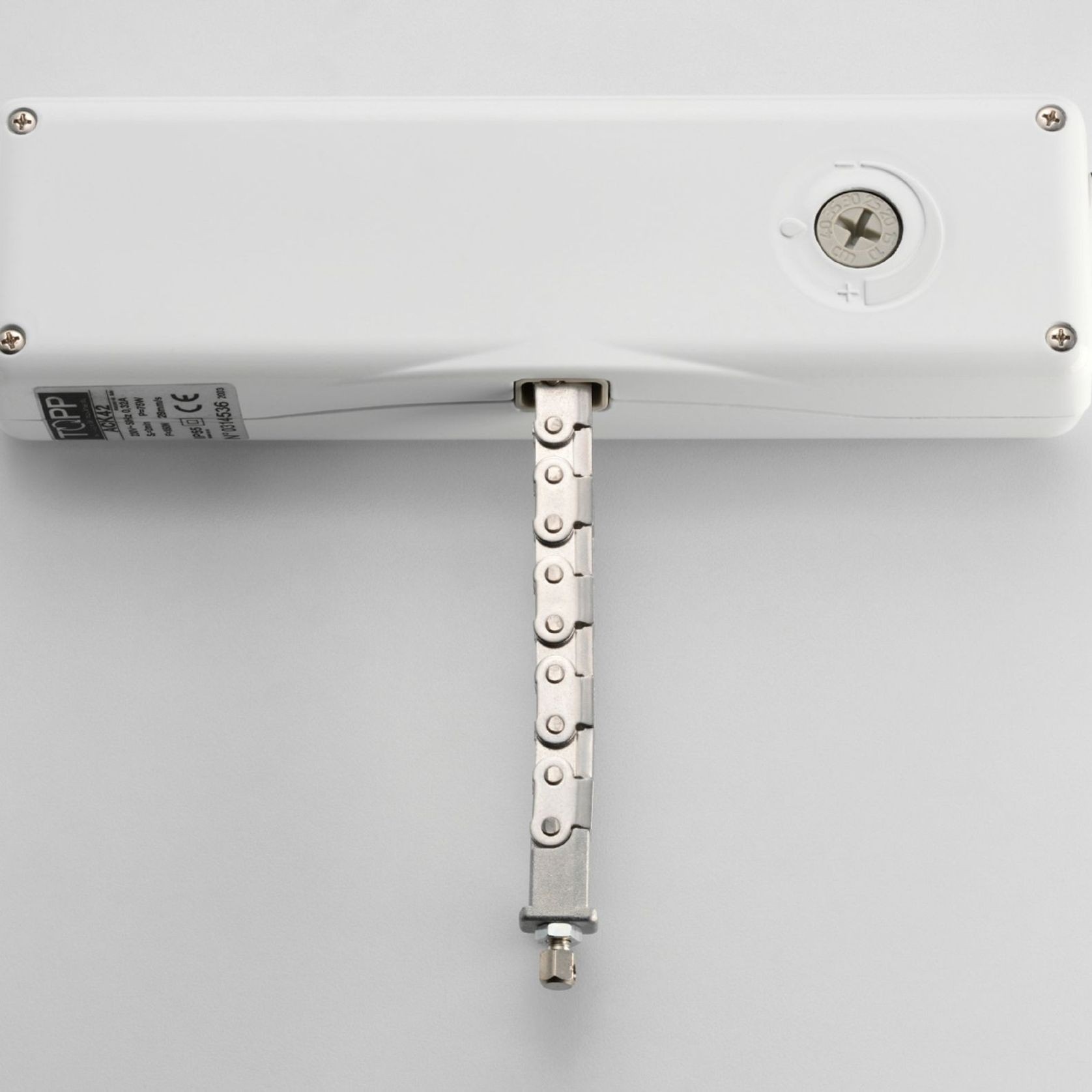

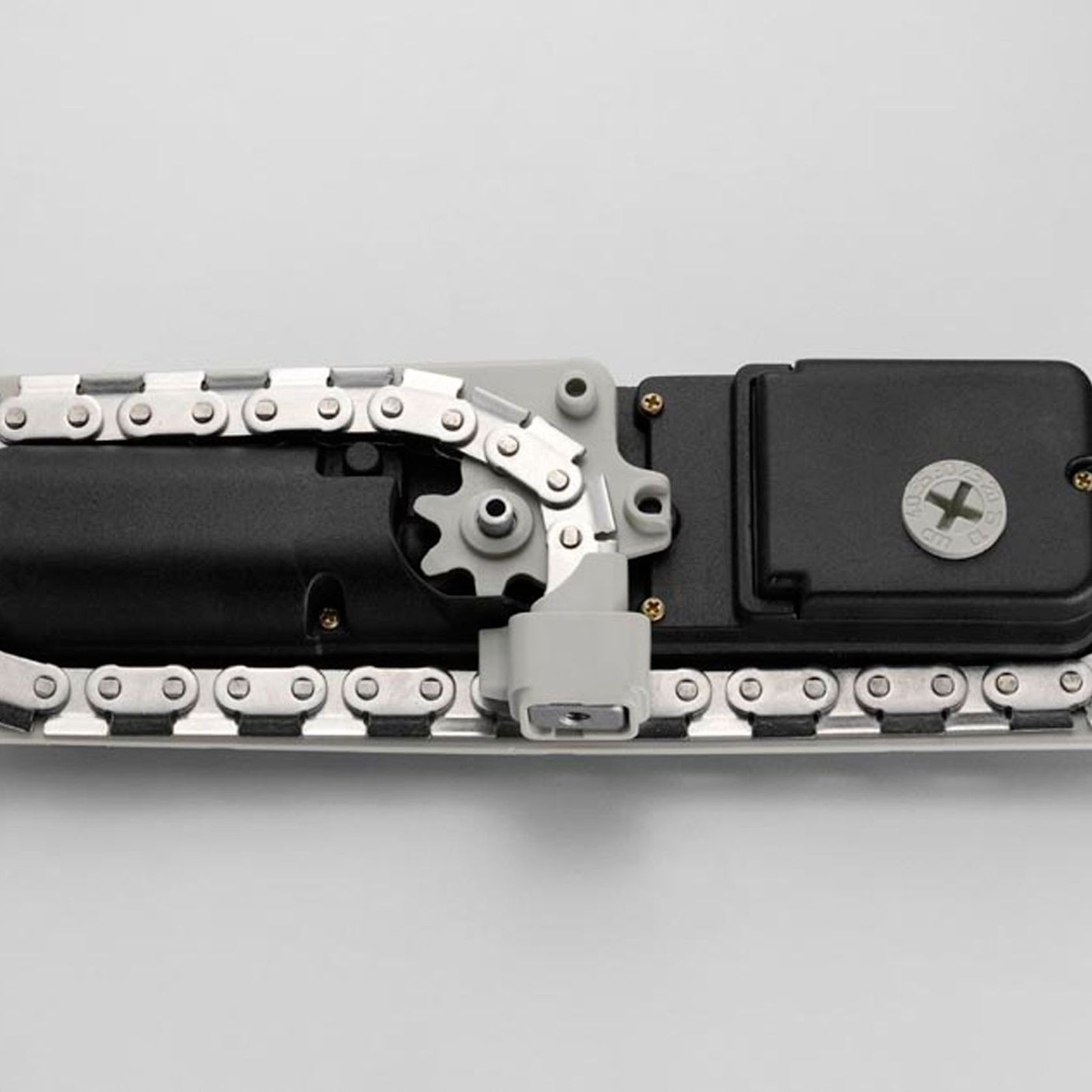

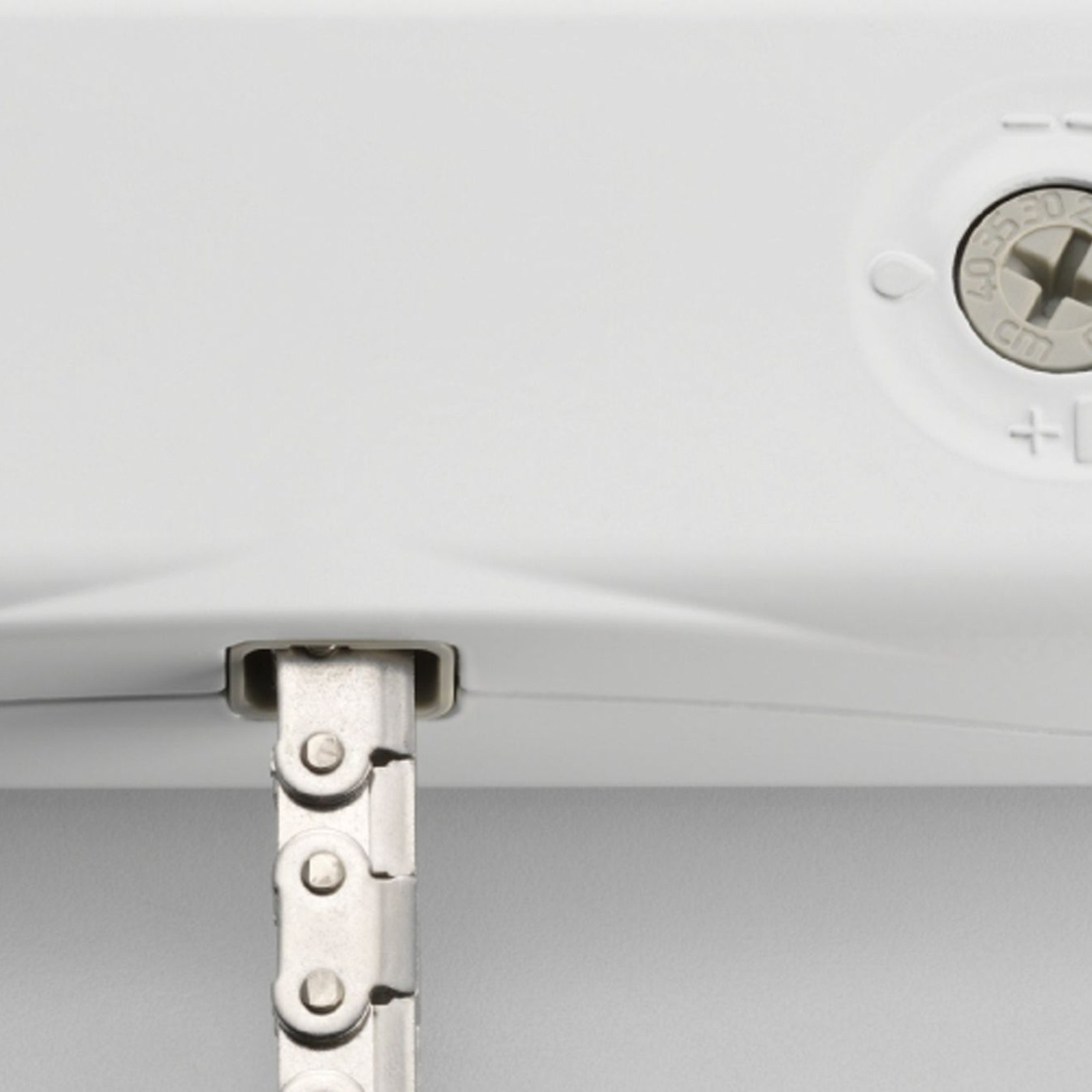

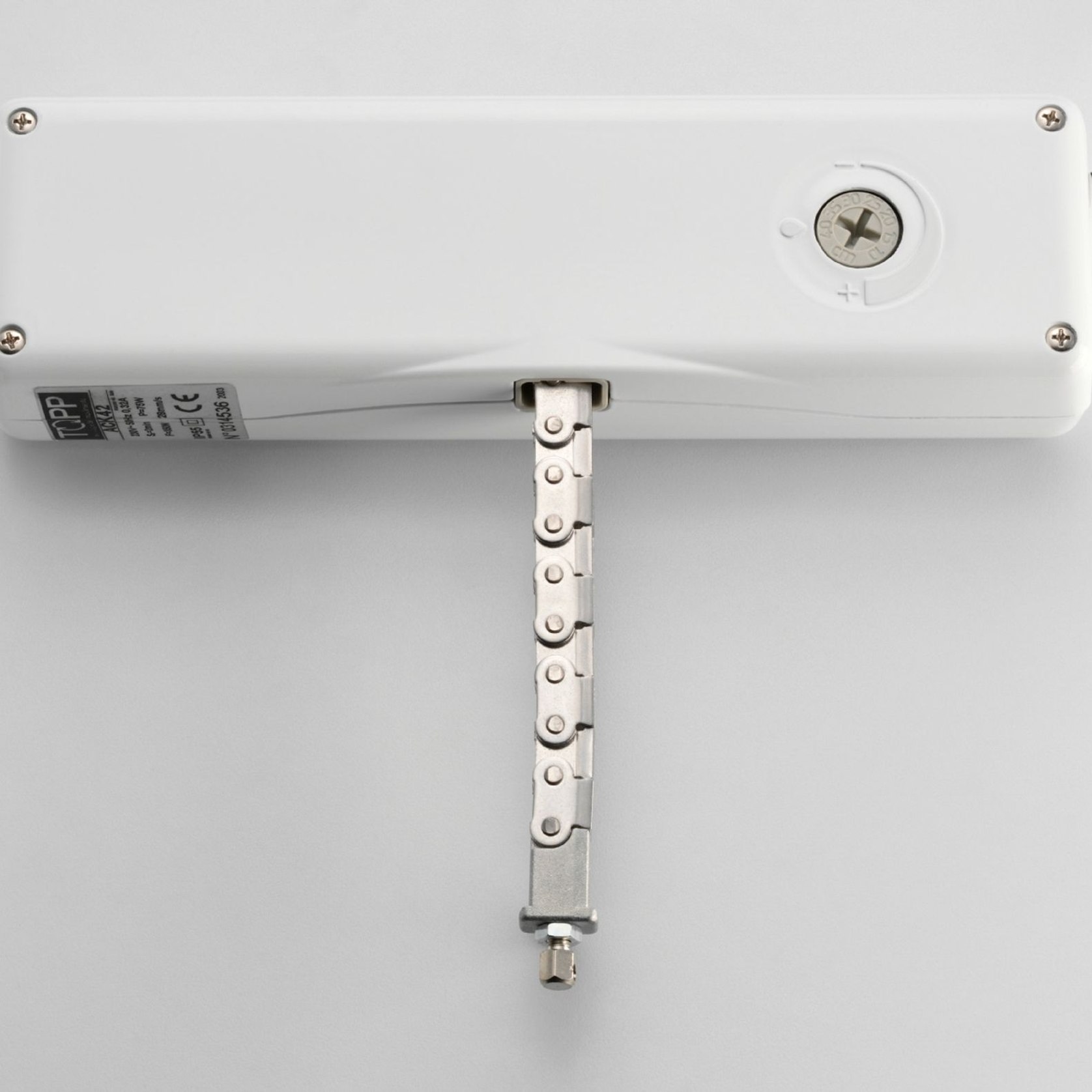

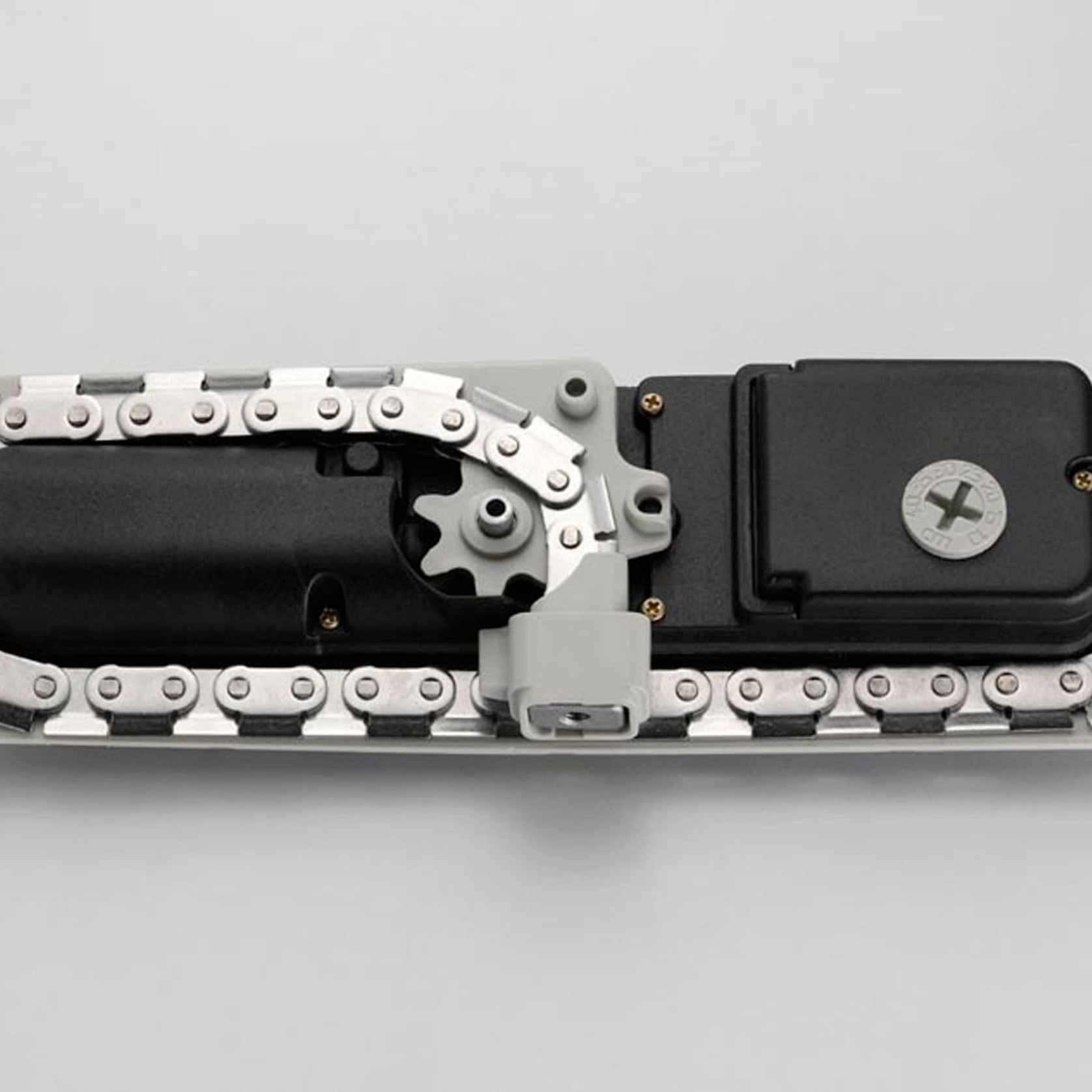

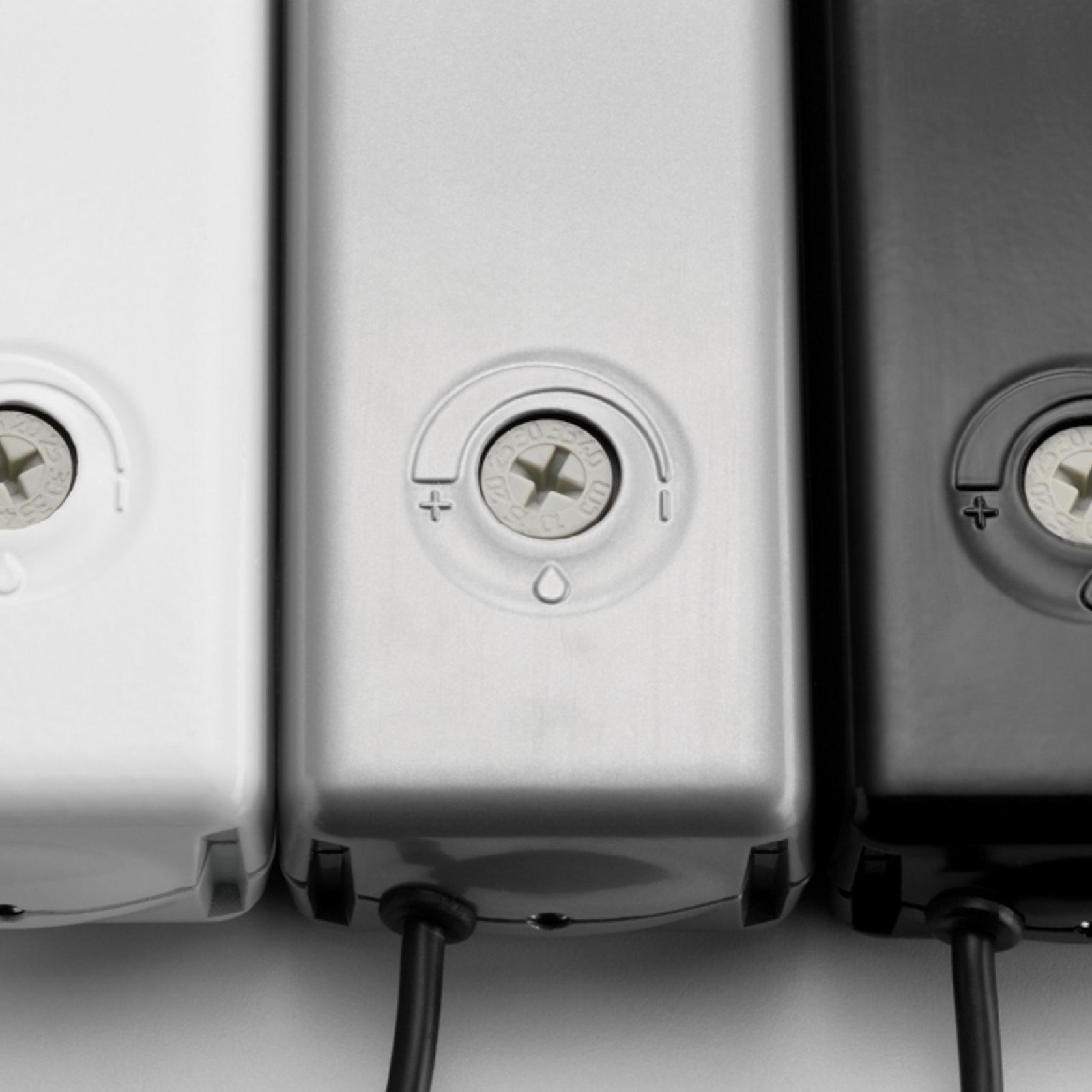

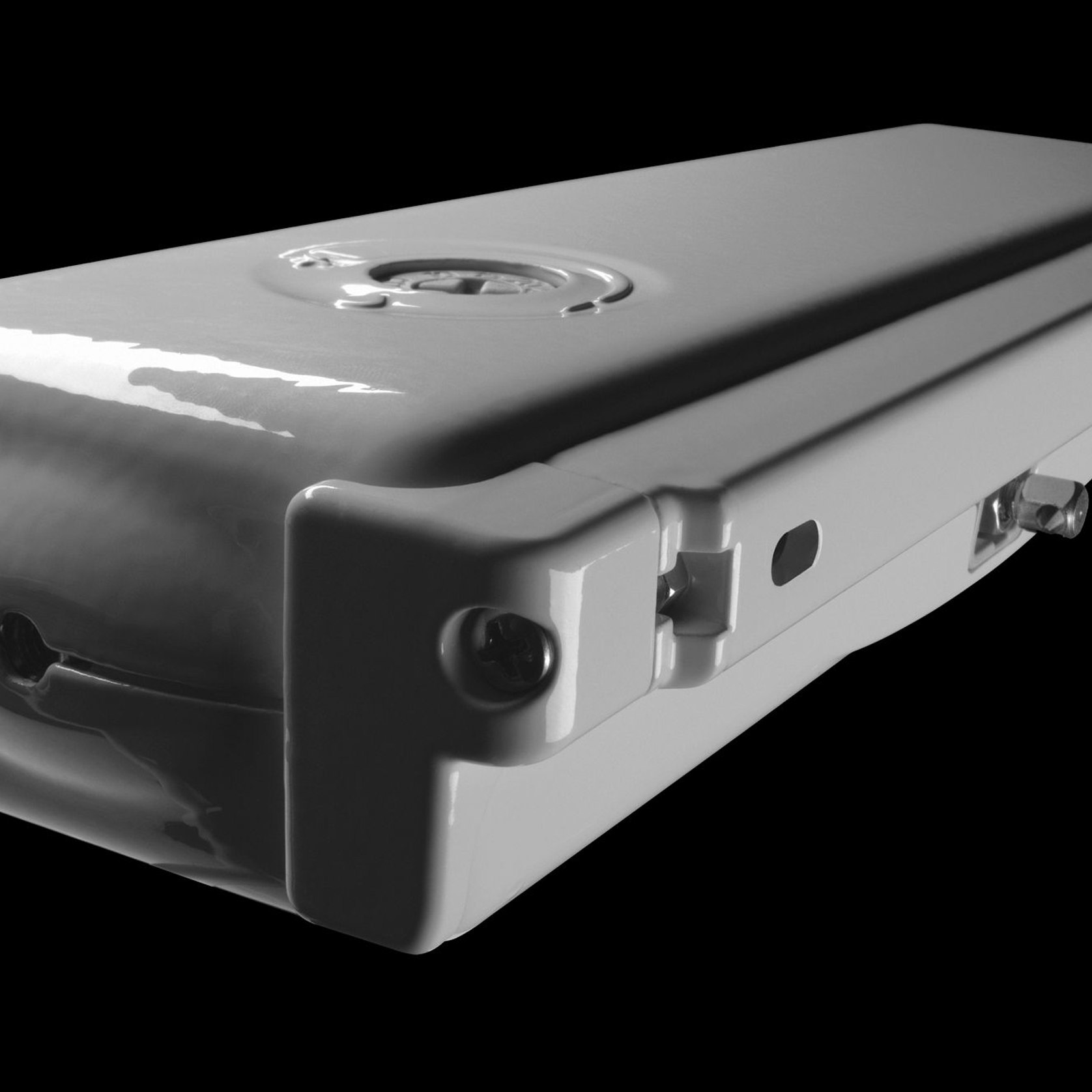

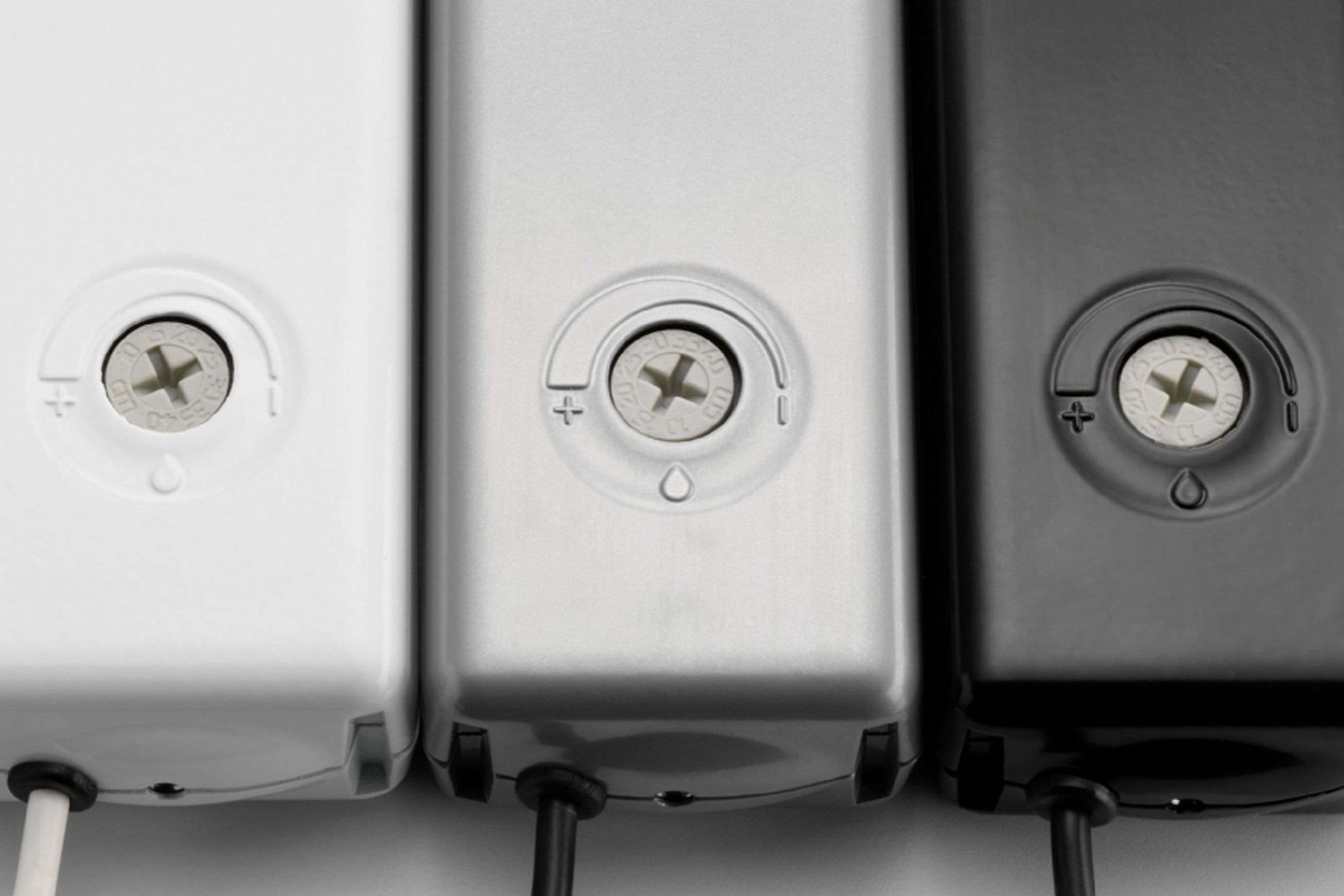

Electric actuator model ACK4 with a double link articulated stainless steel chain, enclosed in a special diecast aluminum casing, painted with epoxy powders, with different mounting accessories for top and bottom hung windows. Operation at 230V 50Hz. or, as an alternative, at 24V DC. Max. traction and thrust force 300N. End of stroke adjustable at 100, 150, 200, 250, 300, 350, 400 mm by an external knob located on both sides of the actuator. Electronic device with acoustic warning to signal erroneous installation (buzzer). Upon request, a preset “S” version for the synchronous operation of two actuators on the same window is available.
High protection IP 55 rated. Available IP66 version (fixed stroke). CE marked device.
