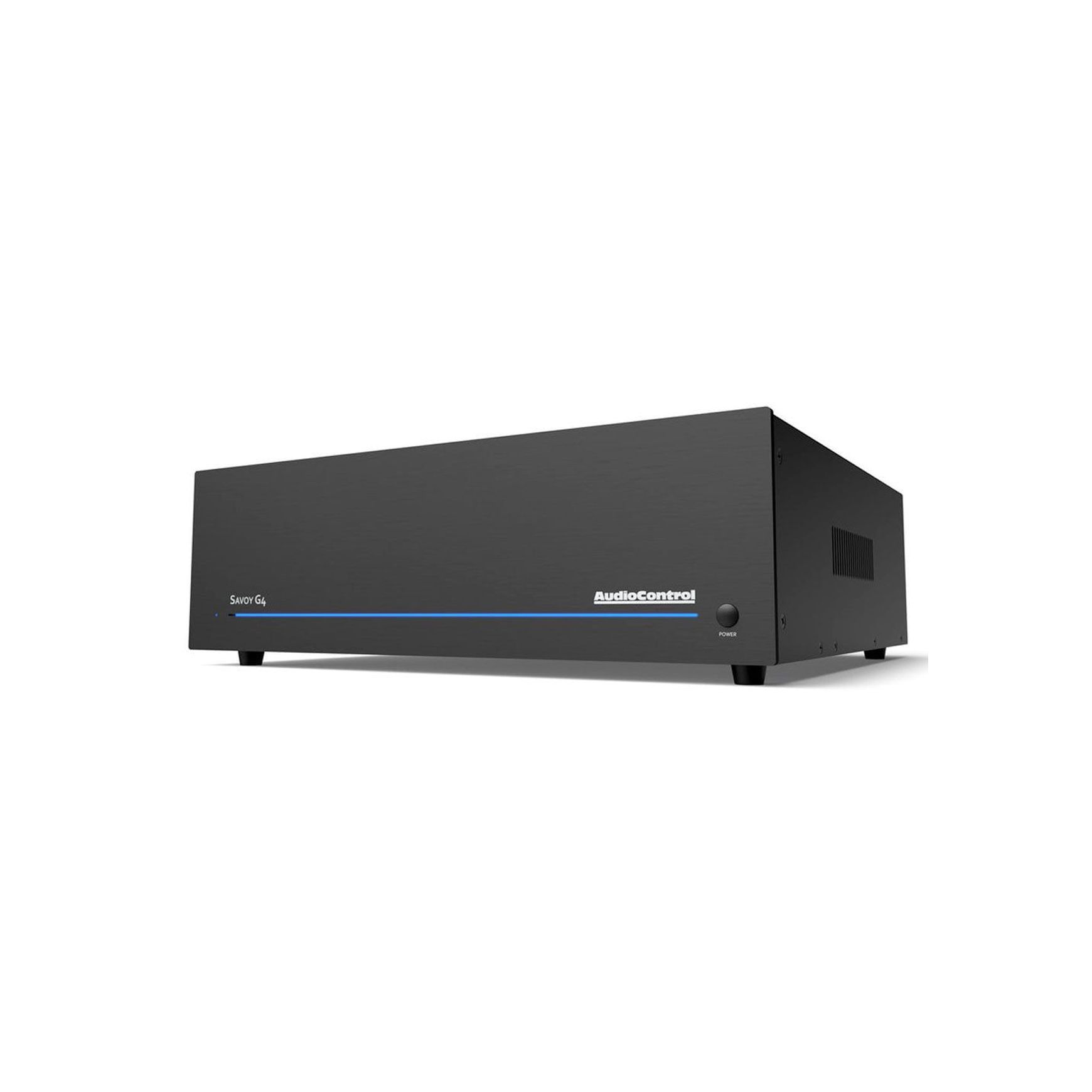

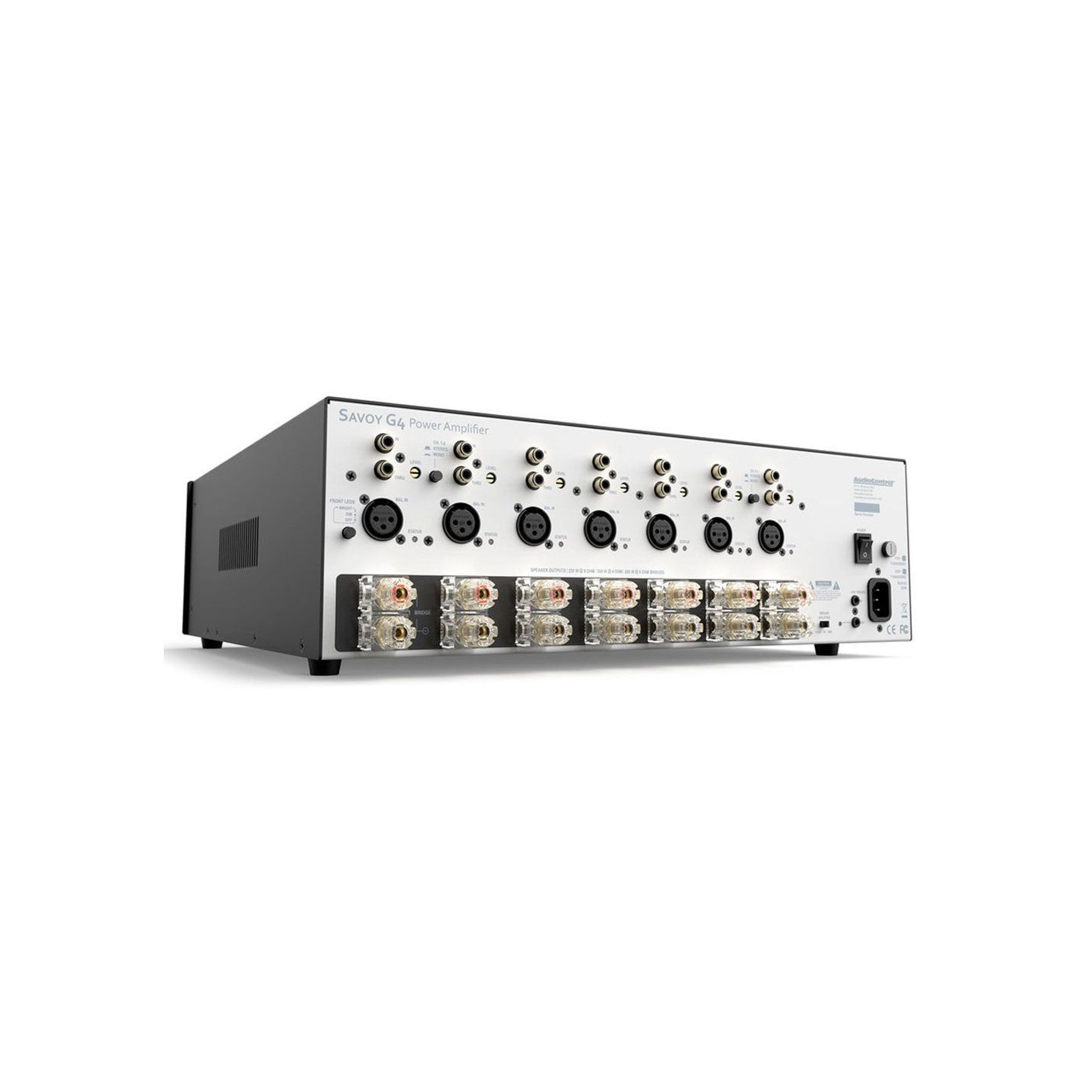

AudioControl Savoy 7 Channel Class H Power Amplifier
Sydney, Australia
- 94.2K profile views
- 7 saves
Built from a legacy of respected premium power amplifiers, AudioControl’s G4 series amplifiers offer effortless power and efficiency, delivering impressively dynamic and detailed audio across all channels.
Incorporating AudioControl’s unique, highly efficient, and cool-running Class H design, the Savoy G4 power amplifier achieves 230 watts per channel at 8 ohms and 300 watts per channel at 4 ohms, all channels driven. The Savoy G4 can also be configured for 600 watts at 8 ohms bridged on select channels to facilitate flexible configurations well beyond powering surround channels. AudioControl’s LightDrive™ built-in anti-clipping protection circuit safely eliminates any possibility of speaker-damaging clipping and distortion, even in extreme conditions.
Designed as a perfect match to AudioControl’s preamp processors or as standalone critical listening power amplifier, the Savoy G4 can be configured for anything from a powerful 3 channel listening room to a detailed and dynamic, multichannel home theater.
Product Details
- Product
- AudioControl Savoy 7 Channel Class H Power Amplifier
- Category
- Amplifiers
- Sold by
- Oceanic Distribution
- Pricing
- $7,999
- Brand
- Audiocontrol
- Warranty
- 5 years
Oceanic Distribution is specified by
Built from a legacy of respected premium power amplifiers, AudioControl’s G4 series amplifiers offer effortless power and efficiency, delivering impressively dynamic and detailed audio across all channels.
Incorporating AudioControl’s unique, highly efficient, and cool-running Class H design, the Savoy G4 power amplifier achieves 230 watts per channel at 8 ohms and 300 watts per channel at 4 ohms, all channels driven. The Savoy G4 can also be configured for 600 watts at 8 ohms bridged on select channels to facilitate flexible configurations well beyond powering surround channels. AudioControl’s LightDrive™ built-in anti-clipping protection circuit safely eliminates any possibility of speaker-damaging clipping and distortion, even in extreme conditions.
Designed as a perfect match to AudioControl’s preamp processors or as standalone critical listening power amplifier, the Savoy G4 can be configured for anything from a powerful 3 channel listening room to a detailed and dynamic, multichannel home theater.
- Specs
INPUTS
Inputs: 7 RCA Unbalanced, 7 XLR Balanced
Input Sensitivity: 1.42 Vrms for full output
Maximum Input Voltage: 2.7 Vrms
Input Impedance: 100 kΩOUTPUTS
Amplifier Channels: 7
Power Output (8Ω): 230 watts per channel
Power Output (4Ω): 300 watts per channel
Power Output (8Ω Bridged Mono): 600 watts
Minimum Speaker Load: 4ΩPERFORMANCE
Damping Factor: >450
Total Harmonic Distortion: 0.04% (230 watts @ 8 ohms 20 Hz-20 kHz)
Signal to Noise: >102dB, A-wtd ref Full Output
Frequency Response: 10 Hz -20 kHz, ±1 dBCONTROL
Remote Power Trigger: +12 VDC or Dry Contact ClosureGENERAL
Power Consumption (Standby): < 2W
Power Consumption (Idle): 38W
Power Consumption (loud listening level): 367W
Power Consumption (maximum): 2100W
BTU/Hour Output (Standby): 5.6 BTU/hr
BTU/Hour Output (Idle): 129 BTU/hr
BTU/Hour Output (1/8th power, loud listening level): 477 BTU/hr
BTU/Hour Output (maximum): 2507 BTU/hr
Protection: clipping, short circuit, thermal, DC offsetWEIGHT & DIMENSIONS
Dimensions: 17”W x 16.5”D x 5.25”H (3U)
Weight: 43.0 lbs (19.5 kg)IN THE BOX
Savoy G4, Power Cord, Manual, Warranty- Features
- Award winning theater amplifier technologies
- Seven channel home theater amplifier
- Multi-mode operation: 7 channel, 5.1 channel, 5 channel
- 230 watts per channel at 8 ohms; 300 watts per channel at 4 ohms
- 600 watts at 8 ohms bridged on select channels
- Stable into low impedances
- Stereo/mono operation
- Unparalleled Energy Efficiency
- High Definition BiMOS Outputs
- Cool Running Class H Operation
- LightDrive Anti-Clipping Protection Circuitry
- 5-way Binding Posts
- Unbalanced RCA inputs with pass through
- Balanced XLR Inputs
- Bullet-Proof Reliability
- Remote 12 volt Trigger
- Perfect paired with AudioControl’s home theater preamplifiers
