Axes-SM80
10W Adjustable Surface Mount Downlight
The Axes surface mounted adjustable luminaire provides optimised and efficient performance in a small discrete housing. The architectural LED fitting uses a deep-set light source and honeycomb louvre to provide a symmetrical distribution without glare. The fitting can be rotated 355° with the ability to tilt up to 30° for better focusing.

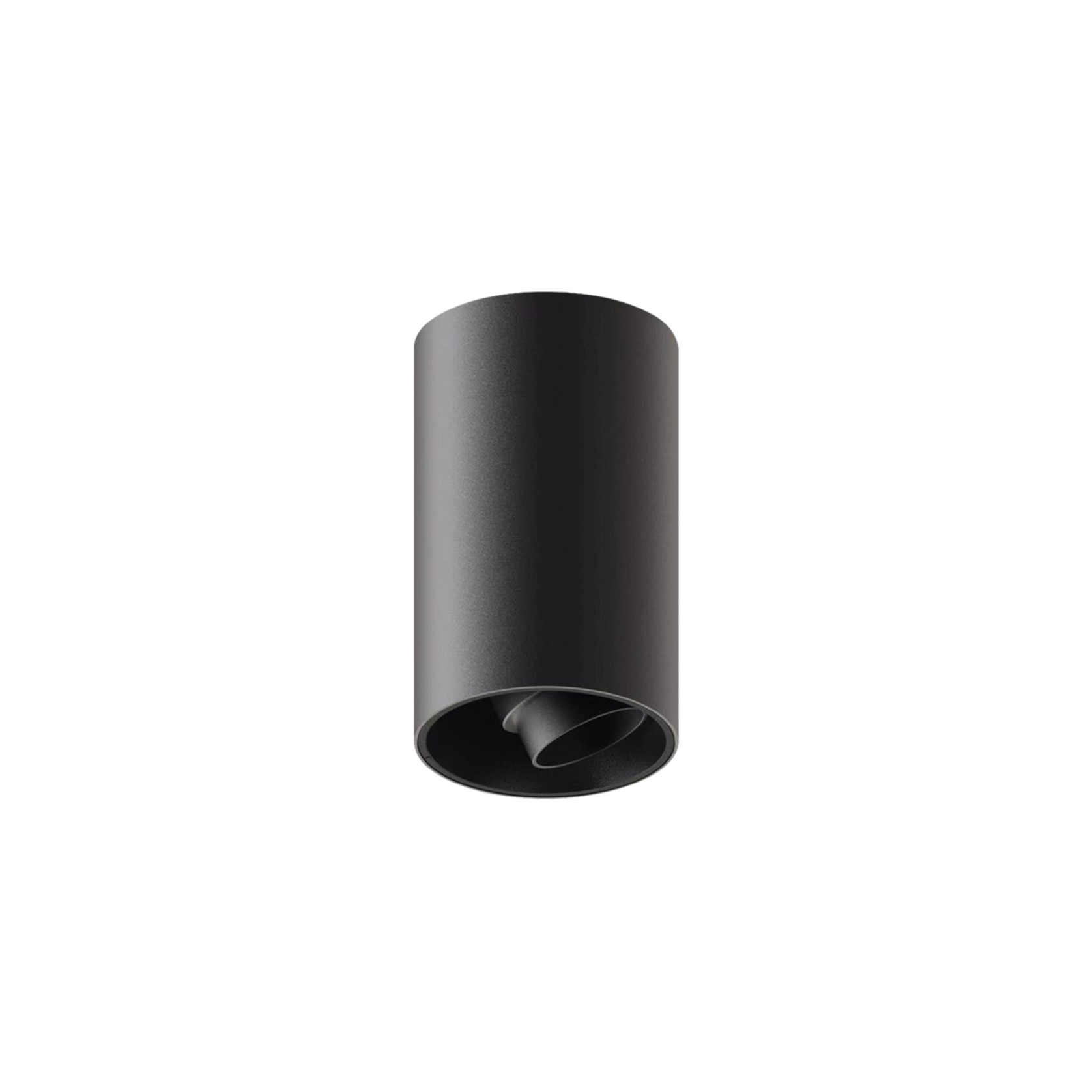

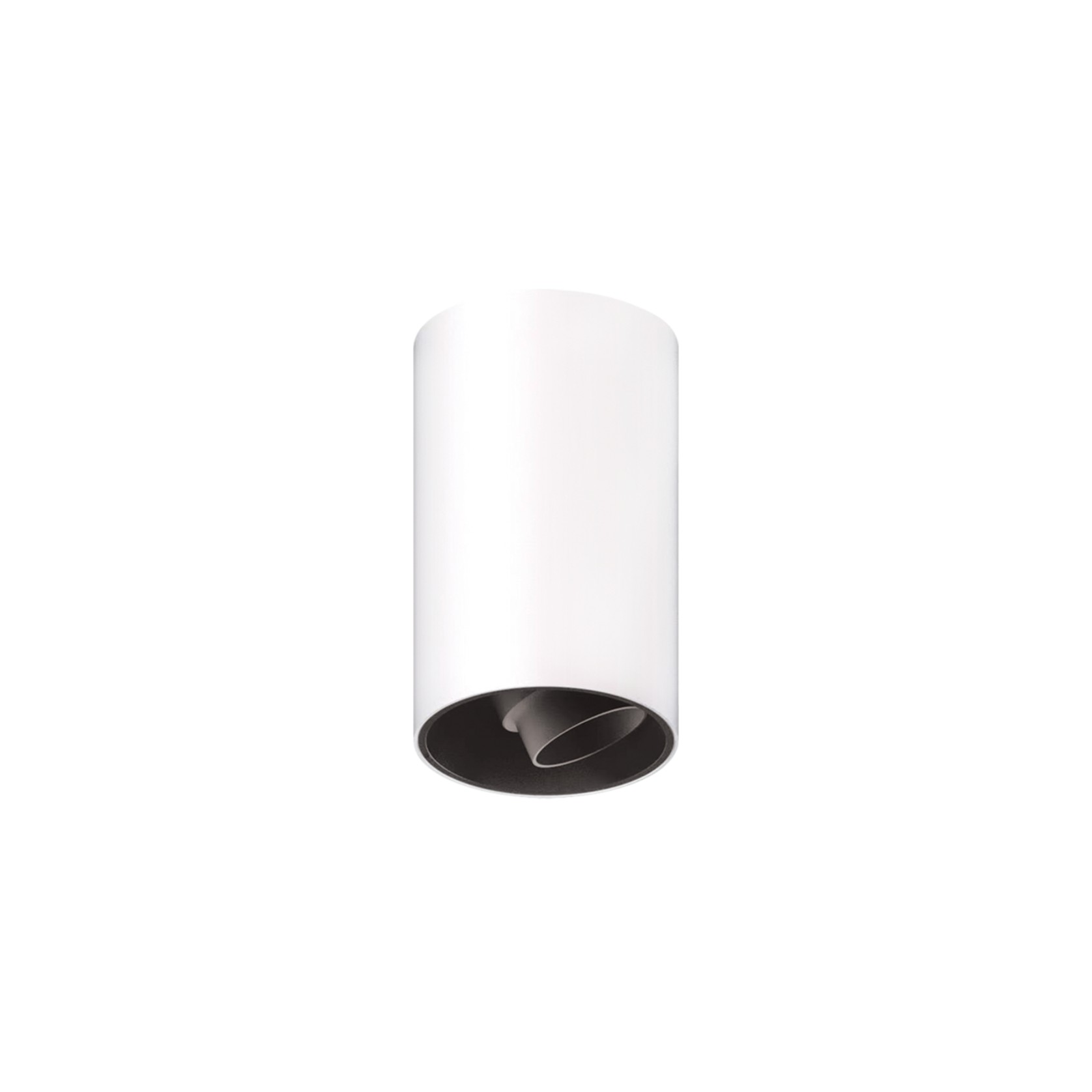

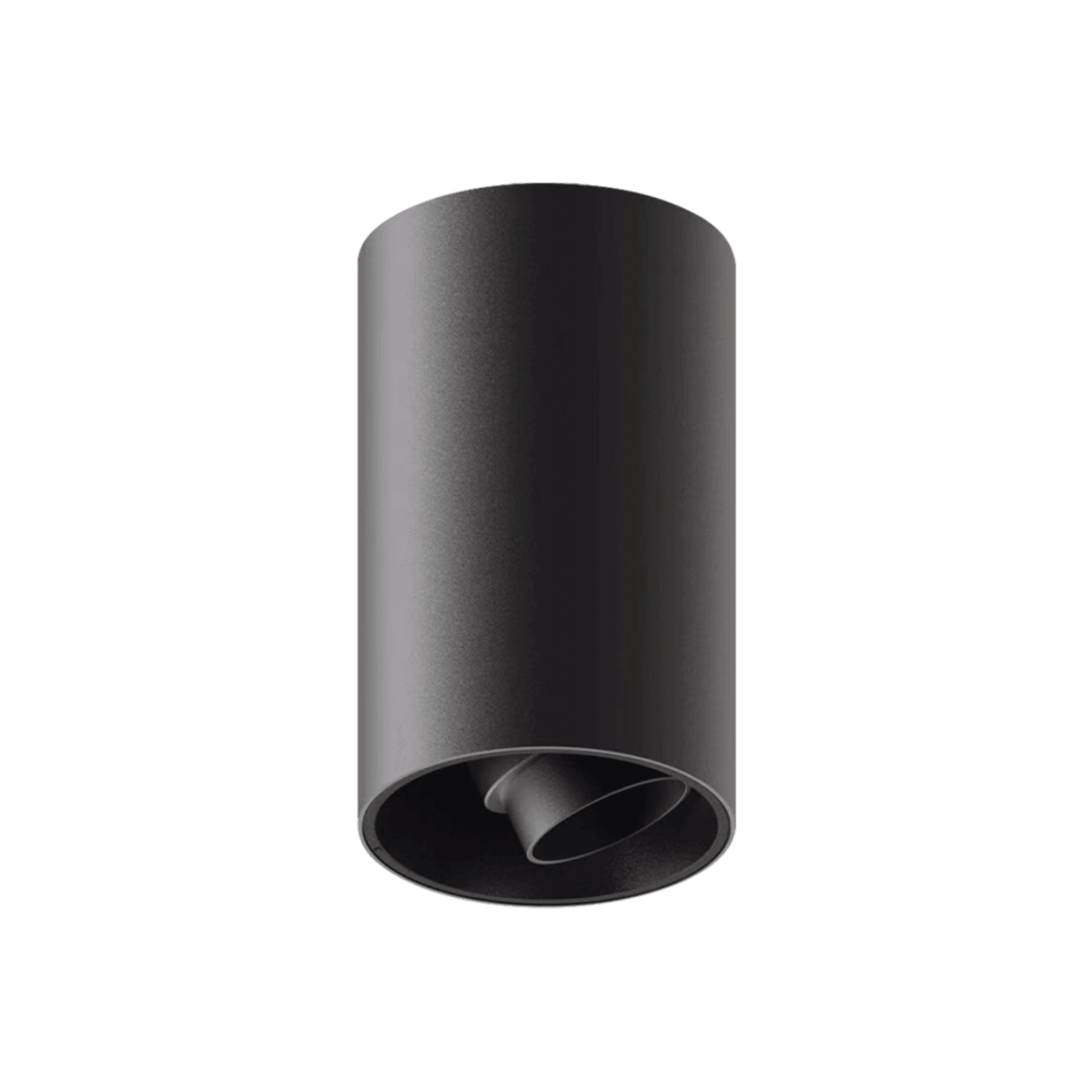

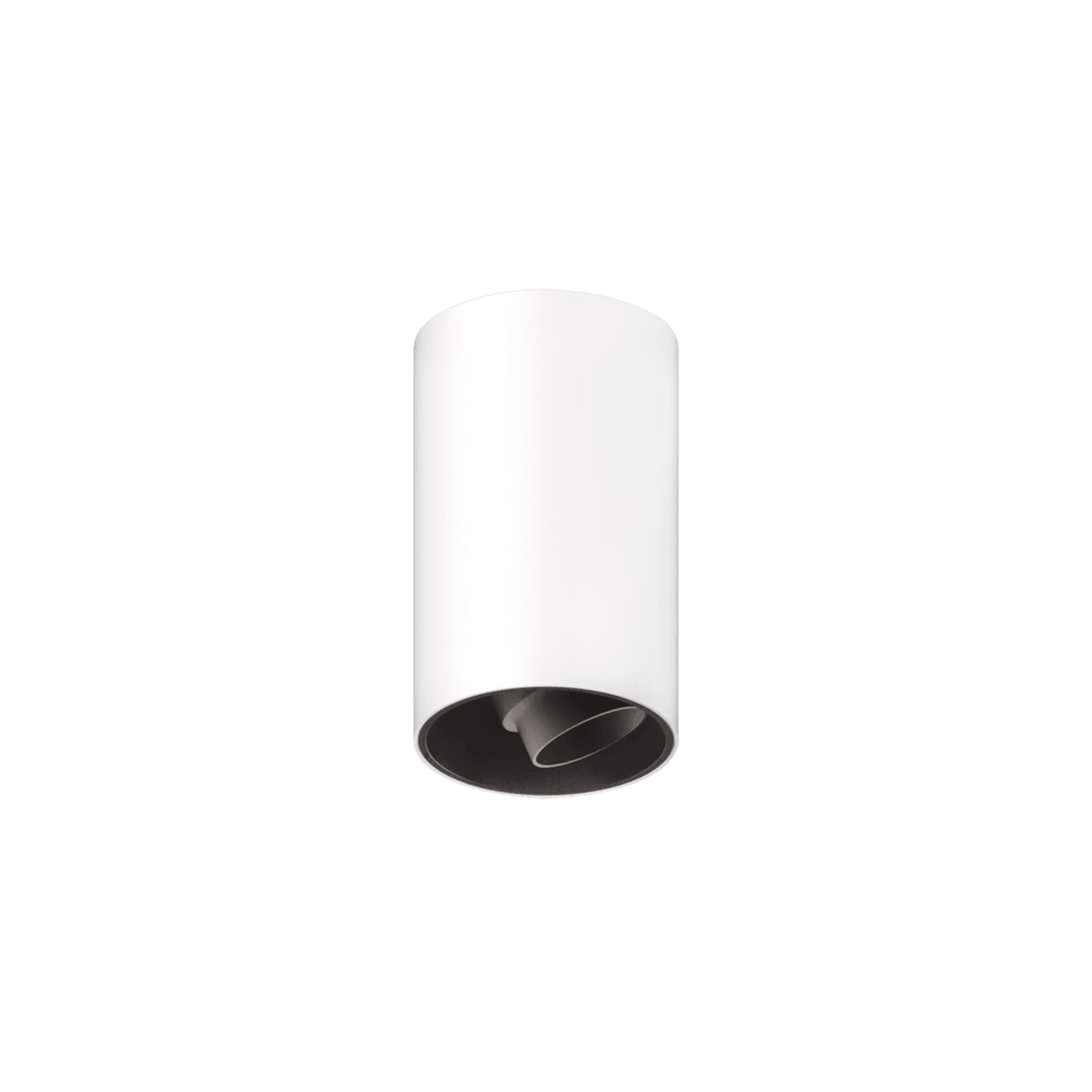

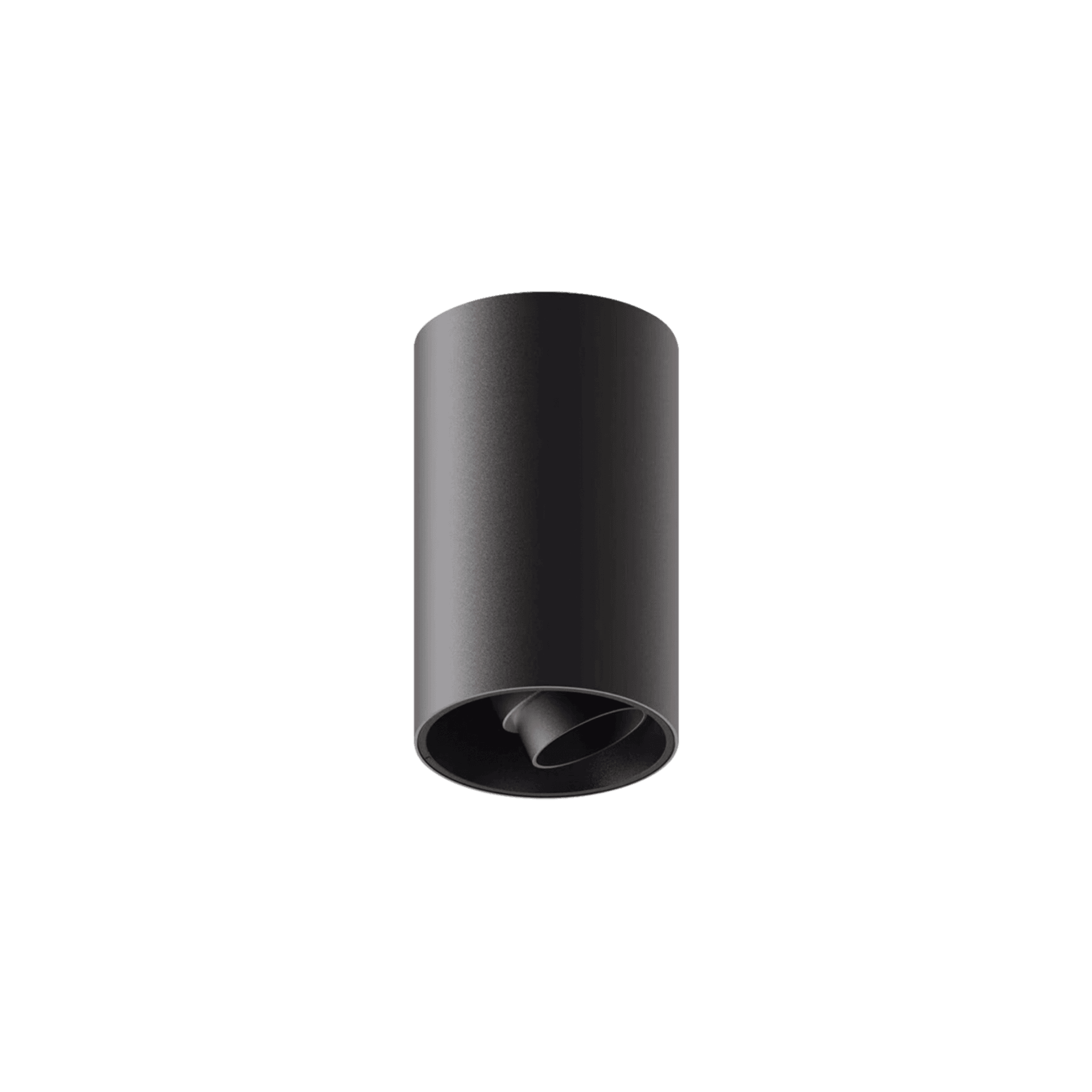

Built using a high quality aluminium construction and optical grade lens for controlled illumination. Available in a Matte White or Black exterior with a Black Baffle. Suitable for residential, hotel, retail and commercial applications. Integrating Bridgelux COB LED technology with high CRI for superior colour rendering, optional DALI-2 or BLE dimming on request. The Axes-SM80 offers a 5 year warranty.
- CategoryDownlights
- RangeDownlights
- Warranty5 years
Technical Specifications
Wattage: 10W (System 10.6W)
Luminous Flux: 740-780 Lm
Luminaire Efficacy: 74 Lm/W
CCT:
- 2700K
- 3000K
- 4000K
CRI: >90
Beam:
- 15°
- 25°
- 38°
- 50°
Colour Deviation: 3-SDCM
UGR: <19
Size: Ø80mm x Height 132mm
Dimming:
- Non-dimmable
- DALI-2
- BLE (basicDIM Wireless / Casambi)
Longevity: >50,000 Hrs L80 B10
Finish Options:
- White
- Black
Baffle Colour: Black
Warranty: 5 Years
