Black
Steel

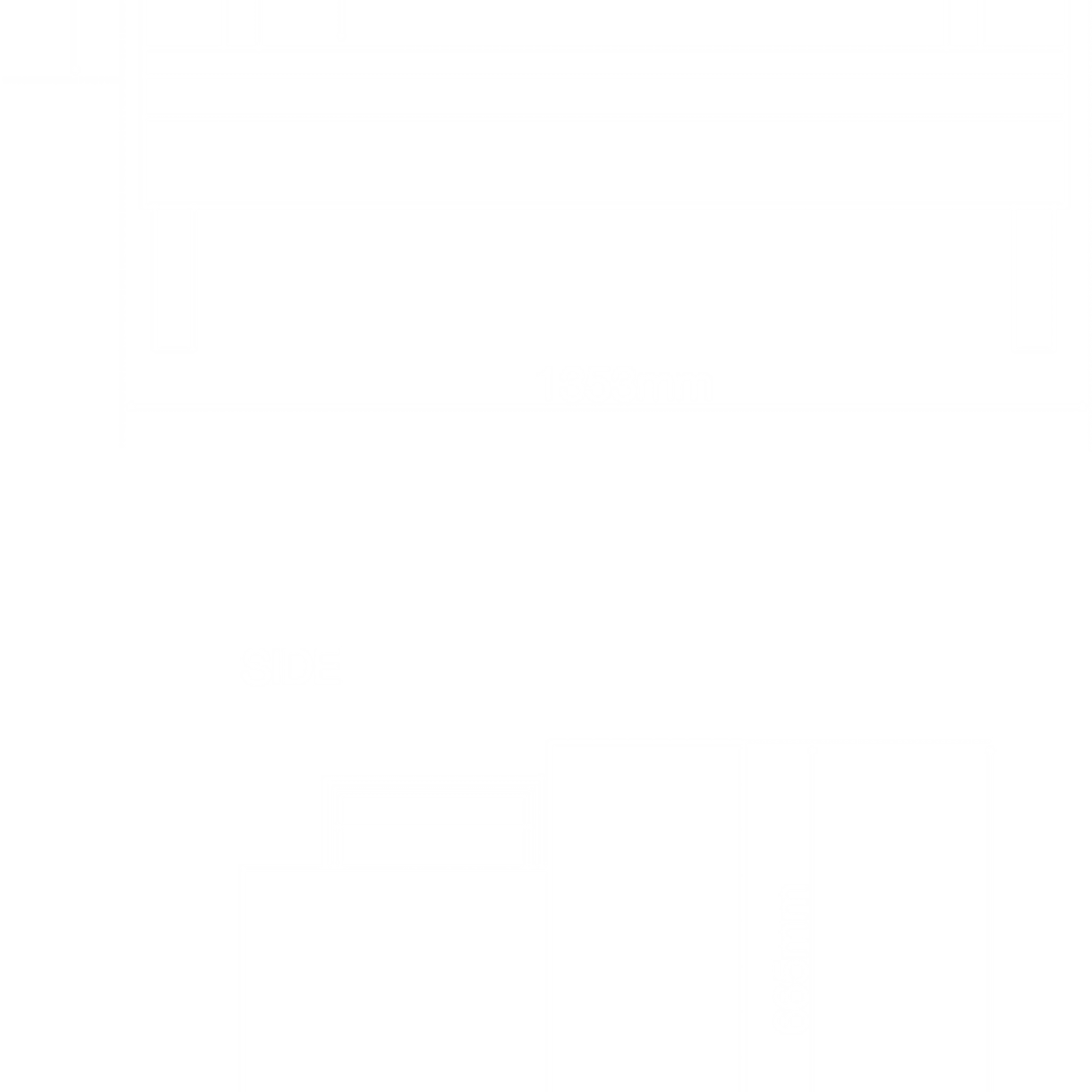

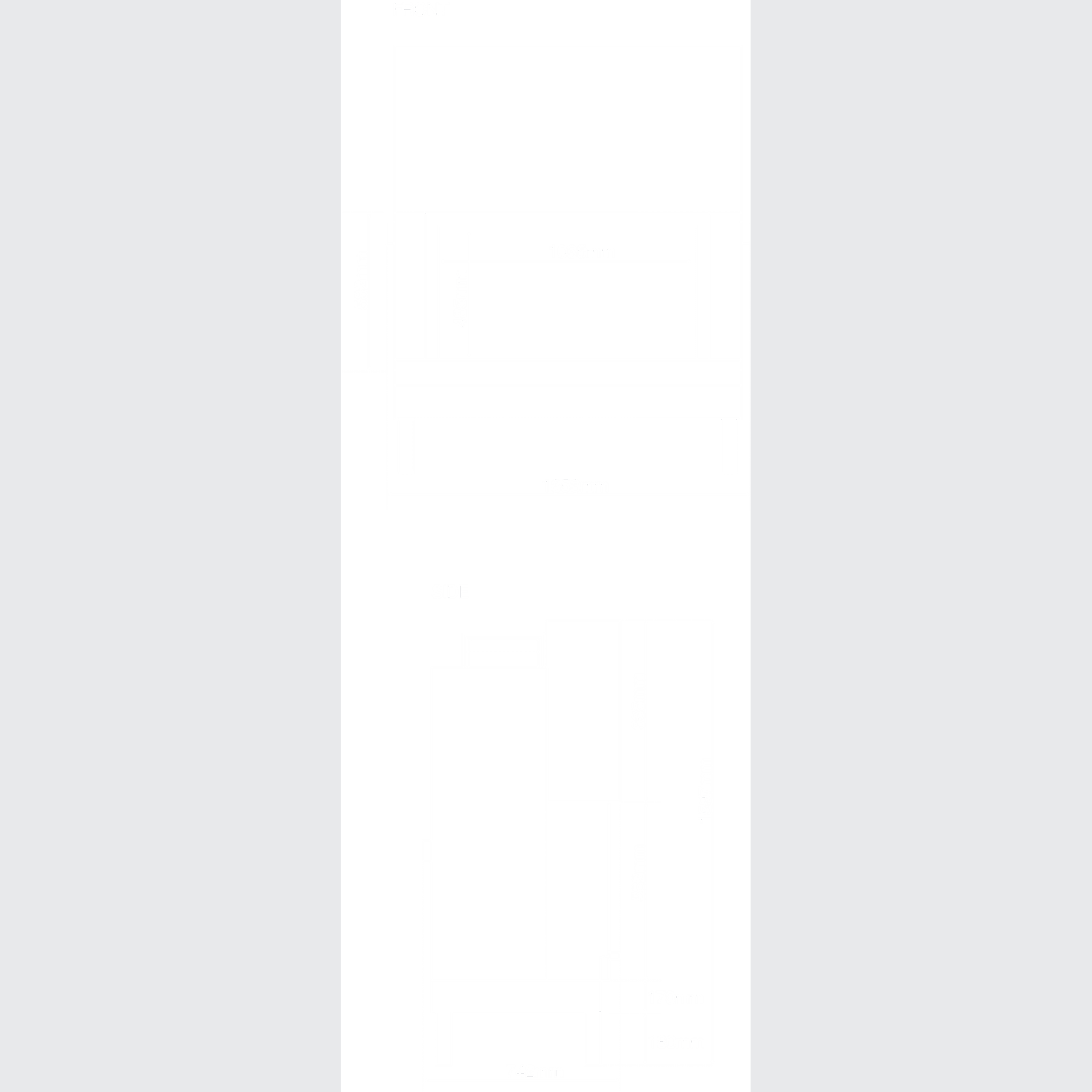

L742 x W1353 x H1597 mm - 400kg

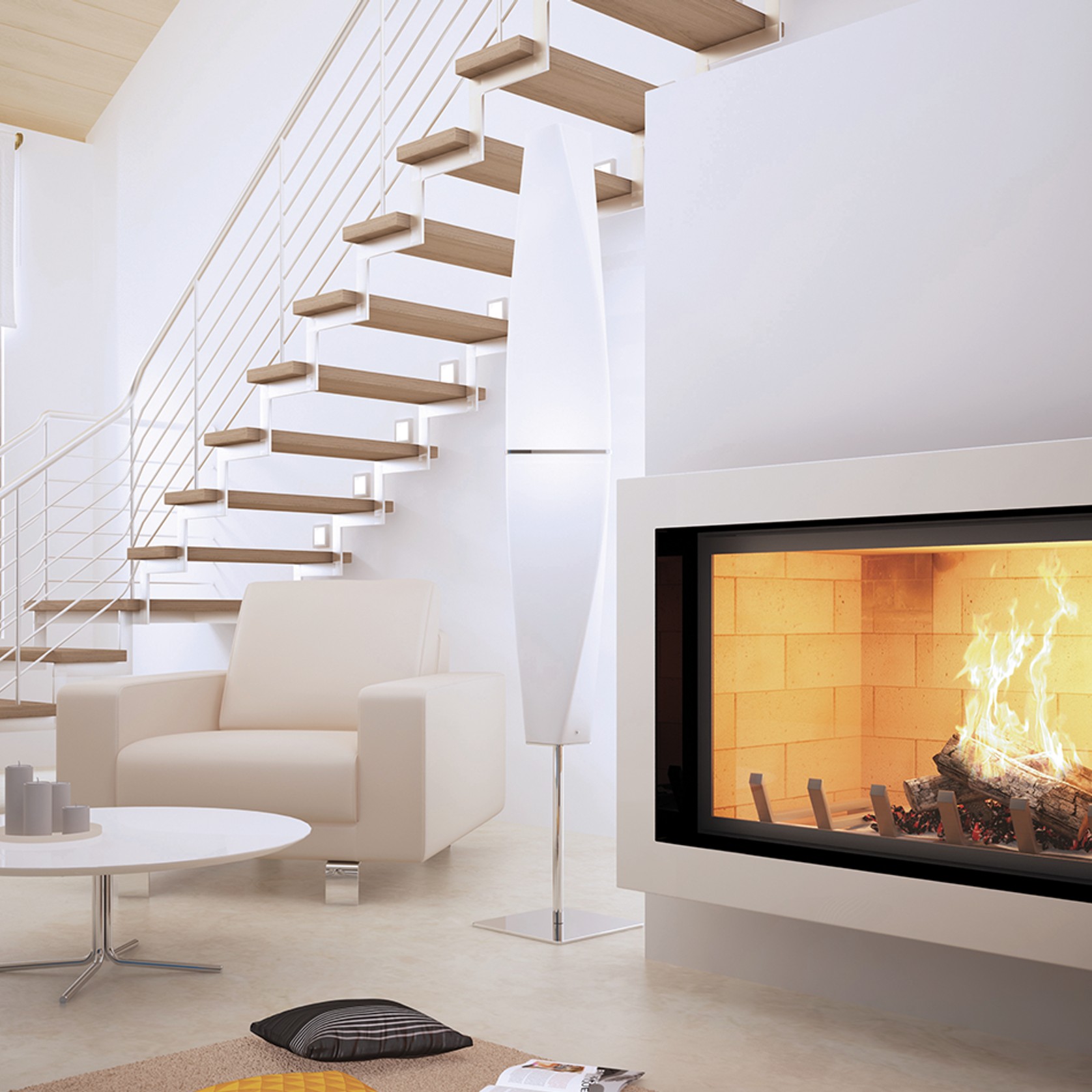

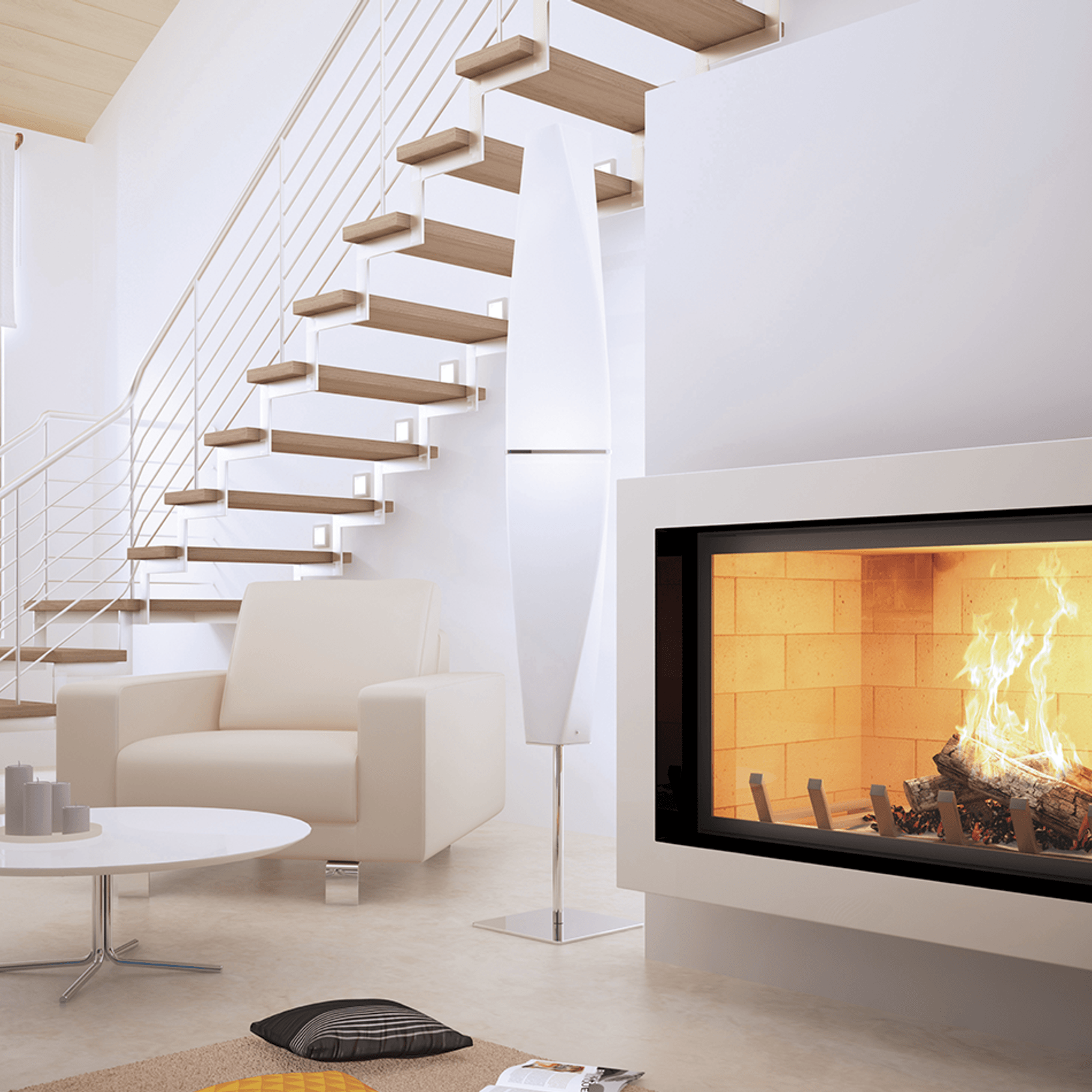

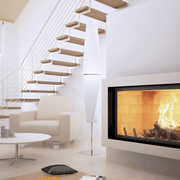

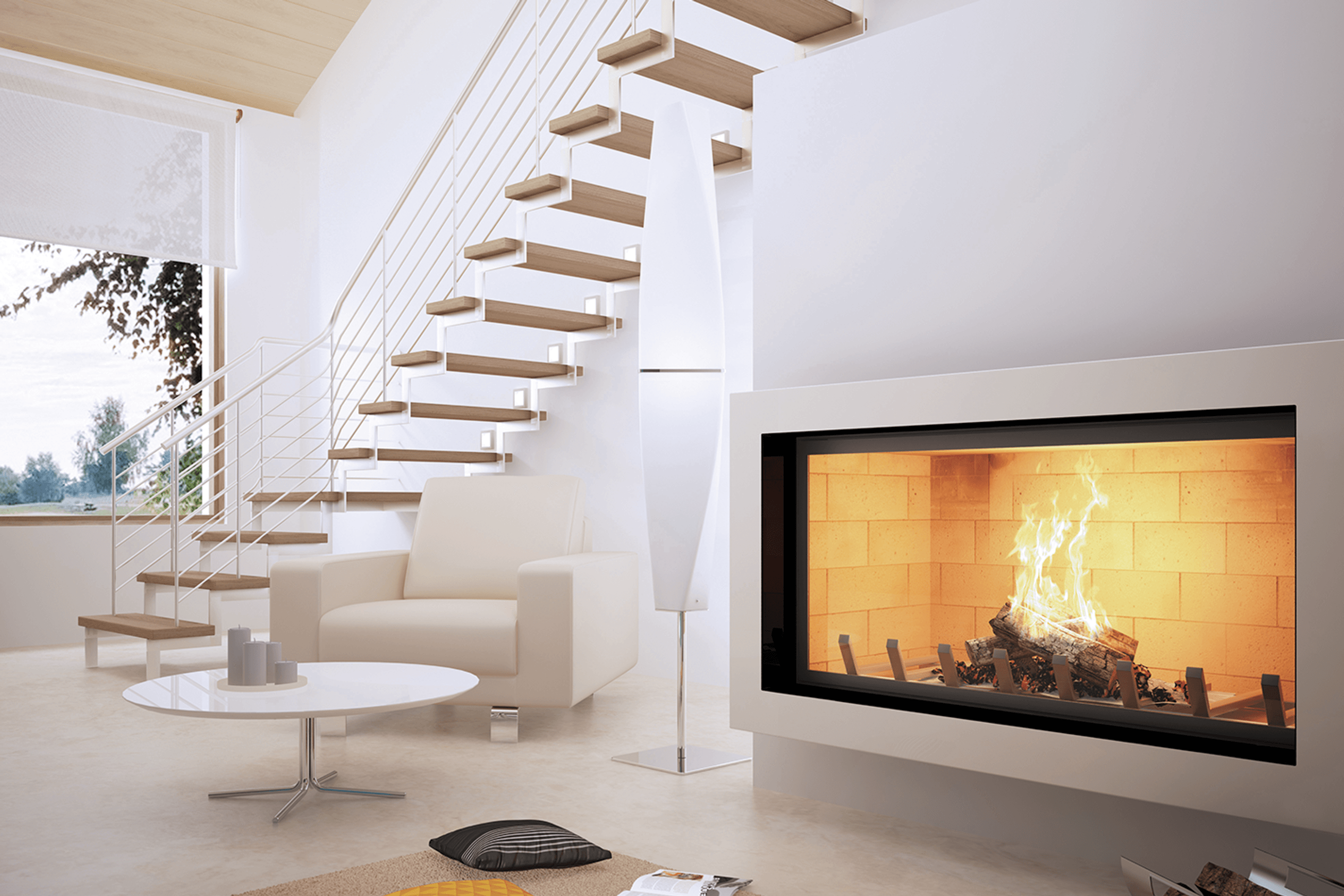

The hand-crafted Axis H1400 is a French-engineered steel firebox that is sure to add a grand statement to any home. An incredible heating performance ensures your home is kept toasty in the colder months. With its manually assembled interlocking refractory fire bricks and DAFS (Double Air Flow System) technology, the Axis H1400 inbuilt wood fireplace encompasses engineering excellence. The generous glass viewing area also gives this French-made wood heater an opulent quality that is highly prized.

Details
  • Category
    Wood Fireplaces
  • Range
    Contemporary Inbuilt
  • Brand
    Axis
  • Year
    2015
  • Warranty
    10 years
Specifications

Material:
Solid steel firebox construction with 60mm hand-assembled interlocking firebricks (sand-stone colour)

kW Output:
32.5kW

Heating capacity (m2):
180- 320m2*

Facade:
Clean frameless design (no trim)

Glassdoor:
Swing and secure lift up glass door with locking mechanism

Minimum flue height:
5.4m

Flue dimensions:
300mm, 350mm, 400mm

Includes hot air transfer kit:
Two ducts and two registers

Hearth dimension:
Minimum 500mm in front of any part of the fireplace, 250mm on either side and 75mm thick

Outside air kit:
Recommended for well-insulated homes

Warranty:
10-year fire brick warranty*

Weight:
400kg

*Heating capacity (when used as a slow combustion heater) is based on 2.4m ceiling heights and 6-star rated homes. Factors such as building characteristics, quality of insulation, type of firewood used, and climatic zone will also affect the heating output. *In accordance with Australia and New Zealand Standard AS/NZS 2918:2001 *All product pictures are a guide only, all wood fires must be installed as per AS/NZS 2918:2001 *E&OE. See T’s & C’s.

Performance

AXIS firebricks are guaranteed for 10 years and the fireboxes are guaranteed for 5 years. This excludes ash pan, ash grate and fire grate retainers which are guaranteed for 1 year.

The warranty becomes effective at the date of purchase.

SKU: axis-h1-2
