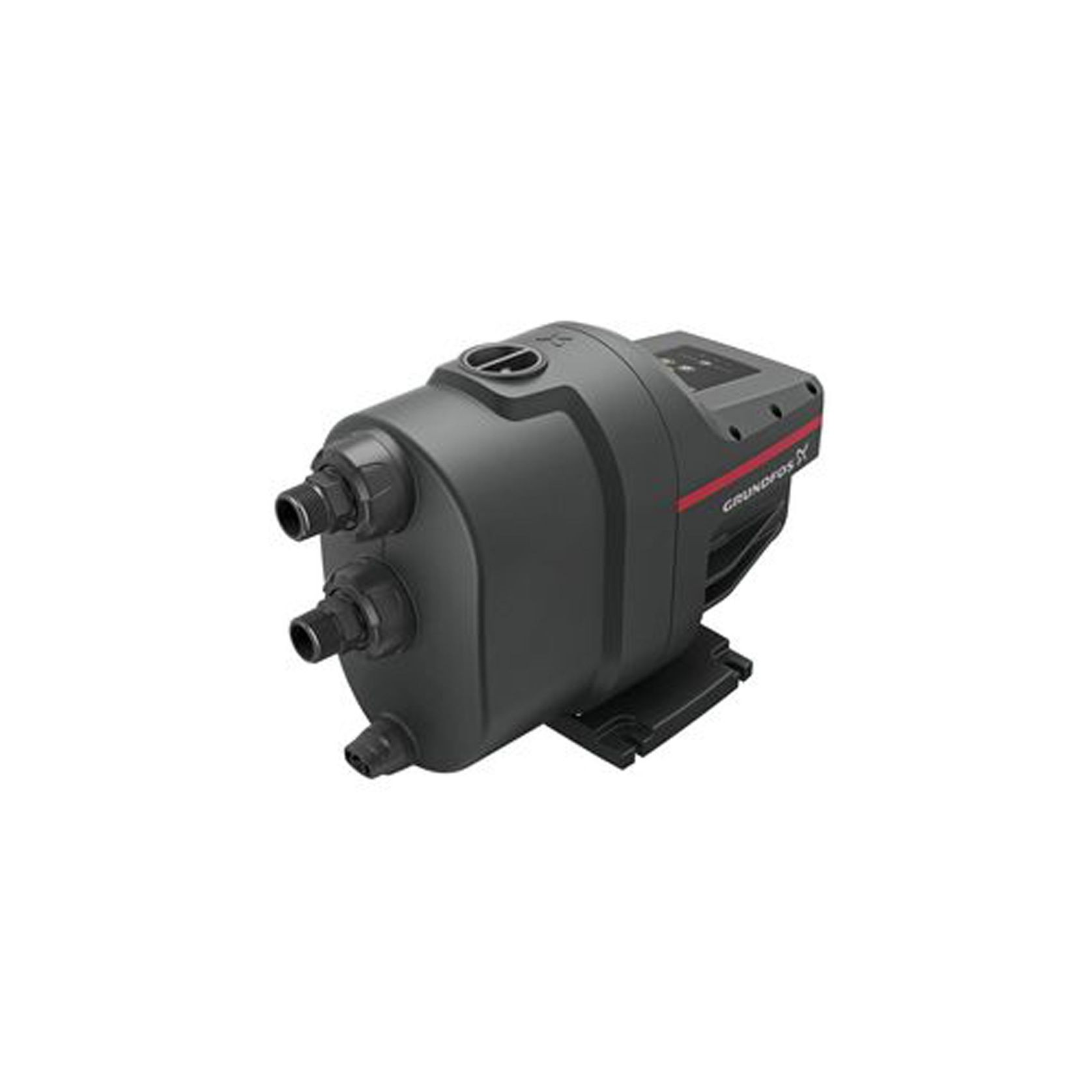

Big Water Tanks | Grundfos Scala1 Water Pumps

• Simple to install, customise, control and troubleshoot through the Bluetooth® connected Grundfos GO App.
• Easy installation – plug & pump – simply connect to the pipework, prime the pump, plug into a power outlet and you’re ready to pump.
• Suitable for pumping from water sources above and below the level of the pump, including from below ground tanks.
• Quiet operation that won’t disturb your family or neighbours.
• Tough weather resistant outer casing houses the pump, motor and the controller.

Operating Conditions:

• System pressure: Max. 8 bar/0.80 MPa
• Liquid temperature: 0°C to +45°C
• Ambient temperature: Max. +55°C
• Relative air humidity: Max. 98%

Technical Data:

• Mains voltage: 1x 230V, 50Hz
• Enclosure class: IPx4D (outdoor)
• Pump housing material: Composite
• Sound pressure level: Max 55 dB(A)
• Start/stop frequency: Max. 25 per hour
• Approvals: Drinking water approved AS/NZS 4020

Features:

• Bluetooth Connection for Errors and Setup
• Twin Booset Option
• Self Priming and Easy Priming Port
• All-in-one init
• 8m Suction Lift
• Compact Size
• Dry run Protection
• Intelligent Pump Controller
• 5° adjustable inlet outlets for easy installation

Twin Booster Option:

Where higher flow is required SCALA1 can be set up as a Twin Booster in either Duty Assist or Duty Standby modes

The kit includes: Mainifolds, Isolation valves, base plates, communication calbe and fixing screws
