TRANS Chair Home Lift

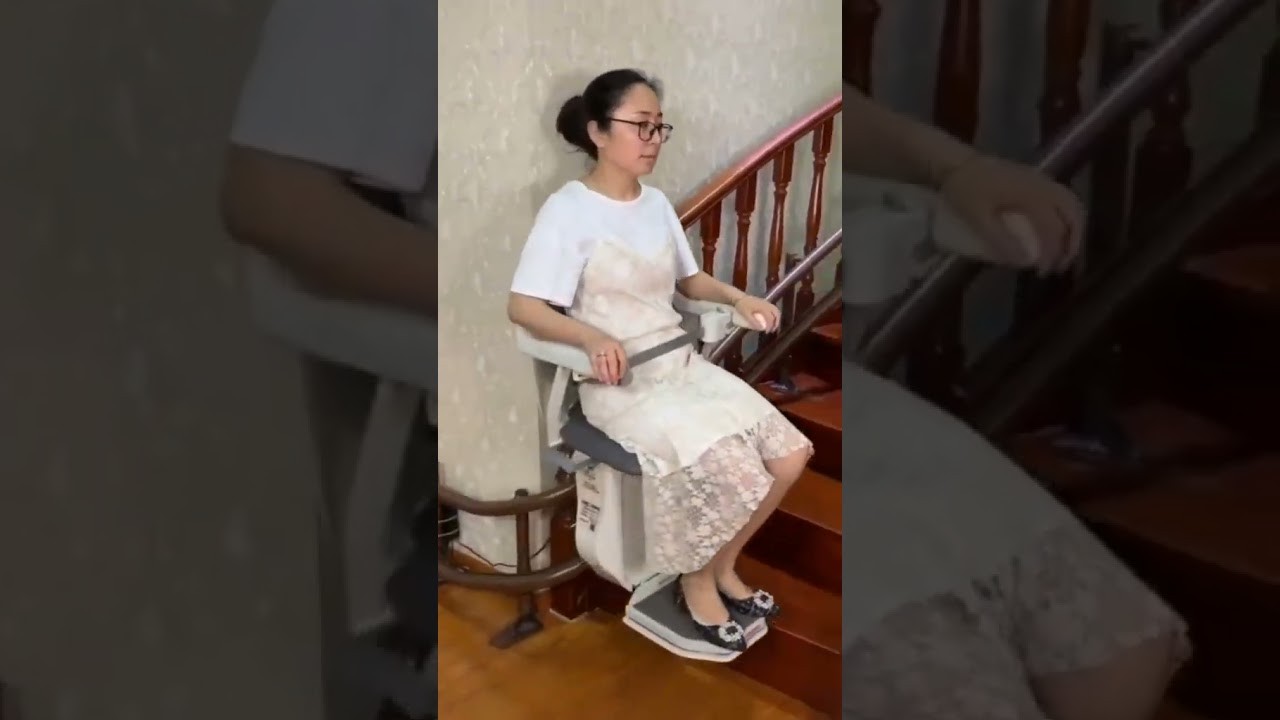

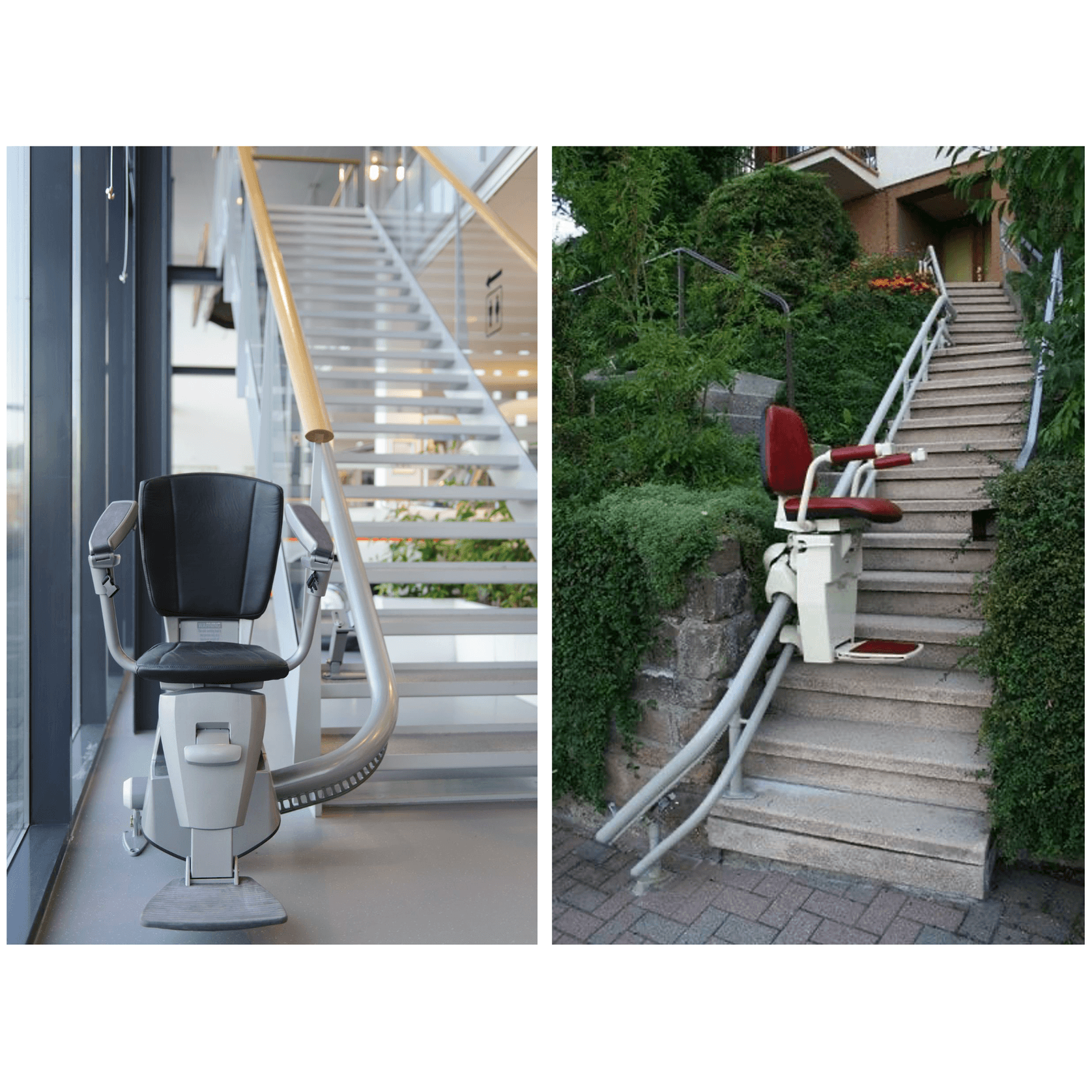

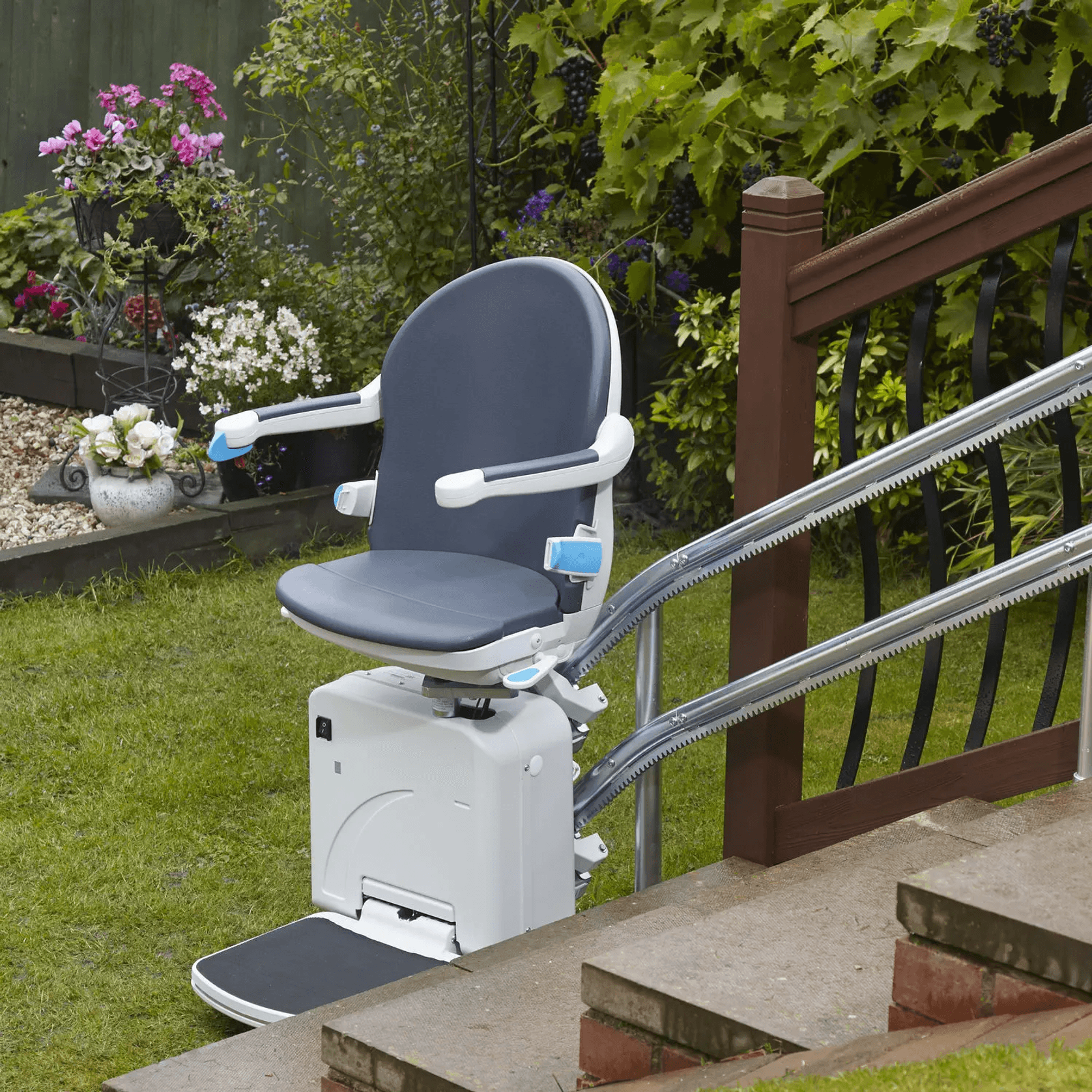

The TRANS C Series Chair Home Lift can assist elderly individuals or those with limited mobility in moving up and down stairs independently, effectively resolving the inconvenience of stair access. The product operates on a rail installed on either the left or right side of the staircase without causing any damage to existing household structures, making it particularly suitable for homes that have already been renovated.

The stair lift chair is constructed with a steel framework, aluminum alloy fittings, and flame-retardant plastic casings, ensuring reliable performance, safety, and a stylish, attractive appearance.

Details
  • Category
    Lifts & Elevators
  • Warranty
    12 months
General
  • Type of use
    Residential
  • Package type
    Special shipping required
  • Installation
    Professional installation required
Specifications
  • Battery: 120 Ah maintenance-free lead-acid battery (2 × 12 V, 7 Ah control power supply)
    • Maximum safe load: [value missing in text]
    • Rail maximum incline angle: 52°
    • Travel speed: up to 6.8 m/min
    • Motor: 24 V DC motor, 200 W rated power
    • Drive system: gear-and-rack transmission
    • Rail: steel tube, diameter 45 mm, dual-layer steel structure
    • Rail clearance from stair surface: 80 mm
    • Rail clearance from wall surface: 10 mm
    • Remote controller: located at both upper and lower landings (for calling and dispatching the chair)
    • Chair rotation: seat can rotate only at parking positions to allow safe boarding and exiting
    • Noise level (at full load): ≤ 70 dBA
    • Footrest: folding design synchronized with armrest folding
    • Power indicator: on both main power supply and chair armrest
    • Operation control: manual joystick on armrest, plus remote control
    • Safety belt: equipped with integrated seat belt
    • Charging: automatic charging when the chair is parked; single-phase charger (220 V, 85 W)
Features

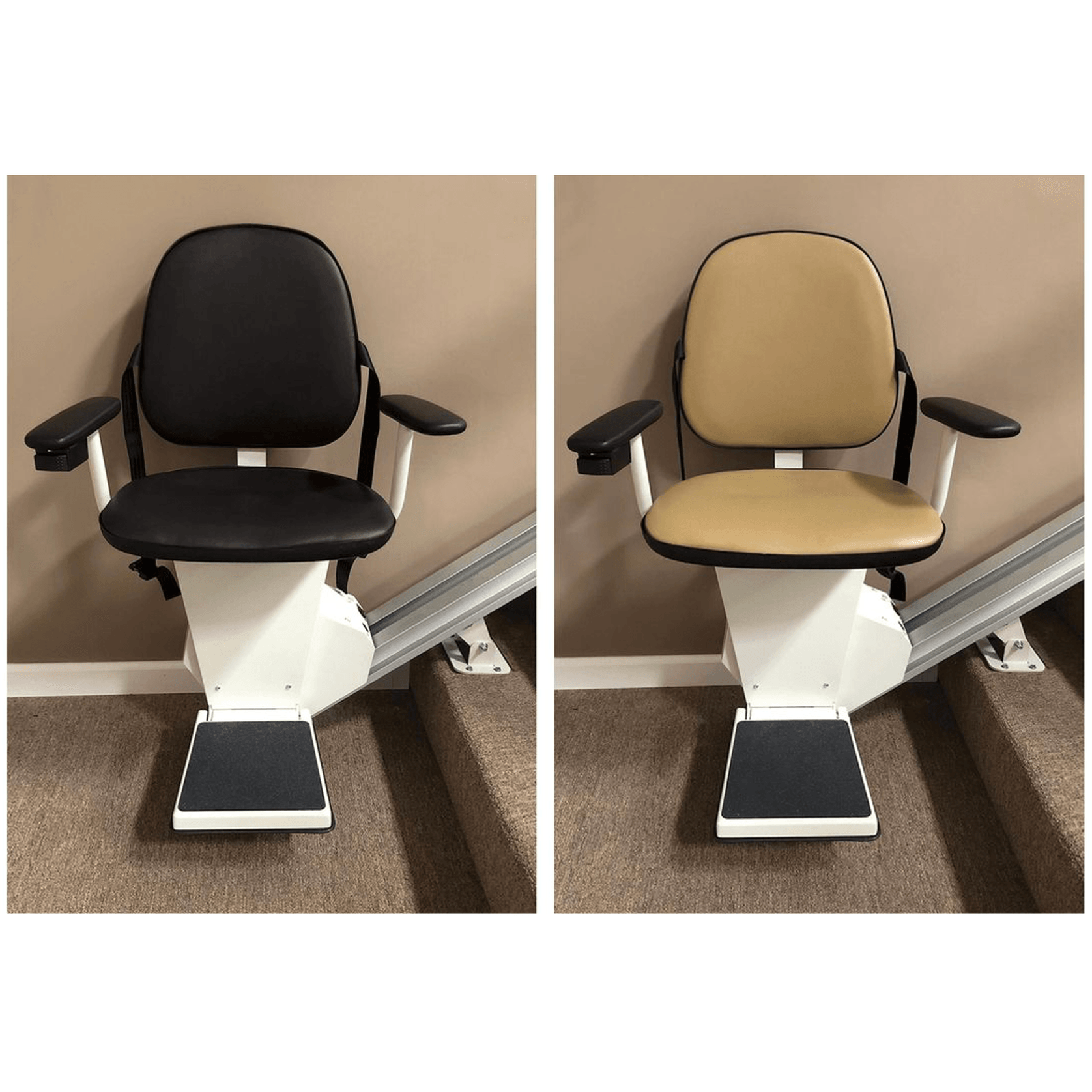

  • Main unit construction: The stairlift main unit is made from a hybrid metal-plastic structure. The seat bracket, backrest, and armrests are die-cast aluminum alloy, ensuring strength and safety. The seat cushion and backrest are upholstered with genuine leather and foam, offering comfort and an attractive appearance.
  • Lifting mechanism: The seat operates via a low-voltage worm gear reduction motor with a rack-and-pinion drive, providing smooth and safe movement. Anti-slip, anti-fall, and safety lock devices are included. In the event of gear wear or disengagement, the automatic fall-arrest lock engages, safely stopping the chair on the rail to ensure user safety.
  • Folding function: The armrests feature an upward folding design. When the armrests are folded, the footrest automatically retracts via motor drive, allowing unobstructed use of the stairs when the stairlift is not in use.
  • Safety switches: Both sides of the main unit, the drive shaft, and the left and right sides of the footrest are equipped with anti-collision and anti-contact safety switches. If any obstacle triggers these switches, the main unit power is immediately cut off to prevent accidents.
  • Seat rotation: The stairlift seat can rotate 90° to the left or right, making it easier for the user to get on or off the chair safely.
  • Safety belt: An automatic retractable safety belt is installed on the right armrest to reduce the risk of elderly passengers slipping or falling during use.
  • Control switch: The operating switch can be installed on either the left or right armrest, depending on user requirements.
  • Main power switch: The main power switch is located under the seat.
  • Power supply: The stairlift is powered by a 24V rechargeable battery. Automatic charging points are installed at the upper and lower ends of the rail, with optional charging points in intermediate positions as needed.
  • Custom rail: The guide rail is custom-fabricated based on on-site measurements of the user’s actual staircase layout.
