Odourless by Expella with Caroma Luna

• Domestic
• Hotel
• Commercial

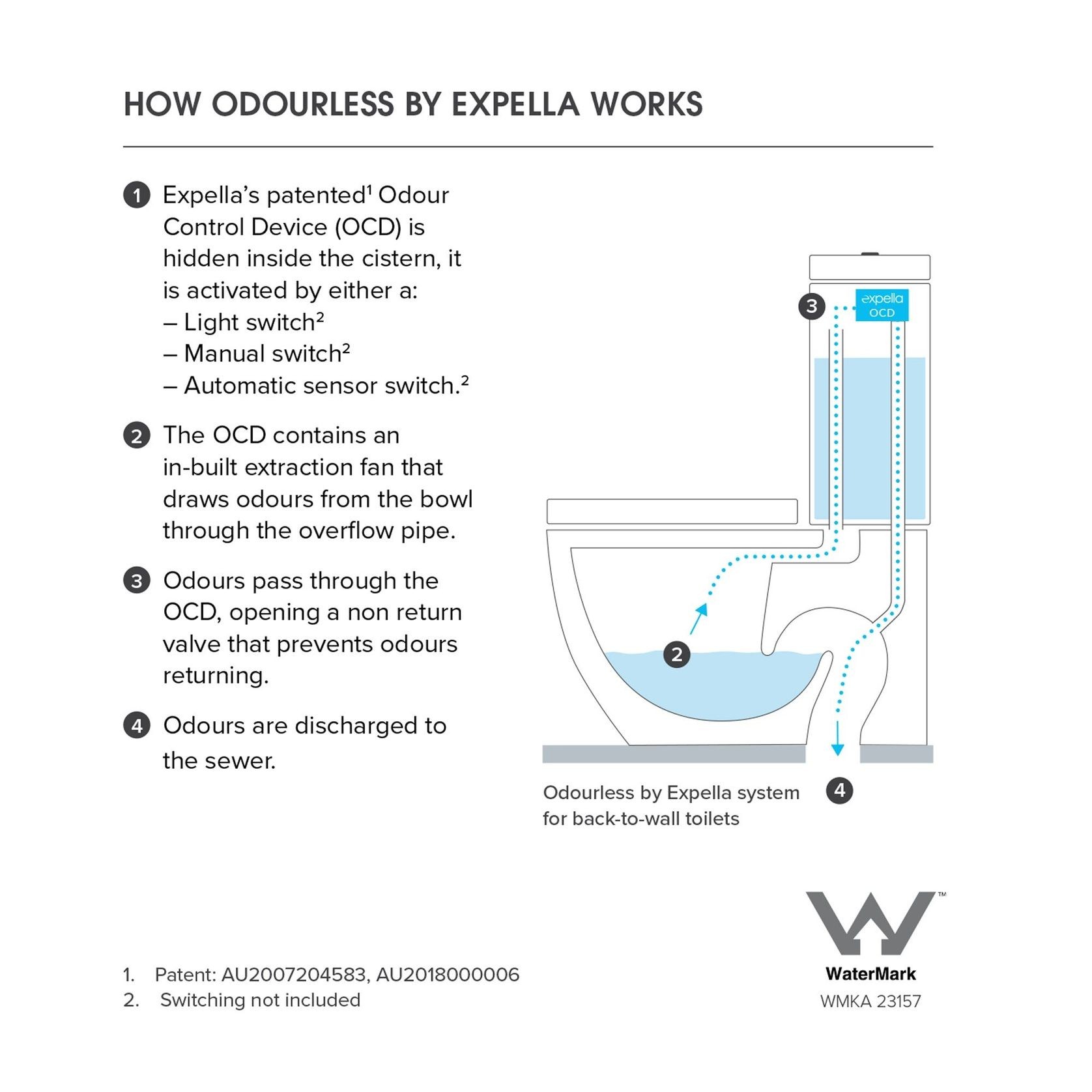

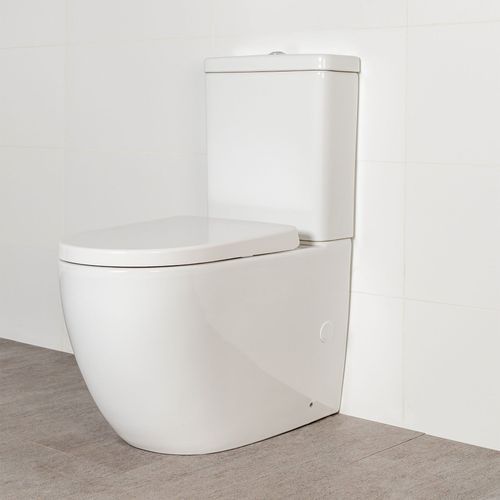

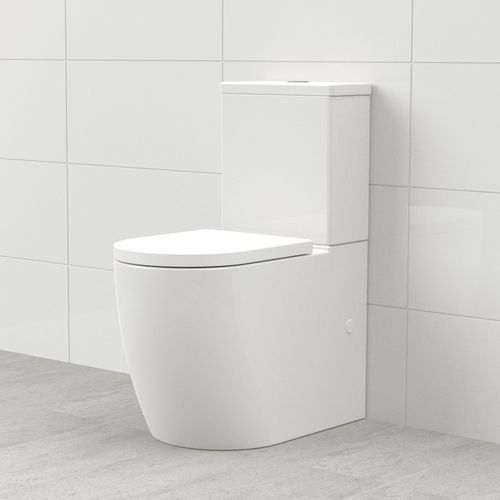

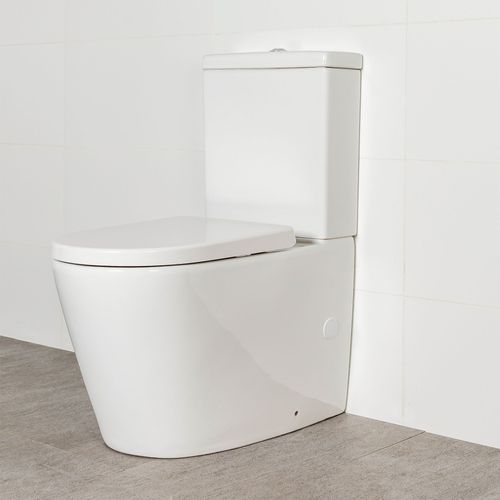

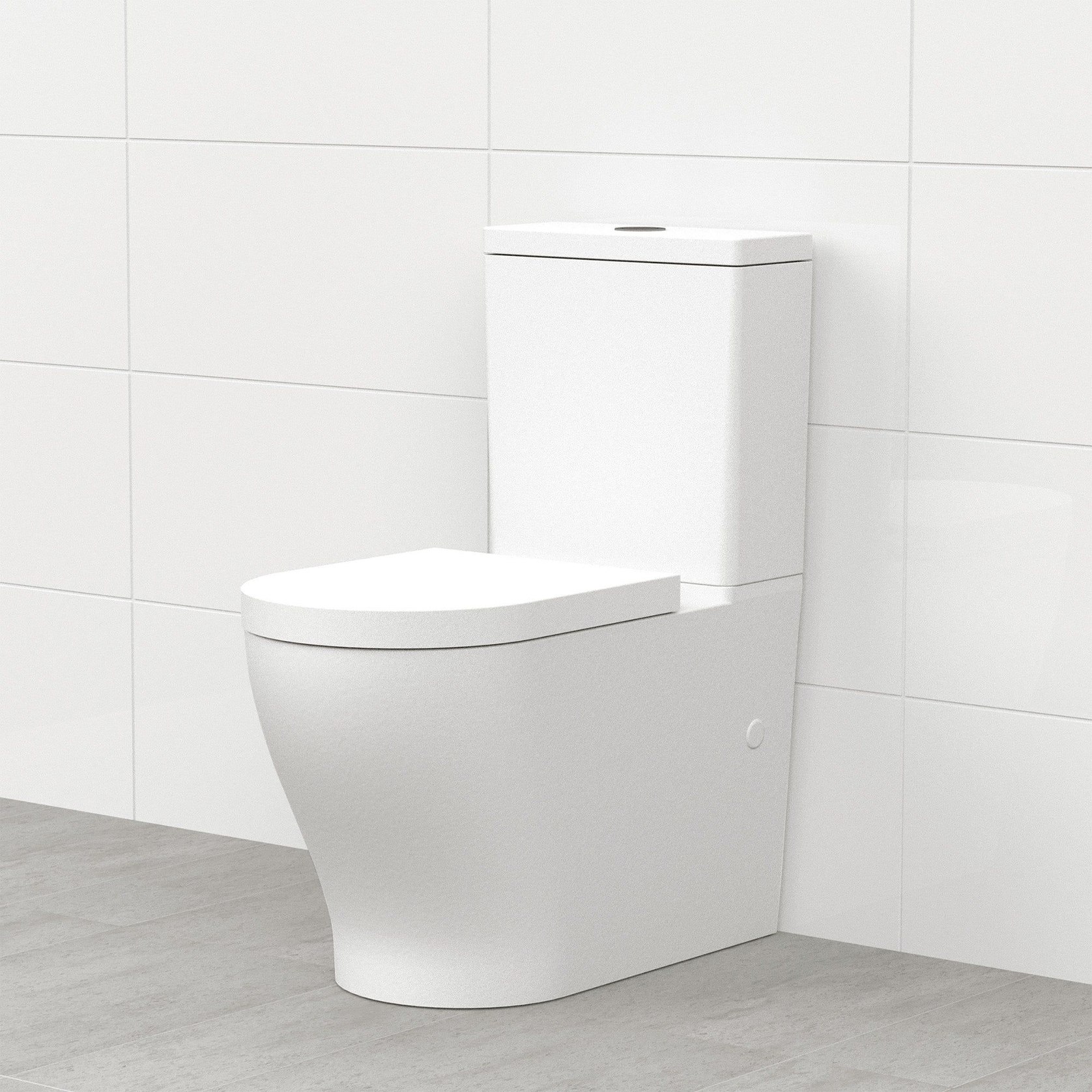

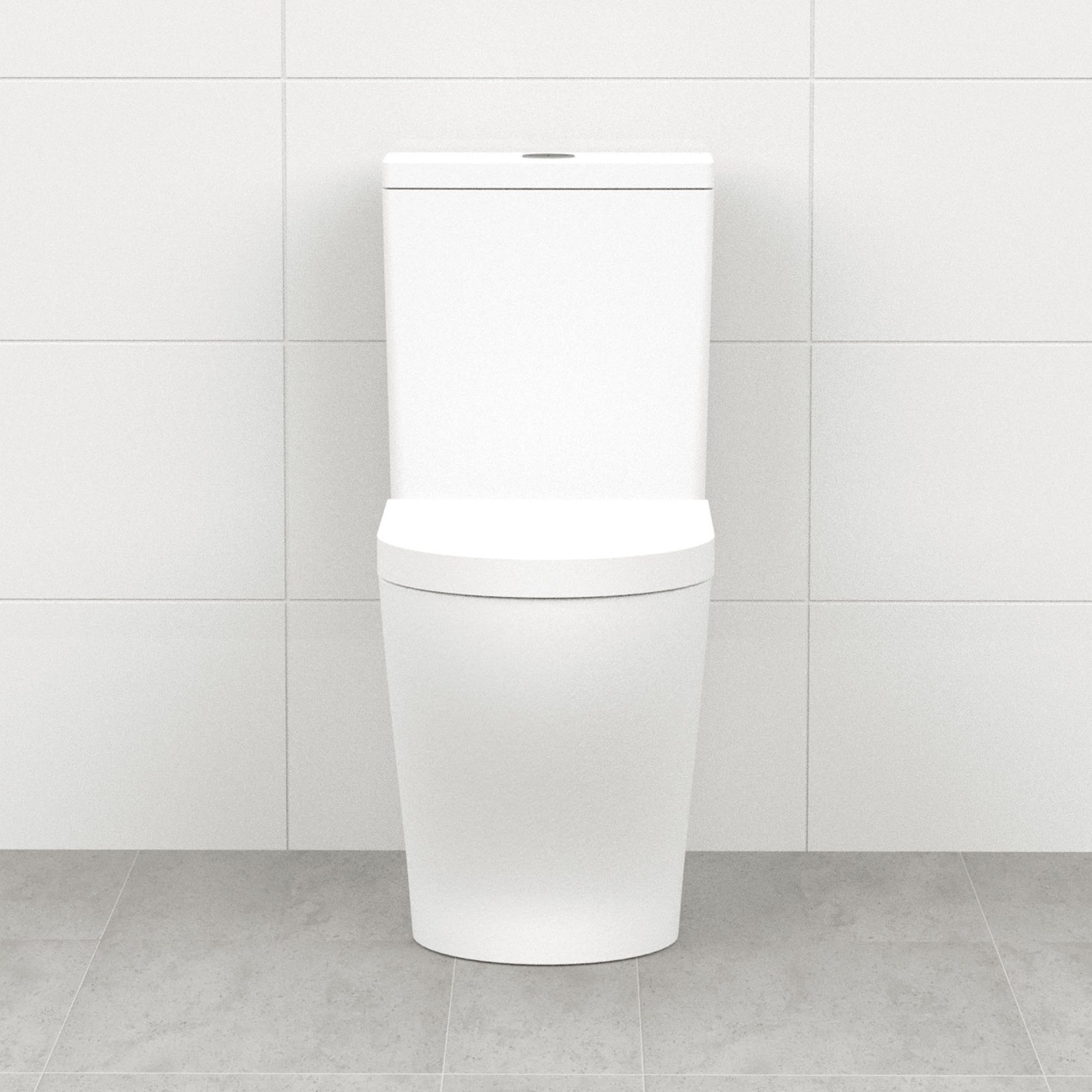

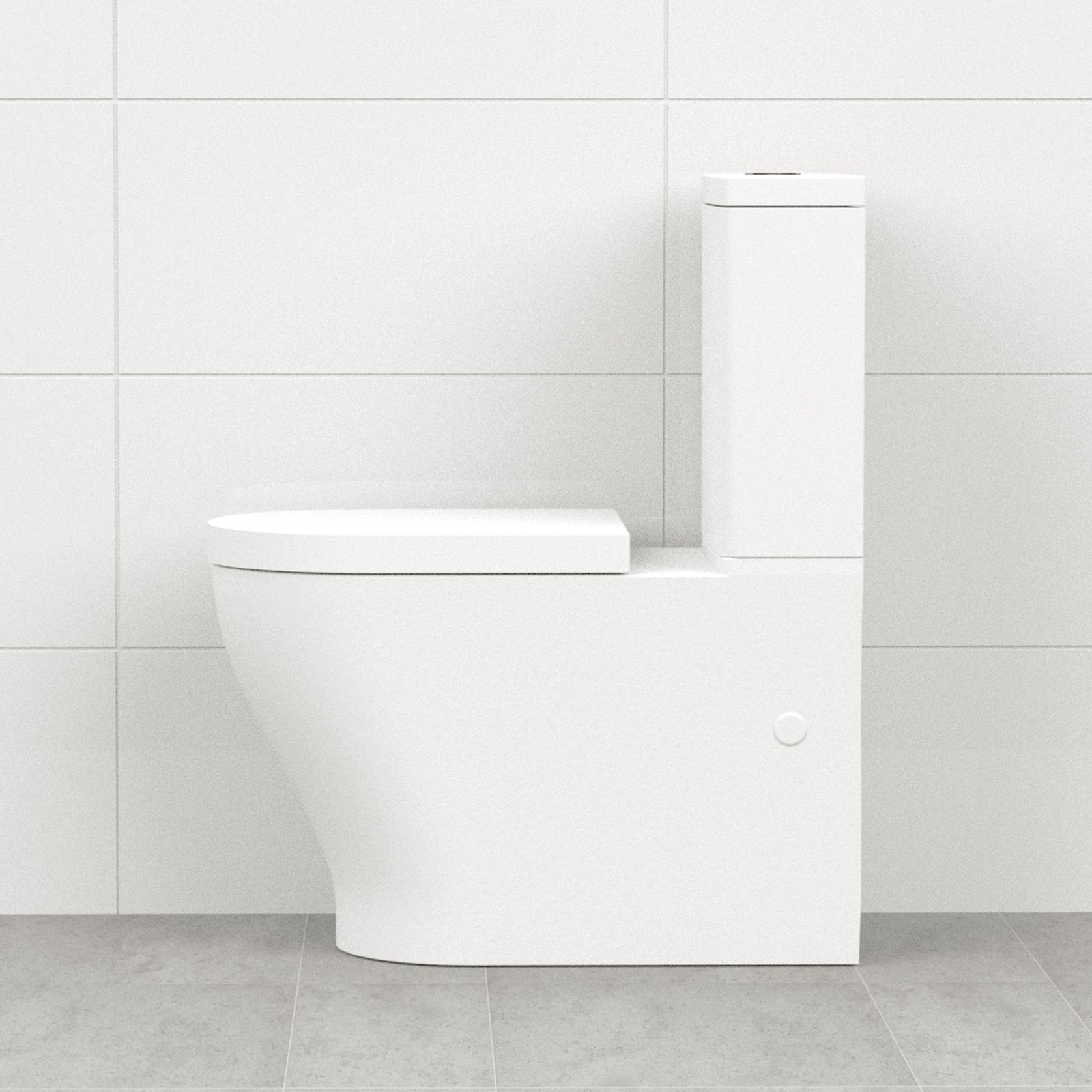

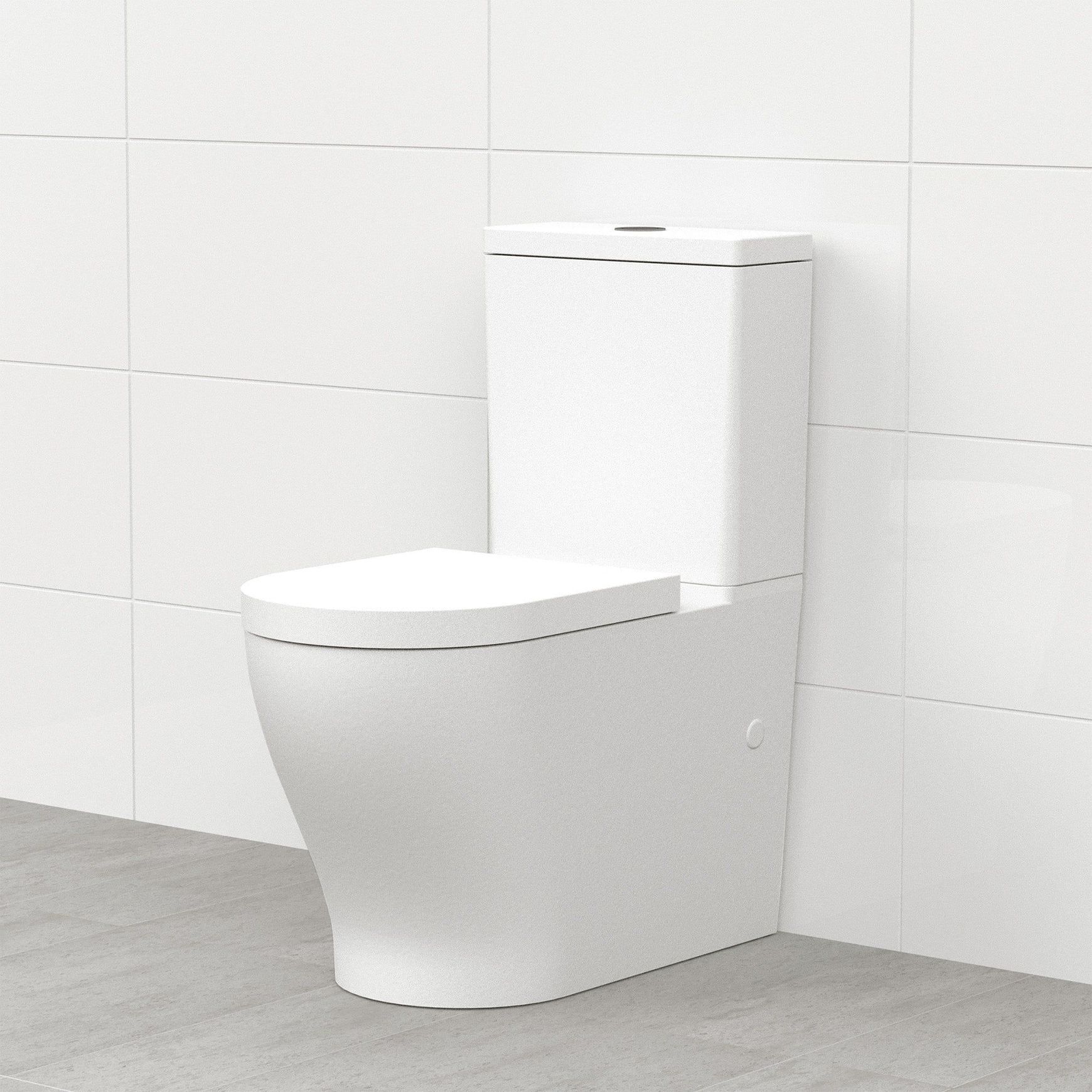

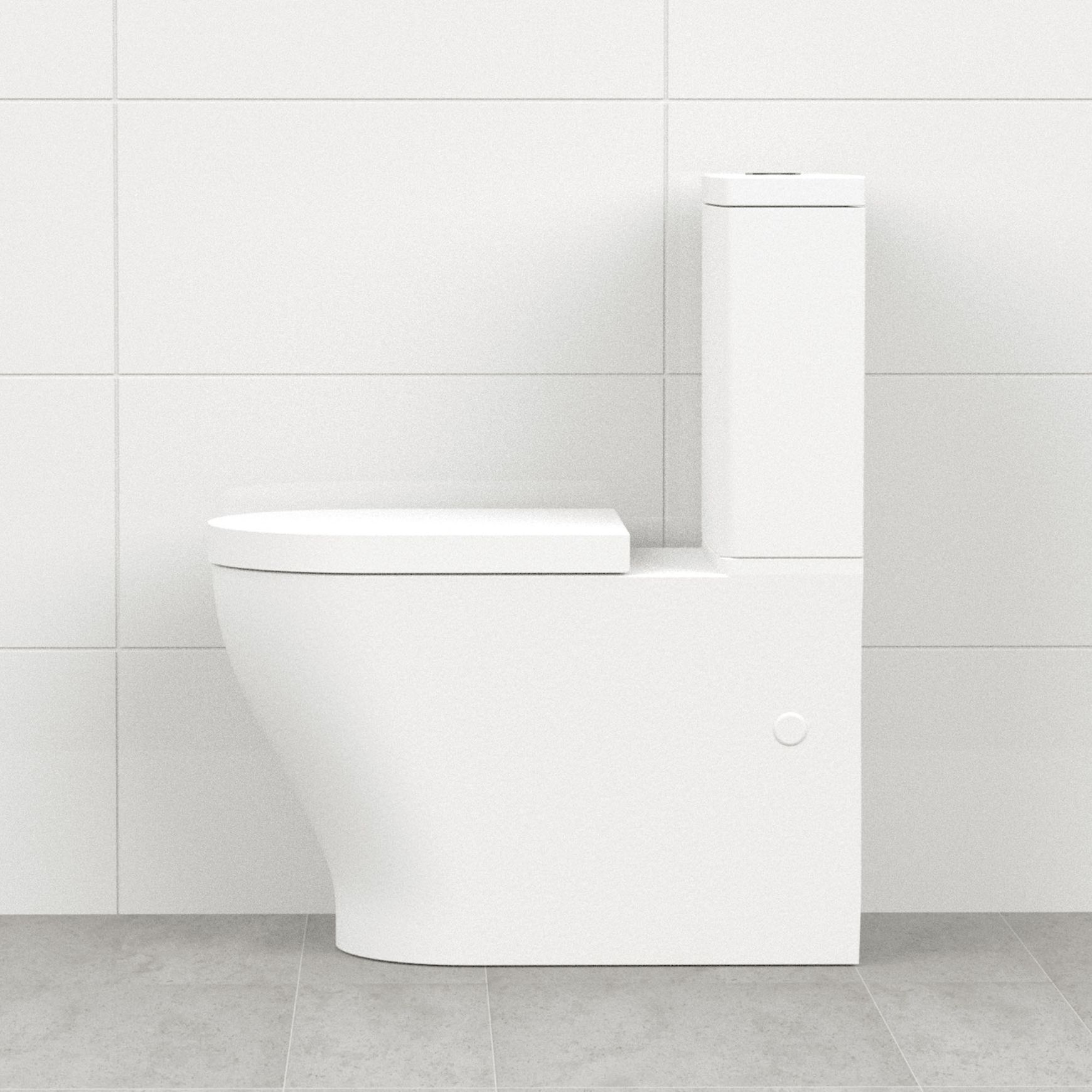

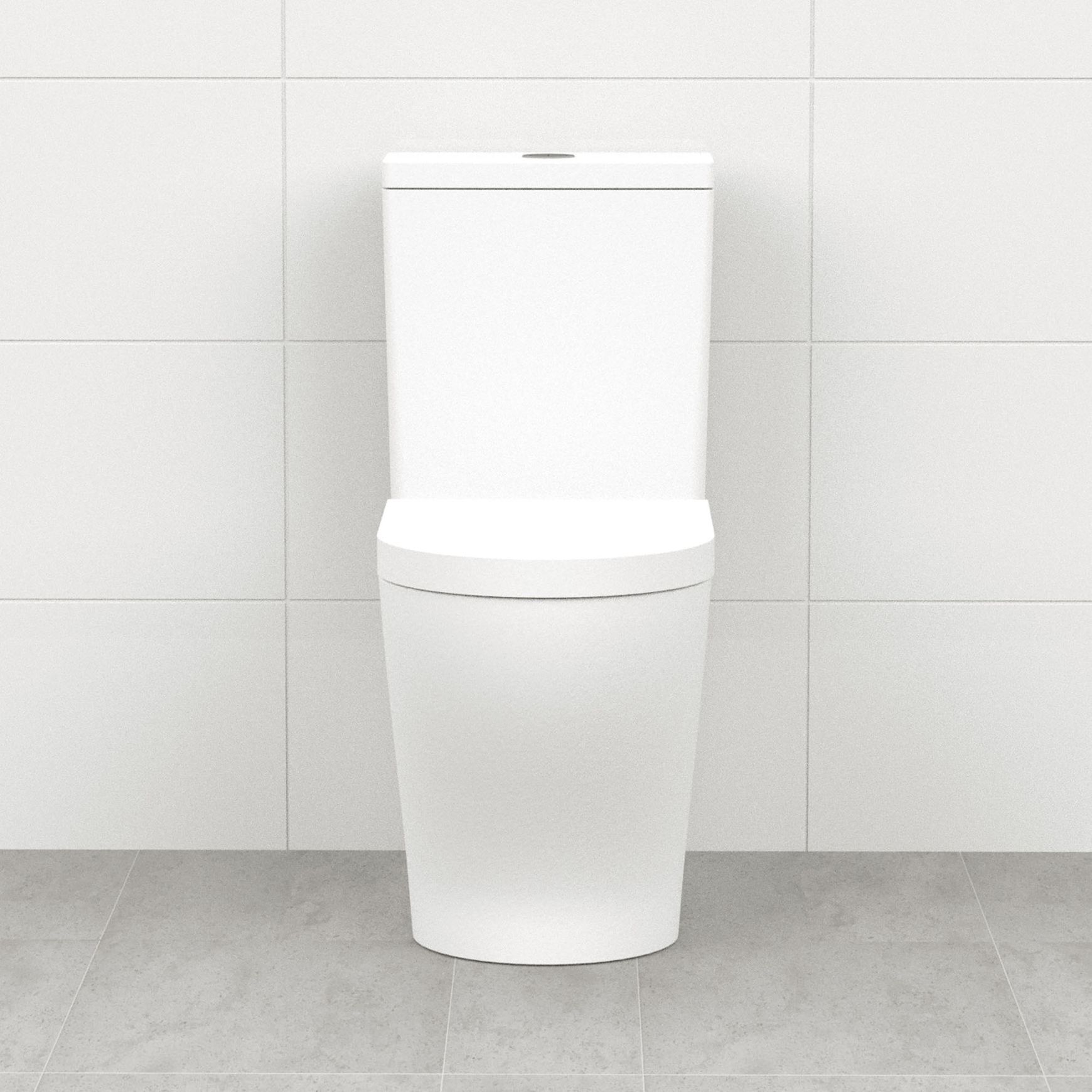

The Caroma Luna Back-to-wall Suite is a standard toilet with Odourless by Expella pre-installed inside the cistern. The suite must be installed by a qualified plumber in accordance with AS/NZS 3500. Installation is the same as installing any other standard back-to-wall toilet but requires the addition of an electrical power source for the Odourless by Expella system. A qualified electrician should install a general power outlet (GPO) within 3.5 meters of cable length to the toilet. The location of the GPO should allow future access to the 9VDC power transformer.

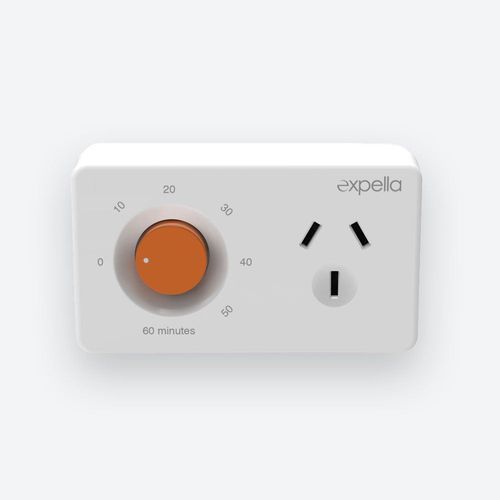

Expella recommends that the Odourless by Expella system switch on with the Expella PIR Motion Sensor or with the bathroom light. It can also be shared with the exhaust fan switch or by a designated switch depending on your preference.
The Caroma Luna Back-to-wall Suite comes with back and bottom water inlet options. If you are replacing your existing toilet, consult with your plumber to ensure the correct option is purchased. You should also consult with them over the water inlet location and floor waste set-out. A full installation manual is provided with the toilet suite—refer to the product sheet for dimensions.

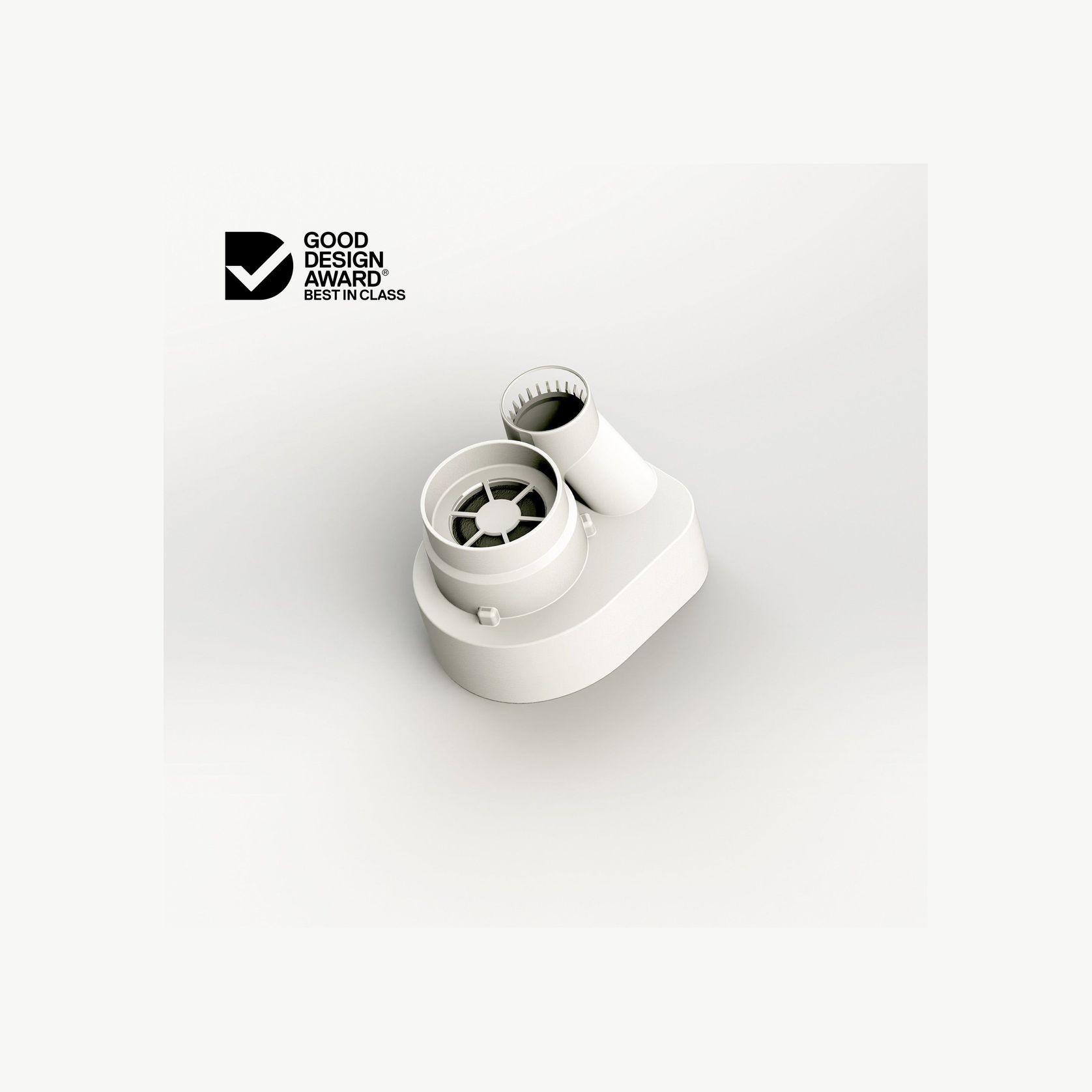

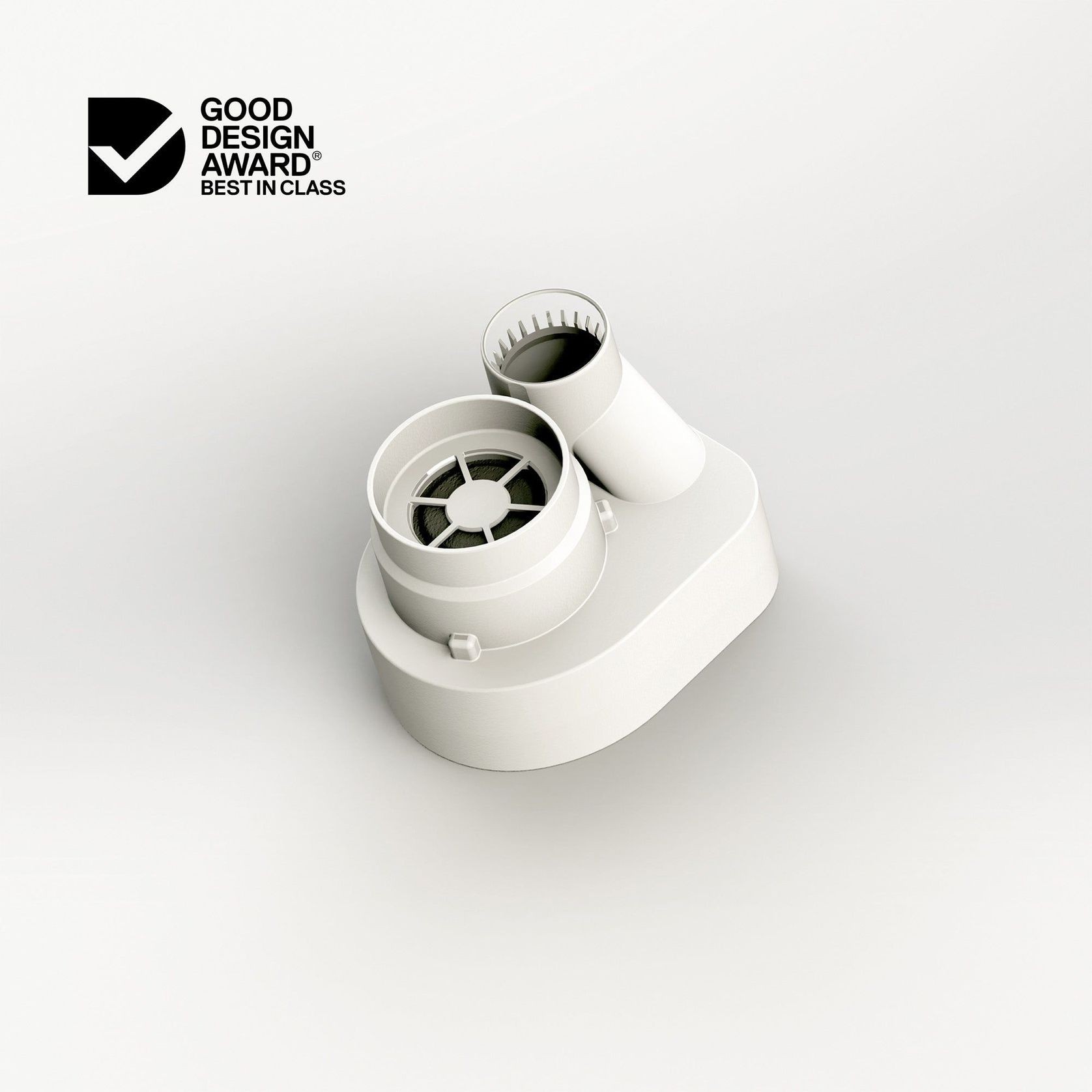

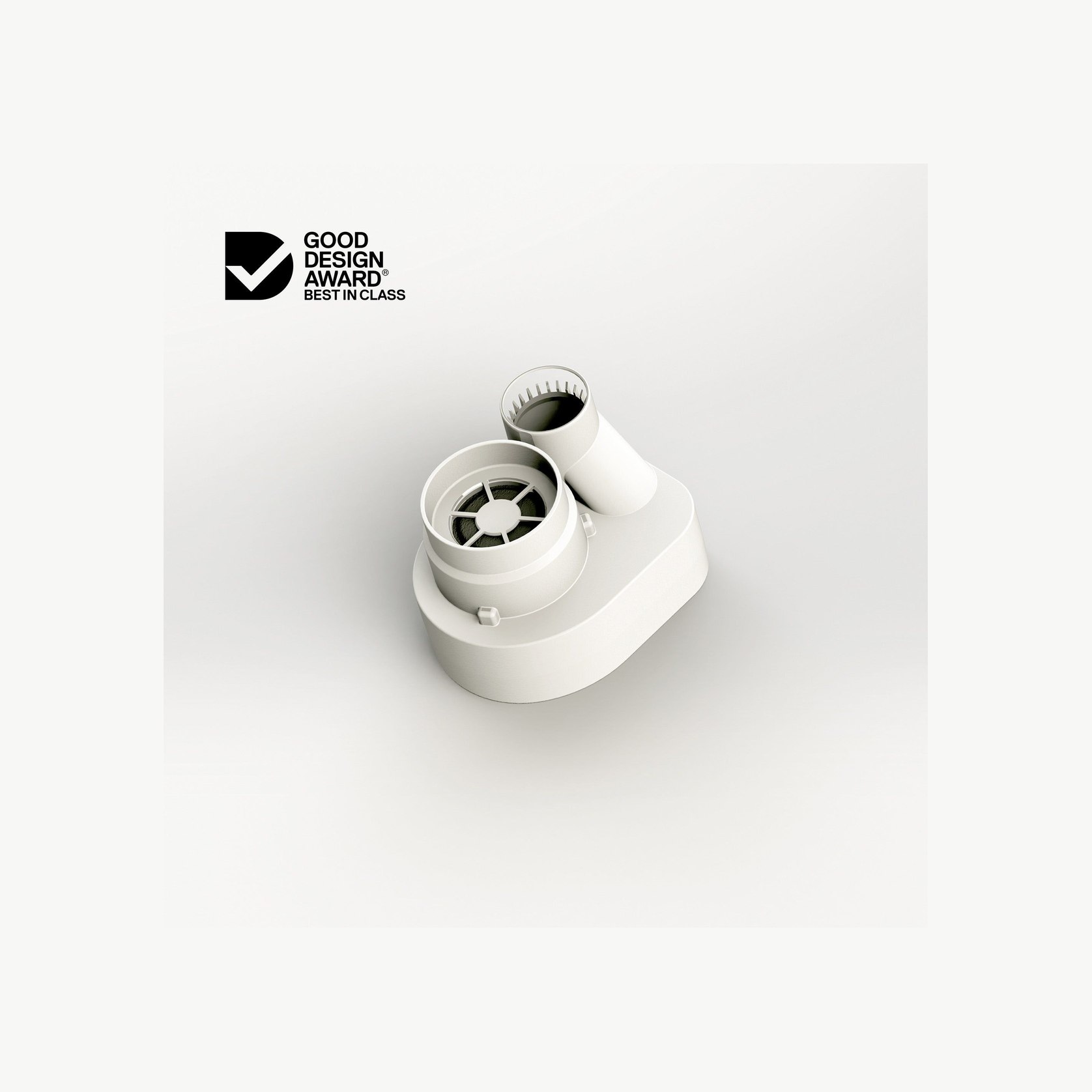

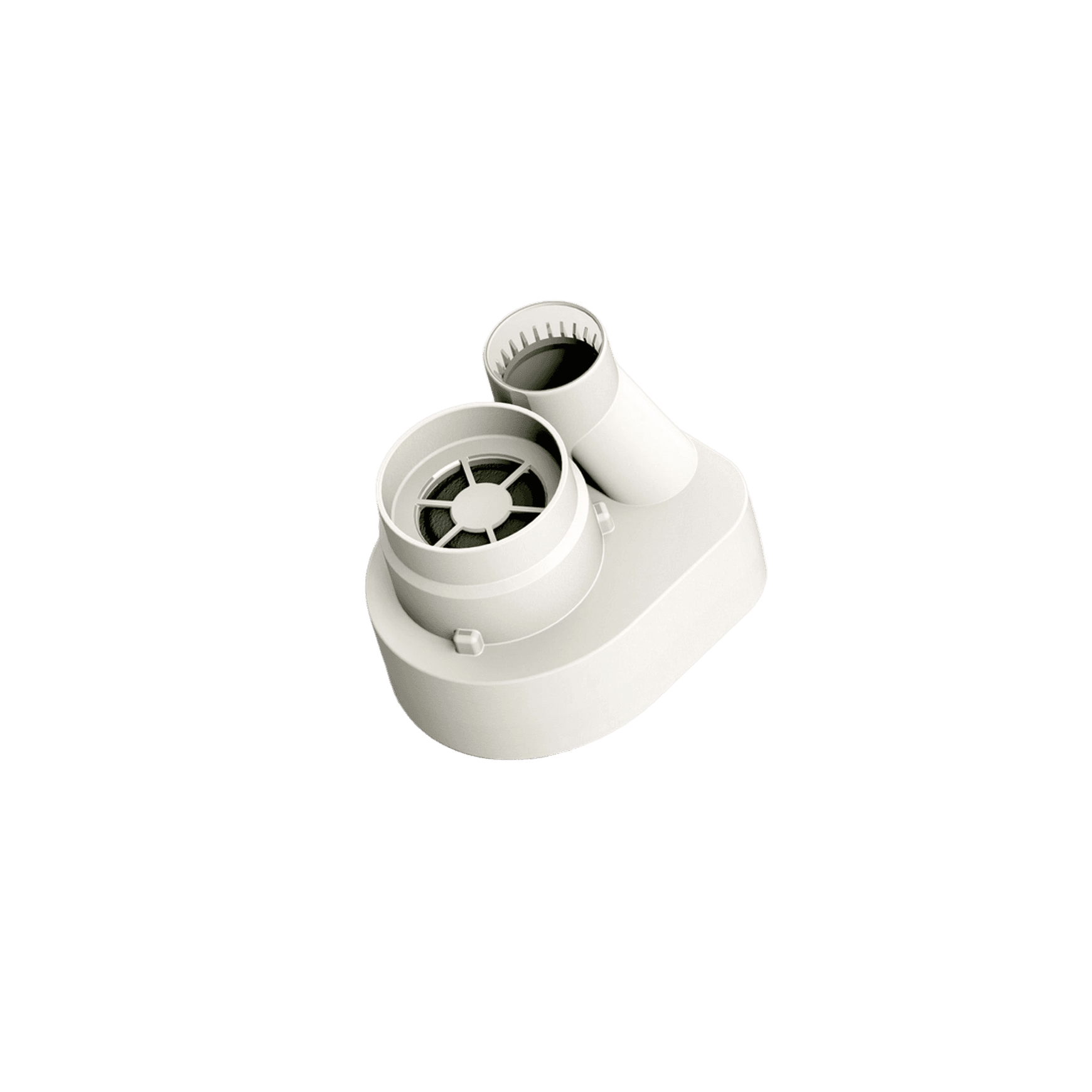

Maintain the Caroma Luna Back-to-wall Suite as you would a normal toilet with regular cleaning. The seat has a top fixing with quick release when required for cleaning. All internal components (inlet valve, flush valve, and Odourless by Expella system) are accessible by removing the cistern lid. The Odourless by Expella system is secured within an ultrasonically welded ABS plastic case and requires no maintenance. As with all electrical products, access to the adaptor is recommended.

• Vitreous China: 10 years
• Odourless by Expella: 3 years
• Inlet and flush valve: 2 years
• Toilet seat: 5 years (Caroma warranty for parts only)
  Warranty applies from the date of purchase. Proof of purchase required. Refer to our warranty page for more information.
