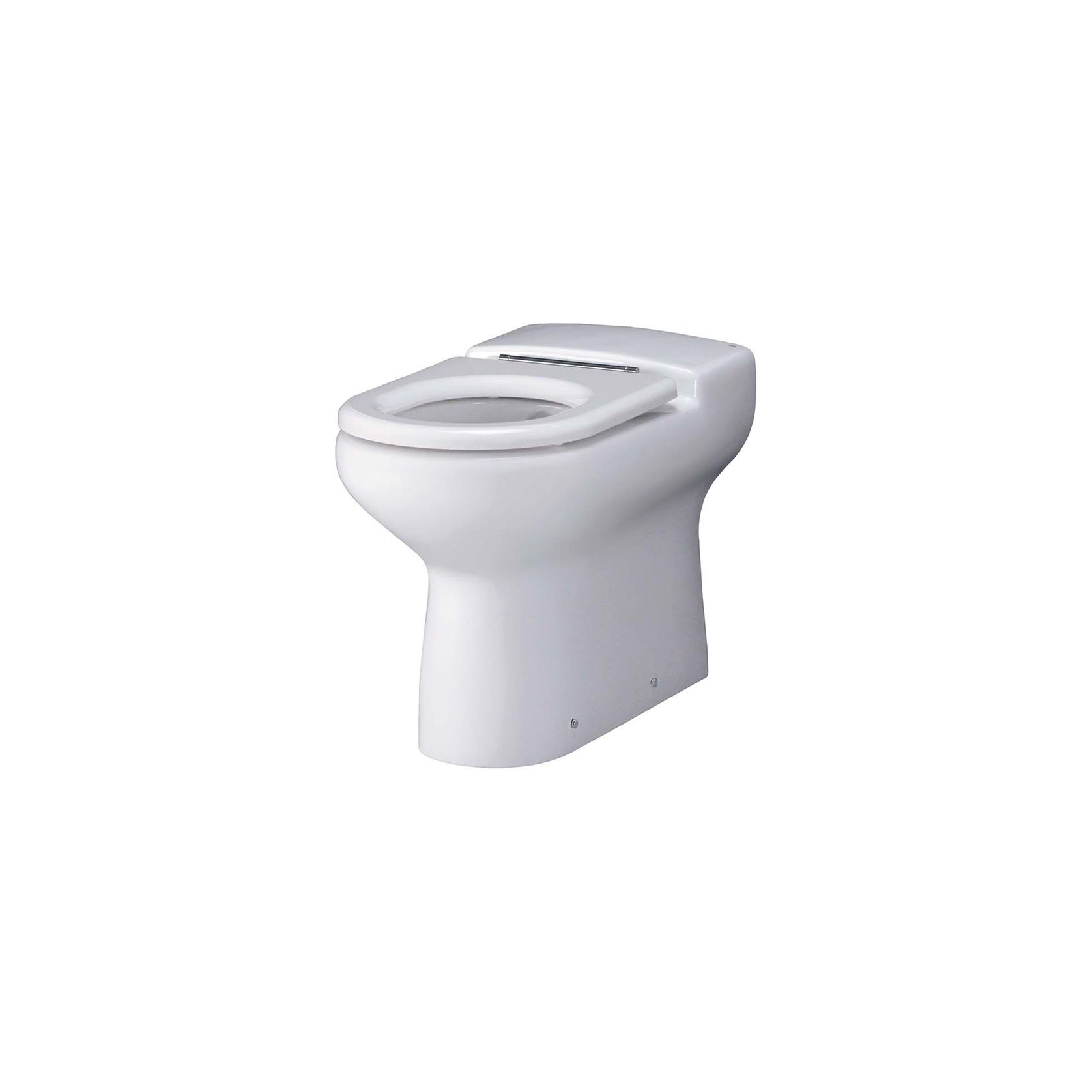

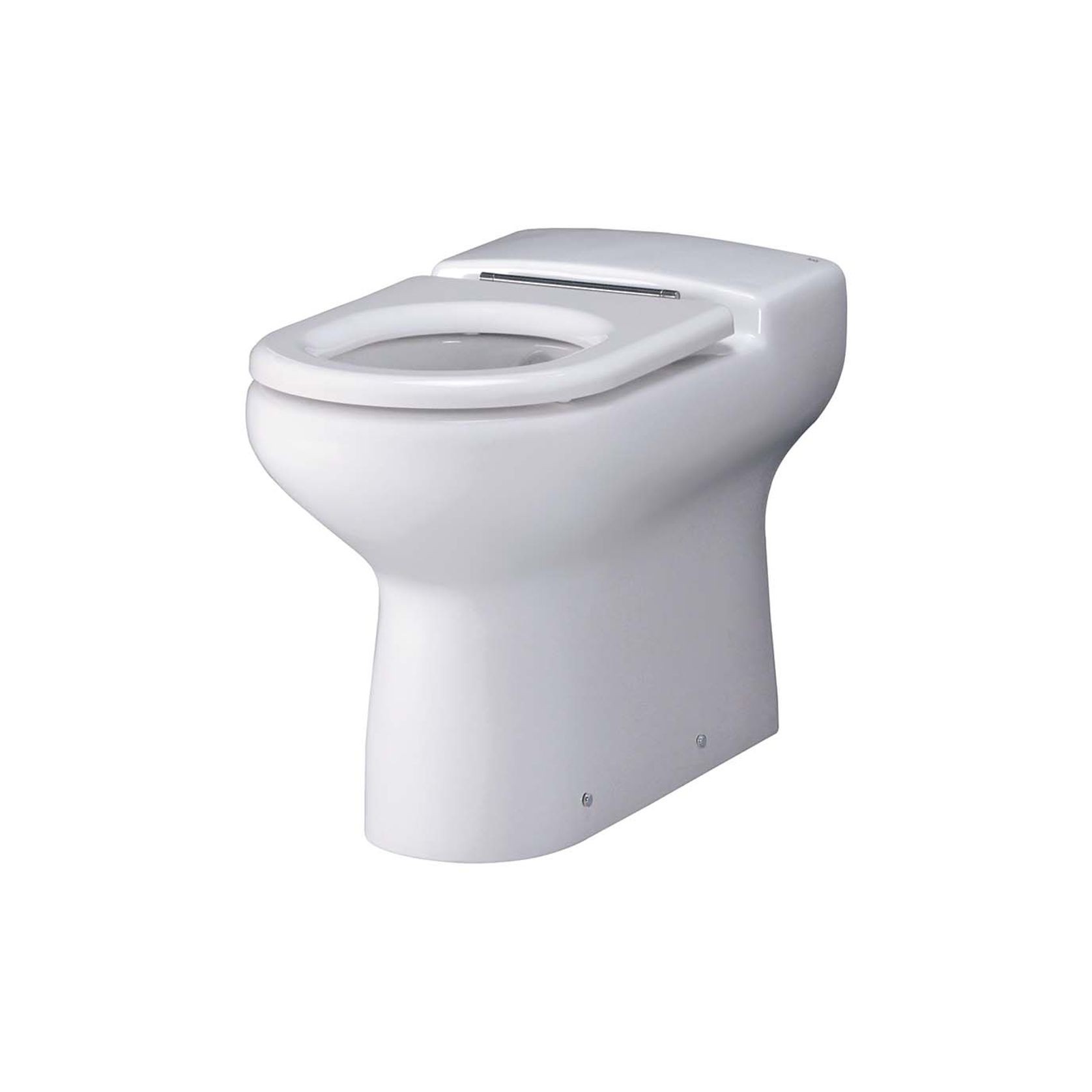

RAK Compact Accessible Wall Faced Toilet Pan
Accessible toilet suite with soft-close toilet seat and lid, made from RAK Ceramics Compact range.
- CategoryToilet Suites, Commercial Toilets and Urinals
- RangeCompact
- BrandRAK Ceramics
- DesignerRAK Ceramics
- Year1989
- Warranty1 year
- Fitting typeBack to wall
- General featuresCompact
- Type of useCommercial and Residential
Apart from its broad dimensions, Compact accessible bathroom toilets also come standard with Rimless technology which delivers the ultimate in hygienic bathroom flushing. Rimless technology ensures water is fully projected around the front of the toilet pan giving a completely clean flush. Rimless flushing makes it easier to clean and reduces bacteria and dirt by more than 90%.
When used with the soft close seat and lid, the Compact suite meets the requirements of AS1428.1:2009 as being suitable for use in disabled bathrooms.

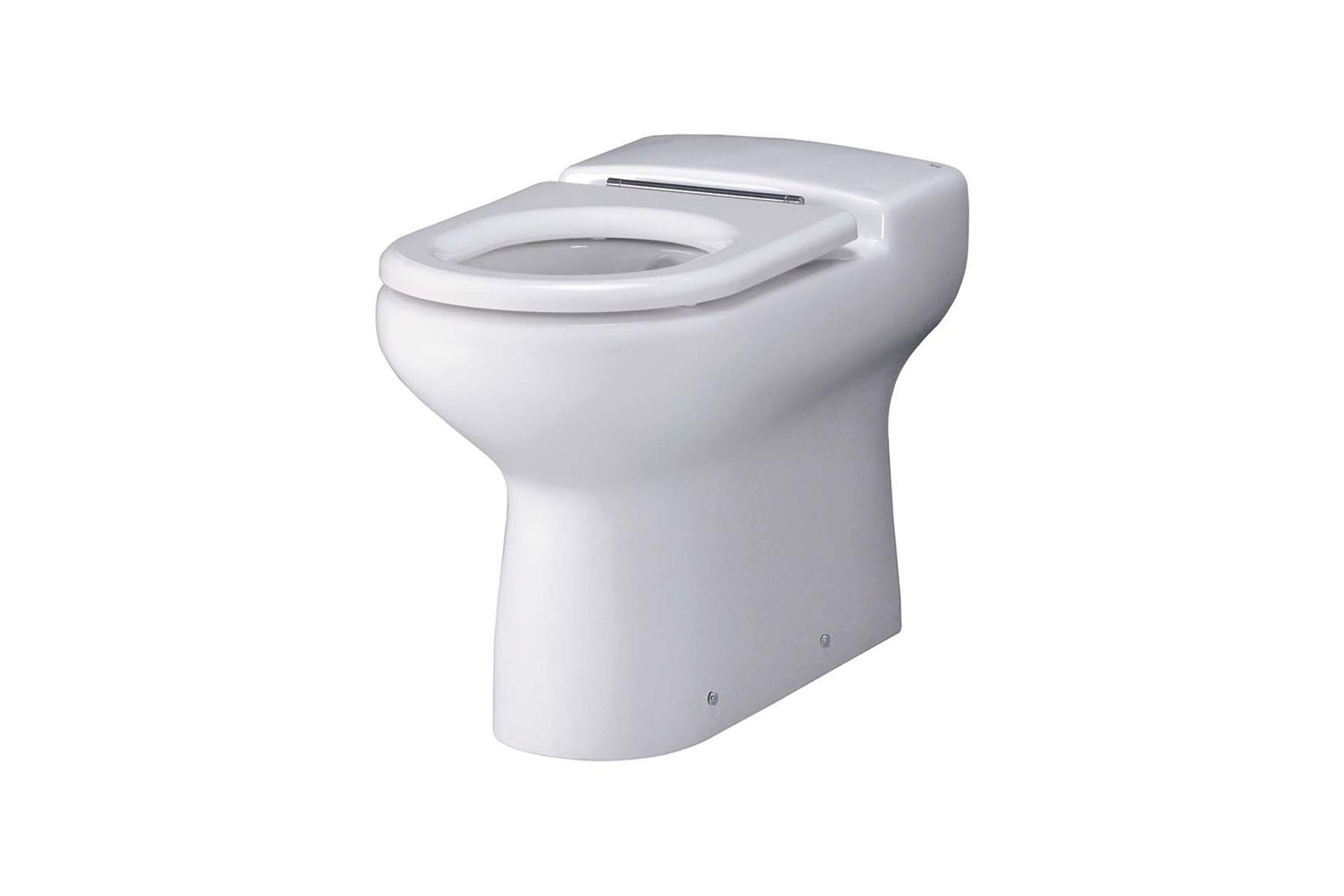

Compact accessible is available in wall faced toilet suite, wall faced toilet pan (as shown) or wall hung toilet pan formats.
Colour: Alpine white only.
Trap type: P-trap outlet connection.
Inlet: Ø55mm inlet connection.
Fixing: FS37UK floor fixing kit included (x2).
Seat: Compact urea soft-close toilet seat and lid, also available in toilet seat without lid.

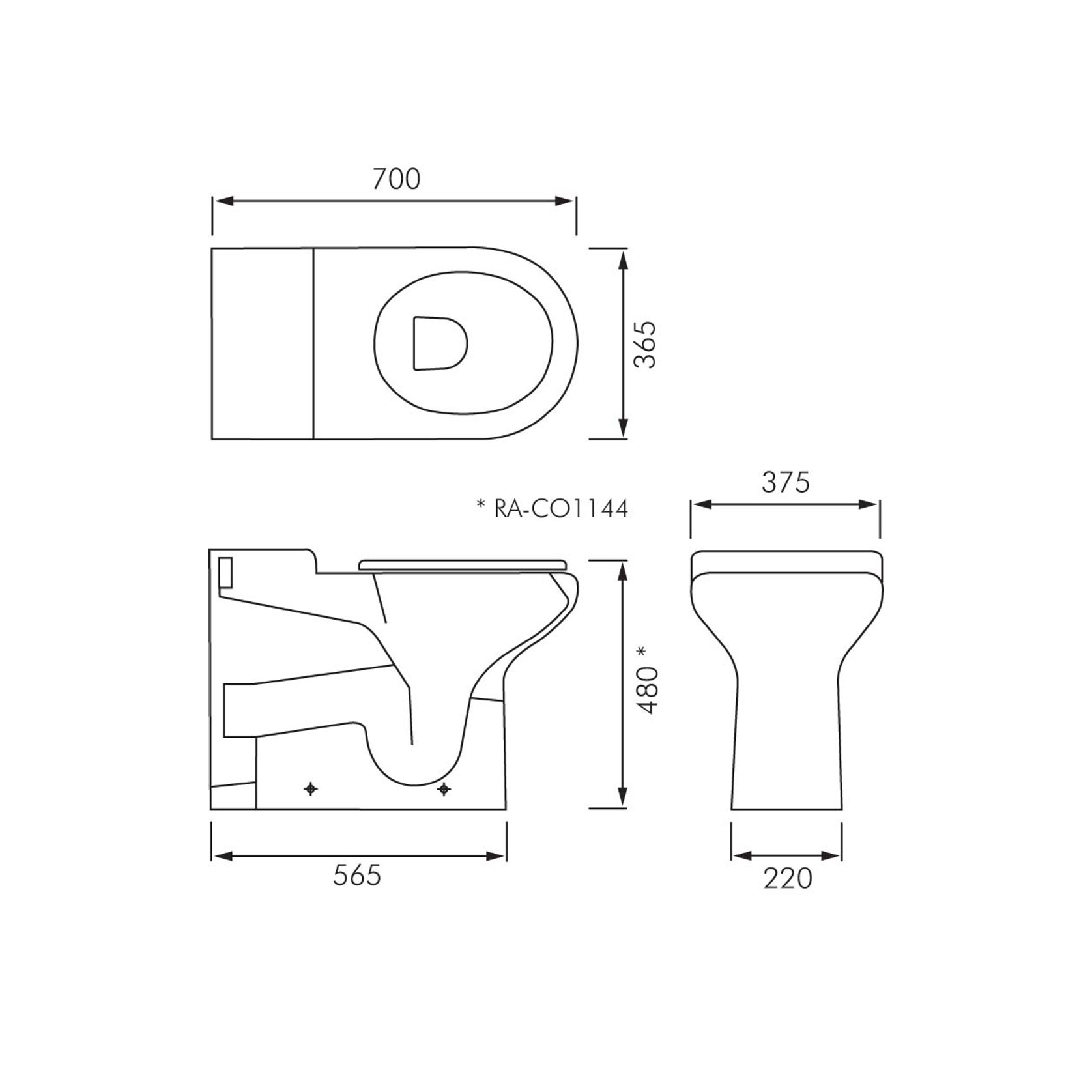

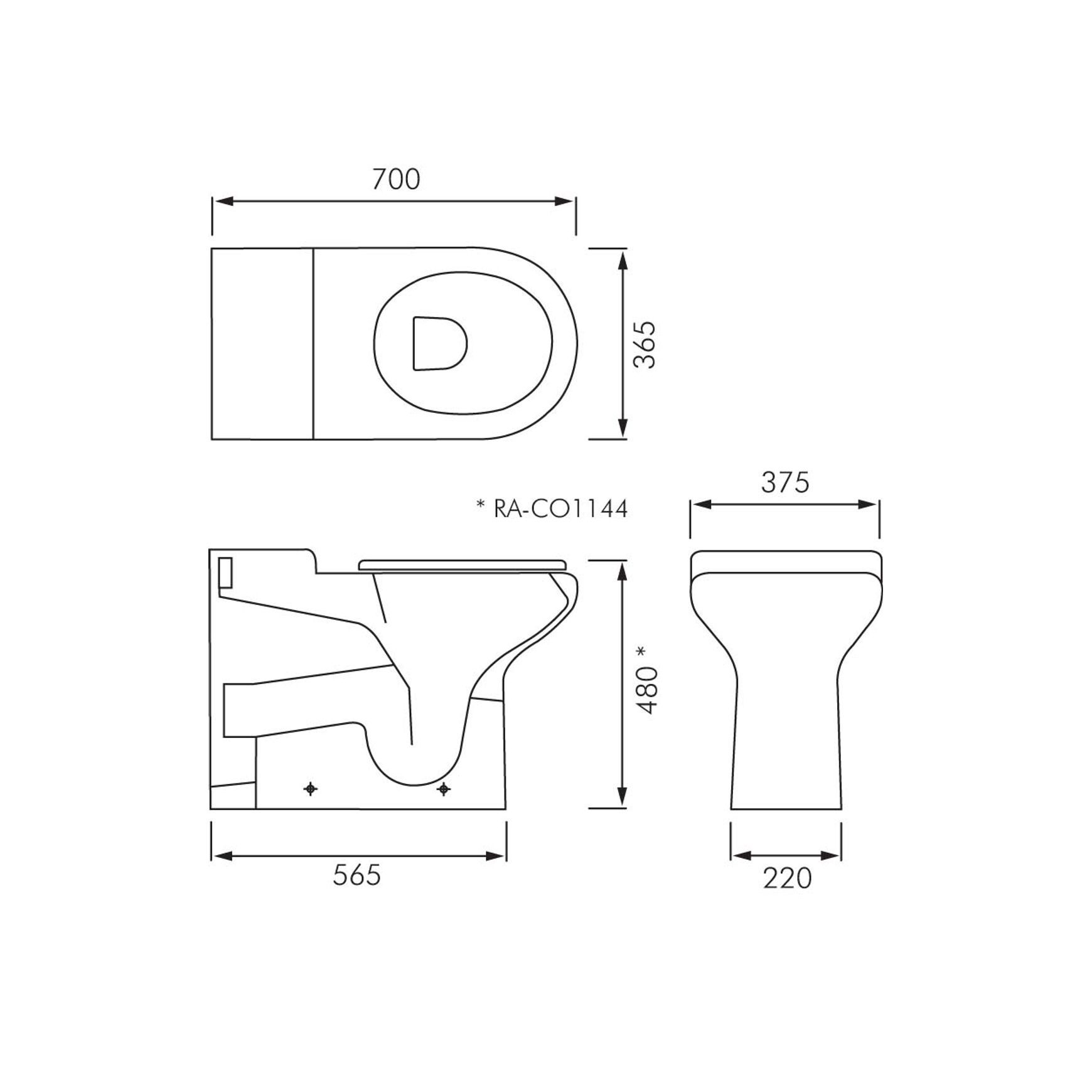

Dimensions: All dimensions in mm. Tolerance ±5% for below 200mm and ±3% above 200mm.
Flushing: Refer separate literature for our Zurn flushing valves and Wisa inwall cisterns.
The Compact accessible toilet range has been created to provide comfortable convenience to people with additional needs.
AS1428.1:2009 compliant:
RA-CO1144 - RAK Compact accessible toilet pan P-trap complete with soft-close toilet seat & lid
AS1428.1:2009 non-compliant:
RA-CO1145 - RAK Compact accessible toilet pan P-trap complete with care toilet seat (no lid)
OPTIONAL EXTRA:
For a back rest offering extra comfort, refer Delabie DE510629 in separate literature.
RAK Ceramics is one of the largest ceramics brands in the world. Sourcing its raw materials locally, RAK is an expert in producing ceramics lifestyle solutions.
