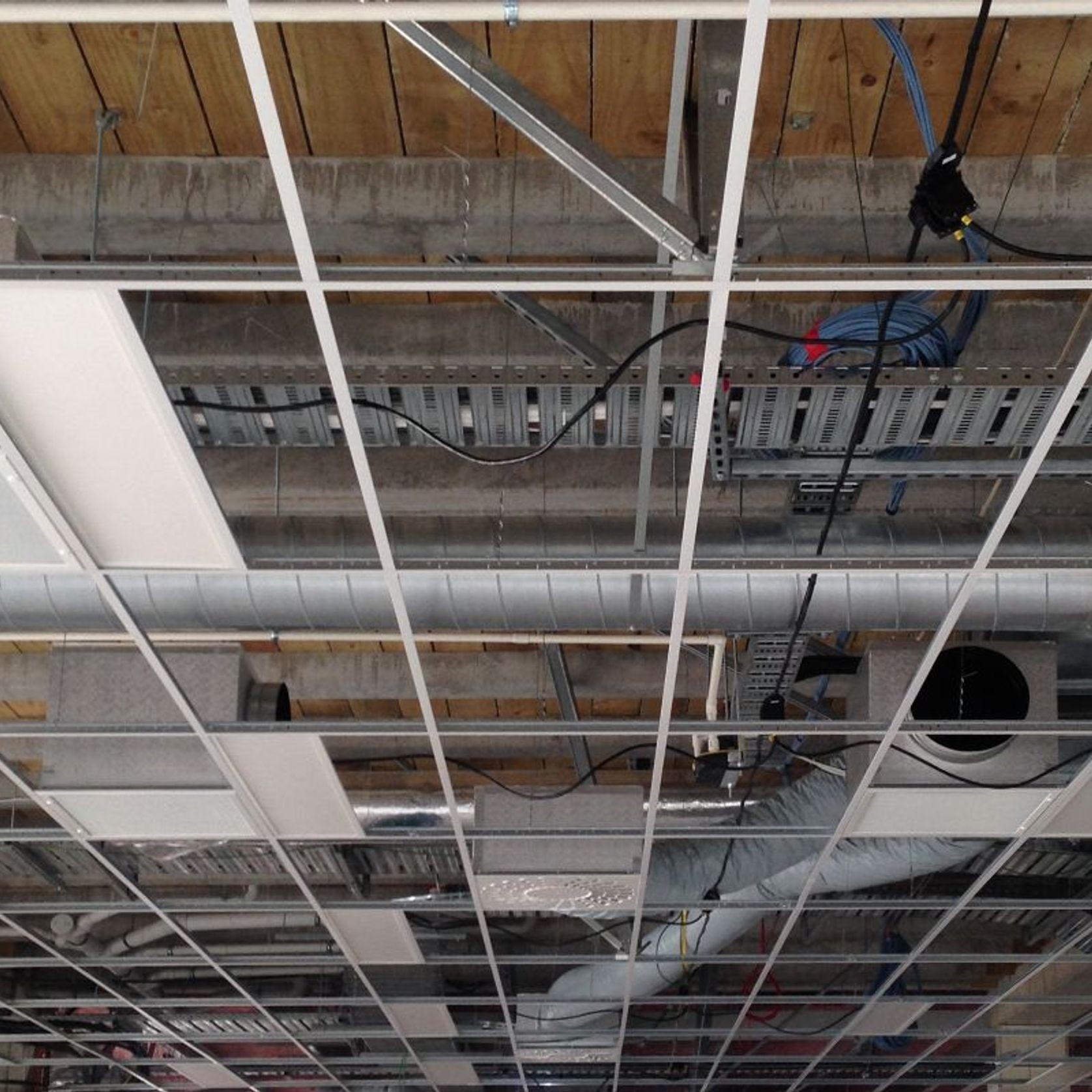

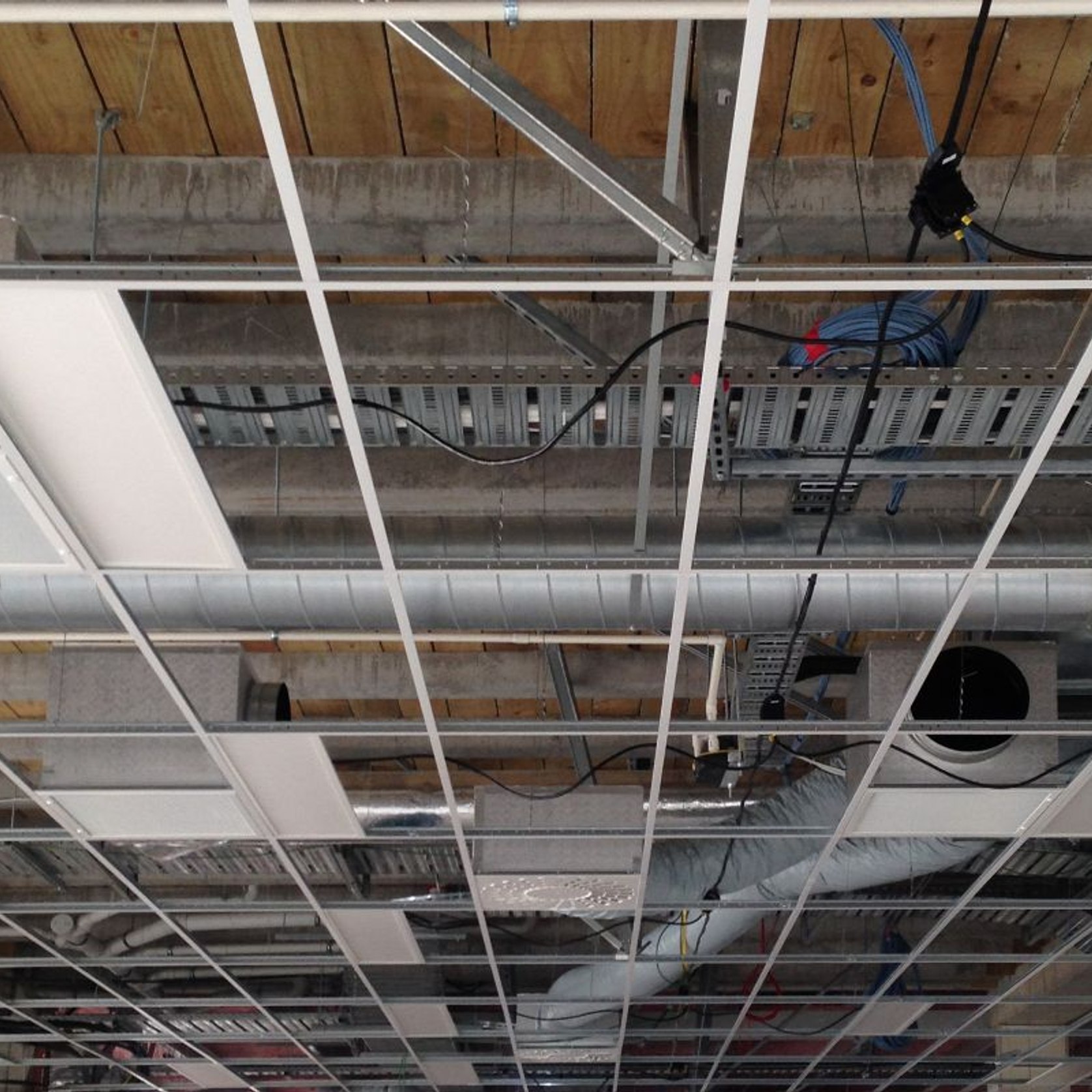

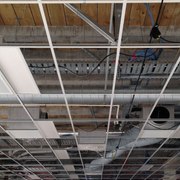

15mm and 24mm Two Way Exposed Grid System.

Parts of the system:

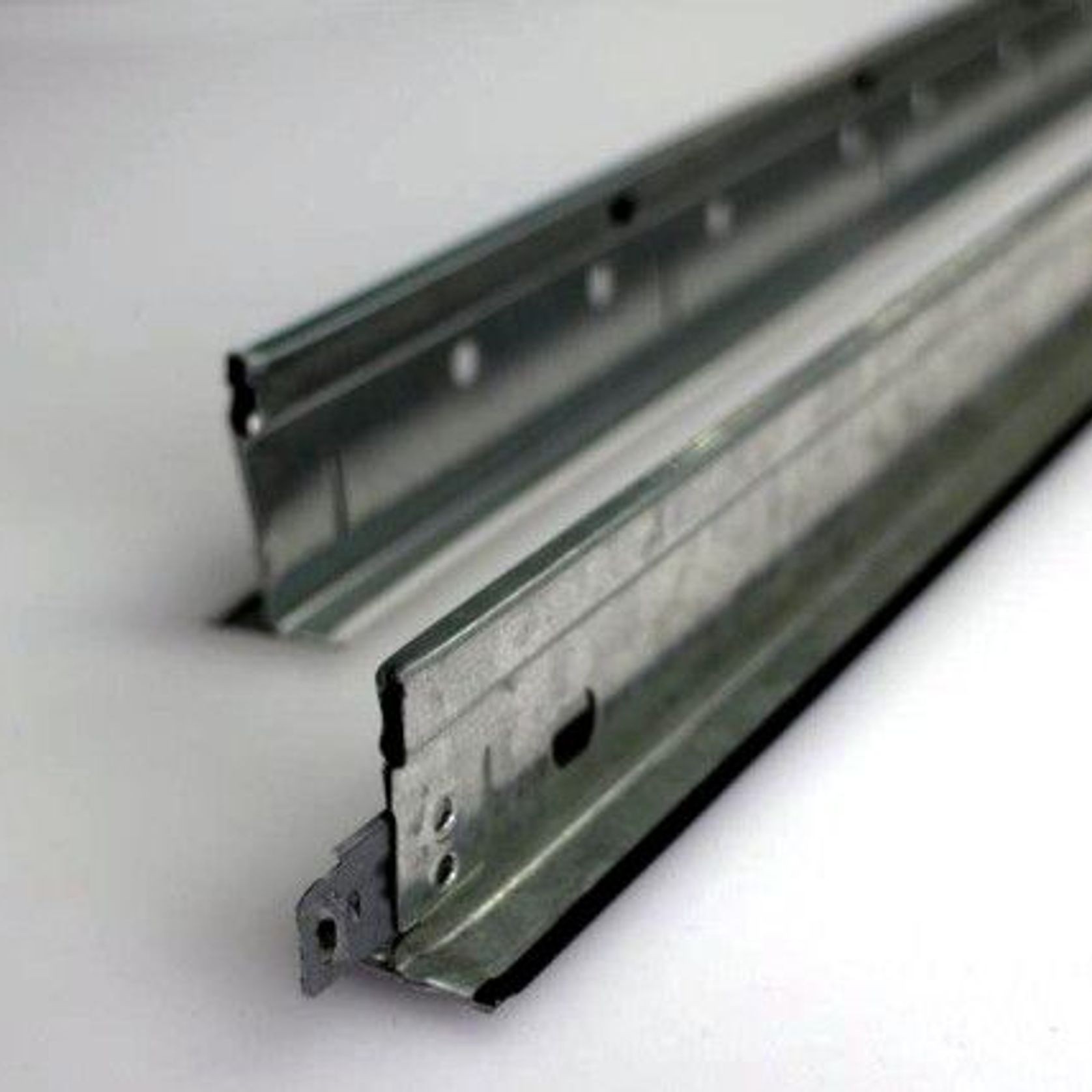

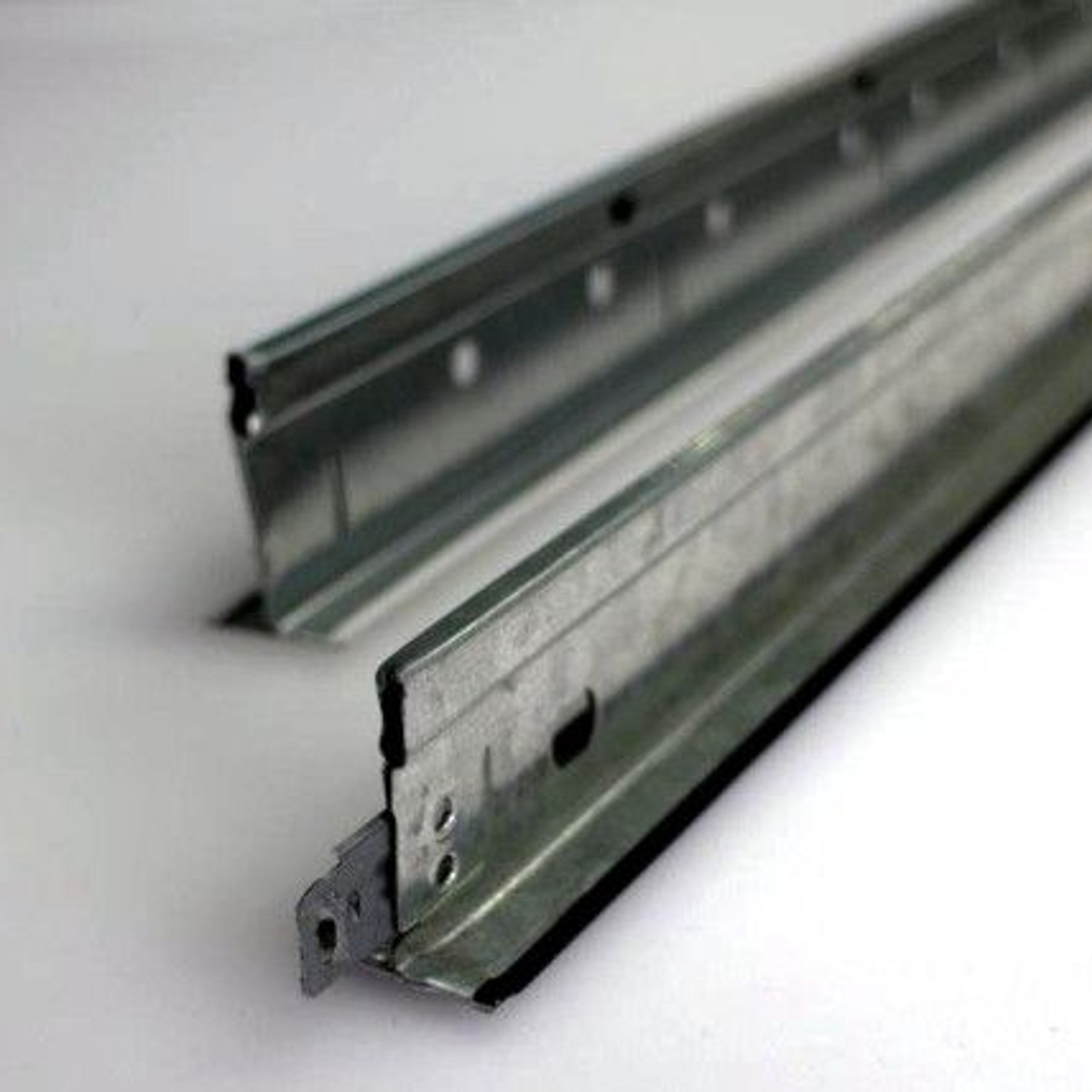

Main Tee: The Main Tee is manufactured from hot-dipped galvanised steel in a double web, balanced tee design, in 3700mm lengths. It is finished with a pre-painted steel cap. The Main Tee is conveniently punched at 100mm centres and includes suspension points in both the bulb and web. Main tees extend from wall to wall and are the primary ceiling support. End splices allow for greater lengths. Slots along the runner side allow cross tee to connect.

Cross Tees: The Cross Tees are manufactured in the same configuration in 1200mm and 600mm lengths. Lay on edge detail for neatness of installation coupled with resistance to twist. They connect between main tees using interlocking tabs. The high tensile clips ensure a positive locking system for quick installation.

Wall Angle: L-shaped pieces that fasten to the wall and support the ends of the main runners and cross tees.

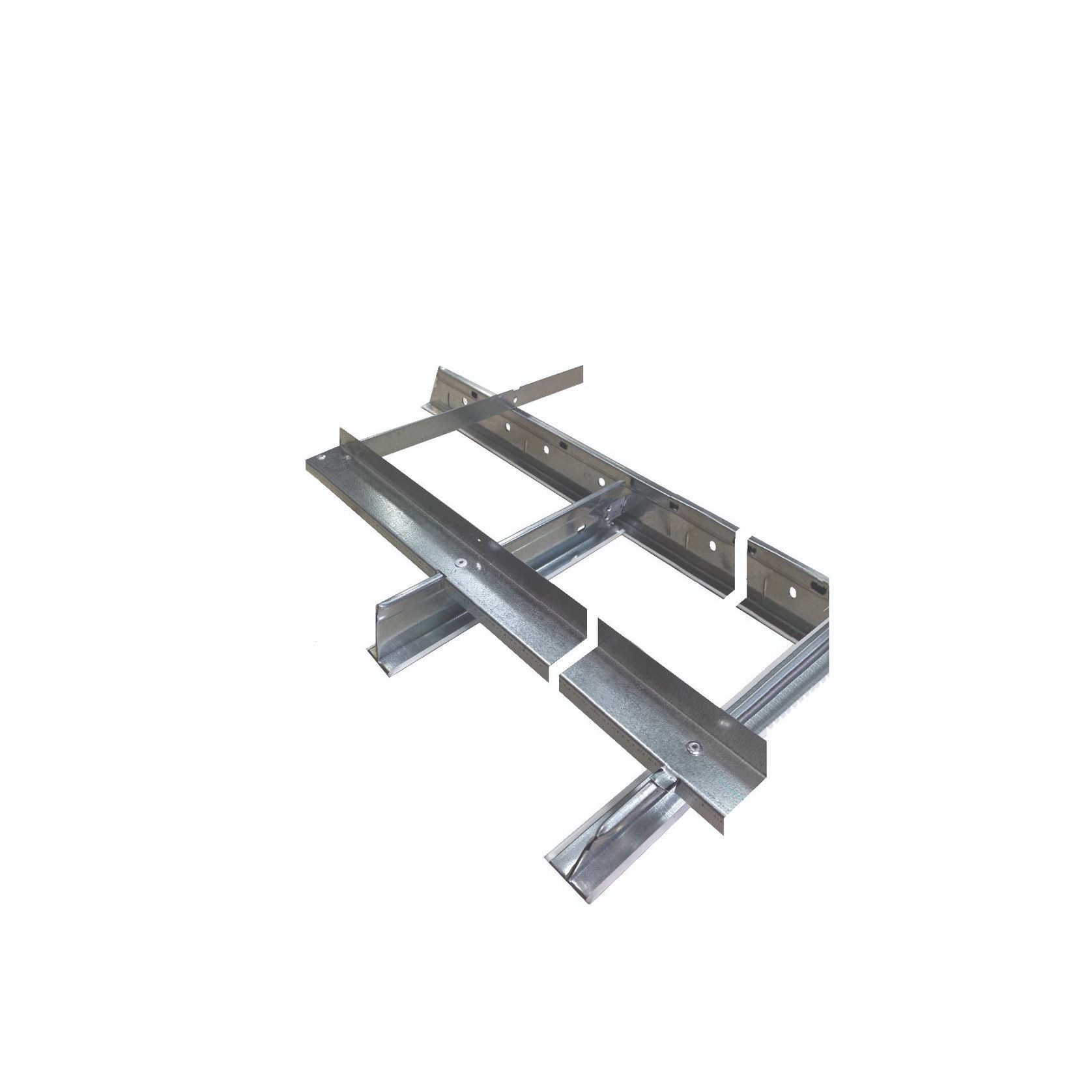

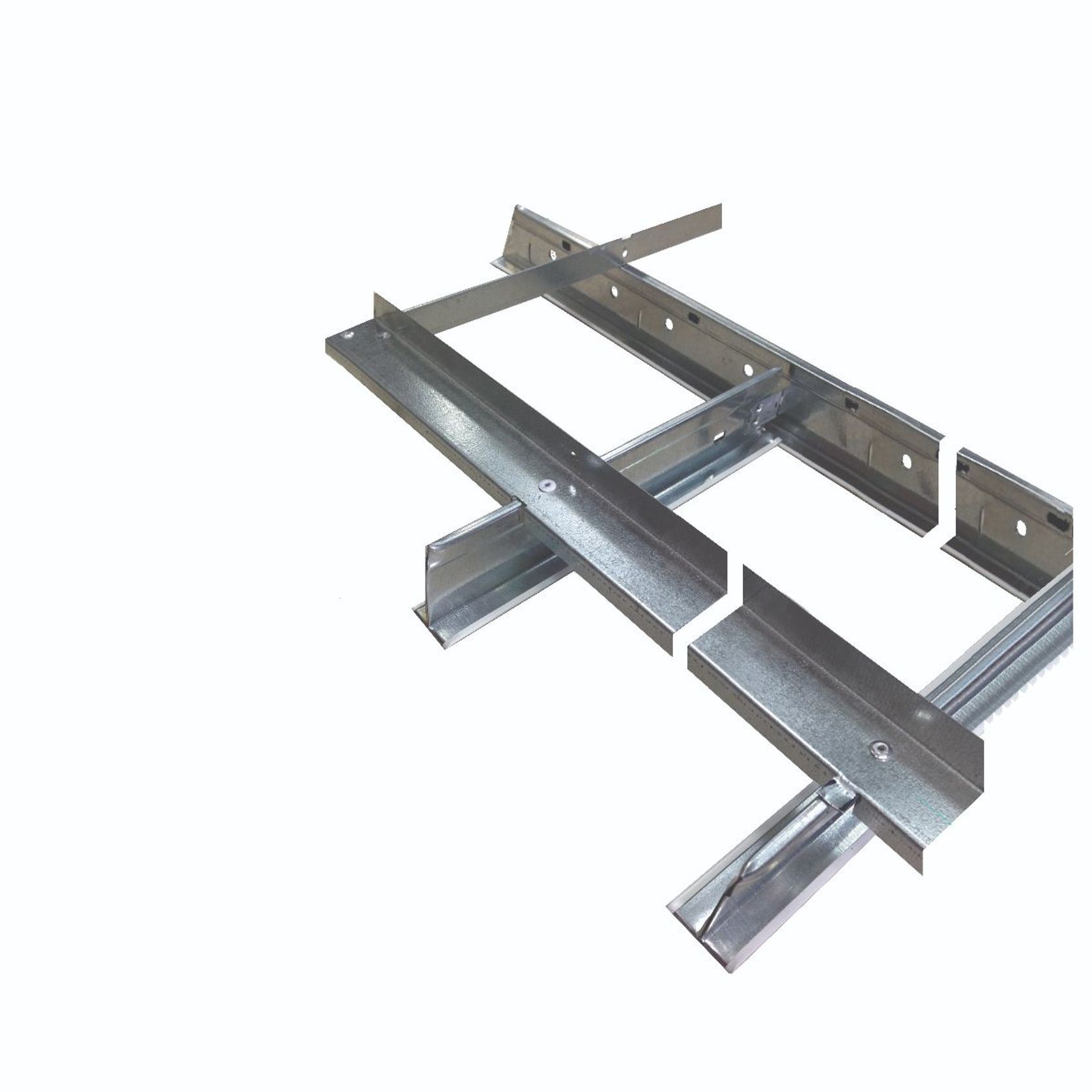

Z Rail: A seismic support that suspends the edge of the grid without relying on the perimeter.

Border: Cut panels around the perimeter of the room. They should be greater than half of a tile to maintain balance and add visual appeal.

Clips: Hold down clips are available as required.

Details
  • Category
    Structural & Framing
  • Range
    Seismic Design Solutions
Specifications

See datasheet for specs.

T&R Interior Systems
View locations (3)
Visit Website

Other products
in this range

VertiBrace
VertiBrace
By T&R Interior Systems
StratoBrace
StratoBrace
By T&R Interior Systems

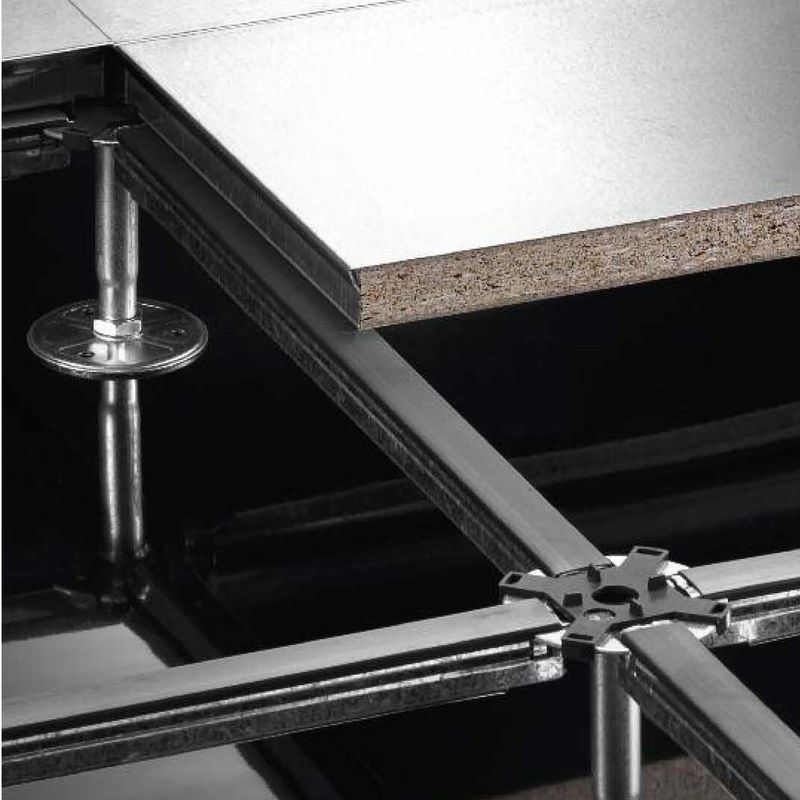

CBI (Access Flooring)
