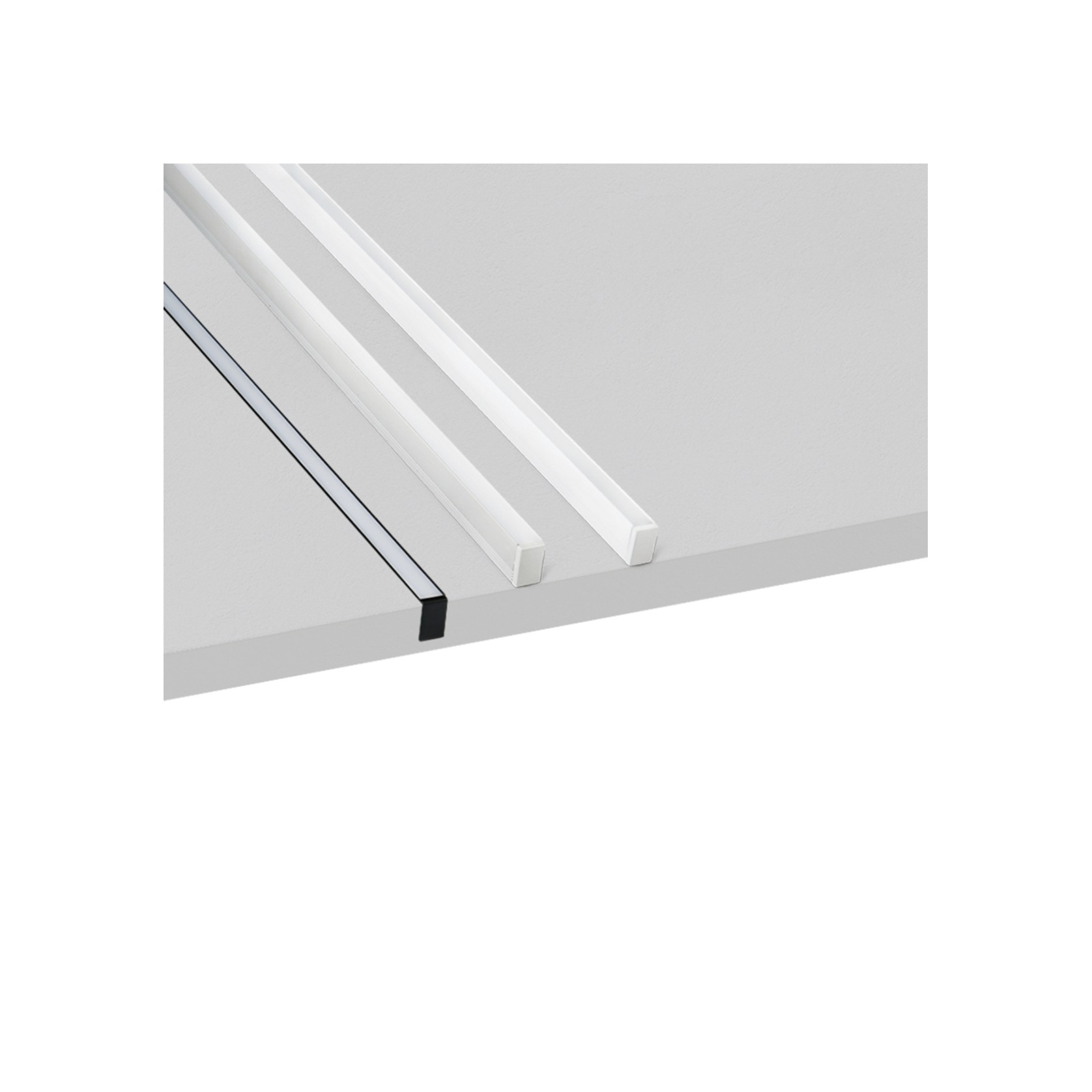

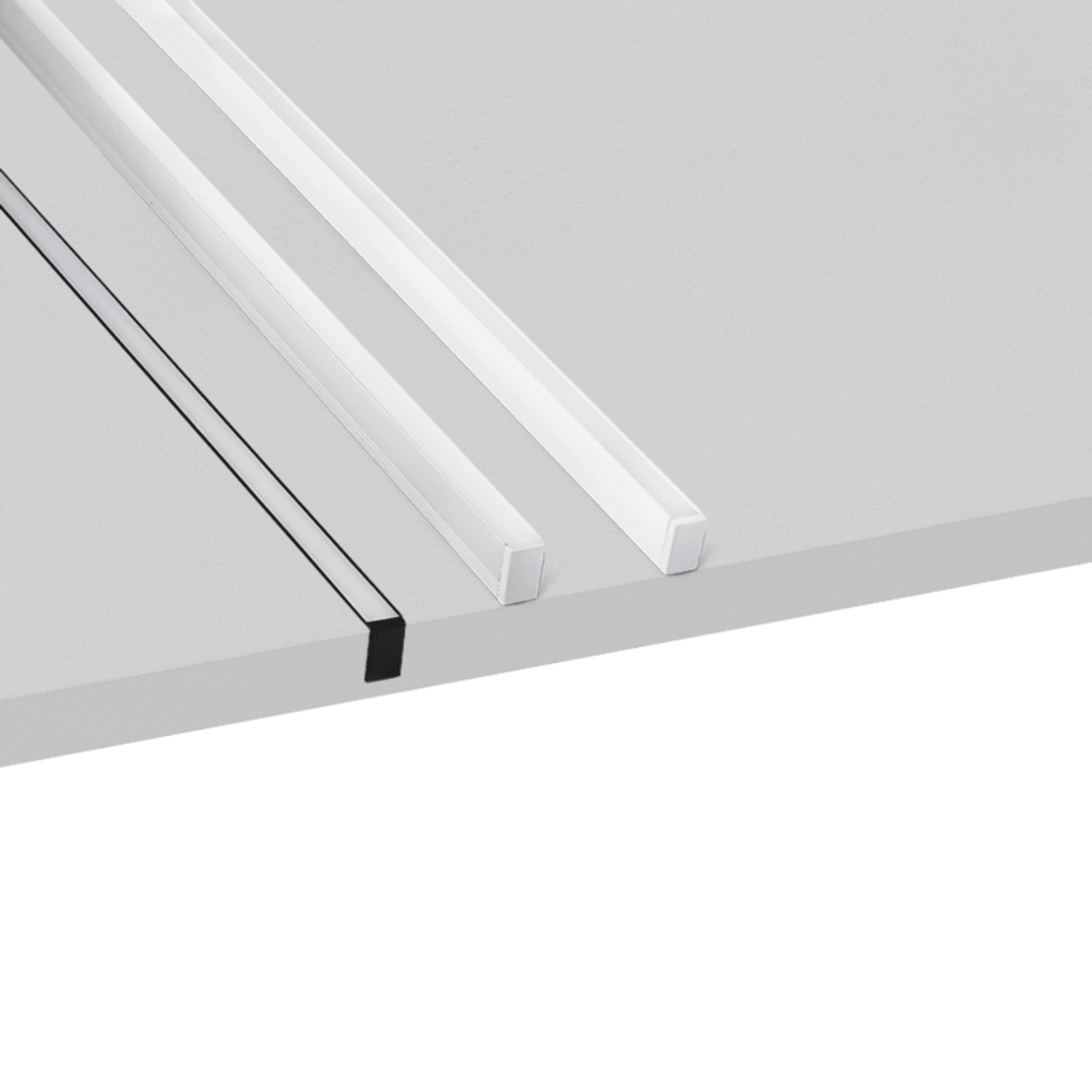

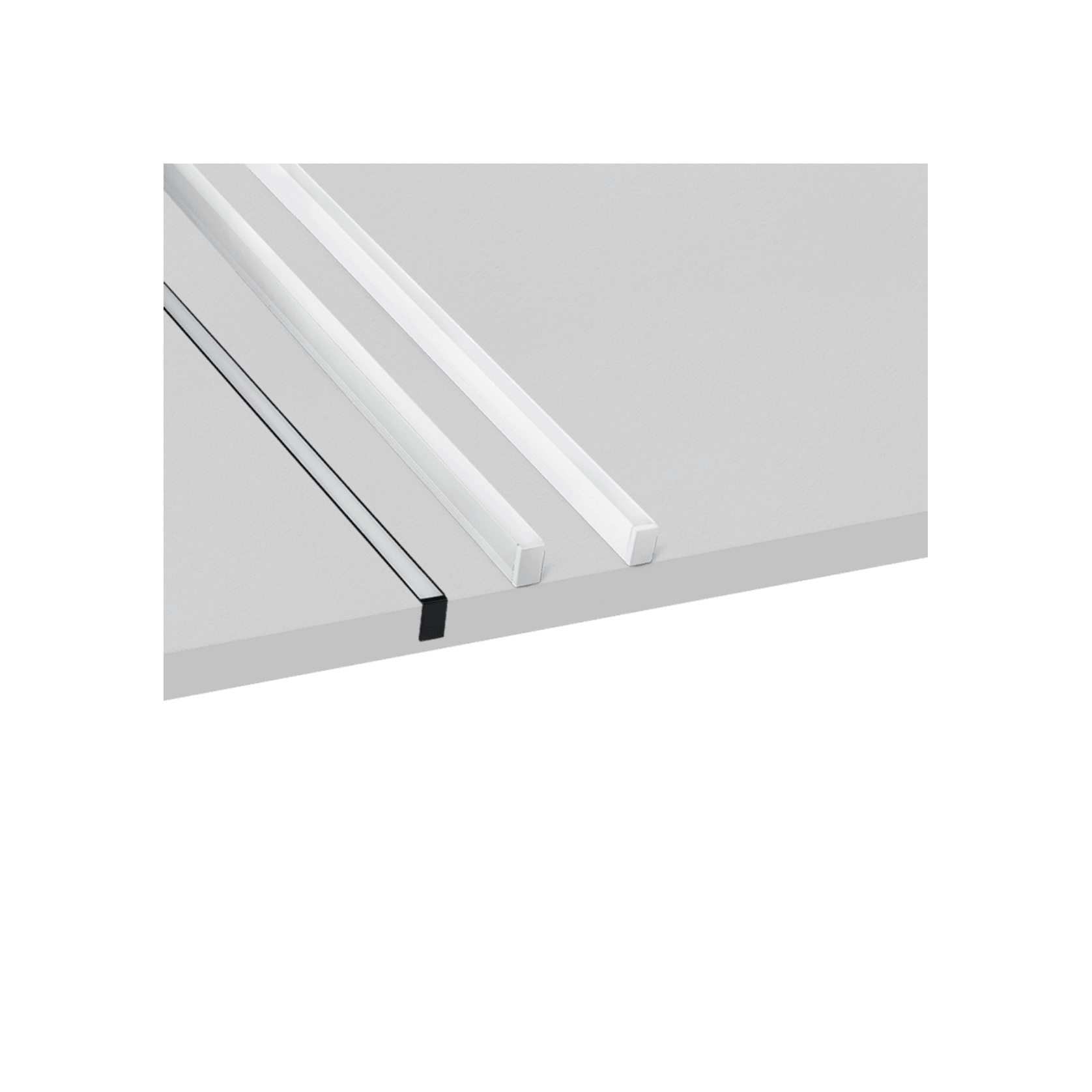

Surface Mounted Linear LED Profile

Chopstix linear profile series offers new lighting possibilities for a multitude of project applications due to its small size. Able to be surface or recessed mounted, it is perfect for handrails, joinery integration, task lighting and architectural features.

Constructed from high grade 6063T extruded aluminium with natural anodised surface treatment as standard, it provides optimal heat transfer and continuous illumination. Optional surface finishes are available to complement interior and/or exterior colour palettes. High quality opal PMMA diffusers enable harmonious distribution minimising the visibility of dots when used in conjunction with the Deltaflex-mini & Zeroflex-mini LED flex series.

Details
  • Category
    Linear Lighting
  • Range
    Linear Profiles
  • Warranty
    5 years
Specifications

Technical Specifications

Wattage/m:

  • Zeroflex-Mini
    •8W
  • Deltaflex-Mini
    •10W
    •12W
    •15W

Luminous Flux/m:

  • Zeroflex-Mini
    •8W (2700K): 700 Lm
    •8W (3000K): 763.45 Lm
    •8W (4000K): 753.74 Lm
  • Deltaflex-Mini
    •12W (2700K): 843 Lm
    •12W (3000K): 876 Lm
    •12W (4000K): 928 Lm
    •15W (2700-6000K): 1318 Lm
    •10W (RGB): 294 Lm

Luminaire Efficacy:

  • Zeroflex-Mini
    •8W (2700K): 87.5 Lm/W
    •8W (3000K): 95.43 Lm/W
    •8W (4000K): 94.22 Lm/W
    Deltaflex-Mini
    •12W (2700K): 70.25 Lm/W
    •12W (3000K): 73Lm/W
    •12W (4000K): 77 Lm/W
    •15W (2700-6000K): 87.9 Lm/W
    •10W (RGB) 29.4 Lm/W

CCT:

  • 2700K
  • 3000K
  • 4000K
  • Tunable White (2700K - 6000K)
  • RGB

Distribution: 110°

Mounting:

  • Surface
  • Recessed

Size: Width 8mm x Height 12mm x Length 2500mm

Finish Options:

  • Natural Anodised
  • White
  • Black
  • Custom

Warranty: 5 Years
