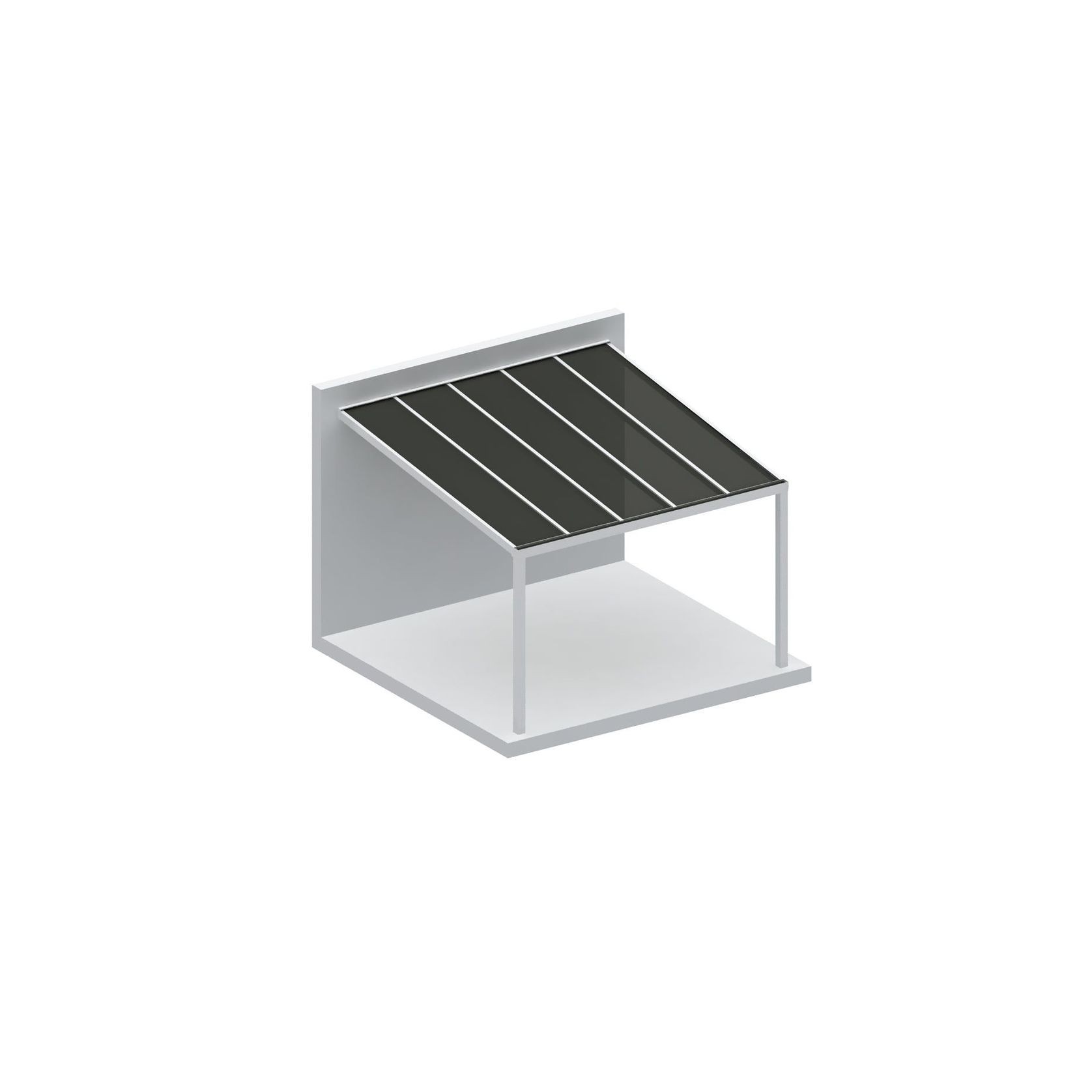

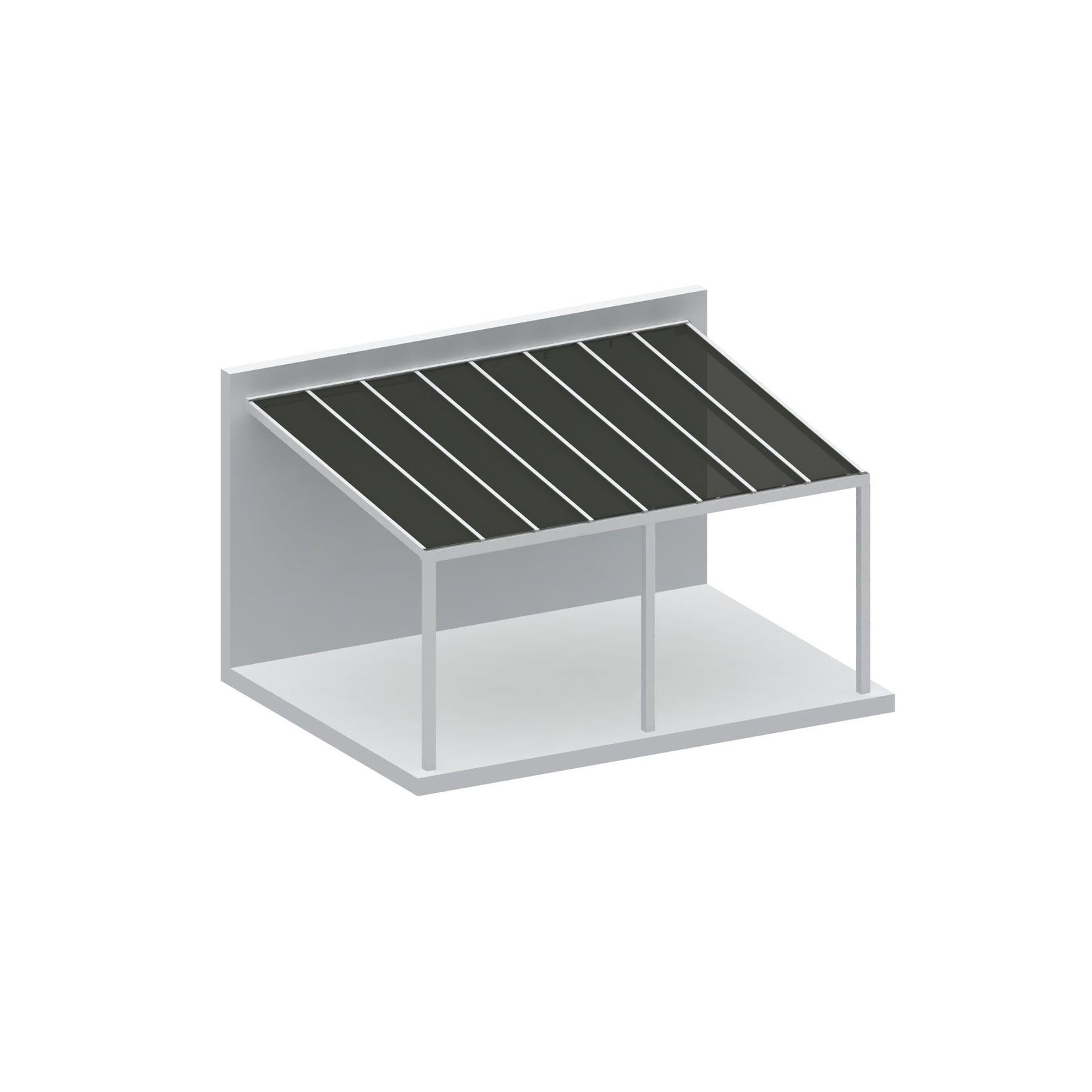

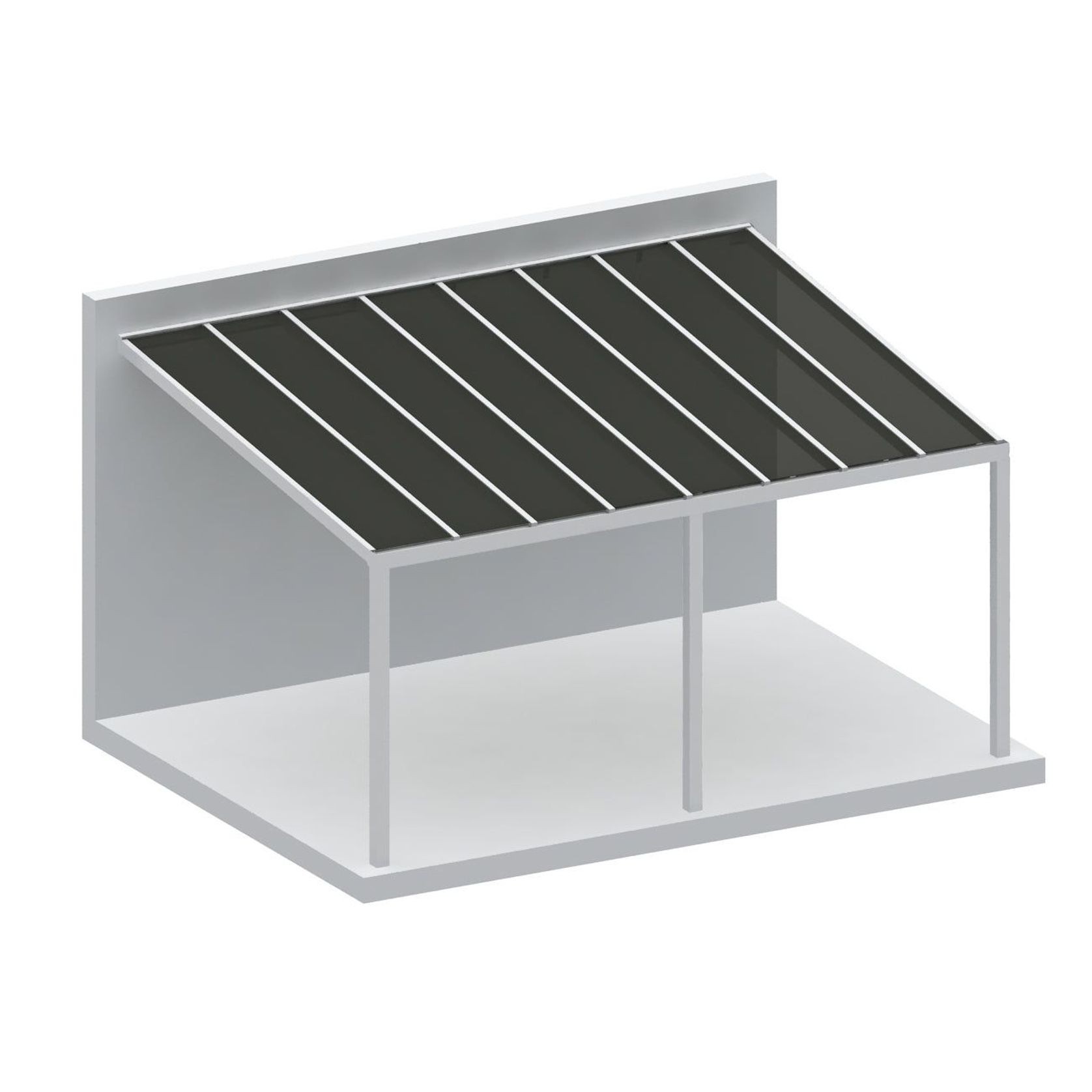

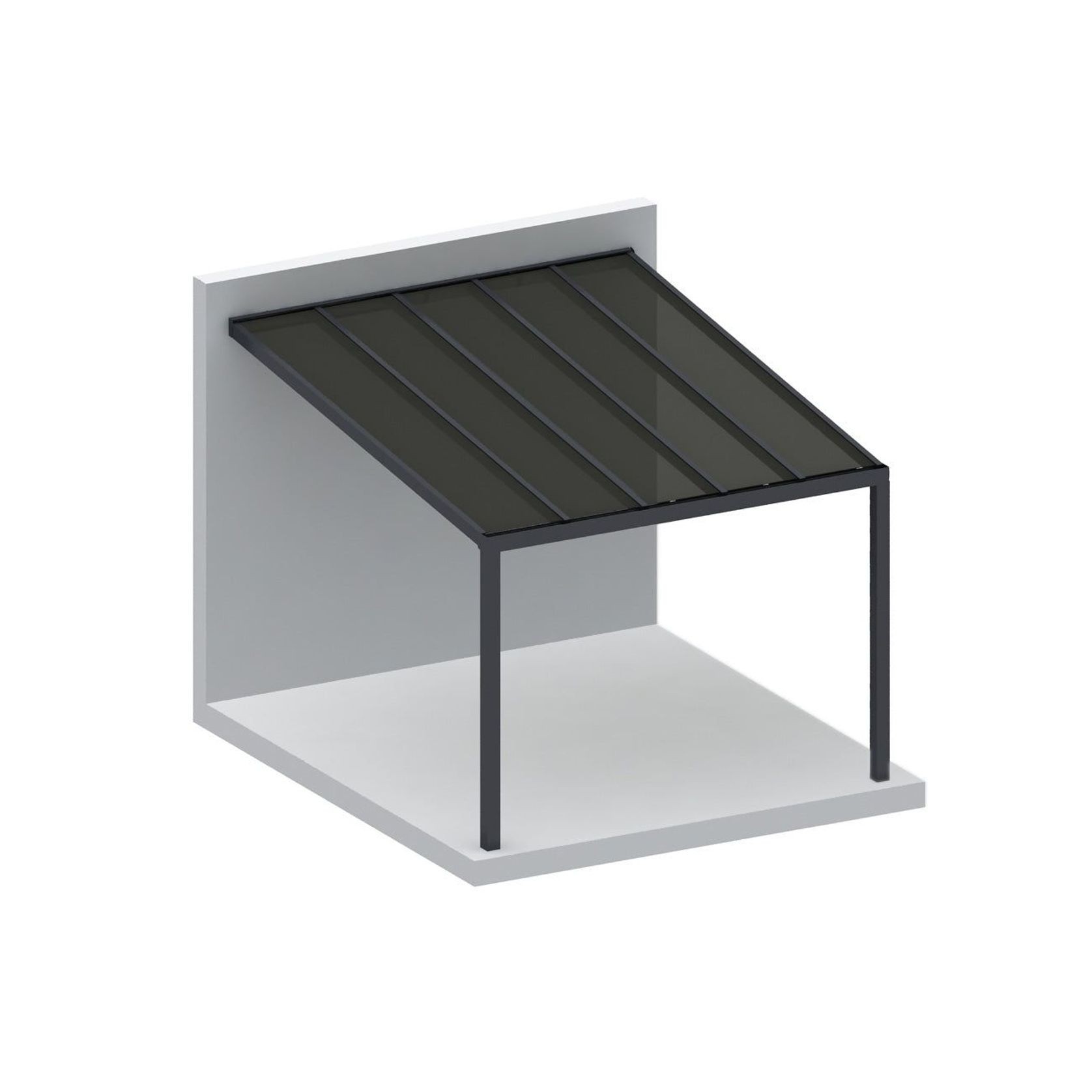

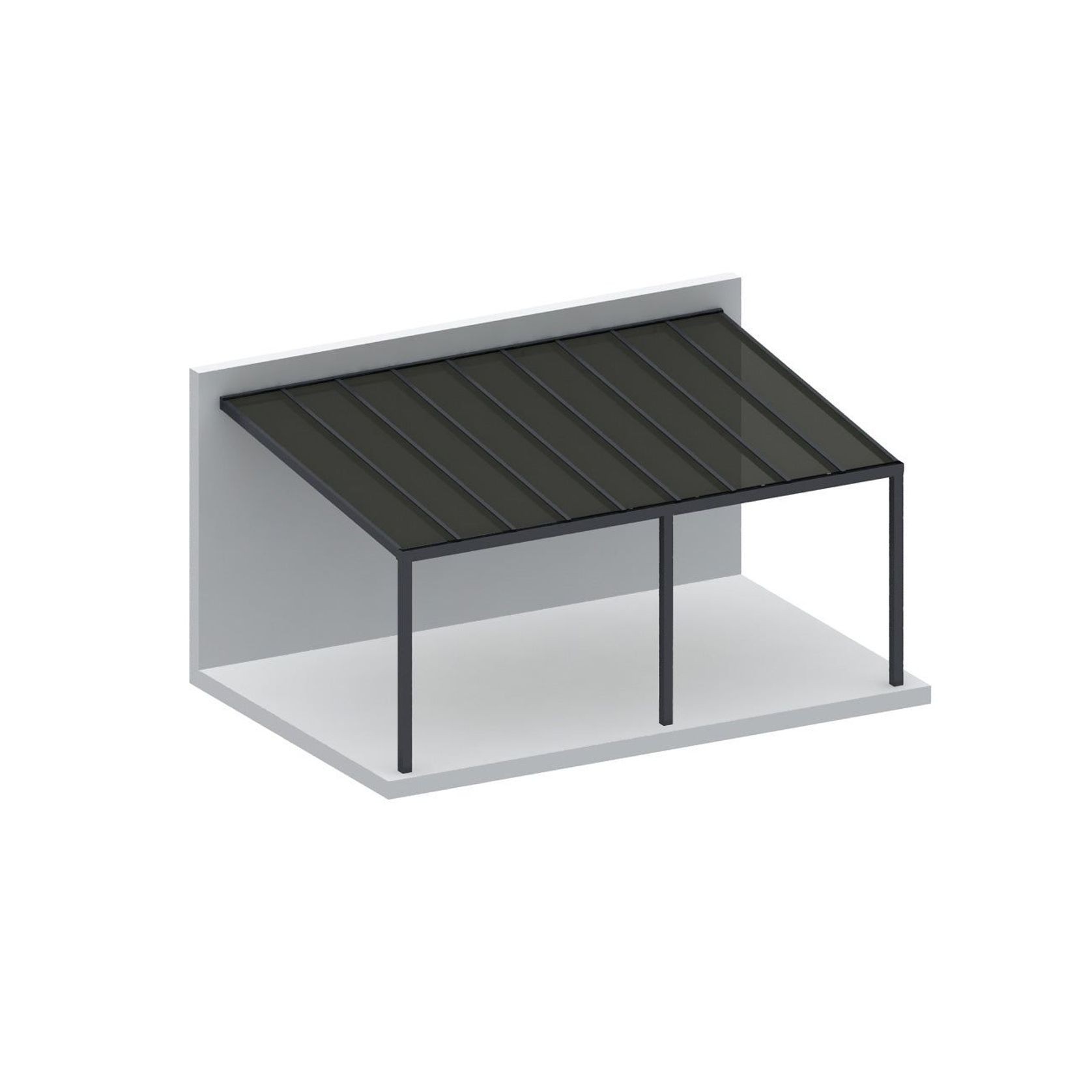

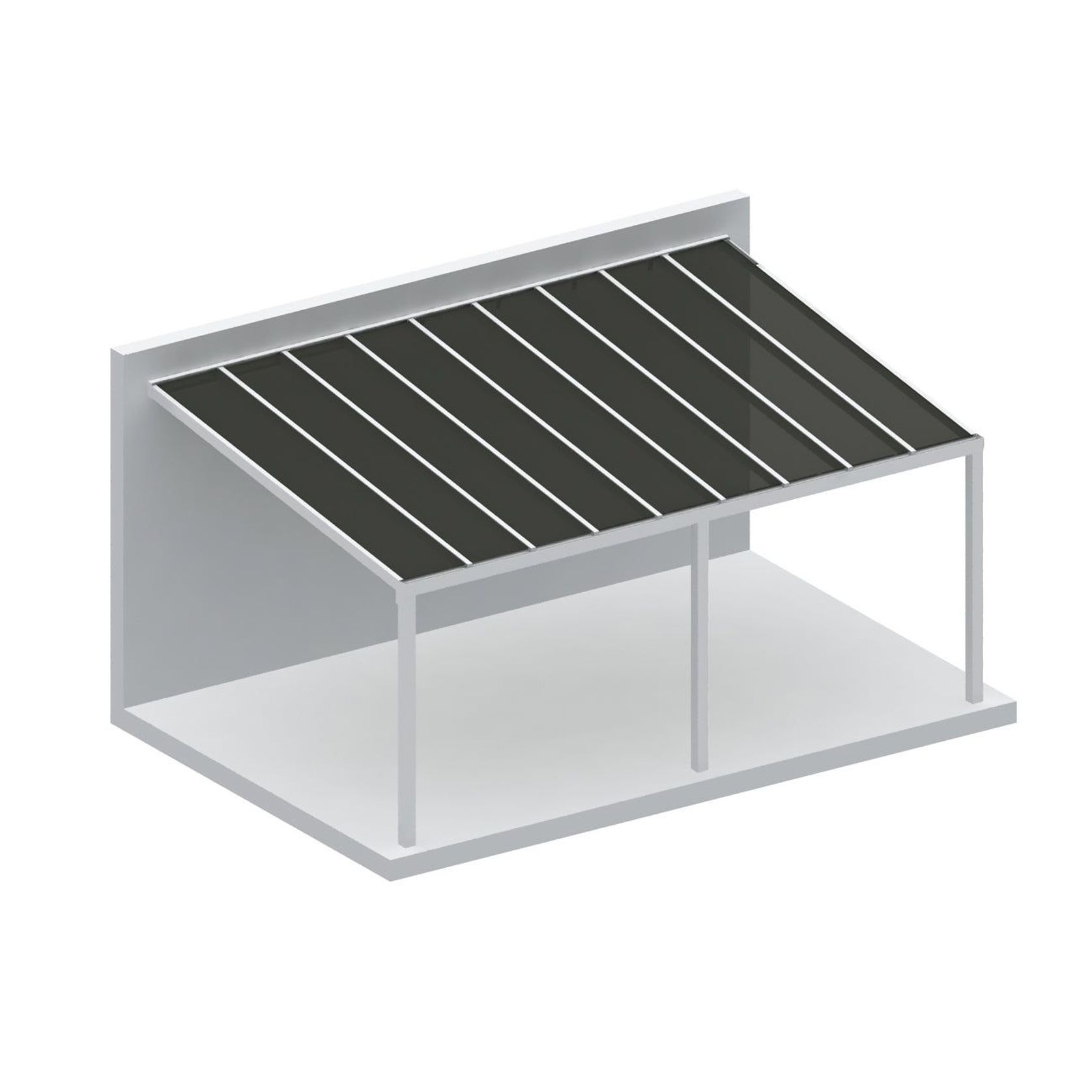

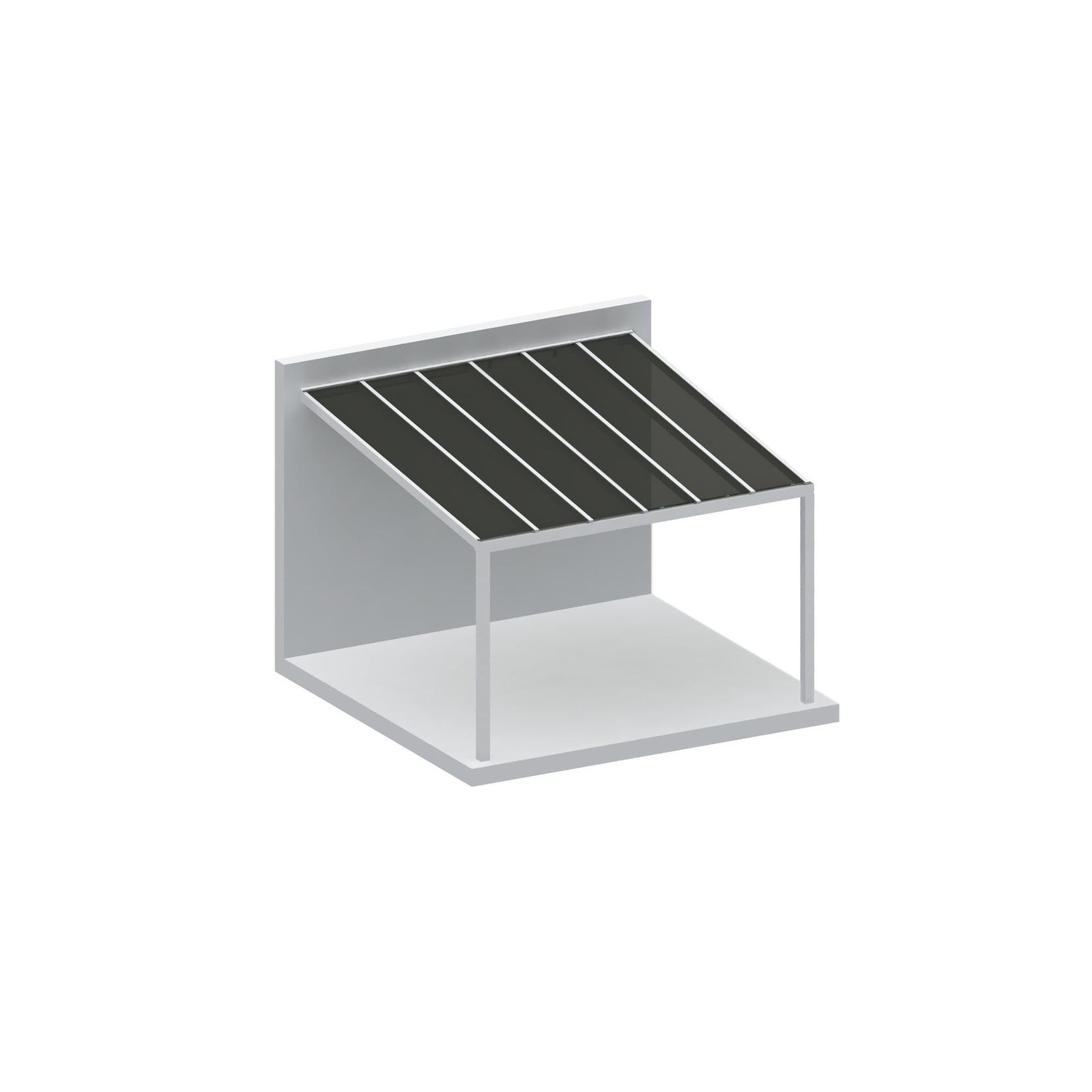

Coastal Patio Cover Collection

• Au Frame 6063-T5
• Aluminum Frame Color：Charcoal / White
• Roof panel Color: Light Grey
• PC Board: thickness 4mm
• Bavere PC polycarbonate panels
• 10-year warranty on polycarbonate roof sheets
• Wind Load: 110km/h
• Snow Load: 100kgs/m2

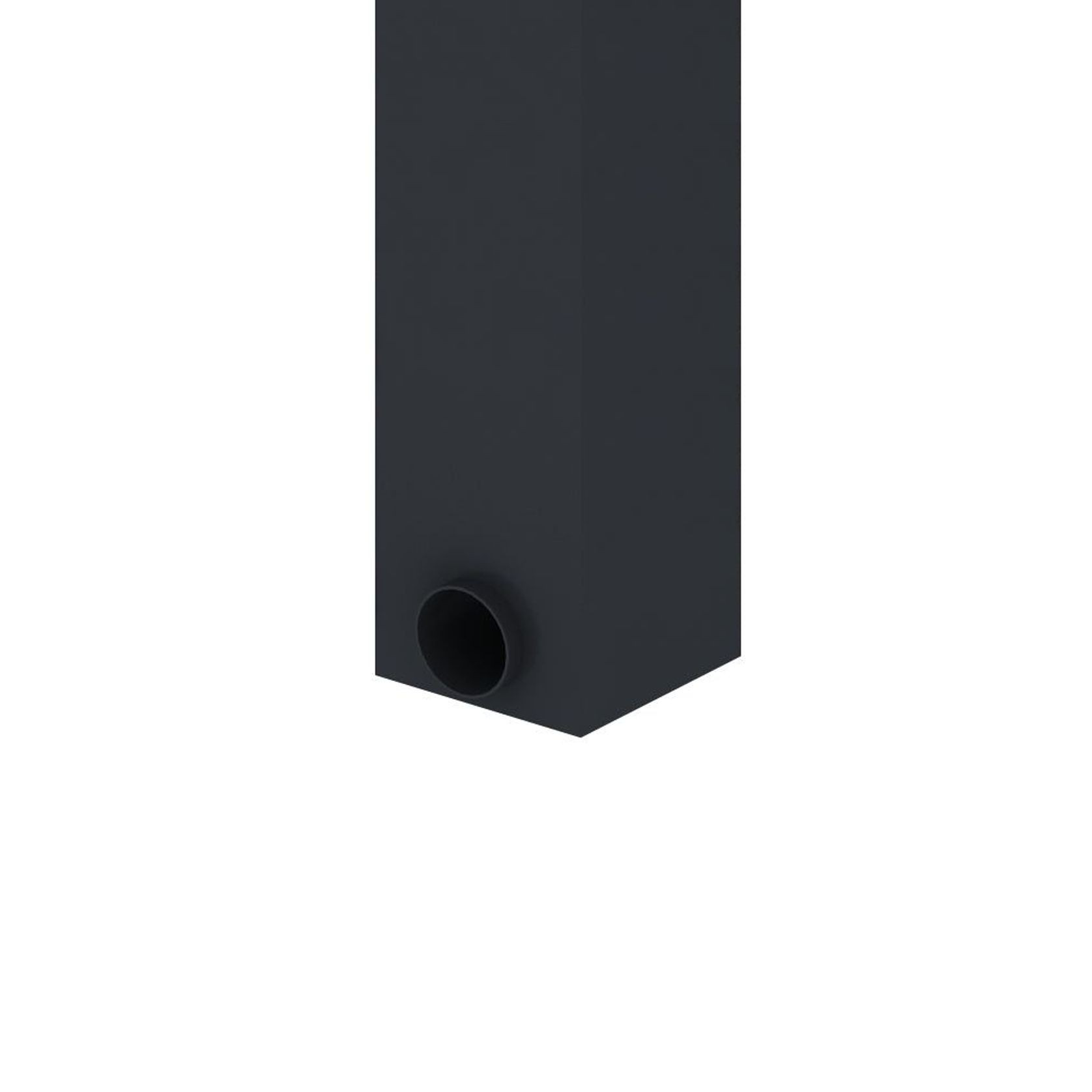

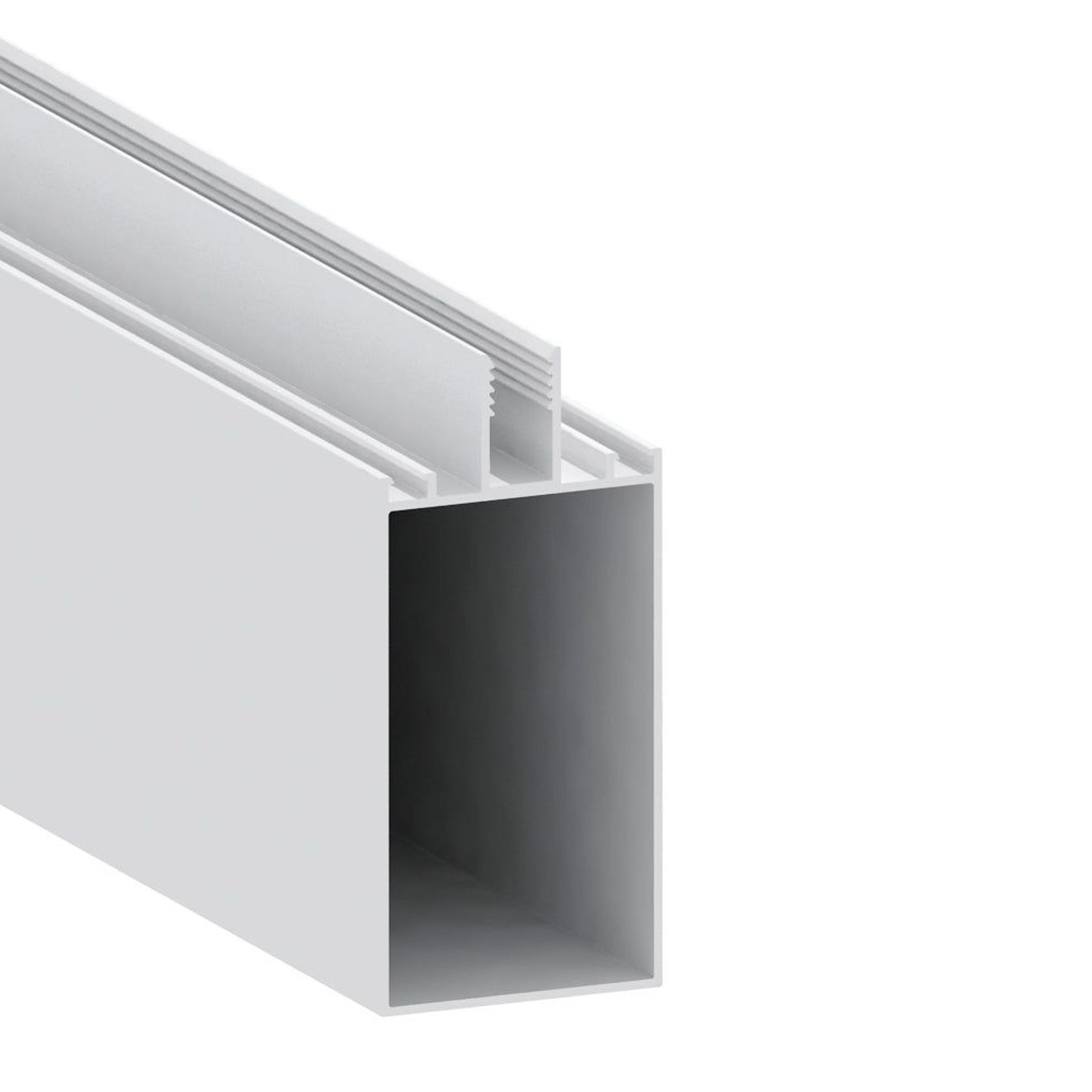

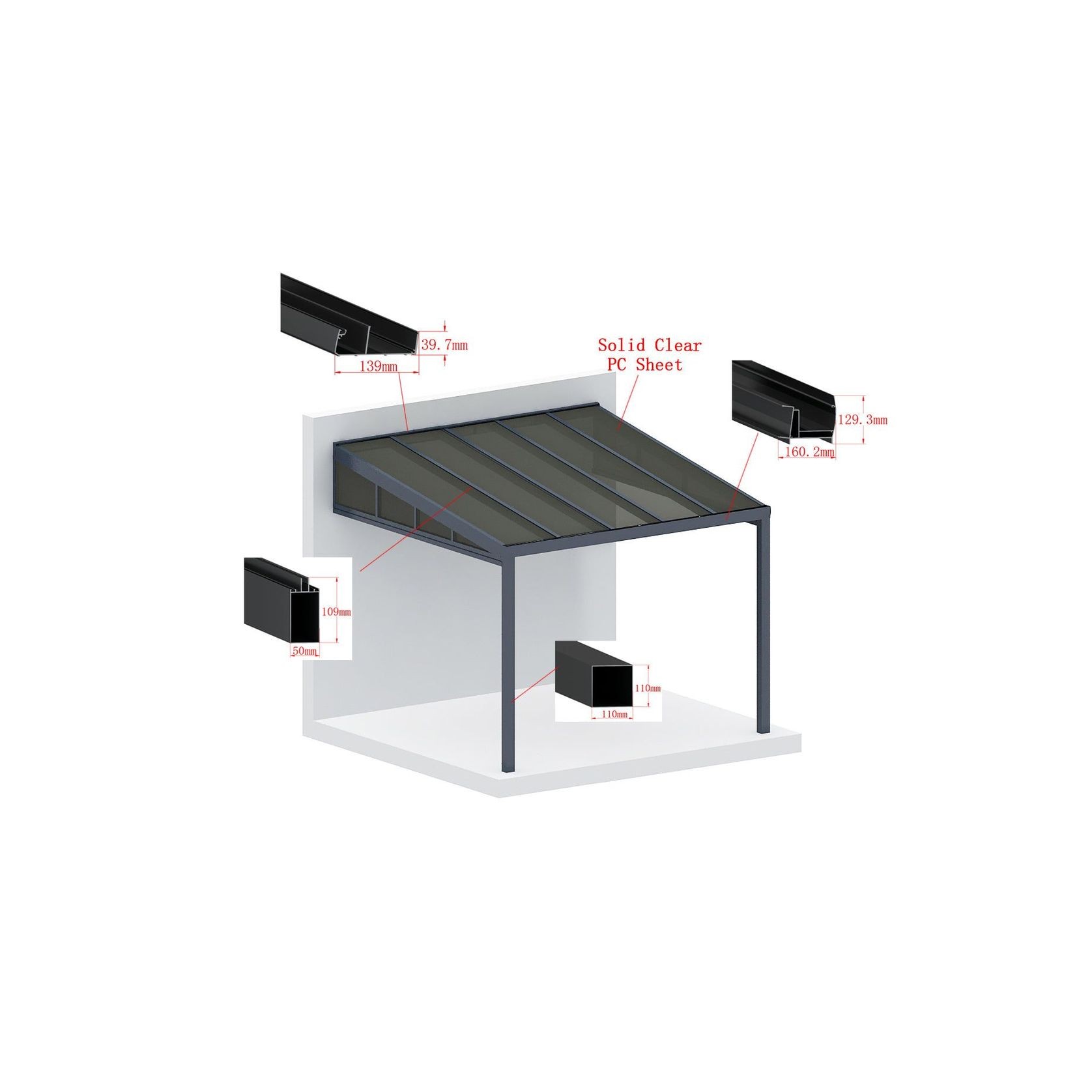

• Post: 110*110mm, thickness 2mm height 2.8m

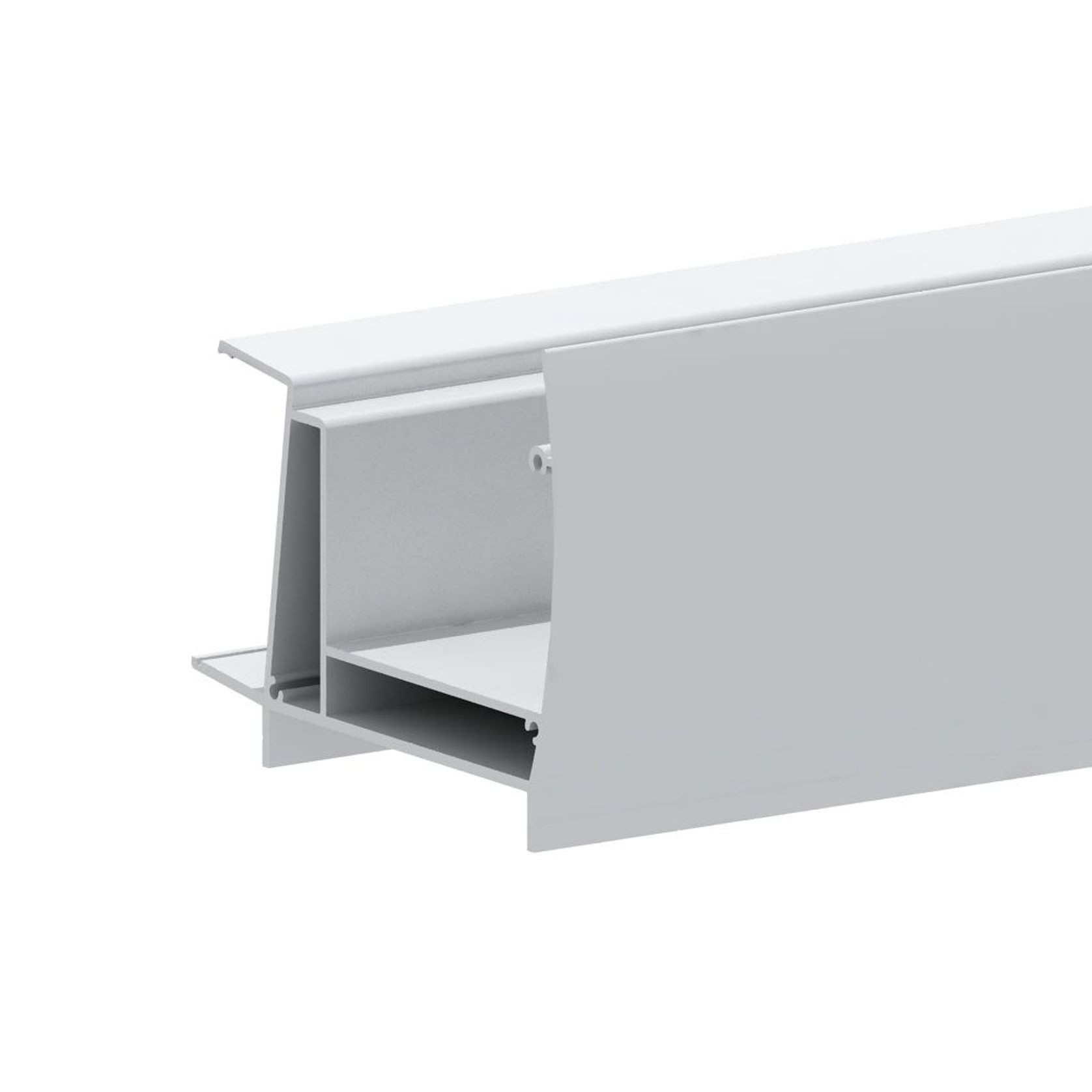

• Front Beam: 160.2 x 129.29mm, thickness 2.5mm
• Back Beam: 139.13 x 45.81mm, thickness 2mm
• Side Beam: 109 x 50mm, thickness 1.5mm
• Middle Beam: 109 x 50mm, thickness 1.5mm
• Support Profile: 91.96 x 14.69mm, thickness:2.5mm
• Package Material: Honeycomb Carton
• 10-year warranty on the aluminium frame
• 10-year warranty on polycarbonate roof sheets

• Modern, clean design to fit all decor
• Resistant to all types of weather
• Impact resistant, eco-friendly, UV-resistant panels.

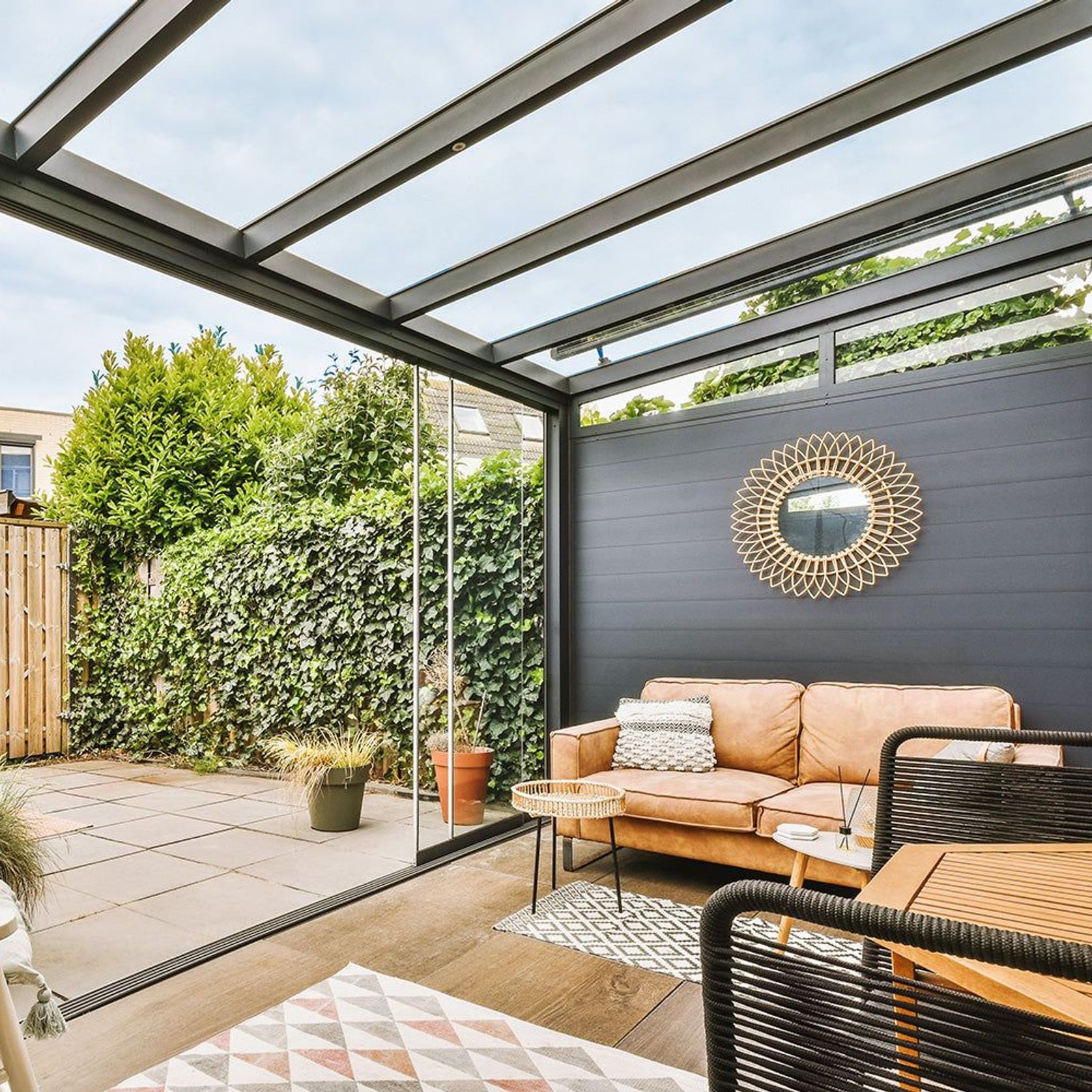

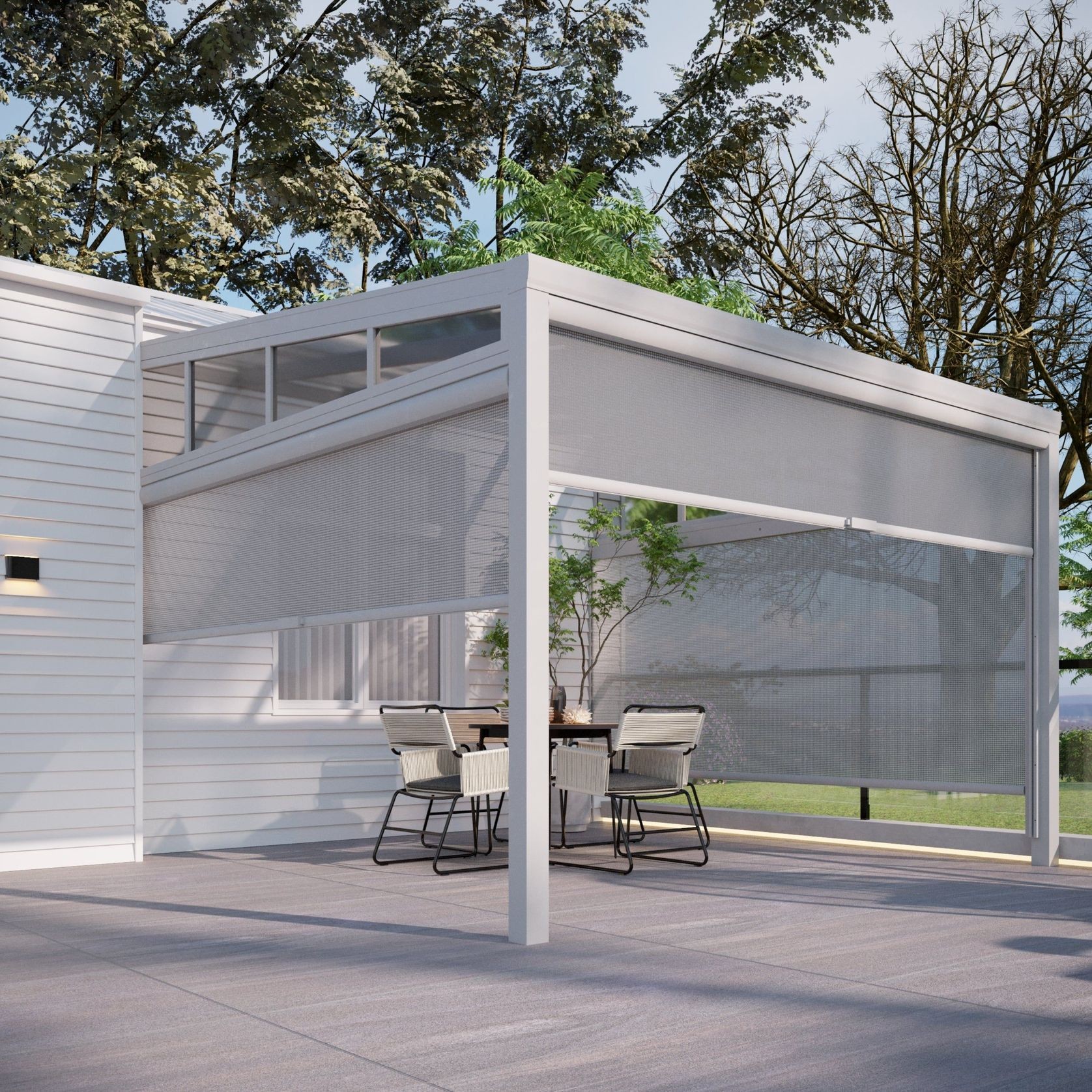

• Can be used as an additional room when walls/partitions are added
• Perfect for entertaining year-round
• German designed Bayer® 4mm PC polycarbonate panels

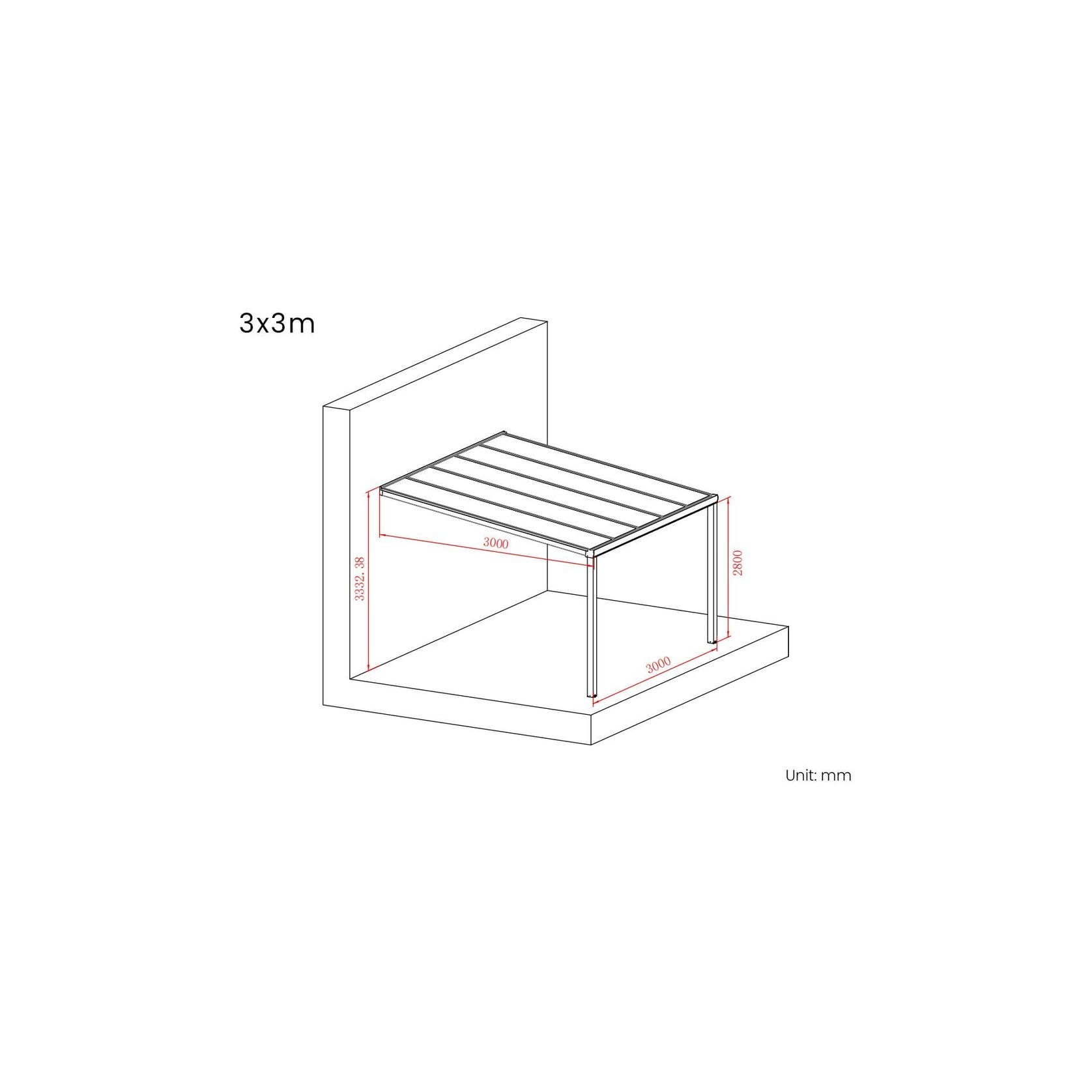

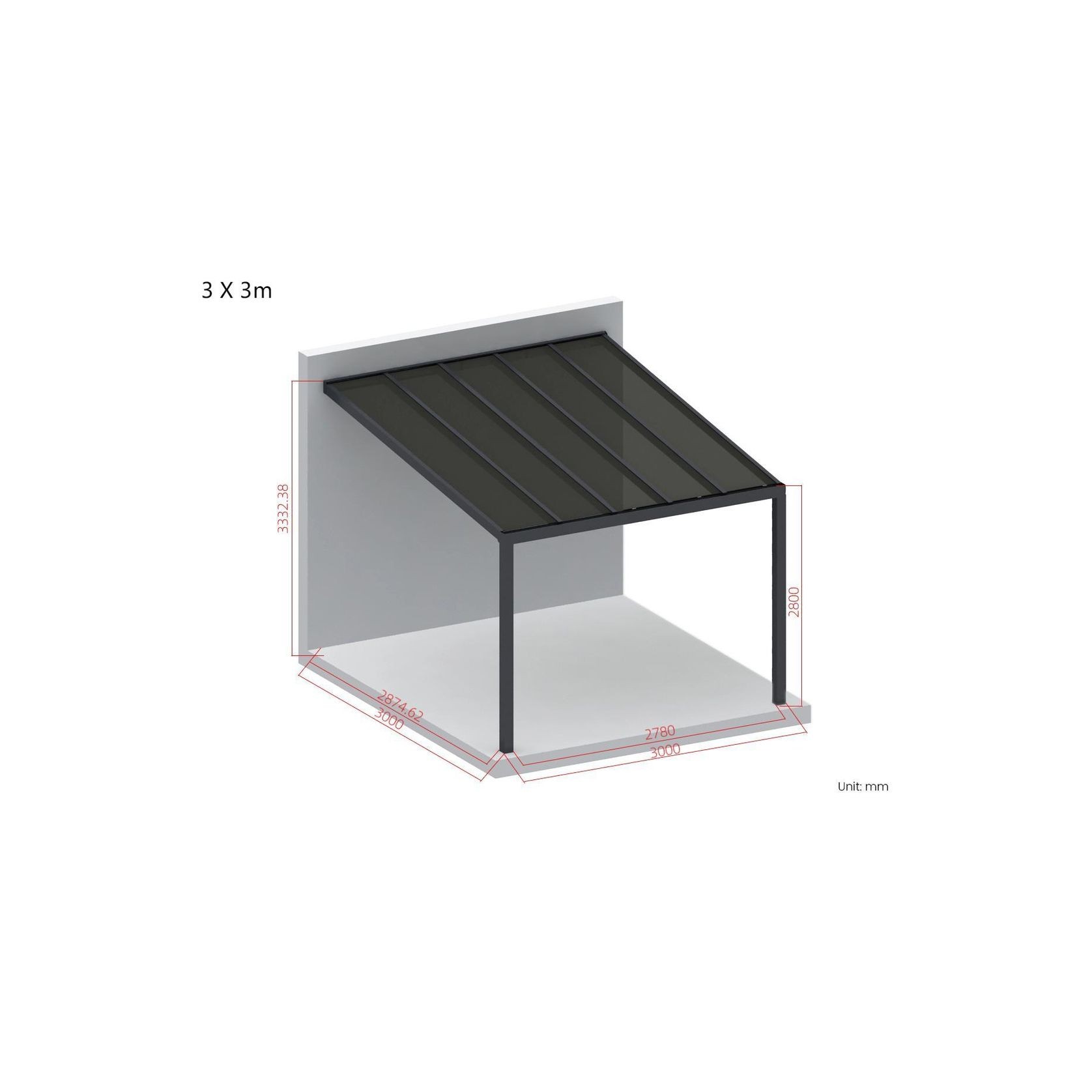

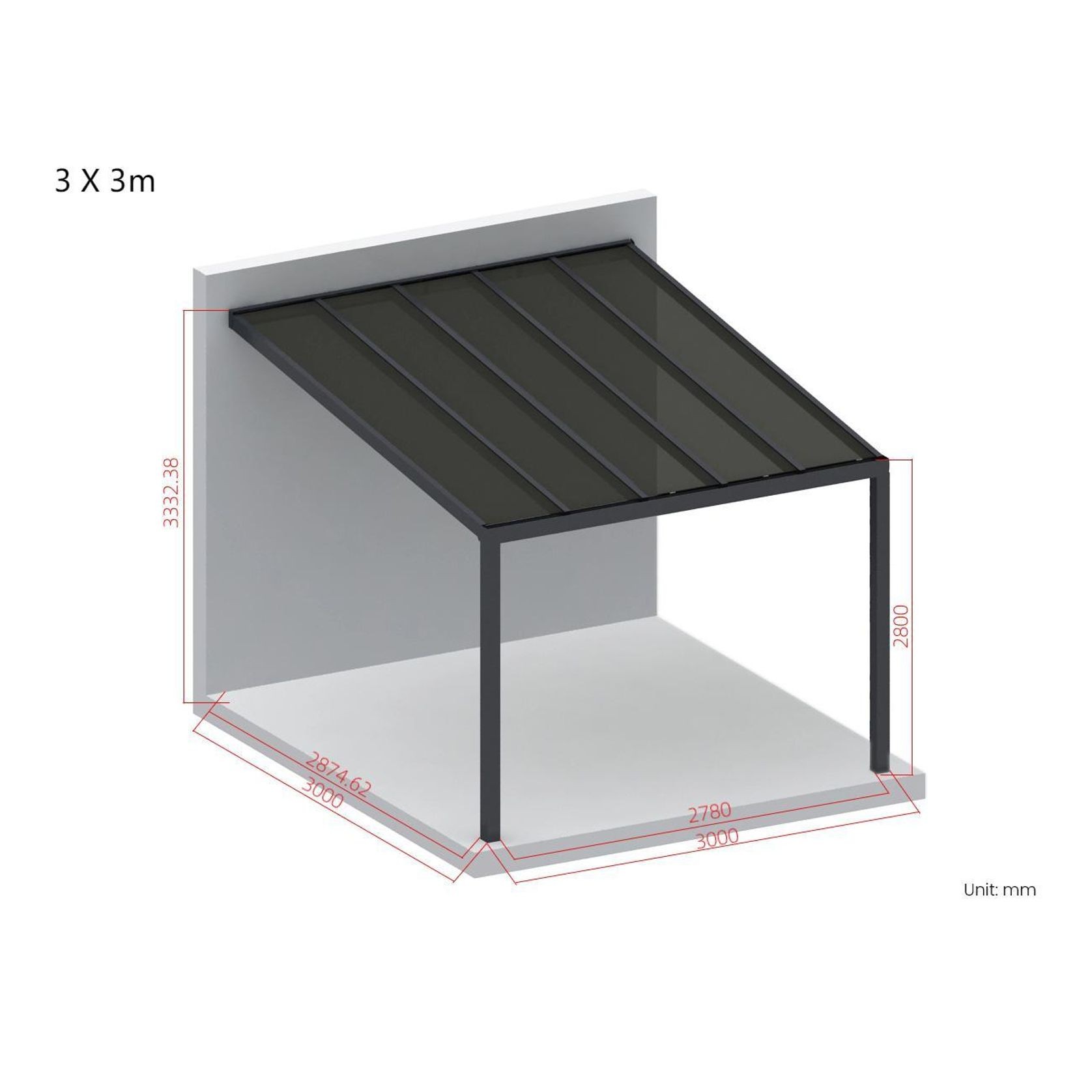

3 x 3m

• Package 1: 285 x 26.5 x 16cm, 22kg
• Package 2: 305.5 x 21 x 19cm, 27kg
• Package 3: 293 x 35.5 x 16cm, 36.4kg
• Package 4: 290 x 56.8 x 5cm, 41.2kg
• Package 5: 66 x 55 x 20cm, 11.94kg

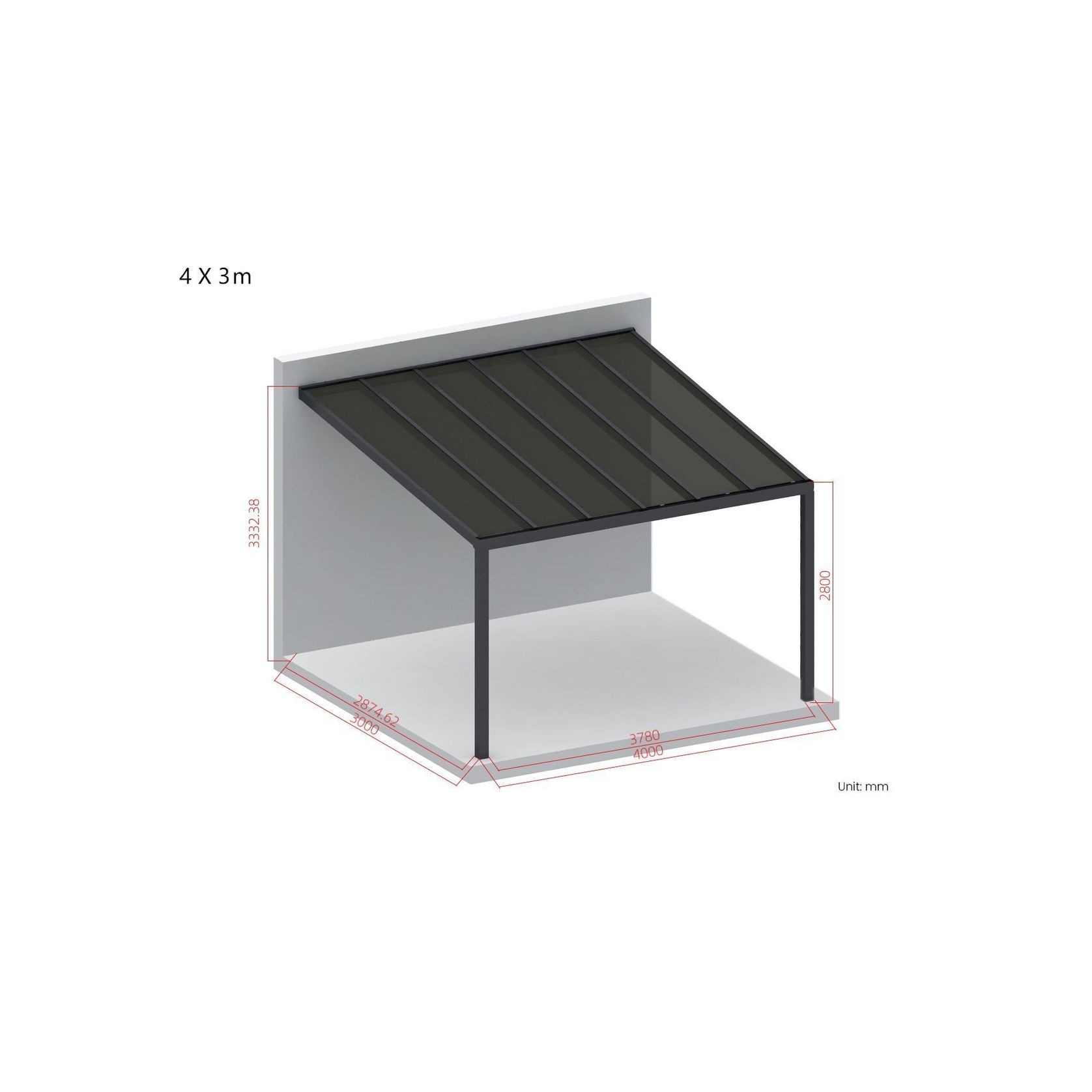

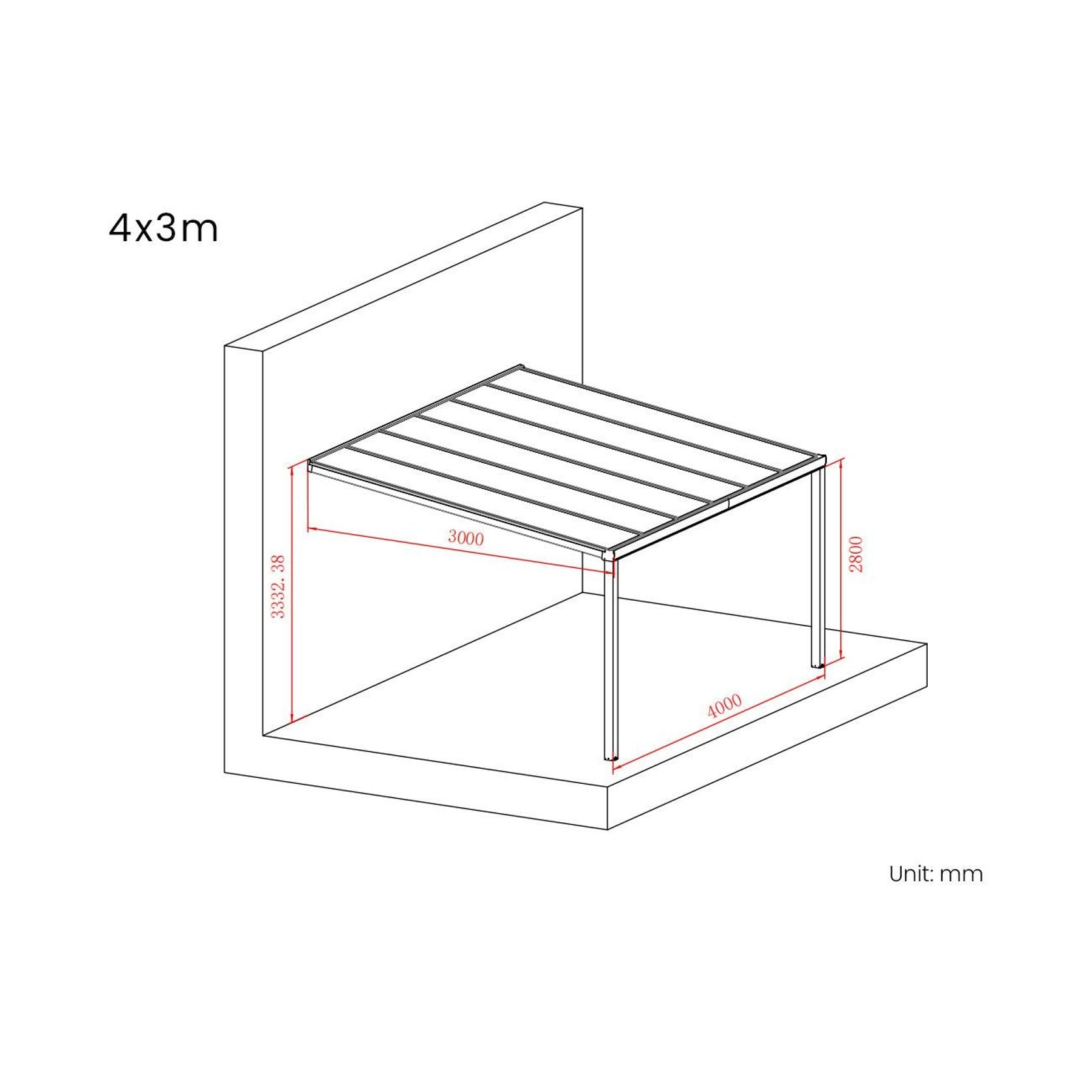

4 x 3m

• Package 1: 285 x 26.5 x 16cm, 22kg
• Package 2: 210 x 22 x 25cm, 32.2kg
• Package 3: 293 x 39.5 x 16cm, 42kg
• Package 4: 229 x 63.6 x 5cm, 53kg
• Package 5: 66 x 55 x 20cm, 13.64kg

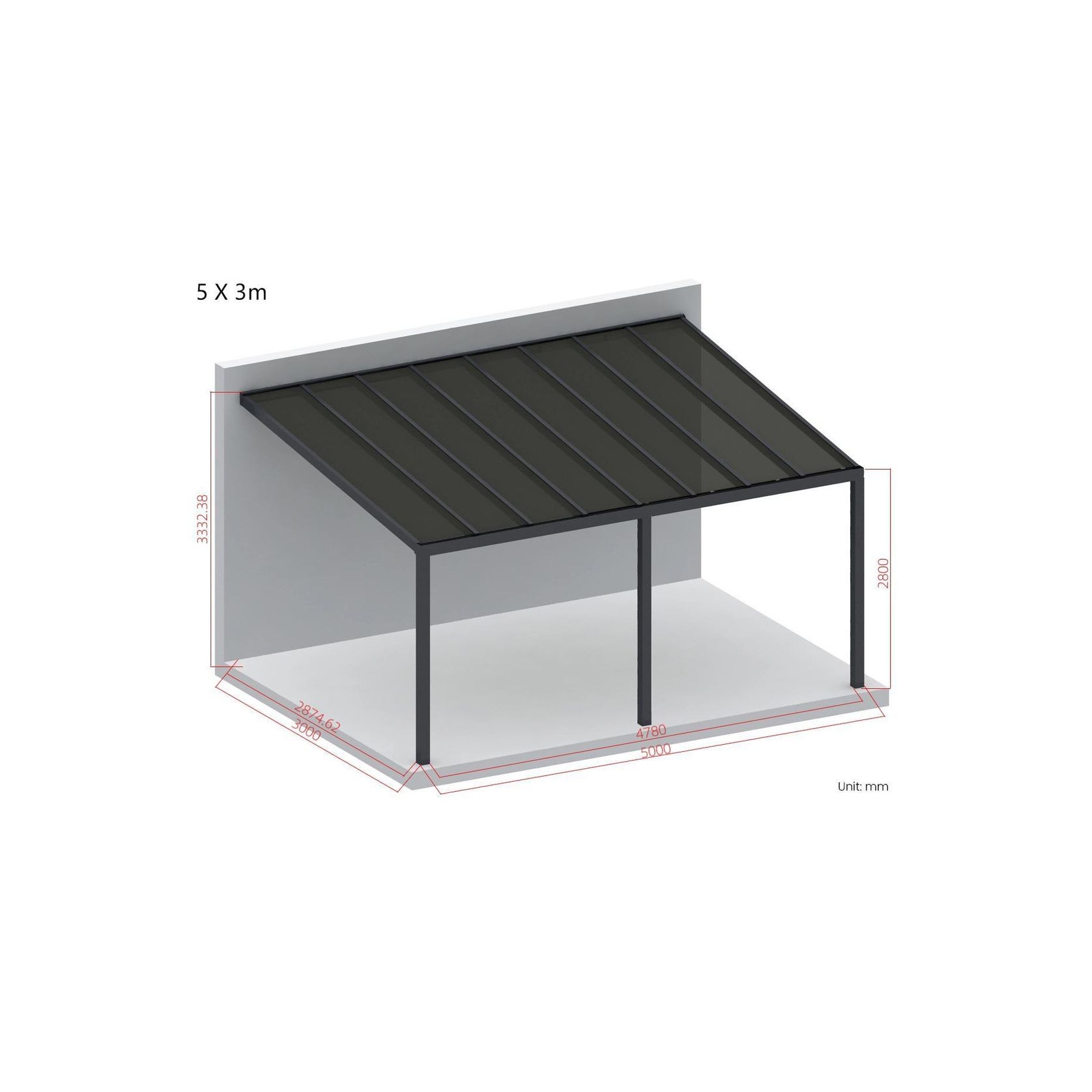

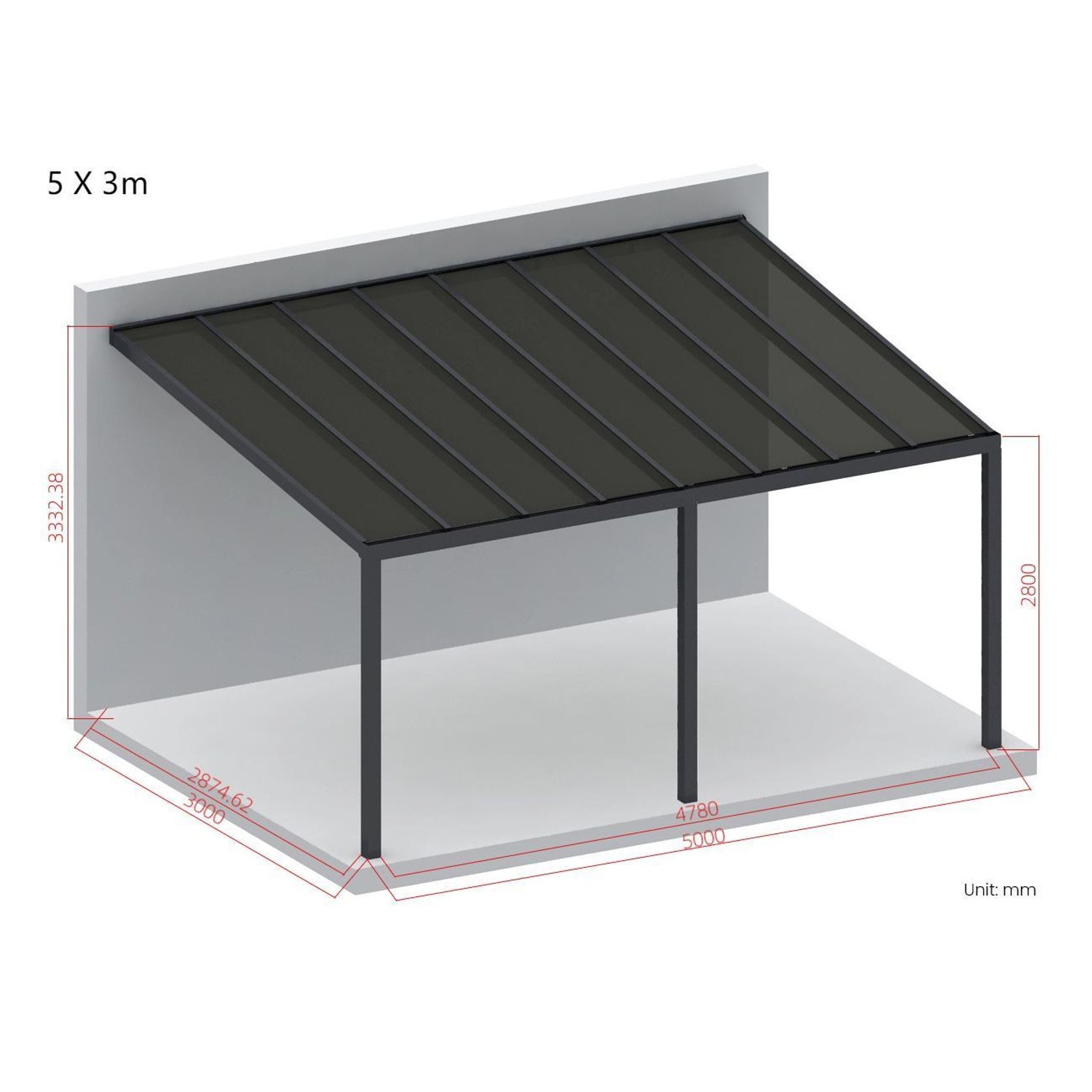

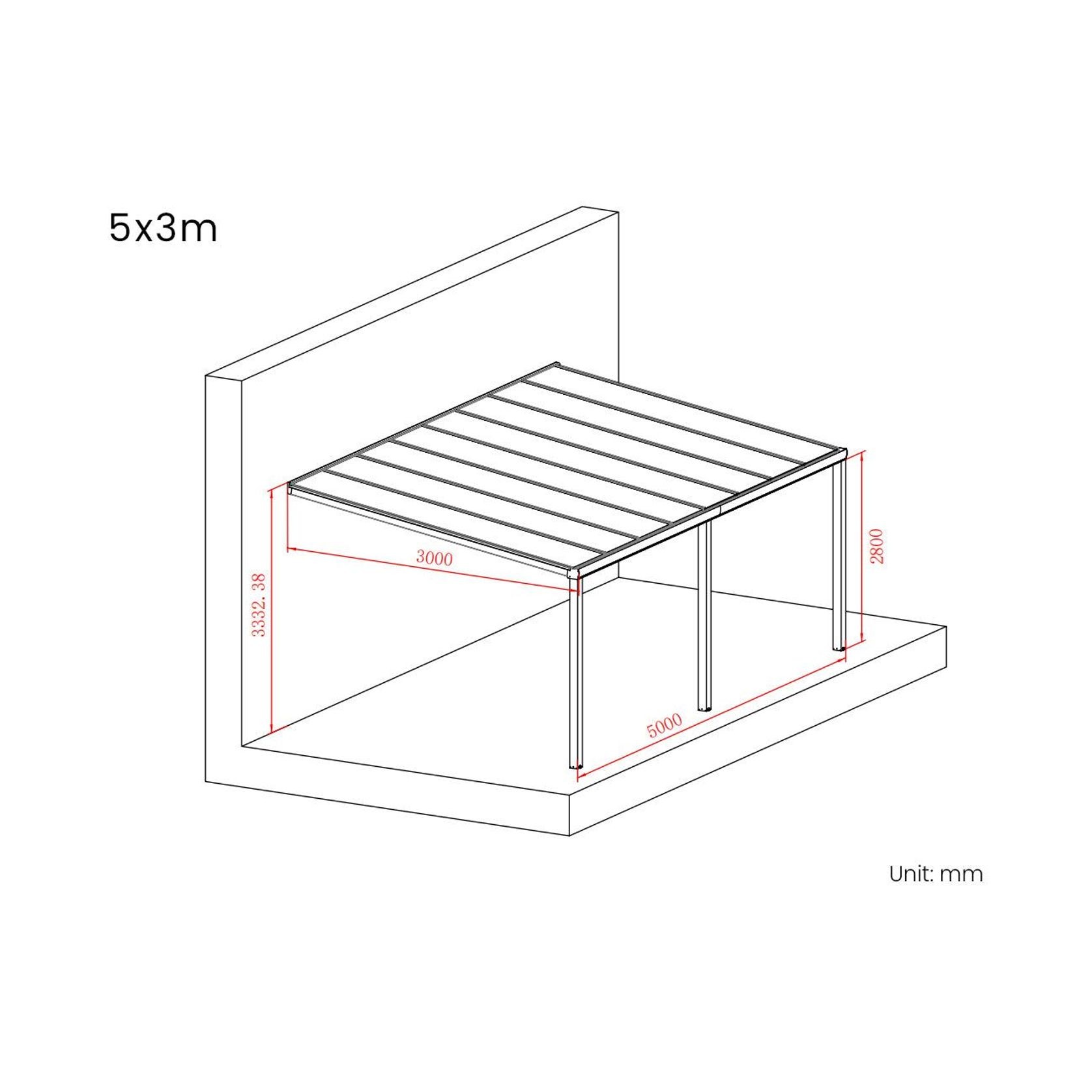

5 x 3m

• Package 1: 285 x 37.5 x 16cm, 30.7kg
• Package 2: 286.5 x 22 x 25cm, 40.4kg
• Package 3: 293.5 x 29.5 x 16cm, 26.1kg
• Package 4: 293.5 x 29.5 x 16cm, 31kg
• Package 5: 290 x 59.6 x 5cm, 60kg
• Package 6: 66 x 55 x 20cm, 23.68kg

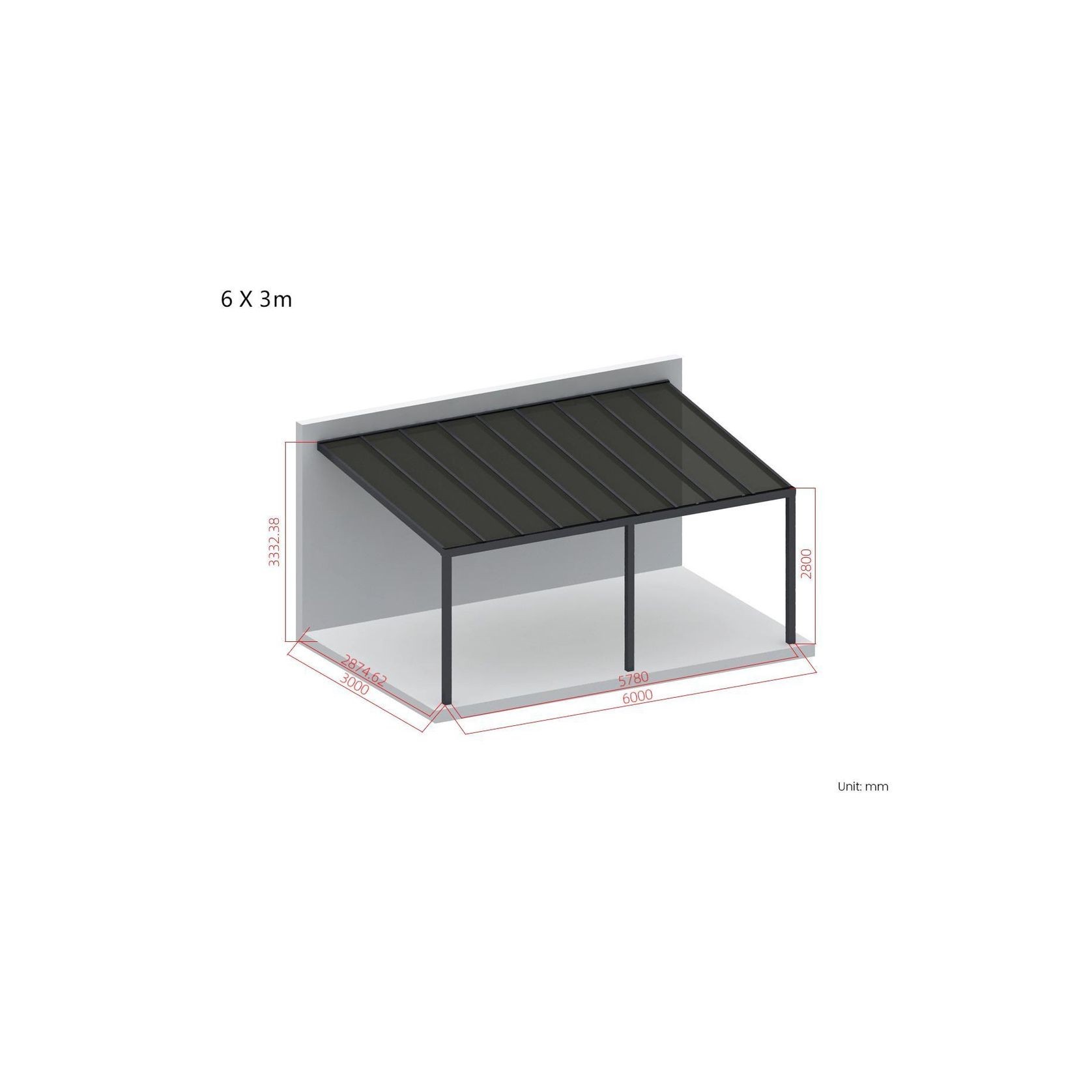

6 x 3m

• Package 1: 284.5 x 36 x 14cm, 41.84kg
• Package 2: 314 x 19 x 22.5cm, 44.82kg
• Package 3: 298 x 23 x 19.5cm, 32.97kg
• Package 4: 298 x 23 x 14.5cm, 22.96kg
• Package 5: 297 x 66.5 x 45cm, 63.95kg
• Package 6: 66 x 55 x 20cm, 21.1kg

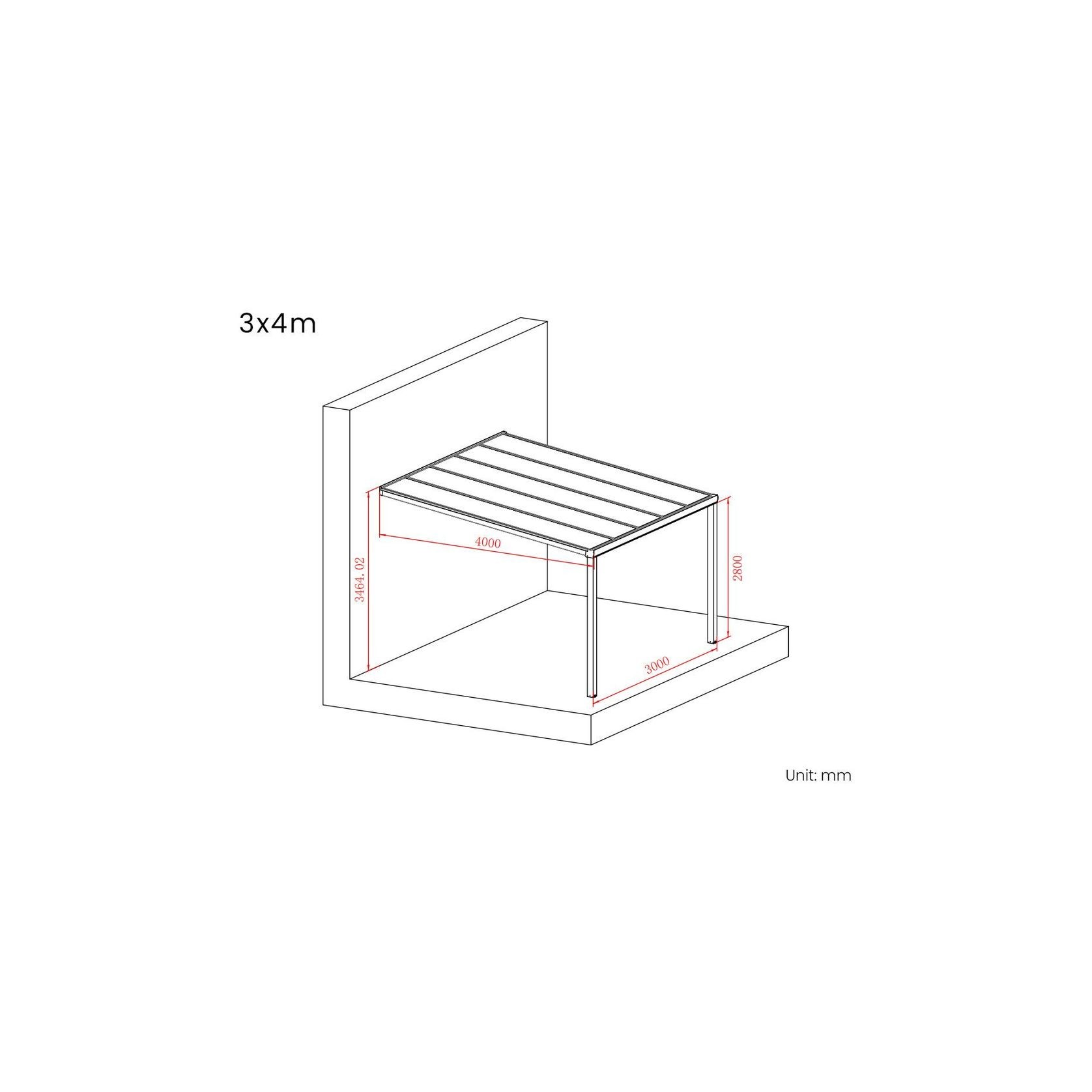

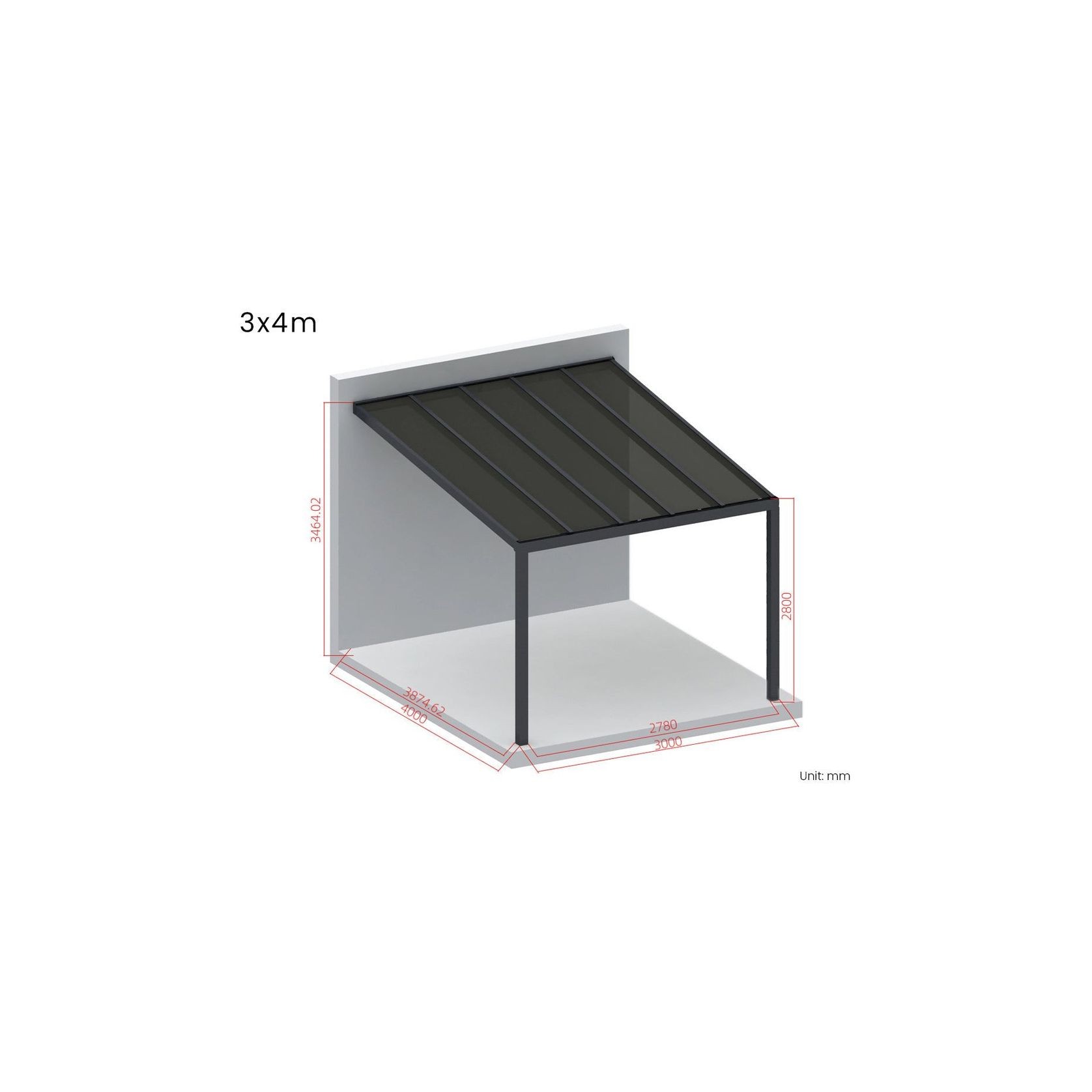

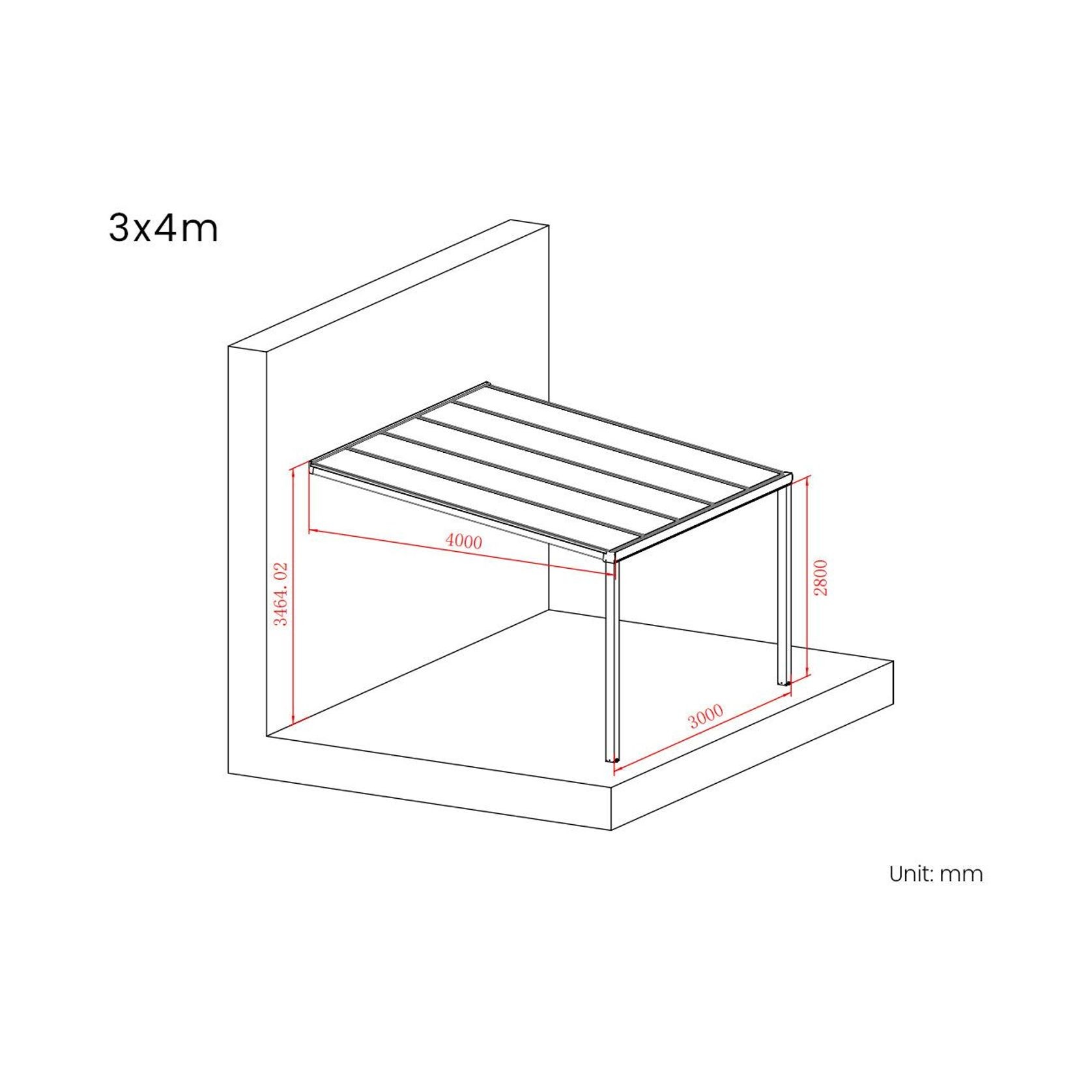

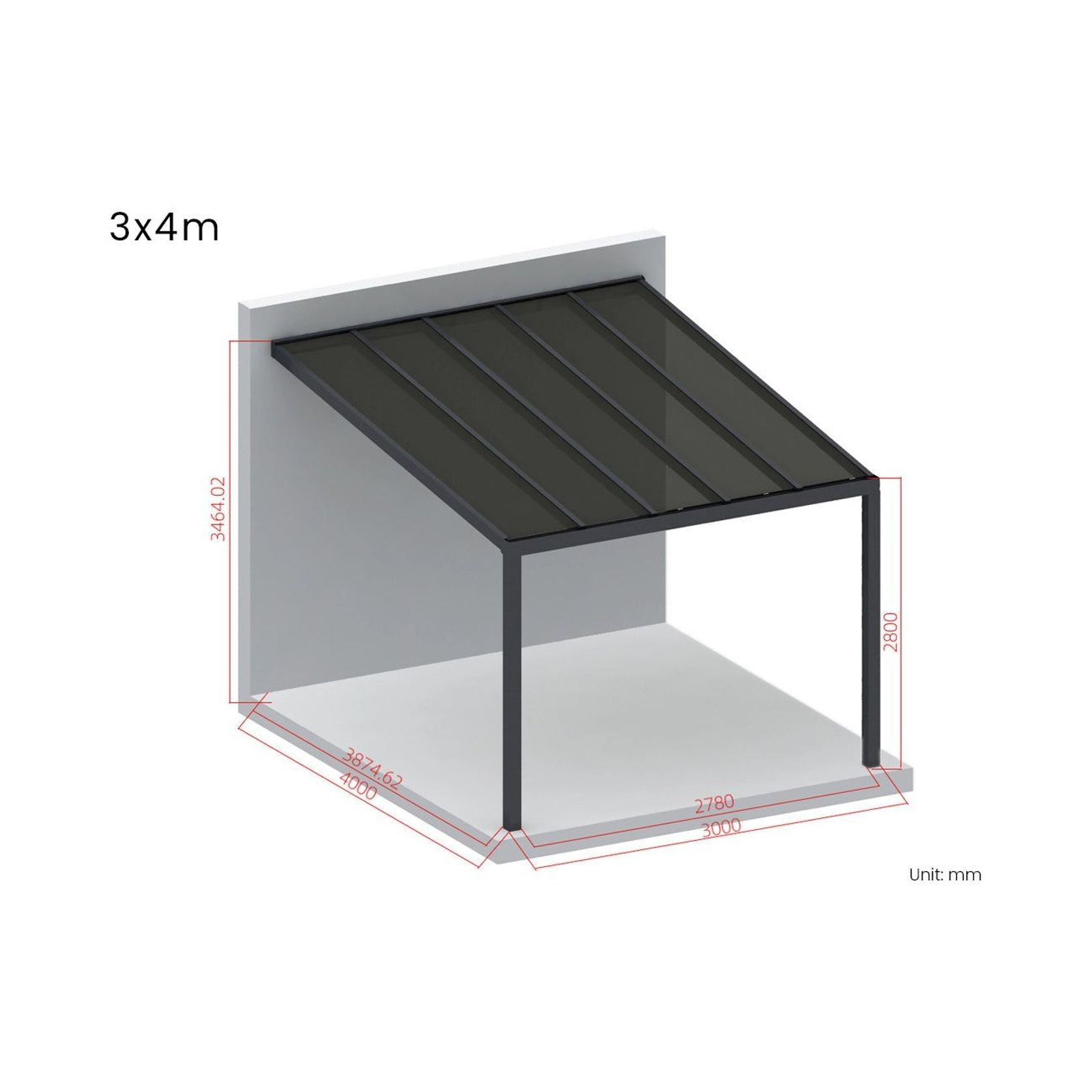

3 x 4m

• Package 1: 284.5 x 25 x 14cm, 24.85kg
• Package 2: 303 x 19 x 16cm, 22.98kg
• Package 3: 398 x 23 x 19.5cm, 44.67kg
• Package 4: 397 x 59.8 x 30cm, 42.49kg
• Package 5: 66 x 55 x 20cm, 11.94kg

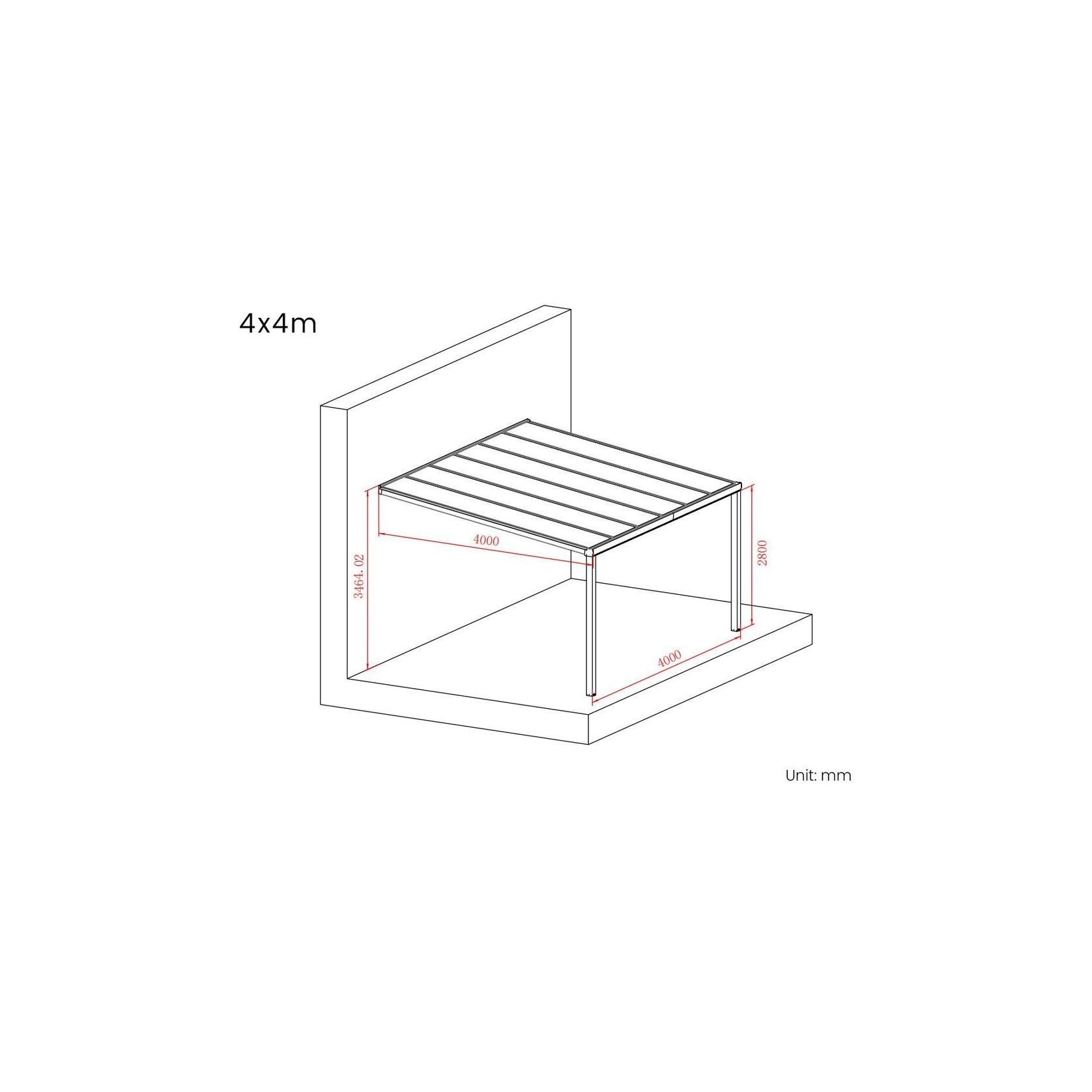

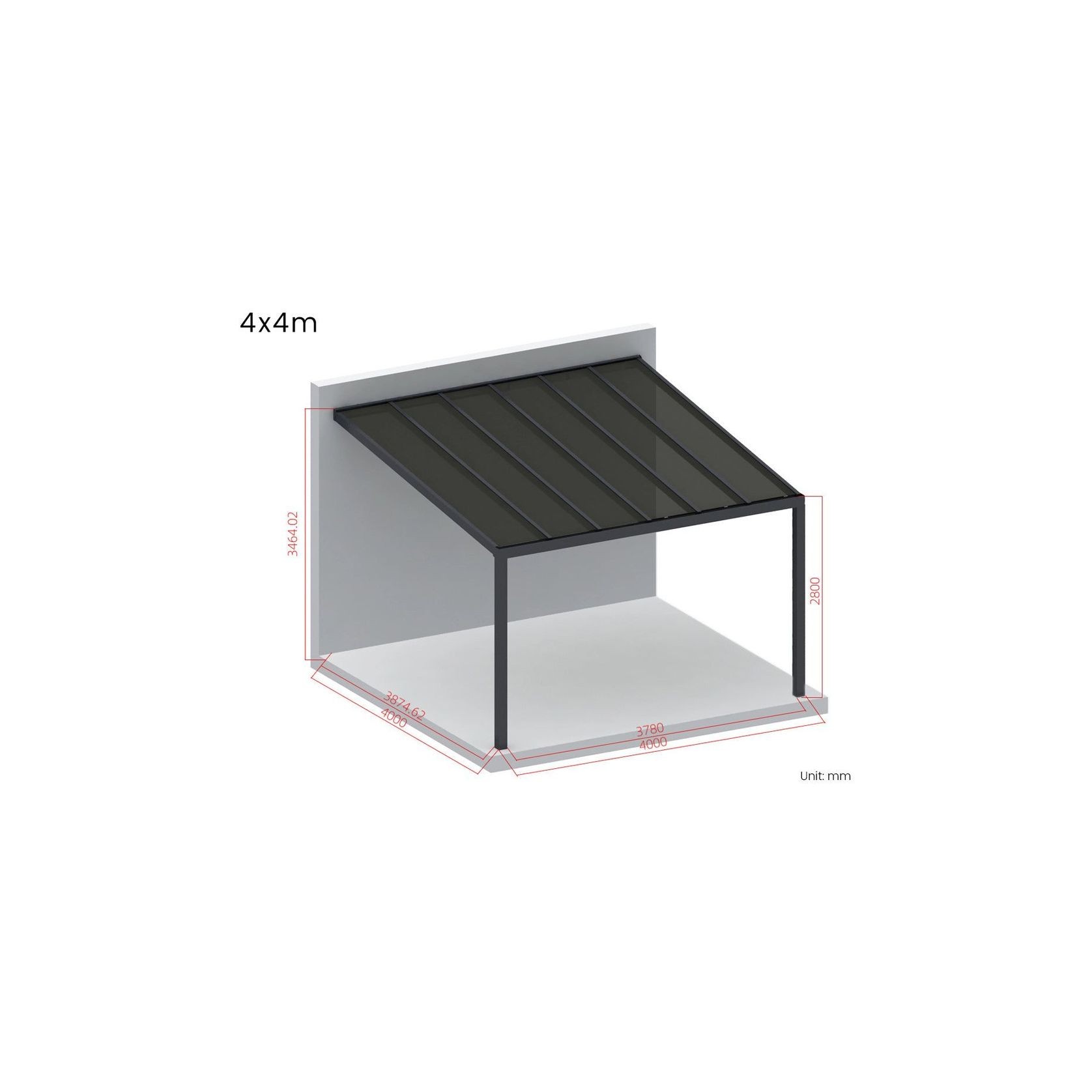

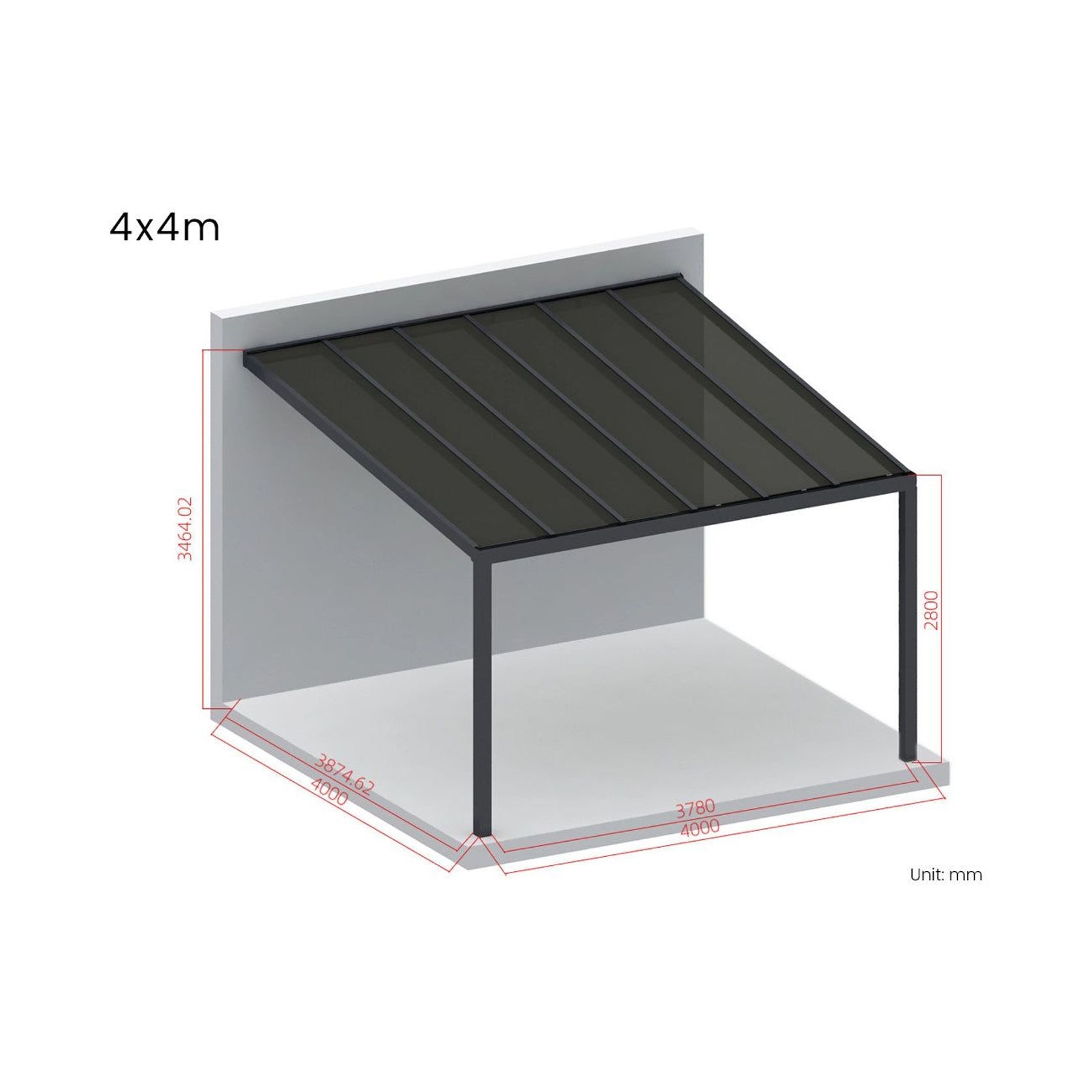

4 x 4m

• Package 1: 284.5 x 25 x 14cm, 29.85kg
• Package 2: 208.5 x 19 x 22.5cm, 29.91kg
• Package 3: 398 x 28 x 19.5cm, 51.85kg
• Package 4: 397 x 59.5 x 30cm, 56.48kg
• Package 5: 66 x 55 x 20cm, 13.64kg

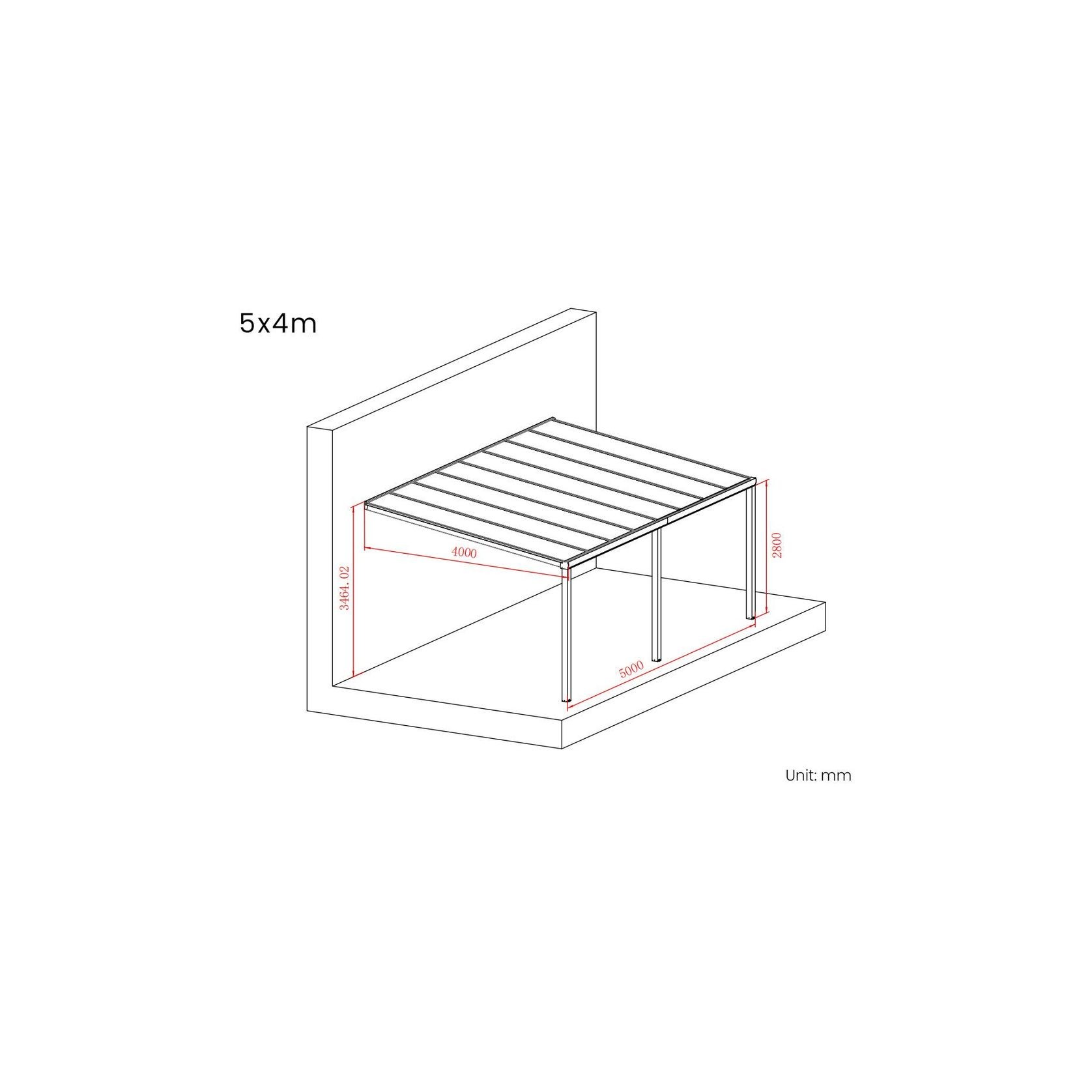

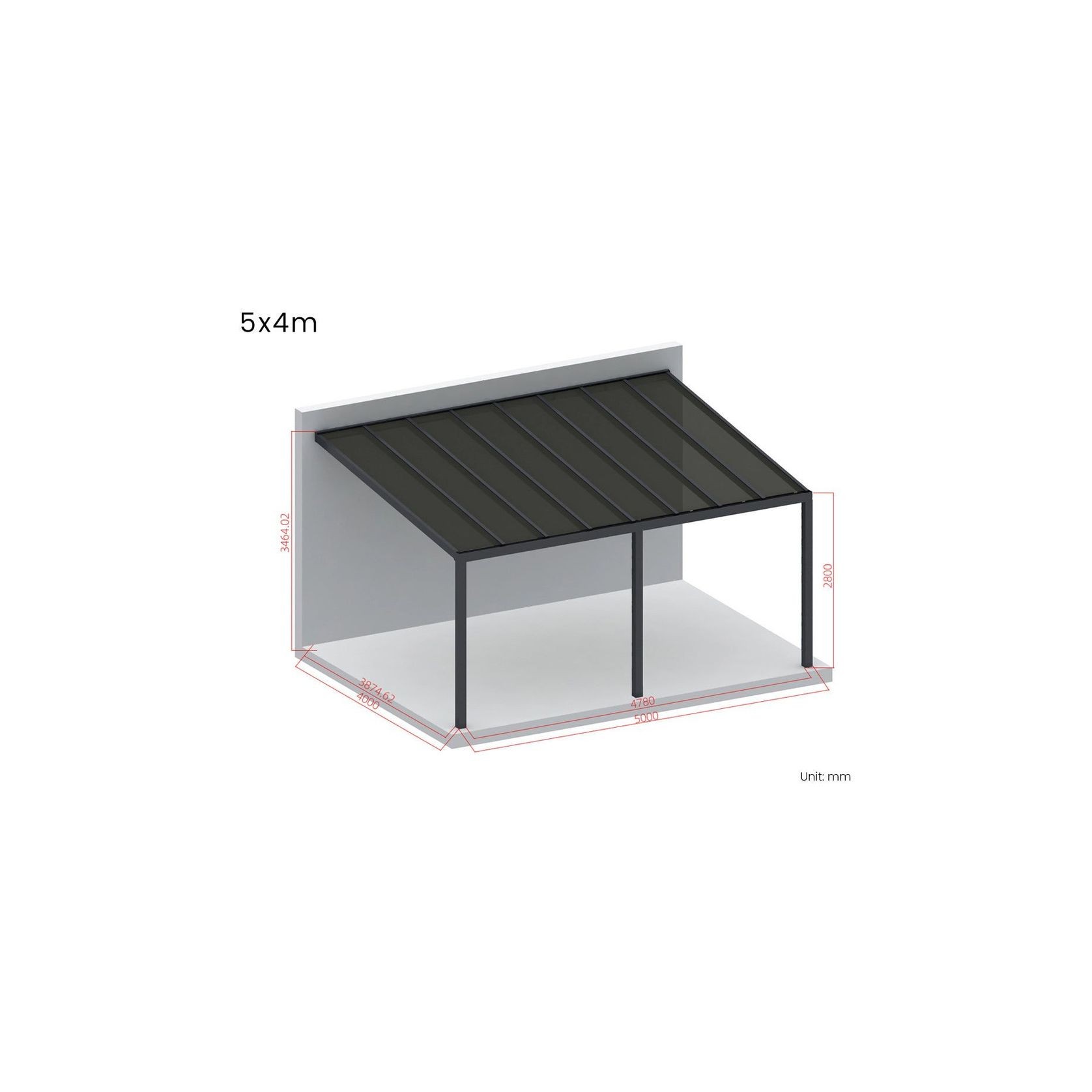

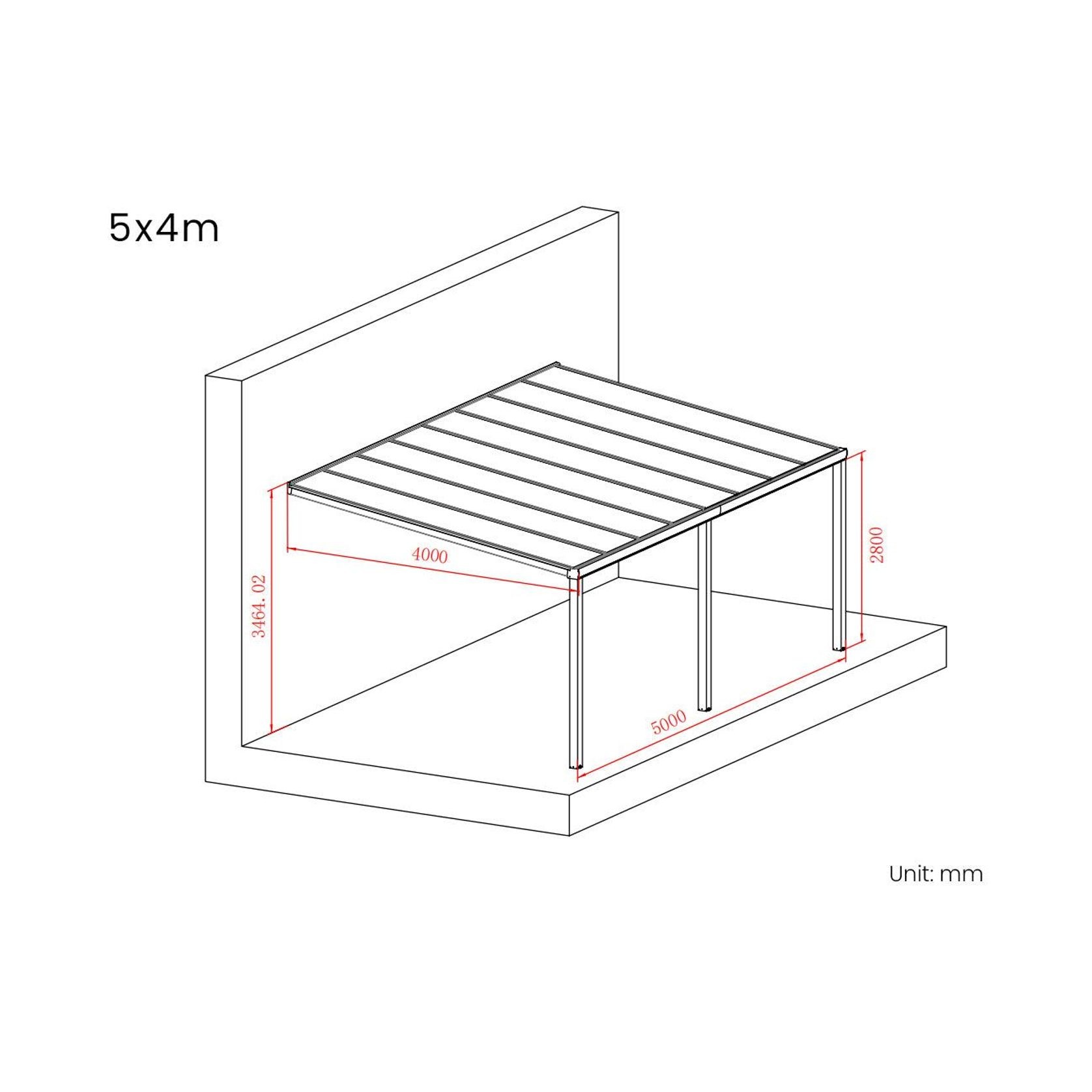

5 x 4m

• Package 1: 285 x 37.5 x 16cm, 30.7kg
• Package 2: 286.5 x 22 x 25cm, 40.4kg
• Package 3: 396 x 29.5 x 16cm, 35kg
• Package 4: 396 x 24.5 x 16cm, 41.3kg
• Package 5: 390.9 x 59.6 x 5cm, 90kg
• Package 6: 66 x 55 x 20cm, 21.1kg

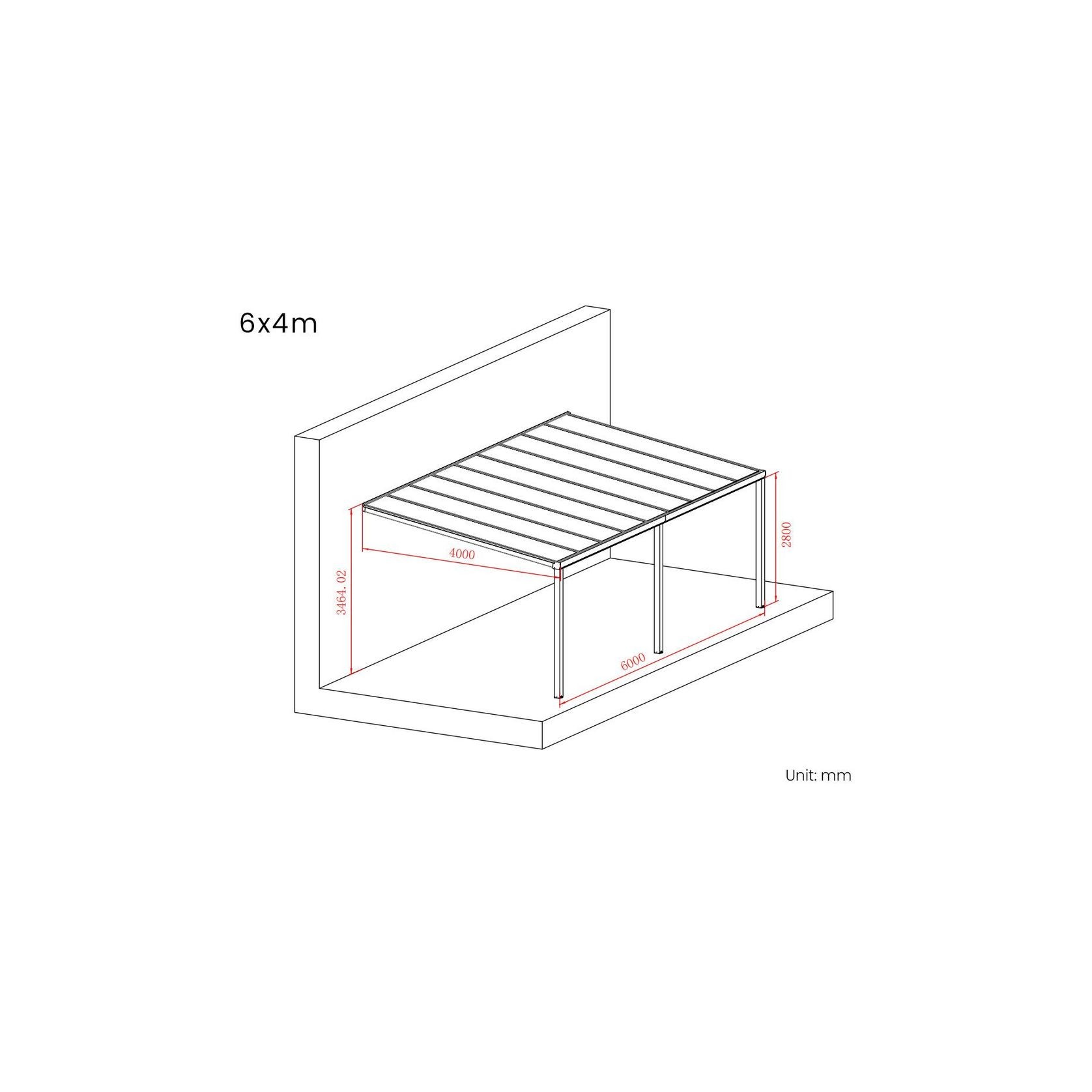

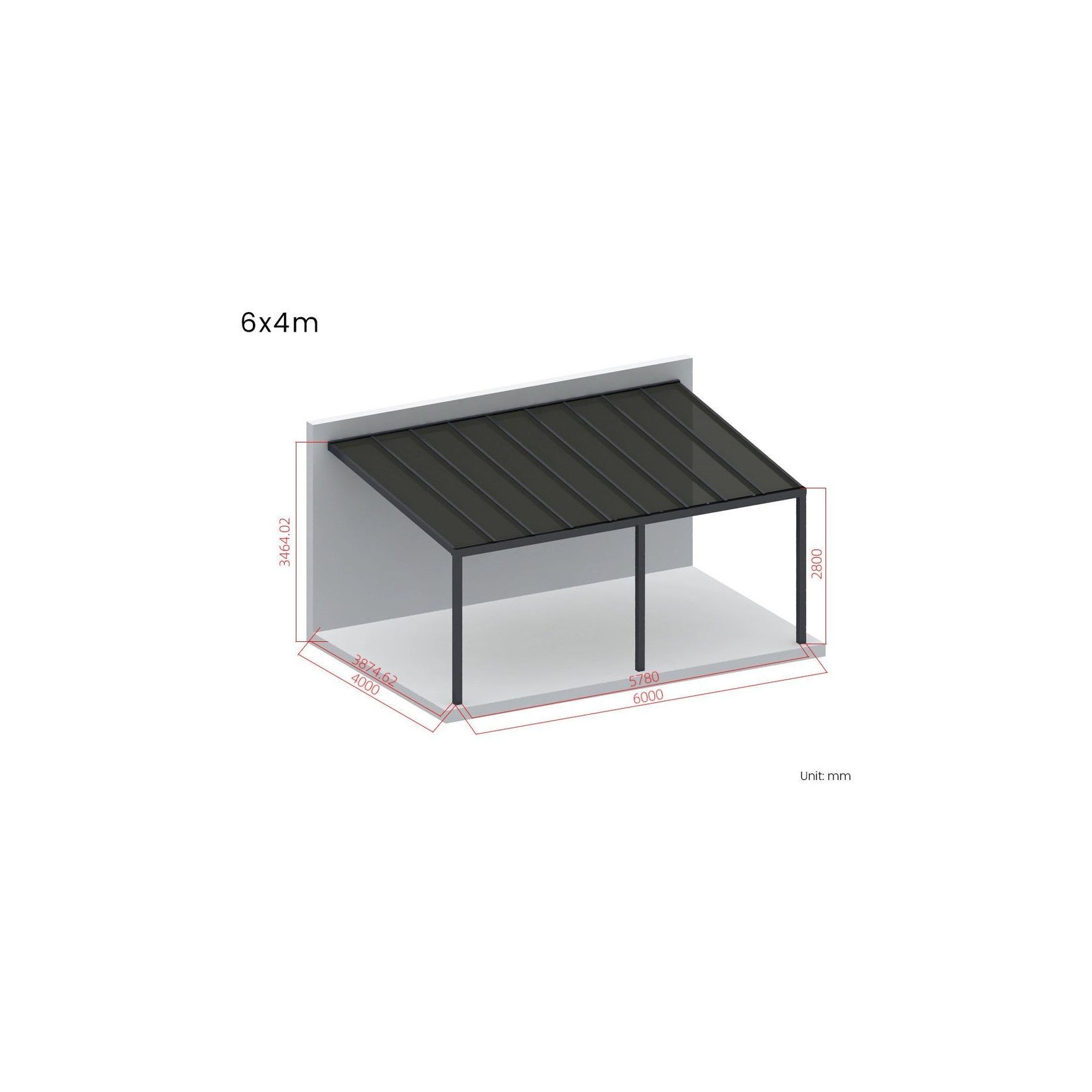

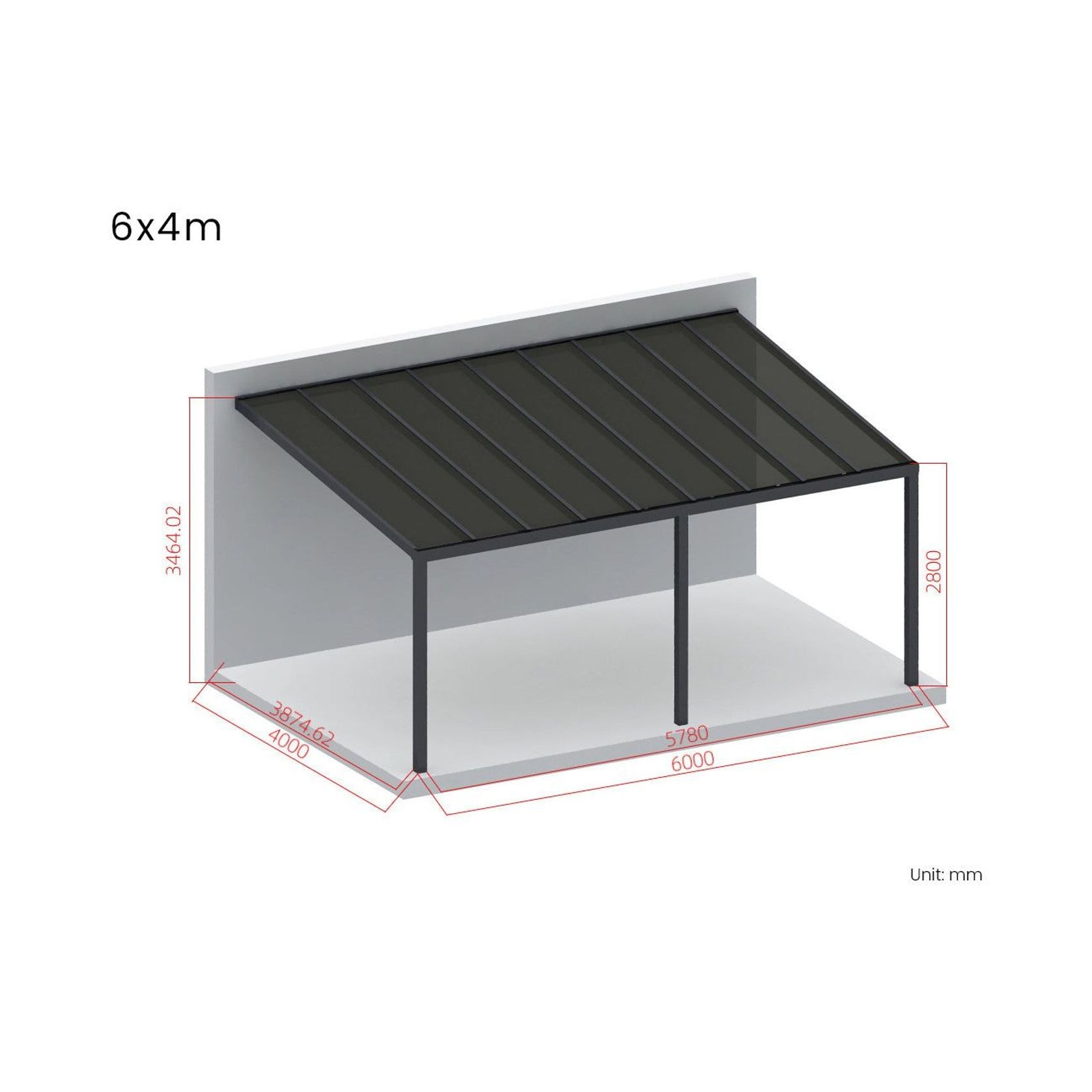

6 x 4m

• Package 1: 285 x 37.5 x 16cm, 30.7kg
• Package 2: 338 x 22 x 25cm, 48.5kg
• Package 3: 396 x 29.5 x 16cm, 41.6kg
• Package 4: 396 x 29.5 x 16cm, 41.6kg
• Package 5: 390.9 x 63.6 x 5cm, 107kg
• Package 6: 66 x 55 x 20cm, 27.7

1x Coastal Patio Cover

1x Instruction Manual
