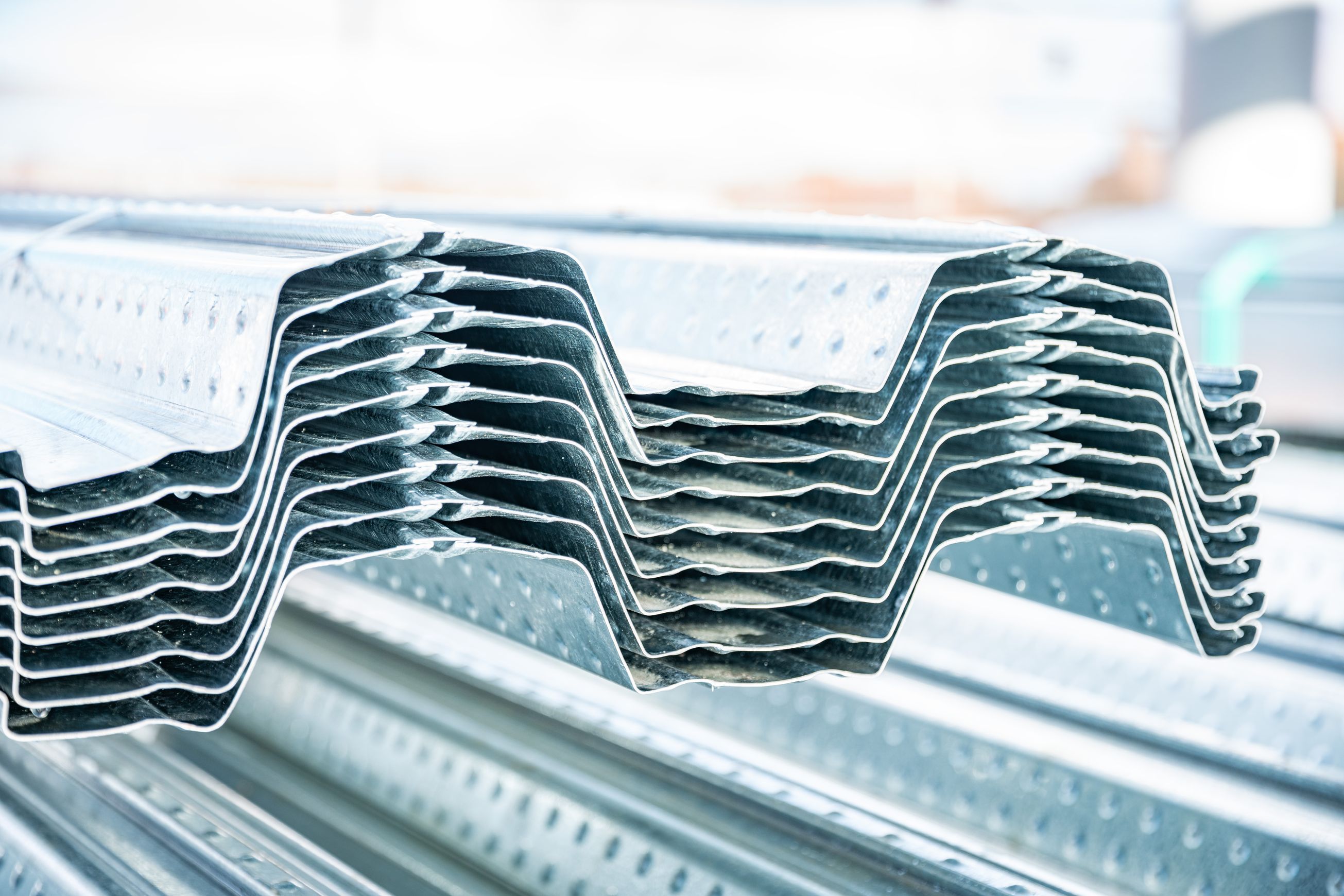

ComFlor 60 composite floor profile offers the ultimate in lightweight steel decking for all multi-rise buildings. It combines exceptional spanning capabilities with reduced concrete usage to provide a cost-effective and attractive floor solution that is easy to install. The state-of-the-art profile has been developed using modern roll-forming techniques. Capable of unpropped continuous spans to 4.5 metres and propped spans to 6.8 metres.
Installing services and ceilings is fast and simple with a no drill M10 wedge nut system that supports Max. ULS gravity loads of 3.3 kN for ComFlor 60
Product Details
- Product
- ComFlor 60 Composite Steel Floor Decking
- Category
- Structural Flooring
- Sold by
- Steel & Tube
- Range
- ComFlor
- Type of use
- Commercial and Residential
ComFlor 60 composite floor profile offers the ultimate in lightweight steel decking for all multi-rise buildings.
It combines exceptional spanning capabilities with reduced concrete usage to provide a cost-effective and attractive floor solution that is easy to install. The state-of-the-art profile has been developed using modern roll-forming techniques. Capable of unpropped continuous spans to 4.5 metres and propped spans to 6.8 metres.
Installing services and ceilings is fast and simple with a no drill M10 wedge nut system that supports Max. ULS gravity loads of 3.3 kN for ComFlor 60
- Specs
Long-span capability:
- Gauge options of 0.75mm to 1.20mm to suit the particular span.
- Optimised profile design gives exceptional unpropped (double) spanning capability of over 4.00 metres, reducing structural steel requirements and hence cost.
- Propped spans over 6.50m are also possible using bottom steel.
Cost efficient:
- ComFlor 60 uses a reduced concrete volume for any slab depth, providing a more sustainable solution and reducing costs.
- Stiffer profile means less deflection during construction leading to greater safety on the site and savings on concrete.
Keep it simple

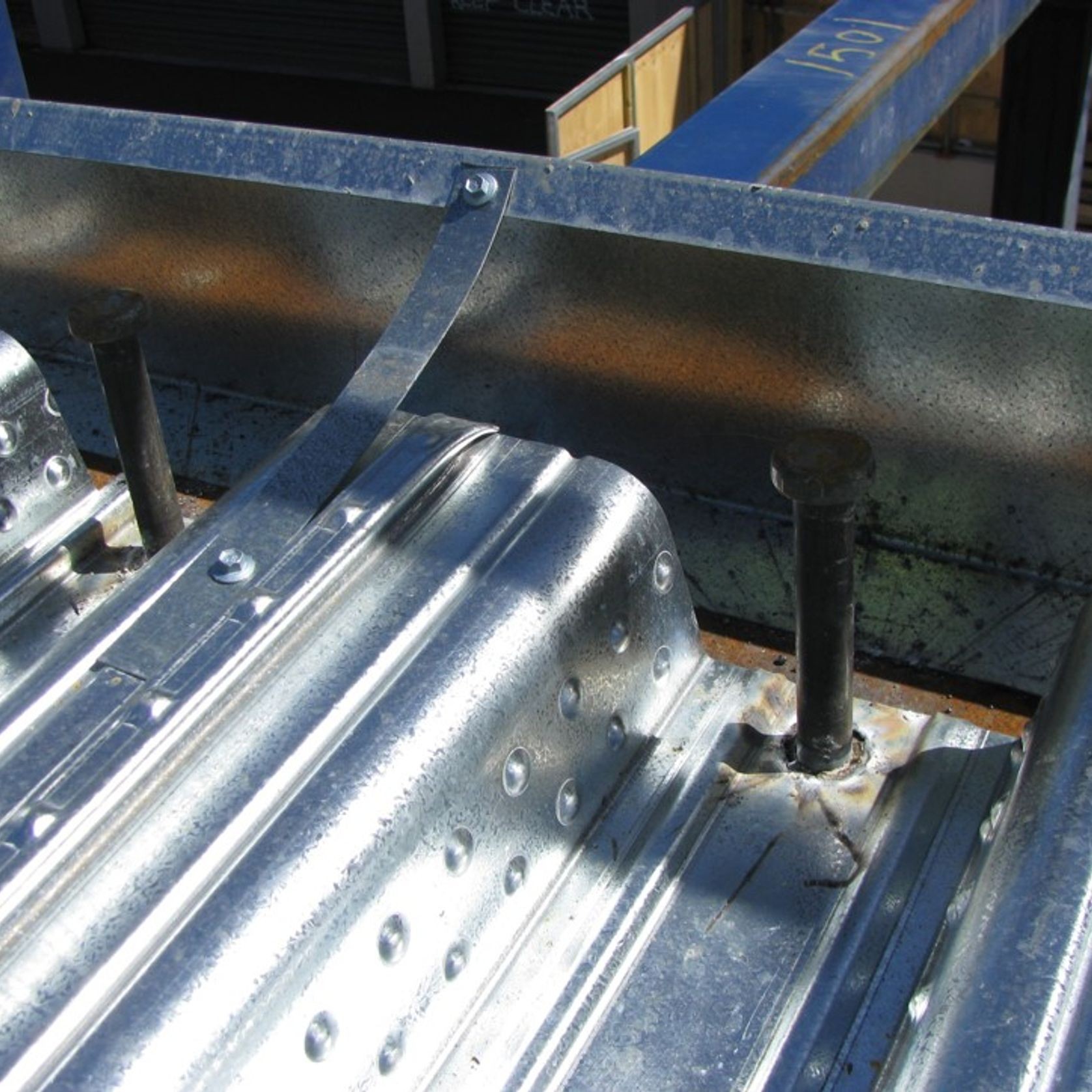

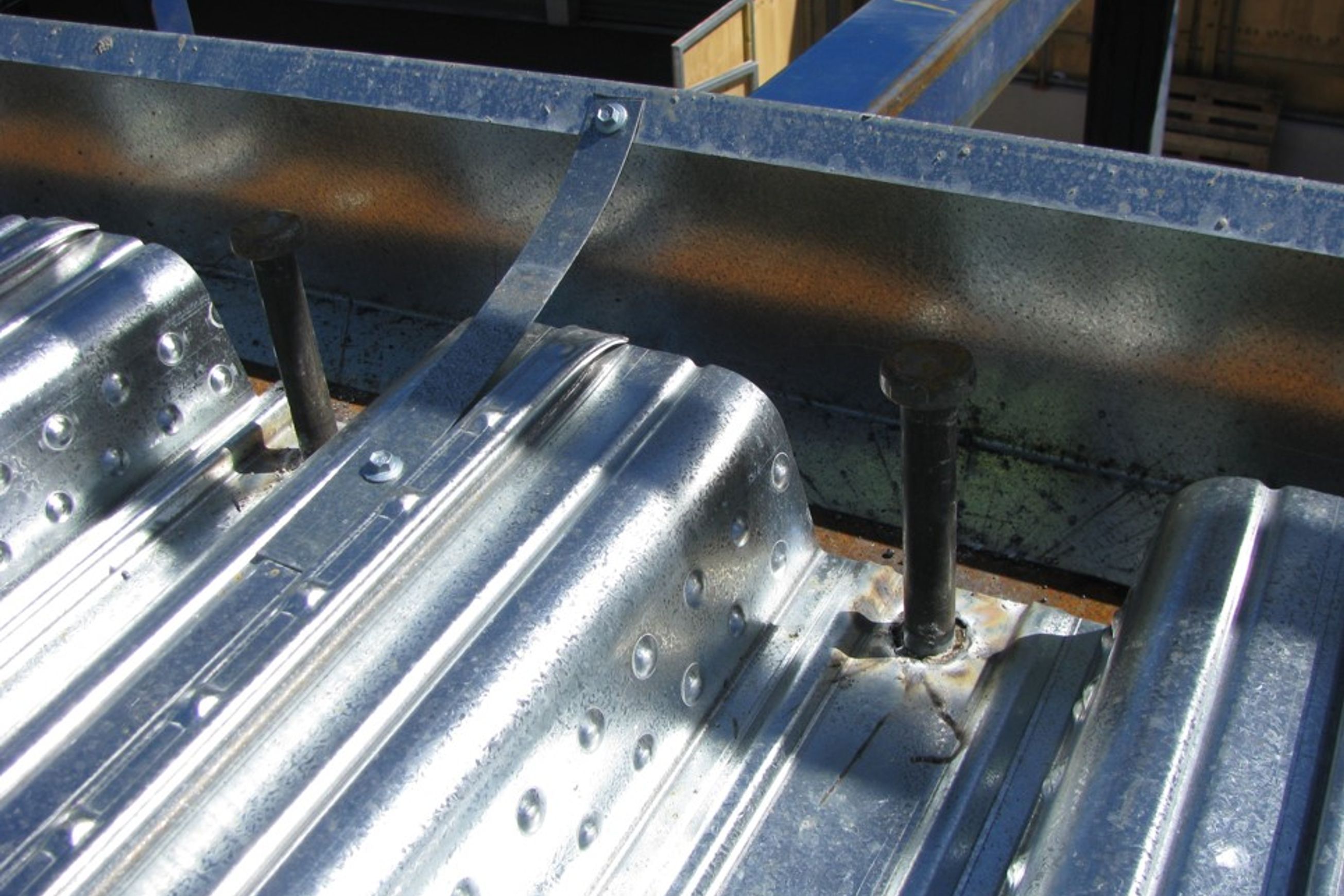

- The profile design guarantees central shear-stud positioning to optimise composite action, reducing the need for on-site checking.
Excellent acoustic and fire performance
- Fire ratings up to 4 hours are possible with ComFlor 60
- ComFlor 60 has best inherent acoustic properties of the ComFlor range.
Safer manual handling

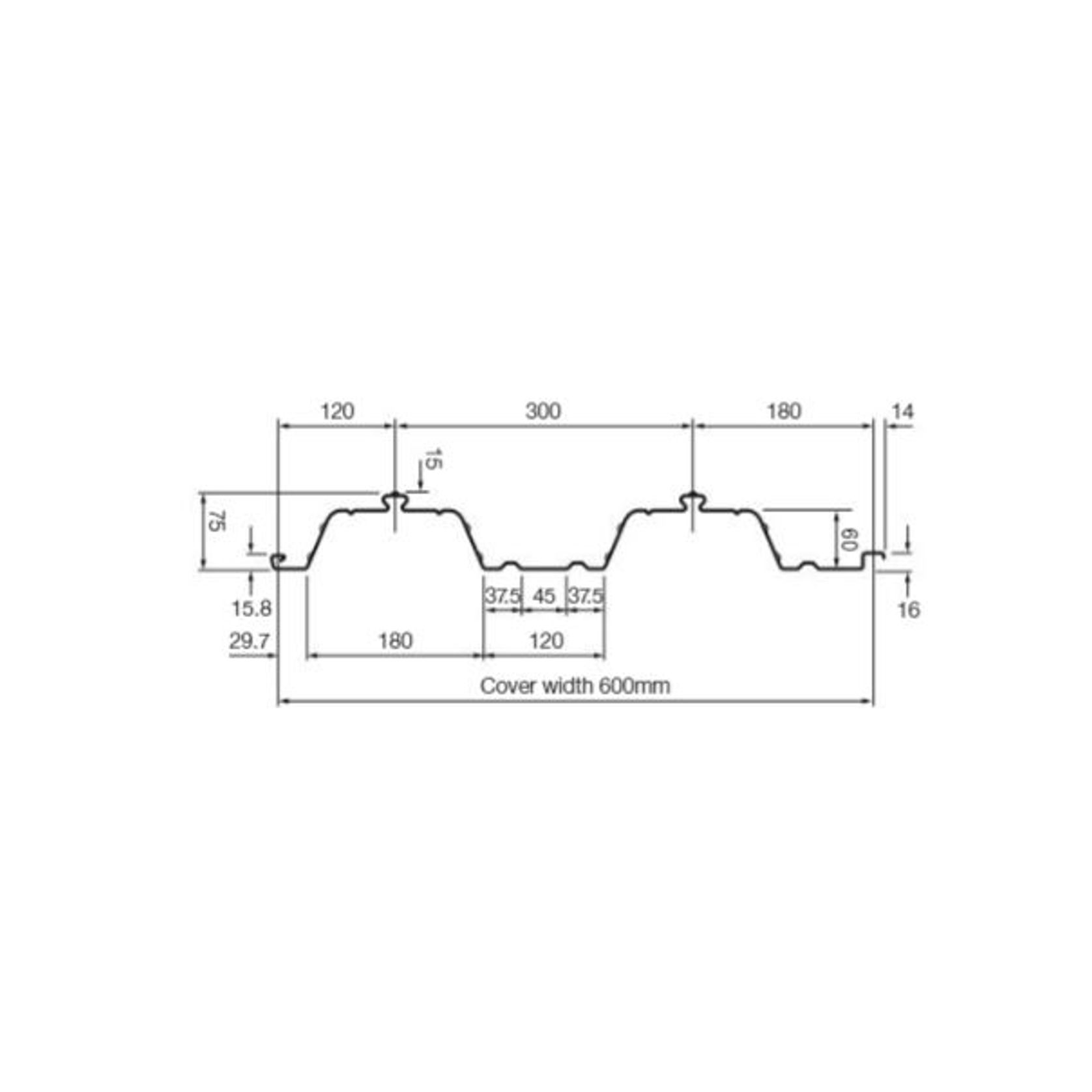

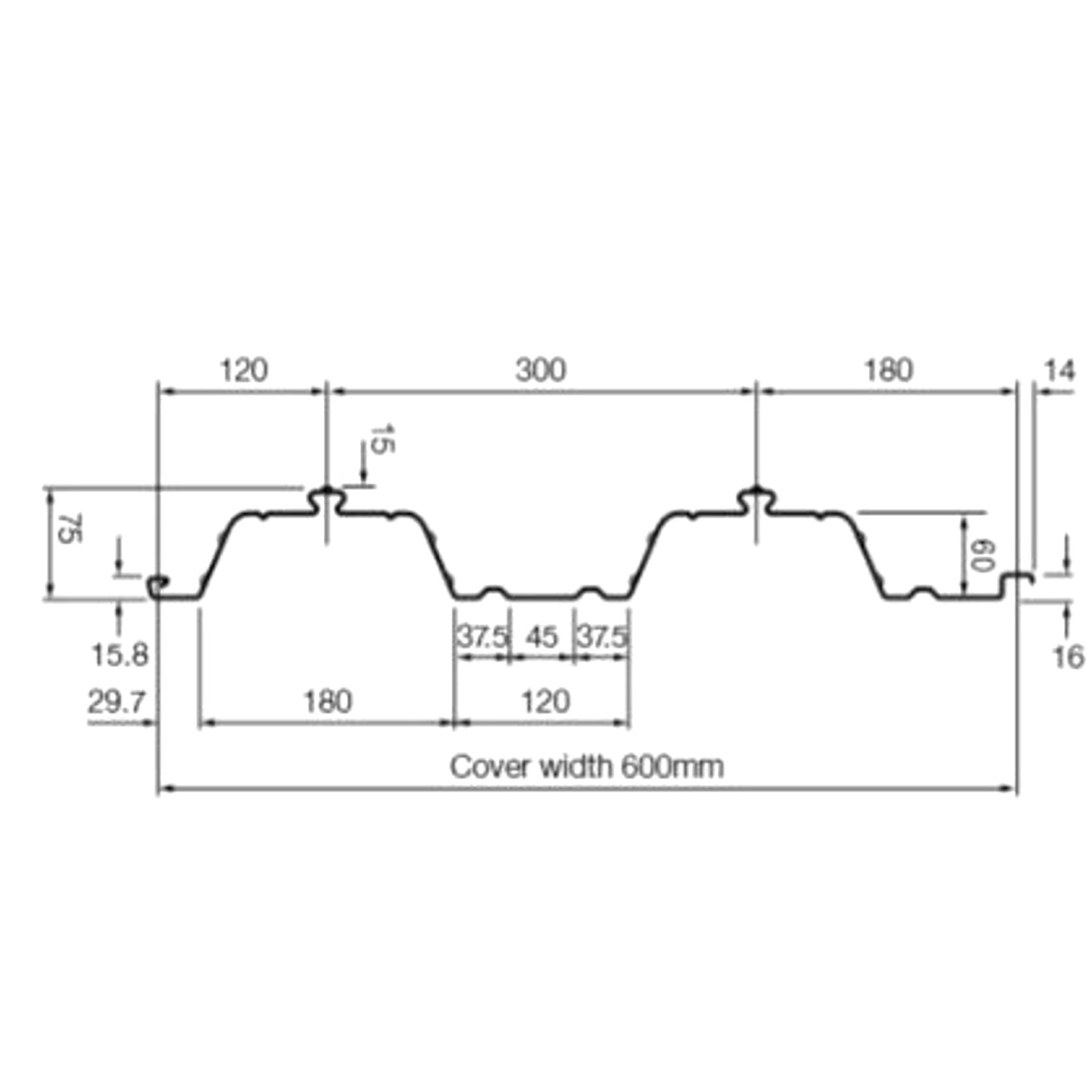

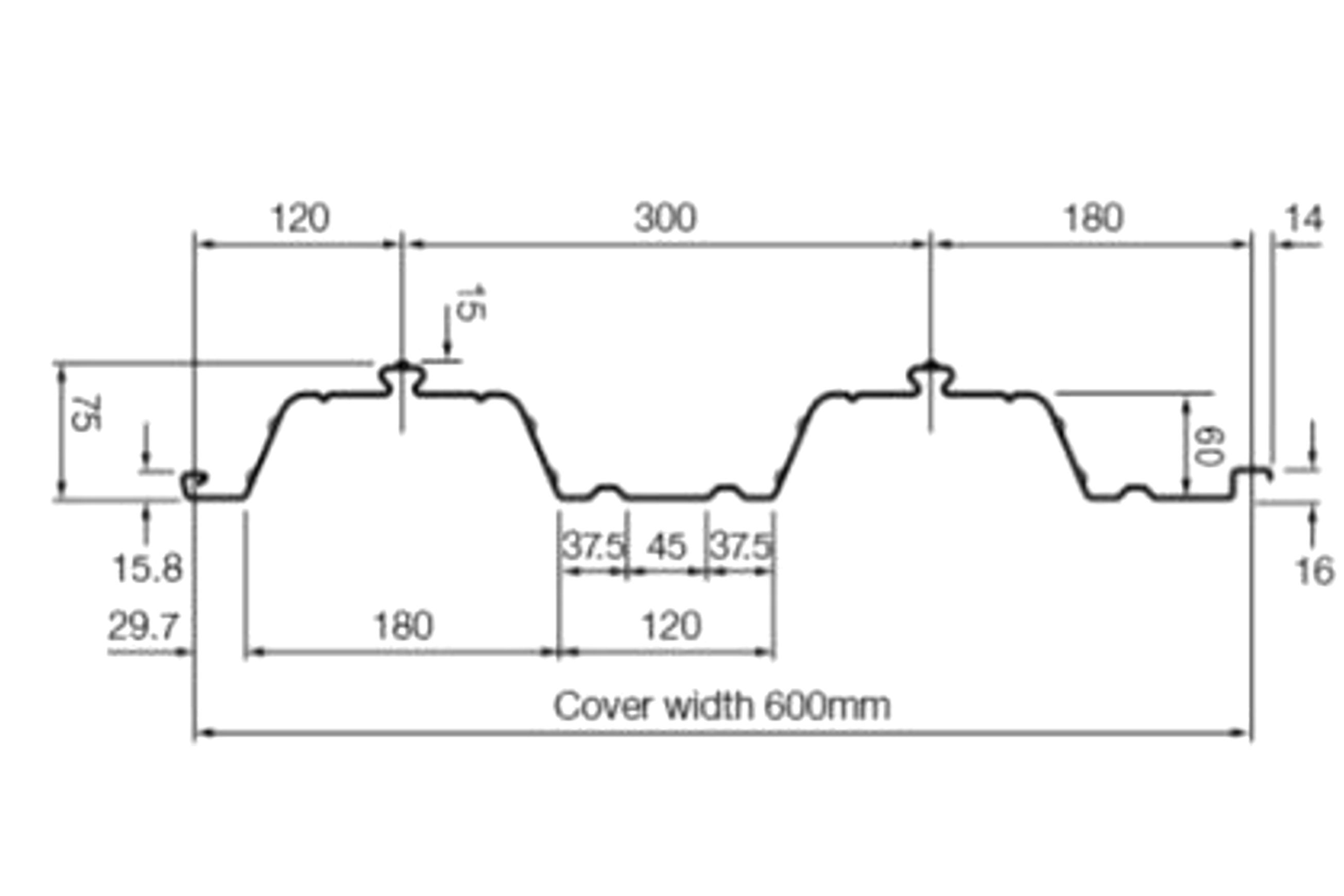

- With a cover width of 600mm, sheets are lightweight, making them safer and easier to handle.
- Scope of use

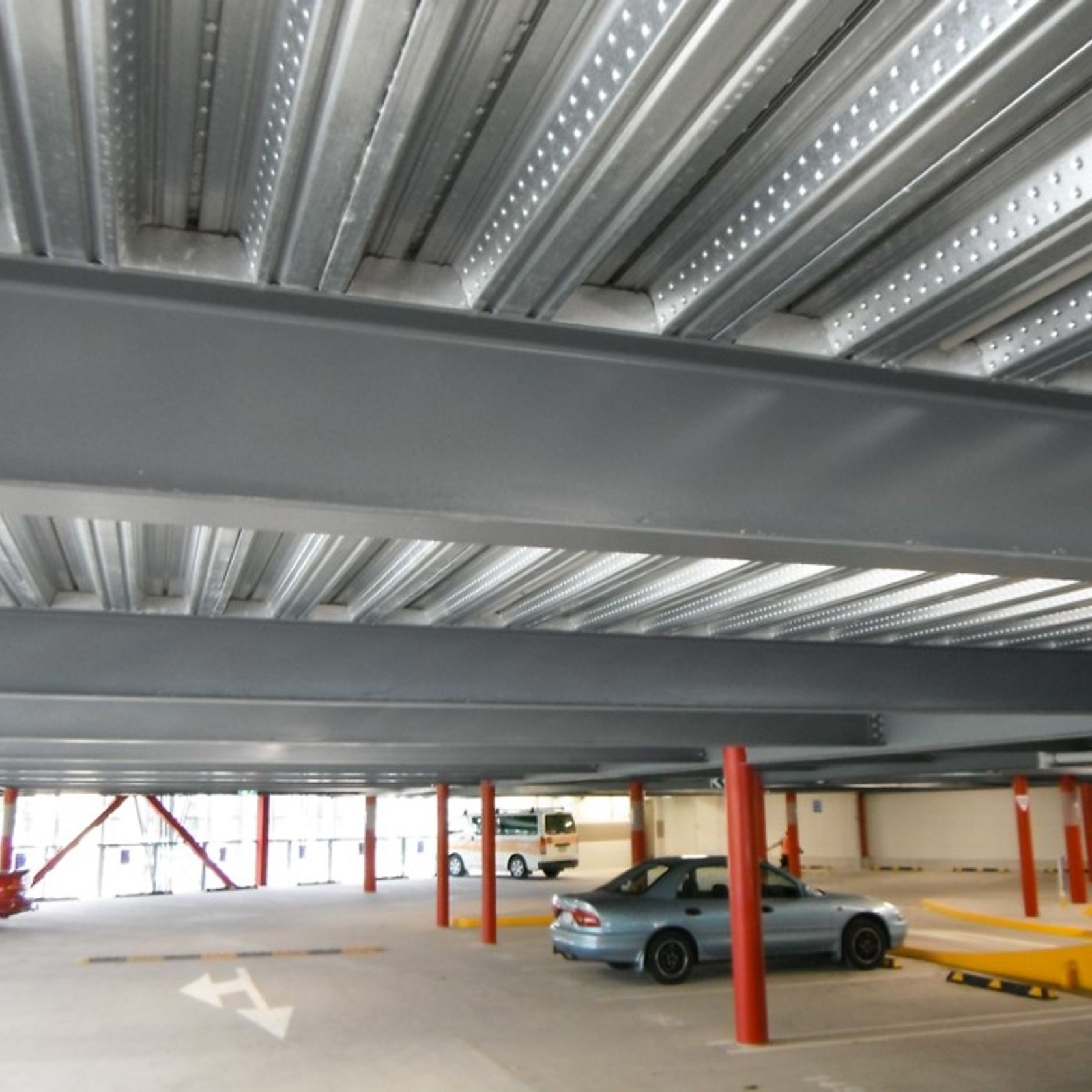

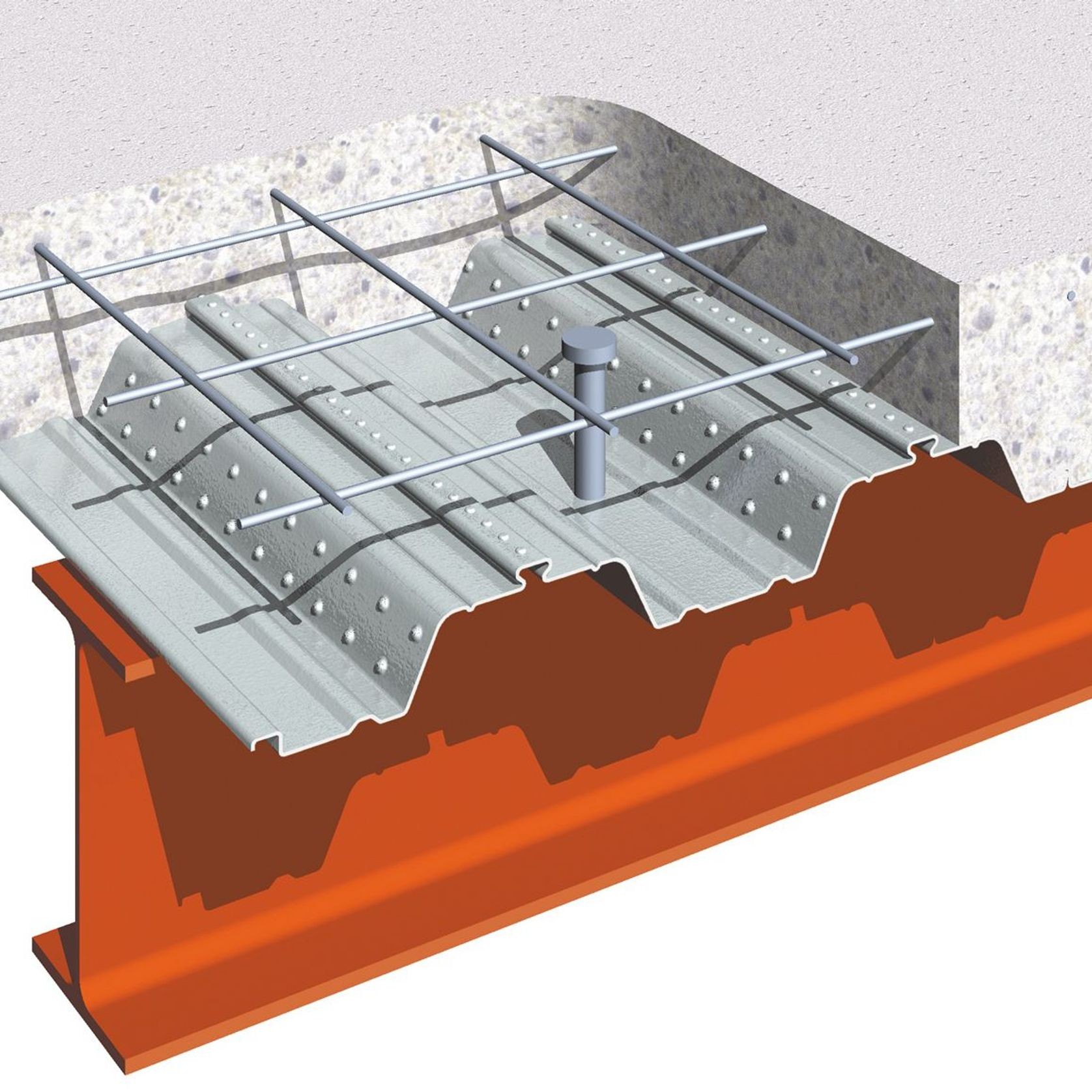

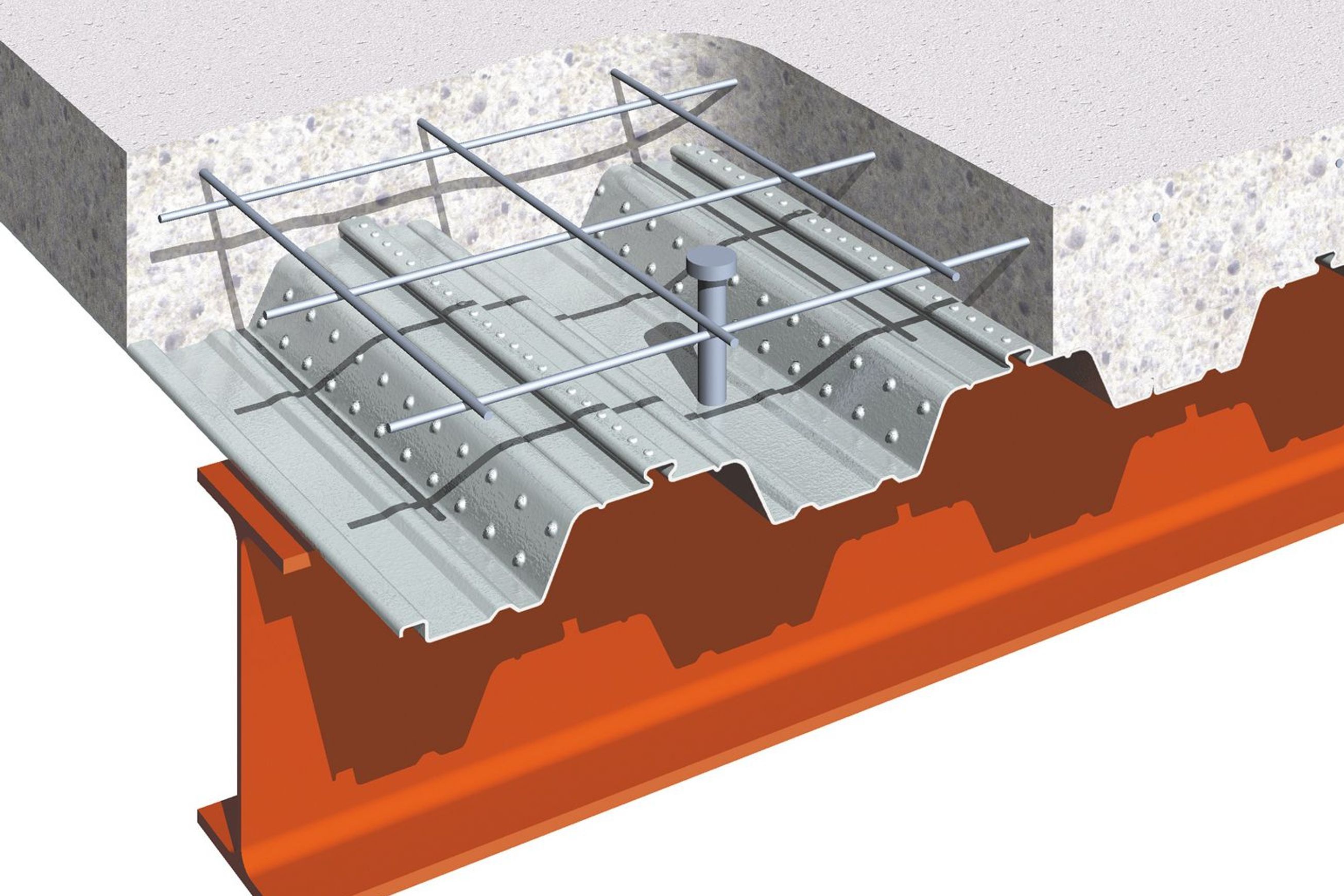

- Composite floor slabs with steel beams
- Non-composite slabs (temporary or permanent formwork only)
- Mezzanine floors
- Roof decking (in some configurations, depending on profile)
- Composite floor slabs with steel beams
Downloads
Downloads (5)5 Direct downloads • 8 Available on request
Frequently asked questions about
ComFlor 60 Composite Steel Floor Decking
The ComFlor 60 Composite Steel Floor Decking is supplied by Steel & Tube. It is also on their website, and you can browse every product Steel & Tube lists on ArchiPro.
Steel & Tube does not publish a price for the ComFlor 60 Composite Steel Floor Decking on ArchiPro. for pricing, or visit their website.
Yes. It is part of the ComFlor range from Steel & Tube, where you can see every product in the range together.

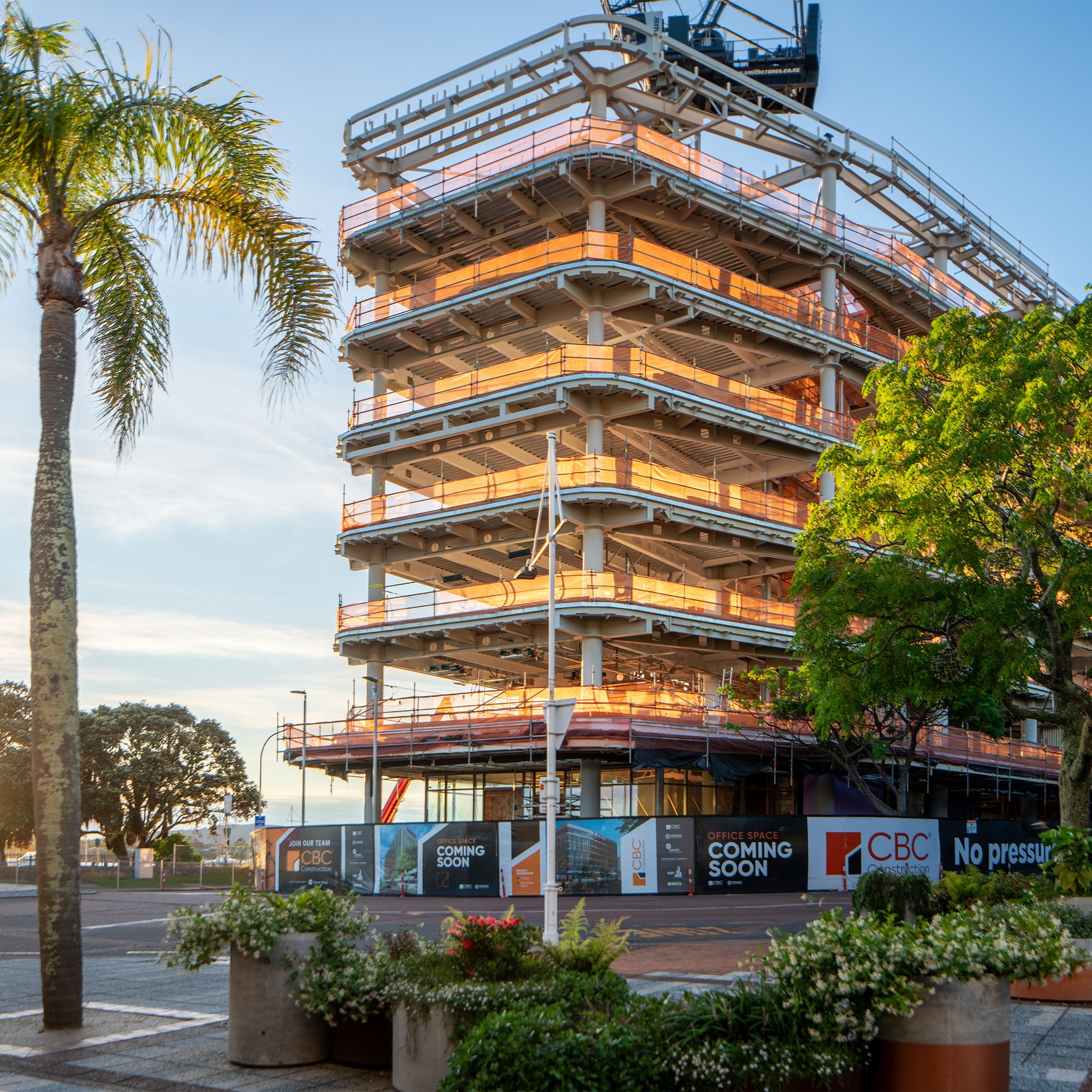

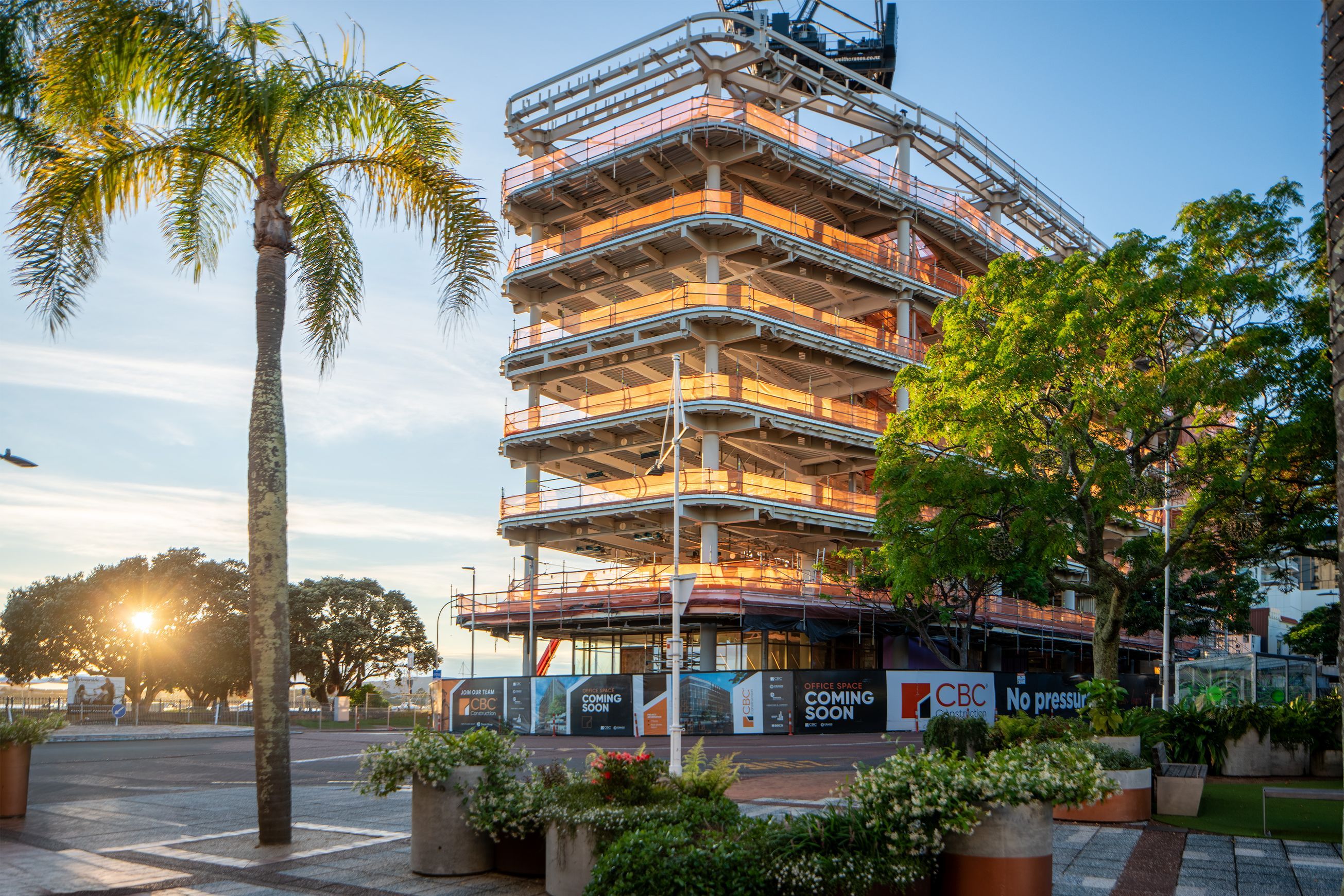

Yes. It has been specified in projects on ArchiPro, including 2 Devonport Road: Building Tauranga’s New Waterfront Landmark with ComFlor® by Steel & Tube, Massey University School of Veterinary Sciences - Ngā Huia by Thermosash and University of Waikato The Pā by Steel & Tube. See how it was used in a finished space.
