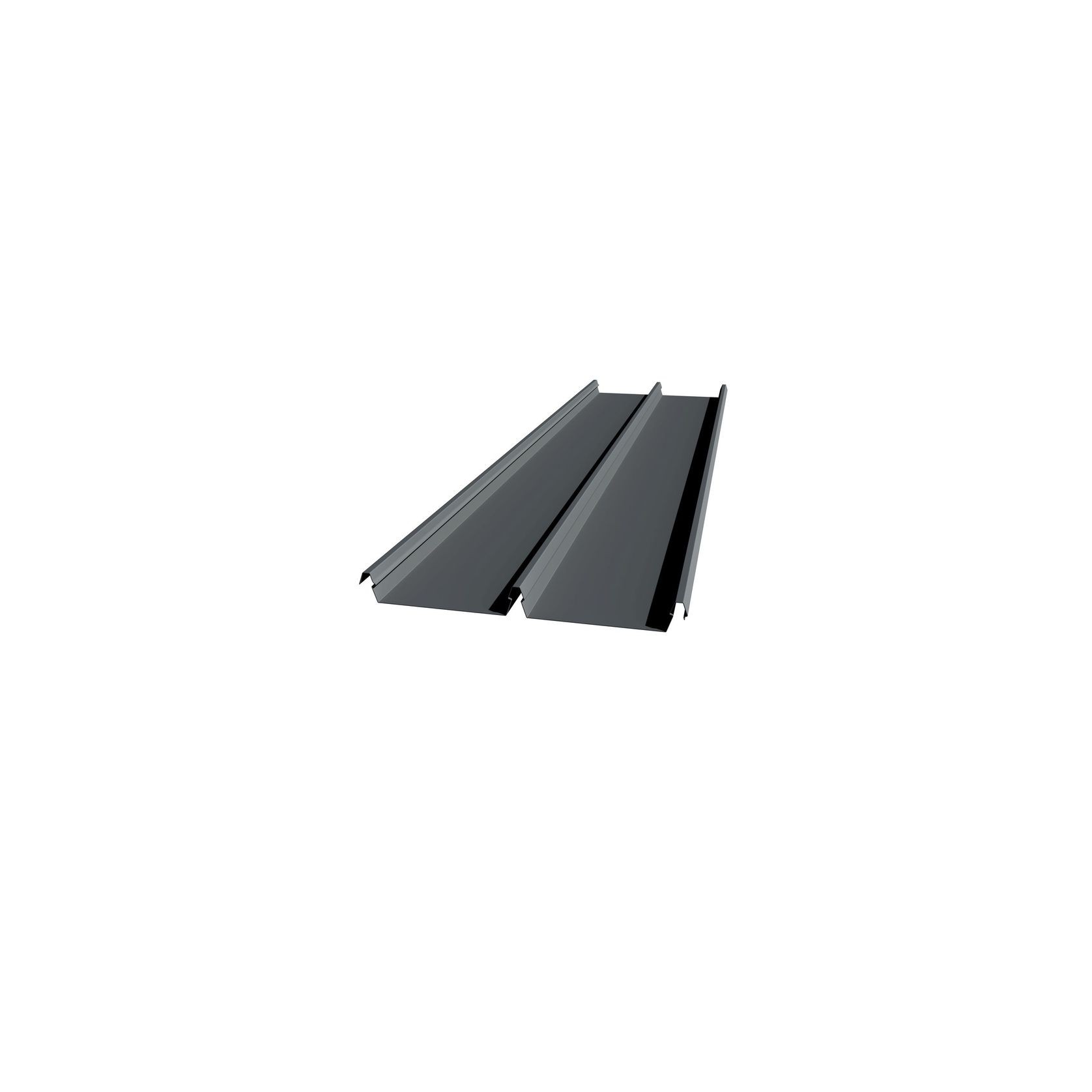

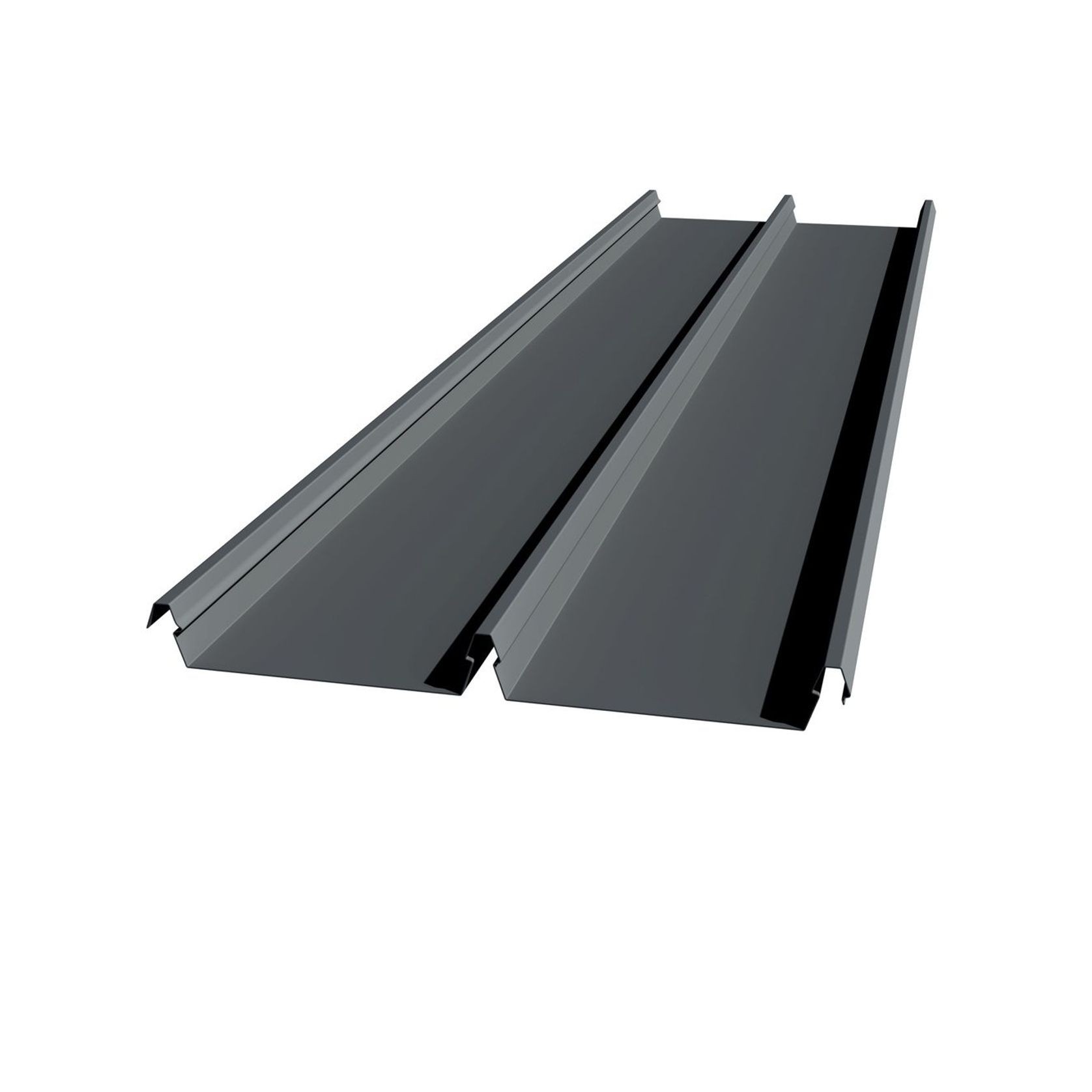

Legacy Roofing | Cladding has been specifically introduced to complement our EuroLine range of roofing products, with their unmistakable eighteenth century standing seam roofing style. It incorporates modern high strength roll forming technology to eliminate the need for supporting plywood substrate and is available in continuous lengths.
An architectural feature of this profile is the undulations in the wide flat pan, which can be expected in this type of roof profile. In some situations, indentations caused by the fixing clips or purlins may be noticeable although this will become less apparent with weathering over time.
KEY FEATURES
- Manufactured in Auckland
- Minimum pitch 3°

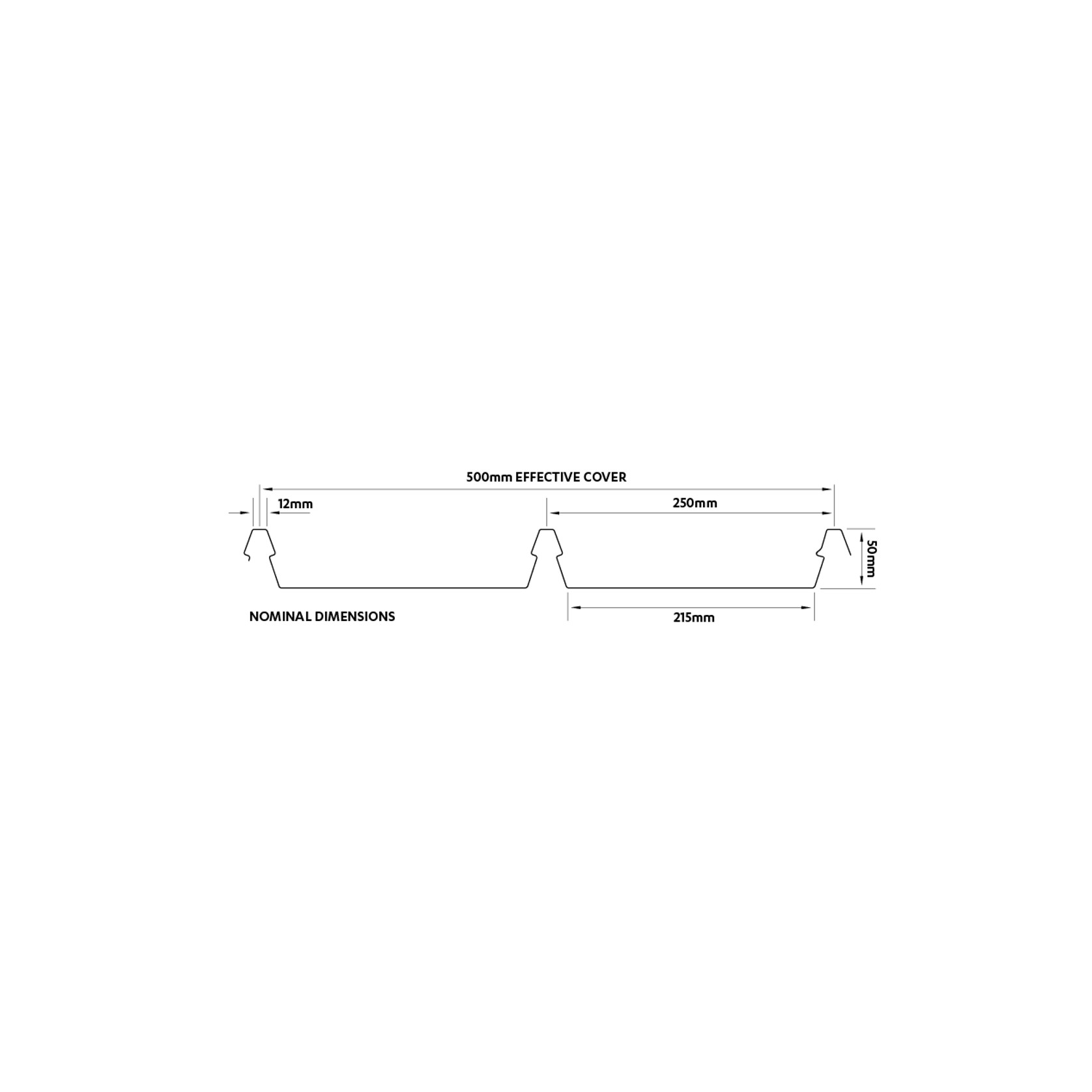

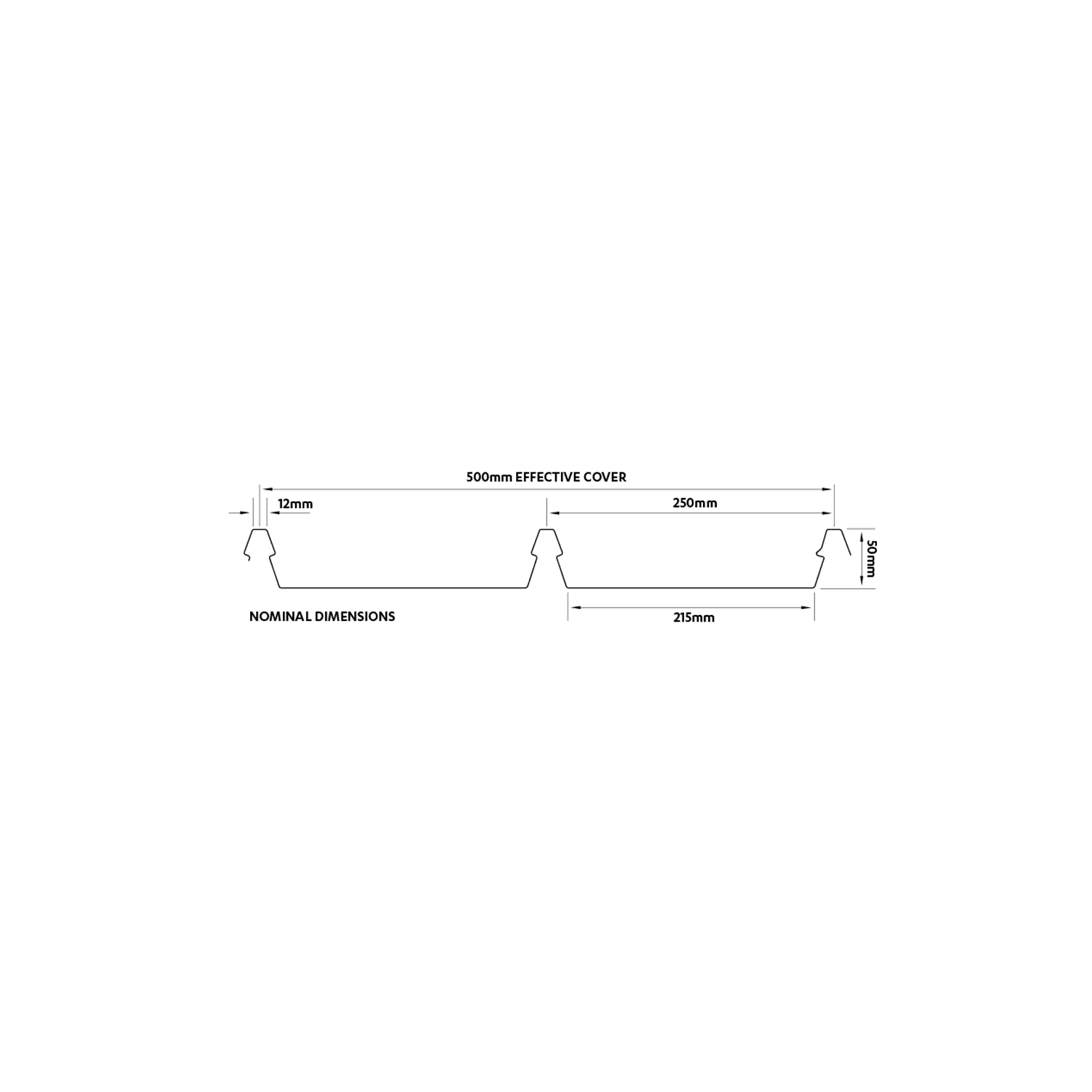

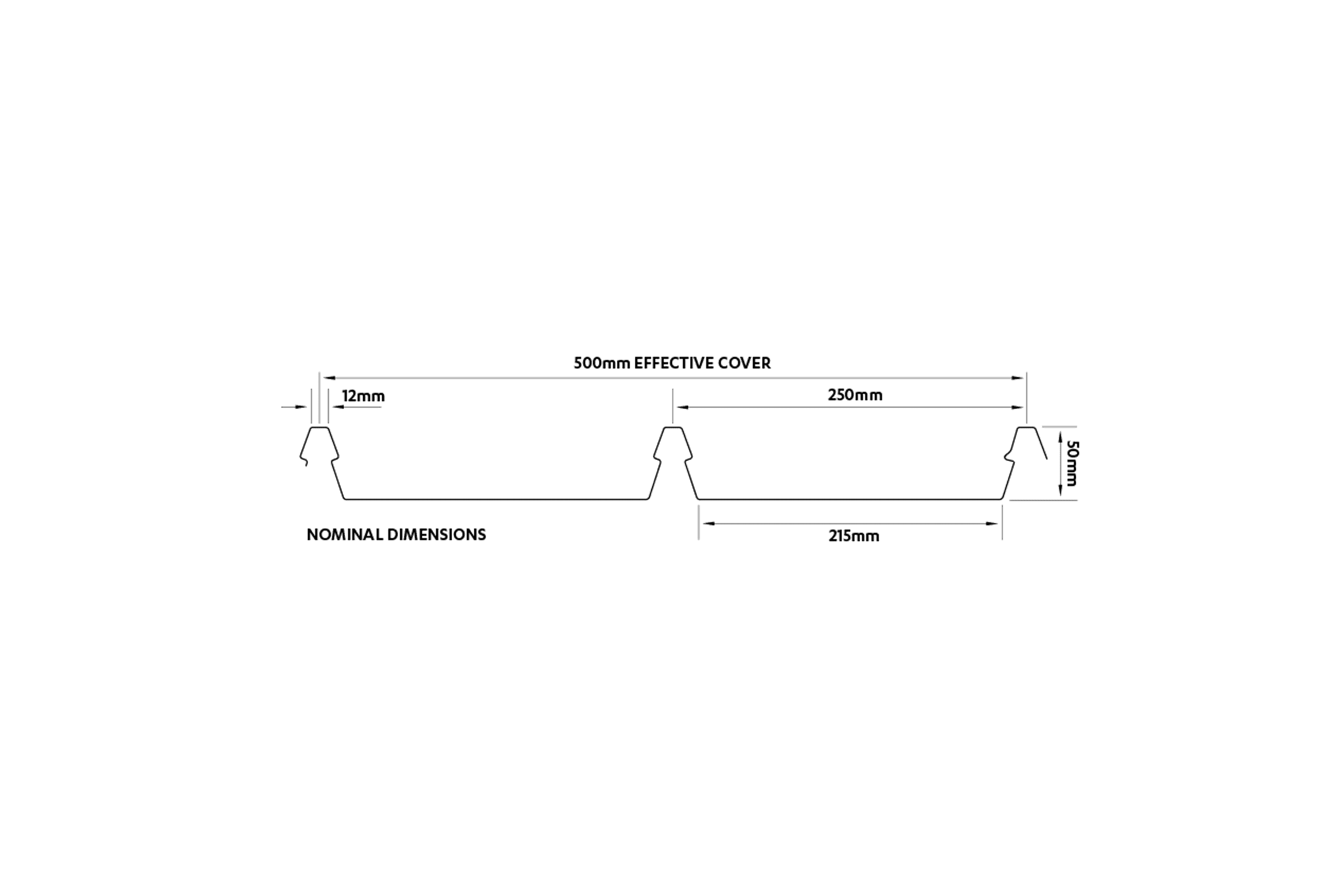

- 215mm wide flat pan, 50 mm rib and 500mm effective cover
- Secret fixed trough section profile
- High tensile steel for greater strength
- Wider coverage for greater economy
- Trapezoidal rib for greater stability
- Can be end lapped
- Translucent sheeting available to match
- Available in a wide selection of materials
Product Details
- Product
- Legacy Roofing | Cladding
- Category
- Aluminium Roofing
- Sold by
- Steel & Tube
- Type of use
- Commercial and Residential
Product Variants
- Colours
Product specified by
Legacy Roofing | Cladding has been specifically introduced to complement our EuroLine range of roofing products, with their unmistakable eighteenth century standing seam roofing style.
It incorporates modern high strength roll forming technology to eliminate the need for supporting plywood substrate and is available in continuous lengths.
An architectural feature of this profile is the undulations in the wide flat pan, which can be expected in this type of roof profile. In some situations, indentations caused by the fixing clips or purlins may be noticeable although this will become less apparent with weathering over time.
KEY FEATURES
- Manufactured in Auckland
- Minimum pitch 3°

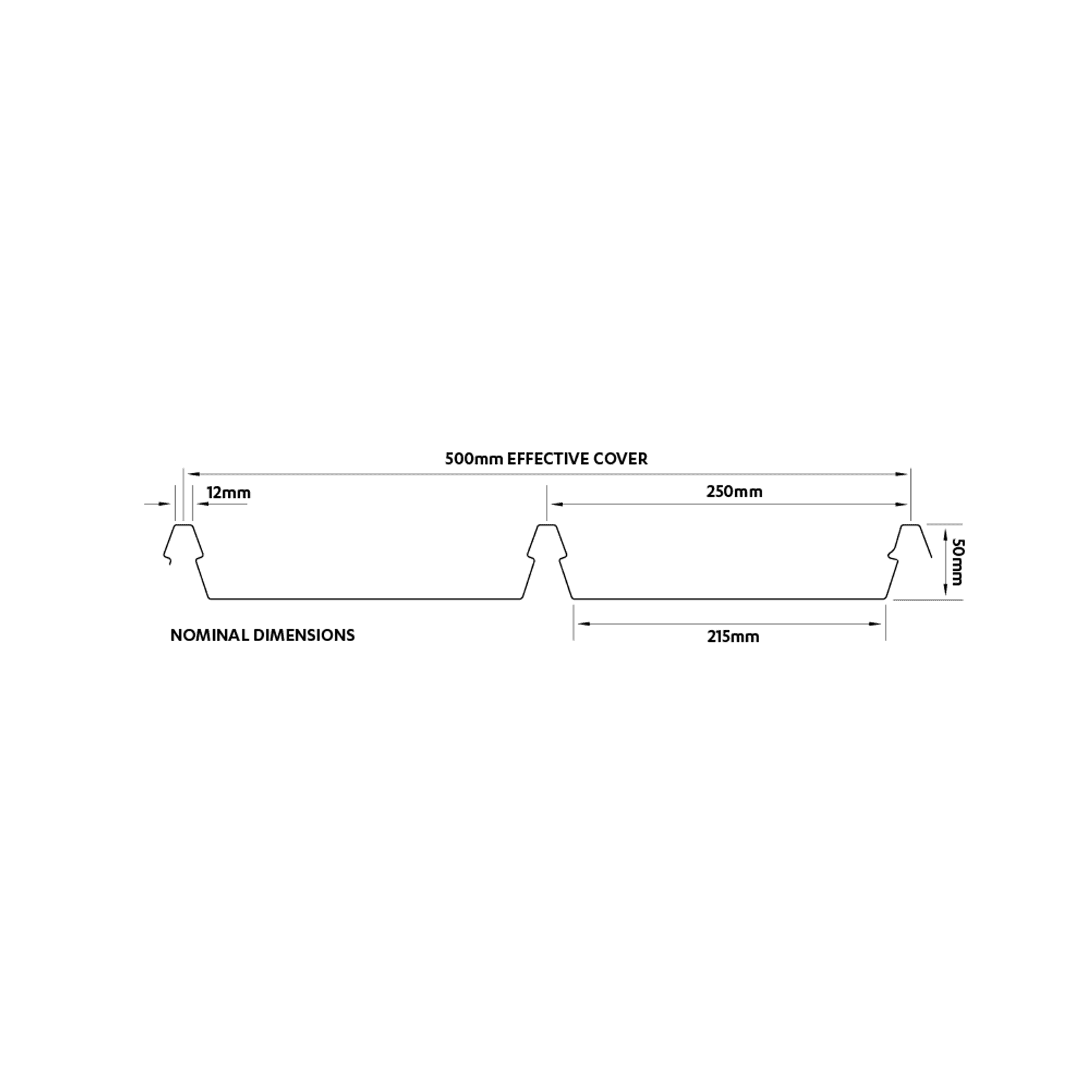

- 215mm wide flat pan, 50 mm rib and 500mm effective cover
- Secret fixed trough section profile
- High tensile steel for greater strength
- Wider coverage for greater economy
- Trapezoidal rib for greater stability
- Can be end lapped

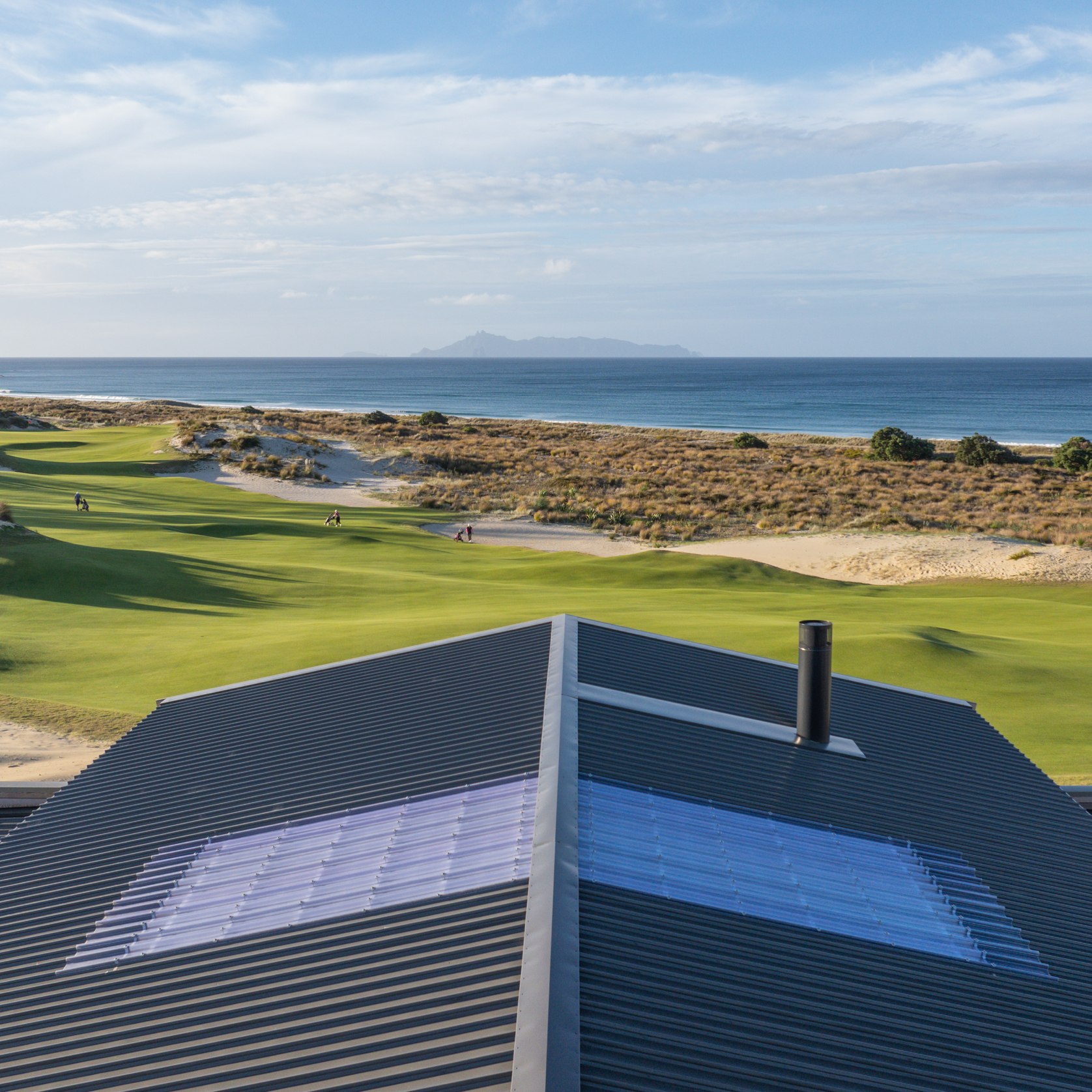

- Translucent sheeting available to match
- Available in a wide selection of materials
- Specs
Materials
- LEGACY is available in 0.55mm BMT COLORSTEEL® ENDURA®, COLORSTEEL® MAXX®
- For other materials please contact Steel & Tube on 0800 333 247 to discuss.
Foot Traffic
- Foot traffic must take place over purlin lines.
Design Details
- To complement the clean lines of LEGACY and enhance weather tightness, the use of concealed fixing methods are recommended for flashings.
- For specific advice on details contact the Steel & Tube technical helpline on 0800 333 247.
Downloads
Downloads (9)9 Direct downloads • 7 Available on request
Frequently asked questions about
Legacy Roofing | Cladding
The Legacy Roofing | Cladding is supplied by Steel & Tube. It is also on their website, and you can browse every product Steel & Tube lists on ArchiPro.
Steel & Tube does not publish a price for the Legacy Roofing | Cladding on ArchiPro. for pricing, or visit their website.
It comes in 19 colour options (Ebony, Flaxpod, Grey Friars, Ironsand, Karaka, Lichen, Lignite, Mist Green, New Demin Blue, Permant Green, Pionner Red, Scoria, Slate, Snowstone, Thunder Grey, Tidal Drift, Titaina, White, Windsor Grey). Pick one in the row under the description to see it.

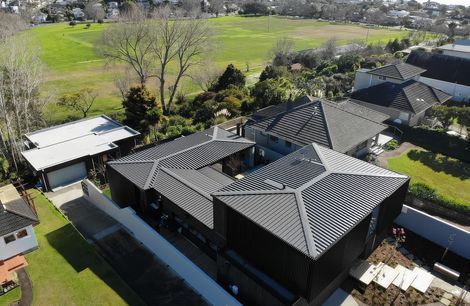

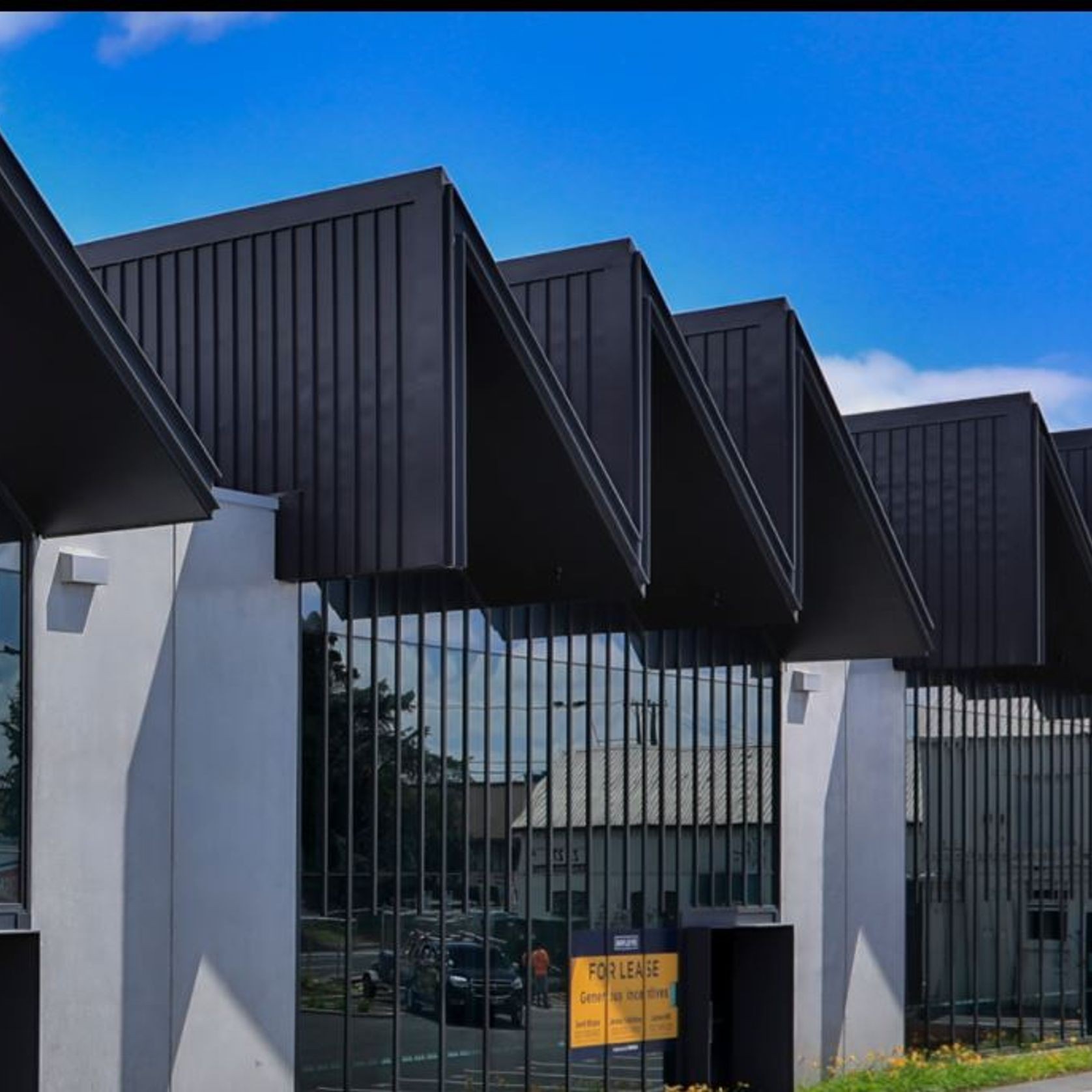

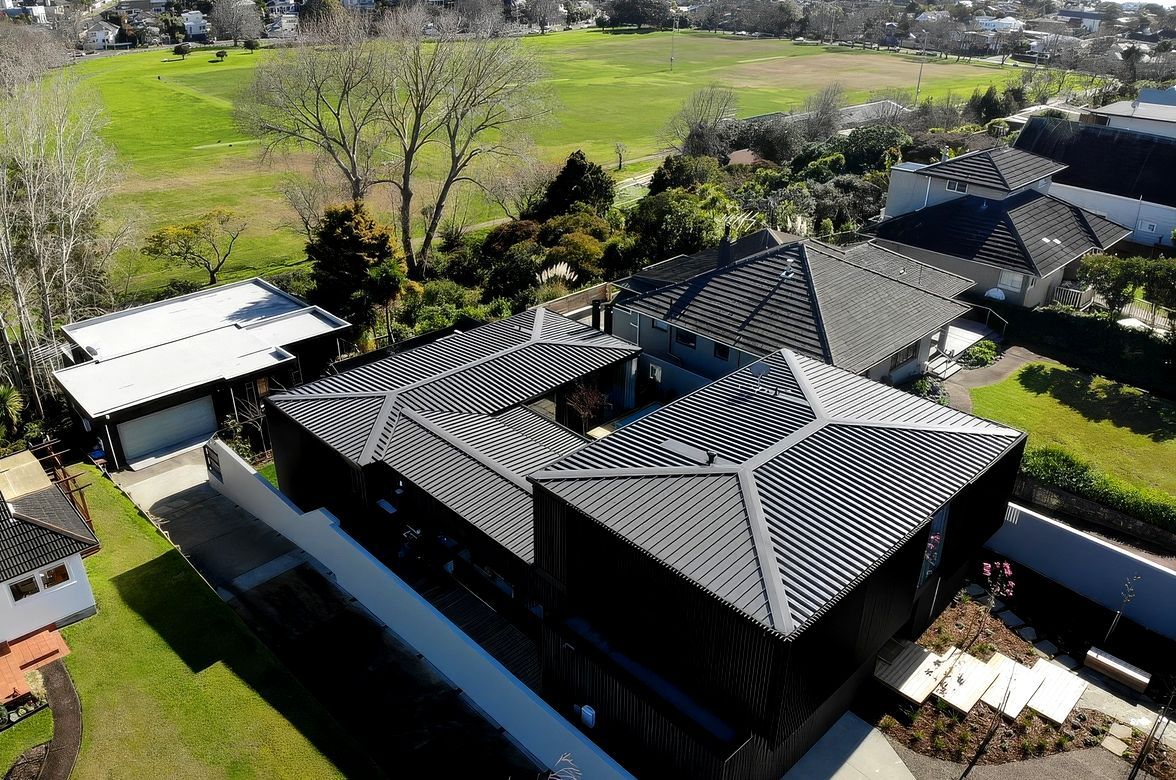

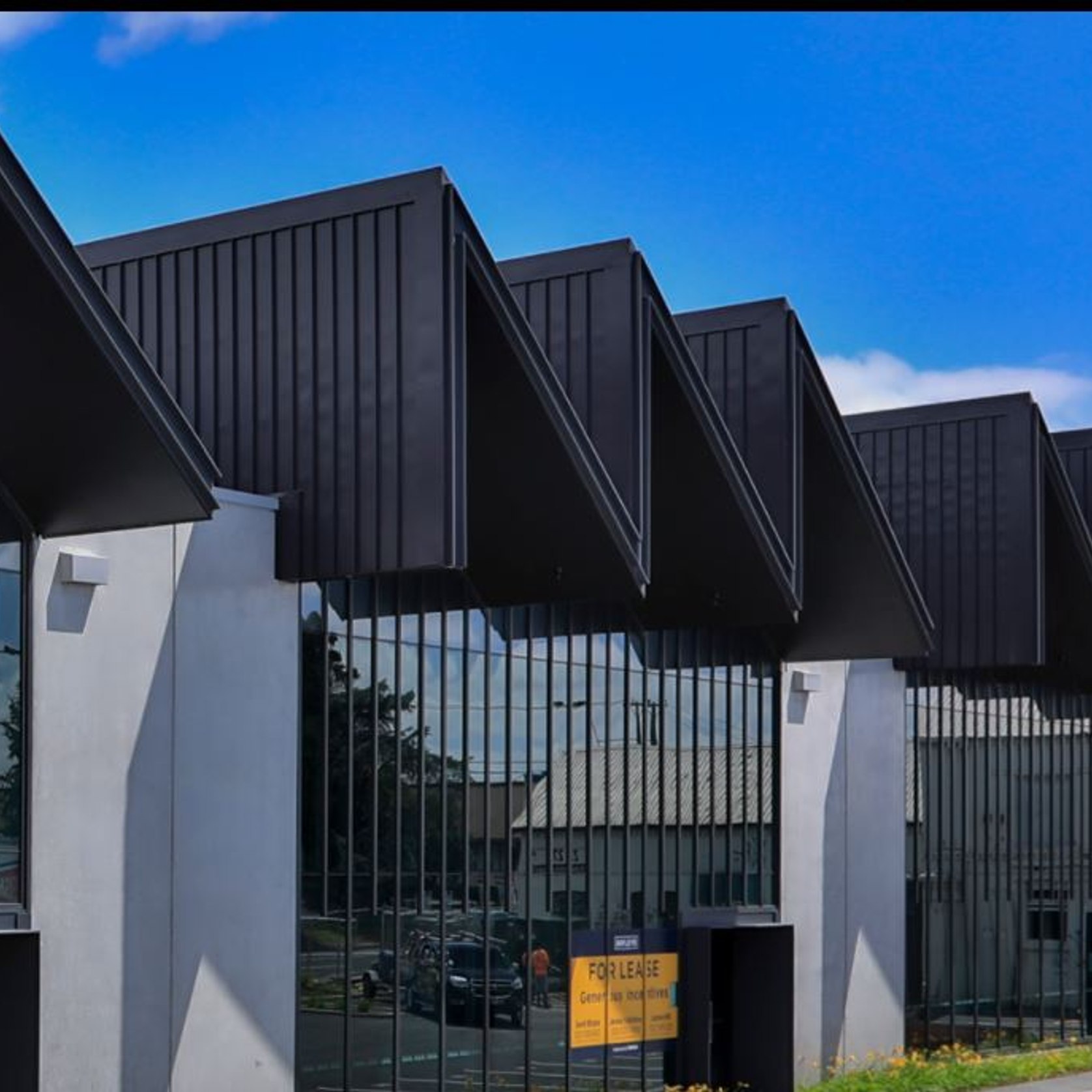

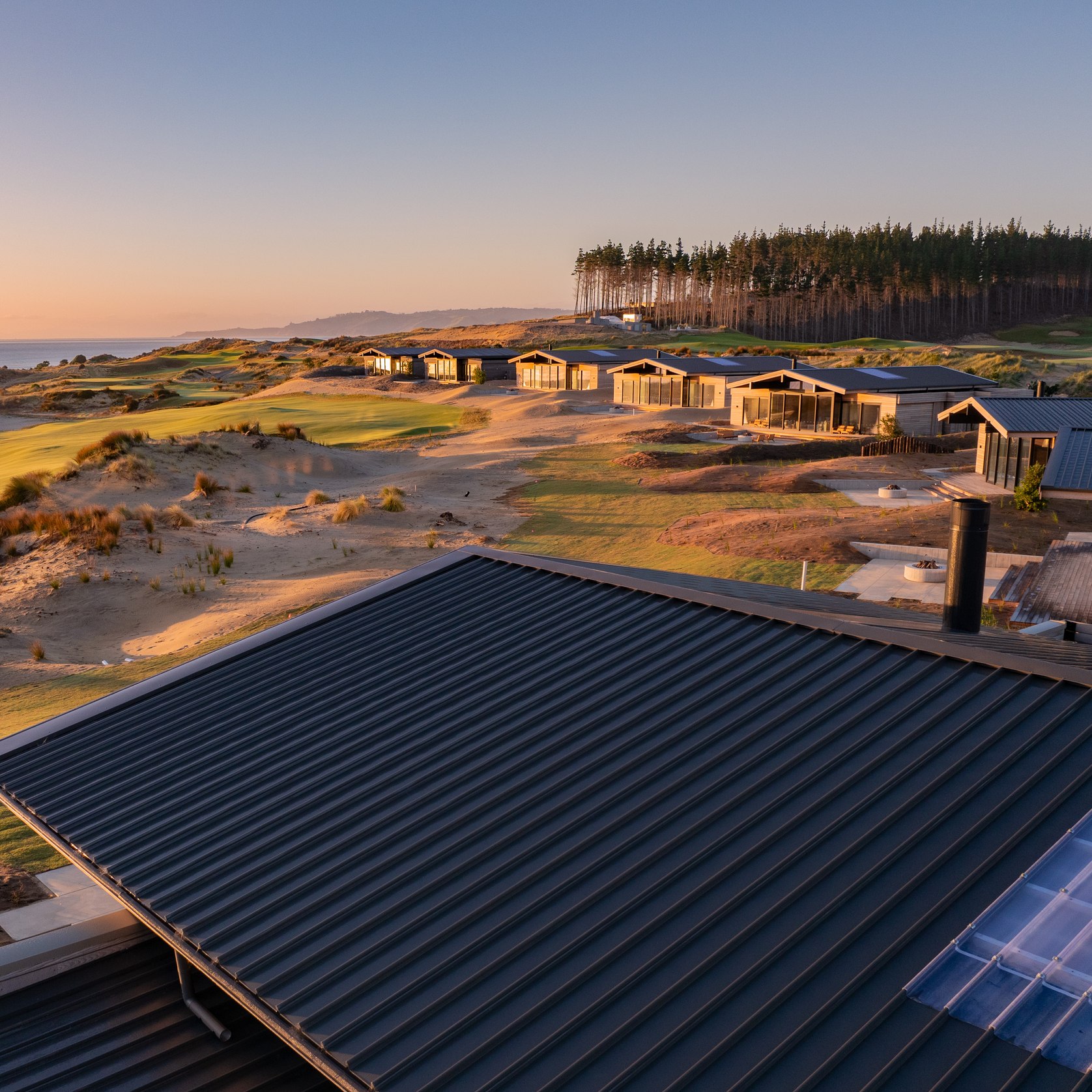

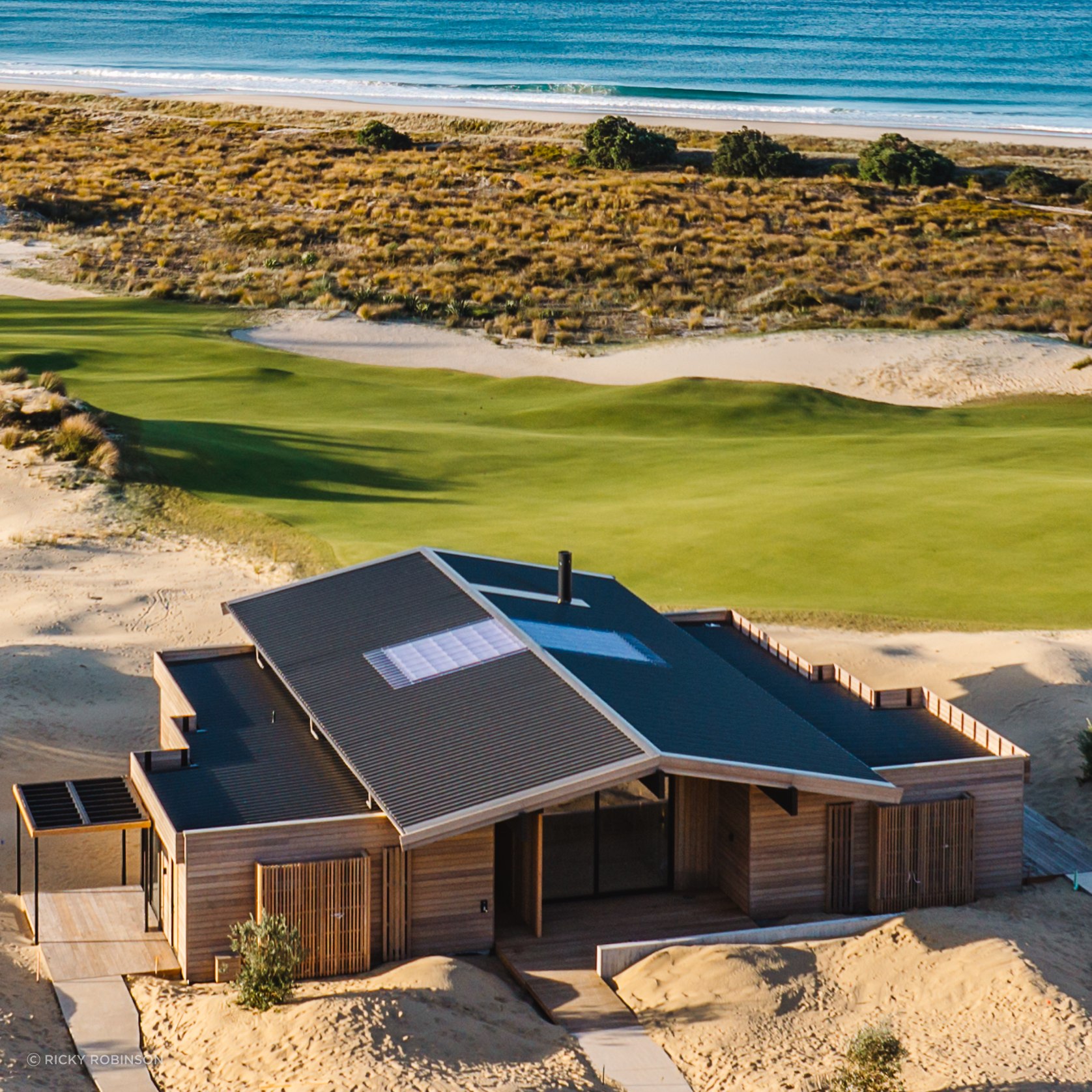

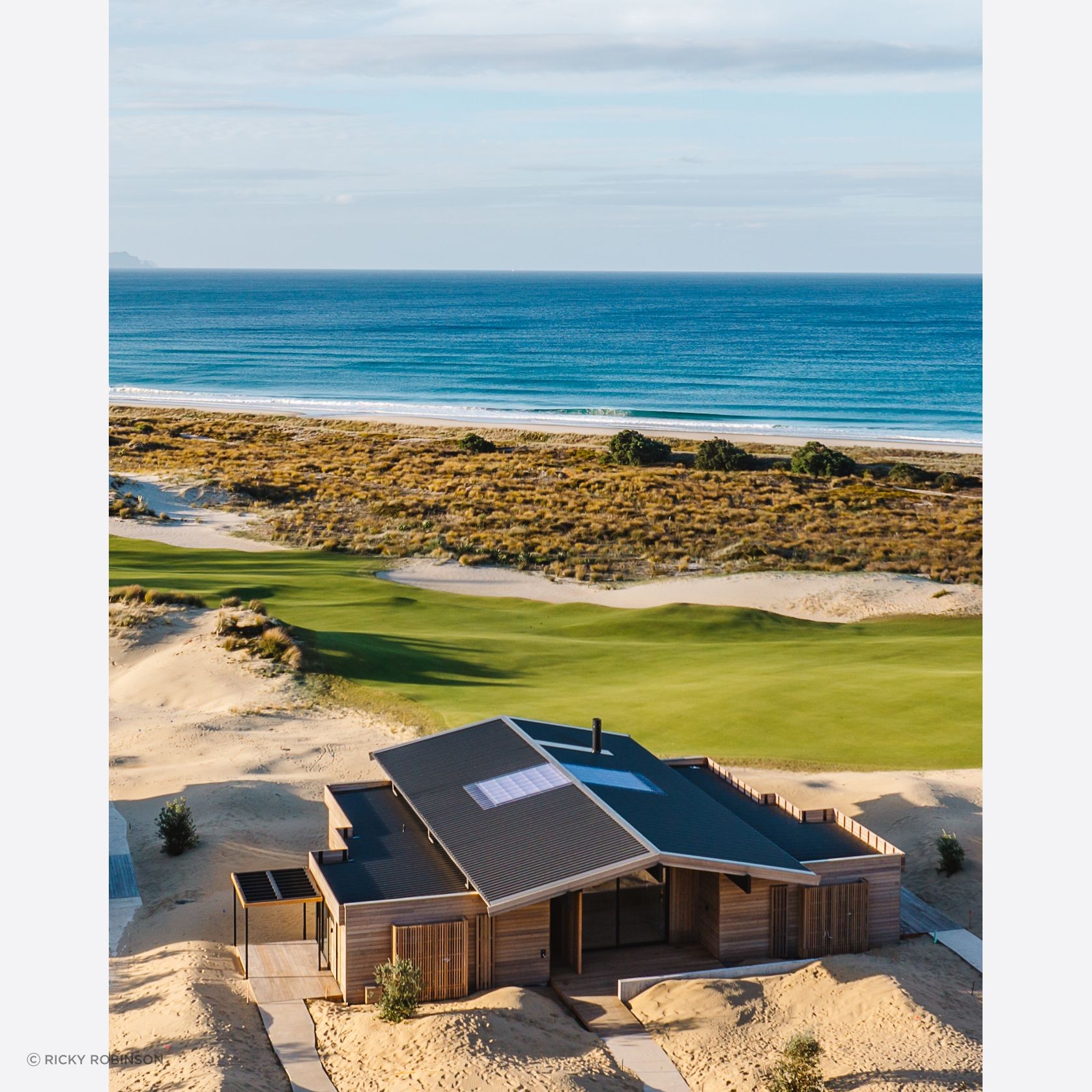

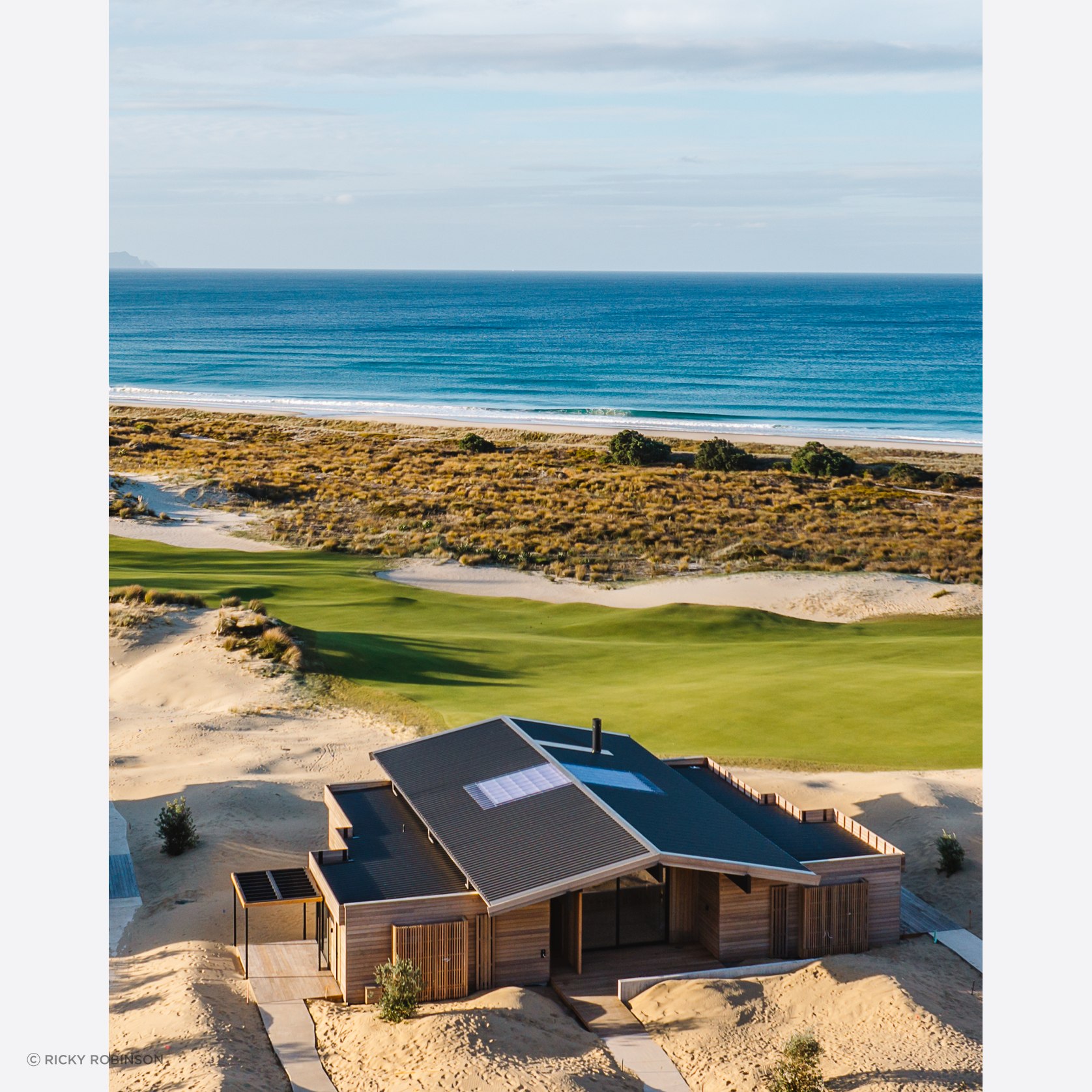

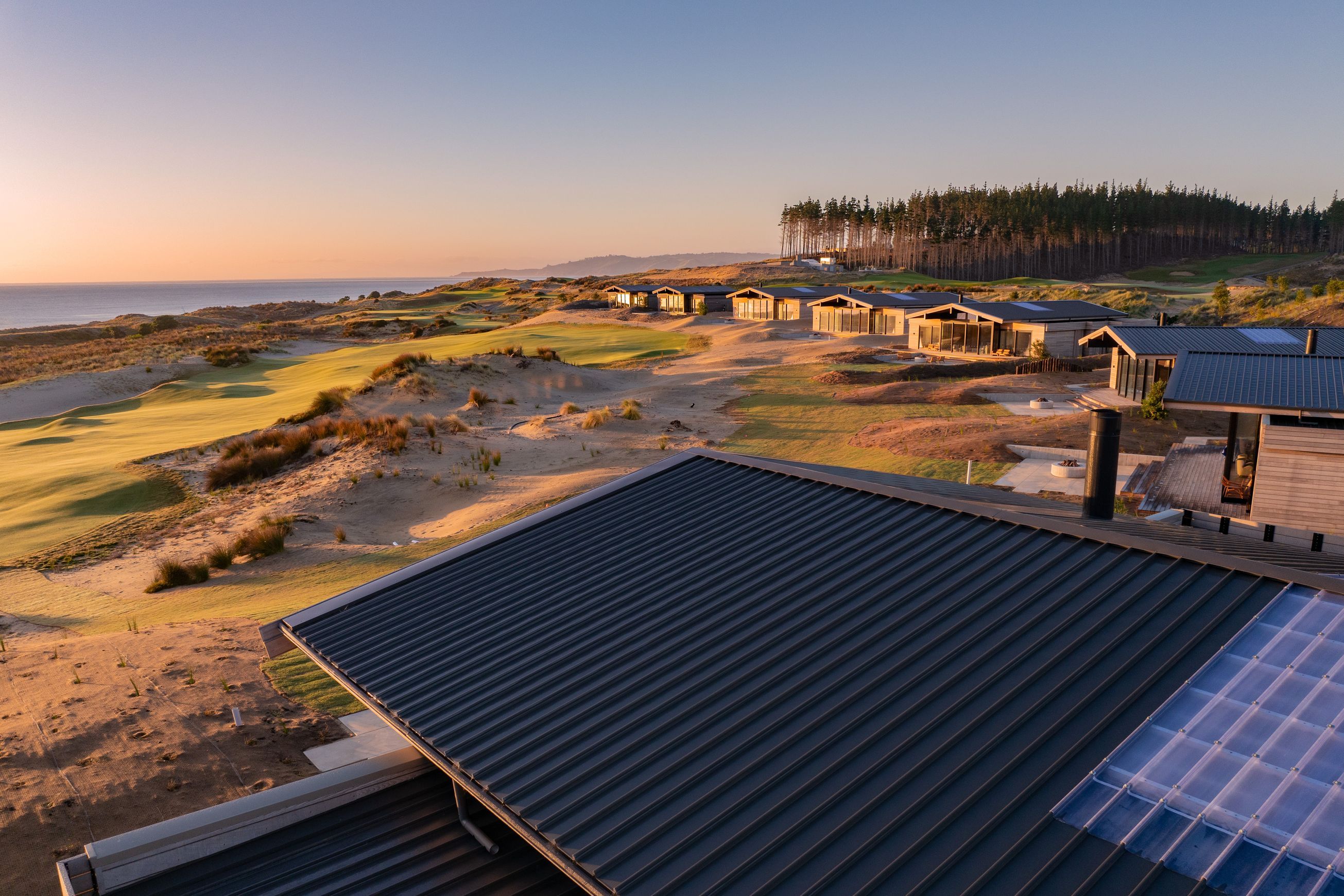

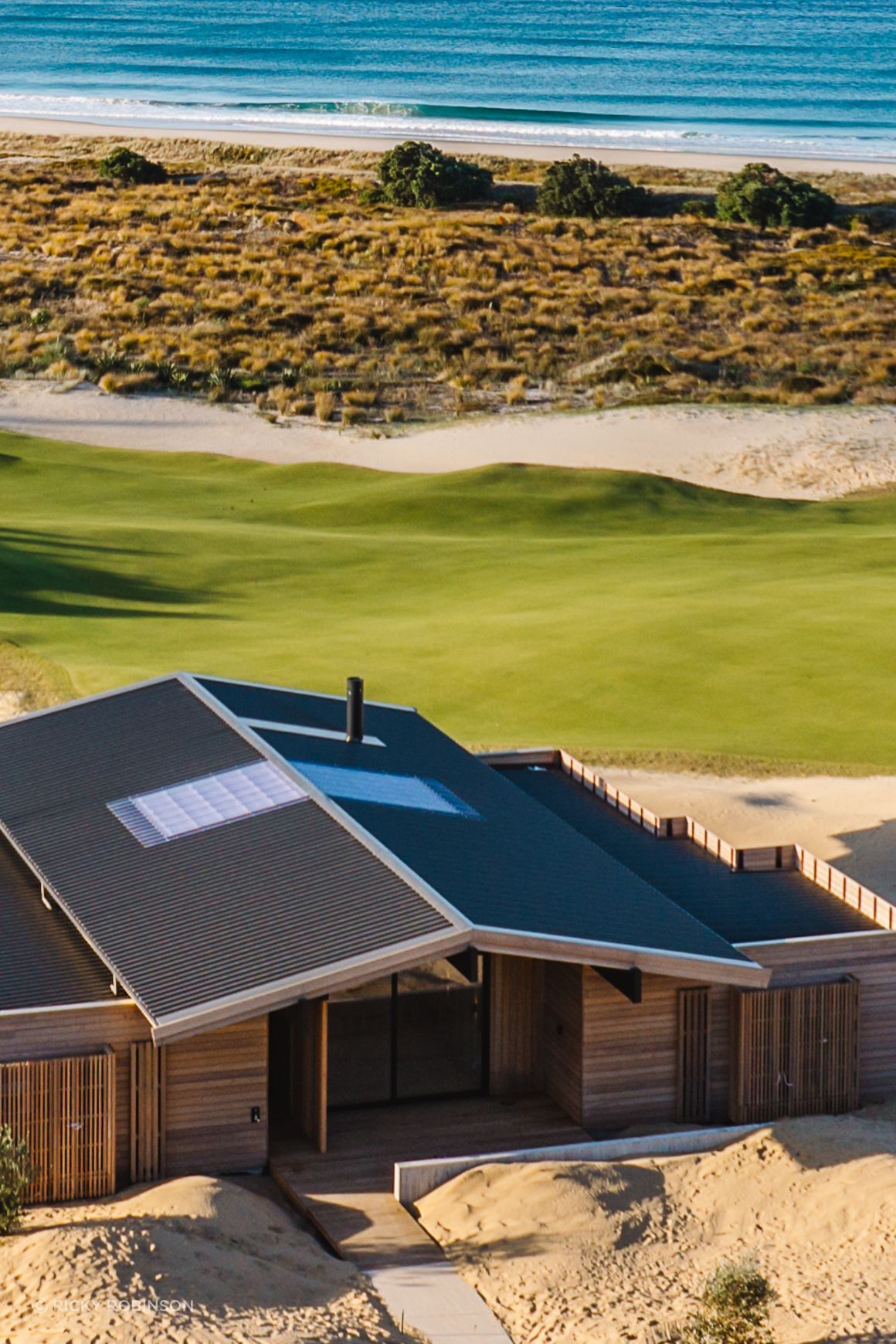

Yes. It has been specified in projects on ArchiPro, including Woollen Mills – A Modern Transformation by Steel & Tube, Te Arai Villas by COLORSTEEL® and Colorsteel Grey Friars by Euroclass Roofing. See how it was used in a finished space.
