For beauty, choice and flexibility across large installations, check out the Elevate™ Series 453 Commercial Double-Hung Window.
Product Details
- Product
- Elevate | Series 453 | Double-Hung Window
- Category
- Sash Windows
- Sold by
- Architectural Window Systems
Architectural Window Systems is specified by
Studio SnellArchitects
Kister ArchitectsArchitects
Woods BagotArchitects
Shane Marsh ArchitectArchitects
Freckle ArchitectureArchitects
J Mammone ArchitectureArchitects
Robert Harwood ArchitectsArchitects
Brcar Morony ArchitectureArchitects
Chan ArchitectureArchitects
AO Design StudioArchitects
RobertsonCollectifArchitects
DX ArchitectsArchitects
BANHAM ArchitectsArchitects
Hindley & CoArchitects
ArdelArchitects
Habitat Studio ArchitectsArchitects
Create ArchitectureArchitects
Taylor KnightsArchitects
Design by ADBuilding Designers
Reitsma & AssociatesBuilding Designers
Studio UrboBuilding Designers
Escea Fireplace CompanyManufacturers and Suppliers
KarmatectureBuilding Designers
Walters MacriPhotographers
Millboard DeckingManufacturers and Suppliers
APC BuildBuilders
Alex Urena Design StudioBuilding Designers
Distinct InnovationsDesign & Build
Venn ConstructionsBuilders
Seidler GroupDesign & Build
Design by JonesInterior Designers
Glow DesignBuilding Designers
Alberse HomesBuilders
Cunningham Custom HomesDesign & Build
Centor®Manufacturers and Suppliers
Nadine K DesignBuilding Designers
Gold Leaf ConstructionsBuilders
For beauty, choice and flexibility across large installations, check out the Elevate™ Series 453 Commercial Double-Hung Window.
- Specs

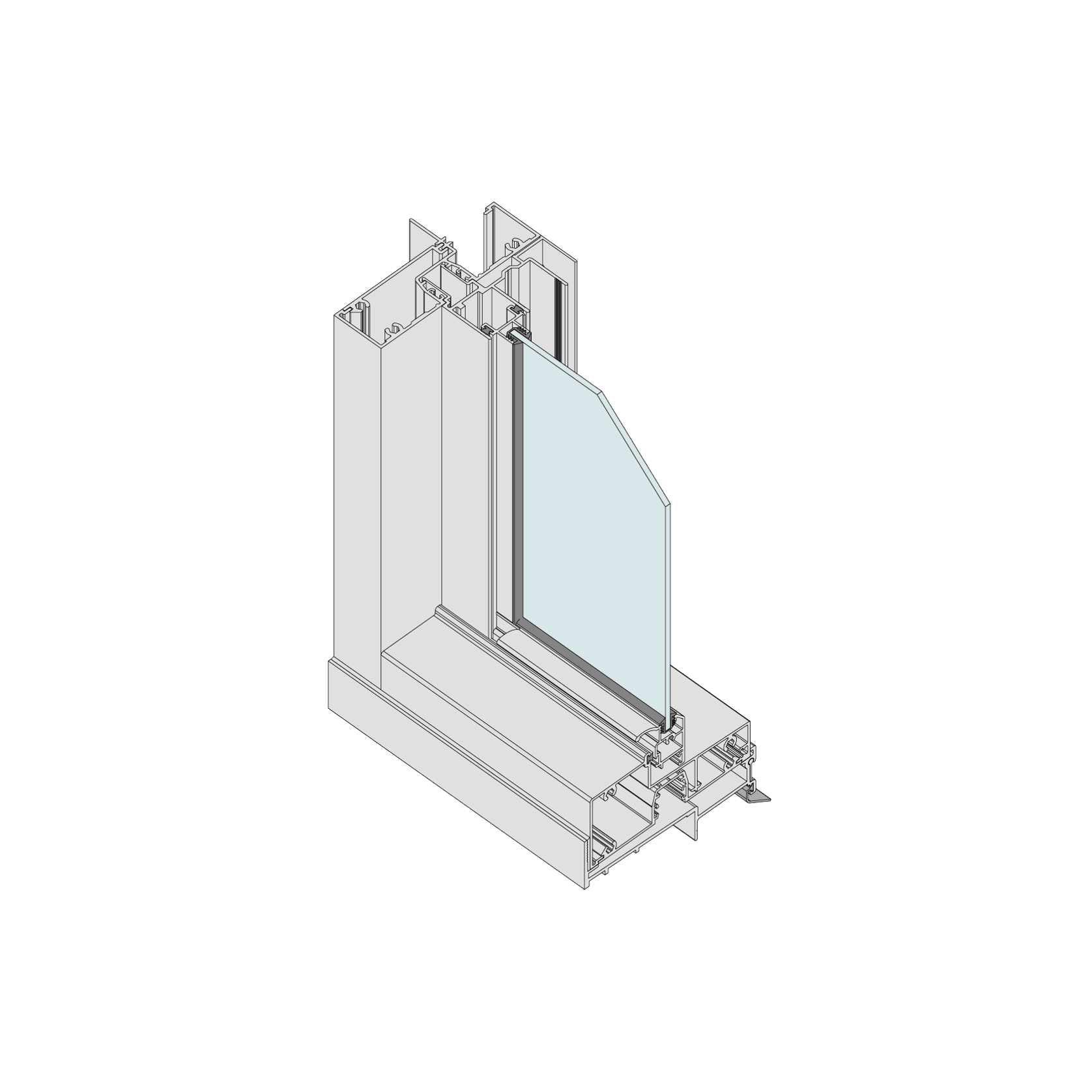

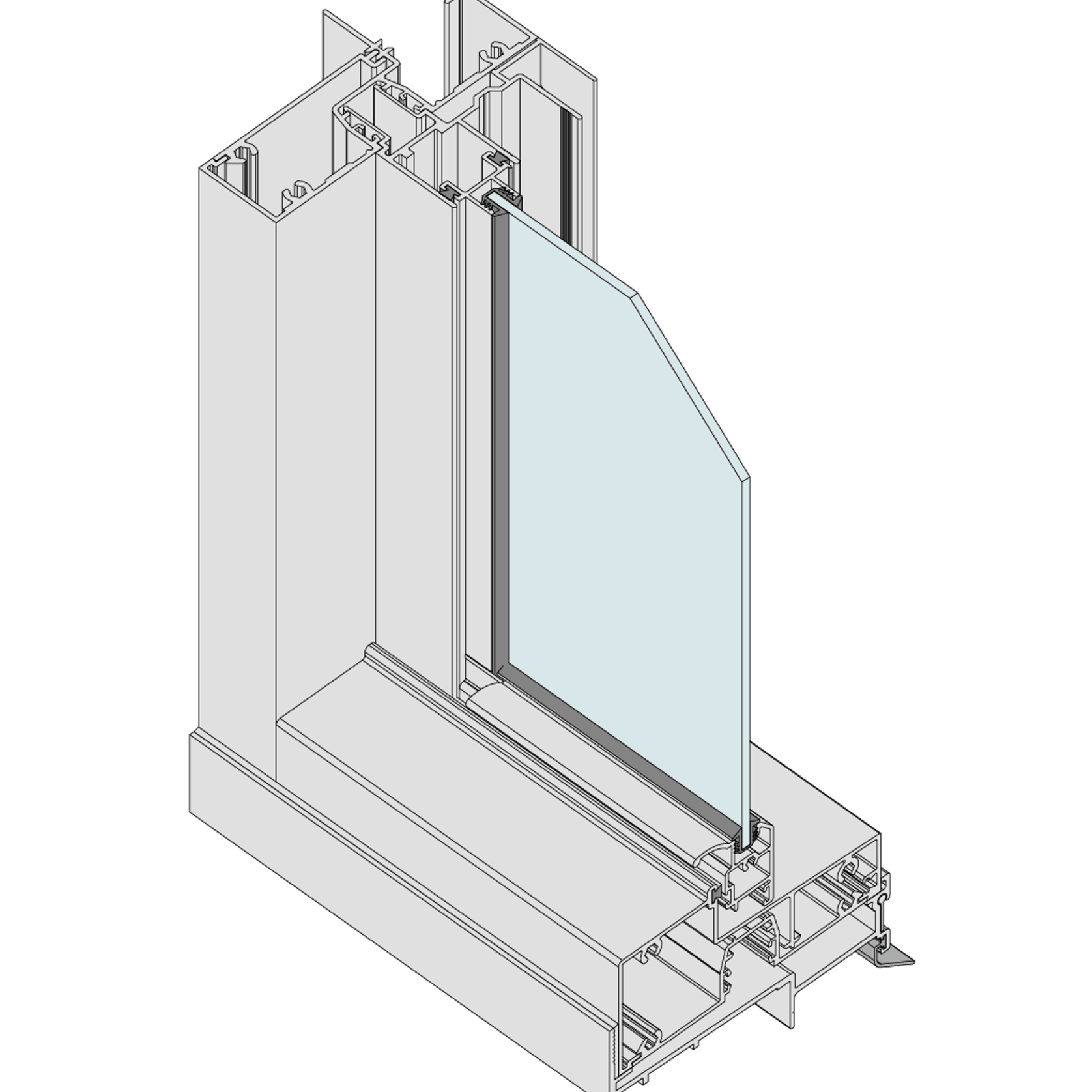

- Vertical sliding, double-hung sashes are inlaid directly into commercial framing to suit larger window spans.
- This window can even be fitted with concealed flyscreens to give your building a sleek, modern appearance.
- Tested to a high water resistance of 200Pa, the clever bi-fold design allows sashes to bypass each other for easy cleaning from inside the building. Fixed lowlights can also be glazed from the inside in elevated installations through a simple customisation at assembly.
- If security is a concern, you can breathe easy with the added protection of our heavy-duty, key lockable catch with die-cast keeper.
- These windows are also suitable for use in cavity brick and brick veneer construction. So convenient!
- Maximum Panel Height *1050mm
- Maximum Panel Width *1155mm
- Maximum Glass Thickness ≤ 7.50mm
- SHGC Range 0.29 - 0.64
- Uw Range 4.9 - 6.5
