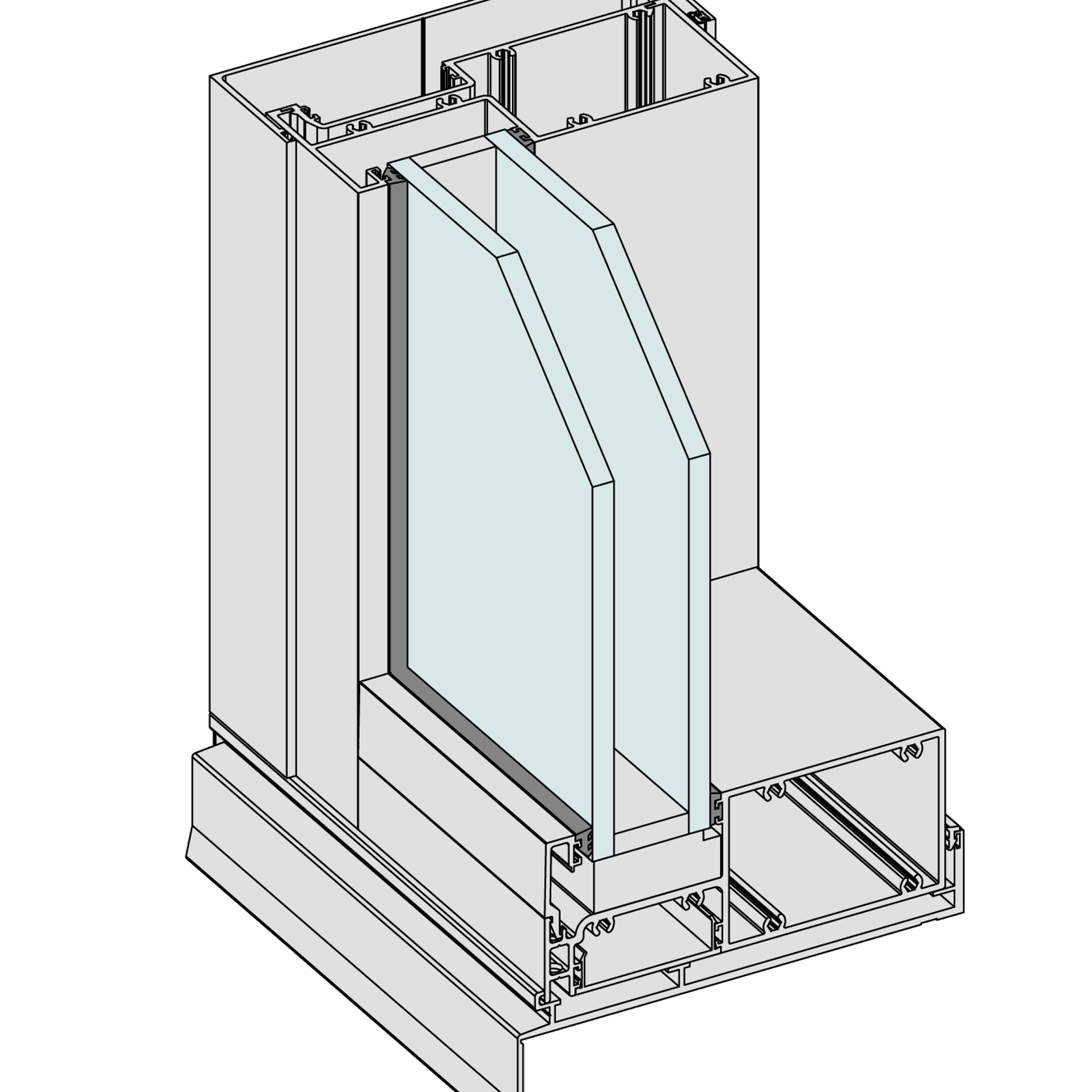

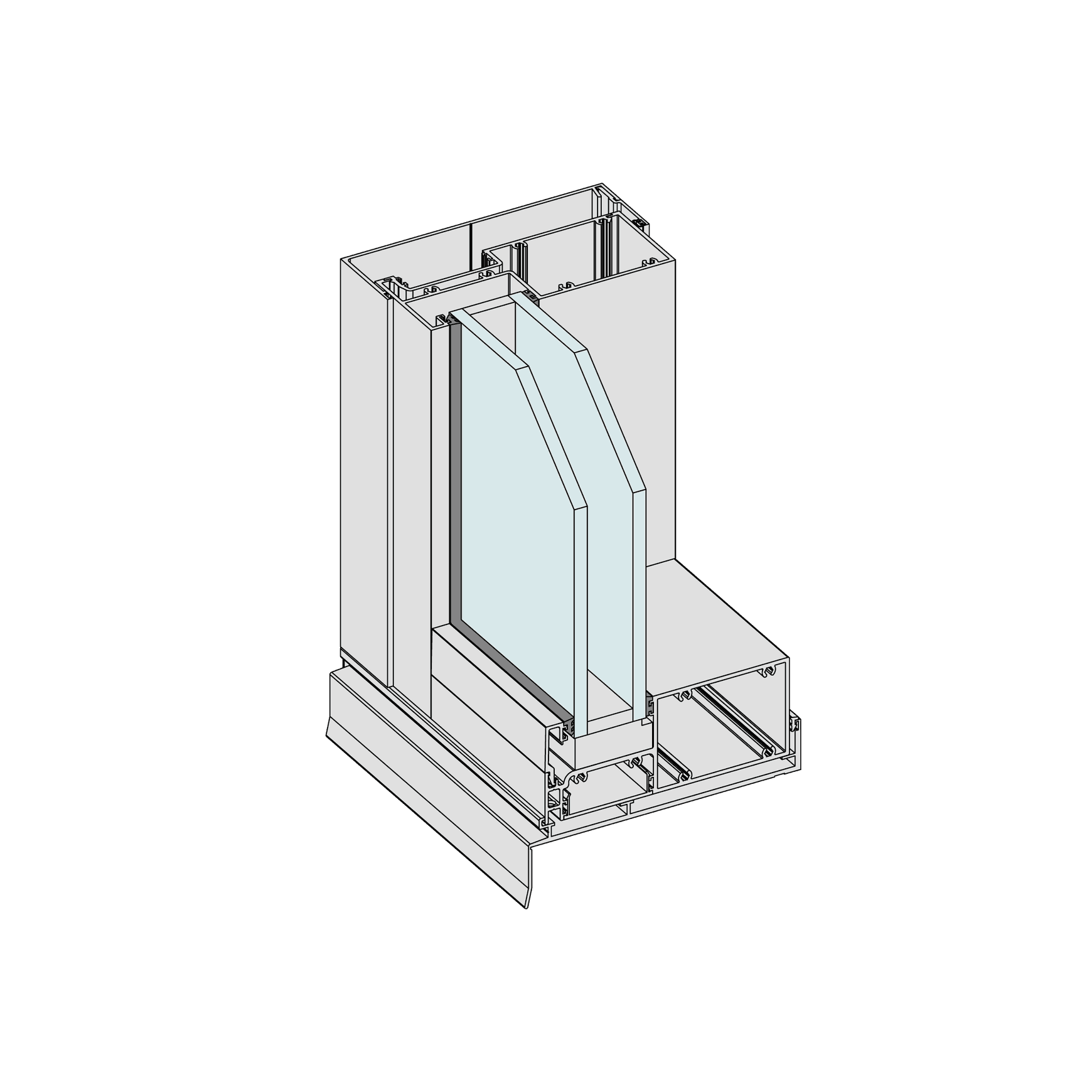

Elevate | Series 660 | Double Glazed 150mm Framing
- FrontGLAZE™ double glazed shopfront framing system designed to IGUs up to 44mm
- Basic 150 x 60mm framing system with a large variety of accessories including sub-frames, COC transom, matching doors that will also accept up to 36mm double glazing and a variety of door thresholds.
- Glazing pocket designed to accept up to 44mm insulating glass units (IGU's) with 12mm bite plus another 8mm to cover glass production and installation tolerances.
- Pocket reducers for thinner IGU glazing options.
- Compatible with a large range of other Elevate™ framing systems, including sliding doors.
- Snap together and interlocking expansion mullions.
- 50mm Thick door designed to accept double glazing and a large variety on industry standard hardware.
- Successfully tested to resist up to 450Pa water
- CategorySash Windows
- RangeElevate | Commercial ThermalHEART
Maximum Panel Height* Various
Maximum Panel Width* Various
Maximum Glass Thickness 44mm
SHGC Range0.21 - 0.55
Uw Range2.3 - 2.5
