Corrugate | Metal Roofing & Cladding
Corrugate profile is cost effective and versatile, able to handle a wide range of roofing and wall cladding applications. Corrugate profile can also be bullnose curved. Corrugate is available in Zincalume®, Galvsteel®, Colorsteel® Endura® and Colorsteel® Maxx®.
- CategorySteel Roofing, Metal Cladding
- RangeMetal Roofing & Cladding

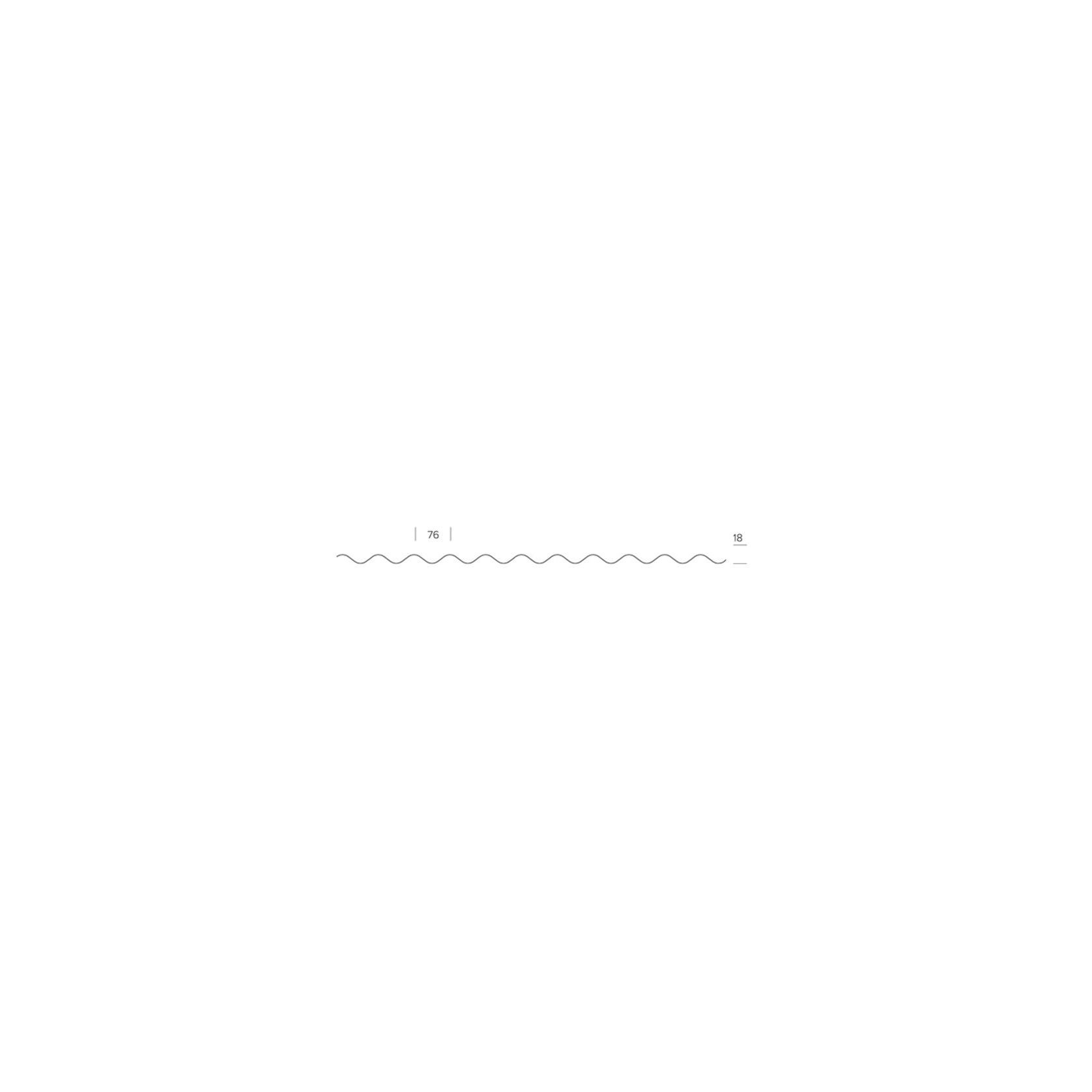

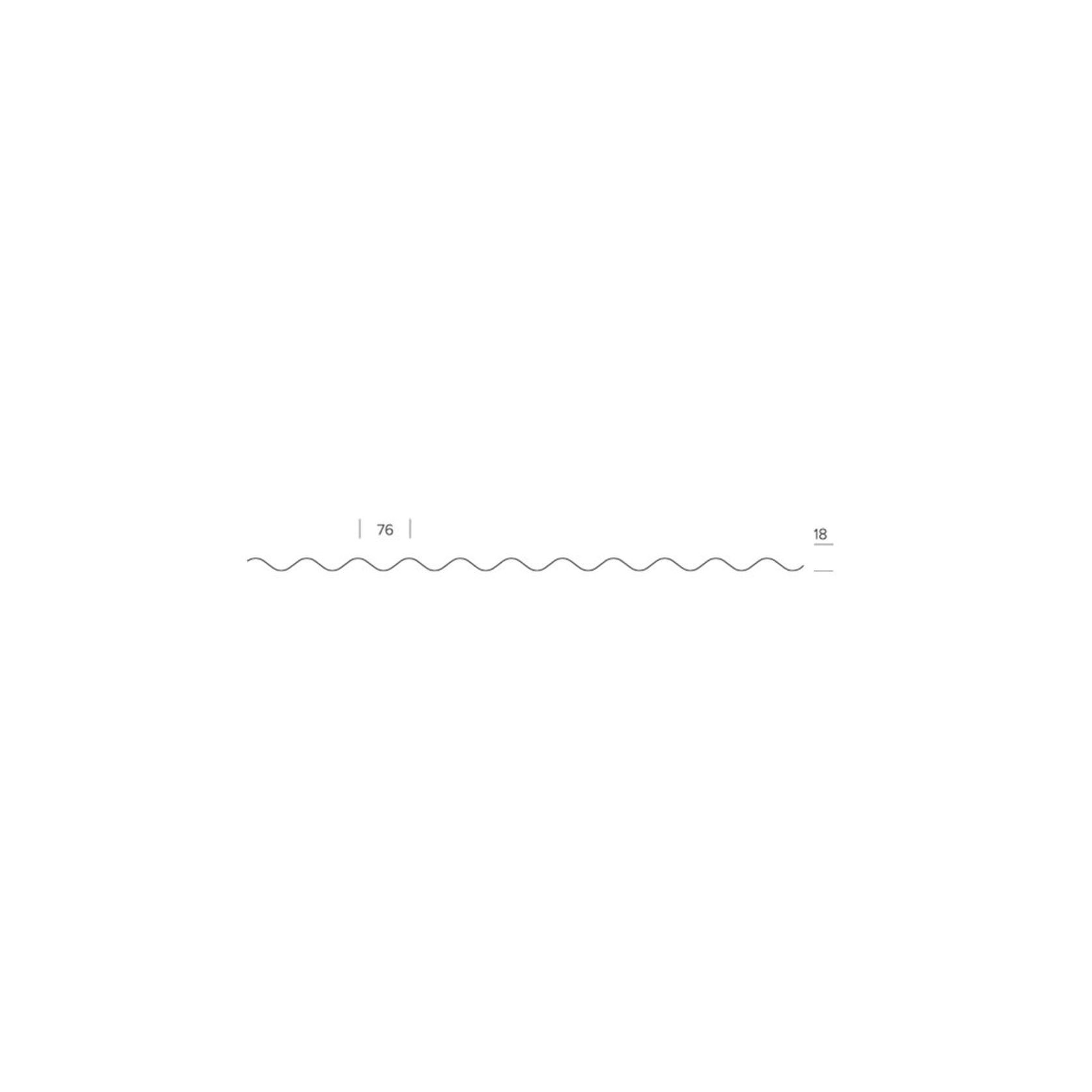

- COVER: 760 mm
- SHEET WIDTH: 851 mm
- MINIMUM PITCH: 8°
- CURVING: Bullnose, Drape and Spring Curving options available
- APPLICATION: Residential, Commercial, Rural, Industrial roofing and cladding
- ORIENTATION: Roofing and both vertically and horizontally laid cladding
- AVAILABILITY: Auckland, Whangarei, Hamilton, Palmerston North, New Plymouth, Hastings, Wellington, Christchurch, Cromwell. Available from all Metalcraft Roofing branches.
MINIMUM PITCHES:
The minimum pitch is determined by the ability of the roof cladding to discharge maximum rainfall without water penetration through the side laps or flashings. The minimum pitch for Corrugate is: 8° after deflection for sheet lengths of 30m. 9° after deflection for sheet lengths exceeding 30m but less than 50m.
The above minimum requirement has been calculated assuming peak rainfall to be less or equal to 100mm/hr.
Other products
in this range

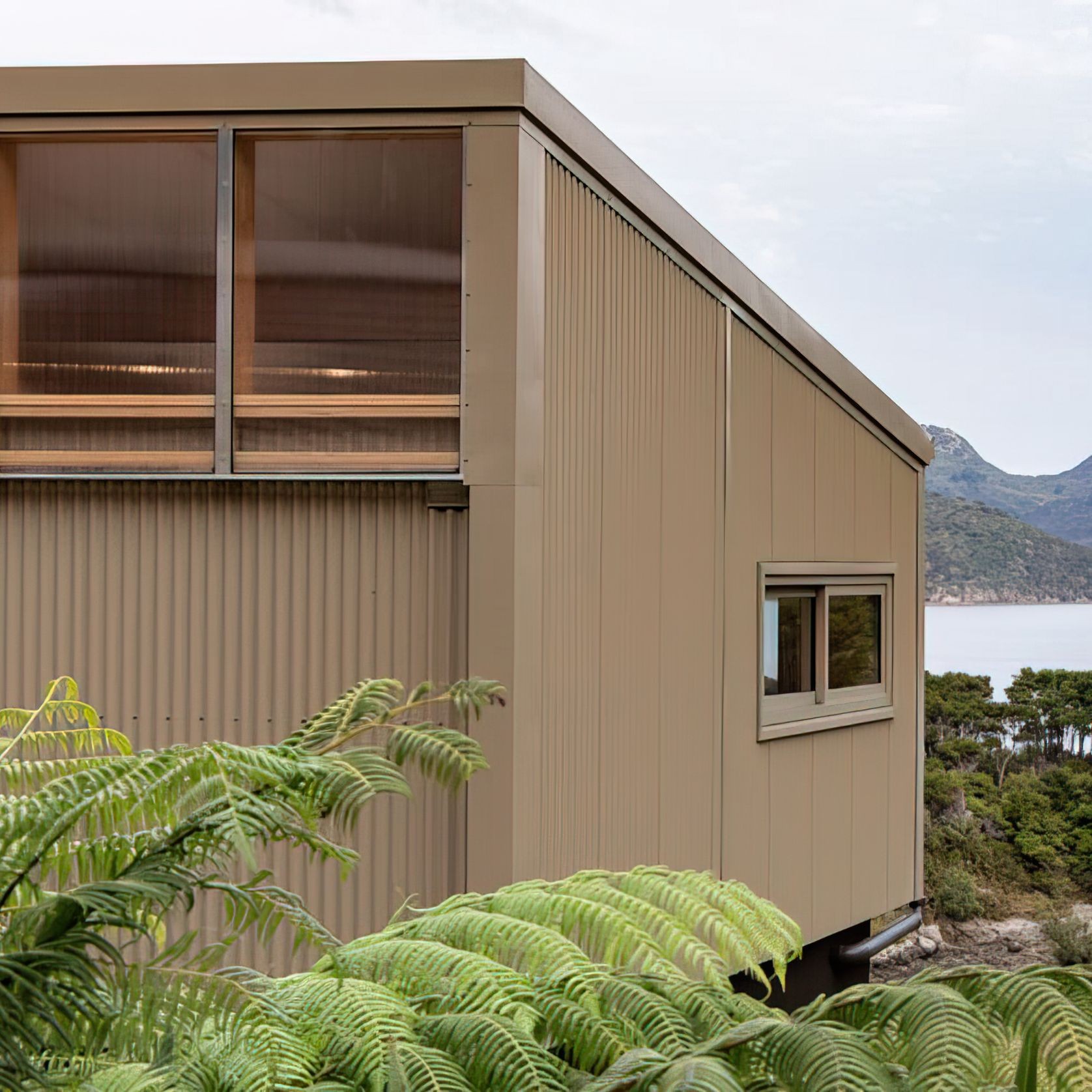

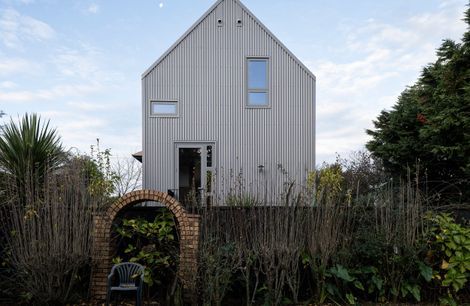

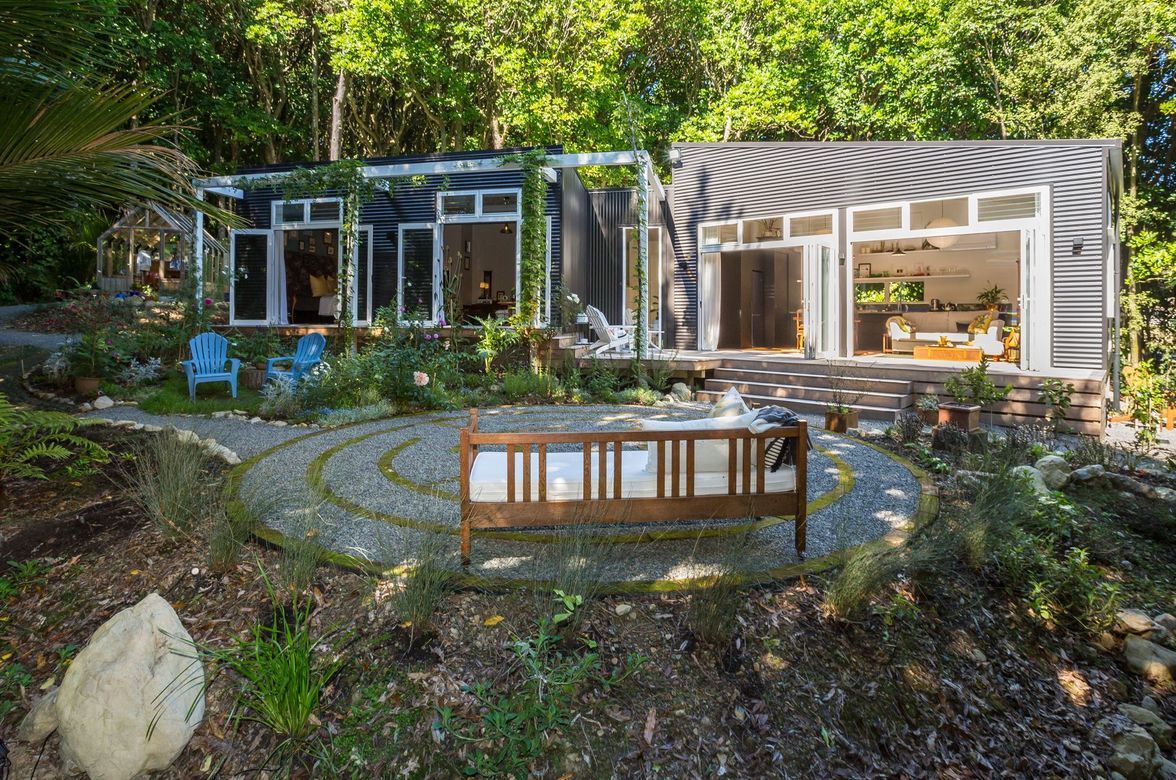

Projects featuring
