Cosmo Linear System

Bright Light
Cosmo Linear System gallery detail image
Cosmo Linear System gallery detail image
Cosmo Linear System gallery detail image
Cosmo Linear System gallery detail image
Cosmo Linear System gallery detail image

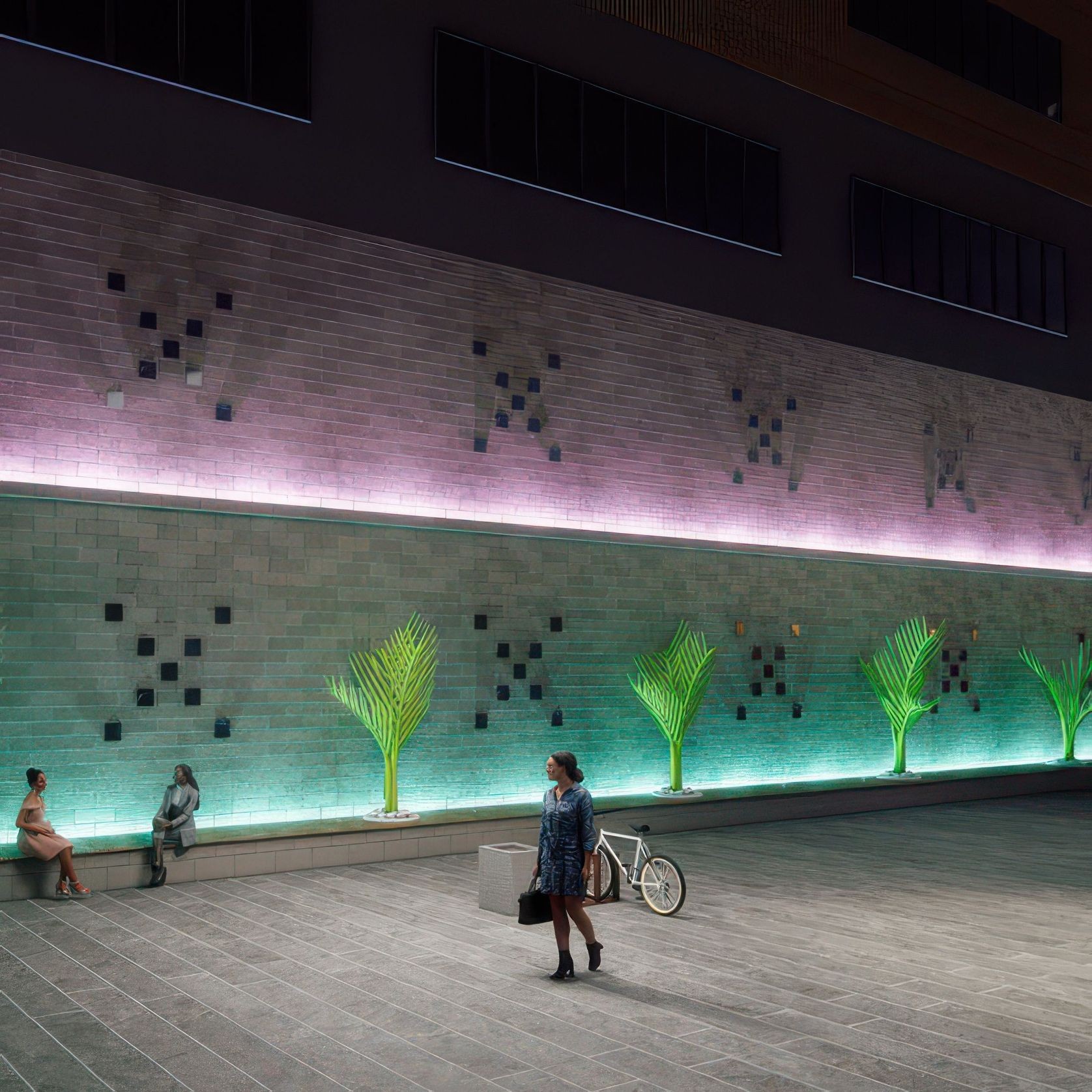

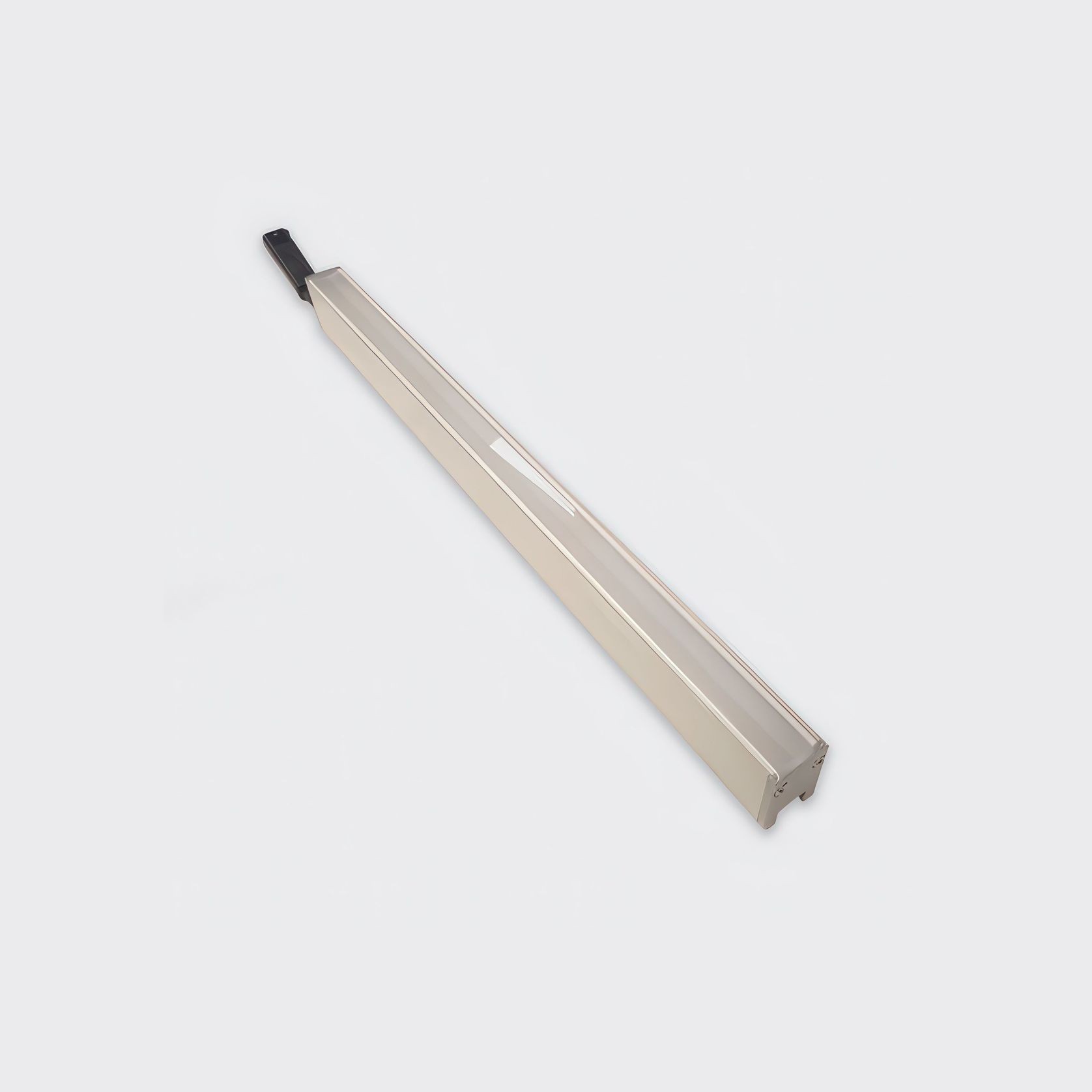

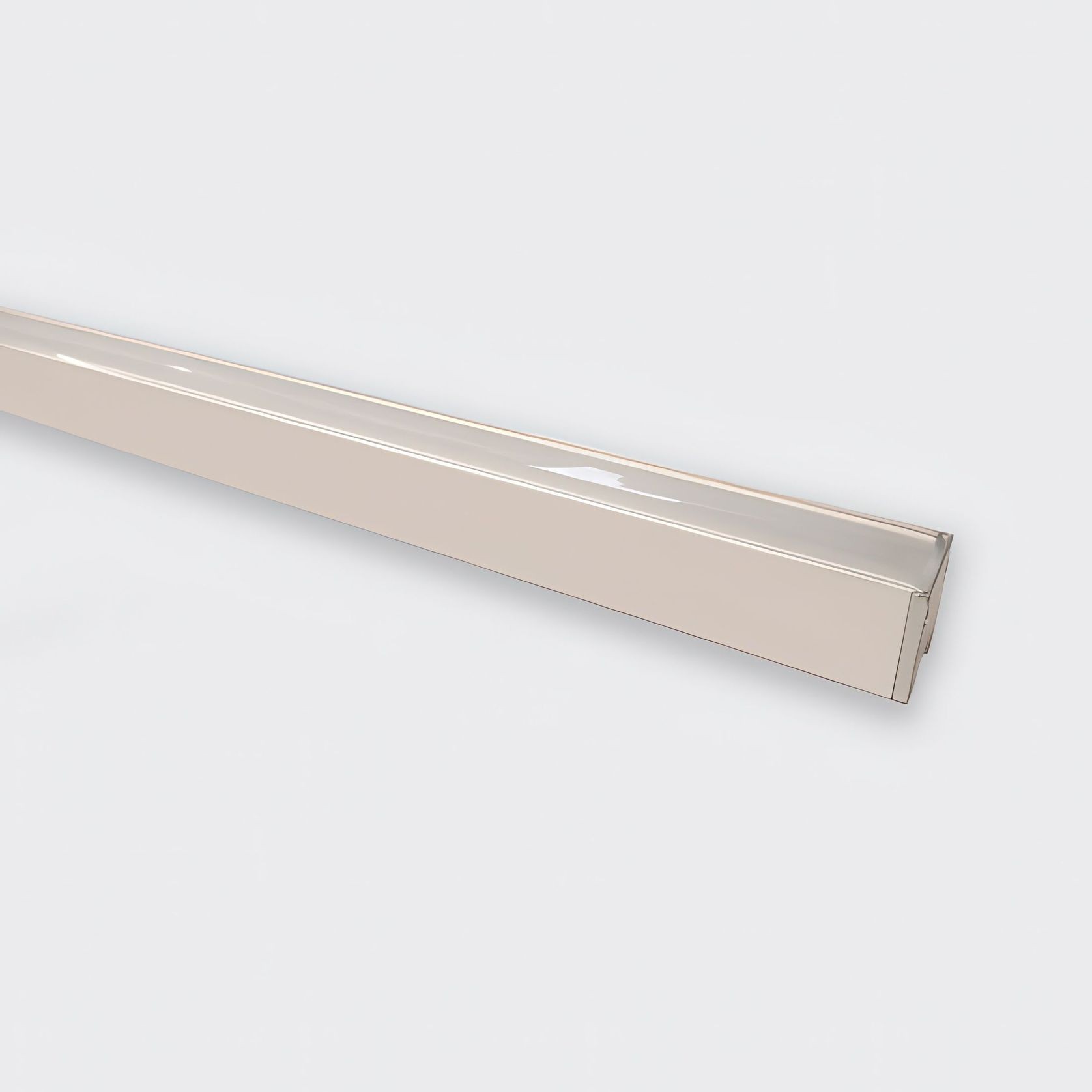

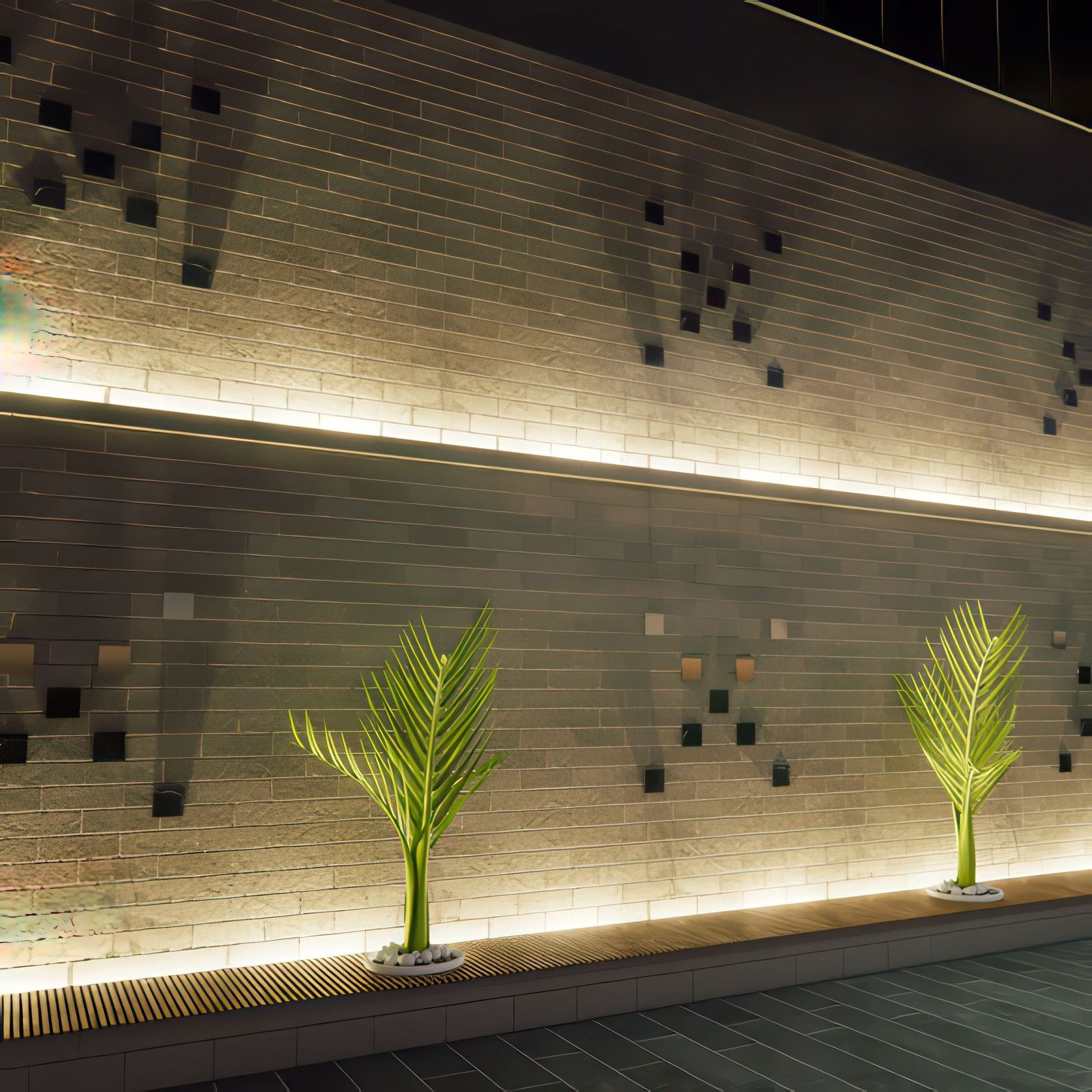

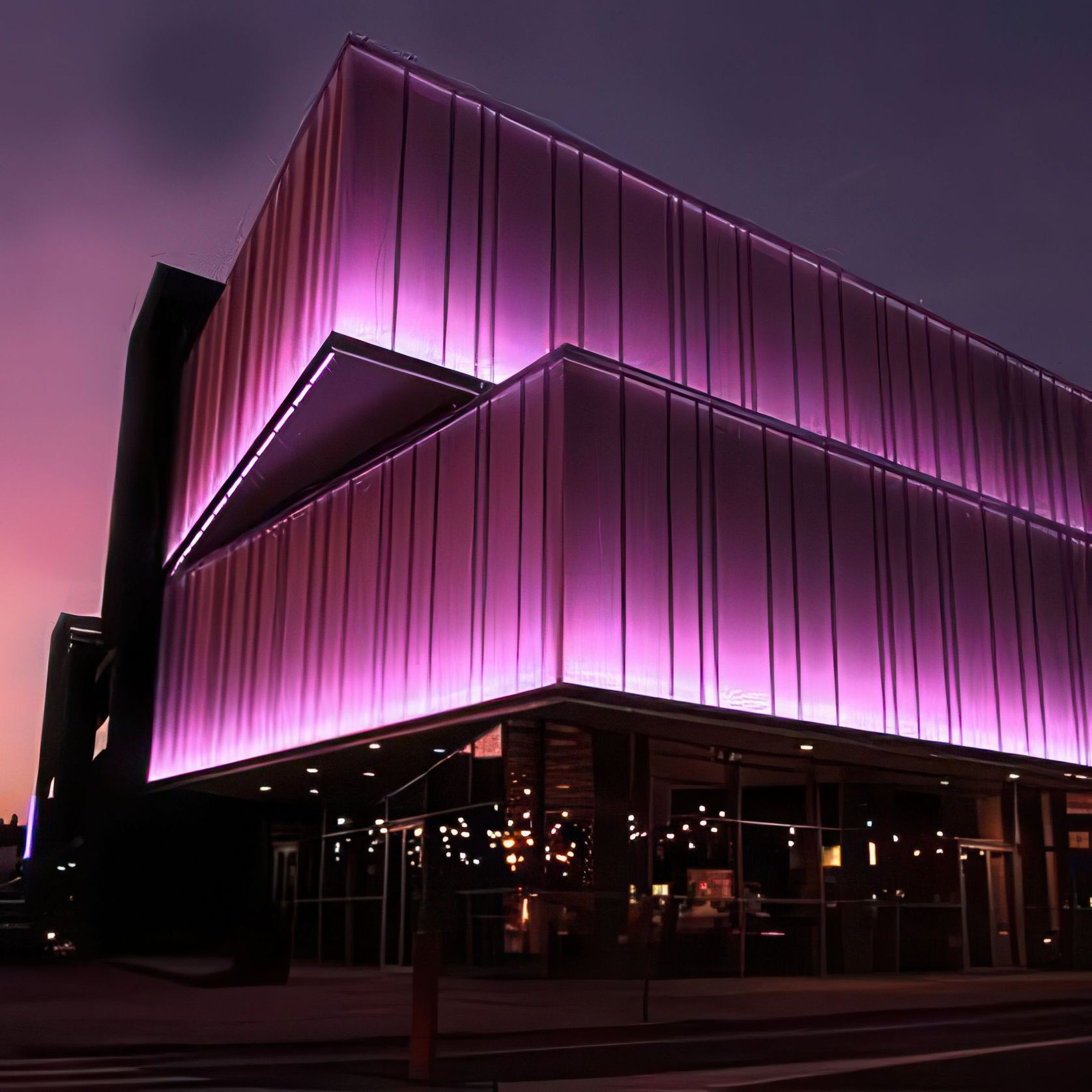

The Cosmo Linear System is the perfect wall grazing solution, offering complete inter-connecting IP67 aluminium profile & LED modules available in white, tuneable white and RGBW. Modules come in 310 / 615 / 1002 / 1227mm and are combined to make total lengths, with a maximum of 10 metre runs per power feed.

Several beam angle options are available: 15° / 30° / 45° / 60° with clear diffuser or 120° with opal diffuser.  Note: 15° beam angle is only rated for IP44 (indoor only) and is not available for RGBW option.

A range of mounting options are available offering fixed mount, 60°, 90° or 180° angles, along with aluminium profile for surface mounting.

See the downloads tab for a quote form, which can be downloaded & filled in digitally or chat with our team about your lighting design.

Details
  • Category
    Linear Lighting
  • Warranty
    5 years
Specifications

Watts

  • 26W/m White
  • 18W/m Tuneable White & RGBW

Lumens

  • Up to 2800lm/m (for white 4000K, 45° beam angle & clear lens)

Colour Temperature

  • White: 2700K, 3000K, 4000K, 6500K
  • Tuneable White: 2700–6500K
  • RGBW 3000K as standard: Standard or DMX pixel addressable.

CRI

  • ≥90

Beam Angle

  • Clear Diffuser: 15° (IP44 only) / 30°/ 45°/ 60°
  • Opal Diffuser: 120°

Finish

  • Silver

Dimensions

  • W18 × H27 x L310 / 615 / 1002 / 1227mm

Max Run Per Power Feed

  • 10 metres

Mounting

  • Mounting clips & profile available

Warranty

  • 5 years
