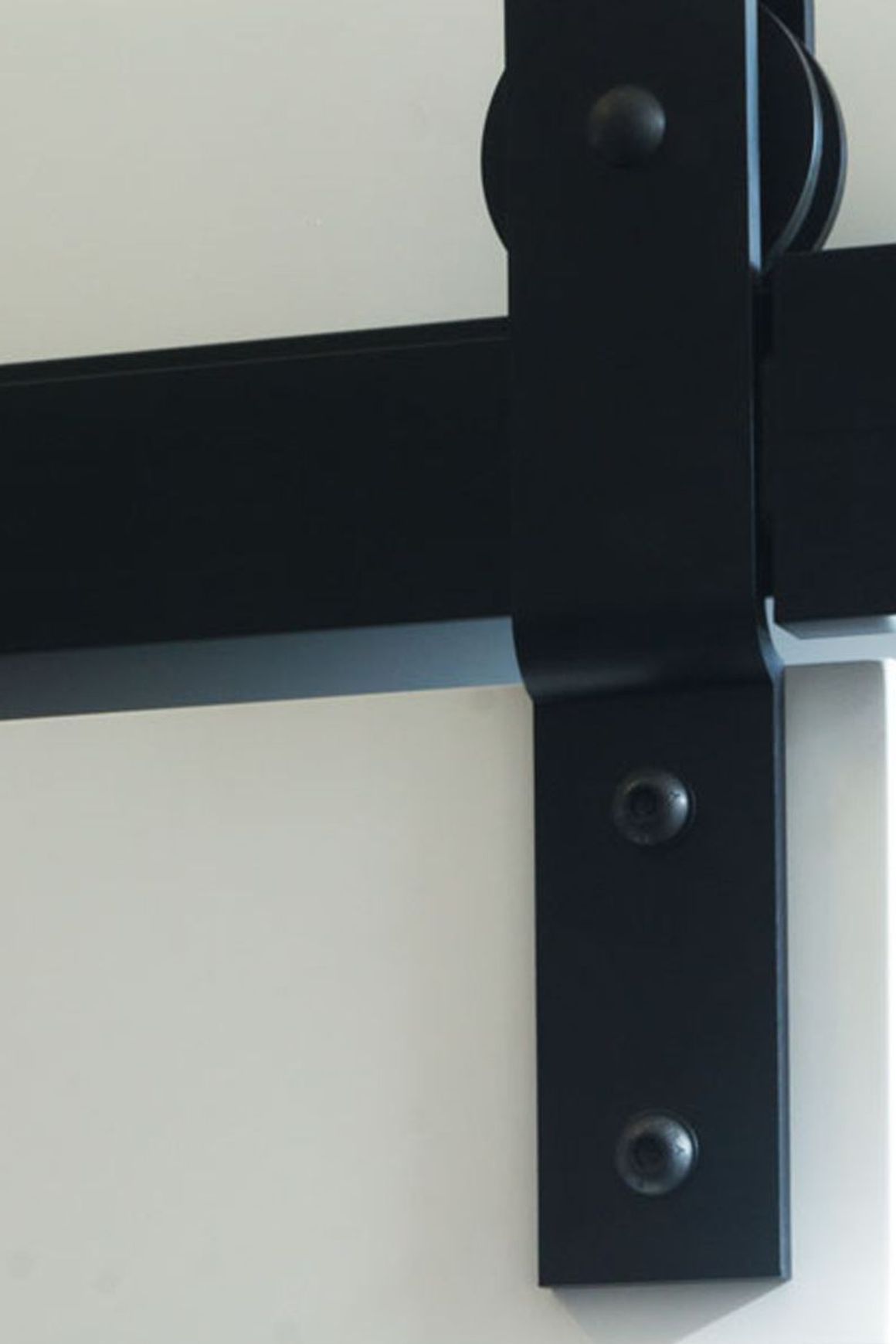

CS Barn Door Track
Auckland, New Zealand
- 588.6K profile views
- 125 saves

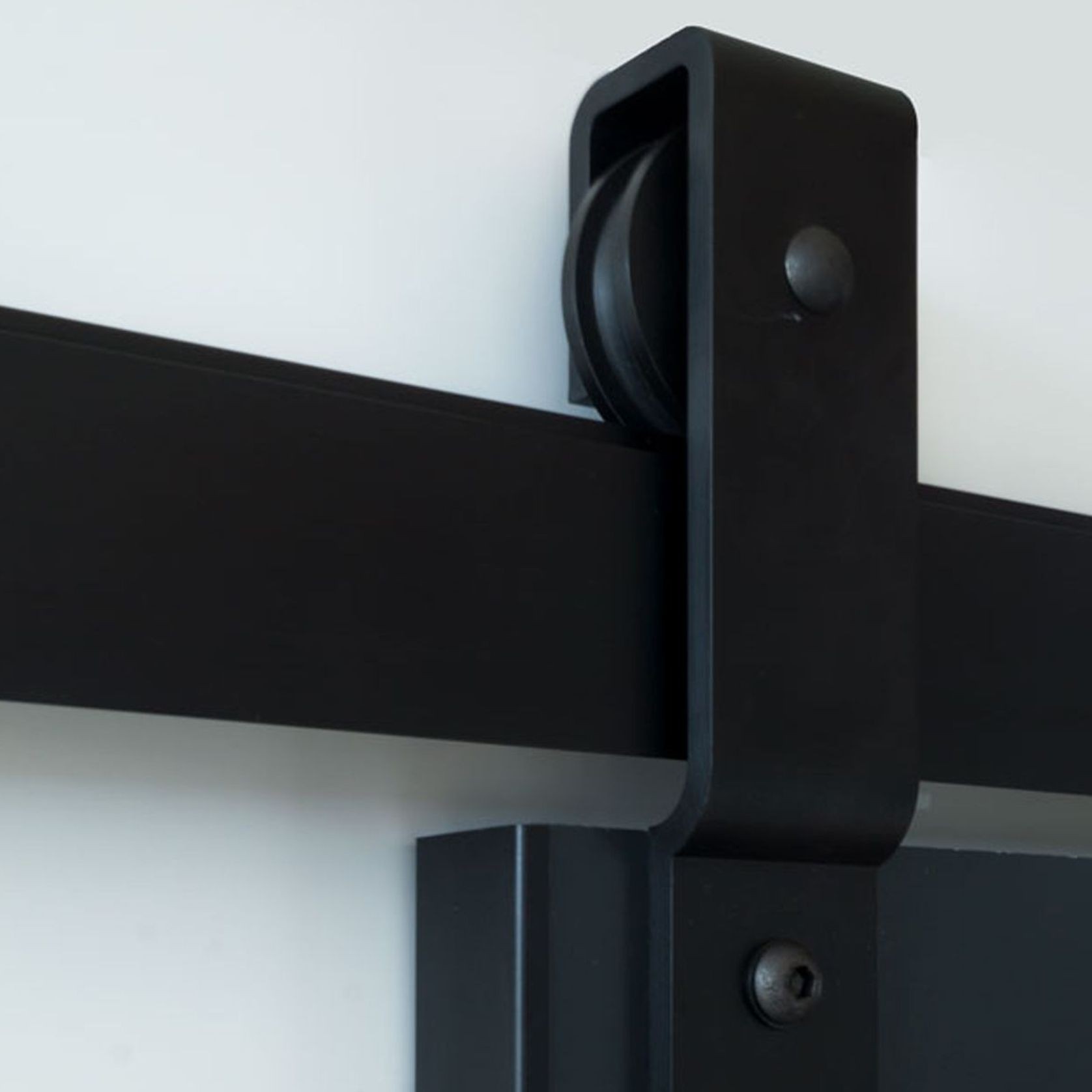

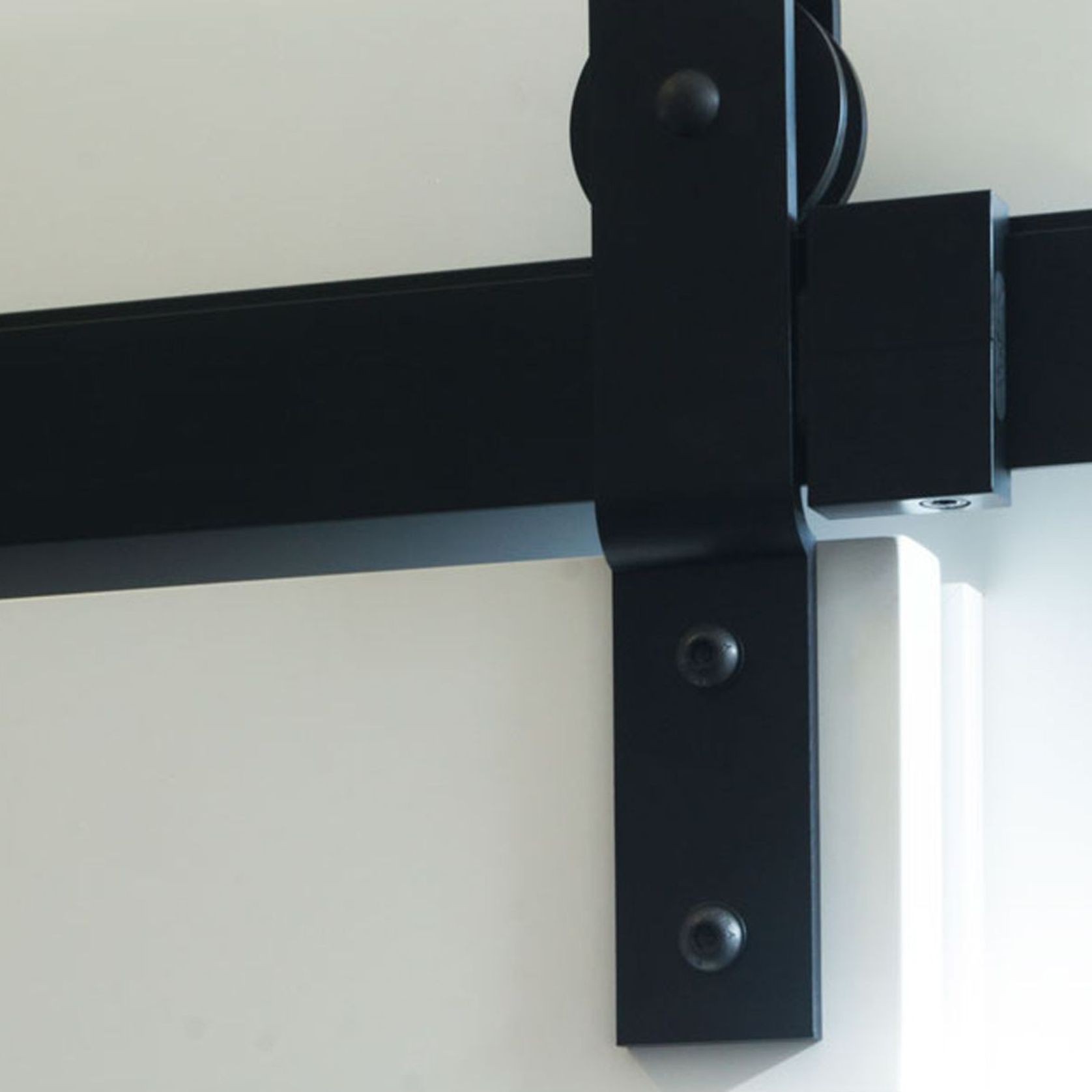

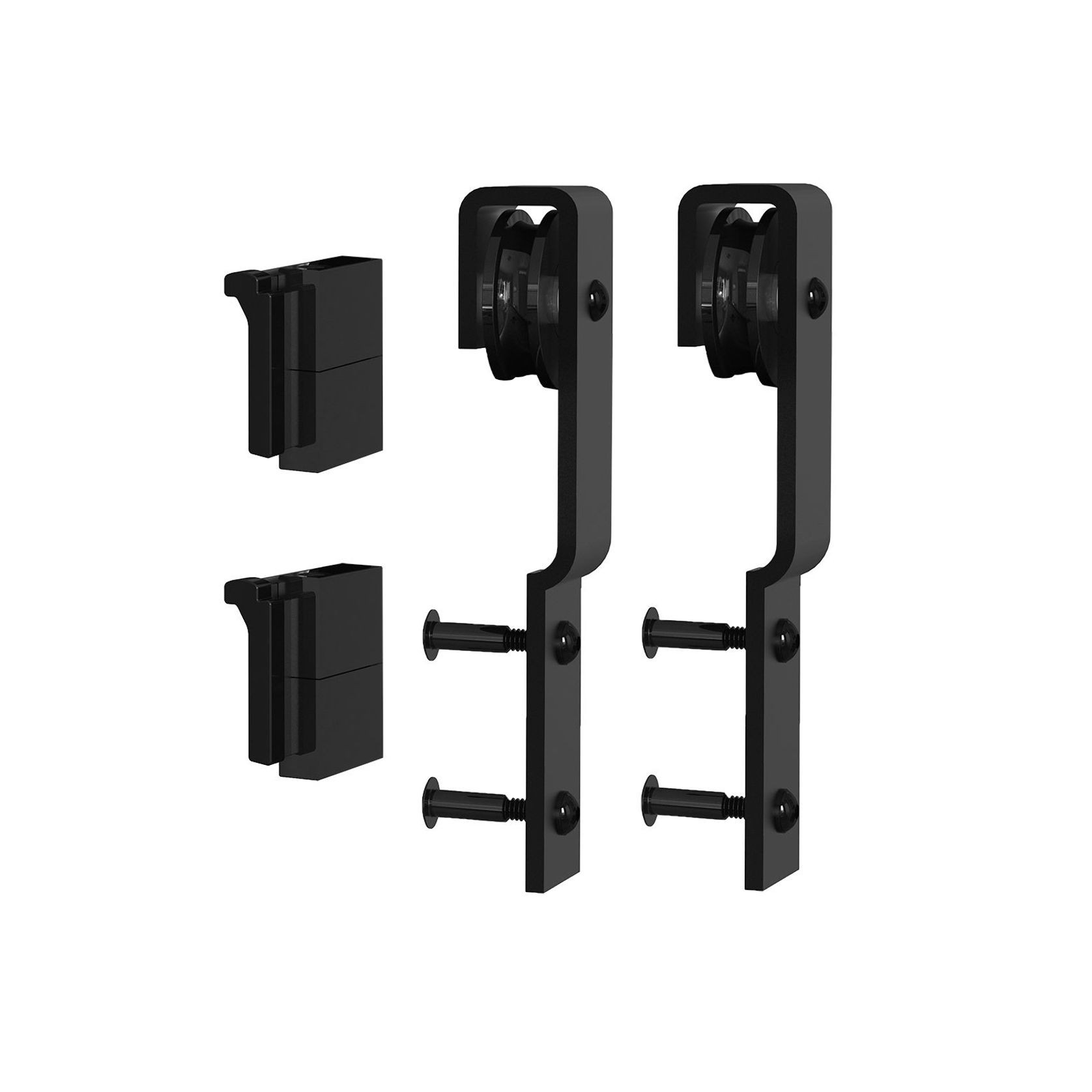

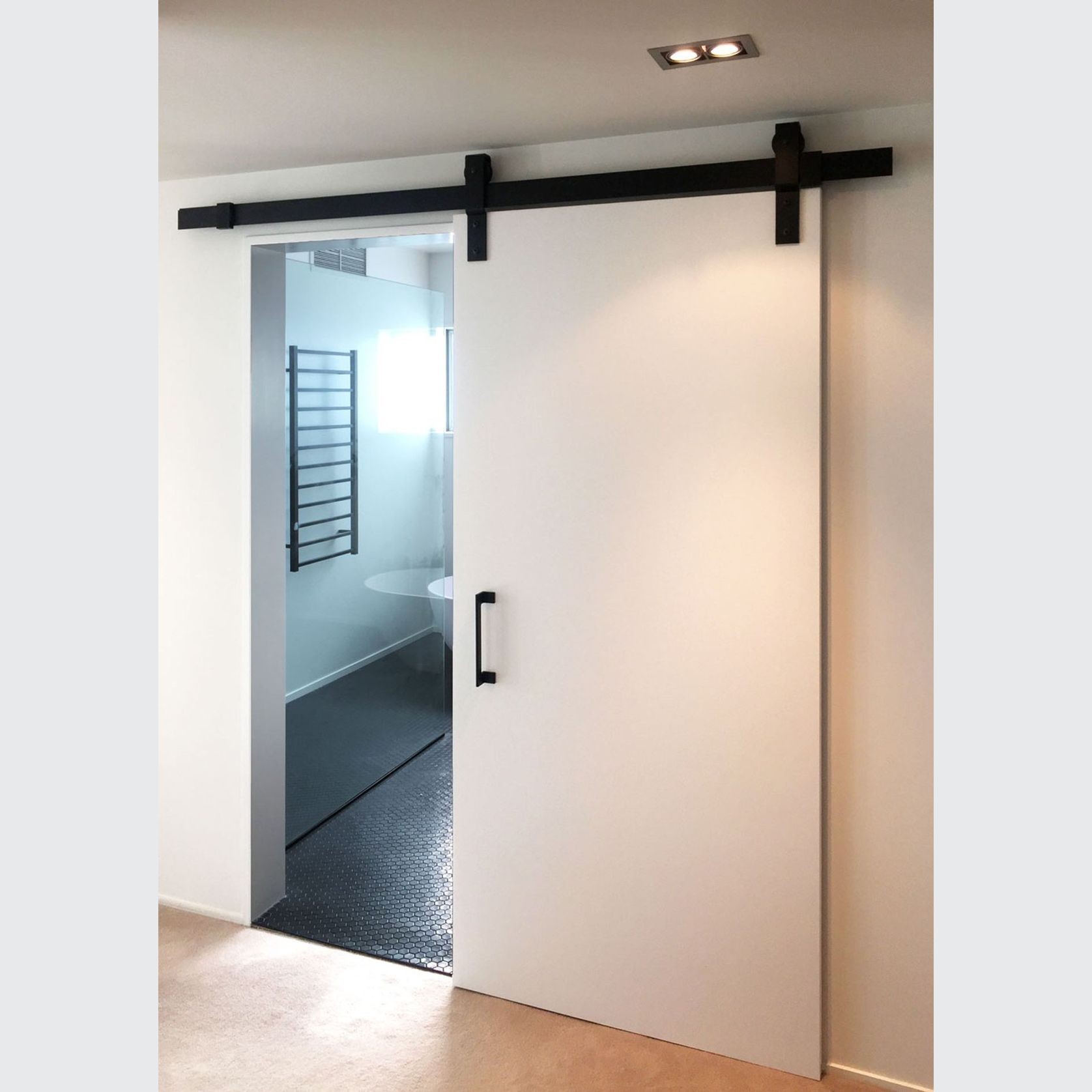

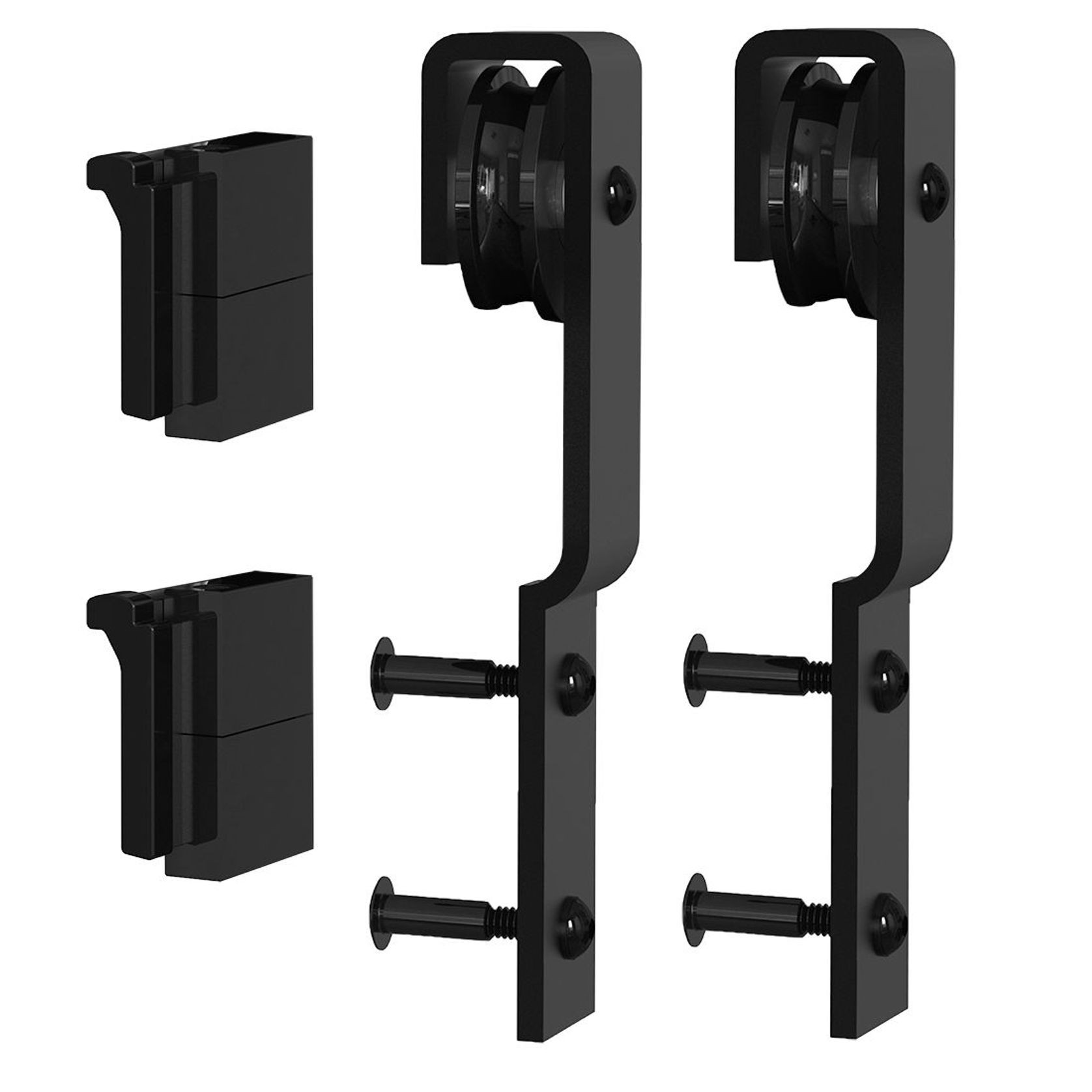

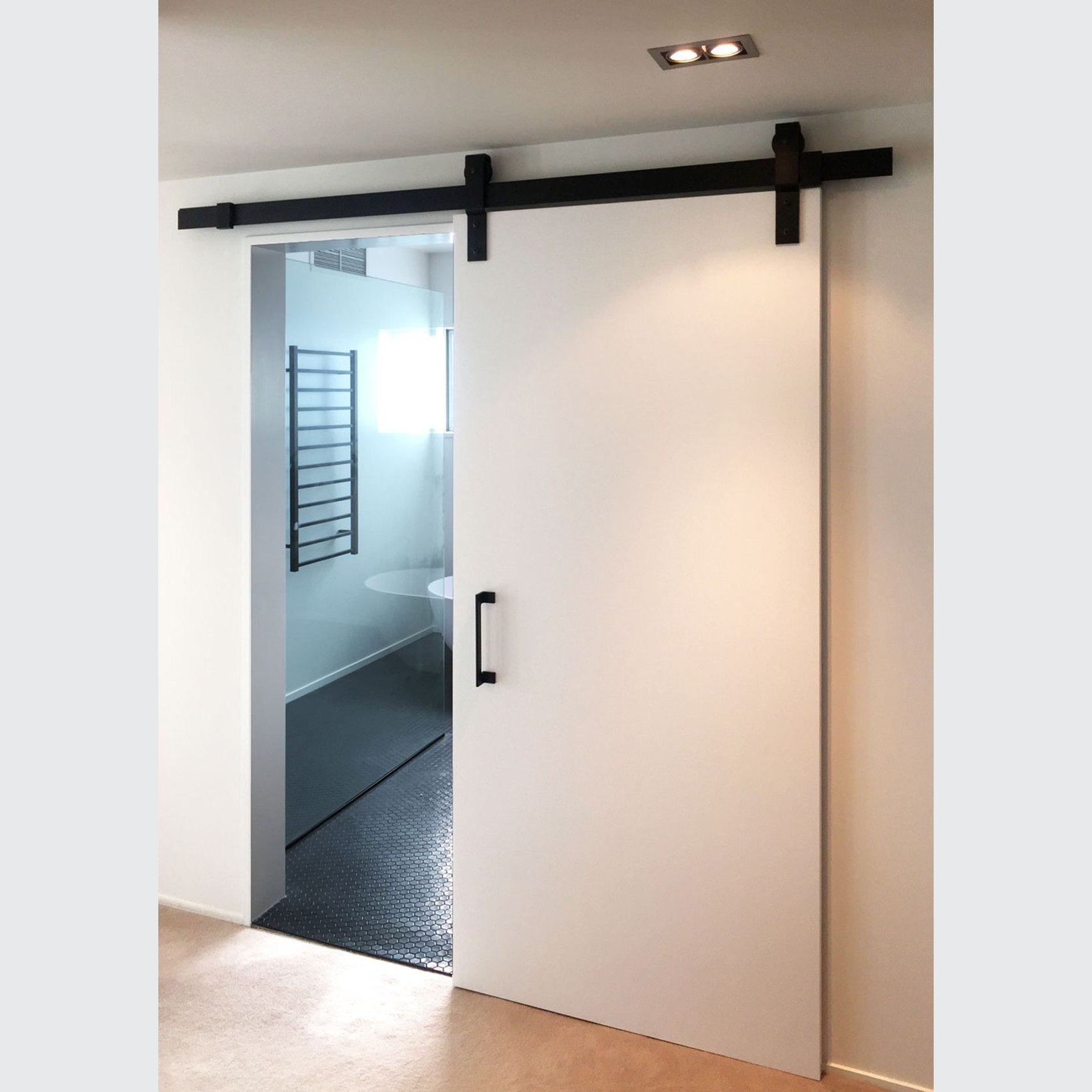

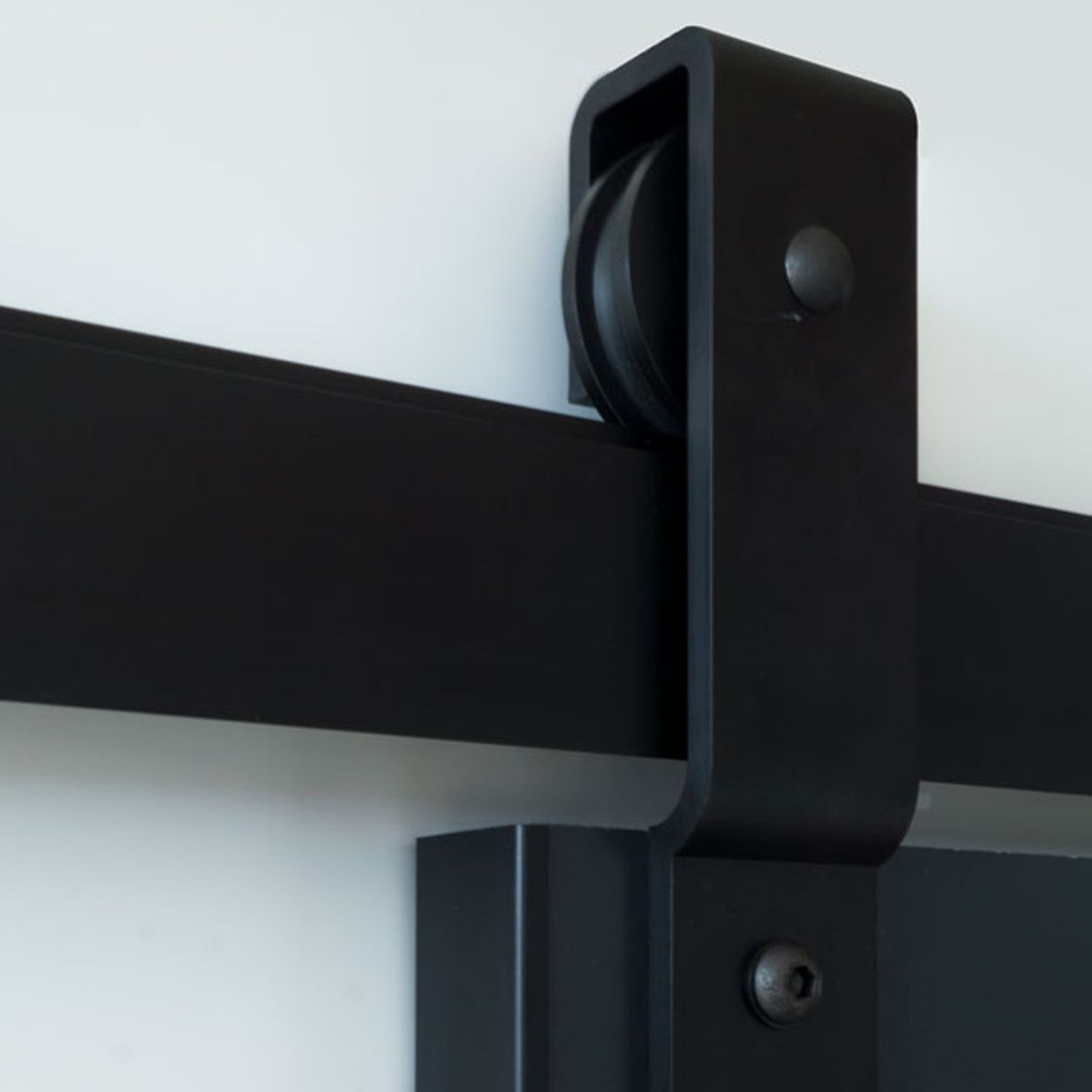

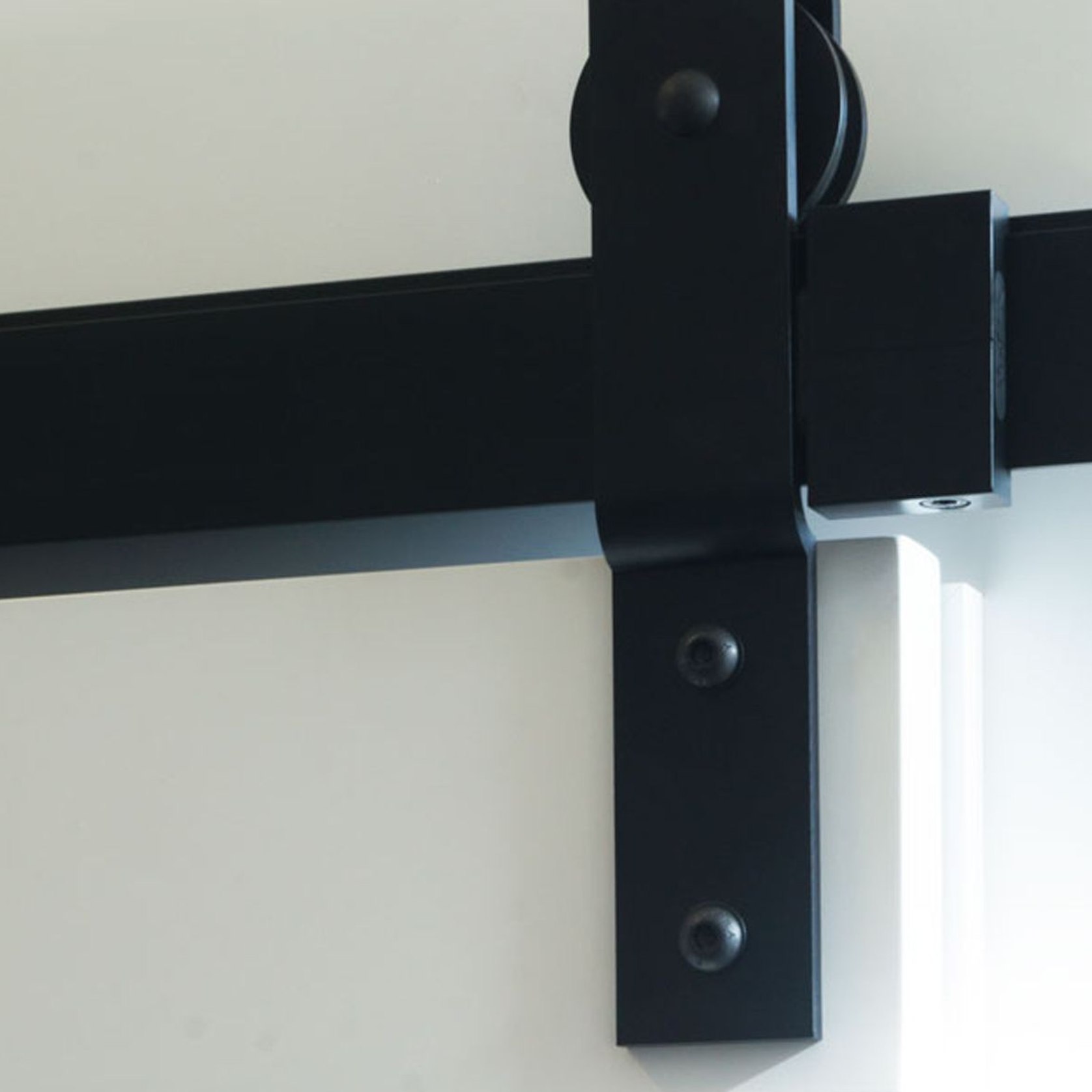

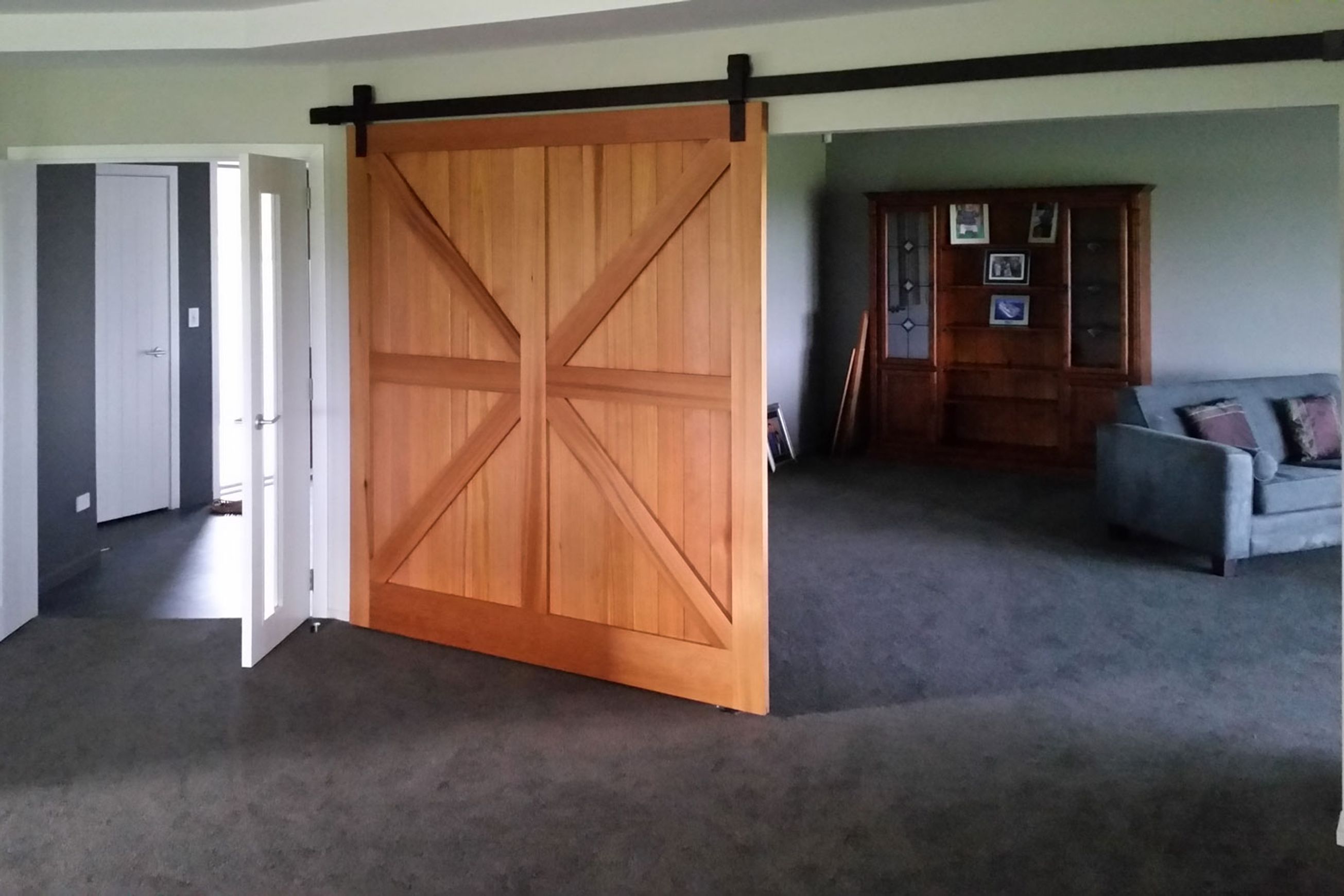

Traditional barn door track suitable for surface sliding applications where there is enough strength in the wall to mount and support a side-track with door above the opening. The track bracket is supplied with pre-machined fixing slots for quick and easy installation. The track is pre-finished black anodised and supplied complete with fixing bracket, stops, door hangers and T-Guide.
Product Details
- Product
- CS Barn Door Track
- Category
- Sliding Door Gear
- Sold by
- CS Cavity Sliders
- Pricing
- $739.45
- Range
- CaviTrack
- Designer
- CS Cavity Sliders
- Country of origin
- New Zealand
- Type of use
- Residential
- Installation
- Professional installation recommended
- Assembly
- Easy self assembly
- Warranty
- 10 years
Product Variants
- Colours
- Material
- Size
Product specified by
Traditional barn door track suitable for surface sliding applications where there is enough strength in the wall to mount and support a side-track with door above the opening.

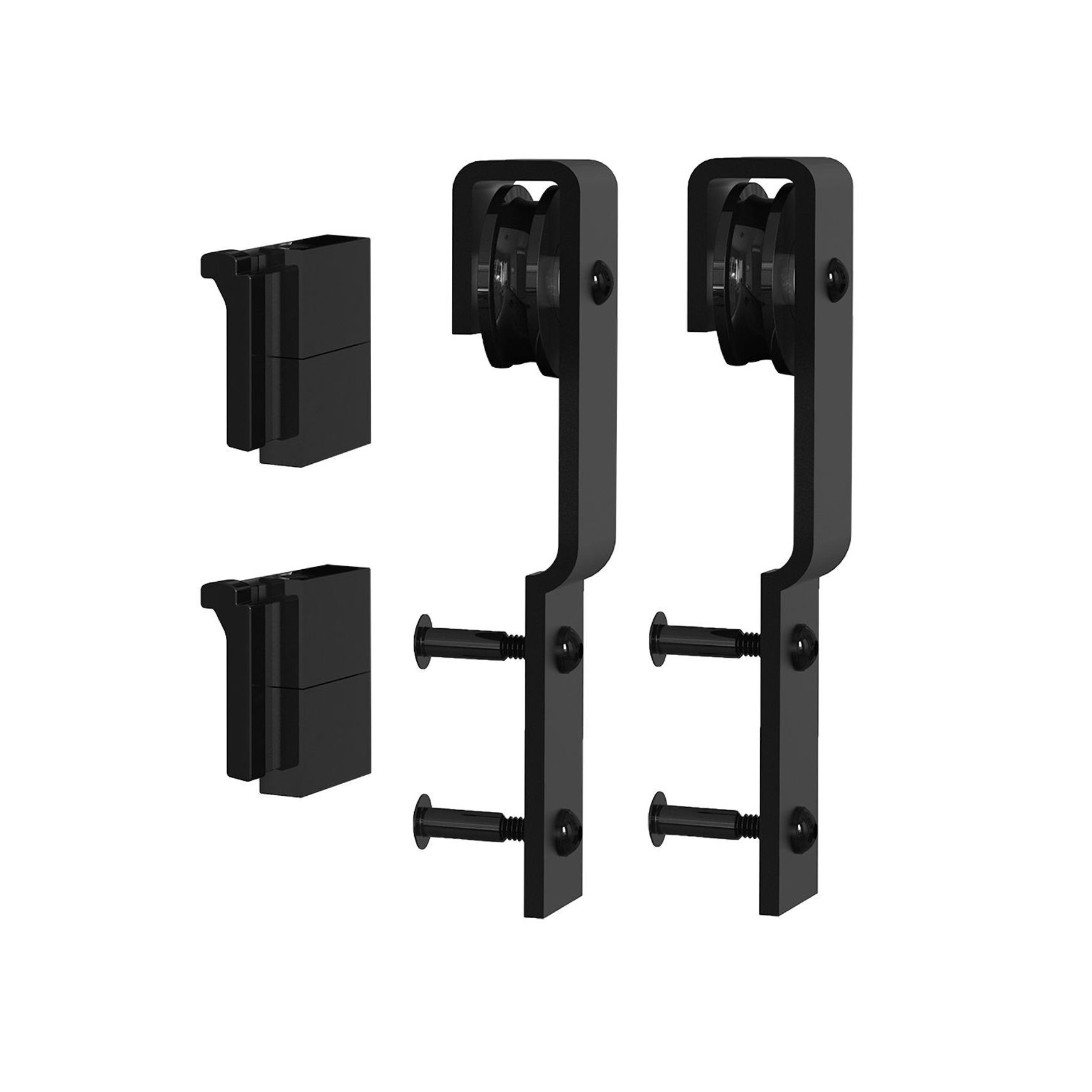

The track bracket is supplied with pre-machined fixing slots for quick and easy installation. The track is pre-finished black anodised and supplied complete with fixing bracket, stops, door hangers and T-Guide.

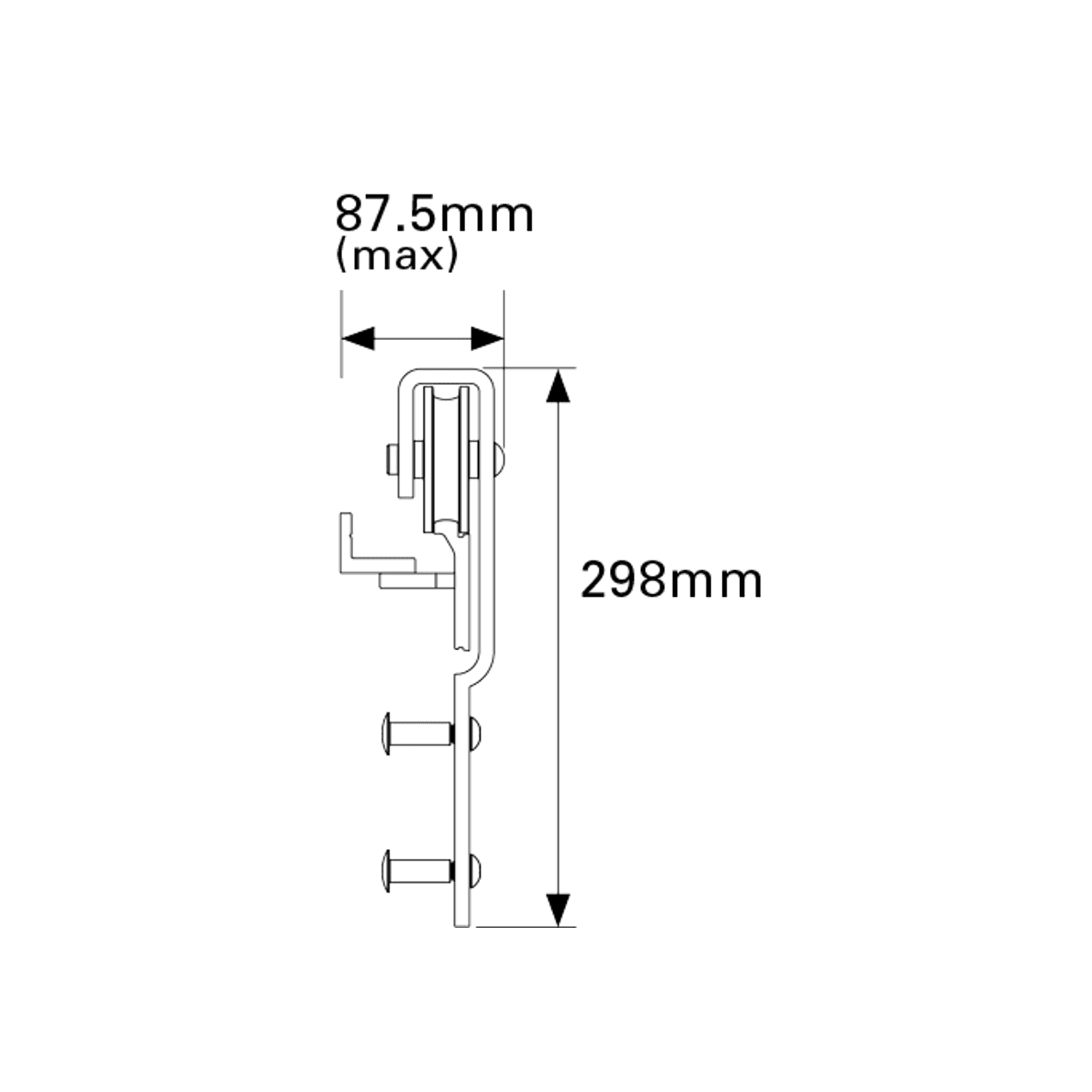

- Dimensions

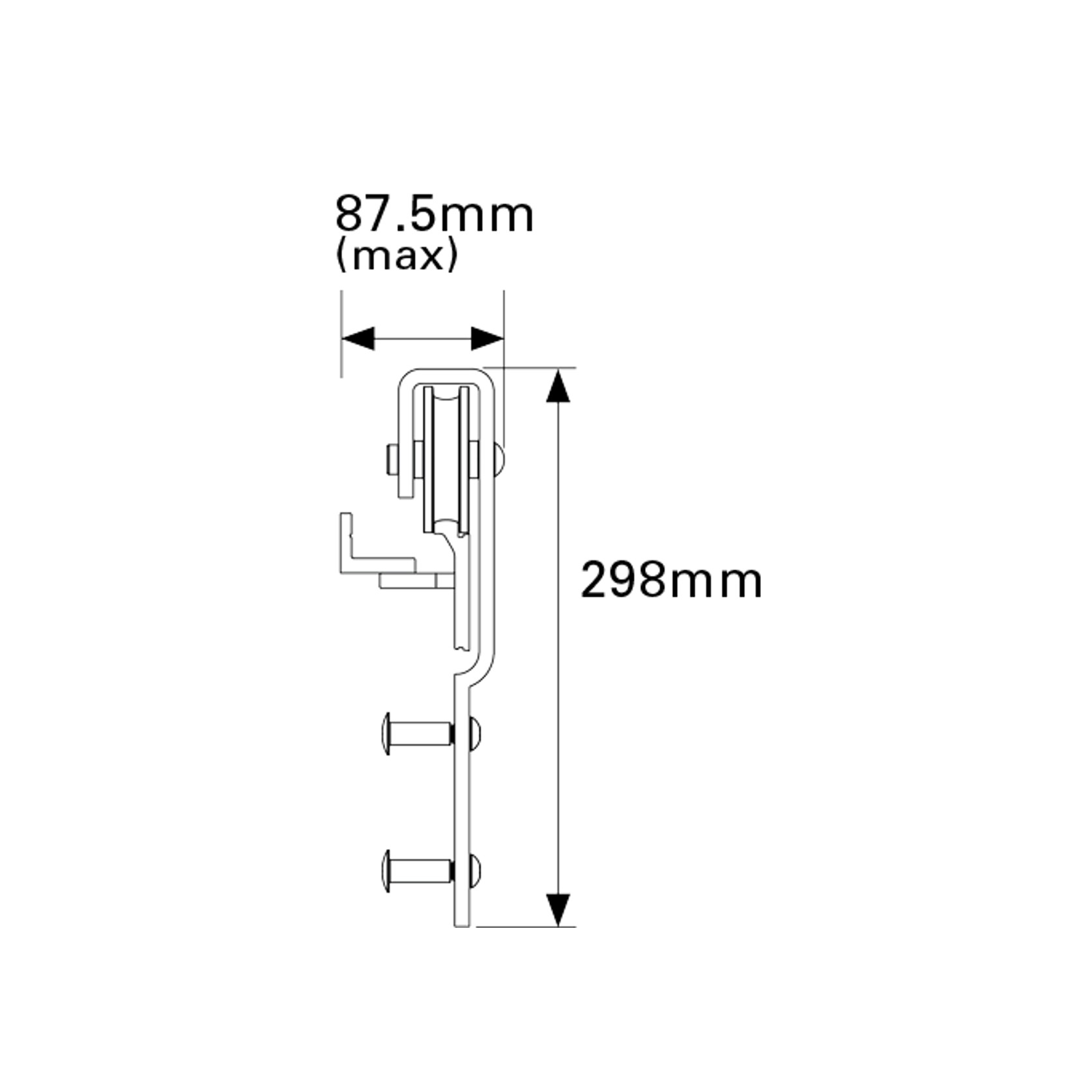

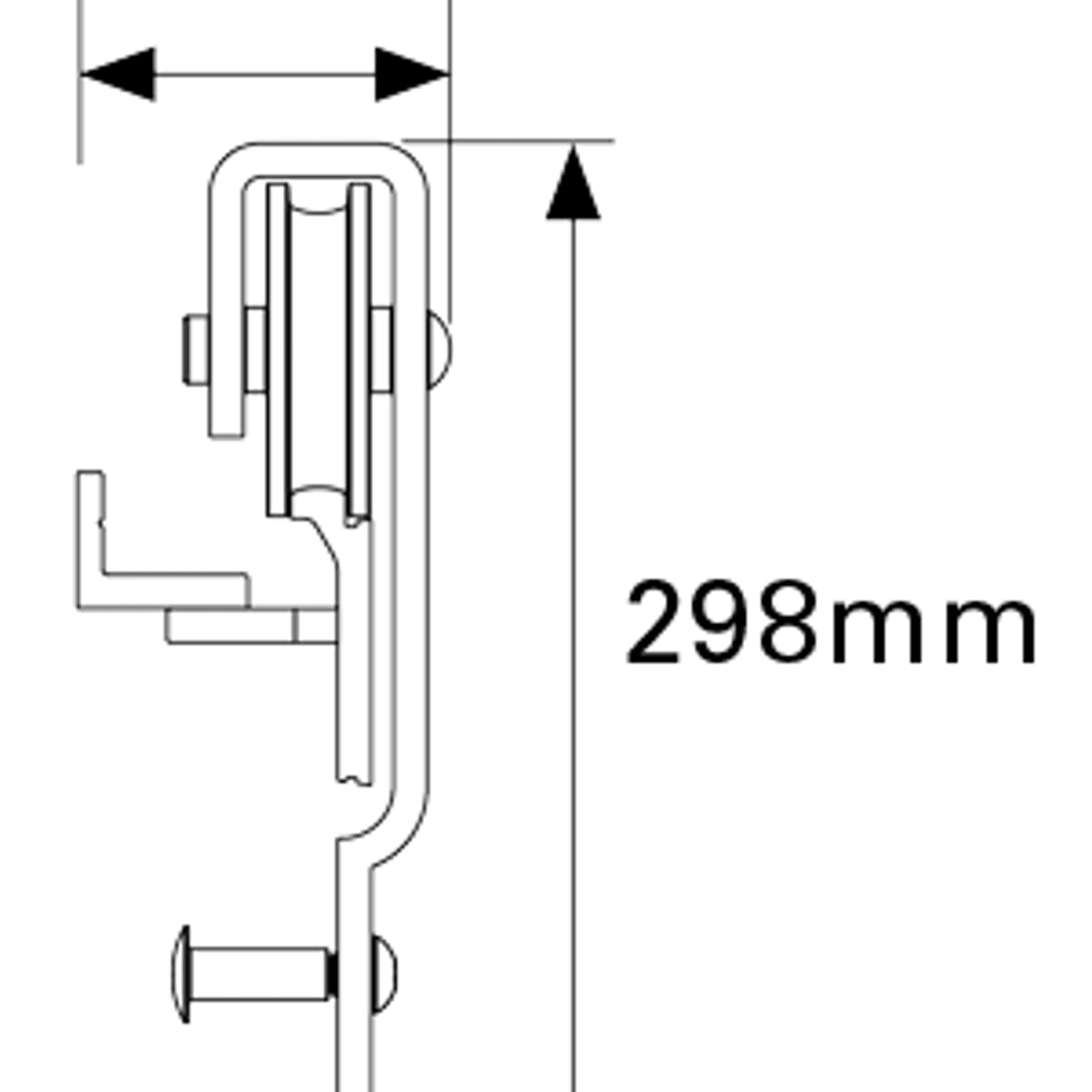

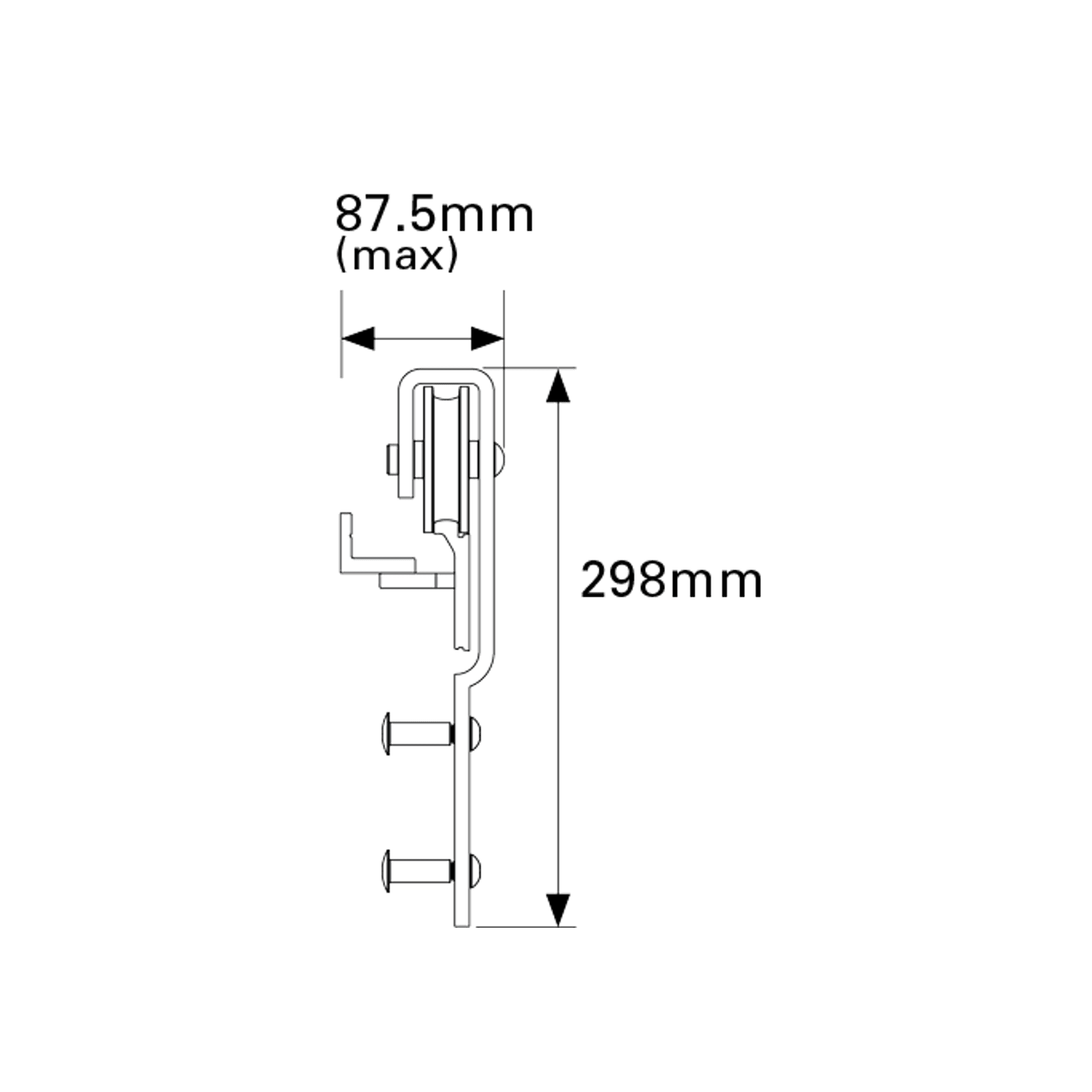

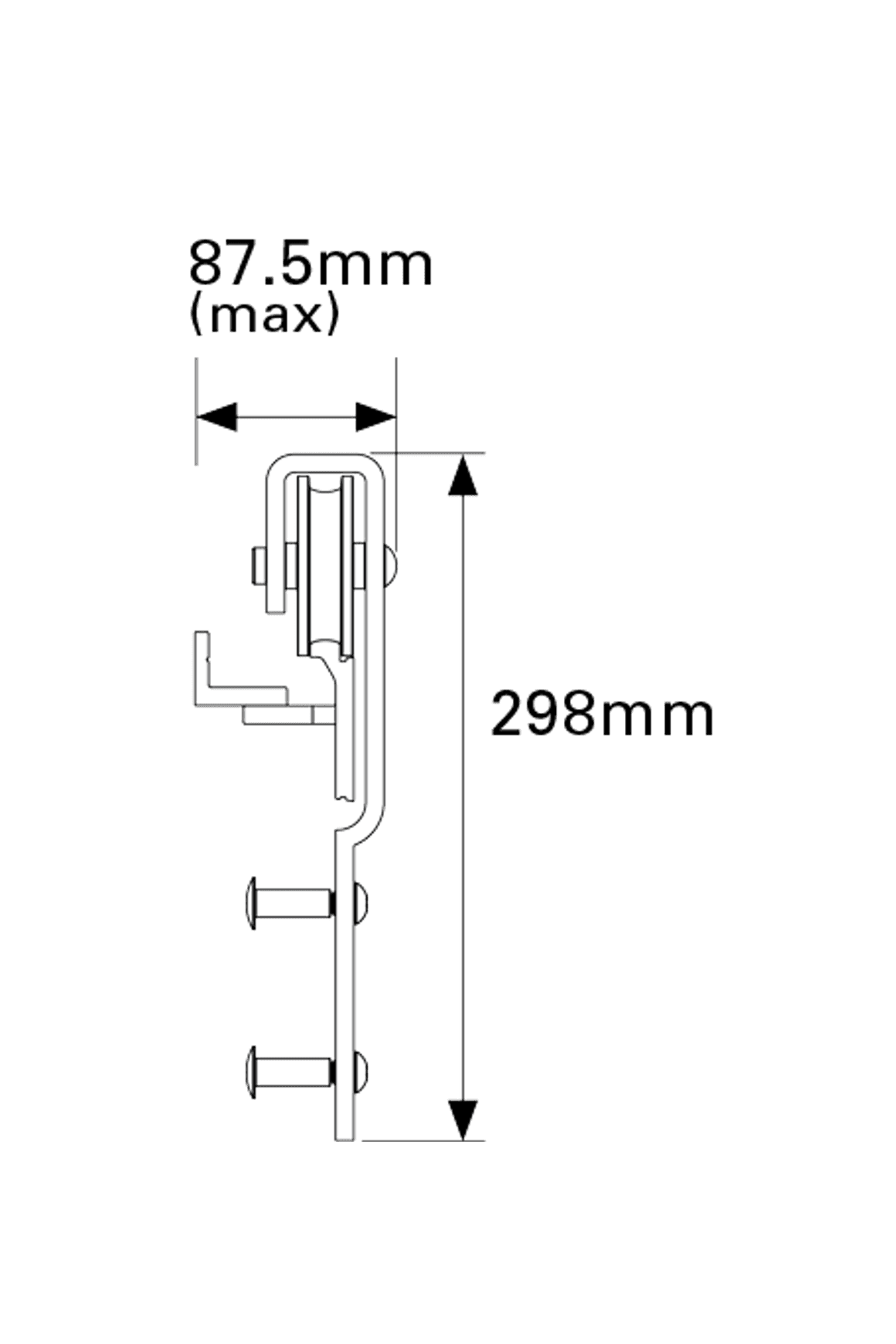

- D87.5 x W1828 x H298 mm - 1kg D87.5 x W2134 x H298 mm - 1kg D87.5 x W2438 x H298 mm - 1kg
- Specs
- Track bracket is adjustable in or out from the wall
- Standard Wide (W) or Narrow (N) track bracket available to suit varying door/architrave/gap thicknesses

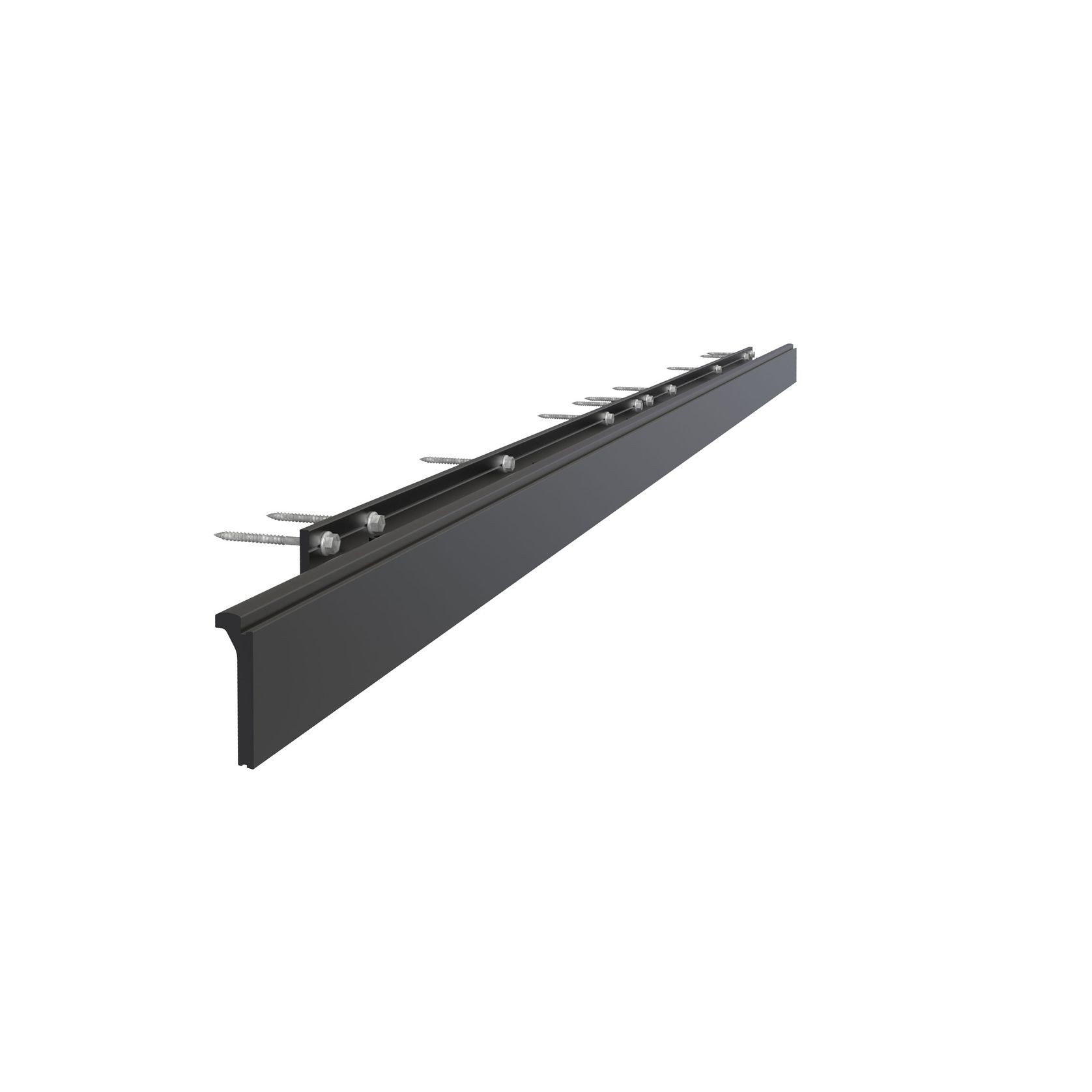

- High-quality, heavy duty extruded aluminium track
- Pre-machined wall fixing holes. Additional holes can be drilled on site if required
- Supplied in pre-cut lengths from 6ft to 19ft (1.8m to 5.8m)
- Maximum weight (per door): 180kg. Doors over 180kg require extra hangers or a customised solution
- Maximum weight (per track): 300kg
- SofStop® kit available for doors up to 100kg (minimum recommended door width 810mm)
- Scope of use
Suitable for internal applications where there is enough strength in the wall to side mount a track above an opening
- Performance
High quality system suitable for doors up to 300kg.
Downloads
Downloads (5)5 Direct downloads • 8 Available on request
Frequently asked questions about
CS Barn Door Track
The CS Barn Door Track is supplied by CS Cavity Sliders. It is also on their website, and you can browse every product CS Cavity Sliders lists on ArchiPro.
CS Cavity Sliders lists the CS Barn Door Track at $739.45. For an exact price for your project, .
It comes in 3 sizes: 6 Foot (W) - L1828 x W87.5 x H298 mm, 7 Foot (W) - L2134 x W87.5 x H298 mm and 8 Foot (W) - L2438 x W87.5 x H298 mm. For a size that is not listed, .

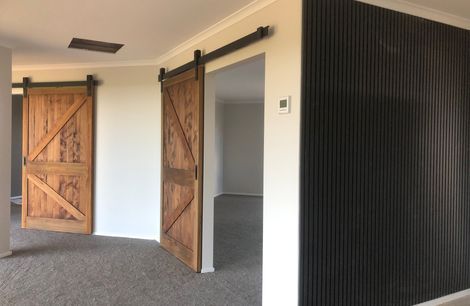

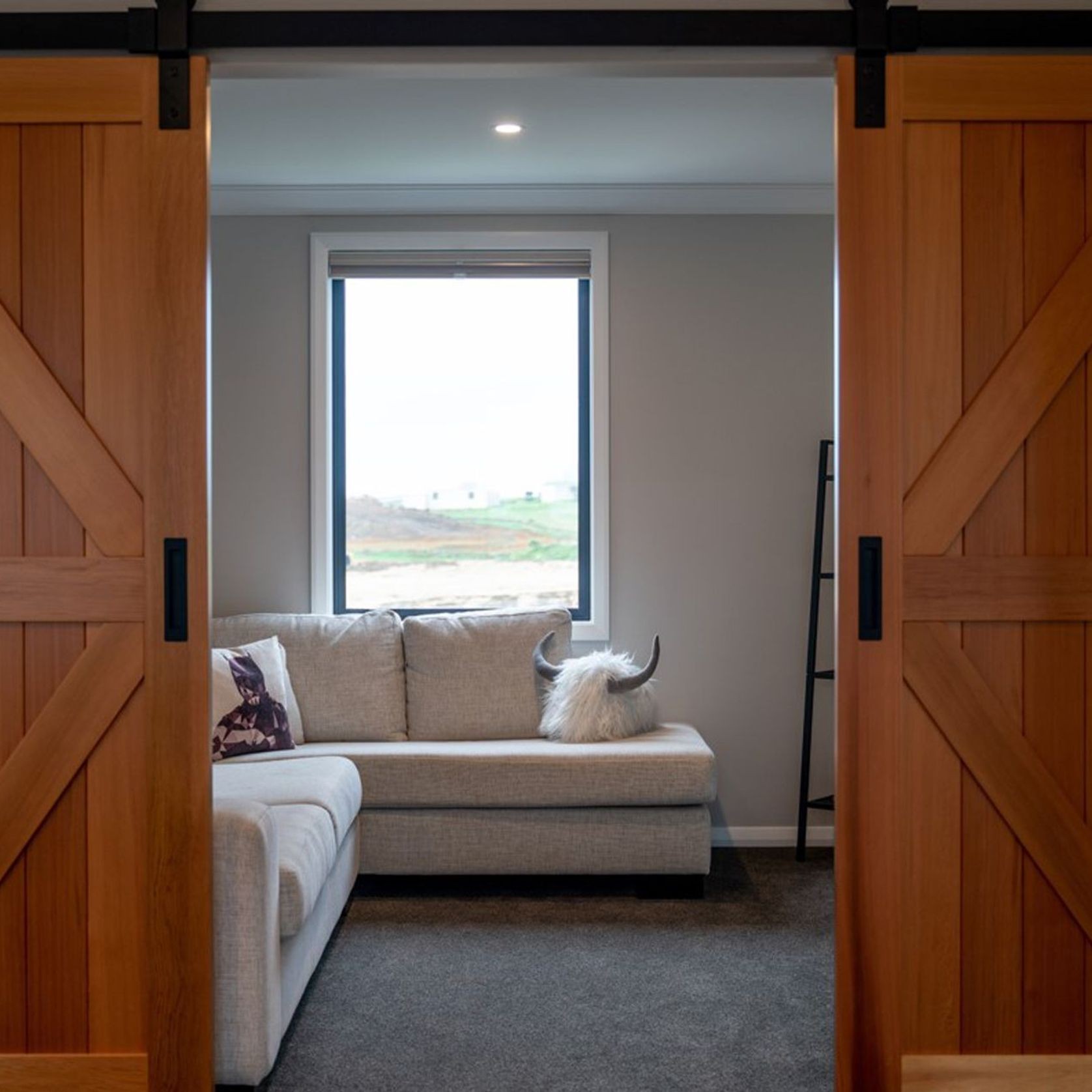

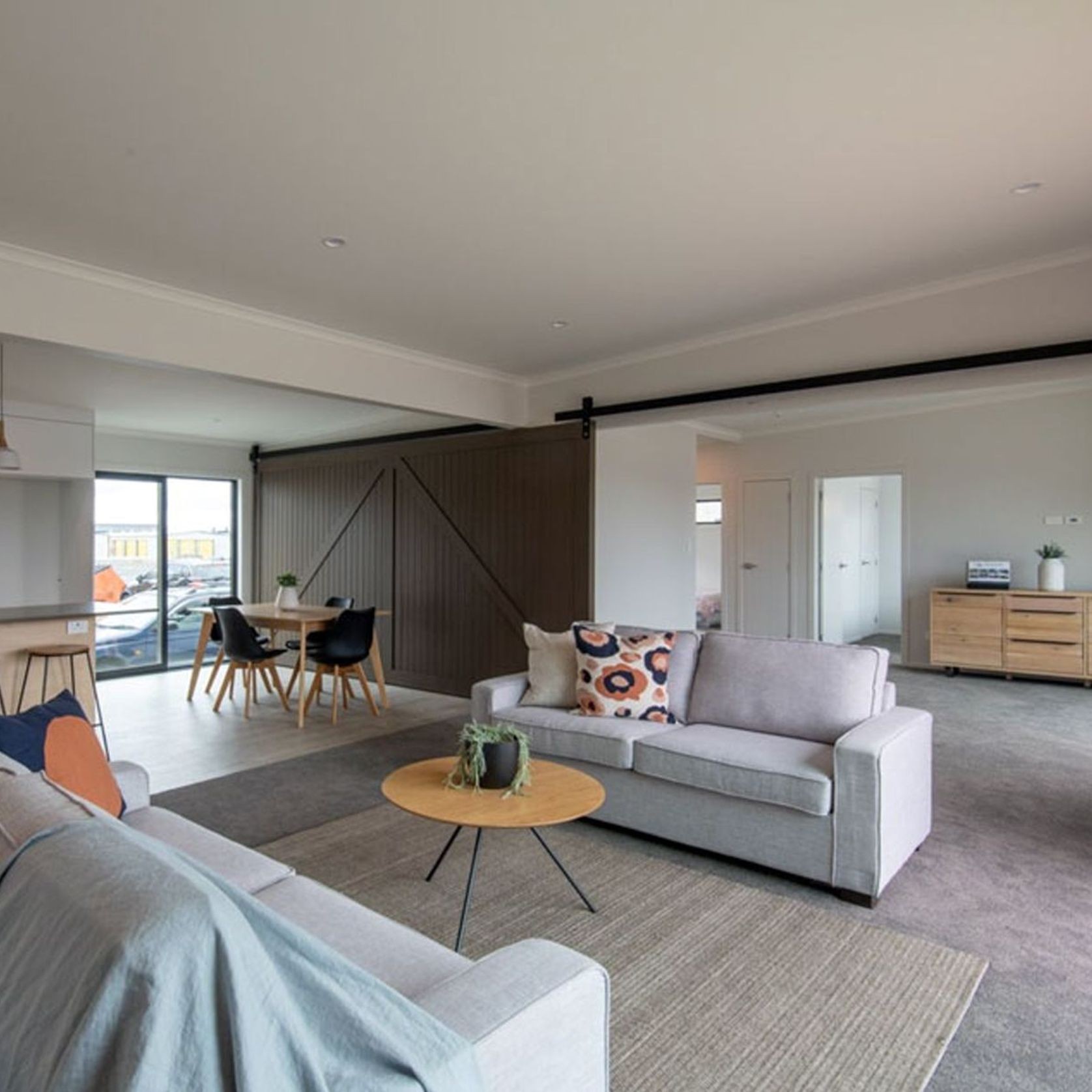

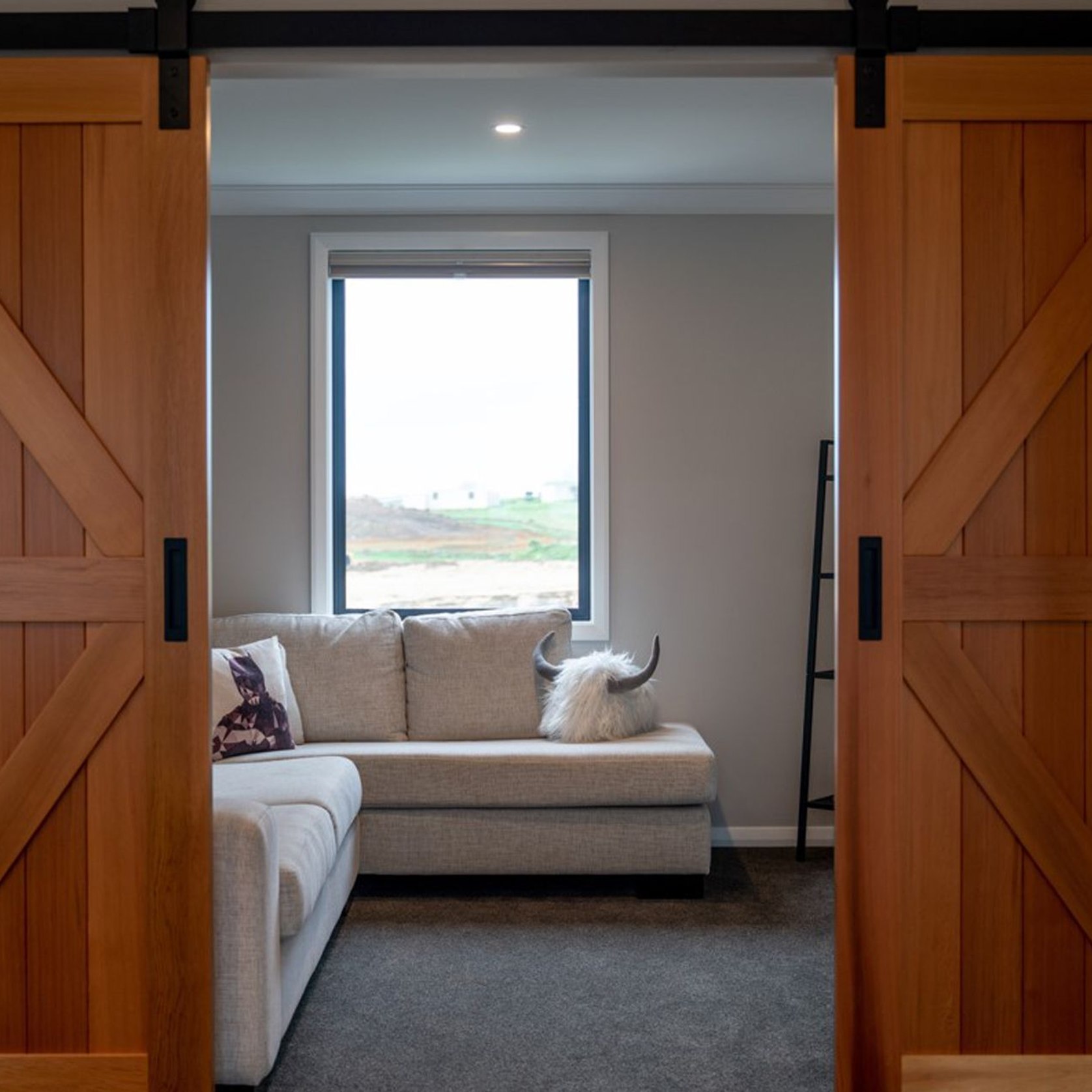

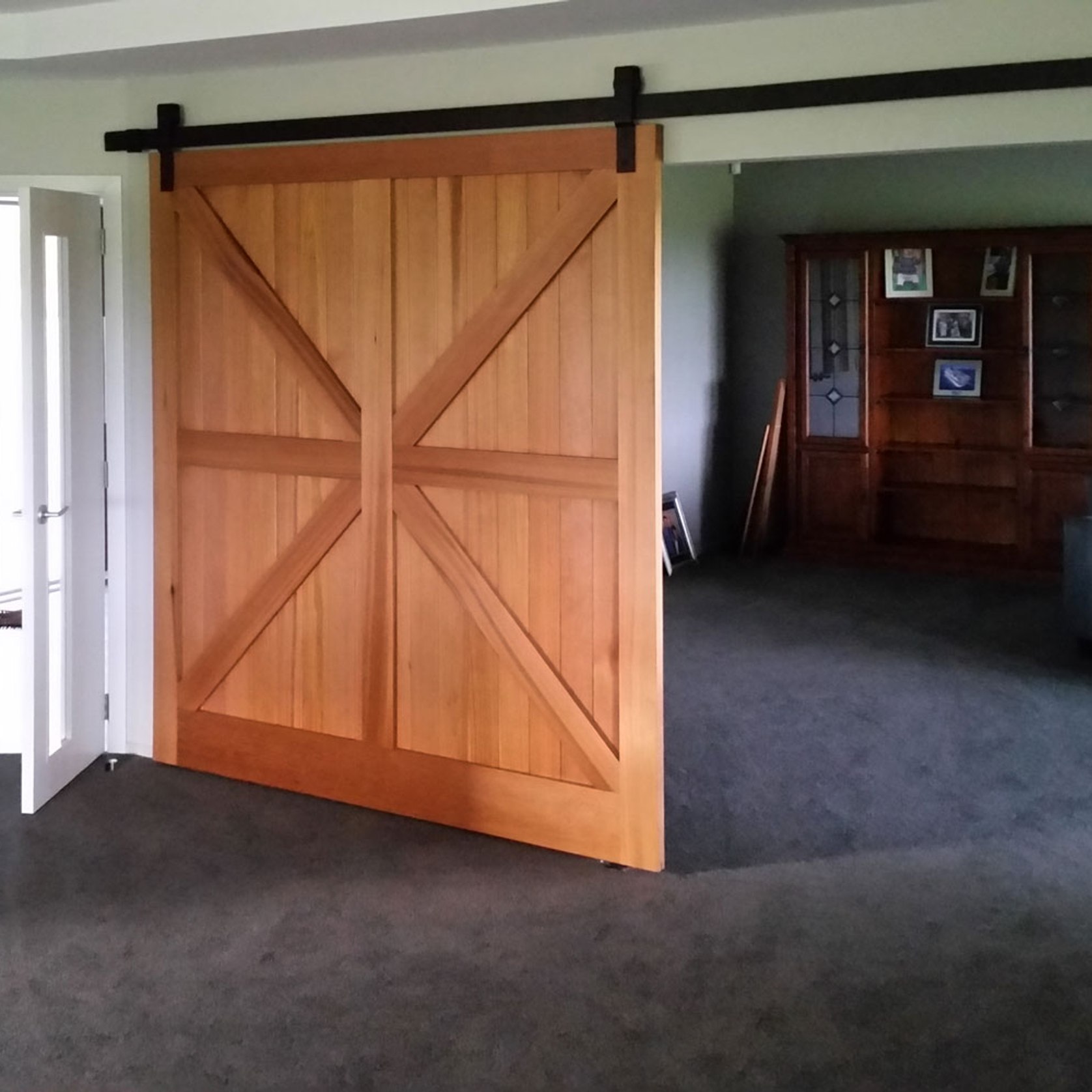

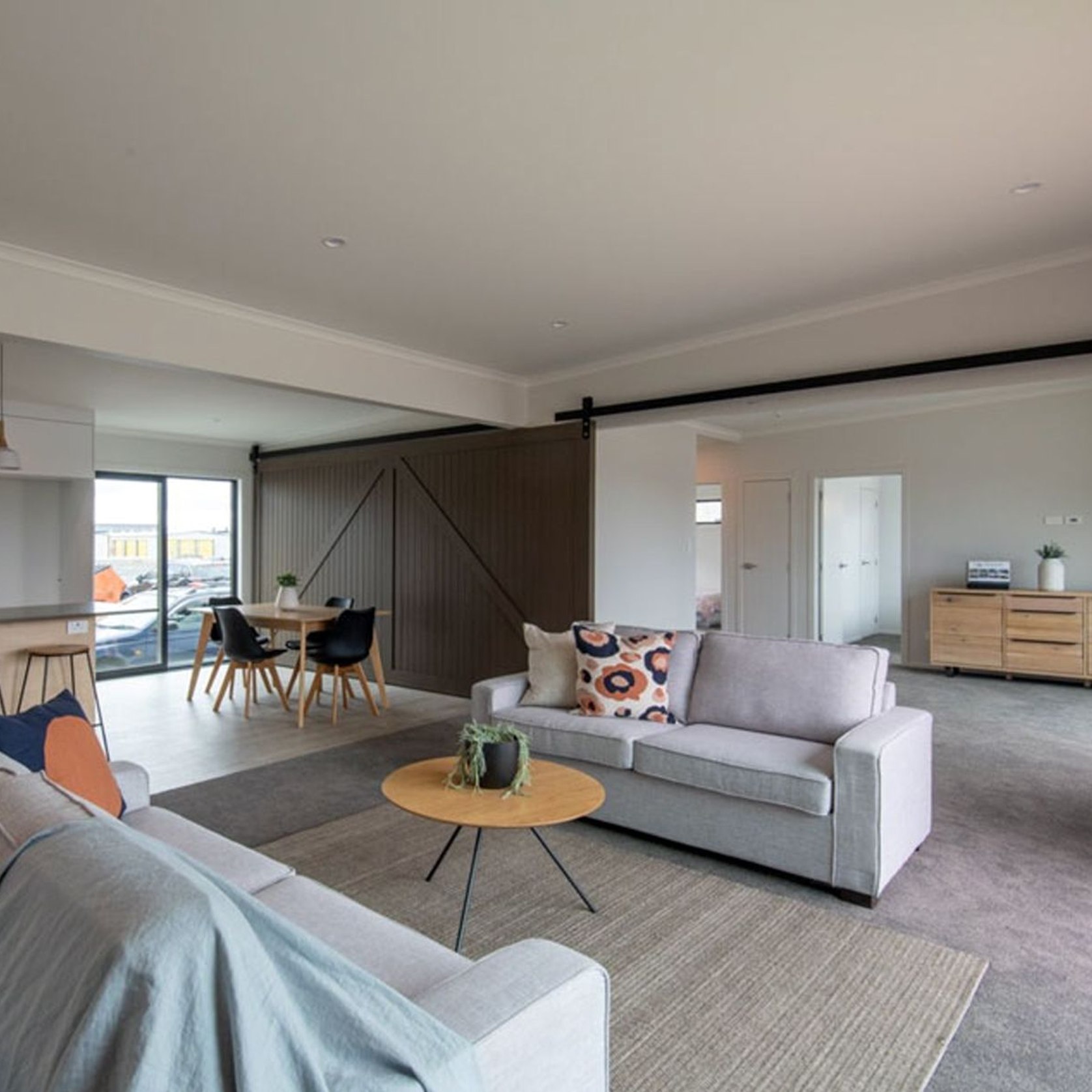

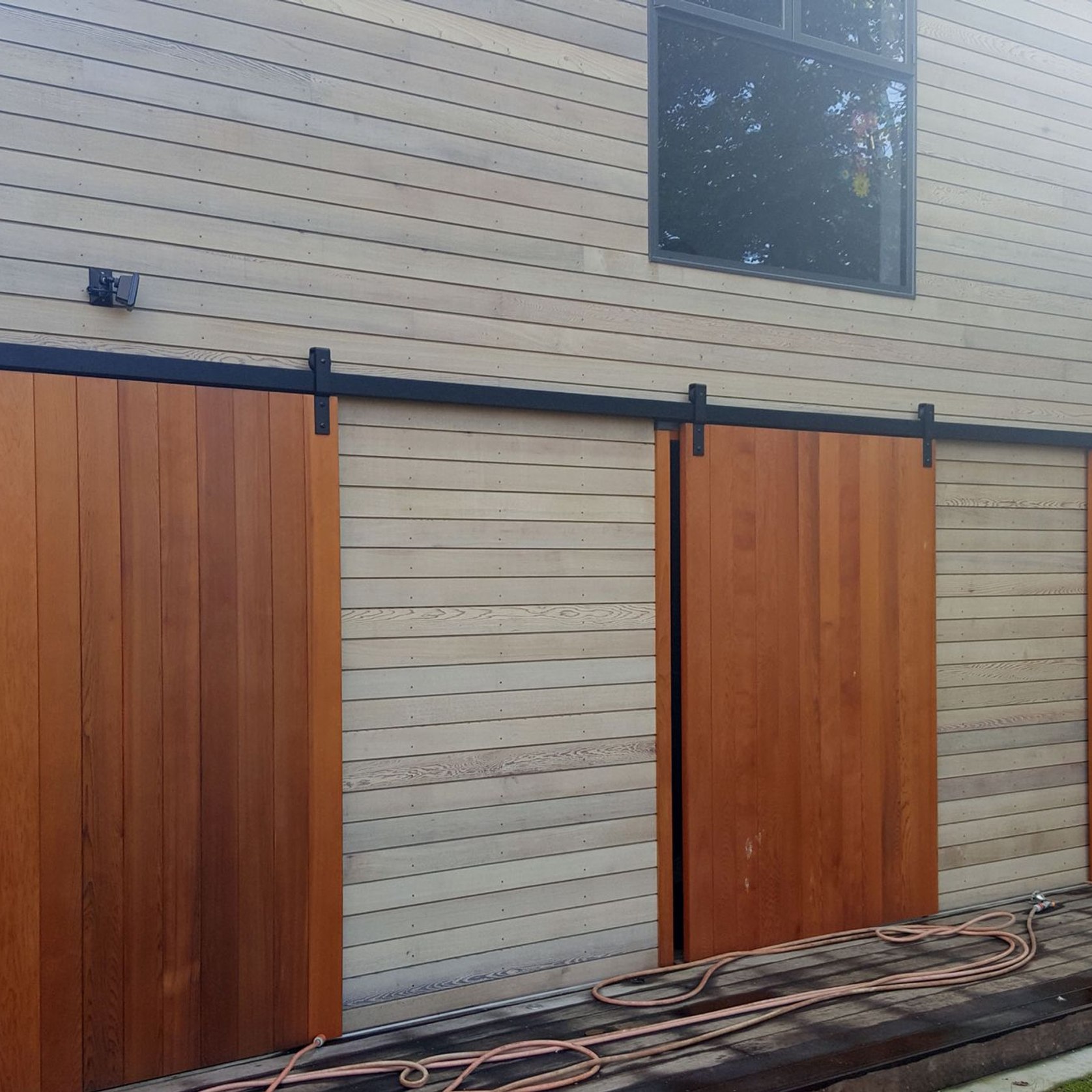

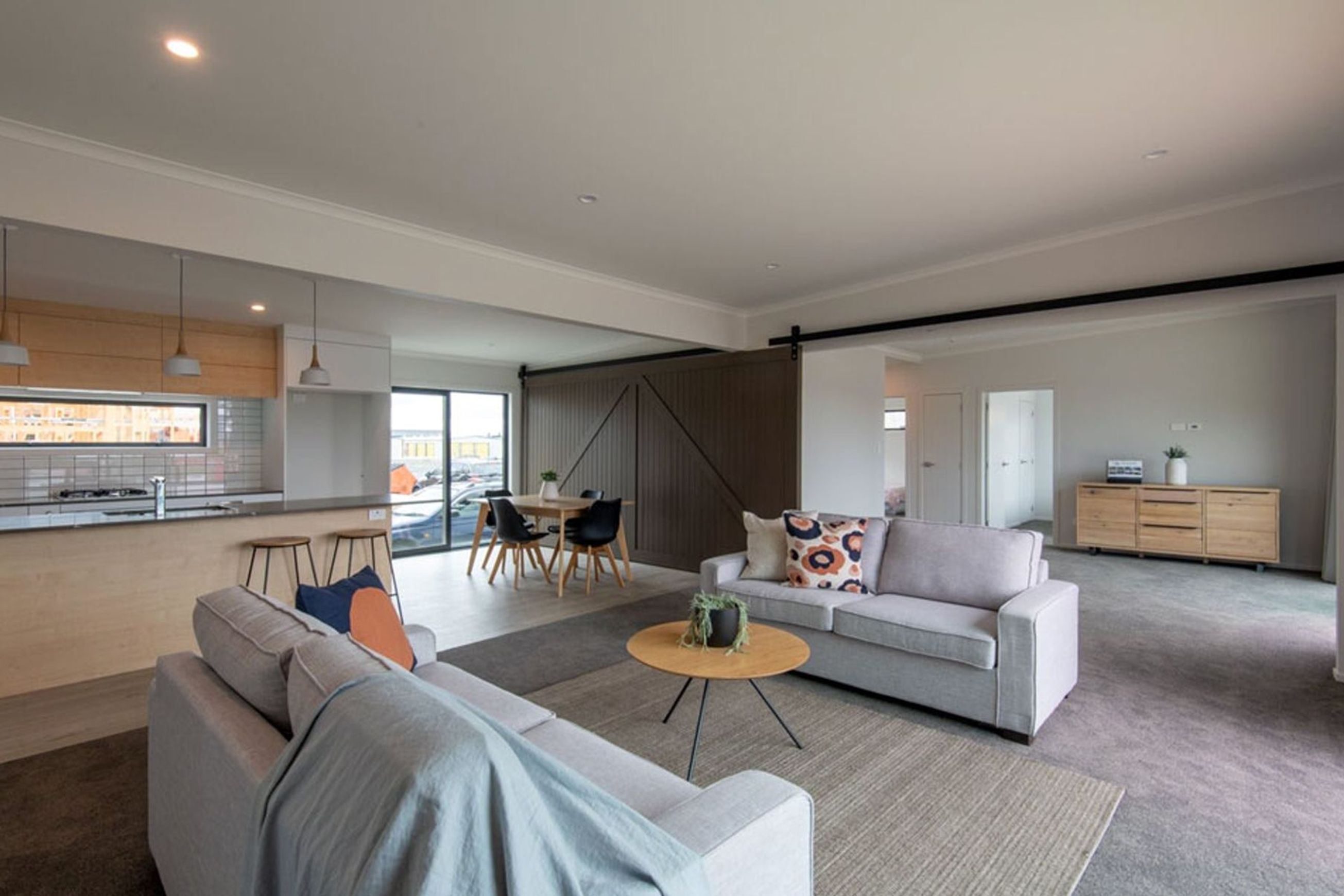

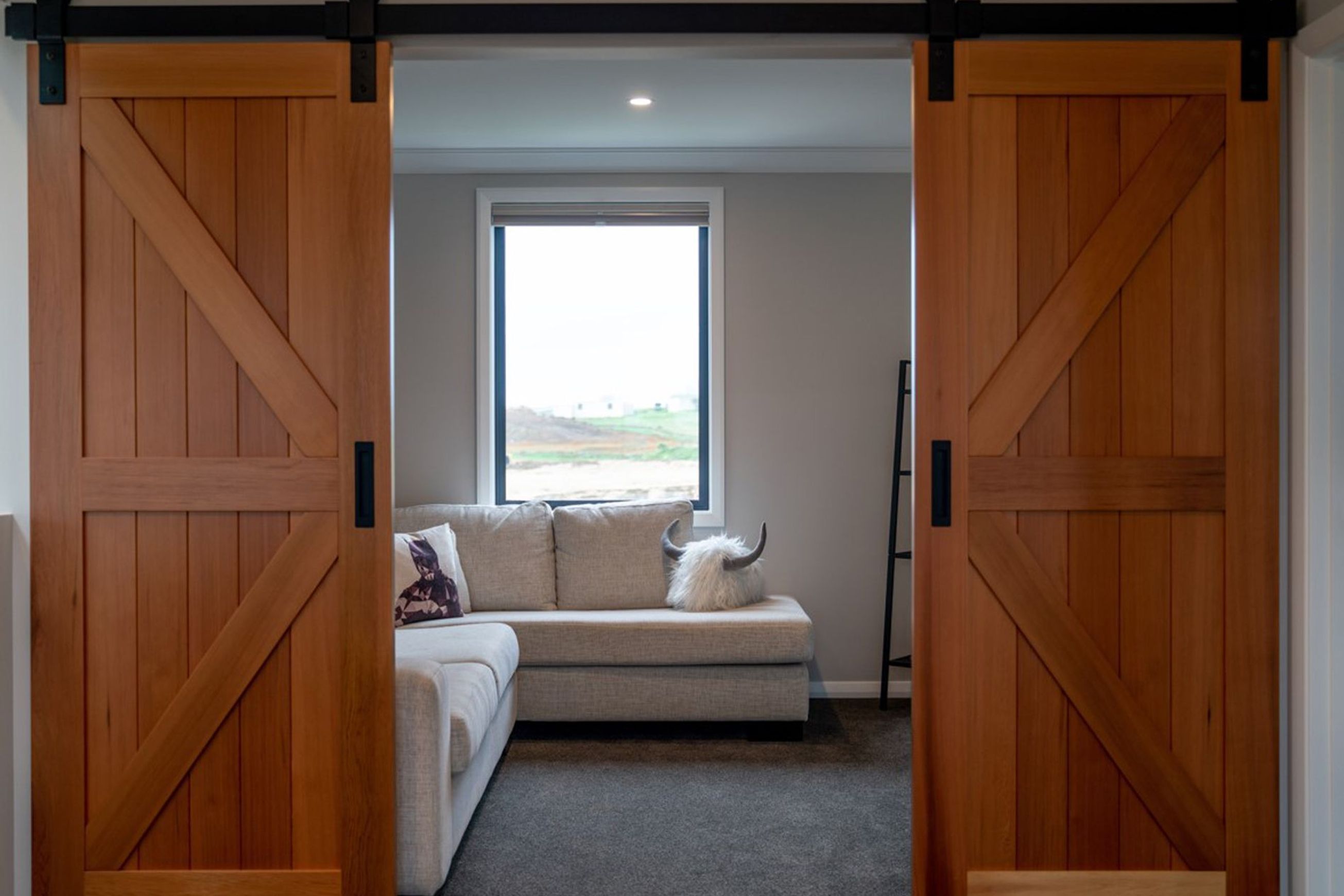

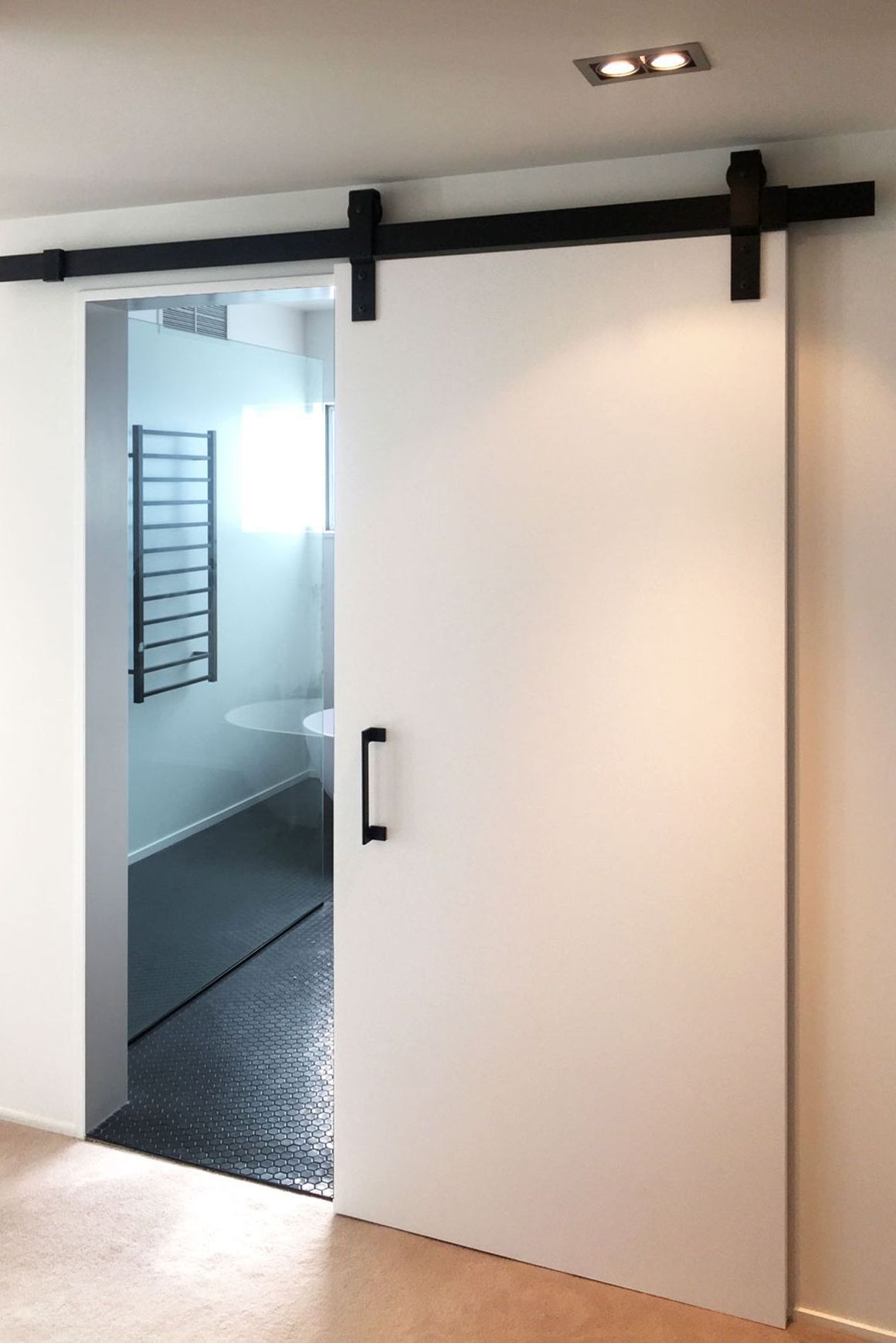

Yes. It has been specified in projects on ArchiPro, including Beautiful Bespoke Macrocarpa Barn Doors by Kiwi Carpentry Northland Limited and Johnsonville New Build by Resolute Construction. See how it was used in a finished space.
from this page, see their contact details on ArchiPro, or visit their website. The CS Cavity Sliders profile on ArchiPro has the rest of their products.
