ES 200 Automatic Sliding Door Operator
by dormakaba
Christchurch, New Zealand
- 71.5K profile views
- 15 saves

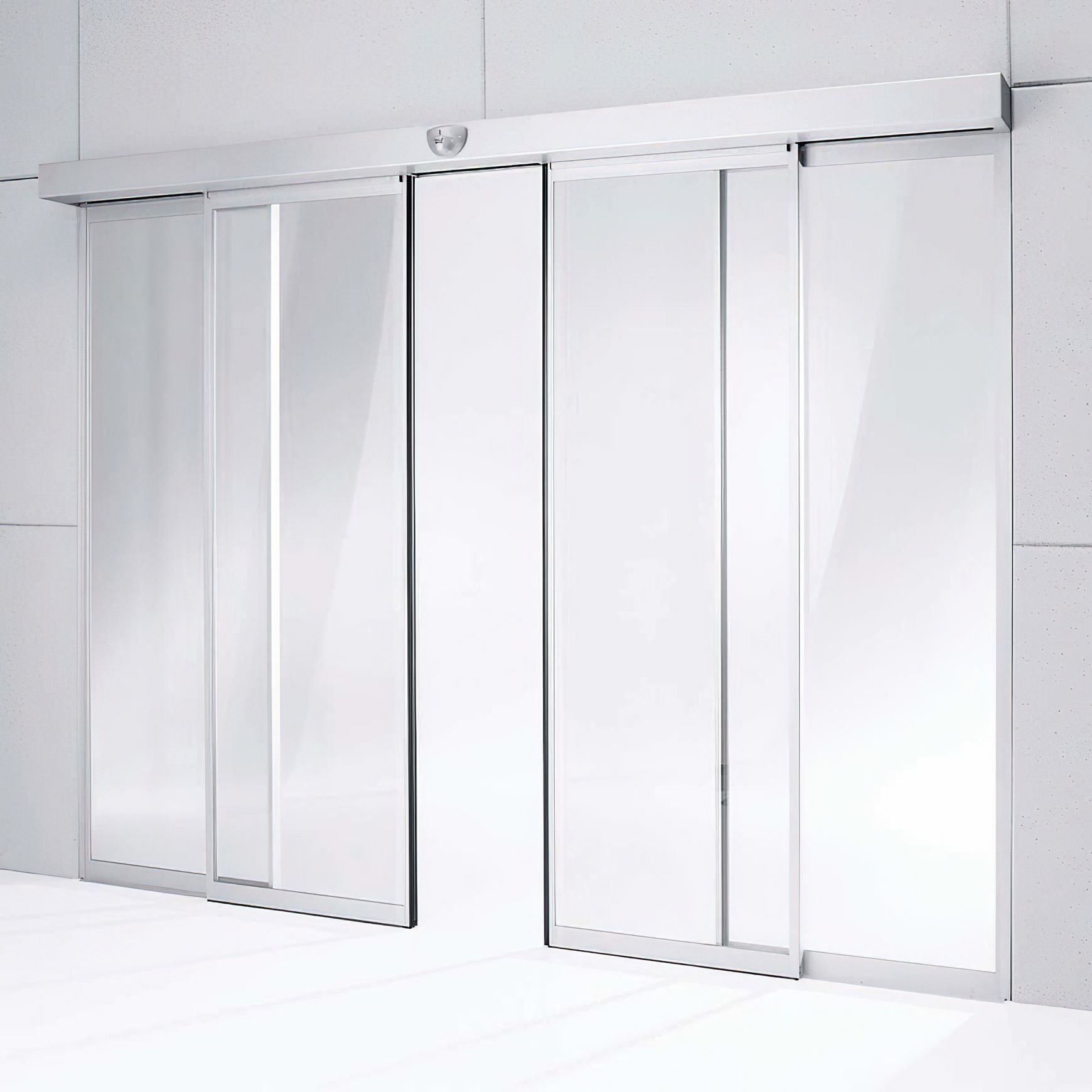

Completely redesigned sliding door operator.
The dormakaba ES 200 encompasses a stylish and modern cover design, a motor that ensures a virtually silent operation, a microprocessor that automatically controls the opening and closing speeds of the door, an energy saving power unit and new programming functions allowing for quick and simple installation, set-up and maintenance.
Product Details
- Product
- ES 200 Automatic Sliding Door Operator
- Category
- Sliding Door Gear
- Sold by
- dormakaba
Completely redesigned sliding door operator.
The dormakaba ES 200 encompasses a stylish and modern cover design, a motor that ensures a virtually silent operation, a microprocessor that automatically controls the opening and closing speeds of the door, an energy saving power unit and new programming functions allowing for quick and simple installation, set-up and maintenance.
- Specs
- Height: 150mm Framed, 150mm Frameless
- Installation depth: 180mm
- Opening and closing force, max. 150N
- Opening speed: (incremental setting) 10 - 70 cm/s
- Closing speed: (incremental setting) 10 - 50 cm/s
- Hold-open time: 0 - 180 sec.
- Supply voltage, frequency : 230V, 50/60 Hz
- Power consumption: 250W
- Class of protection: IP 20
- Compliant with EU
- Low voltage directive and
- EMC Directive
- Manufactured to ISO 9001:2000
- Scope of use
The ES 200 automatic operator is fully compliant to the N.C.C (BCA) and is tested to Australian Standard AS5007, 1 million cycle endurance testing clause 4.4.1.1. and main power fail test clause 4.4.2 by a NATA accredited facility.
- Performance
- The ES 200 automatic operator is fully compliant to the N.C.C (BCA) and is tested to Australian Standard AS5007, 1 million cycle endurance testing clause 4.4.1.1. and main power fail test clause 4.4.2 by a NATA accredited facility.
