D-Line™ Energy Absorbing Bollard 165mm

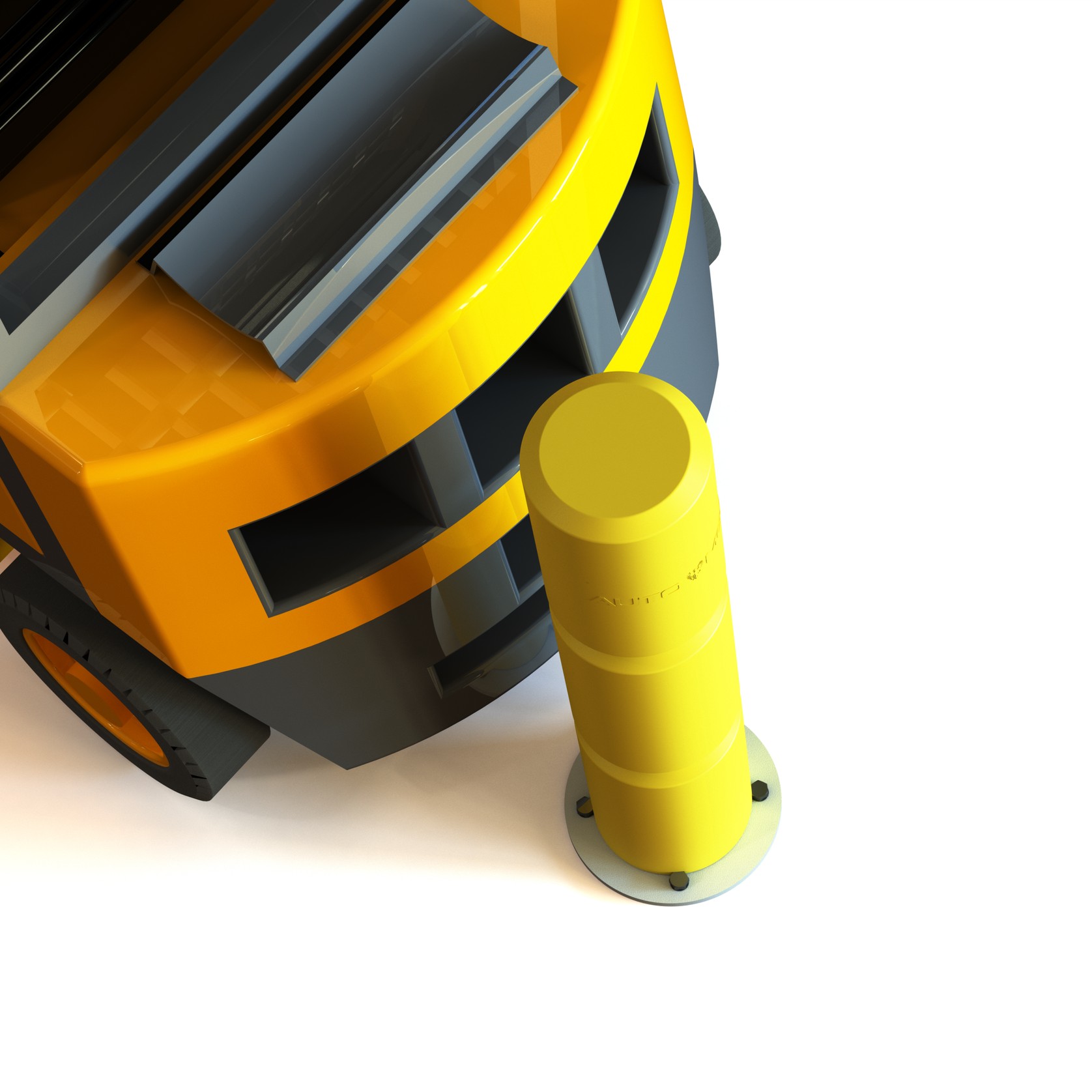

Introducing the D-Line™ Energy Absorbing Bollard 165mm, a revolutionary solution to protect personnel, equipment, and concrete floors.

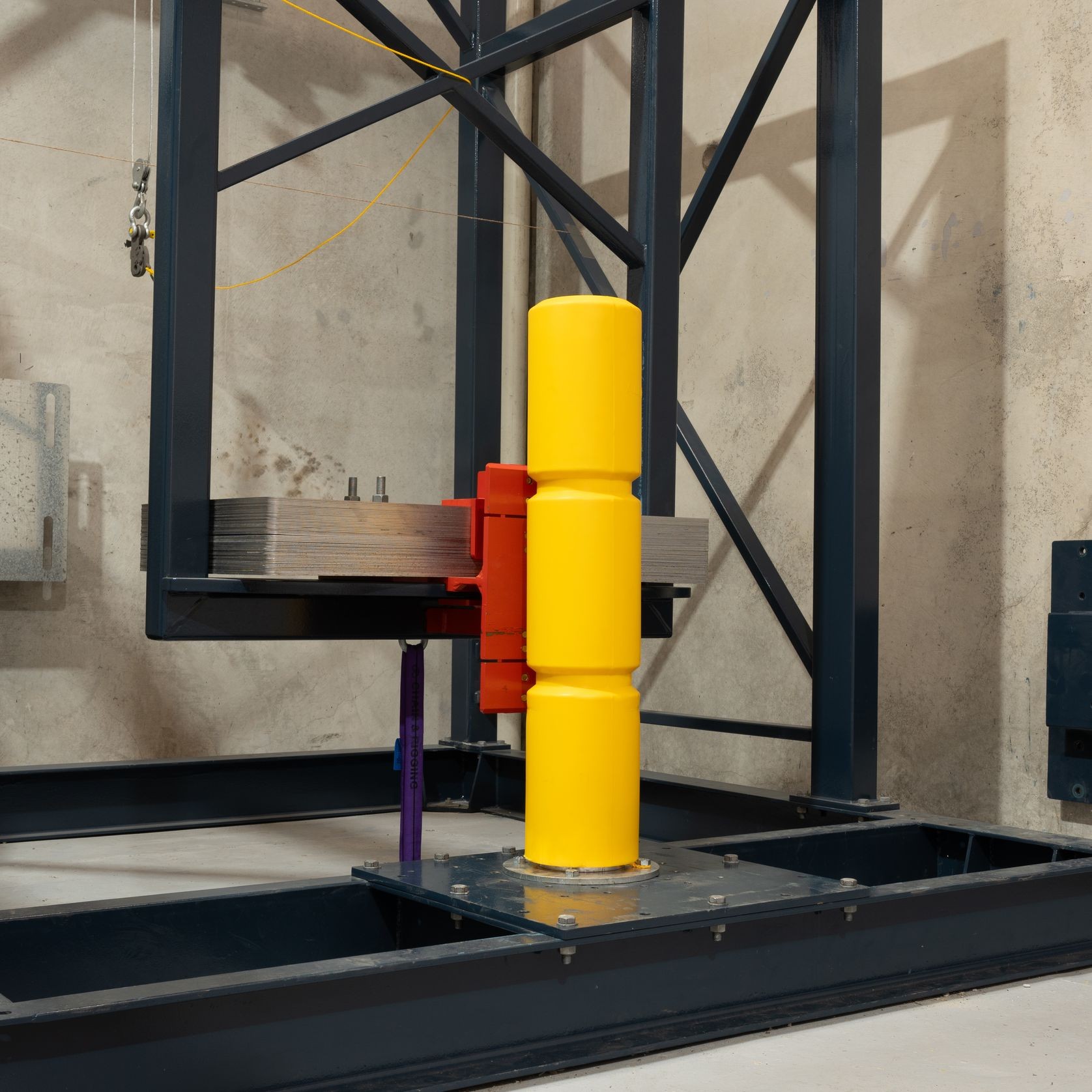

With its patent-pending galvanised steel and urethane construction, this bollard absorbs impact energy of up to 8000J, providing superior protection without damaging the surrounding concrete.
Say goodbye to the high lifetime costs associated with regular bollards, as the D-Line™ bollard ensures the safety of your people and assets.
- CategorySite Safety & Access, Barrier Arms, Handrails
- RangeWorkplace Safety
- BrandAuto Mossa
- WarrantyN/A
- Country of originNew Zealand
- Type of useCommercial
- InstallationProfessional installation recommended
- Standard Equipment Standard size - Height 1050 mm
- Bollard tube - Diameter 165 mm
- Outer sleeve diameter 220 mm
- Base diameter 300 mm
- Performance Impact rating 165mm Ø Bollard 5 tonnes at 6.4 km per hr Materials
- Tube Assembly 5mm galvanised steel tube
- Base Assembly 12mm thick base, hot-dip galvanised
- Connecting Parts 16mm high tensile machined bolts, zinc plated
- Compression Block PU20 or PU30 molded urethane
- Tube Fixings M12 x 30 high-tensile galvanised bolts 165mm Ø

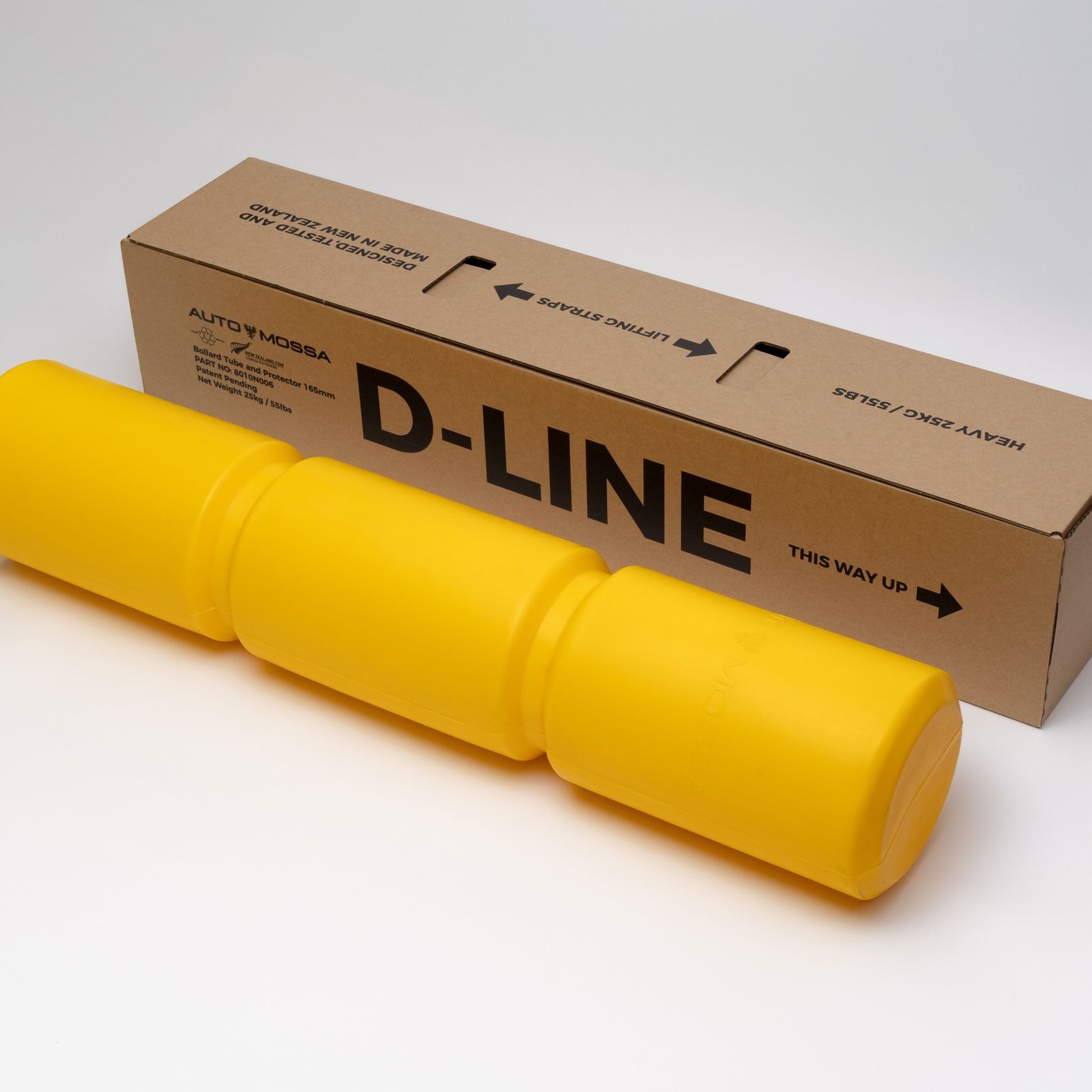

- Protection Sleeve 5mm polyethylene, moulded sleeve
Operating Environments:
- Freezer -25°C: Compression Block PU20
- Chiller to Ambient -2°C to 50°C: Compression Block PU30
Bollard Compression:
A key component of the D-Line system is the urethane compression block. This feature allows the bollard to flex. In conjunction with this, the outer polyethylene sleeve has also been designed to absorb impact.
Pivot System :

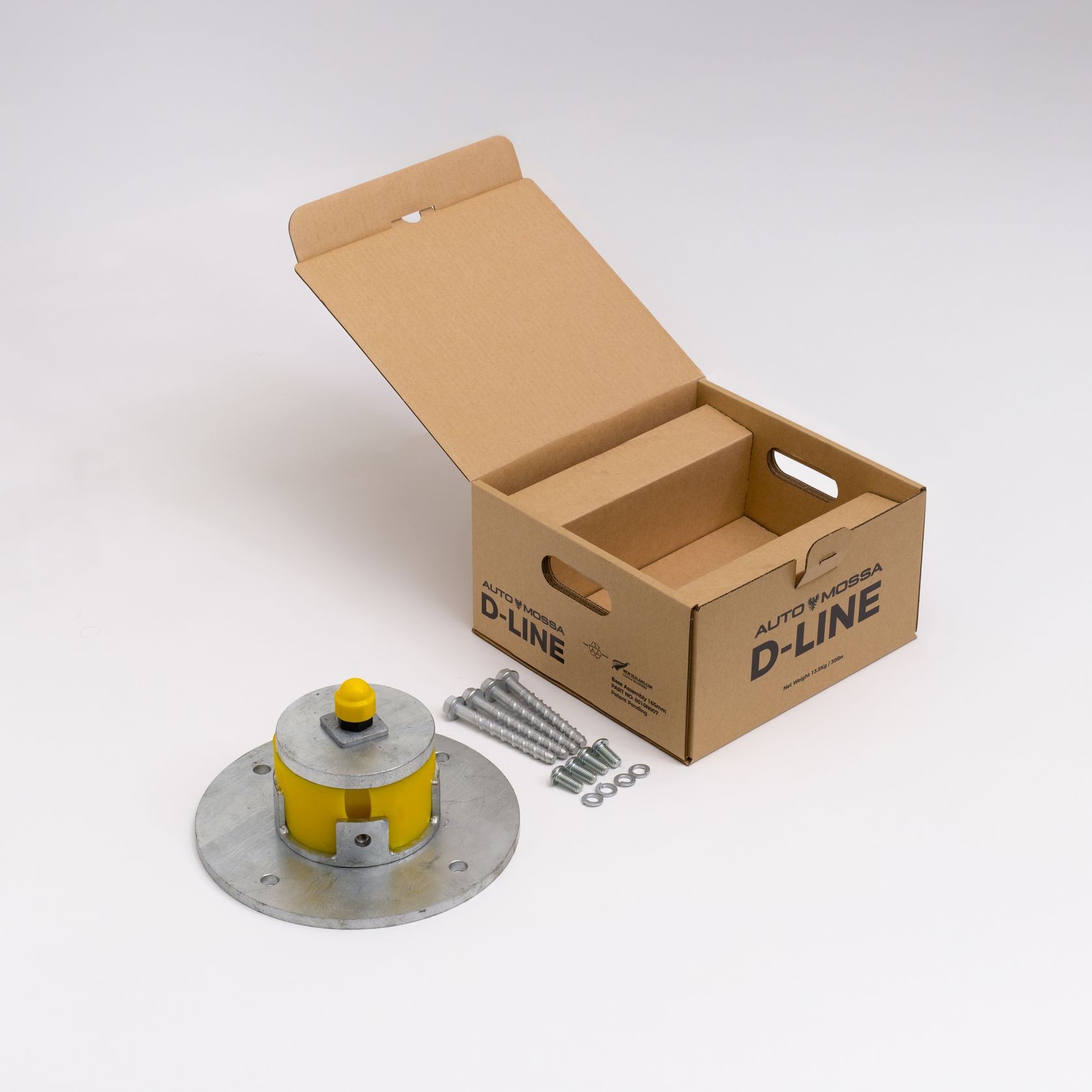

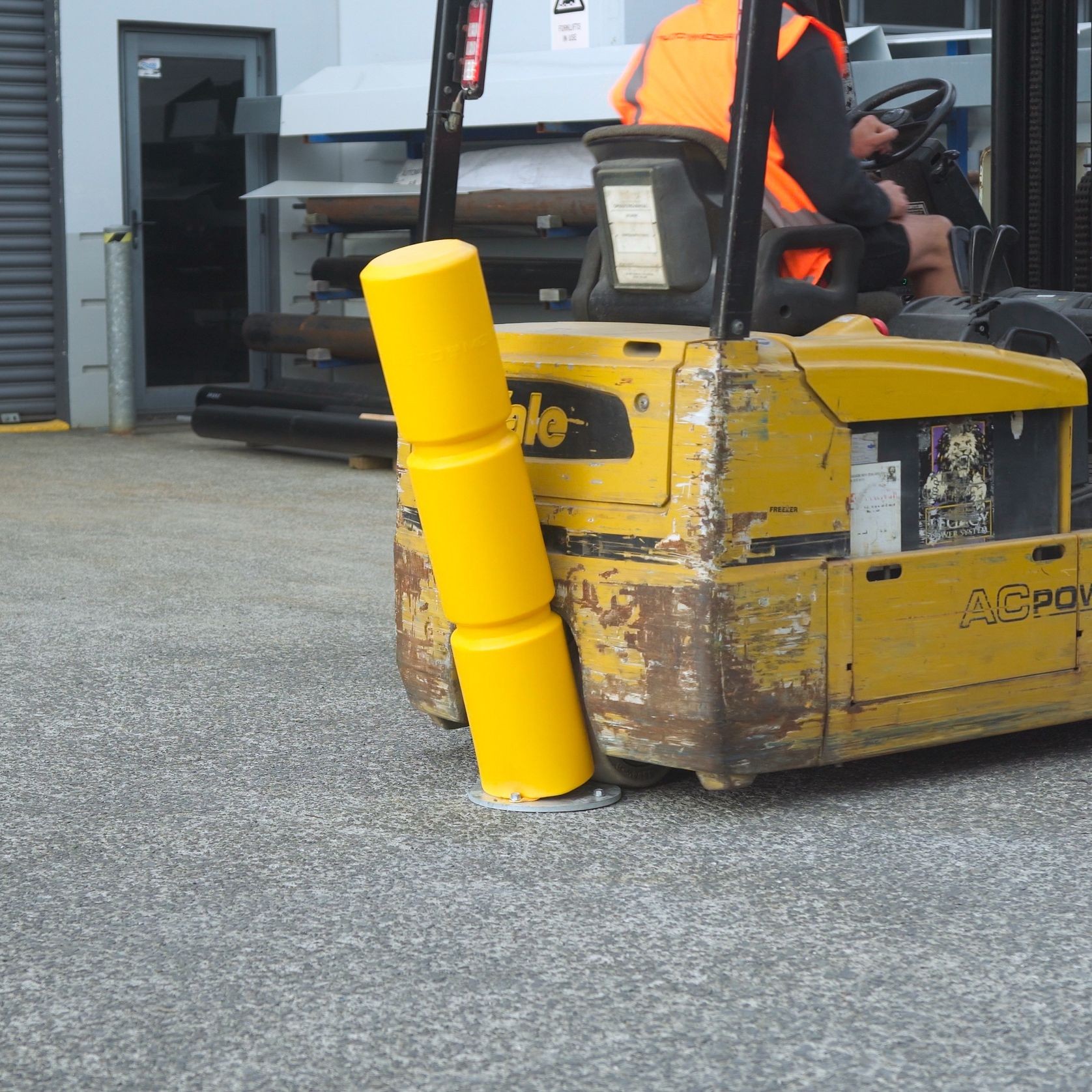

The D-Line Pivot System allows the bollard to move in any direction when impacted. It has been designed with high tensile components and ensures the tube assembly stays connected to the base assembly.
Protects Concrete Floors:
A key design benefit of the D-Line bollard is that the patented system will flex on impact, greatly reducing the risk of damage to concrete floors.
