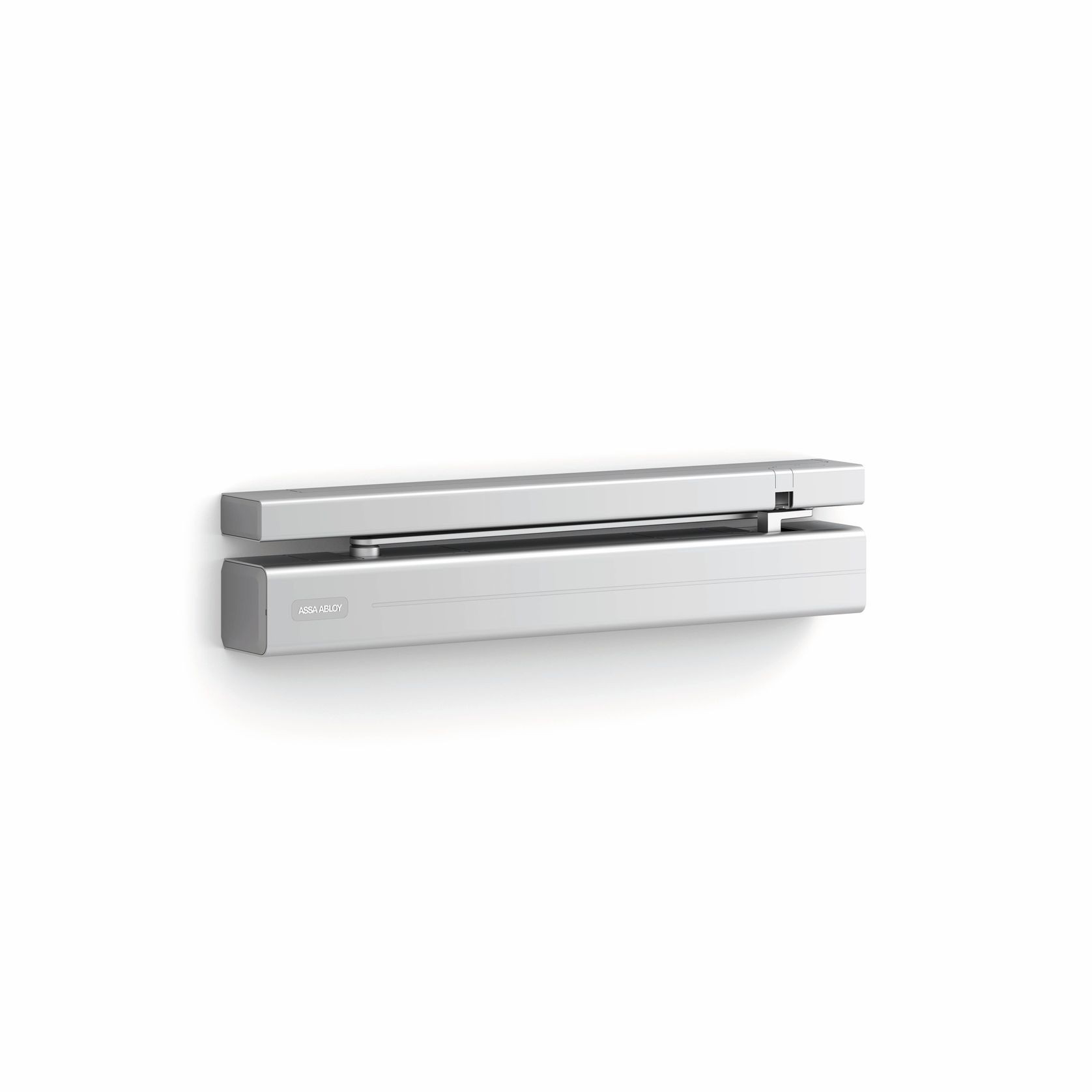

DC700G-CM Close Motion Door Closer
by ASSA ABLOY
Auckland, New Zealand
- 658.7K profile views
- 60 saves
The DC700G-CM Close-Motion door closer is innovative door control technology, allowing doors to close silently, reliably and securely.
With a Close-Motion door closer installed, the door leaf initially closes as usual, but during the final few degrees of closing it optimally slows and dampens the door, driving it securely into the frame.
Product Details
- Product
- DC700G-CM Close Motion Door Closer
- Category
- Door Closers
- Sold by
- ASSA ABLOY
- Range
- ASSA ABLOY
- Designer
- ASSA ABLOY
- Brand
- ASSA ABLOY
ASSA ABLOY is specified by
Fat Parrot ArchitectureArchitects
YokeArchitects
RTA StudioArchitects
Smith ArchitectsArchitects
+MAP ArchitectsArchitects
Moller ArchitectsArchitects
Dalman ArchitectsArchitects
Sheppard & Rout ArchitectsArchitects
Francis Gp ArchitectsArchitects
Respond ArchitectsArchitects
ASC ArchitectsArchitects
Jigsaw ArchitectsArchitects
Gary Todd ArchitectureArchitects
Construkt ArchitectsArchitects
Bossley ArchitectsArchitects
SA StudioArchitects
ContextArchitects
Chow:Hill ArchitectsArchitects
GHD DesignArchitects
Ignite ArchitectsArchitects
Evelyn McNamara ArchitectureArchitects
Designgroup Stapleton ElliottArchitects
Vistalite® Ashburton Heartland AluminiumMetal Fabricators and Welders
Landmark Homes GisborneBuilders
Nulook® Windows & Doors CanterburyGlaziers
Fixation BuildersBuilders
eHausDesign & Build
Fisher® Windows and Doors OtagoGlaziers
Design BuildersBuilders
O'Neil + Shirley ArchitectureArchitectural Designers
Nebulite® Windows & Doors SouthlandGlaziers
Lewis WindowsServices
Walker ArchitectureArchitectural Designers
Vistalite® Windows and Doors ManawatuGlaziers
Begg Security GroupLocksmiths
Conder ConstructionConstruction
David Reid HomesDesign & Build
Landmark Homes Auckland - North Shore & RodneyBuilders
Landmark Homes New ZealandBuilders
Altus® Window SystemsJoinery Installers & Repairs
Fairview WarkworthMetal Fabricators and Welders
PJM Project ManagementProject Managers
Maddren HomesBuilders
New Zealand Green Building CouncilAssociations
JD HomesBuilders
Nebulite® Windows & Doors MastertonGlaziers
Nebulite® Windows & Doors TaurangaGlaziers
Golden Homes CanterburyDesign & Build
Nulook® Windows & Doors WanganuiGlaziers
Clements Windows & DoorsGlaziers
Fisher® Windows and Doors GisborneGlaziers
Whitestone Vistalite North OtagoJoinery Installers & Repairs
Nulook® Windows & Doors New PlymouthGlaziers
Nulook® Windows 2000Glaziers
Abron GroupDesign & Build
Nebulite® Windows & Doors Garden CityGlaziers
High Performance WindowsMetal Fabricators and Welders
ArmstrongLocksmiths
Foley GroupInterior Designers
White Wood HomesBuilders

The DC700G-CM Close-Motion door closer is innovative door control technology, allowing doors to close silently, reliably and securely.
With a Close-Motion door closer installed, the door leaf initially closes as usual, but during the final few degrees of closing it optimally slows and dampens the door, driving it securely into the frame.
- Specs

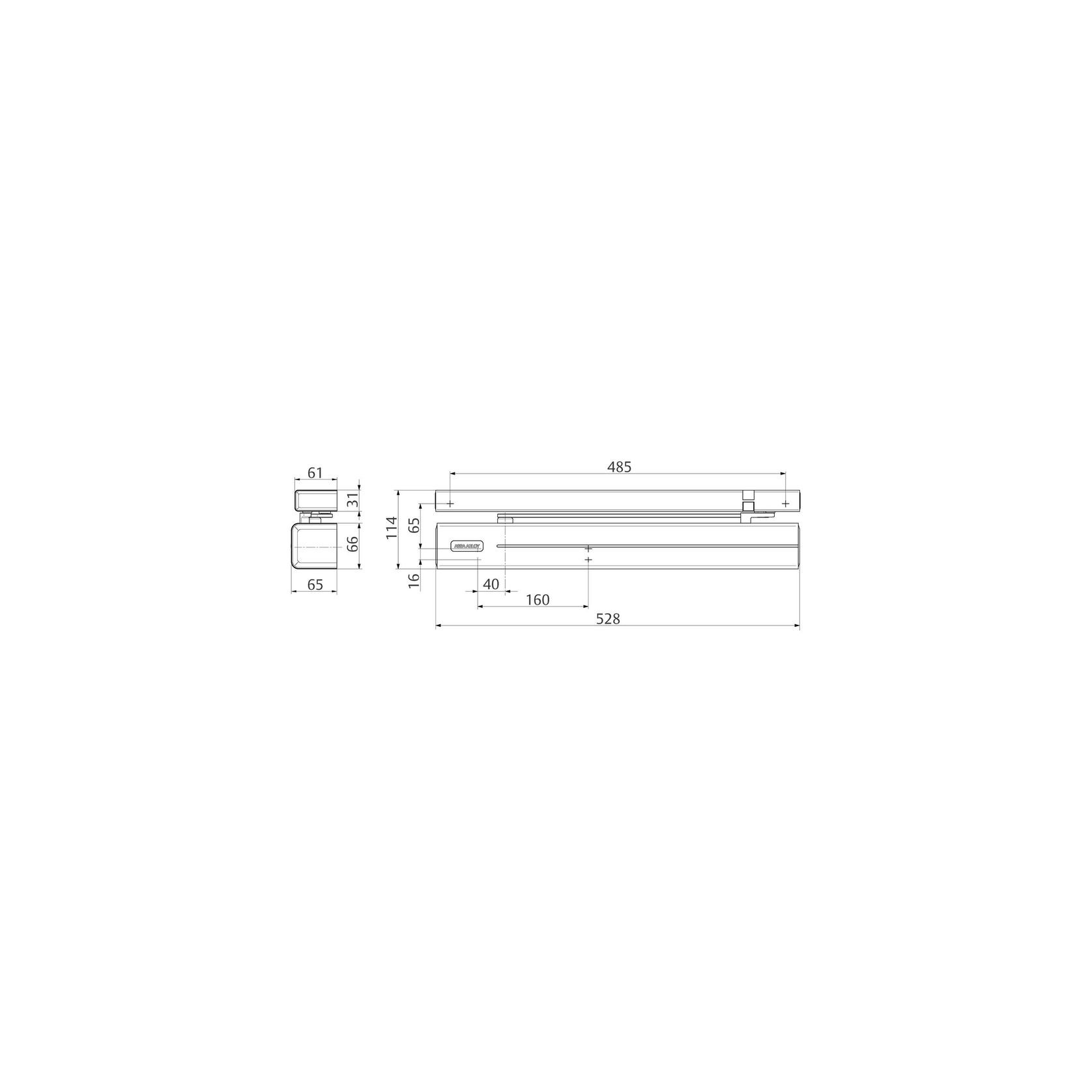

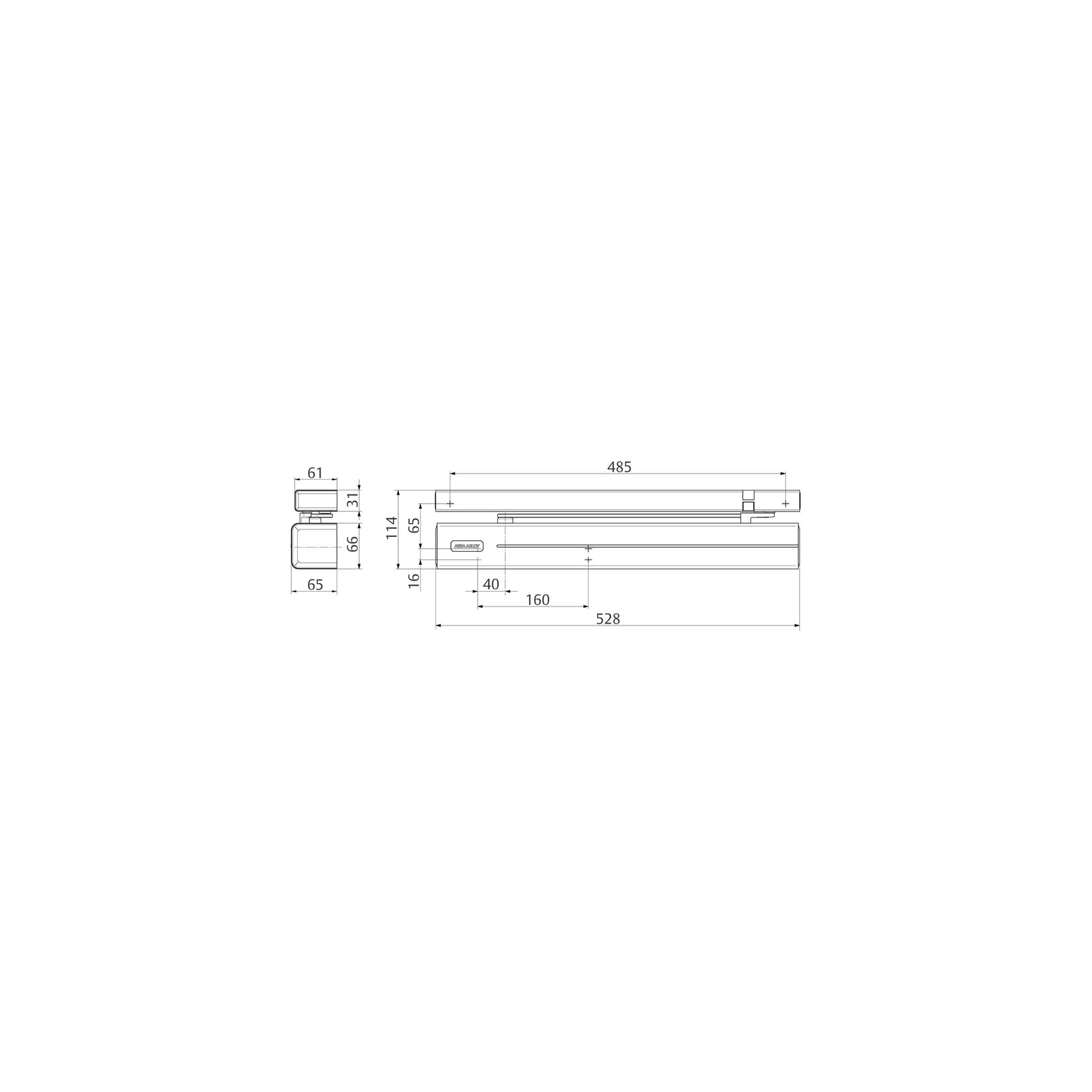

The DC700G-CM Close-Motion uses a standard DC700 Cam-Motion door closer mounted on an extended back-plate which also houses the additional damping mechanism. The DC700G-CM Close-Motion has successfully passed EN1154 at Exova UK, and is CE marked accordingly.
- ASSA ABLOY door closer with Cam-Motion® technology, extended mounting plate and integrated Close-Motion® element; guide rail with Close-Motion® control curve
- Closing power adjustable, EN size 3-6, for doors up to 1400 mm wide
- Door closer DC700 tested in accordance with DIN EN 1154, with CE mark
- Closing speed, latching speed and backcheck continuously adjustable
- 14 mm height adjustable arm system for ease of fitting
- Suitable for fire and smoke protection doors*
- Suitable for left and right handed doors
- Close-Motion® element horizontal (± 6mm) and vertical (± 3.5 mm) adjustable
- Colour: Silver EV1
* Check with the fire door manufacture
- Scope of use

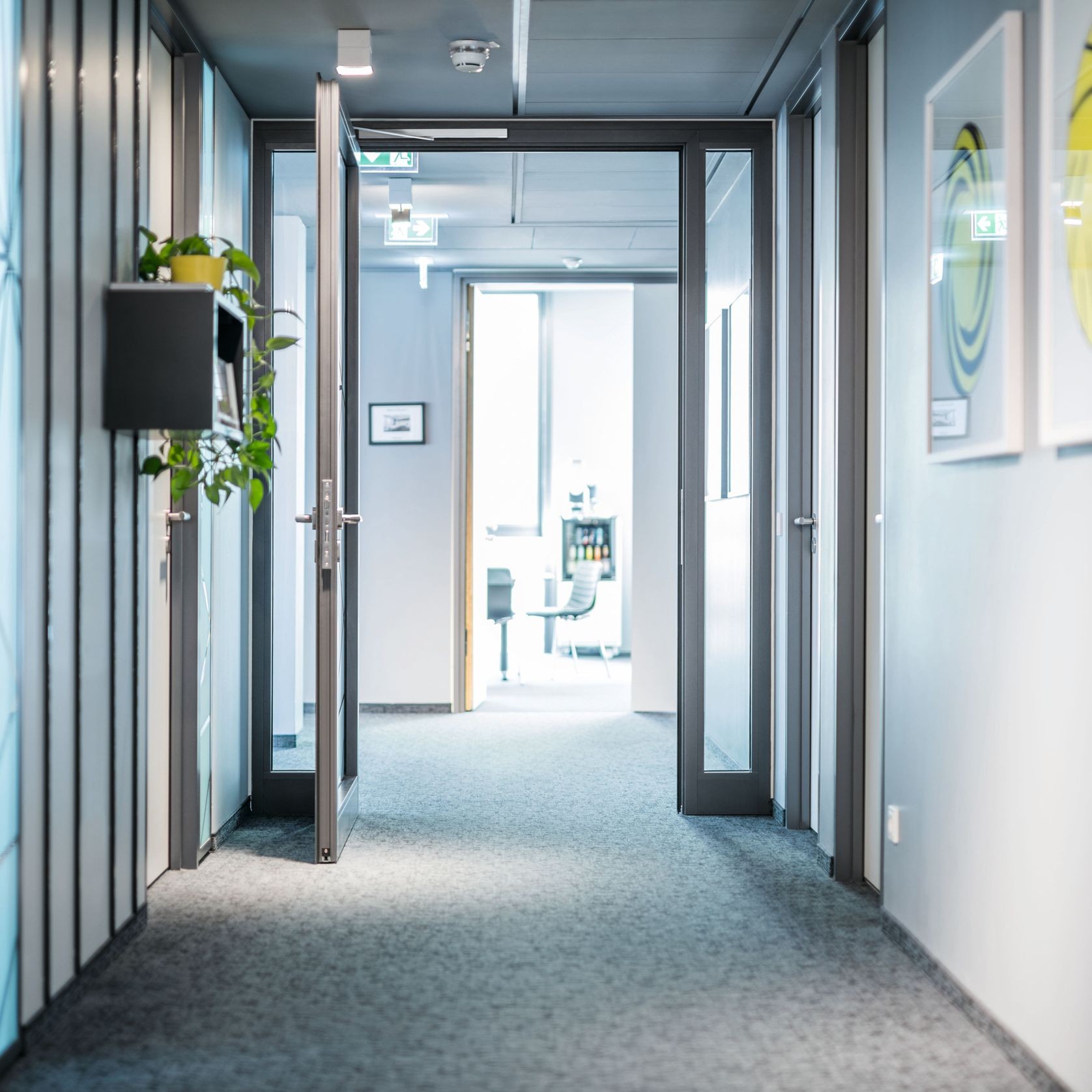

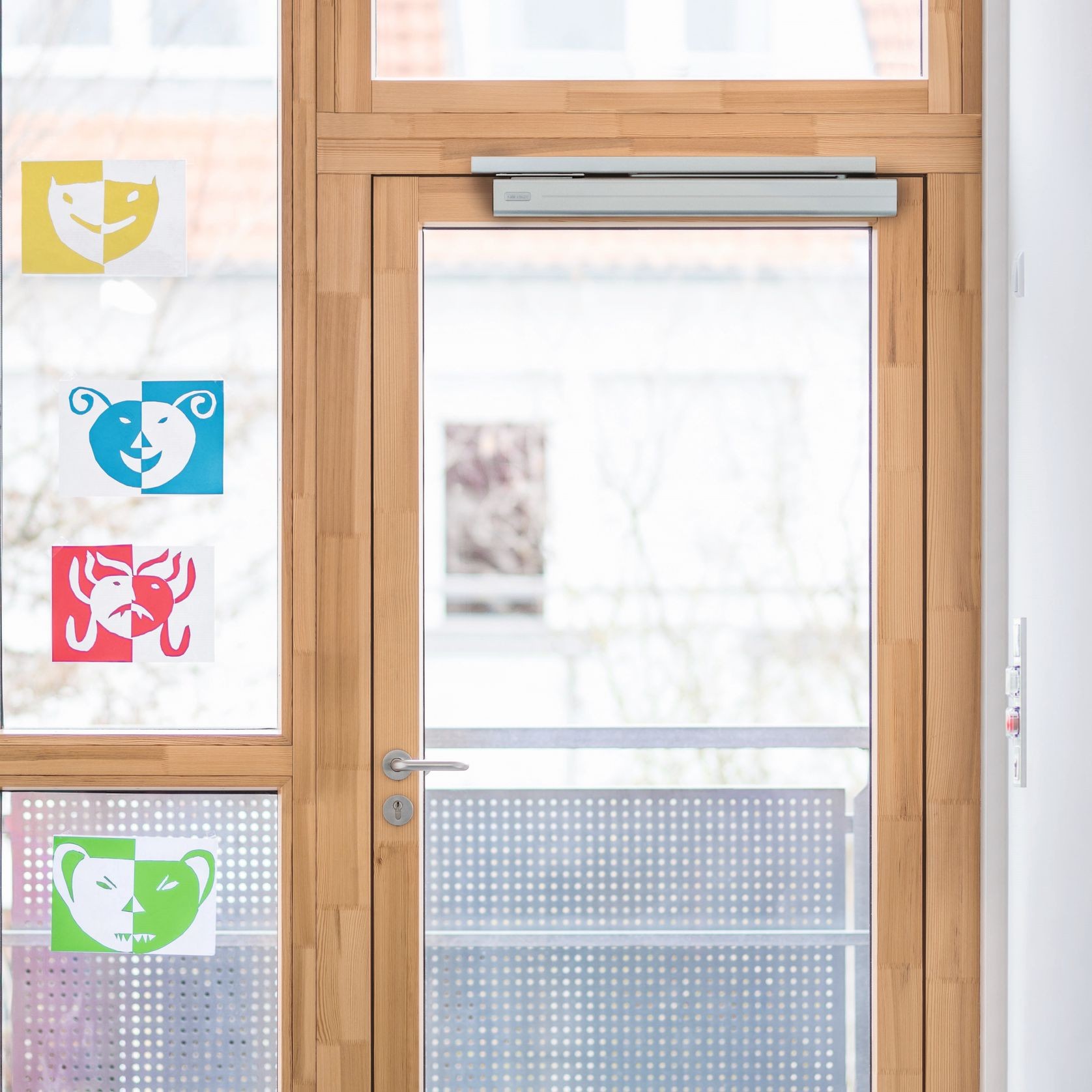

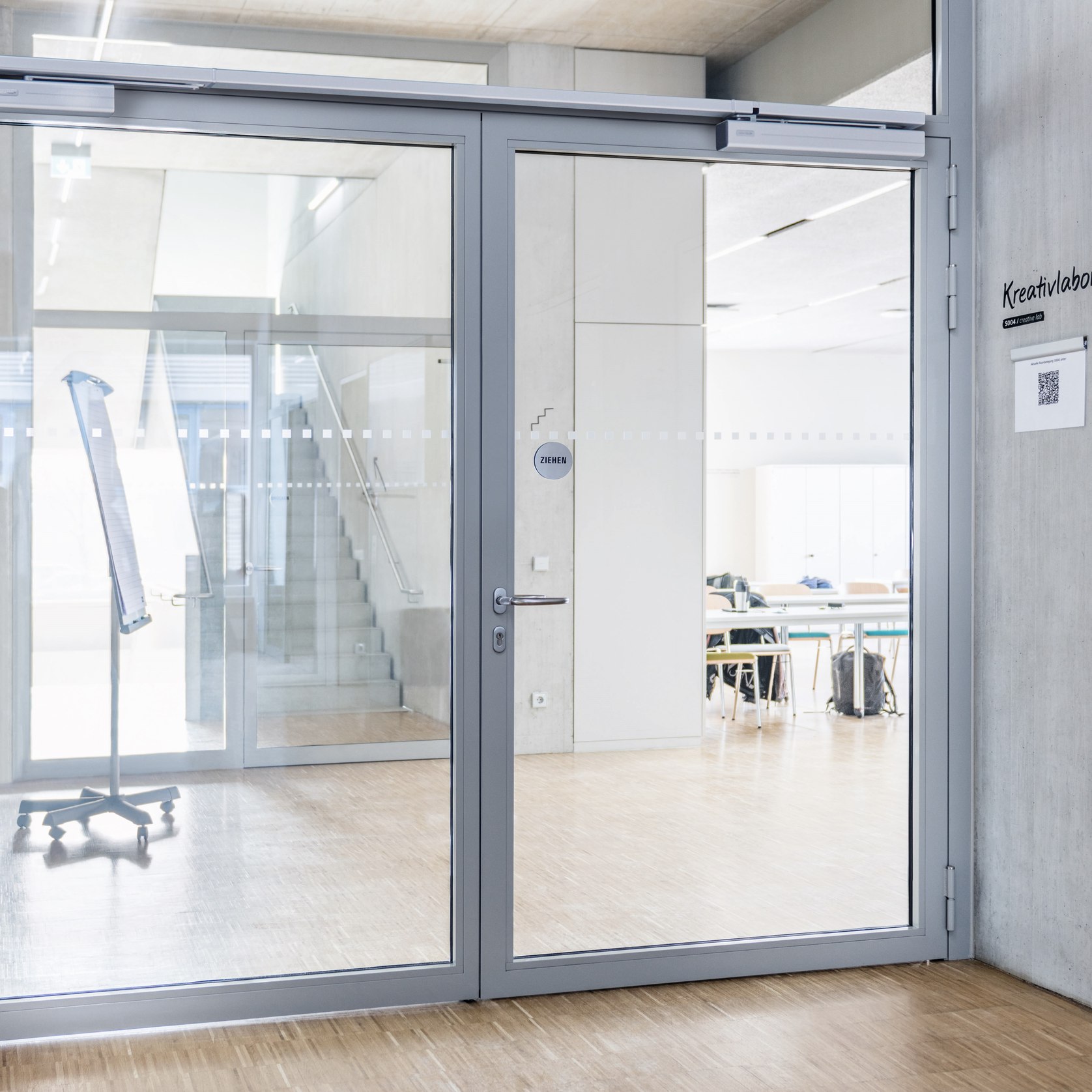

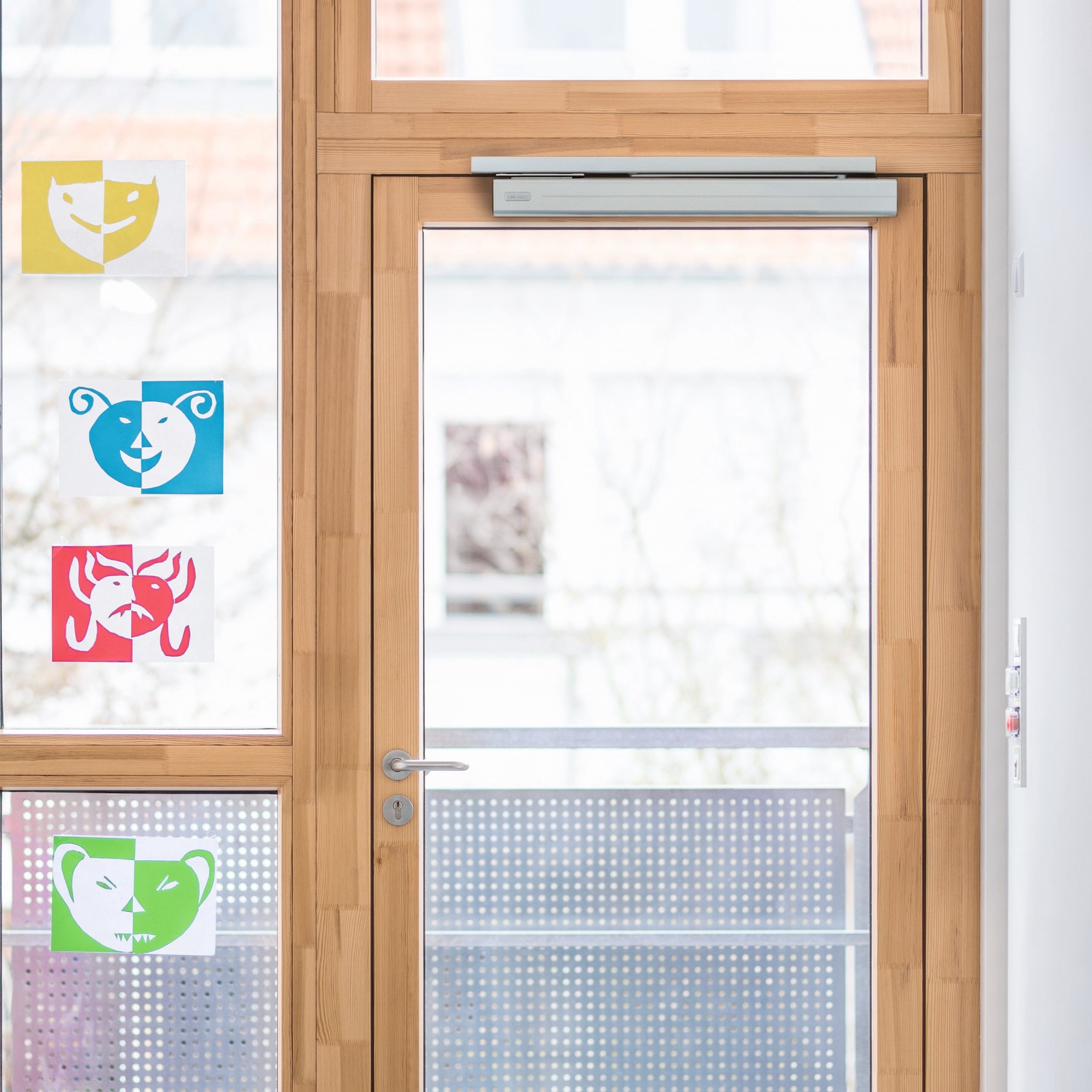

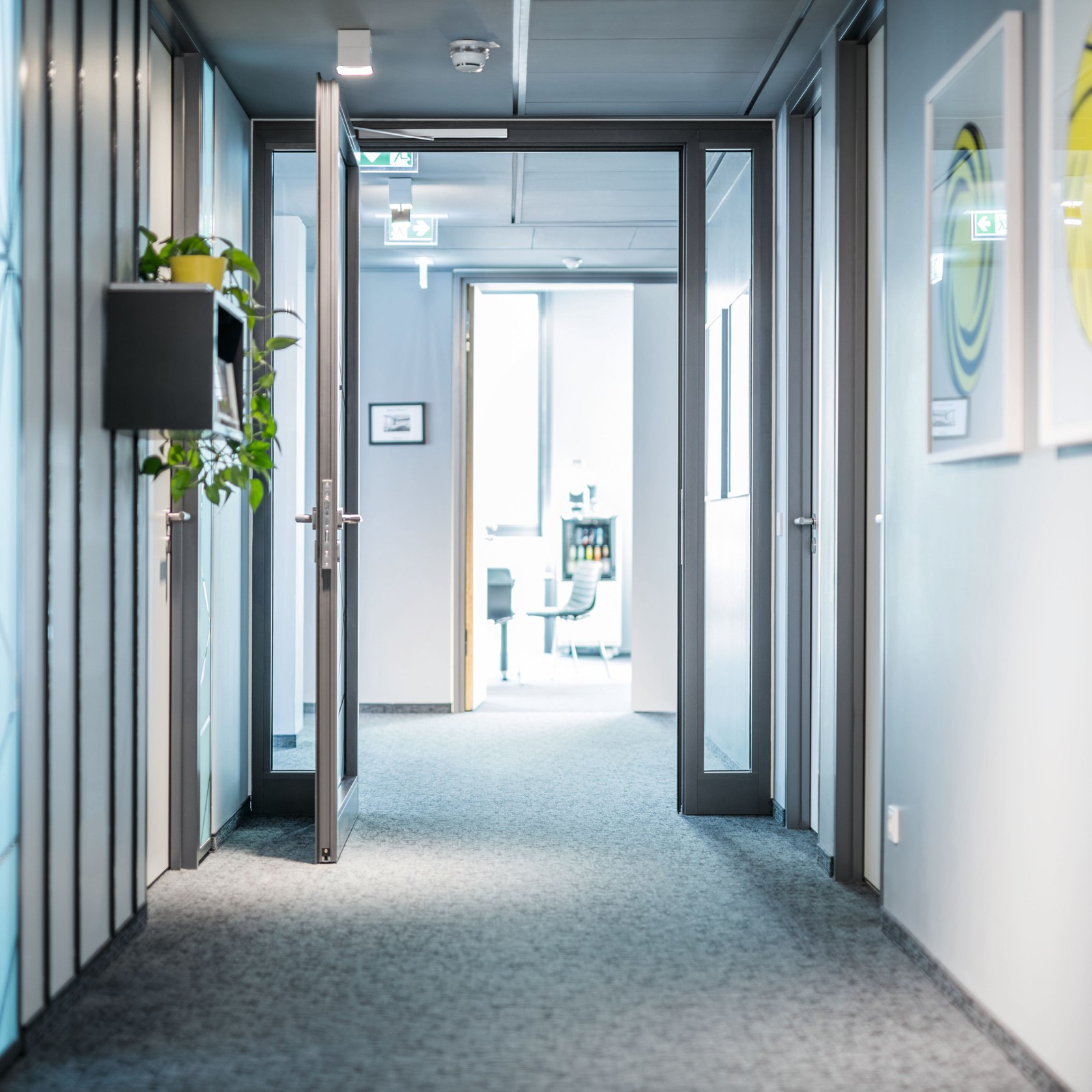

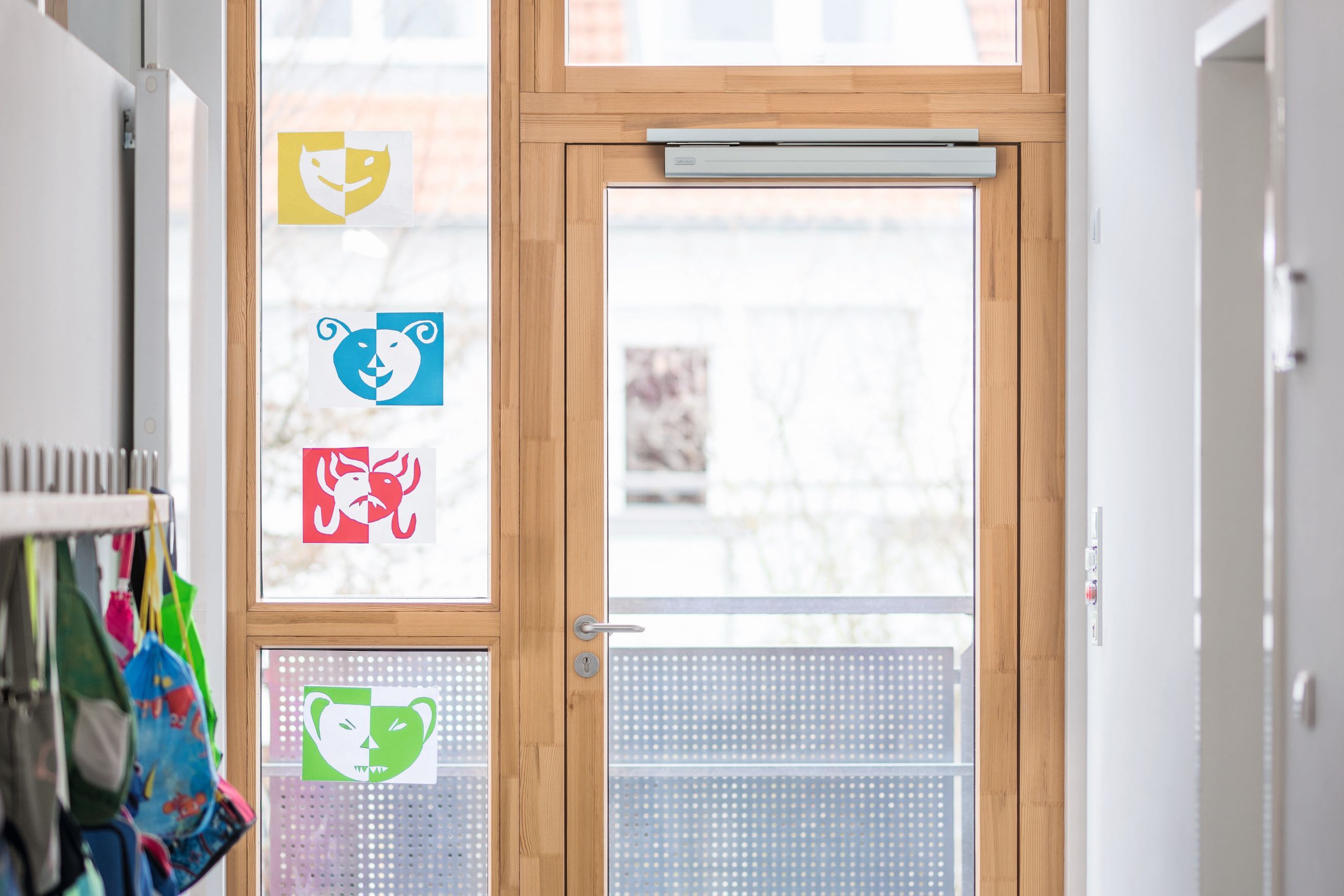

The DC700G-CM Door Closer is suitable for a variety of applications such as hospitality, education, and commercial buildings. It also works with security and access control applications and is suitable for use on internal and external doors.
- Cam-Motion Technology
Innovative Cam-Motion® technology combines with an integrated damping device to close doors quietly, safely and securely at the speed you want.
The door is pulled quietly and securely into the frame, allowing the locking system to latch the door into position. Close-Motion® minimises problems from draughts and differences in air pressure. No noise. No fuss.
Close-Motion® can be safely set to faster closing speeds as the unique damping feature preserves safety and silence by controllably slowing the door during the last few degrees of closing.
With safety, noise, accessibility and security covered, Close-Motion® is ideal for environments ranging from hospitality to healthcare and encompassing education and commercial or government buildings.
Easy to install by design, it is simple to adjust the standard closing and backcheck controls.
- Performance
- Safe, secure, silent closing
- Anti-slam, anti-abuse
- Optimal damping of the door even with faster closing speeds
- Reliable closing due to pressure differentials, external doors, etc.
- Appealing, uniform design with same-size door closer body & guide rail

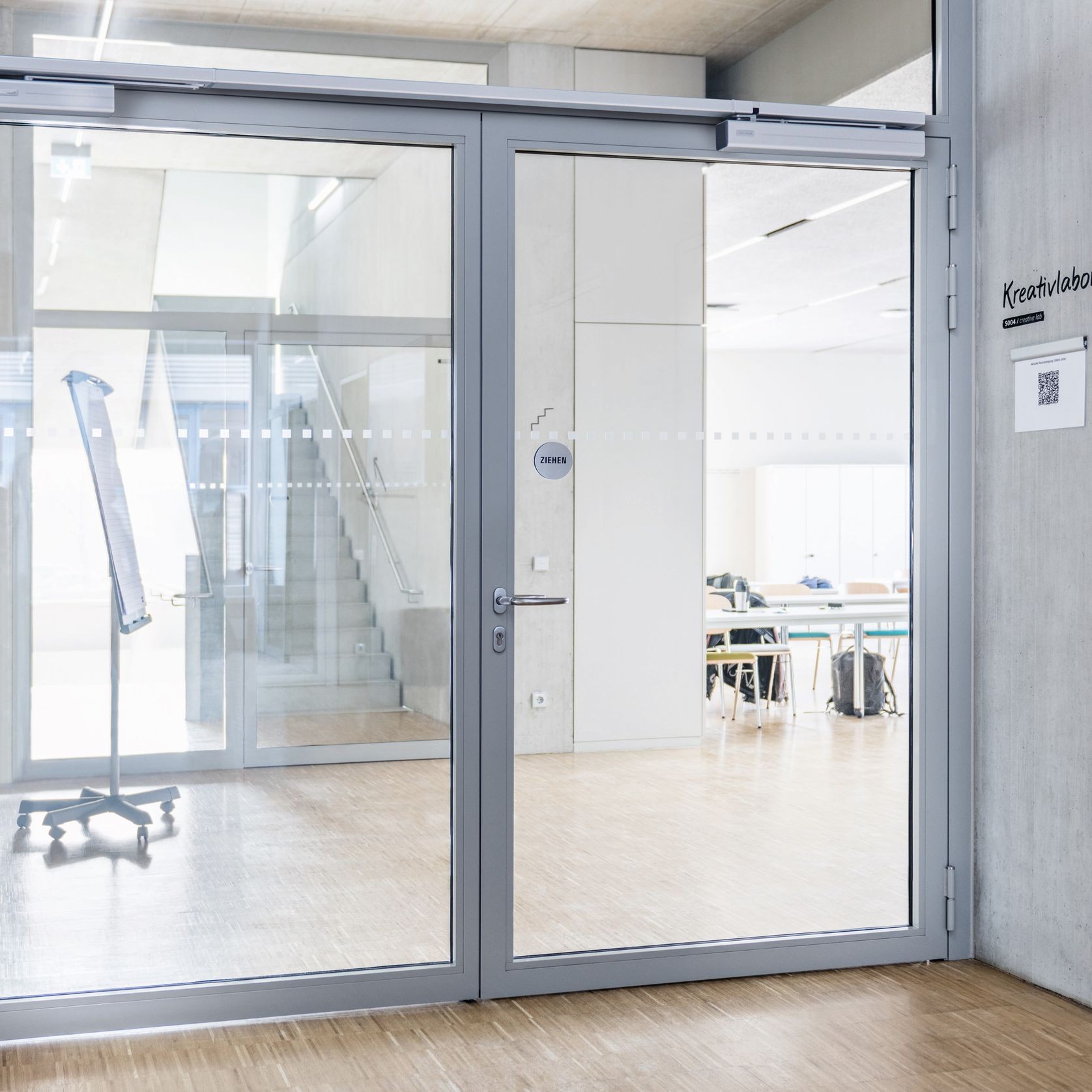

- Suitable for single and double-leaf doors
- No regular adjustments required
- Slower, controlled closing minimizes the danger of finger traps
- Simple, quick and easy to retrofit or upgrade
Downloads
Downloads (3)3 Direct downloads • 6 Available on request
Specified in
these projects
Where DC700G-CM Close Motion Door Closer has been used, and who designed the room it went into.
Frequently asked questions about
DC700G-CM Close Motion Door Closer
The DC700G-CM Close Motion Door Closer is supplied by ASSA ABLOY. It is also on their website, and you can browse every product ASSA ABLOY lists on ArchiPro.
ASSA ABLOY does not publish a price for the DC700G-CM Close Motion Door Closer on ArchiPro. for pricing, or visit their website.
Yes. It is part of the ASSA ABLOY range from ASSA ABLOY, where you can see every product in the range together.

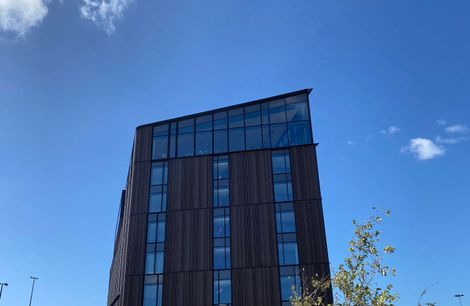

Yes. It has been specified in projects on ArchiPro, including Complete hardware solution for Christchurch Novotel by ASSA ABLOY. See how it was used in a finished space.
