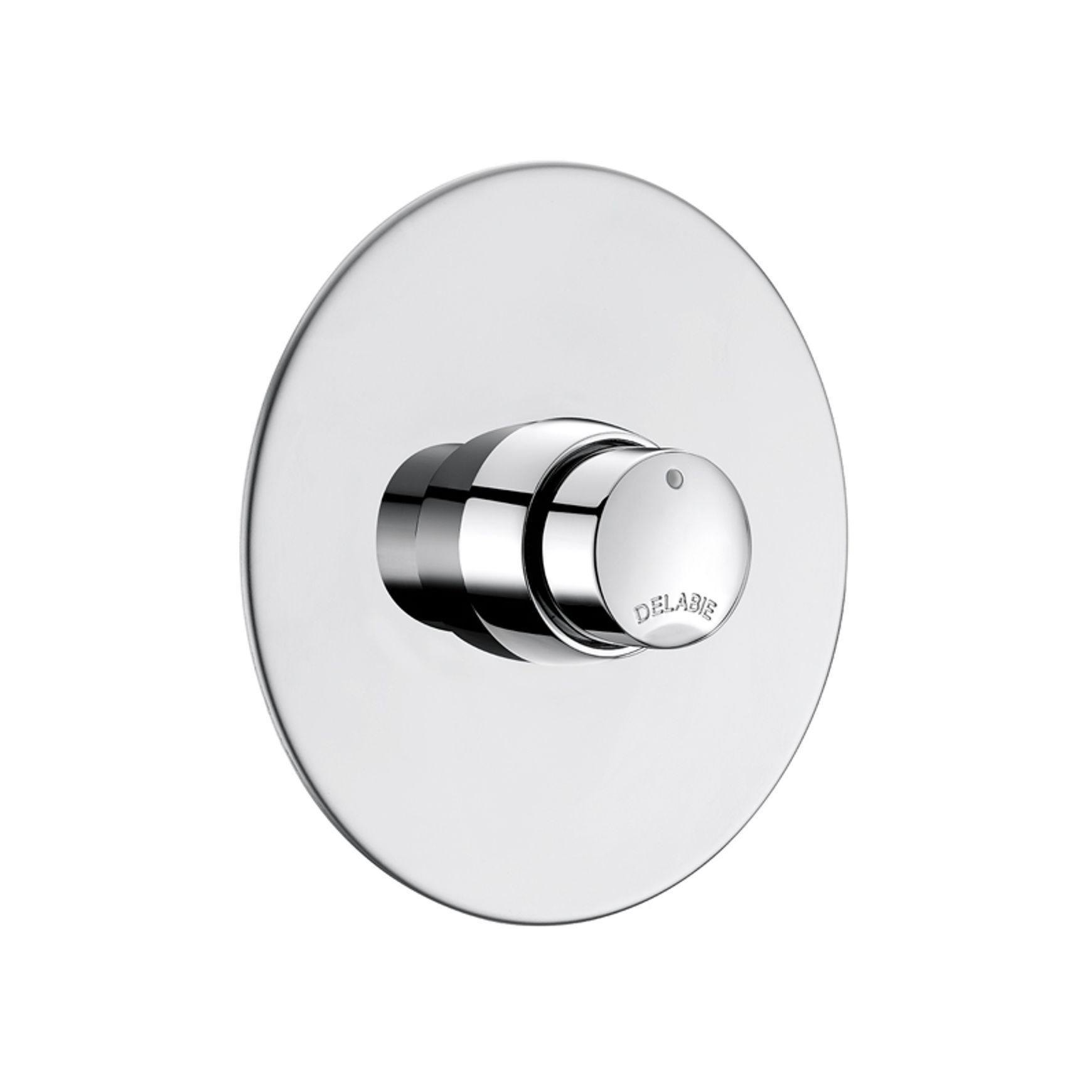

Delabie Temposoft 2 Time Flow Urinal Valve
Auckland
- 284.7K profile views
- 19 saves

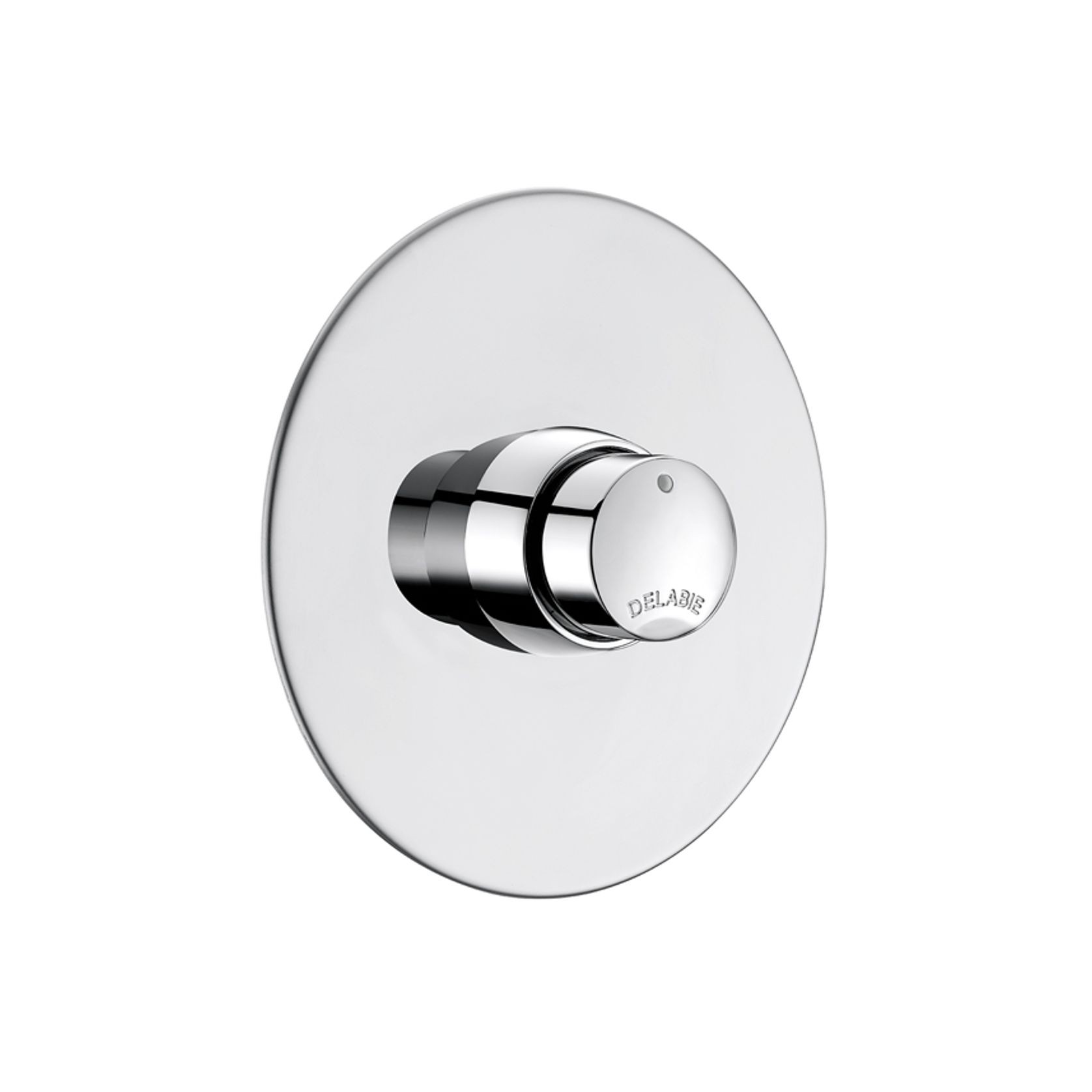

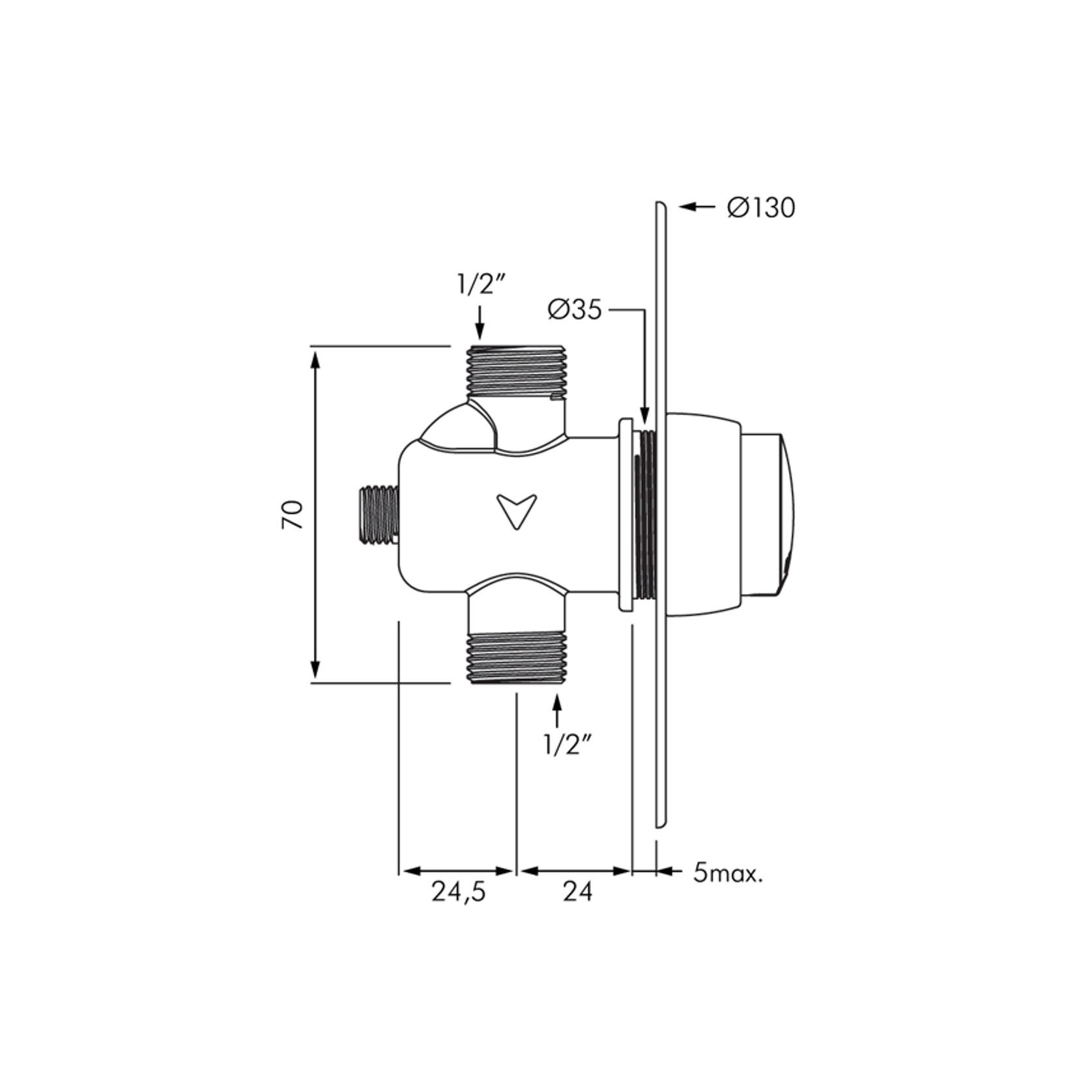

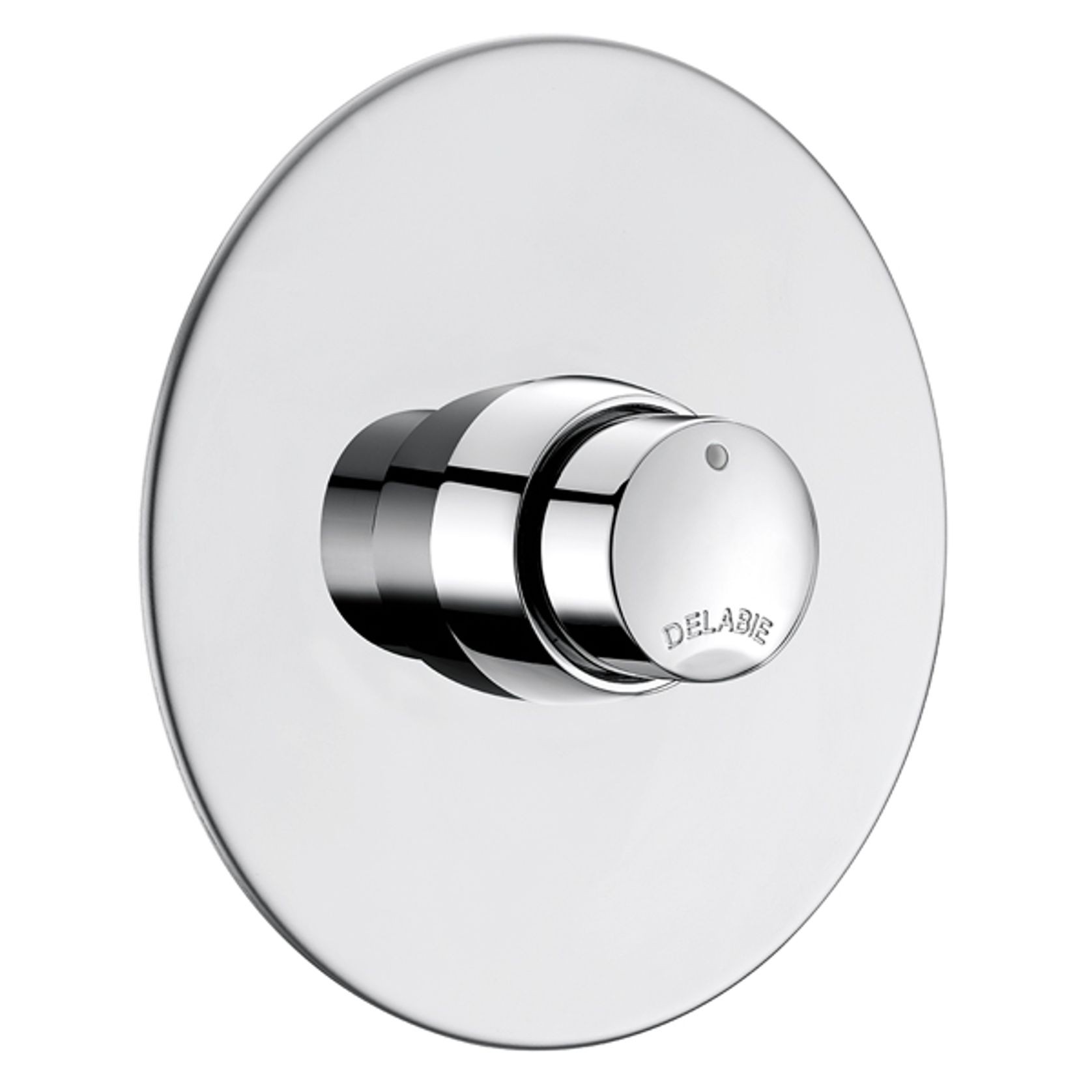

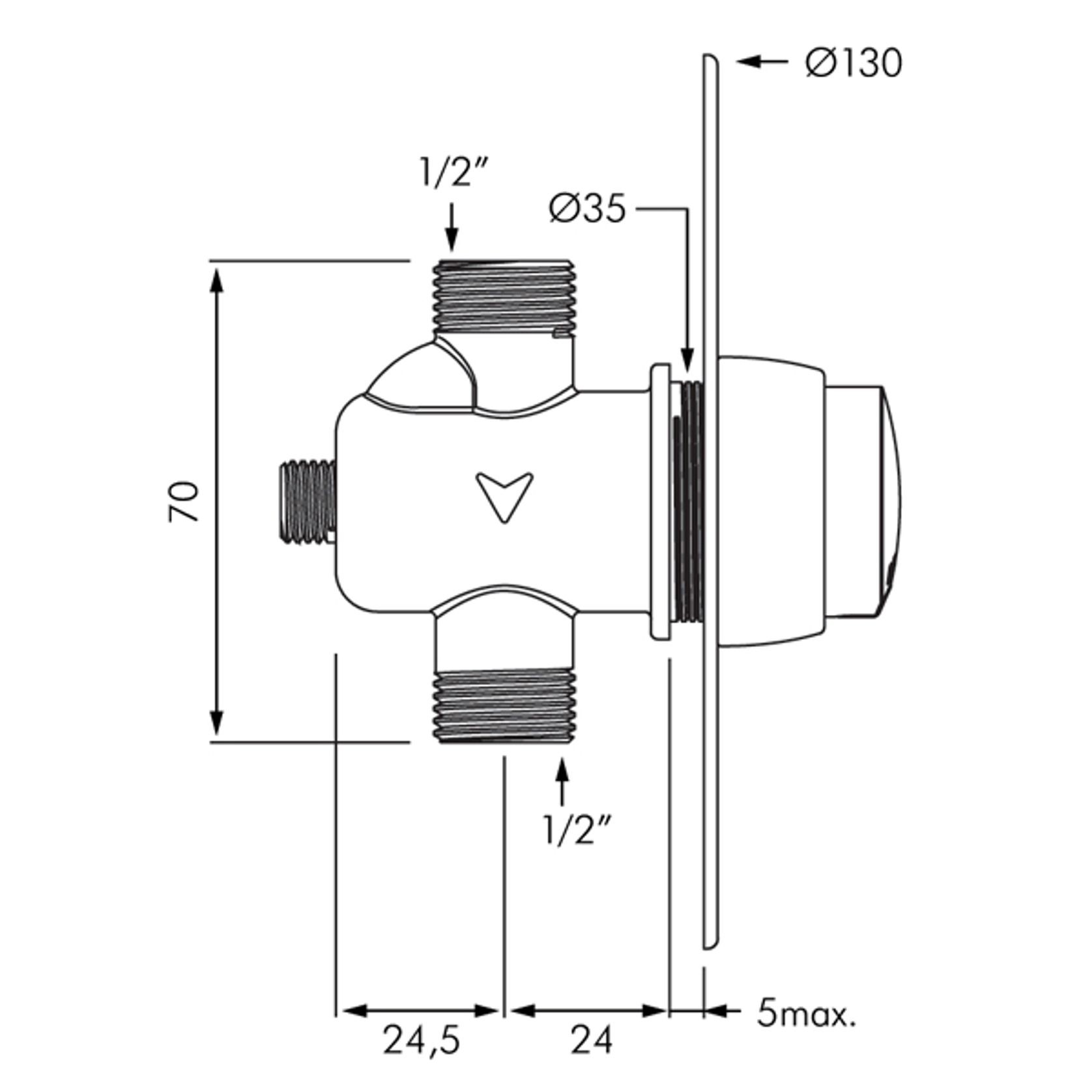

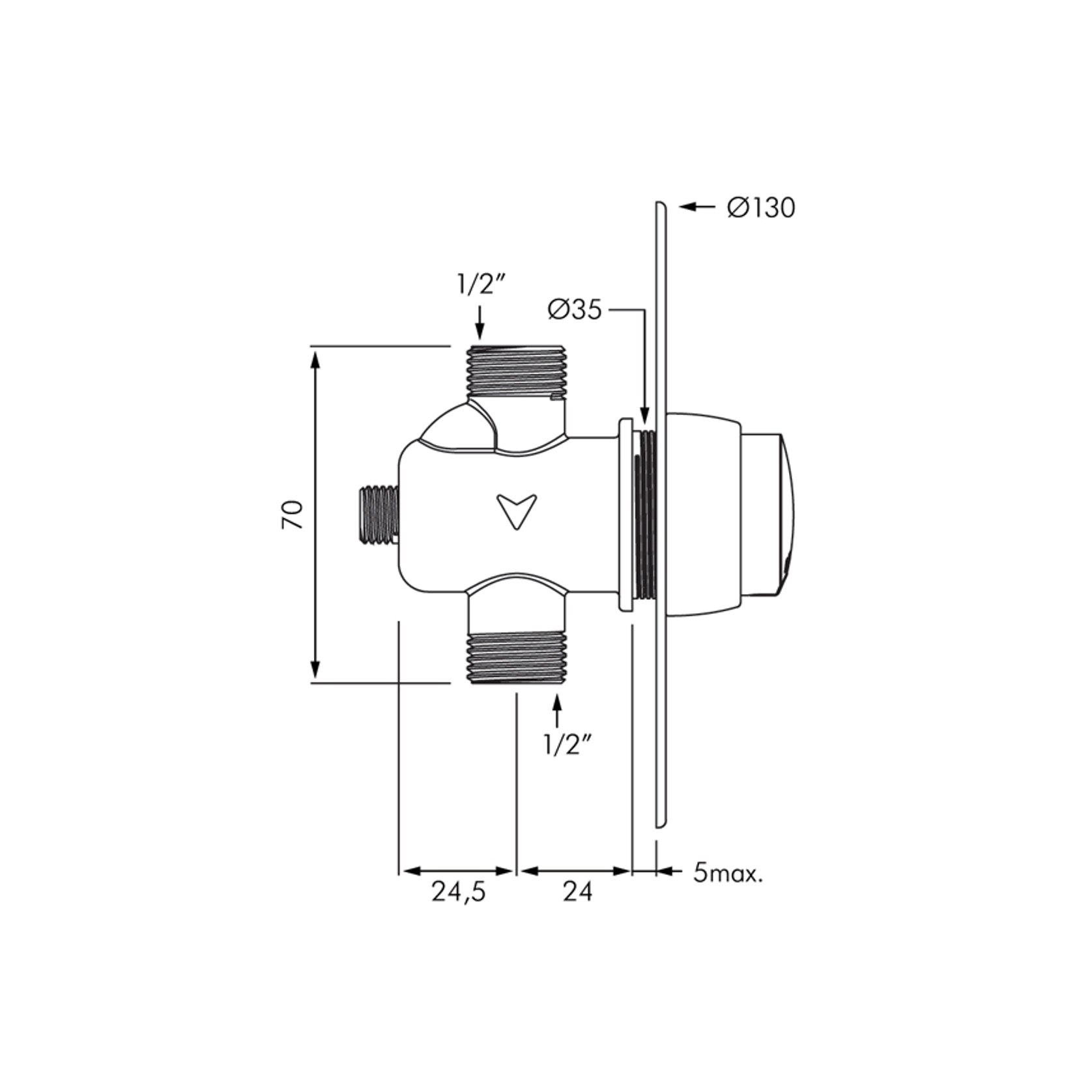

DELABIE DE777130 is a recessed mounted time flow urinal valve with a soft touch operation. Soft touch operation allows users to press the control with no effort especially children, elderly or people with reduced physical ability. Time flow is ~3 seconds. Flow rate is pre-set at 0.15L/second at 300kPa, can be adjusted. Operating pressure is 150-500kPa, 300kPa is recommended. Bright polished stainless steel wall plate Ø130mm with solid brass body. M1/2” water connections for water supply.
Suitable for use on all our back inlet wall hung urinals.
Product Details
- Product
- Delabie Temposoft 2 Time Flow Urinal Valve
- Category
- Toilet Flush Buttons
- Sold by
- MacDonald Industries
- Brand
- Delabie
- Type of use
- Commercial and Residential
MacDonald Industries is specified by
PAUA Architects LtdArchitects
Stephenson&TurnerArchitects
Sheppard & Rout ArchitectsArchitects
Mason & Wales ArchitectsArchitects
Studio Pacific ArchitectureArchitects
Eliška Lewis ArchitectsArchitects
Architects44Architects
MAKE ArchitectsArchitects
Williams Architects LtdArchitects
Fat Parrot ArchitectureArchitects
Wilson & Hill ArchitectsArchitects
Architect PeopleArchitects
Stevens Lawson ArchitectsArchitects
Arthouse ArchitectsArchitects
DCA Architects of TransformationArchitects
Moller ArchitectsArchitects
Jigsaw ArchitectsArchitects
HB ArchitectureArchitects
GHD DesignArchitects
Designgroup Stapleton ElliottArchitects
Gel ArchitectsArchitects
Totem StudioArchitects
McCoy Wixon ArchitectsArchitects
Ignite ArchitectsArchitects
TEAM Architects AucklandArchitects
7D Architecture LtdArchitects
Henwood ConstructionConstruction
August Millard LimitedBuilding Surveyors
HawkinsConstruction
Foley GroupInterior Designers
Peter Dunbar Architectural DesignerArchitectural Designers
PG Plumbing + GasfittingPlumbers & Gas Fitters
AquaPro PlumbingPlumbers & Gas Fitters
Nixon HomesBuilders
Hanlon & Partners LtdEngineers
RCPProject Managers
Arcline ArchitectureArchitectural Designers
Bishop ArchitectureArchitectural Designers
Peter Diver Plumbing & DrainagePlumbers & Gas Fitters
Heron PlumbingDrainage Specialists
DELABIE DE777130 is a recessed mounted time flow urinal valve with a soft touch operation.
Soft touch operation allows users to press the control with no effort especially children, elderly or people with reduced physical ability. Time flow is ~3 seconds. Flow rate is pre-set at 0.15L/second at 300kPa, can be adjusted. Operating pressure is 150-500kPa, 300kPa is recommended. Bright polished stainless steel wall plate Ø130mm with solid brass body. M1/2” water connections for water supply.
Suitable for use on all our back inlet wall hung urinals.
- Specs
Models:
DE777130 - Standard model as shown - 3 star WELS rating.
DE777140 - Same as DE777130 but for >7mm panel-mounting (without wall plate).
