Domus Line FLEXYLED LED Strip Lighting

By FIT
Website

FLEXYLED from Domus Line is a highly innovative product in the LED flexible strip market. Two system types have been designed (CH and CR), with different connection systems, to suit a wide variety of situations and installation types. All Domus Line products are designed in Italy to meet Australian/New Zealand standards.

These strips are ideal for use with the Domus Line range of aluminium profiles and are fully compatible with Domus Line 12V sensor switches and power supplies.

There are also highly innovative and extremely flexible side emitting LED strips in both 12Vdc and 24Vdc; SE H4 for 12Vdc and AT6 and high emission SE H4-24 for 24Vdc. These LED strips are fantastic for creative lighting as they can be installed in relatively tight curves.

For a slimline, high emission option look at HE6B Pro and for super high emission, consider SHE6B Pro. Both options are IP 20 rated and can be trimmed to suit your projects. They're particularly good for the slim Domus Line profiles Apex Dark and Nexus. HE6B Pro and SHE6B Pro come on 10m rolls, or in precut lengths - 2m and 3 m prewired at one end and 5m prewired at both ends.

Details
  • Category
    LED Strip Lights
  • Brand
    Domus Line
Scope of use

Designed for domestic or light commercial use

The FLEXYLED Range

FLEXYLED SE H4 and SE H4-24

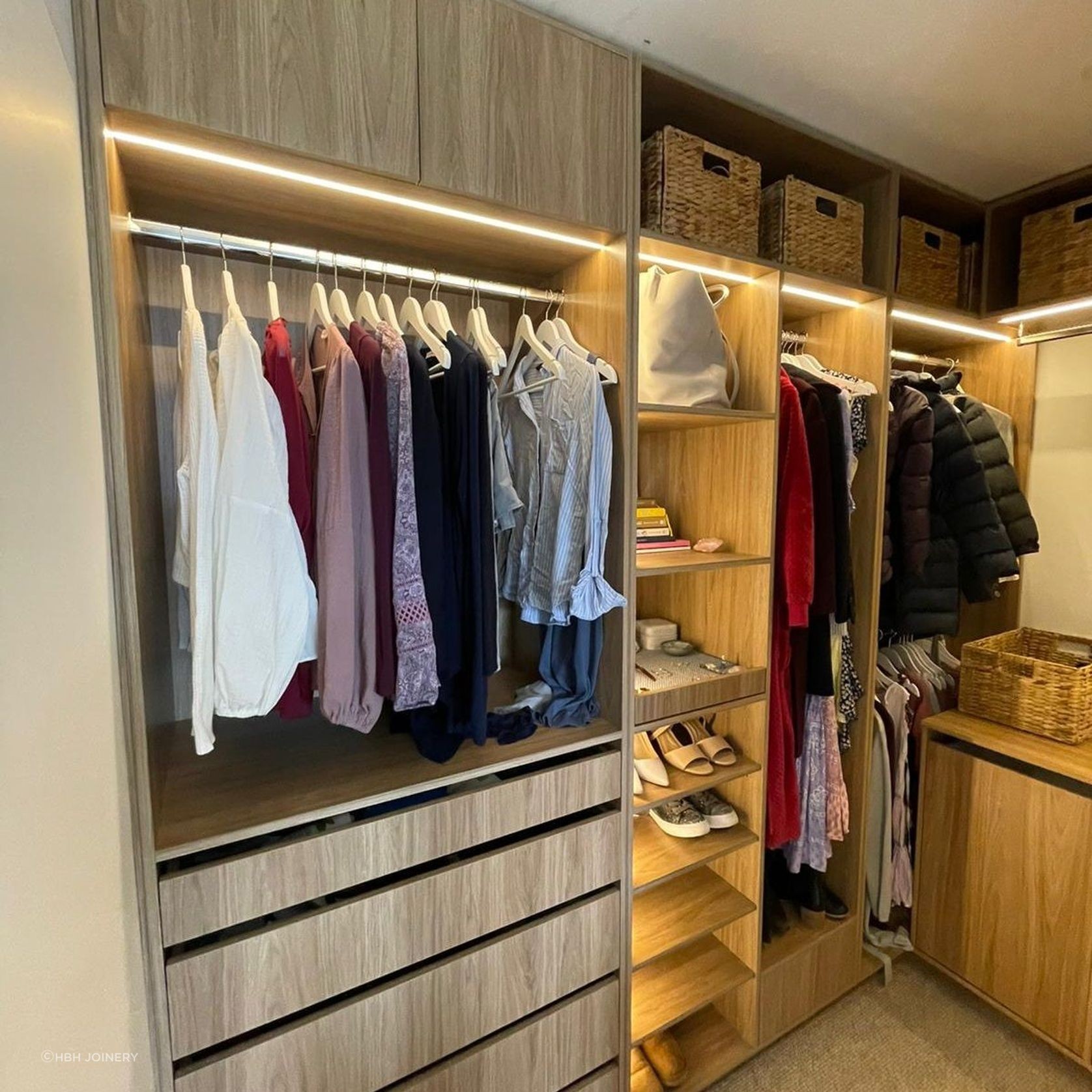

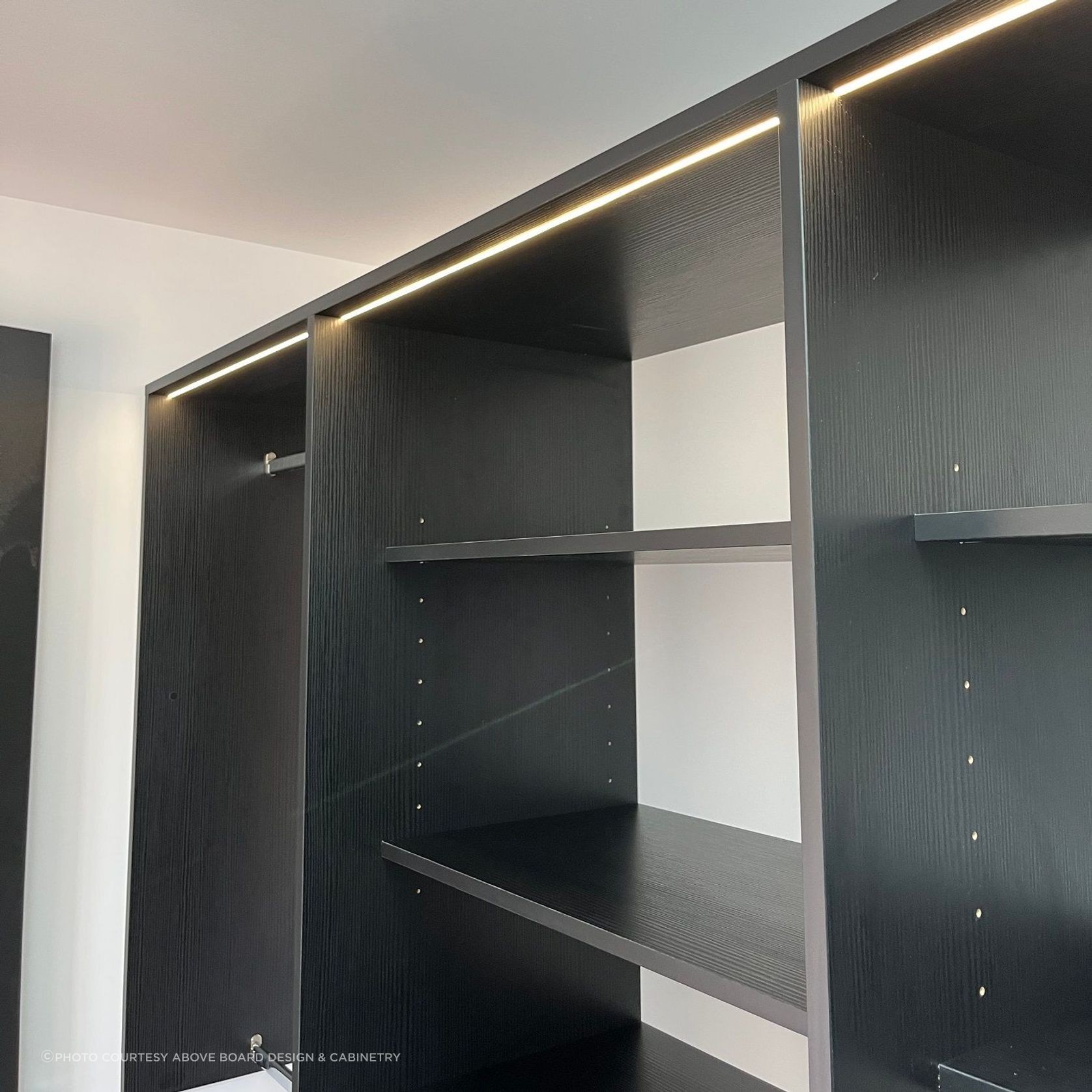

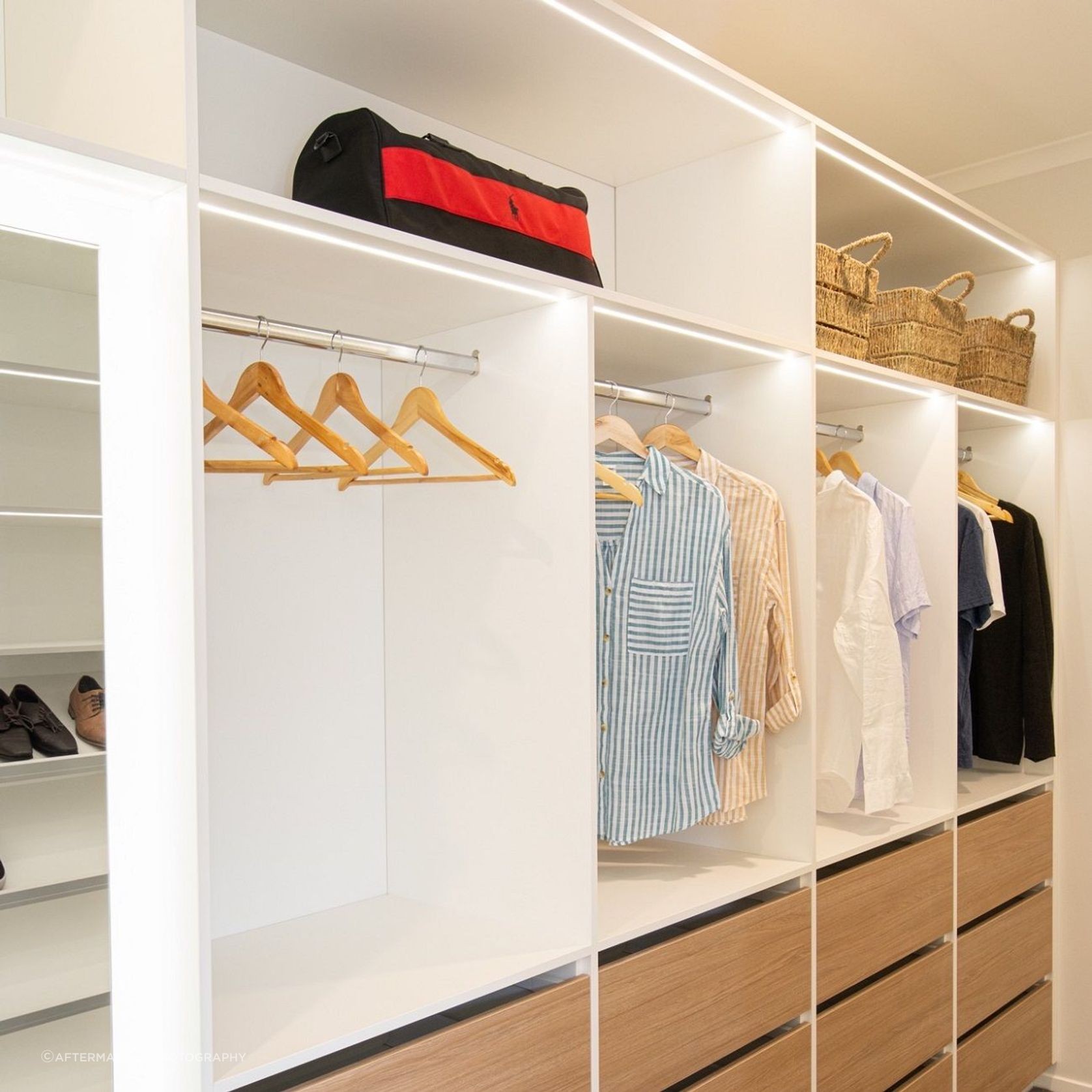

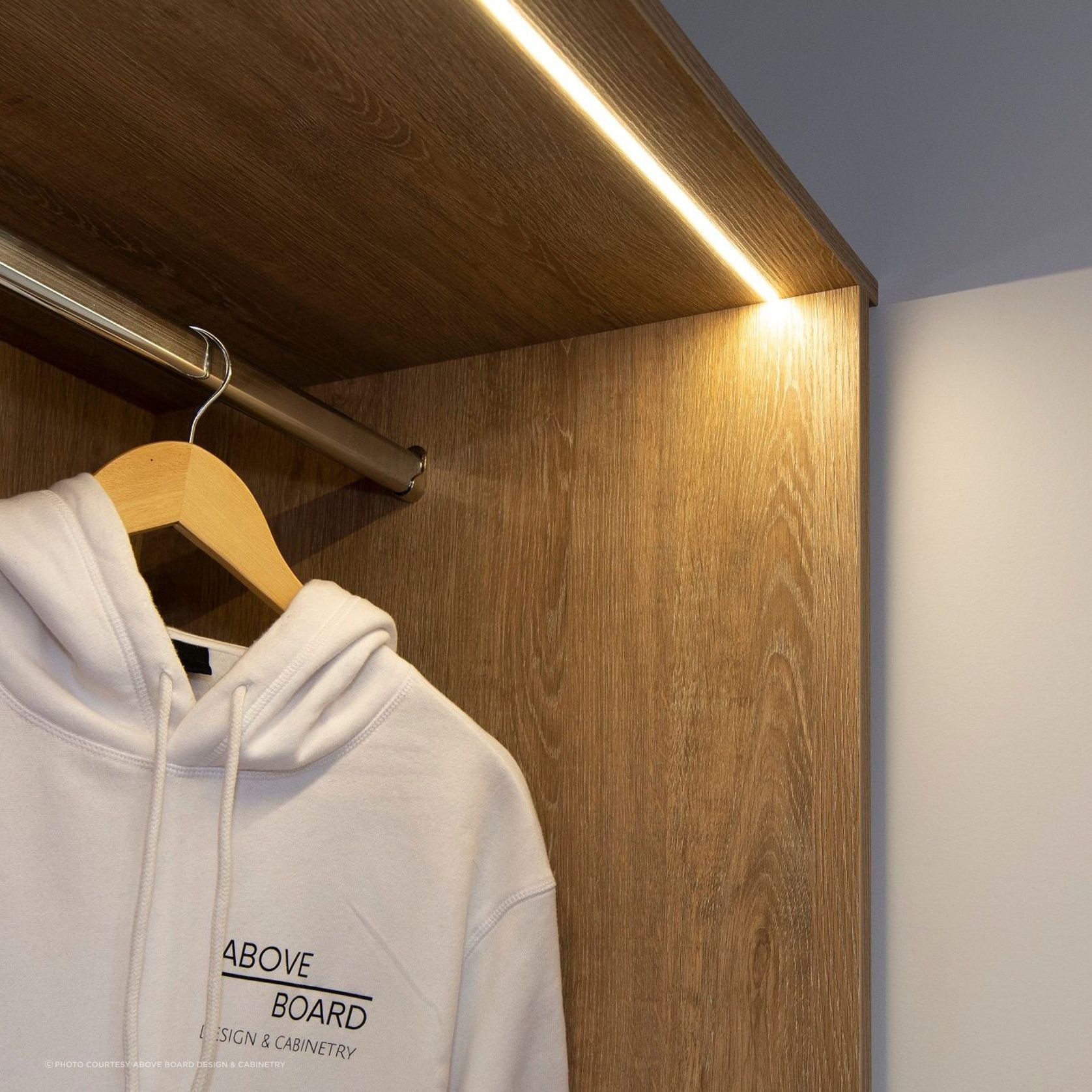

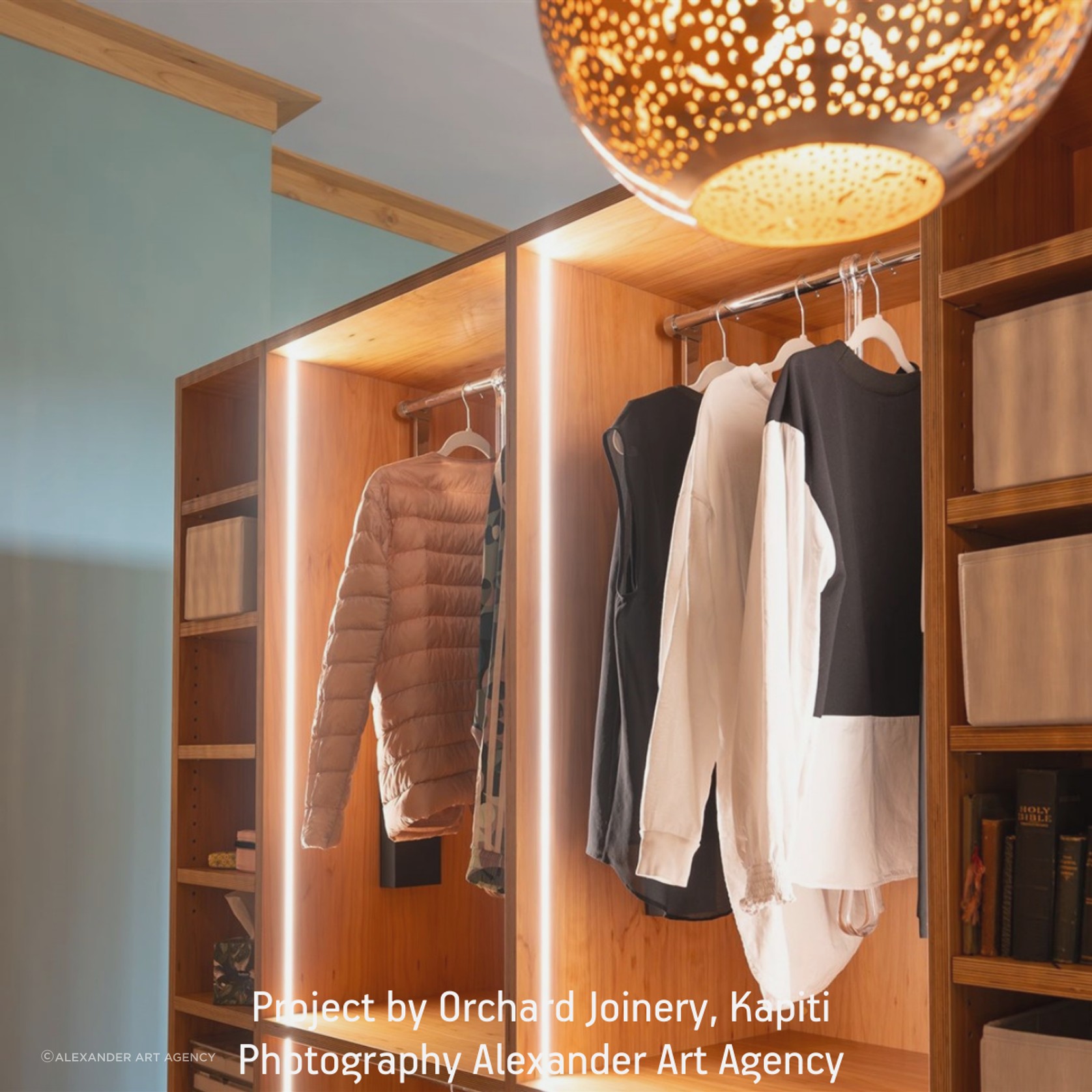

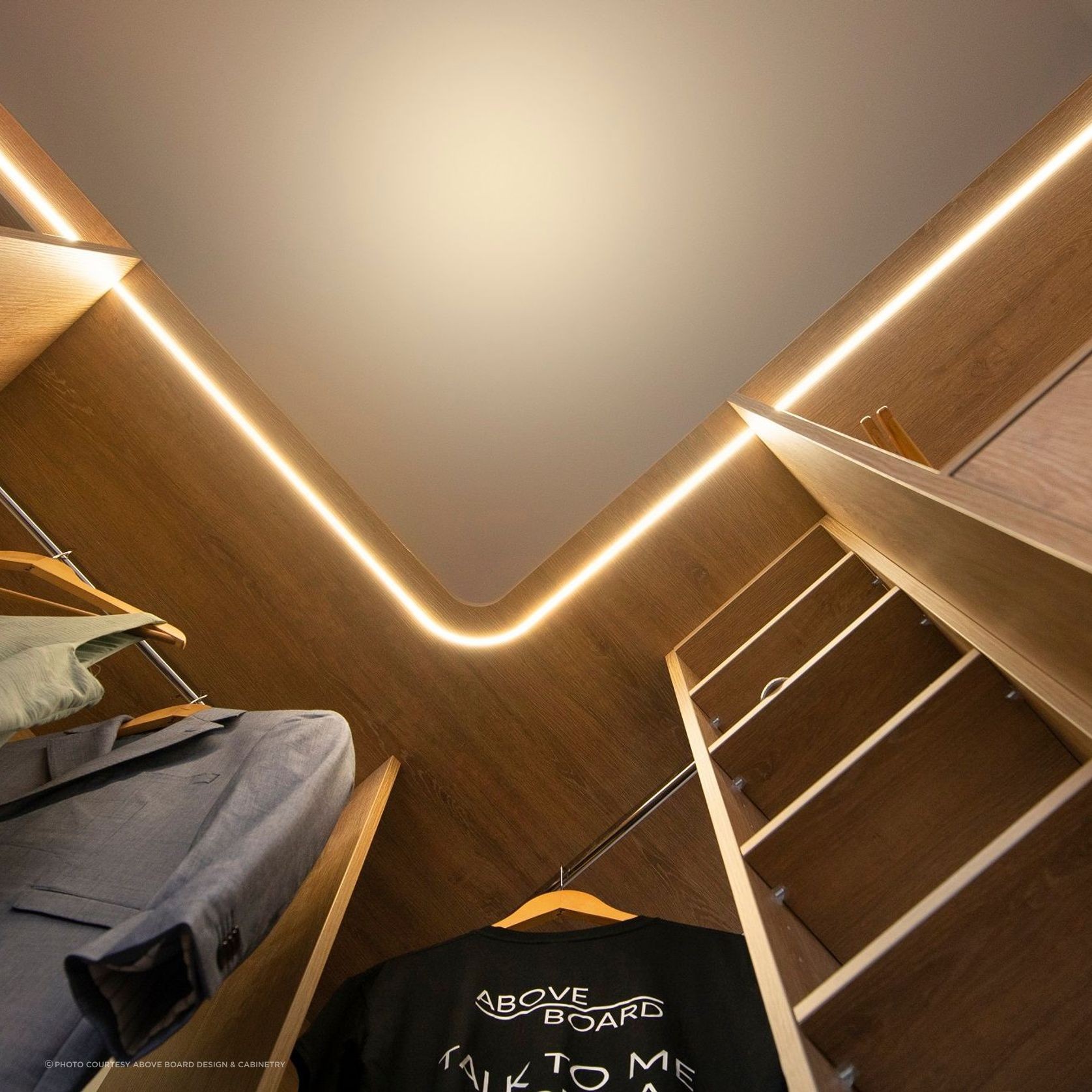

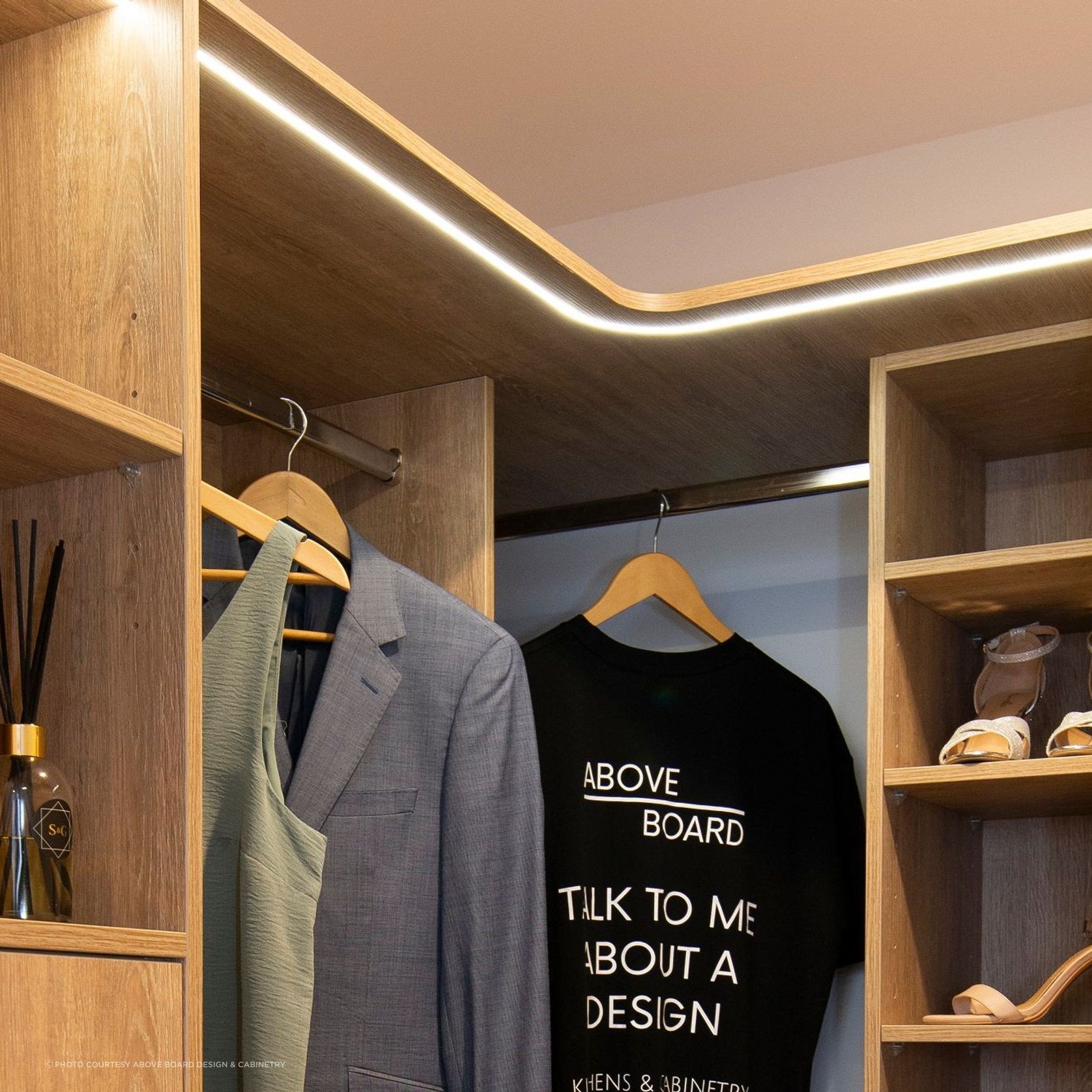

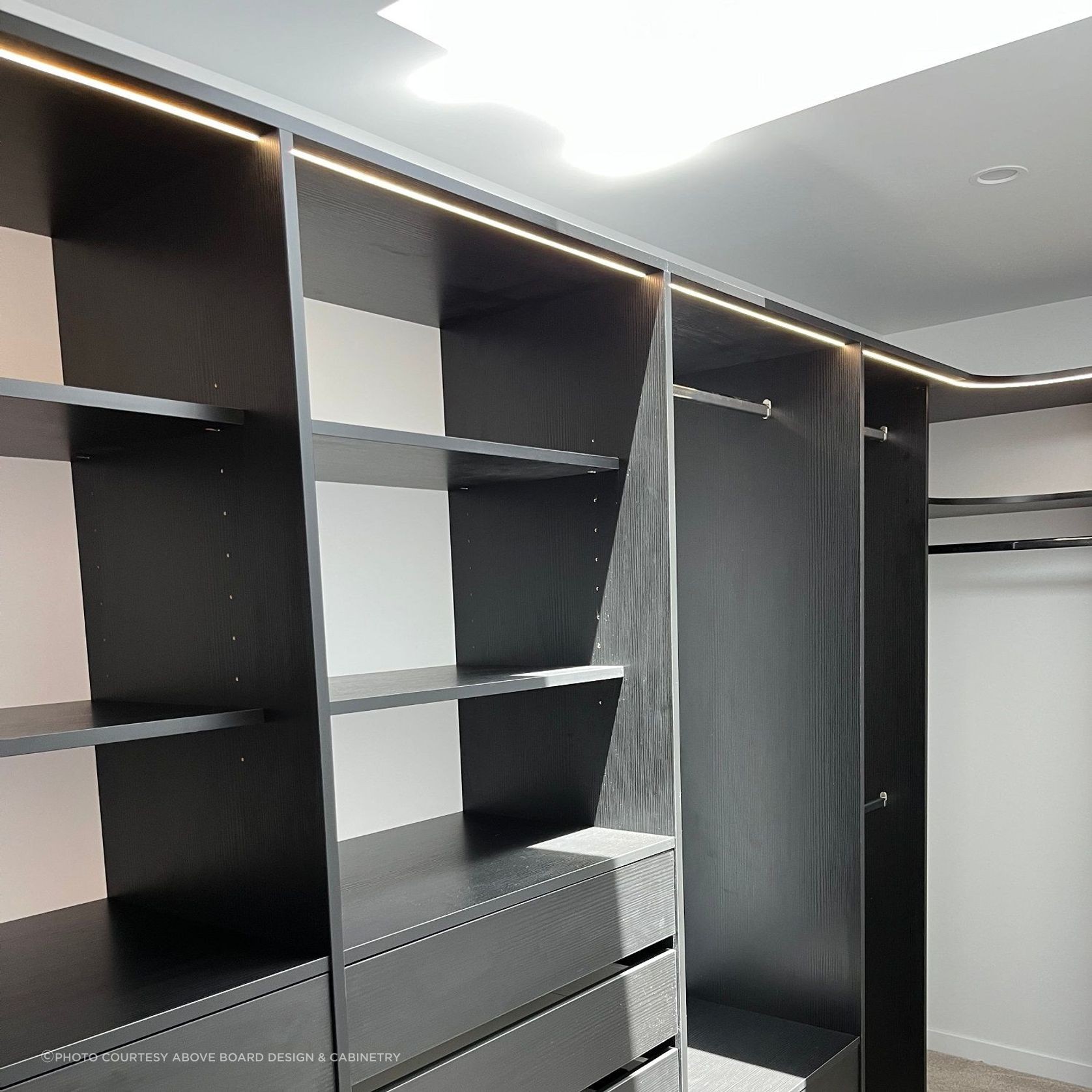

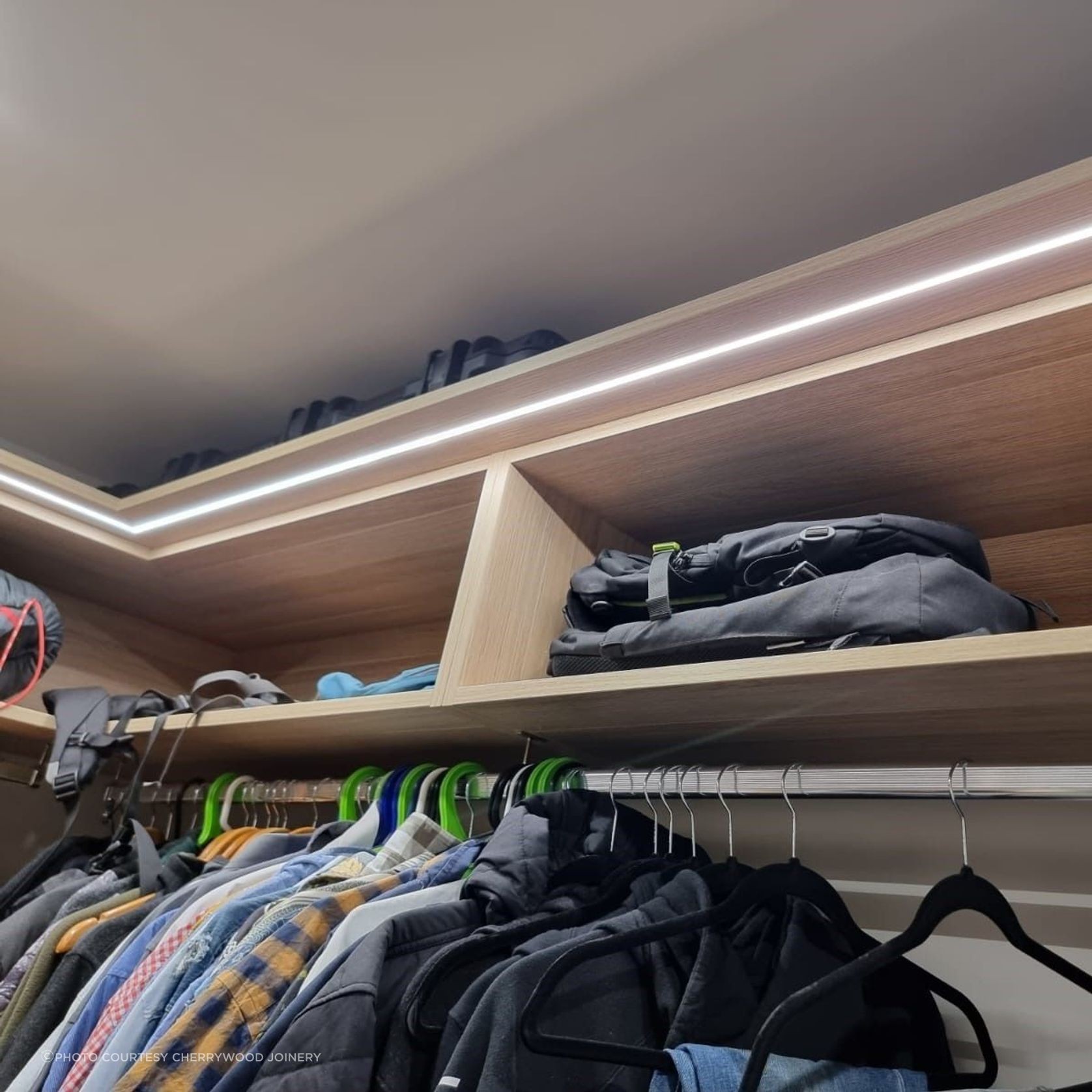

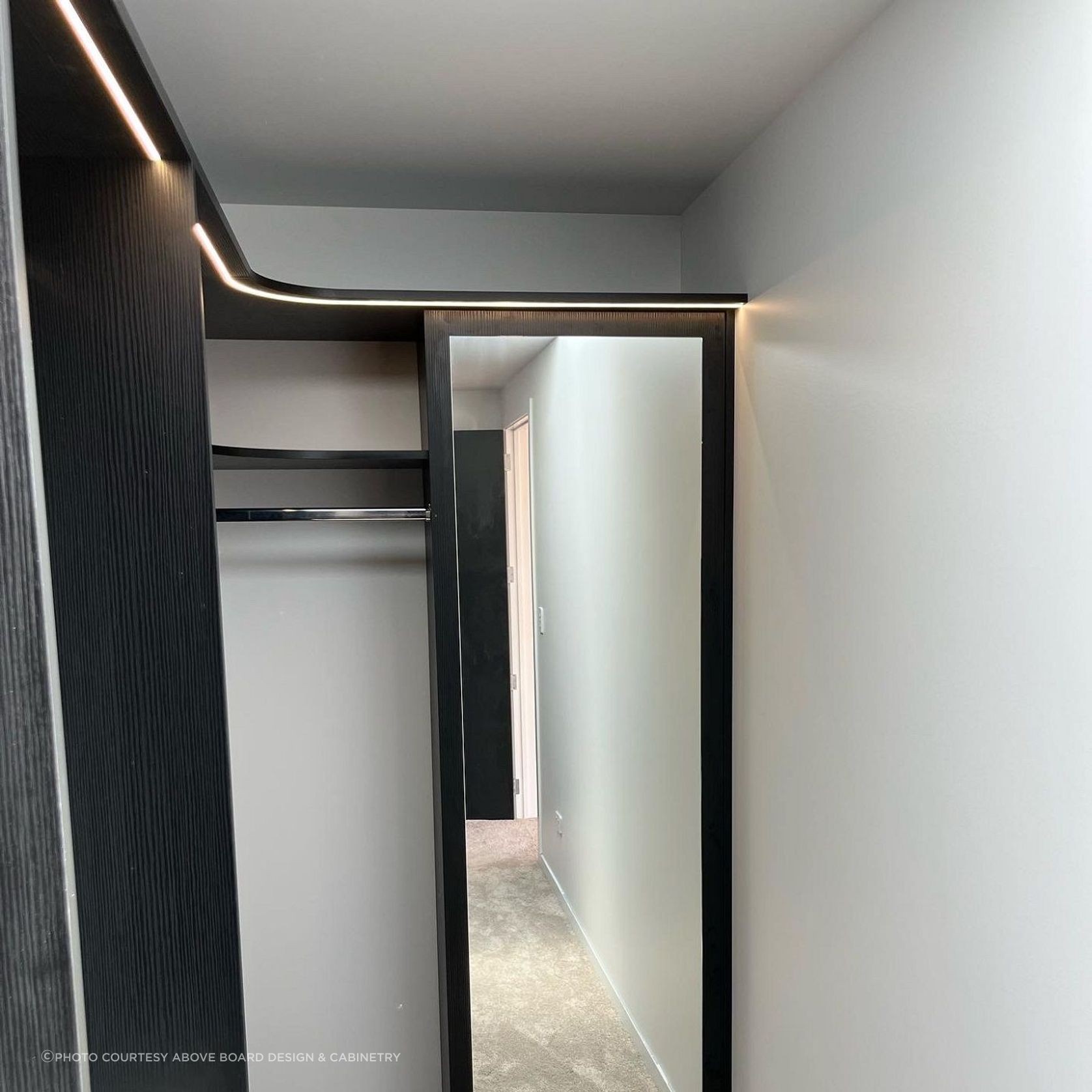

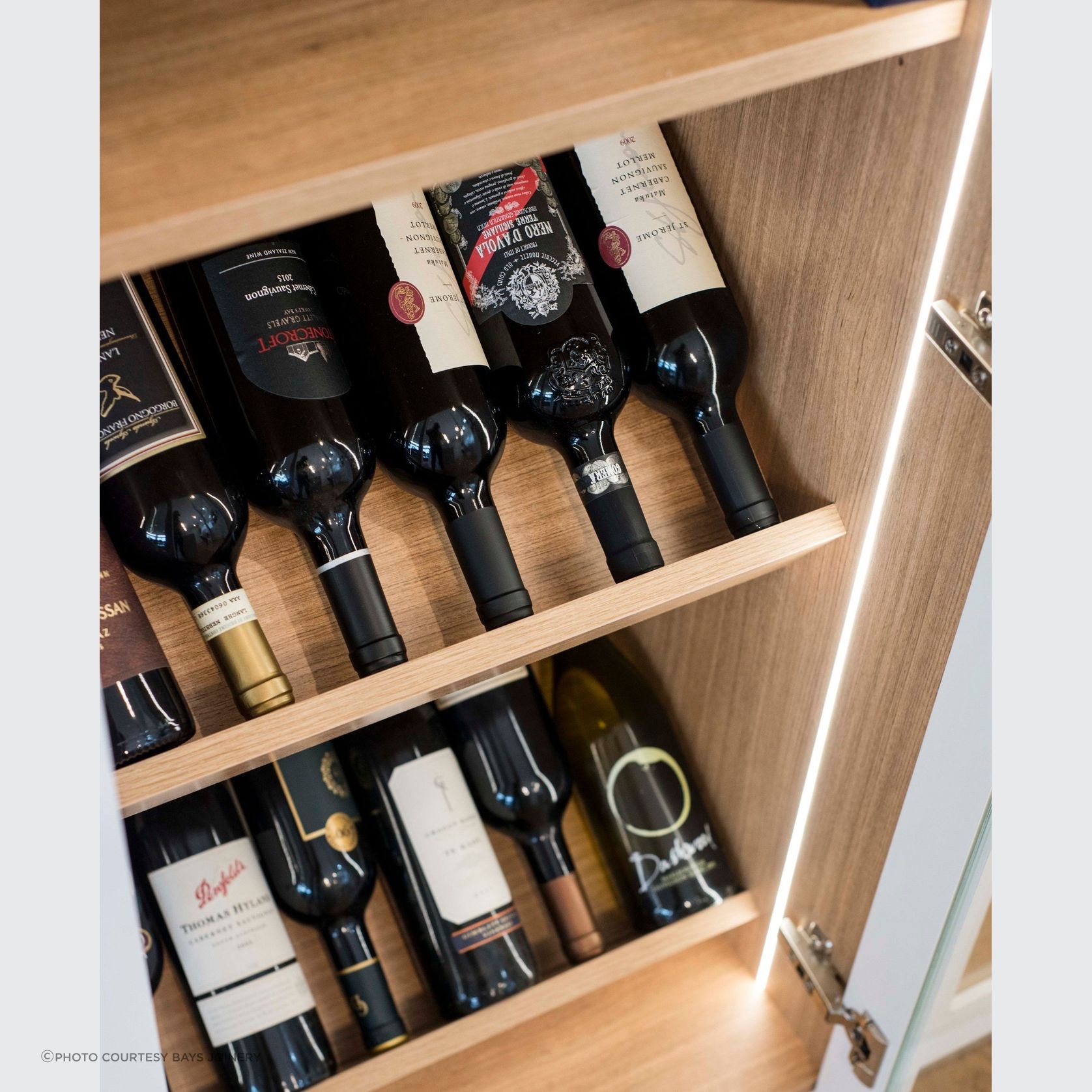

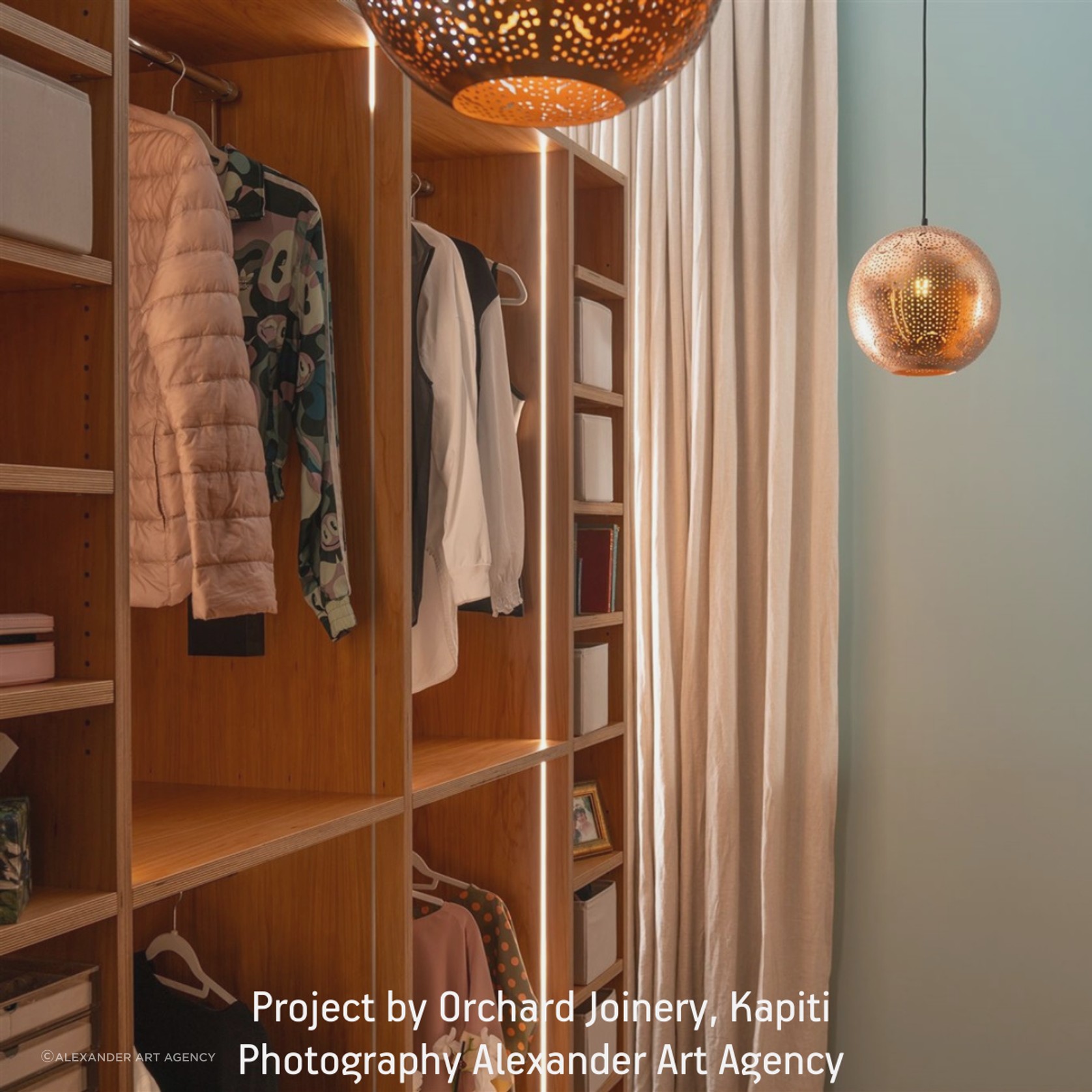

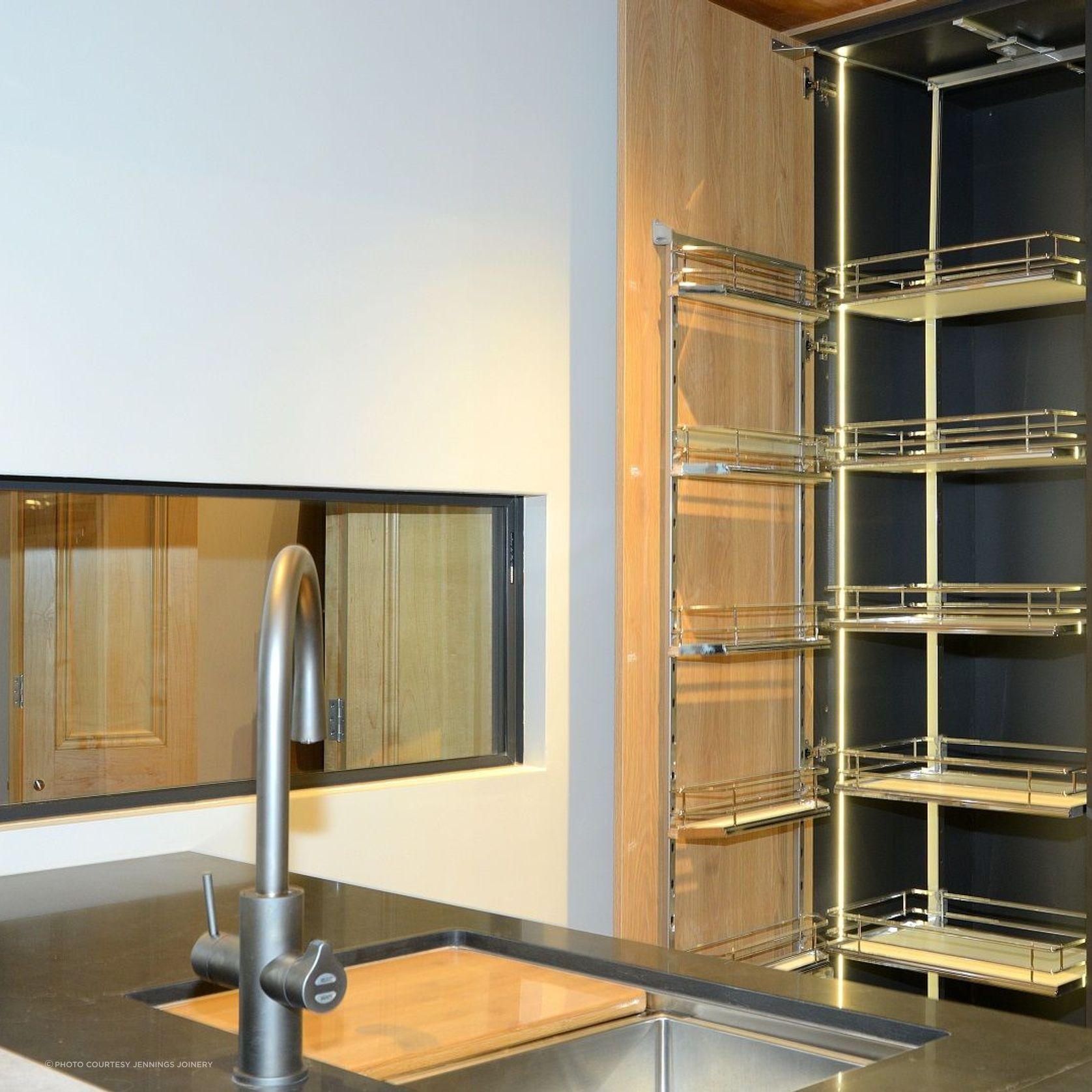

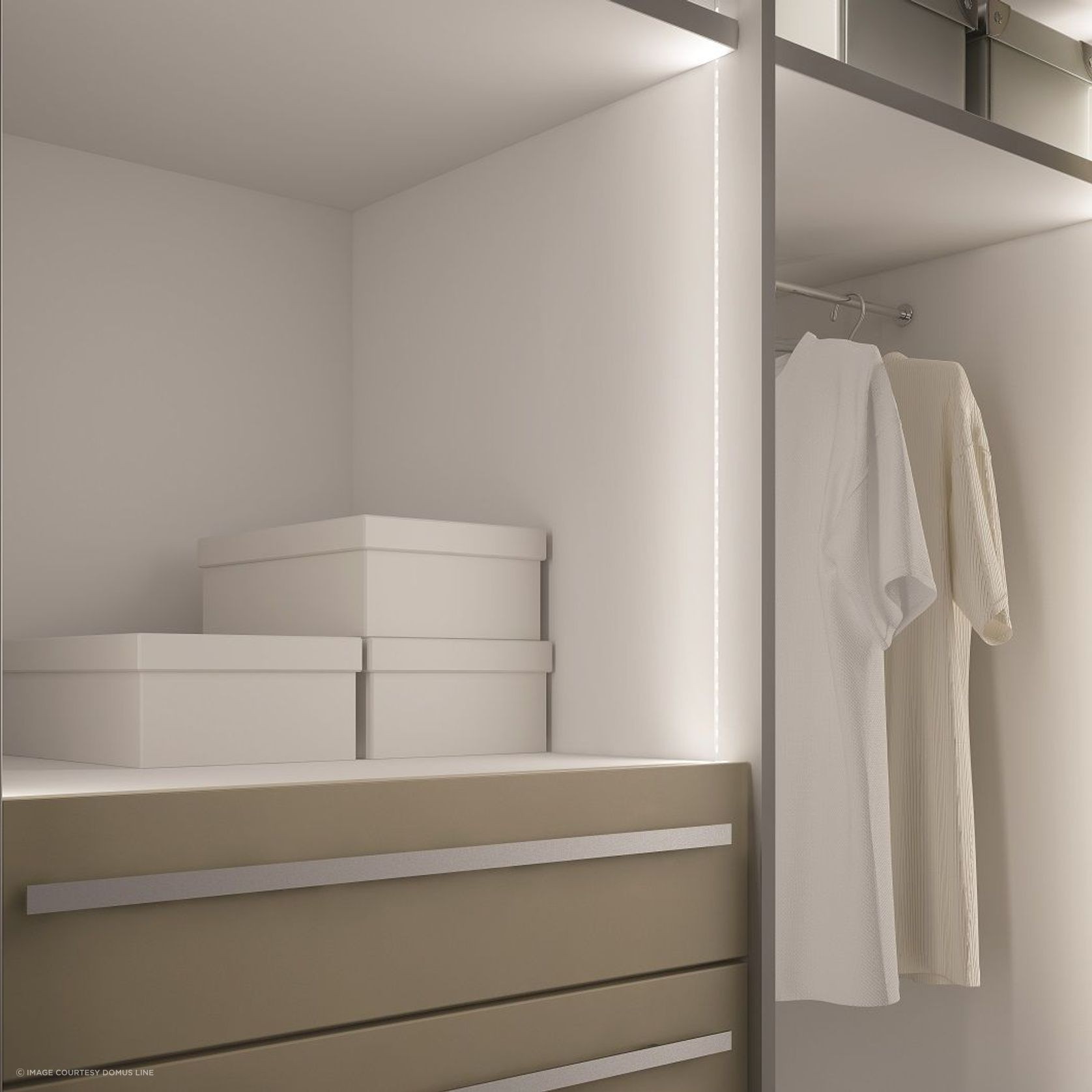

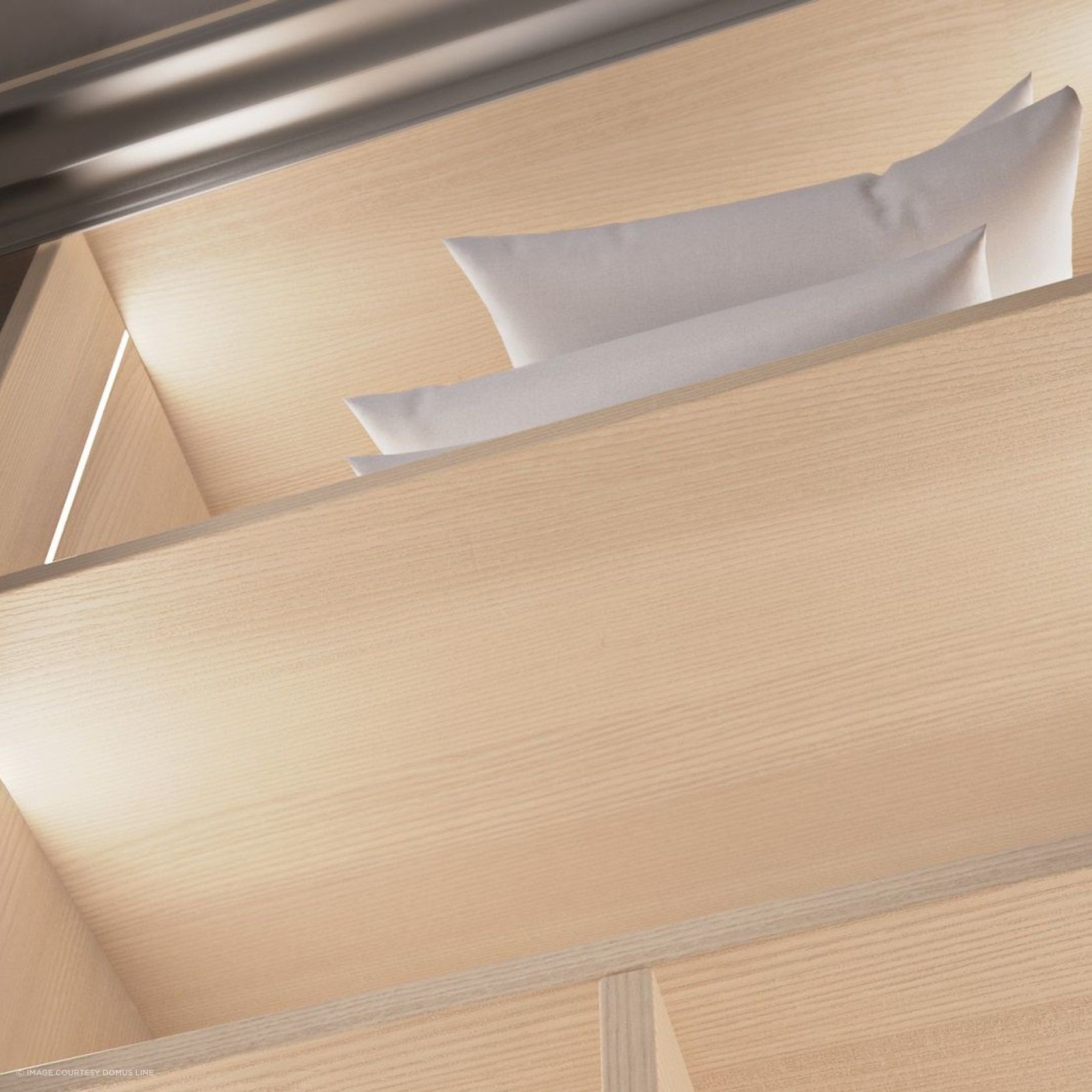

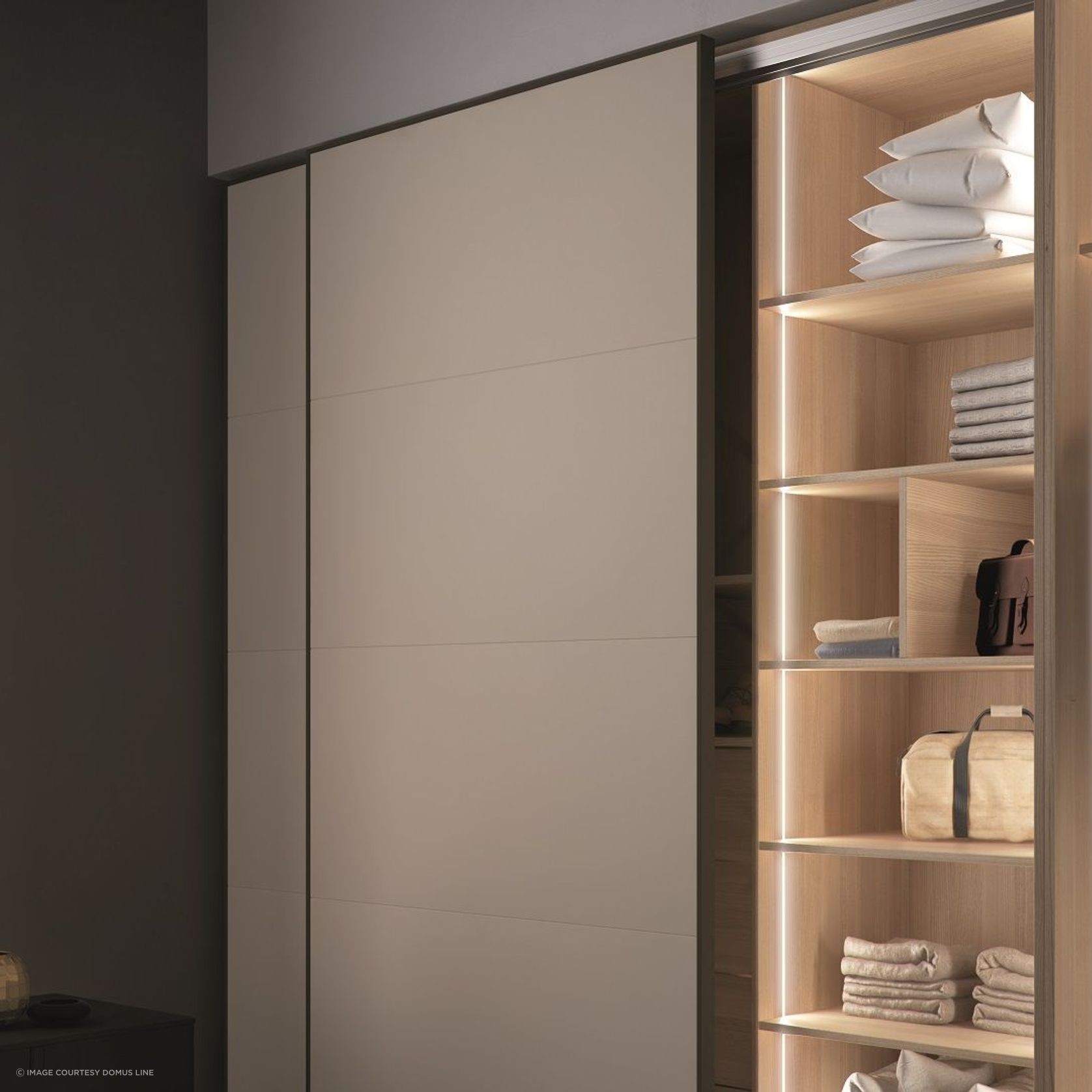

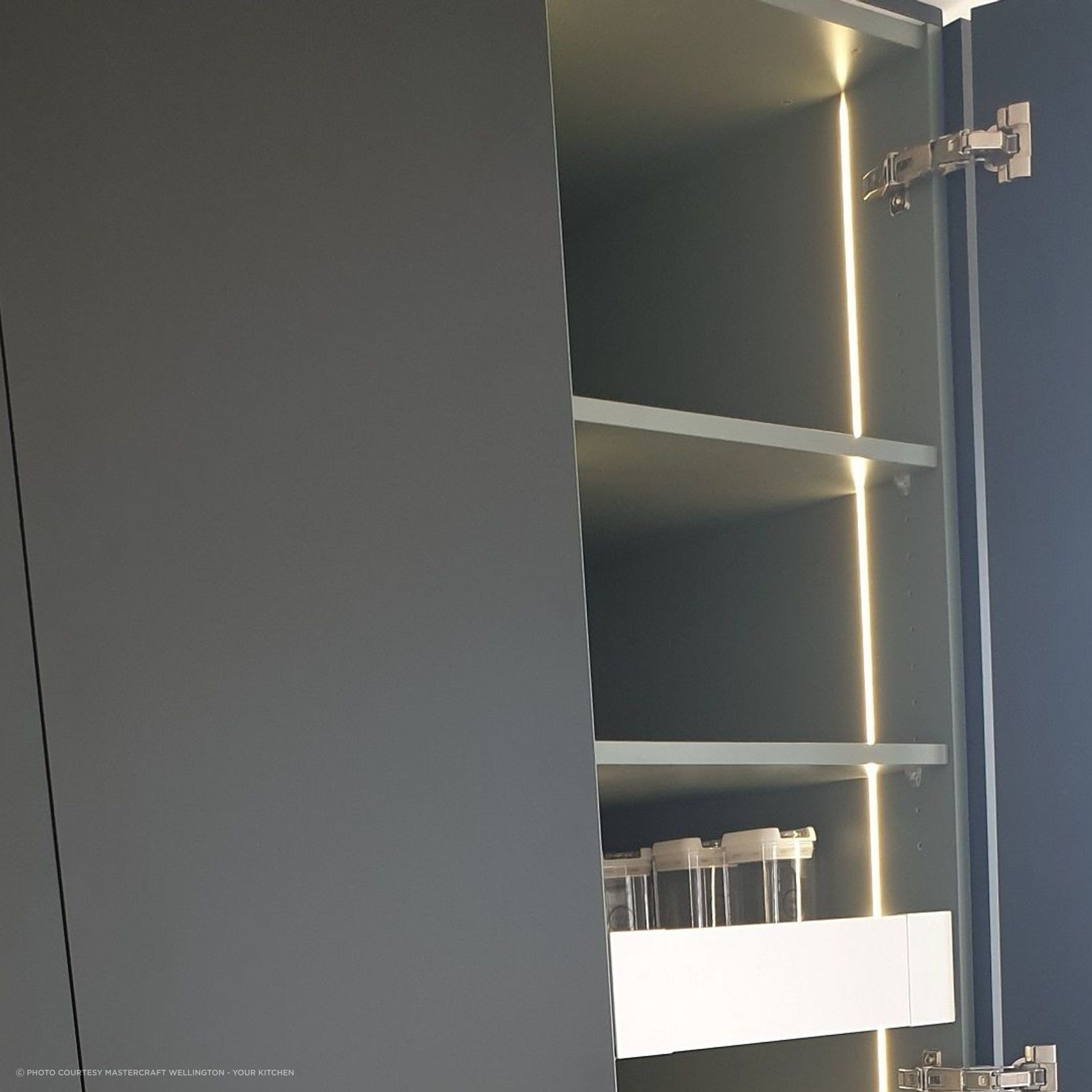

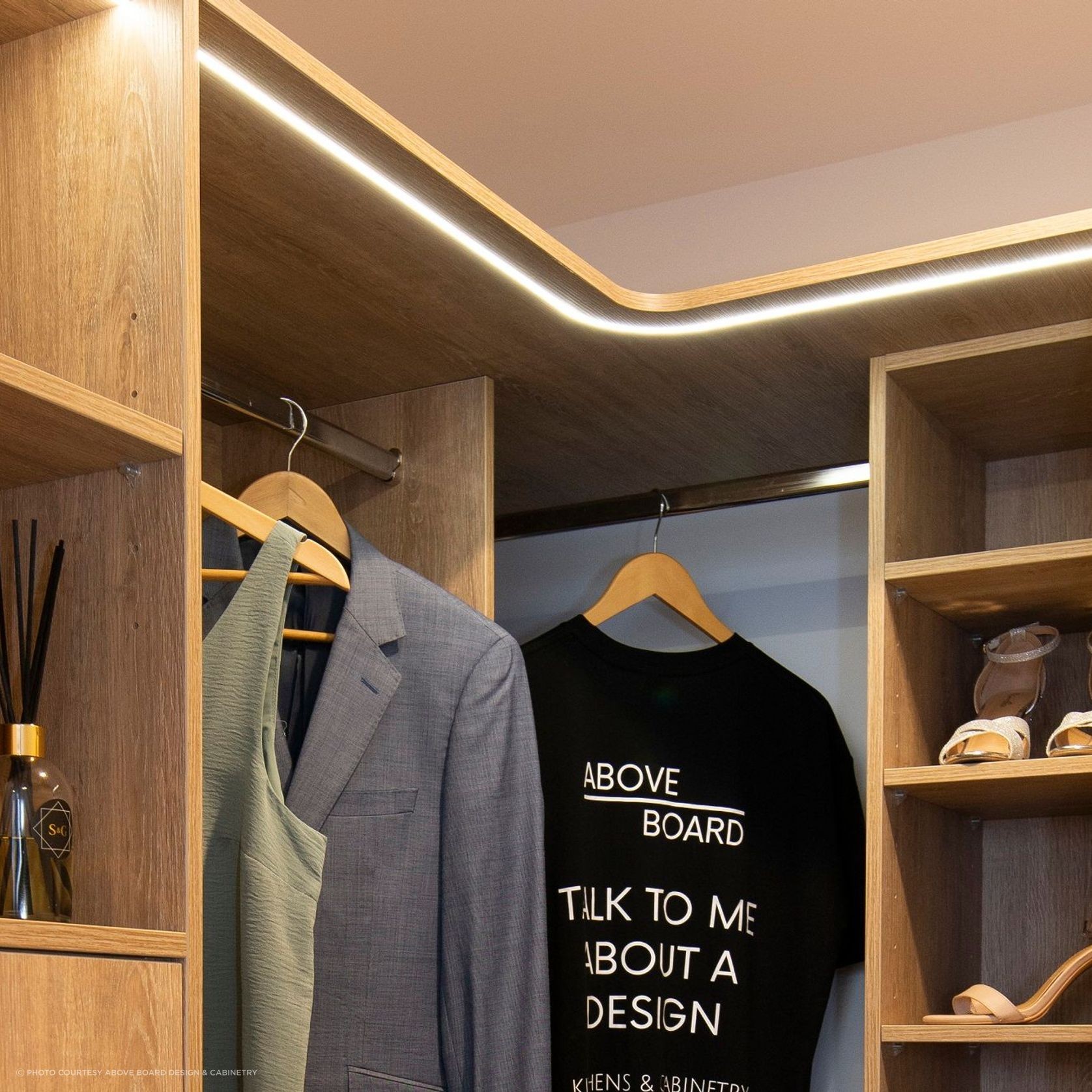

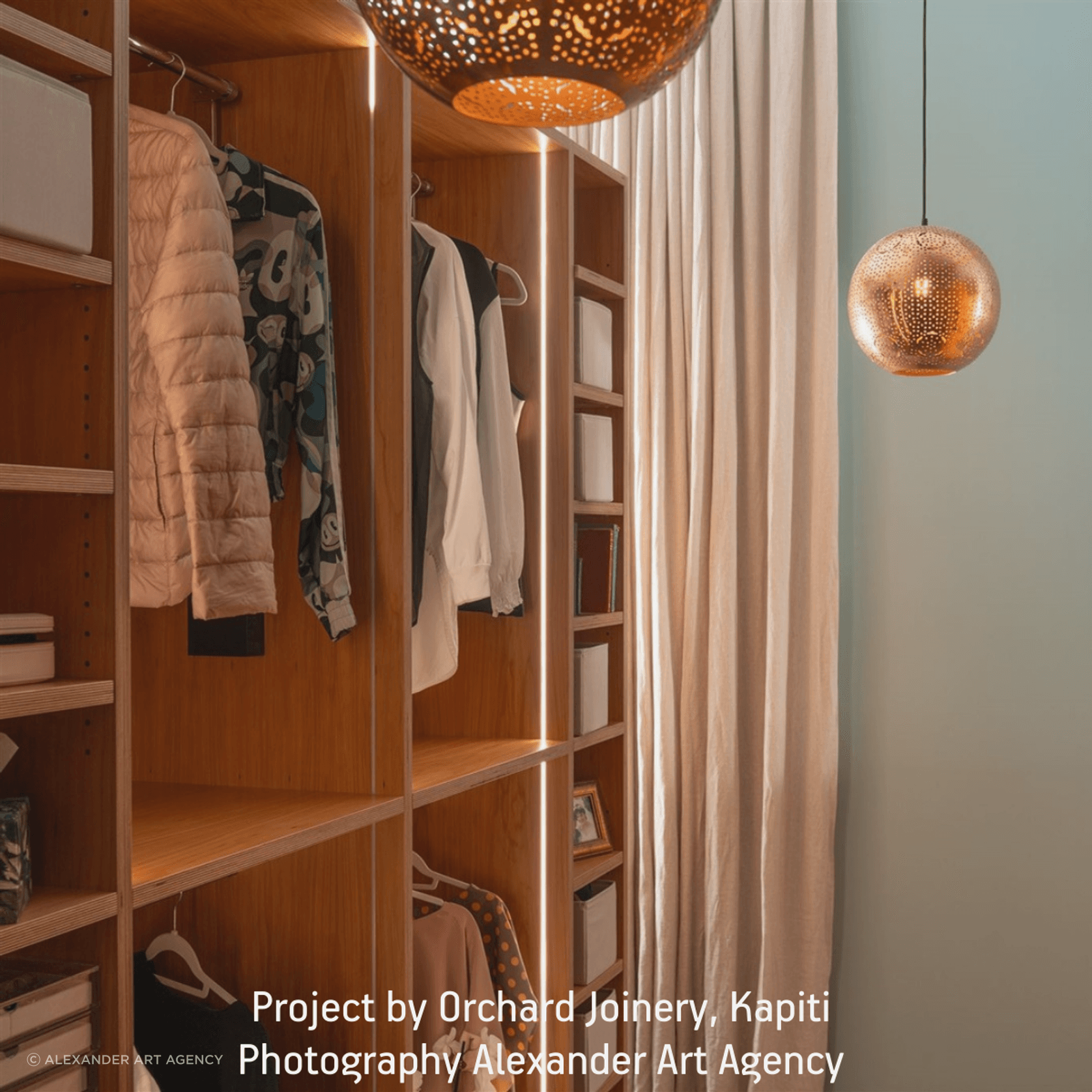

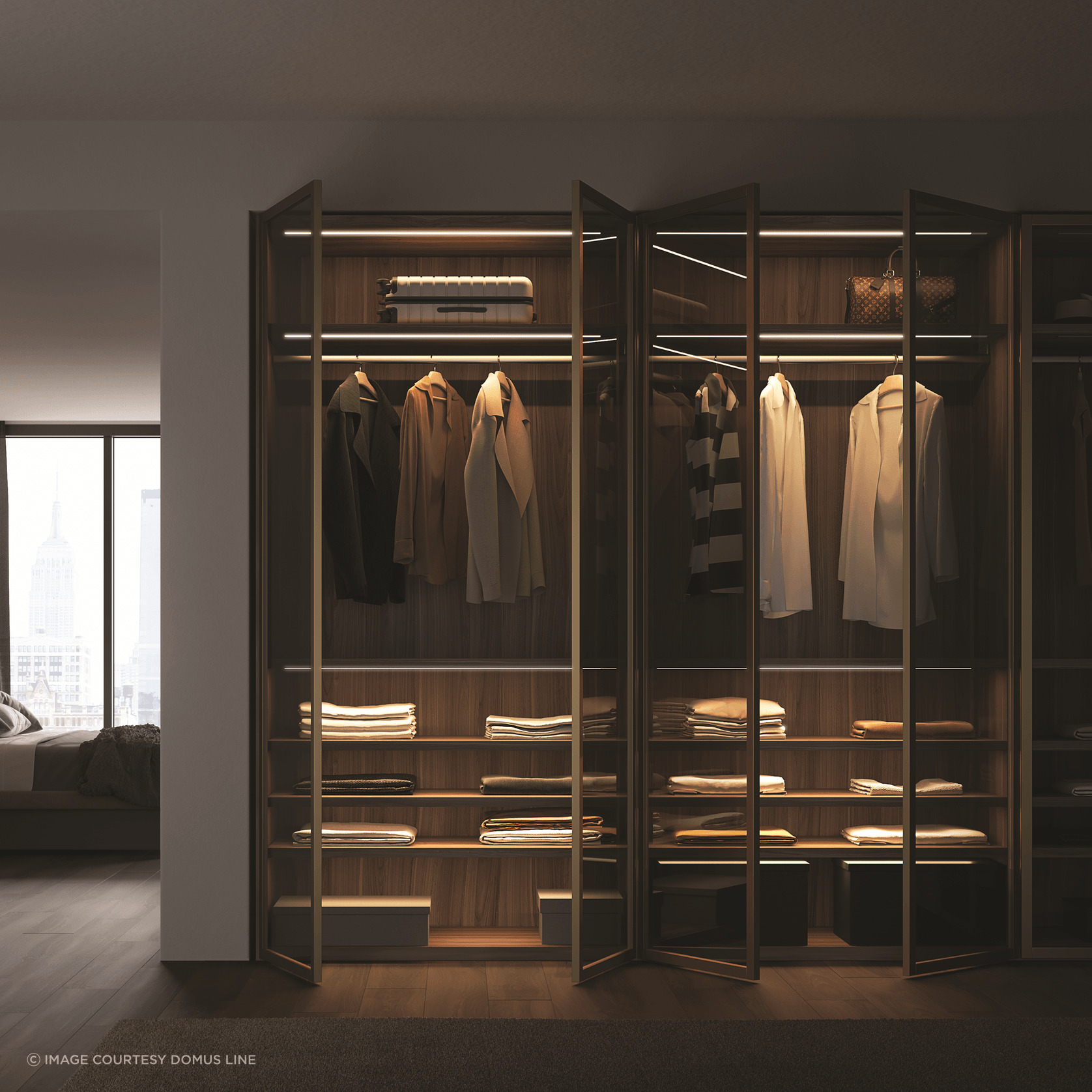

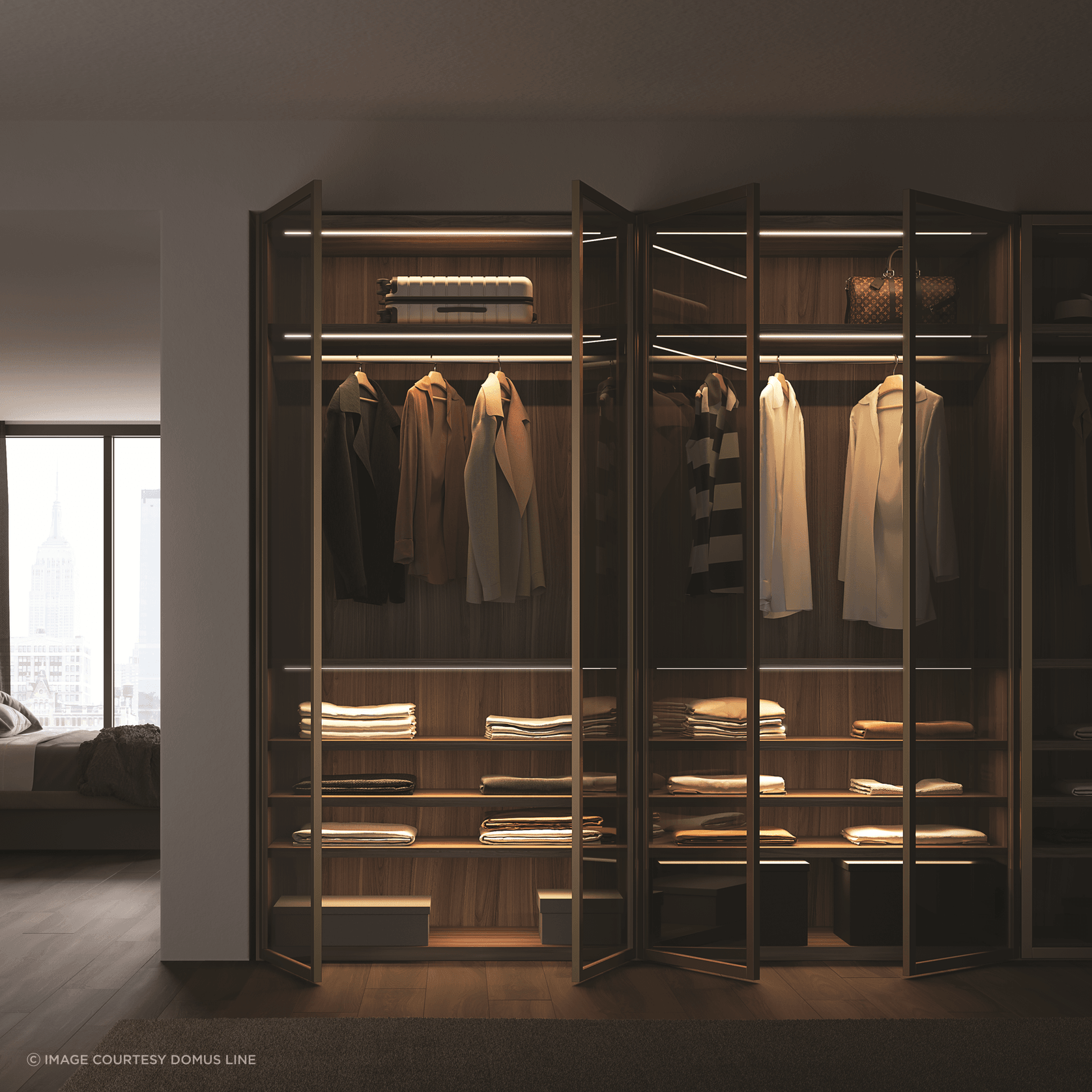

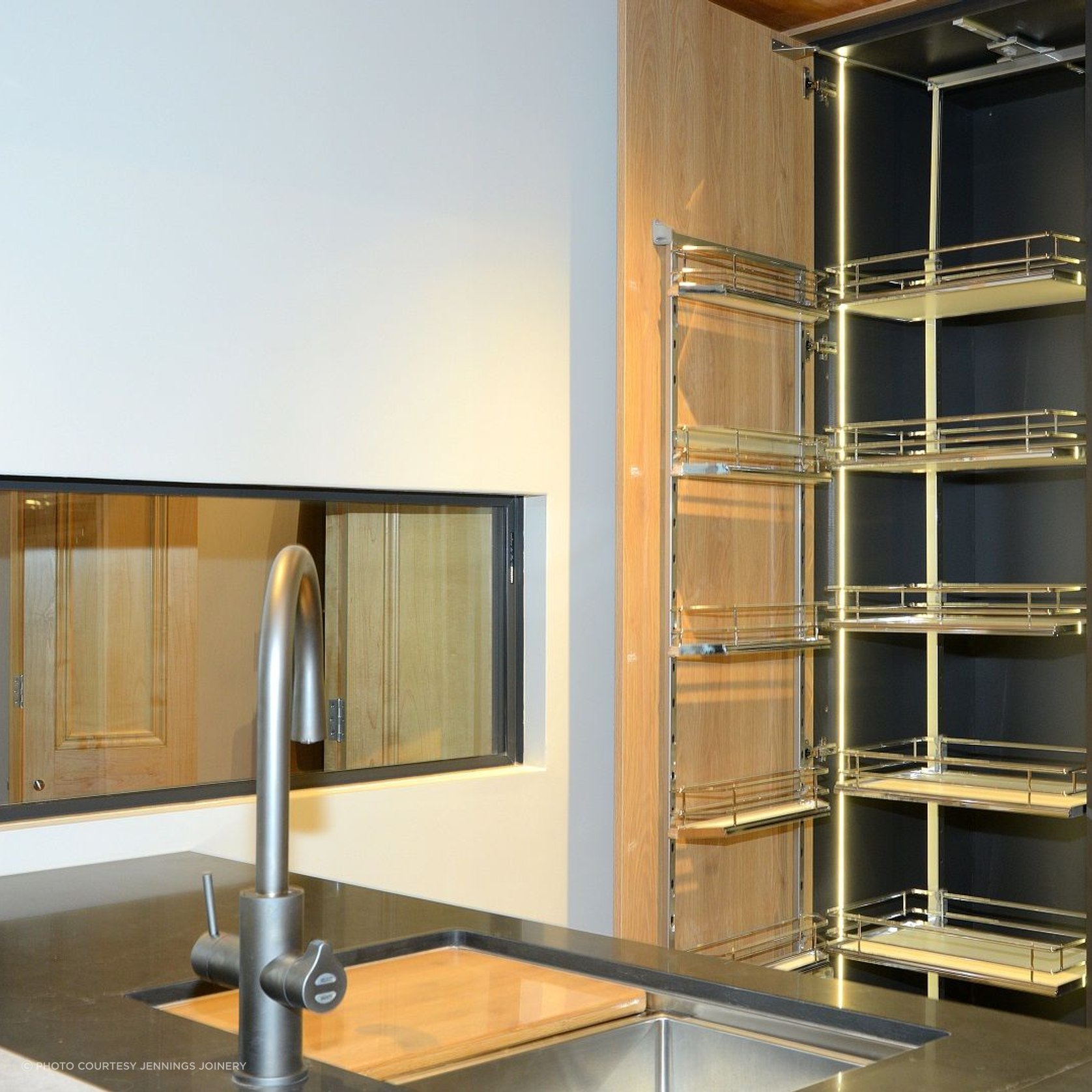

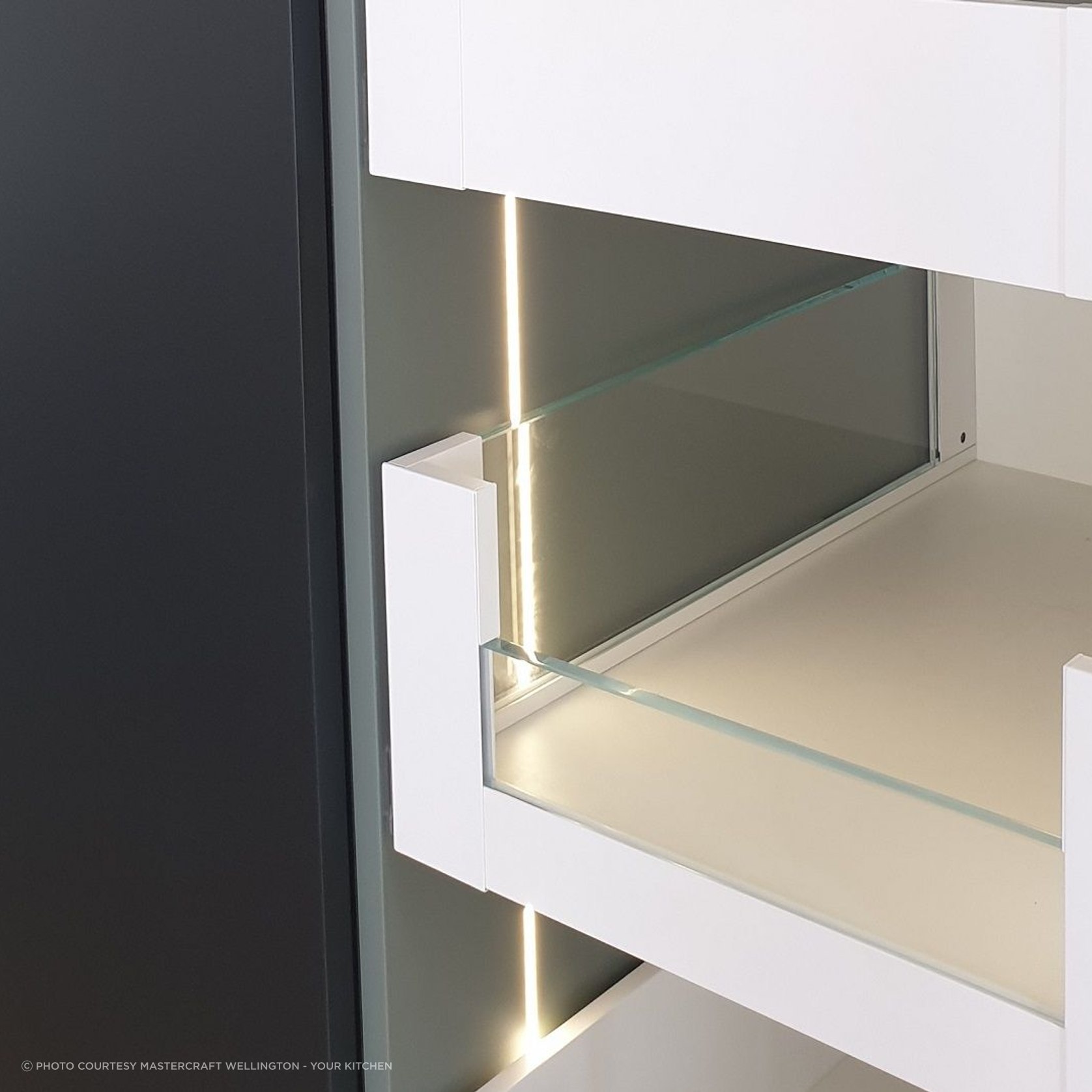

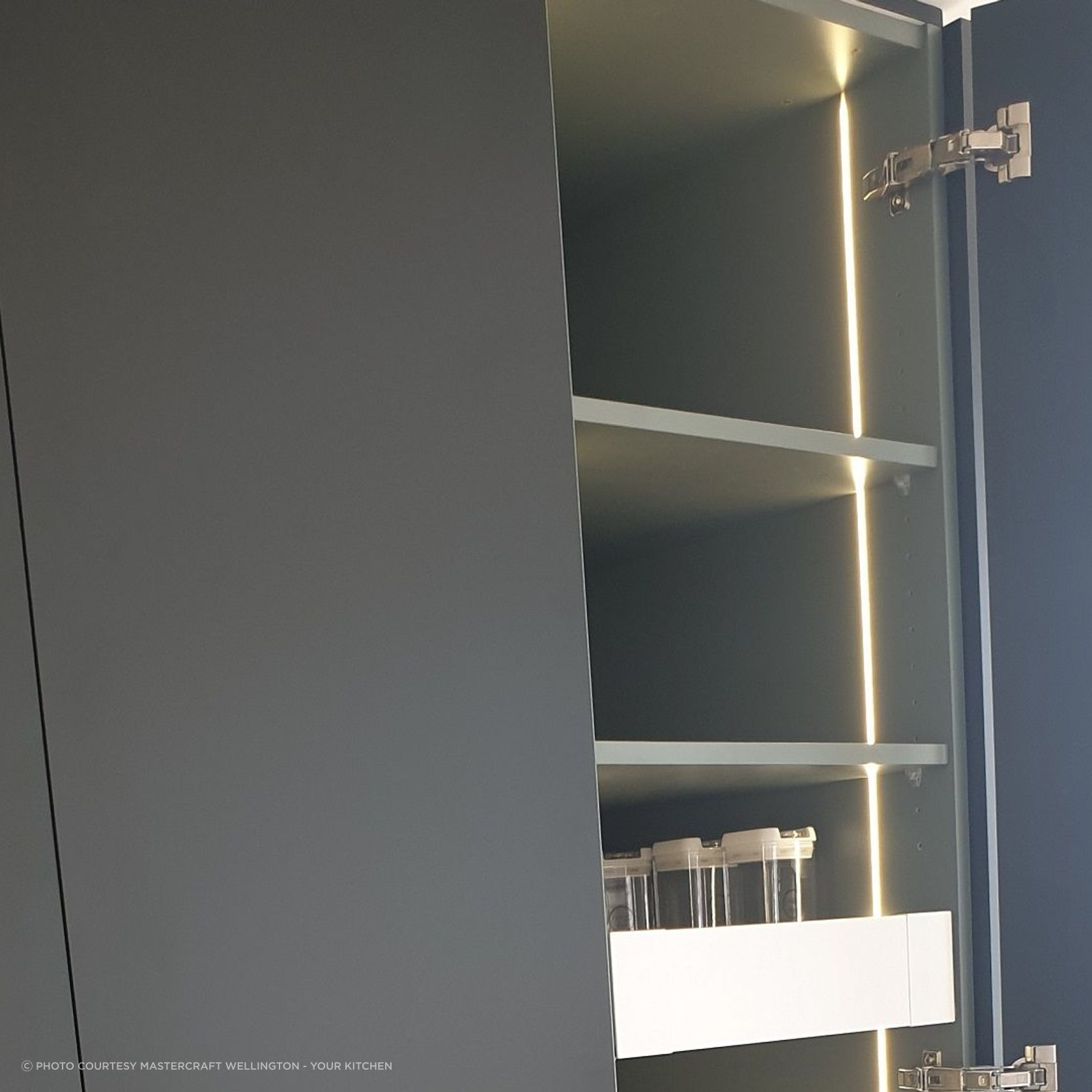

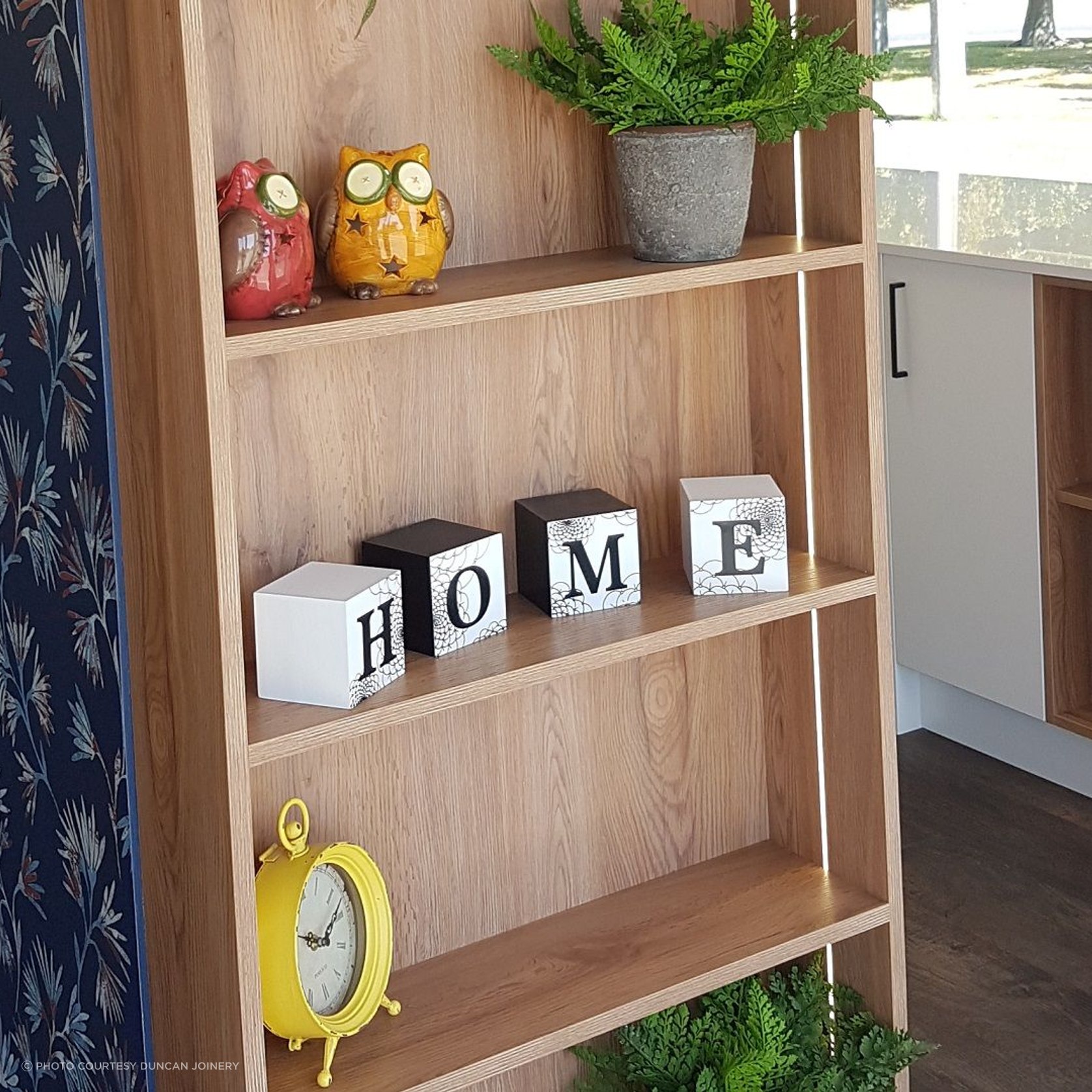

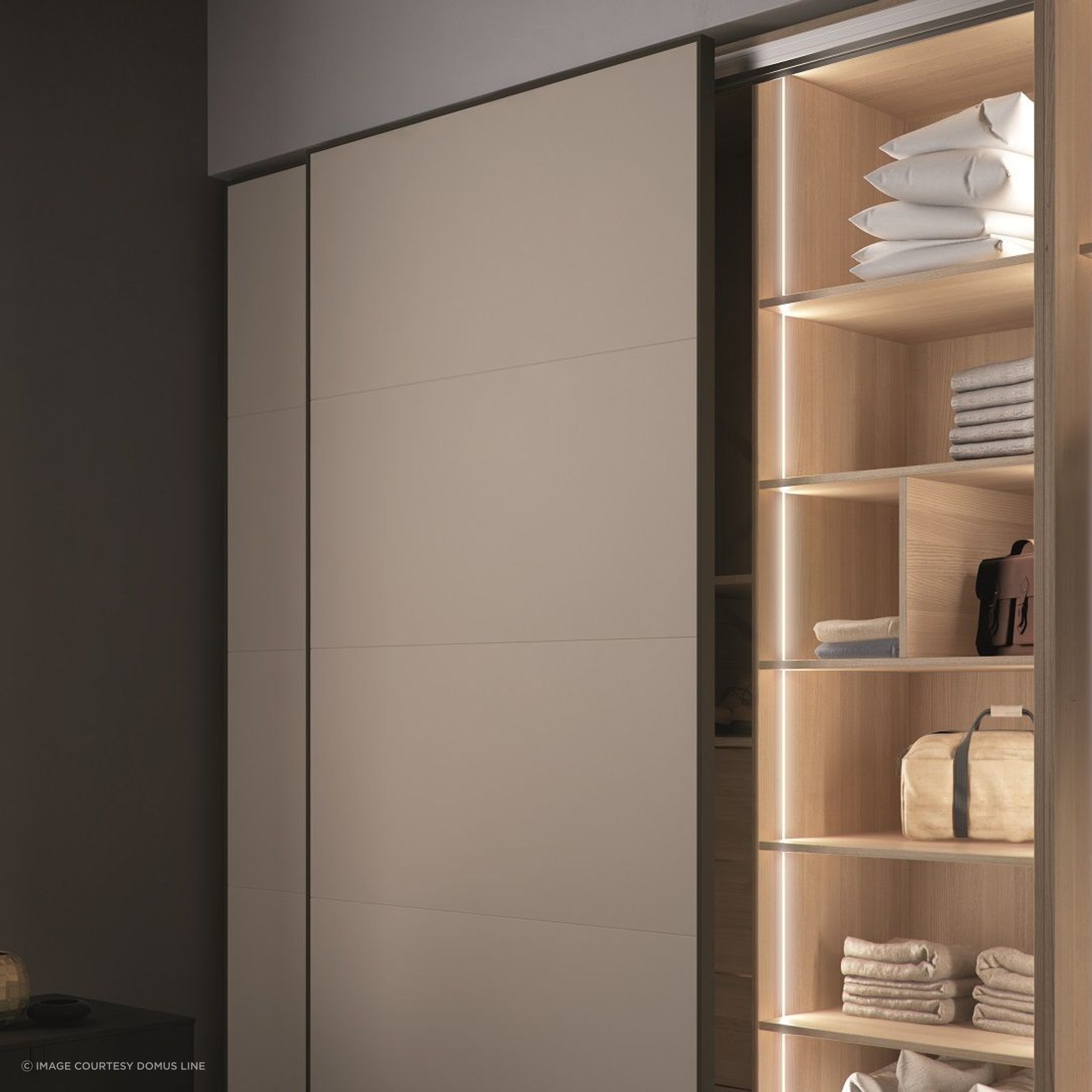

  • Developed with an innovative diffusing silicone material extrusion technology, this LED strip was specifically conceived for recessed installation and is ideal for use in wardrobes, pantry cupboards and many other situations.
  • Exceeds international safety requirements for temperature generation limits for recessed application
  • Side emitting
  • 'No dot technology' for homogenous, no visible dot light emission

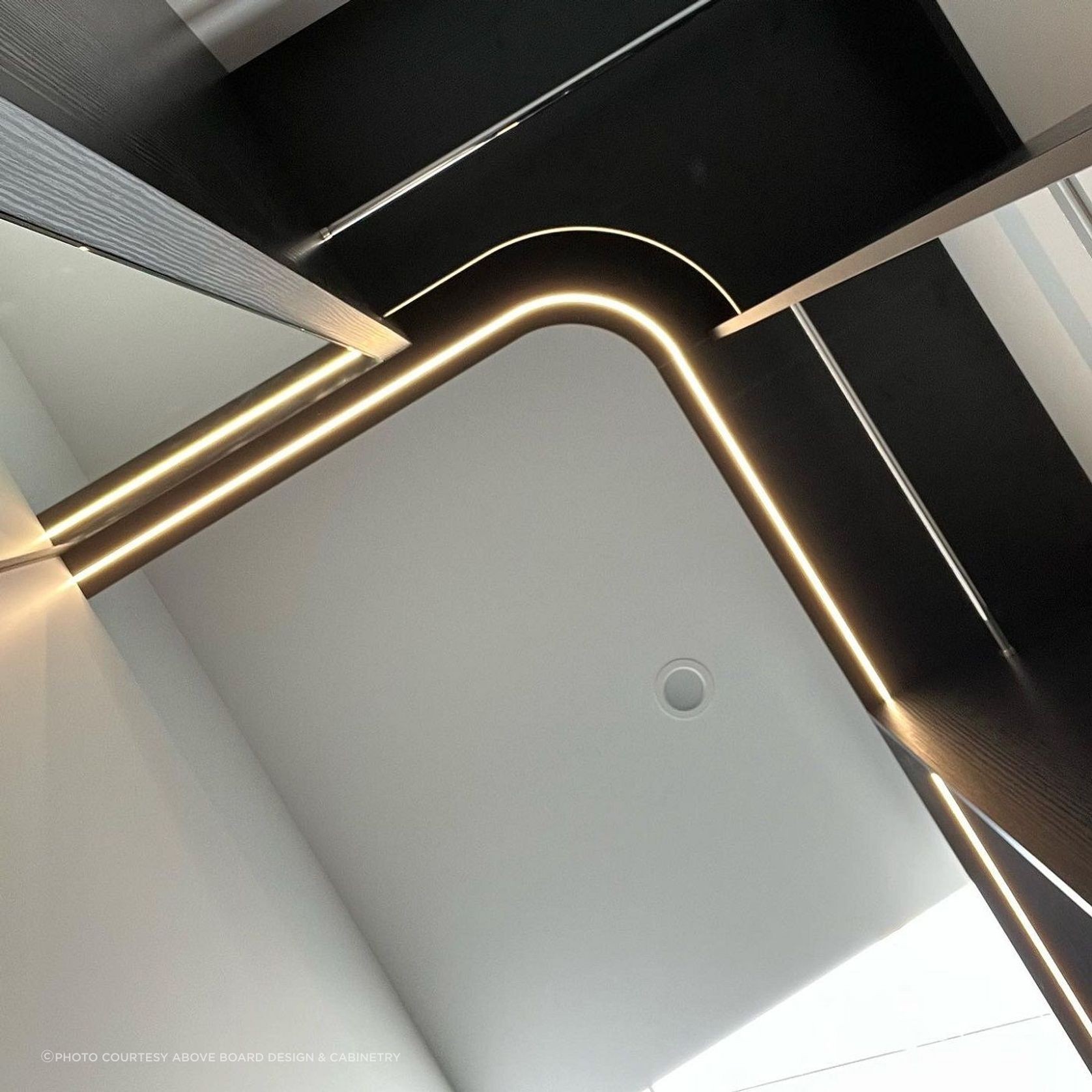

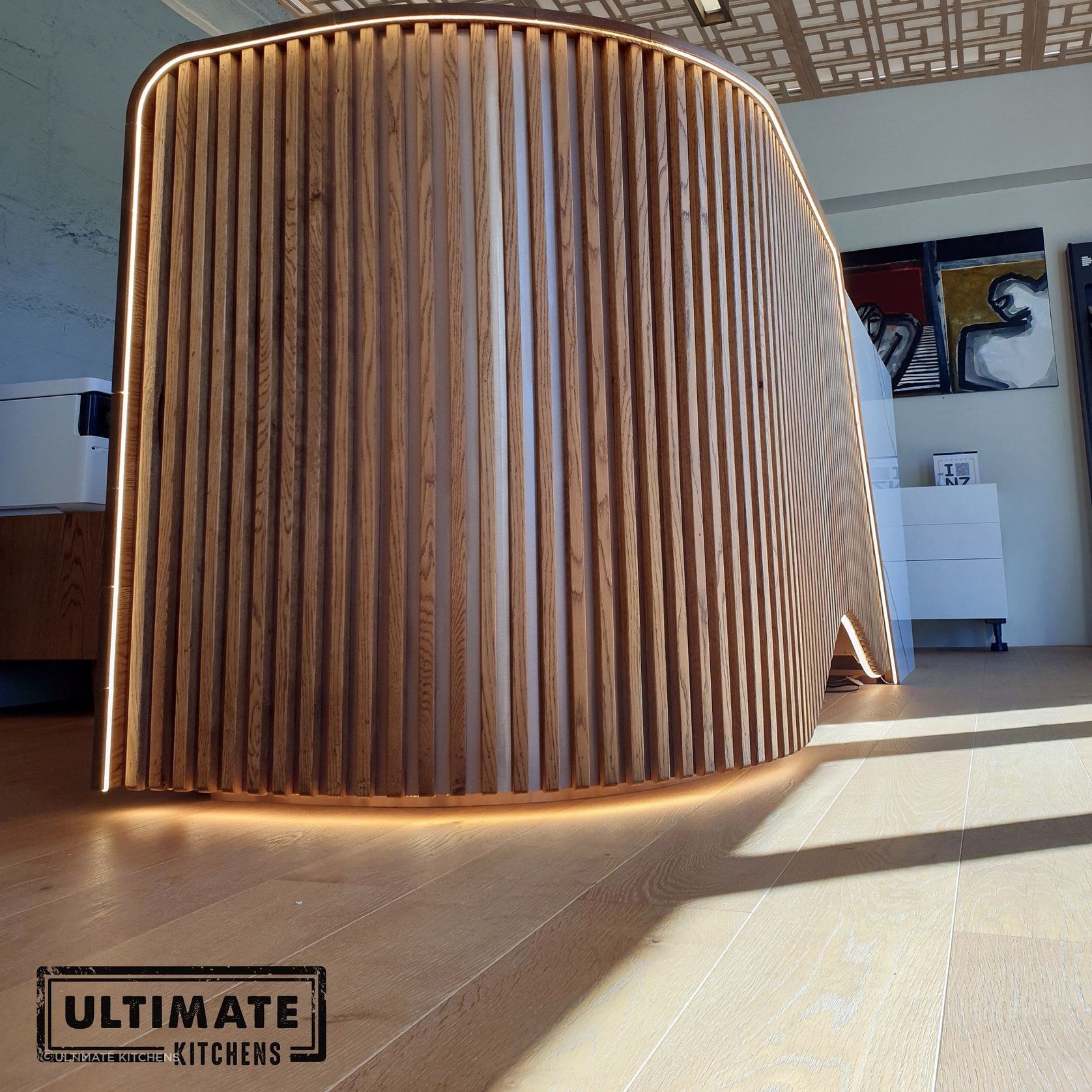

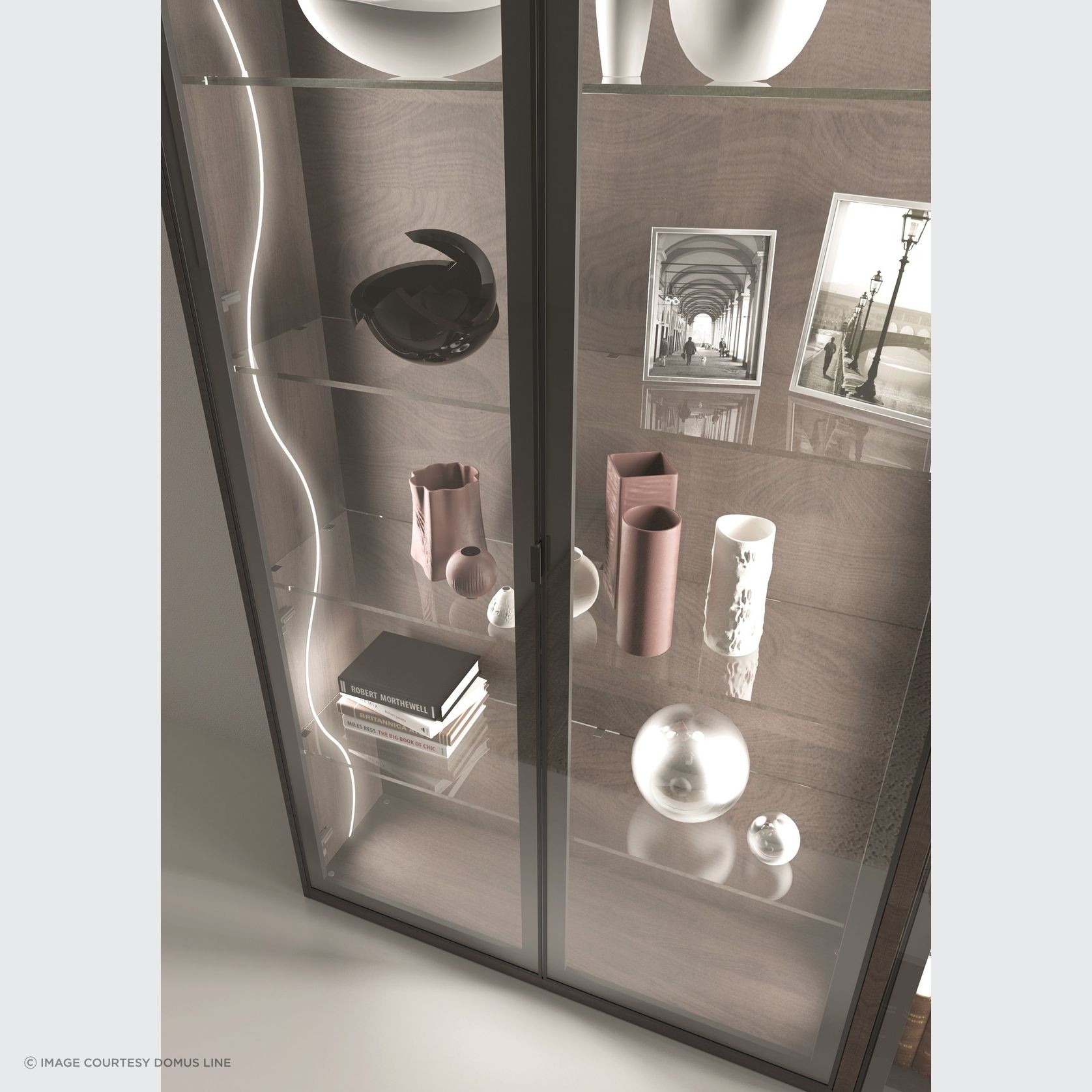

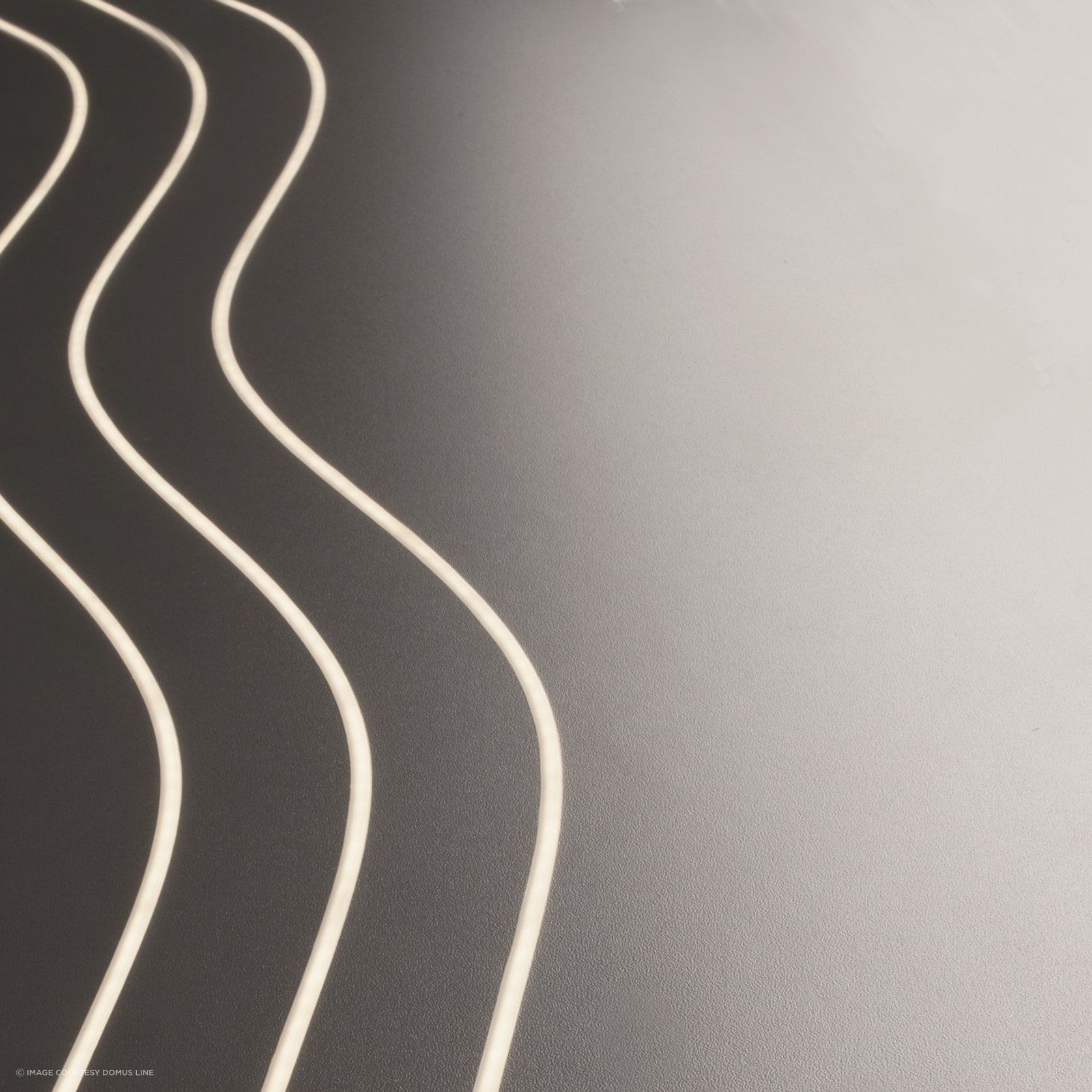

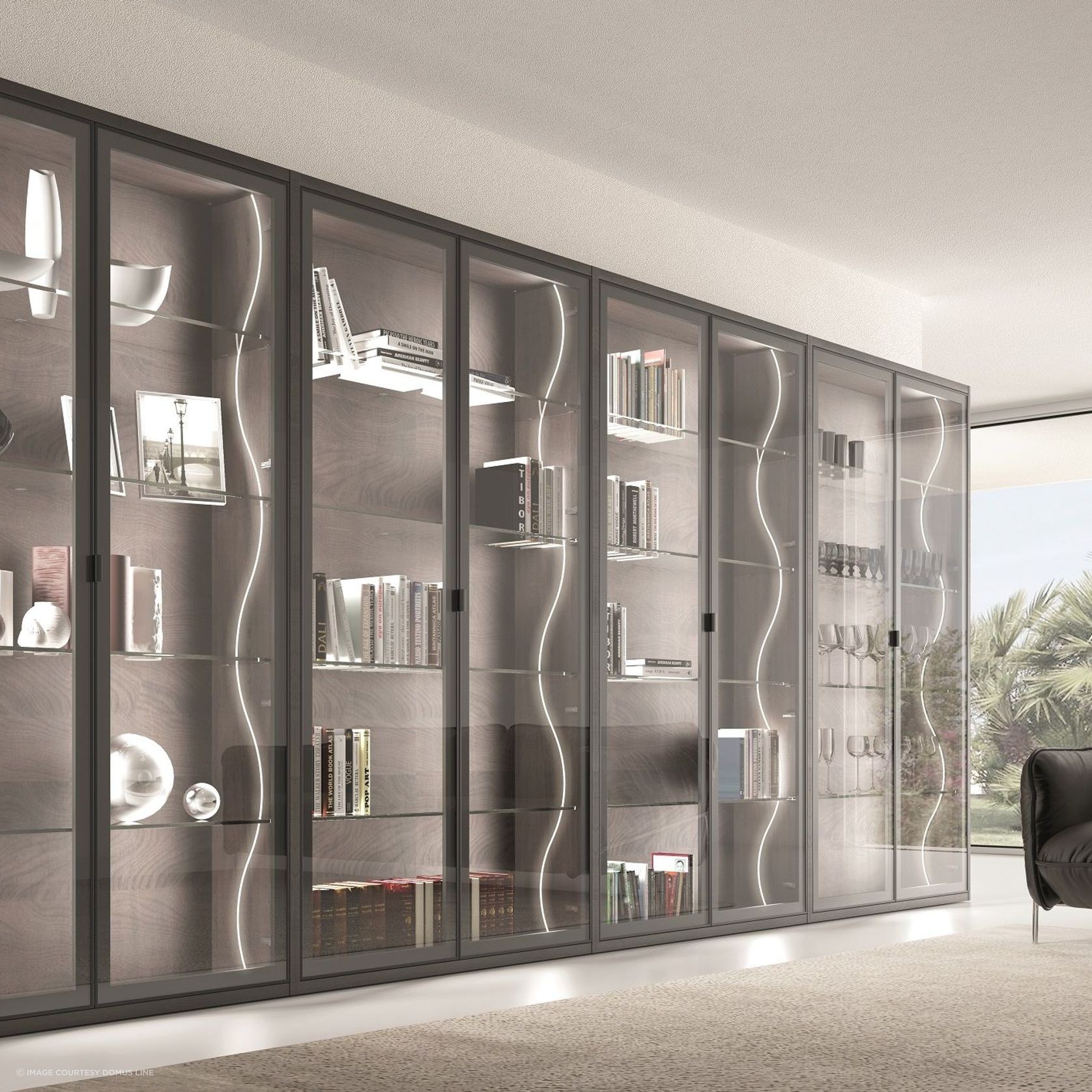

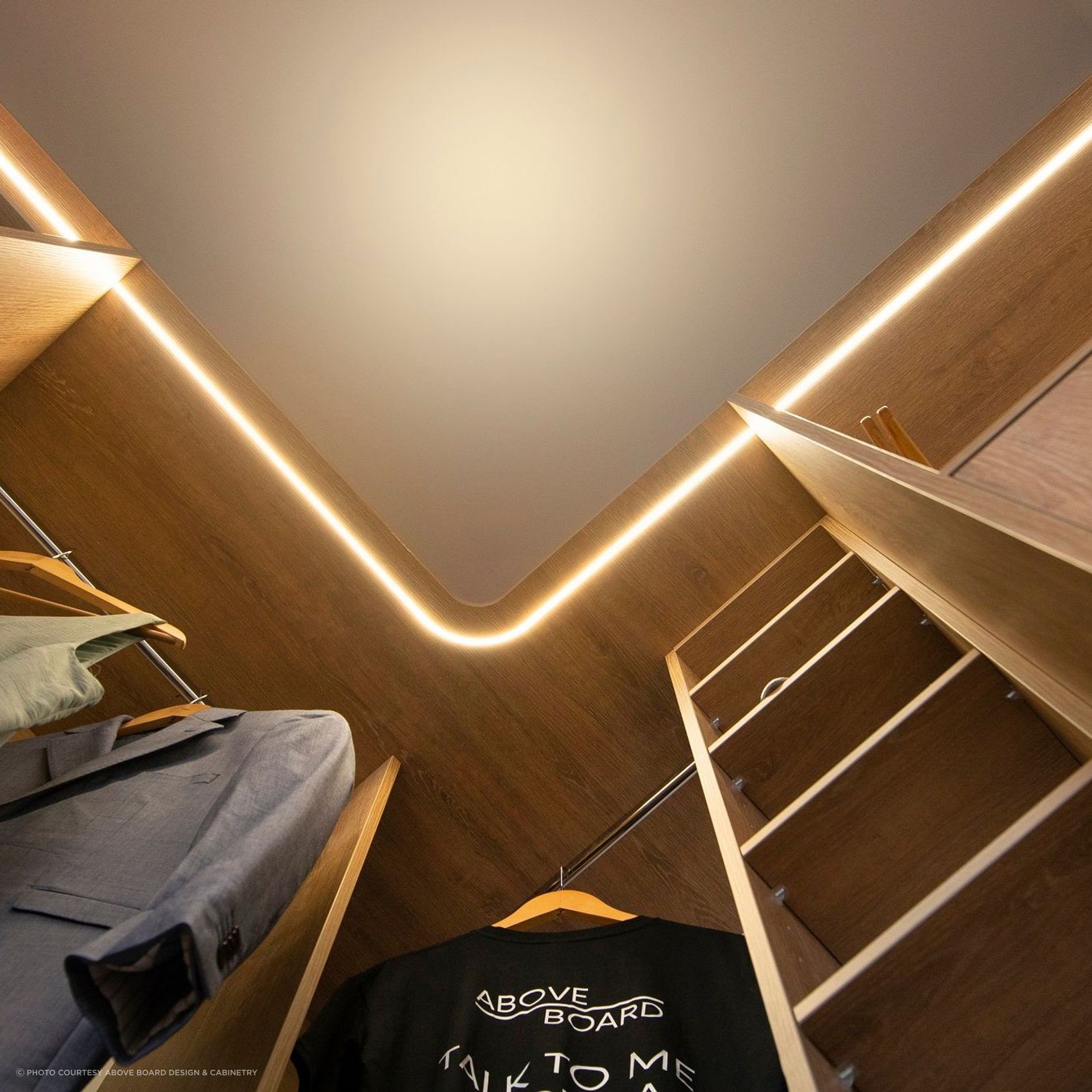

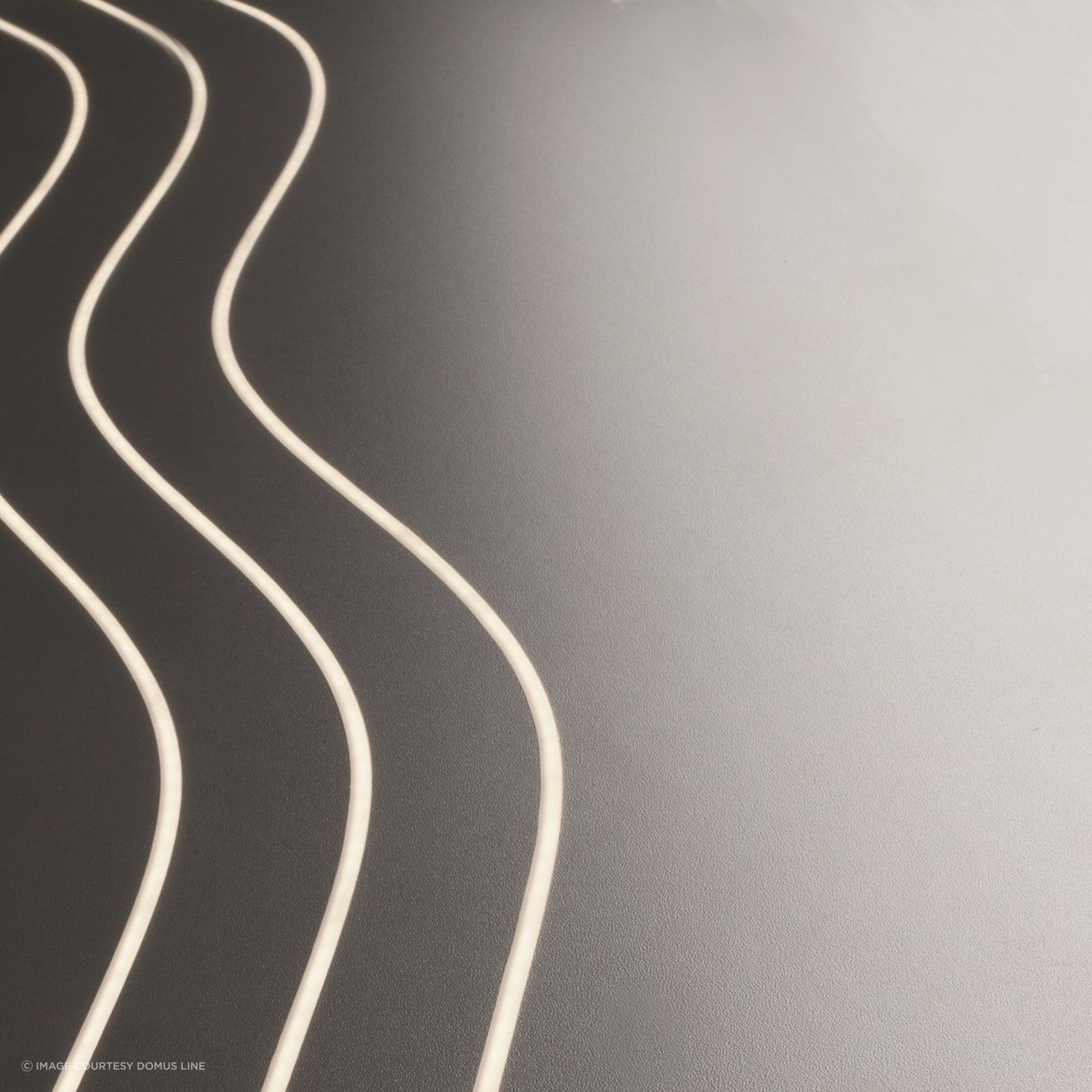

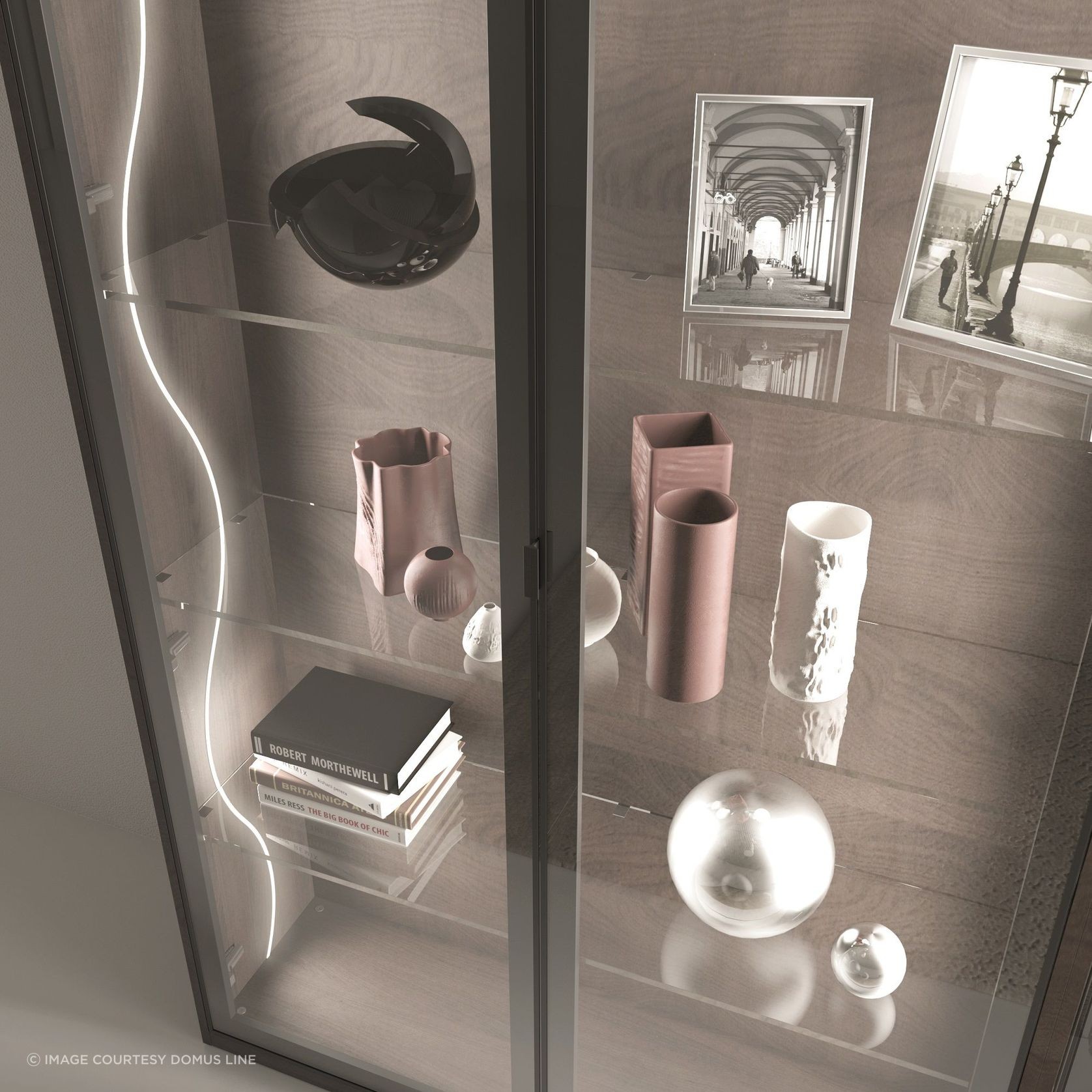

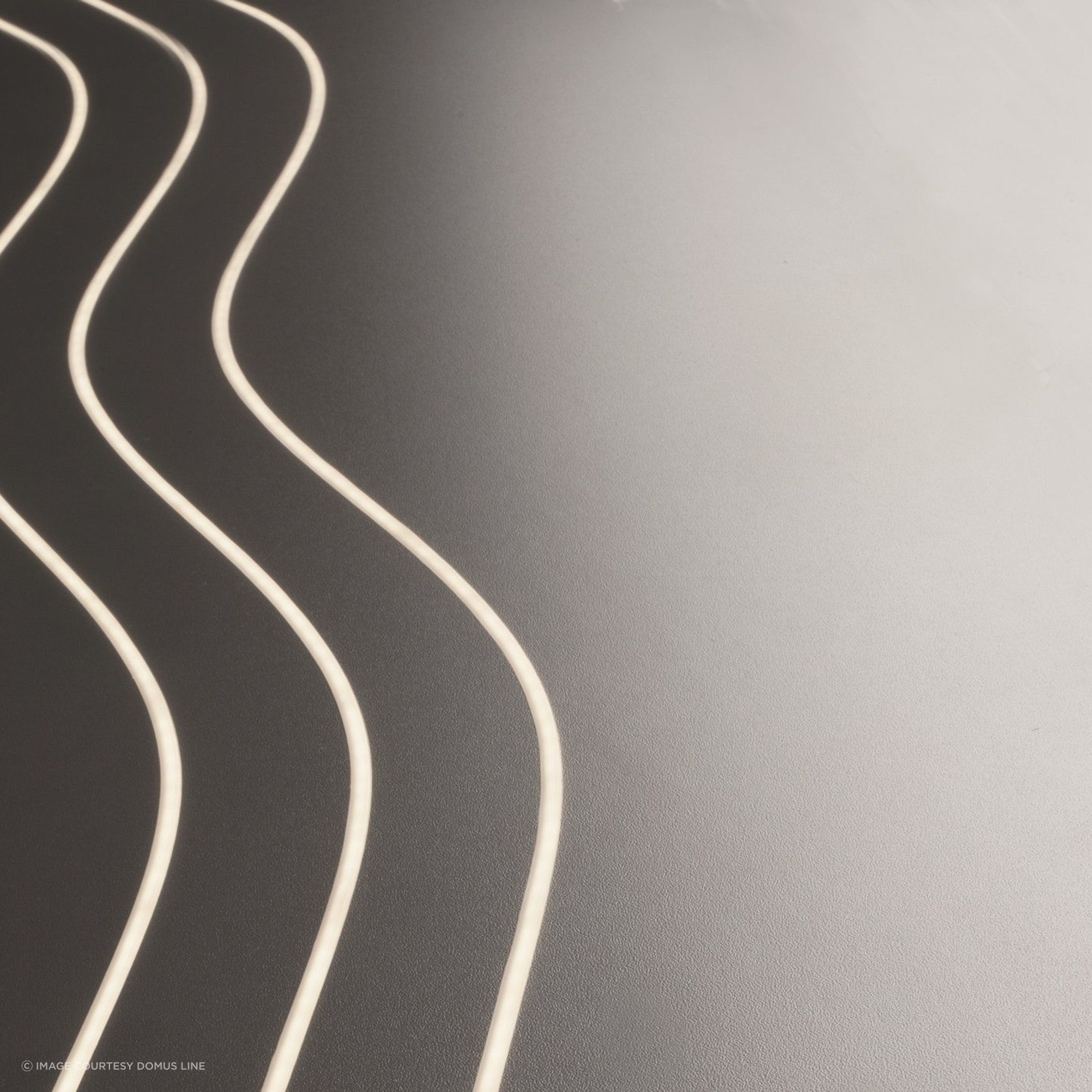

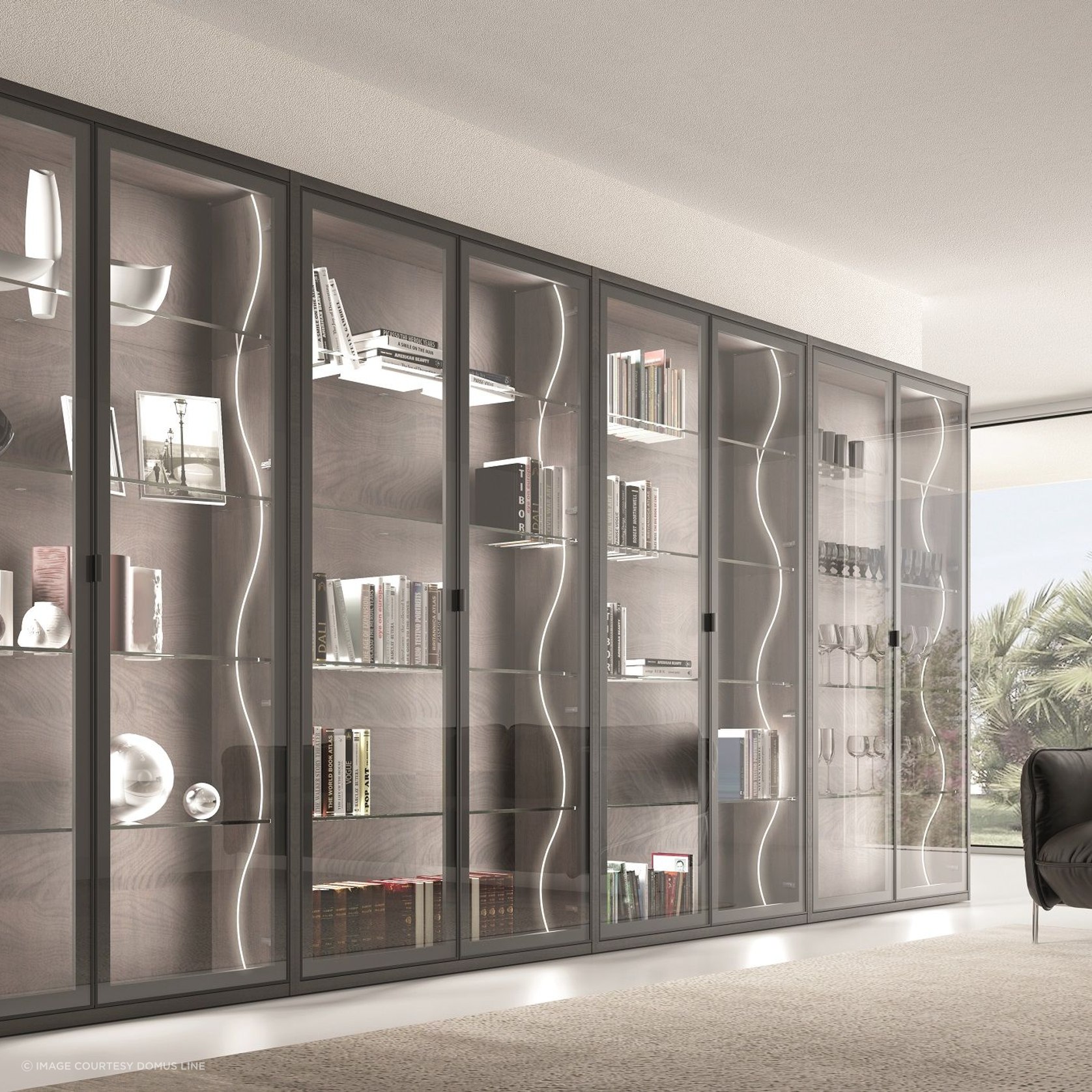

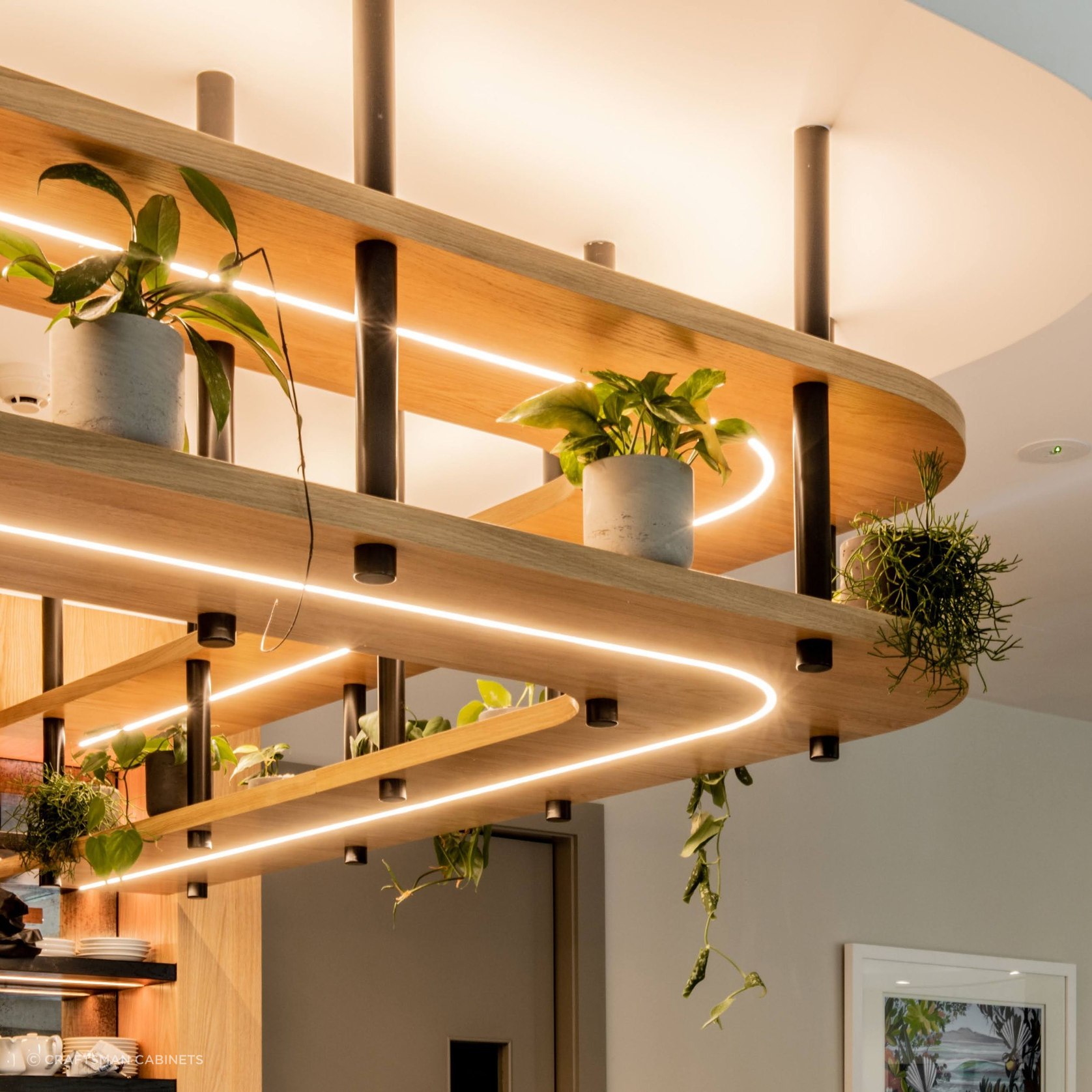

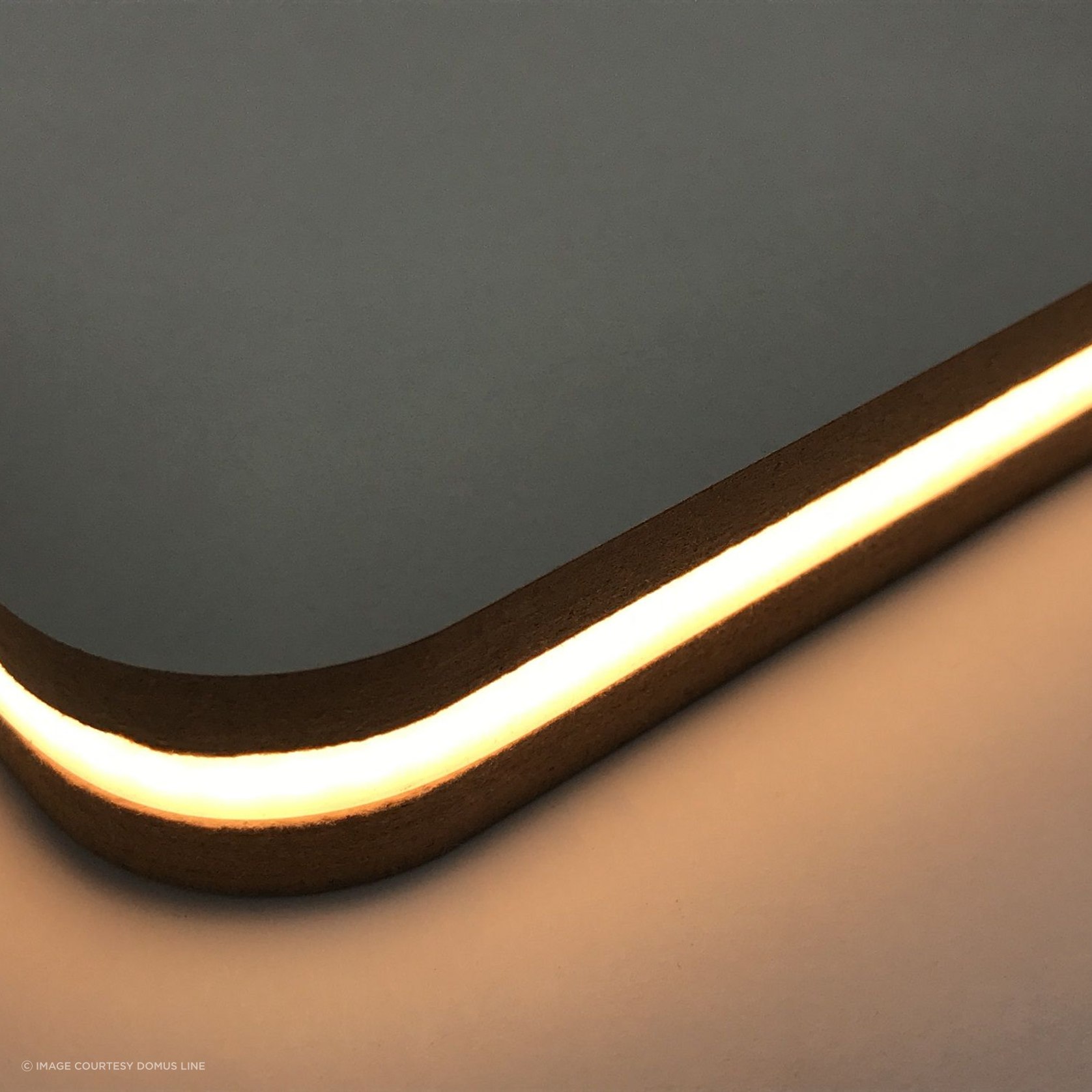

  • Super flexible for tight corners or creative lighting designs

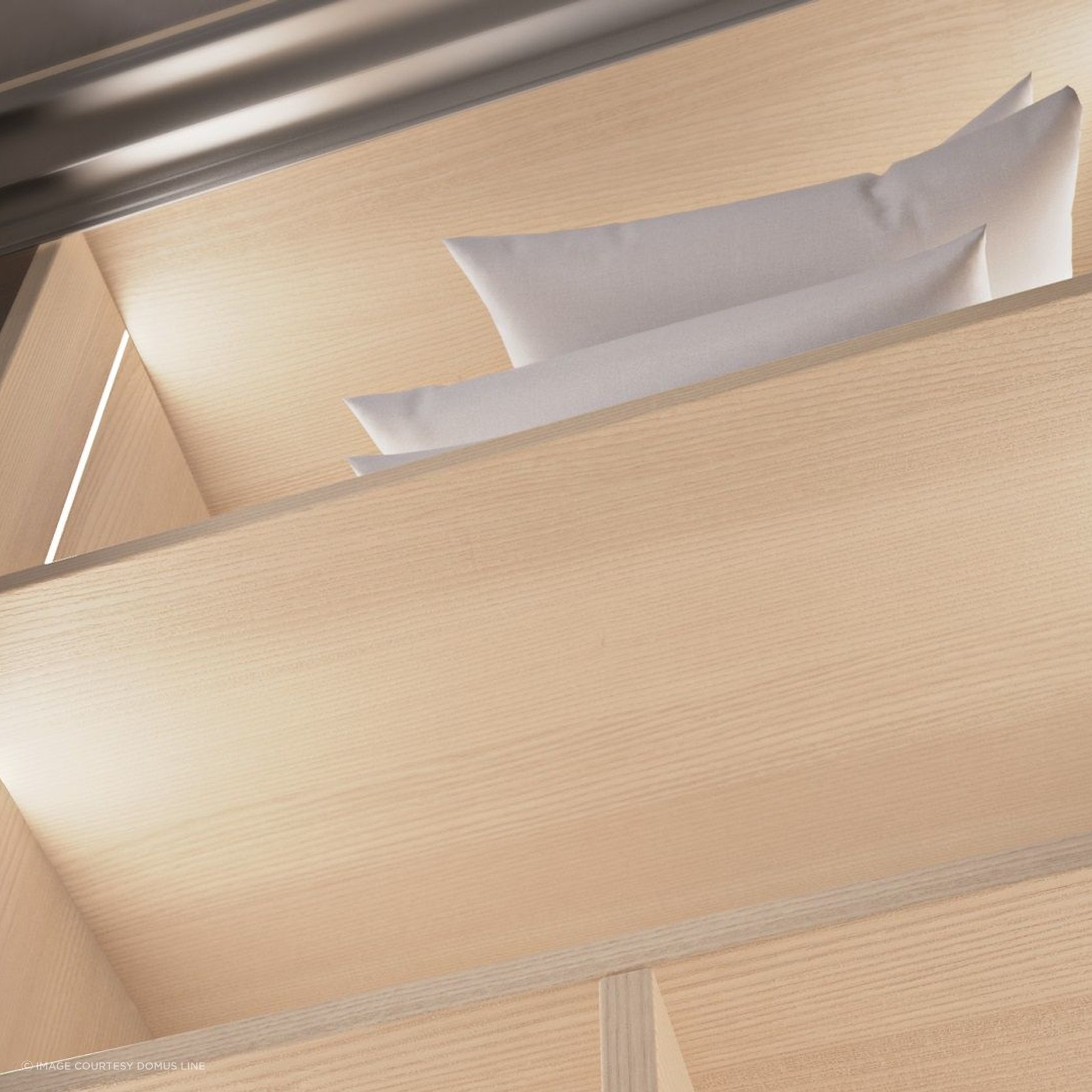

  • Recessed installation in 4mm wide / 10mm deep milled grooves for 12Vdc and 4mm wide / 8mm deep for 24Vdc
  • 7mm diameter hole required for plug connector to exit
  • No tape or tools required; simply press into your pre-milled groove
  • Comes with 150mm power supply cable included and is equipped with a Micro12 connector for 12Vdc or Micro24 connector for 24Vdc. 2m and 3m lengths are also available with a power supply cable attached at each end, allowing offcuts to be reused
  • Maximum suggested length of 3m in a run

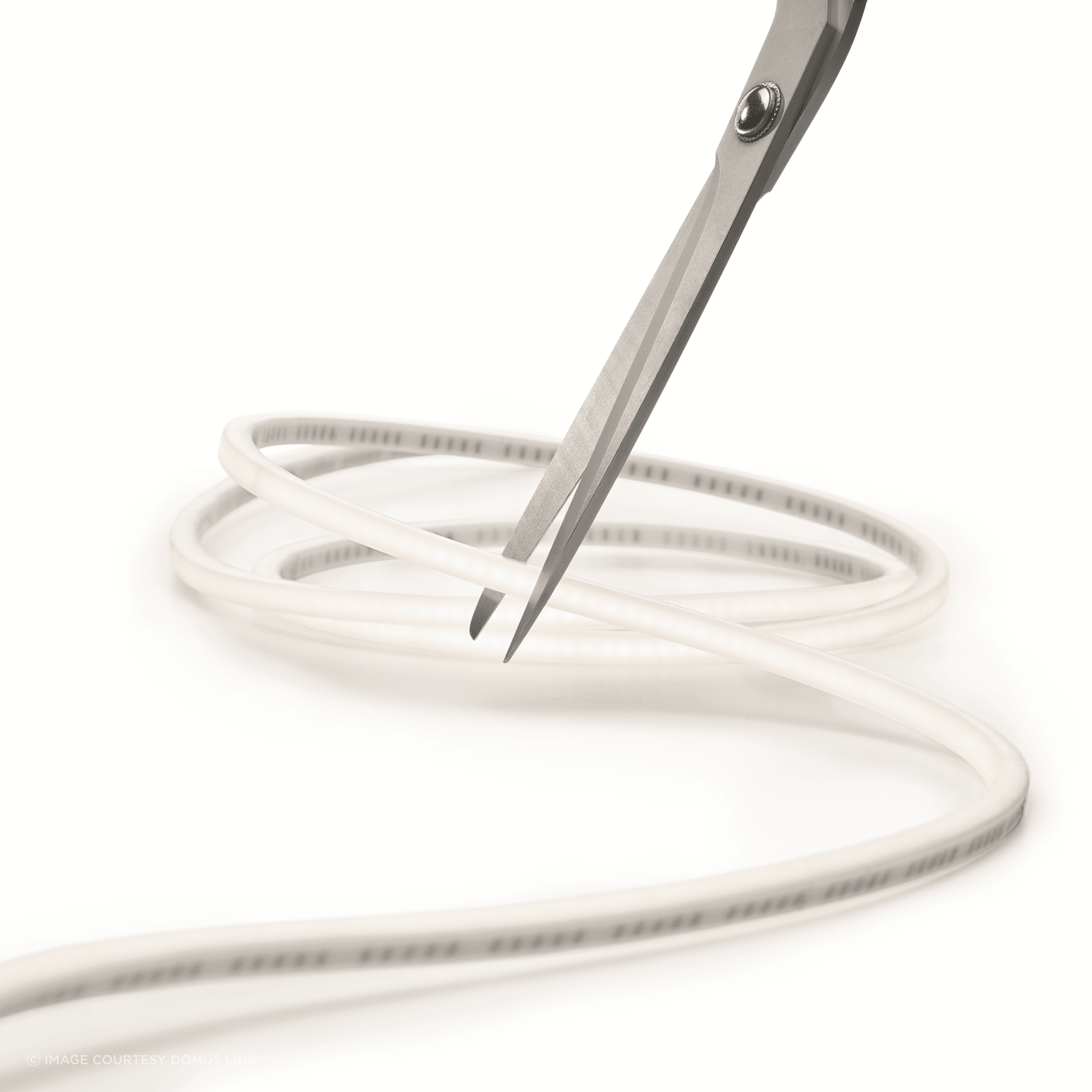

  • Customisable lengths - 12Vdc SE H4 strip may be cut in 25mm increments and 24Vdc in 33.3mm increments.
  • Should you trim the SE H4 strip, a cap is provided for insertion into cut end

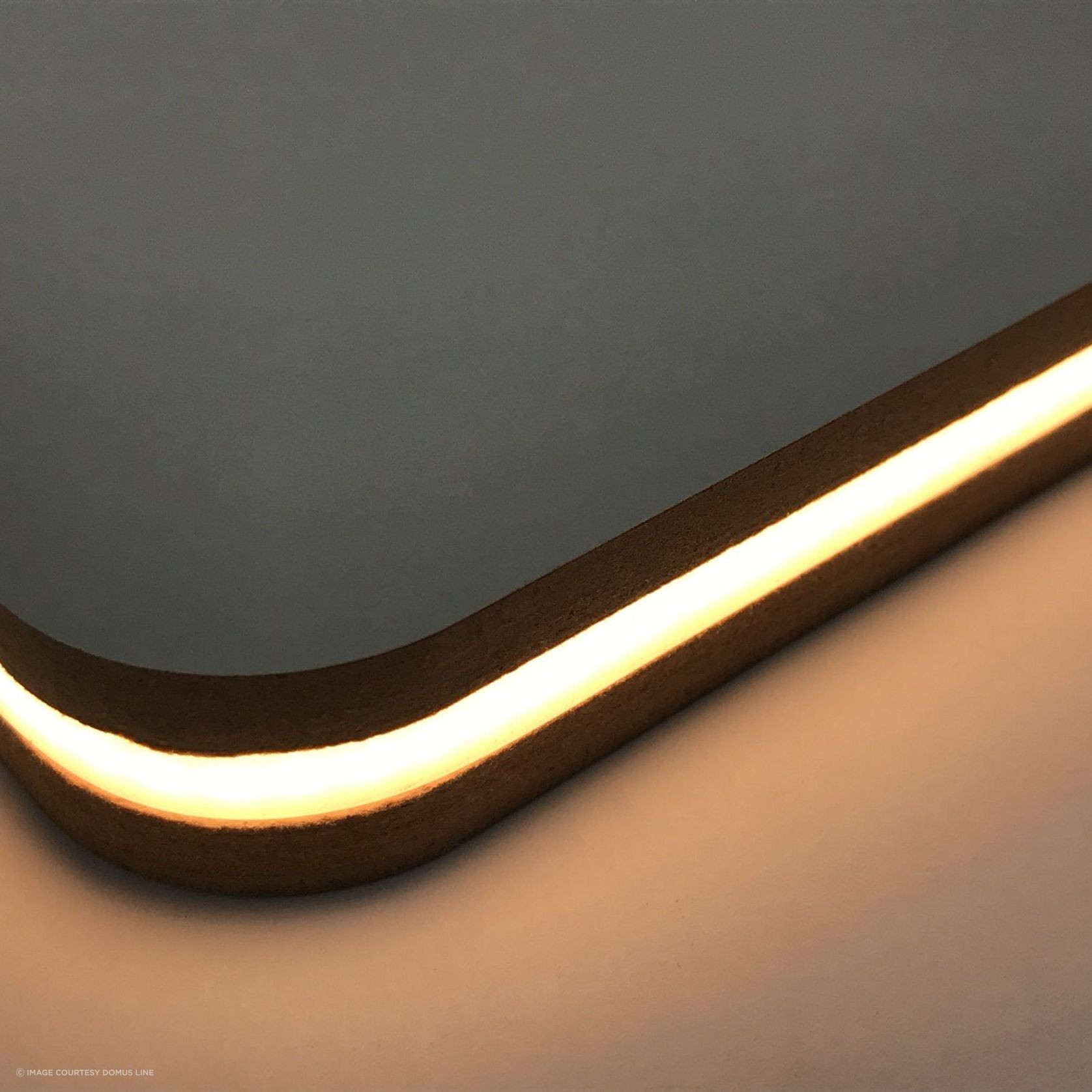

  • SE H4 is very flexible and is suitable for tight corners (minimum radius just 15mm)
  • 120 LED/m for 12Vdc and 180 LED/m for 24Vdc
  • LED strip only
  • IP44 rated; protected against solid foreign objects greater than 1mm and splashes of water from any direction
  • Available in Natural White and Warm White light colours
  • Available in 1m, 2m and 3m lengths.
  • Extension cords available in 1m and 2m lengths to extend distance between LED driver distibution block and LED strip. Keep to a minimum and do not exceed 6m total length.
  • Order LED distributor block and LED driver separately

FLEXYLED AT6

  • LED strip lighting without using traditional aluminium profile or plastic diffuser!
  • Slim 6mm x 6mm
  • 24Vdc
  • Milky-effect diffusing silicone coating means no visible dots
  • Suits recessed or surface installation

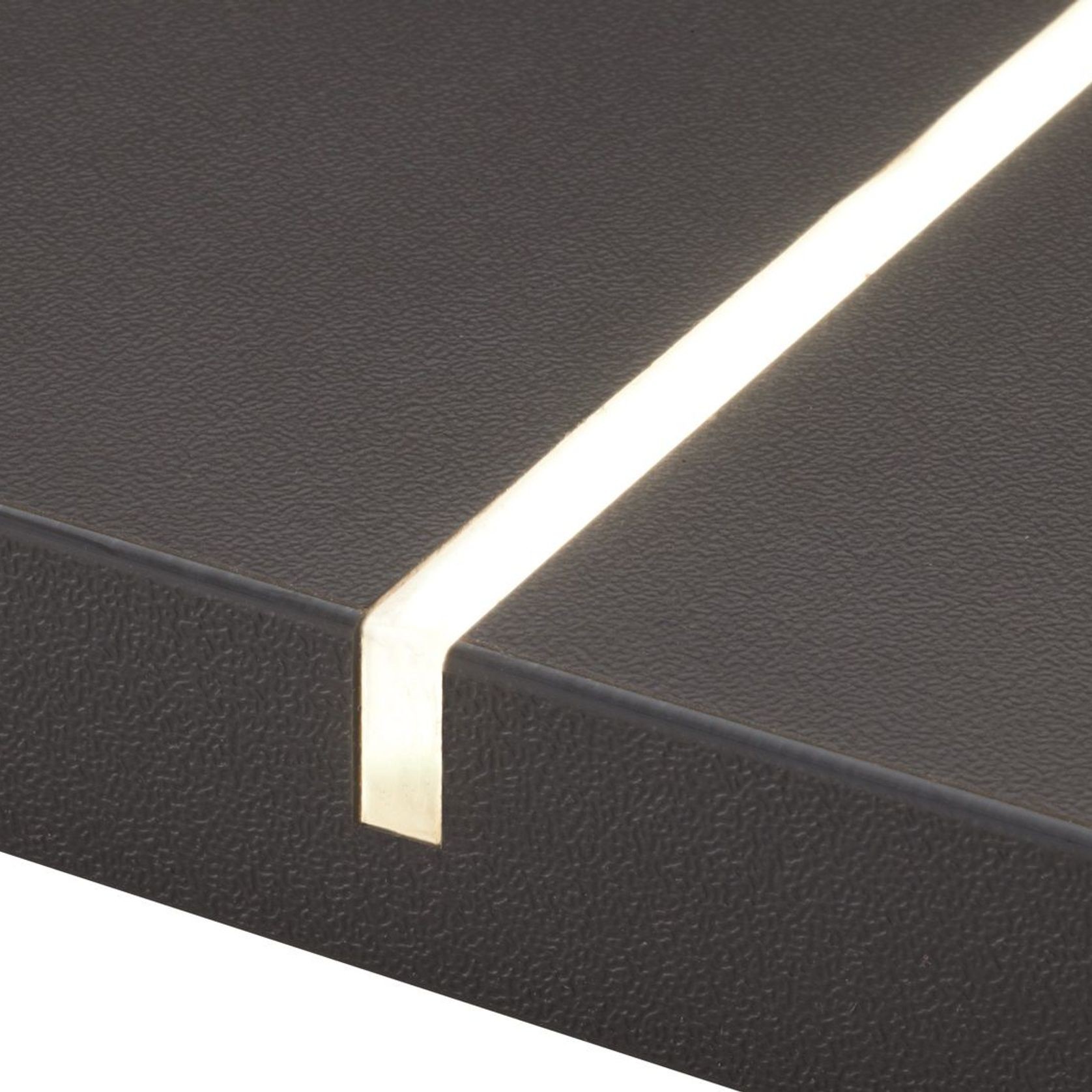

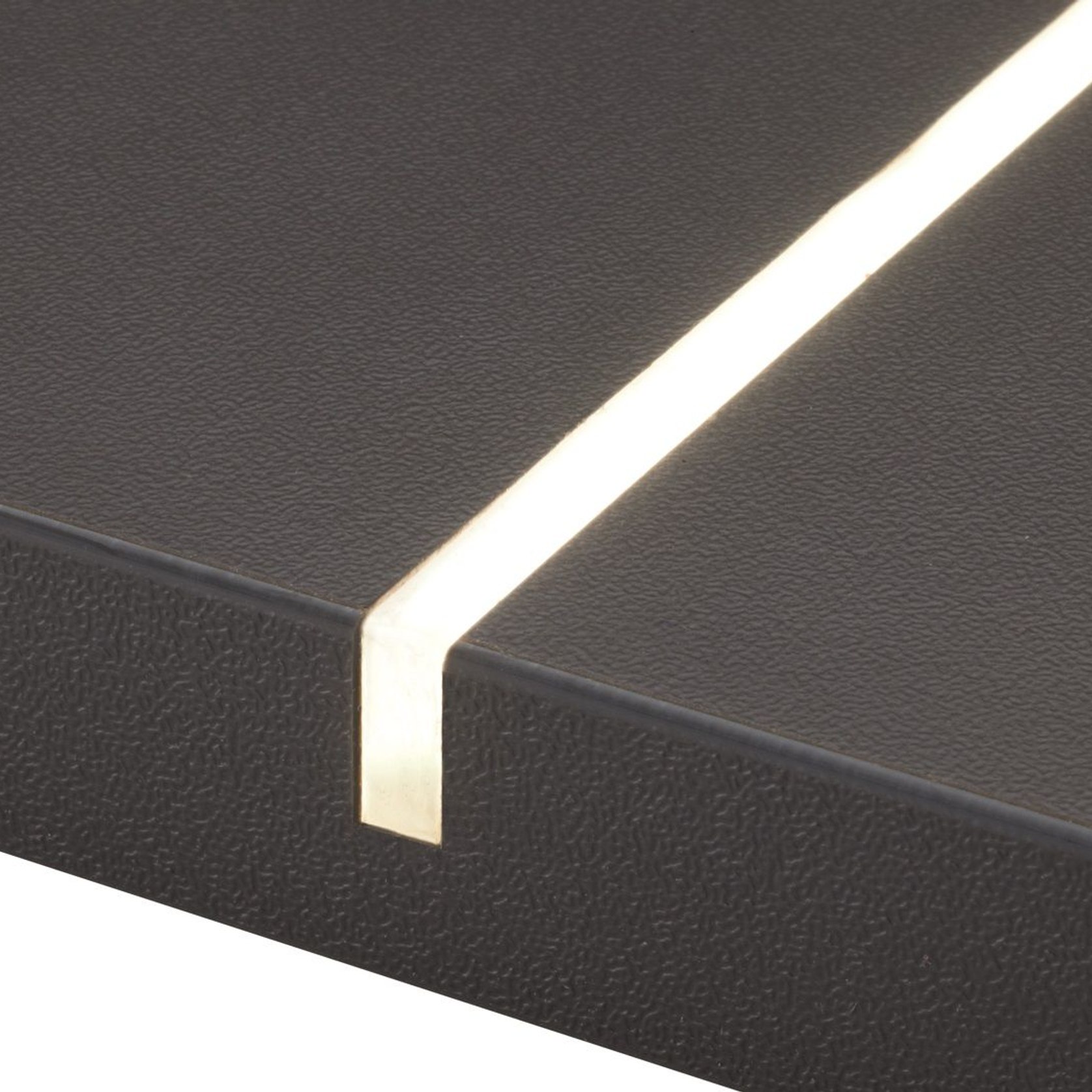

  • Recessed - snug fit in 6mm x 6mm groove, no track or diffuser required
  • Surface - high seal 3M adhesive backing, with plastic fastening saddle and screws supplied
  • 276 high performance LEDs per metre - 50 lumens/watt
  • Minimum radius of just 25mm
  • Divisible every 21.7mm
  • Available in 2m, 3m and 6m lengths
  • IP44 protection
  • Power cable at end allowing excess offcut to be reused

FLEXYLED CR

  • Innovative quick plug system; no soldering required
  • Straight line modules and 90 degrees corner modules (right hand and left hand) in 12Vdc and 24Vdc options
  • Connection system allows consistency in spacing between individual LED chips, even at joins, therefore keeping consistent light projection
  • IP44 protected
  • 12Vdc LED modules in 4 lengths: 250mm, 500mm, 1000mm, 2000mm
  • 24Vdc LED modules in 3 lengths: 500mm, 1000mm, 2000mm
  • Can be cut every 50mm allowing for truly customised installation
  • Highly reflective white backing
  • 3M self-adhesive backing tape for fast installation on virtually any smooth surface
  • Transparent resin coating protects LEDs against moderate mechanical shock and provides IP44 protection rating allowing splashes of water from any direction
  • Available in Natural White and Warm White
  • 12Vdc strips: 60 LEDs (4.8W) per metre
  • 12Vdc corners: 6 LEDs (0.48W)
  • 24Vdc strips: 120 LEDs (9.6W) per metre
  • 24Vdc corners: 12 LEDs, (1.1W)
  • Requires separate power supply cord fitted with CR and Micro12 or Micro24 Connectors for each unbroken run of FLEXYLED CR modules (sold separately)

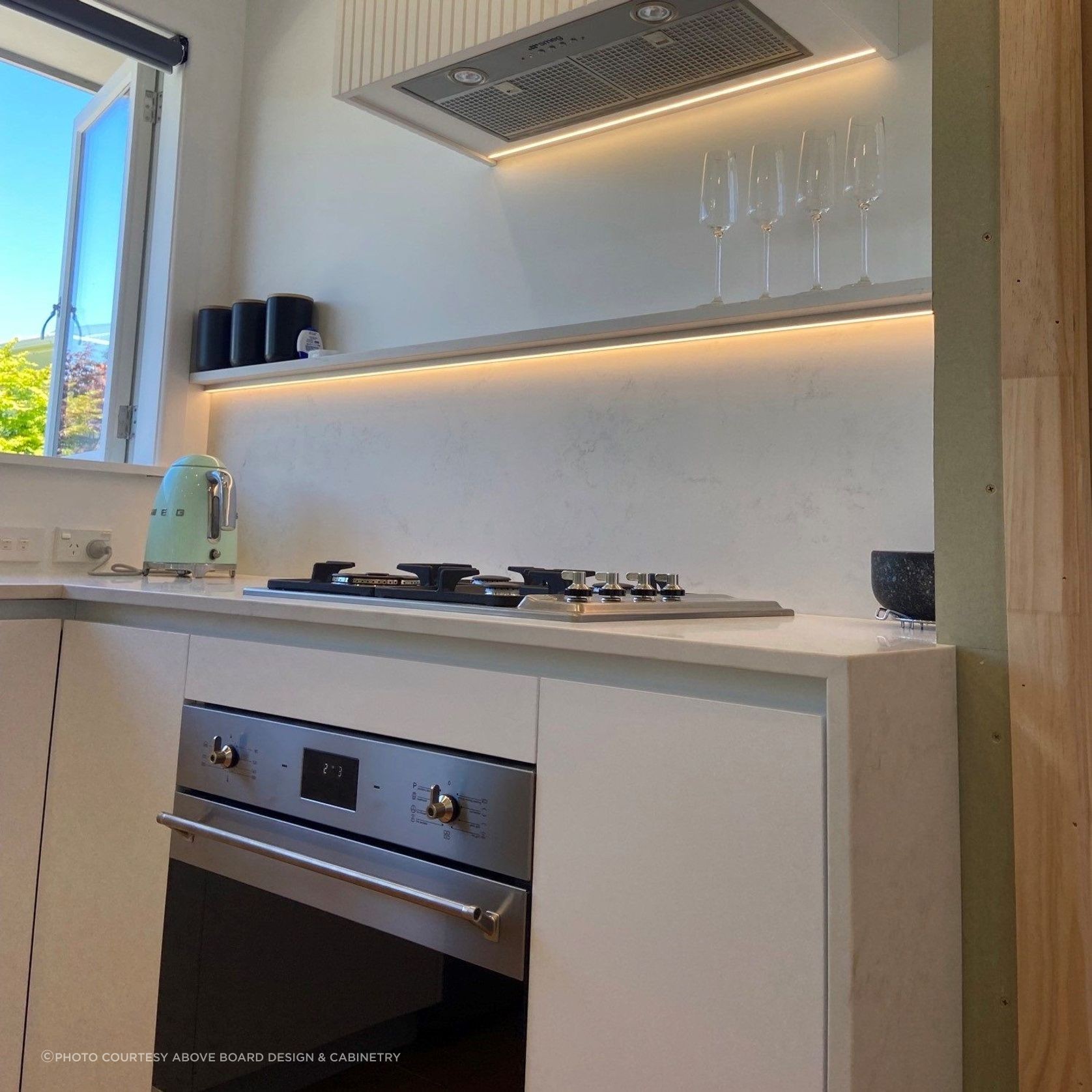

  • Interconnecting cables (250mm, 500mm, 1000mm for 12Vdc and 500mm for 24Vdc), fitted with CR connectors, available separately to allow for breaks in lighting stream without having to run additional power supply cable for example when installing FLEXYLED CR either side of a range hood.
  • Extension cables, distributor block extensions and LED drivers available
  • Made in Italy to comply with New Zealand/Australian standards
  • Suitable for Diva profile, Twig profile, String profile

FLEXYLED CH

  • Innovative clip system; no soldering required
  • Straight line 12Vdc and 24Vdc modules in 5m and 25m rolls that are cut to length and clipped together in virtually any configuration up to 6m long
  • Both 12Vdc and 24Vdc options also available in precut 2m and 3m lengths, with CH power cable pre attached
  • Simply slide the LED strip under the contacts on the clip, align + and - markings, and snap clip closed.
  • IP20 protected
  • Available in Natural White and Warm White
  • 12Vdc rolls and strips: 60 LEDs (4.8W) per metre, 418 Lumens, 87 lm/W
  • 24Vdc rolls and strips: 120 LEDs (9.6W) per metre
  • Can be cut every 50mm allowing for truly customised installation
  • Highly reflective white backing
  • 3M self-adhesive backing tape for fast installation on virtually any smooth surface
  • Connecting clips ordered separately
  • Interconnecting cables (50mm, 100mm for 12Vdc and 100mm for 24Vdc), fitted with CH connectors, available separately to allow for gaps and corners.
  • Extension cables, distributor block extensions and LED drivers available
  • Made in Italy to comply with New Zealand/Australian standards
  • Suitable for Goccia profile, Icy profile, Ledye profile
  • CH precut strips with power cable already connected suitable for: Diva profile, Twig profile, String profile

HE6B Pro (High Emission) and SHE6B Pro (Super High Emission)

  • 24Vdc
  • 120 LEDs per metre for HE6B and 180 LEDs per meter for SHE6B
  • Divisible at 6 LEDs which is 50mm for HE6b and 33mm for SHE6B
  • IP20 rated
  • Natural White or Warm White

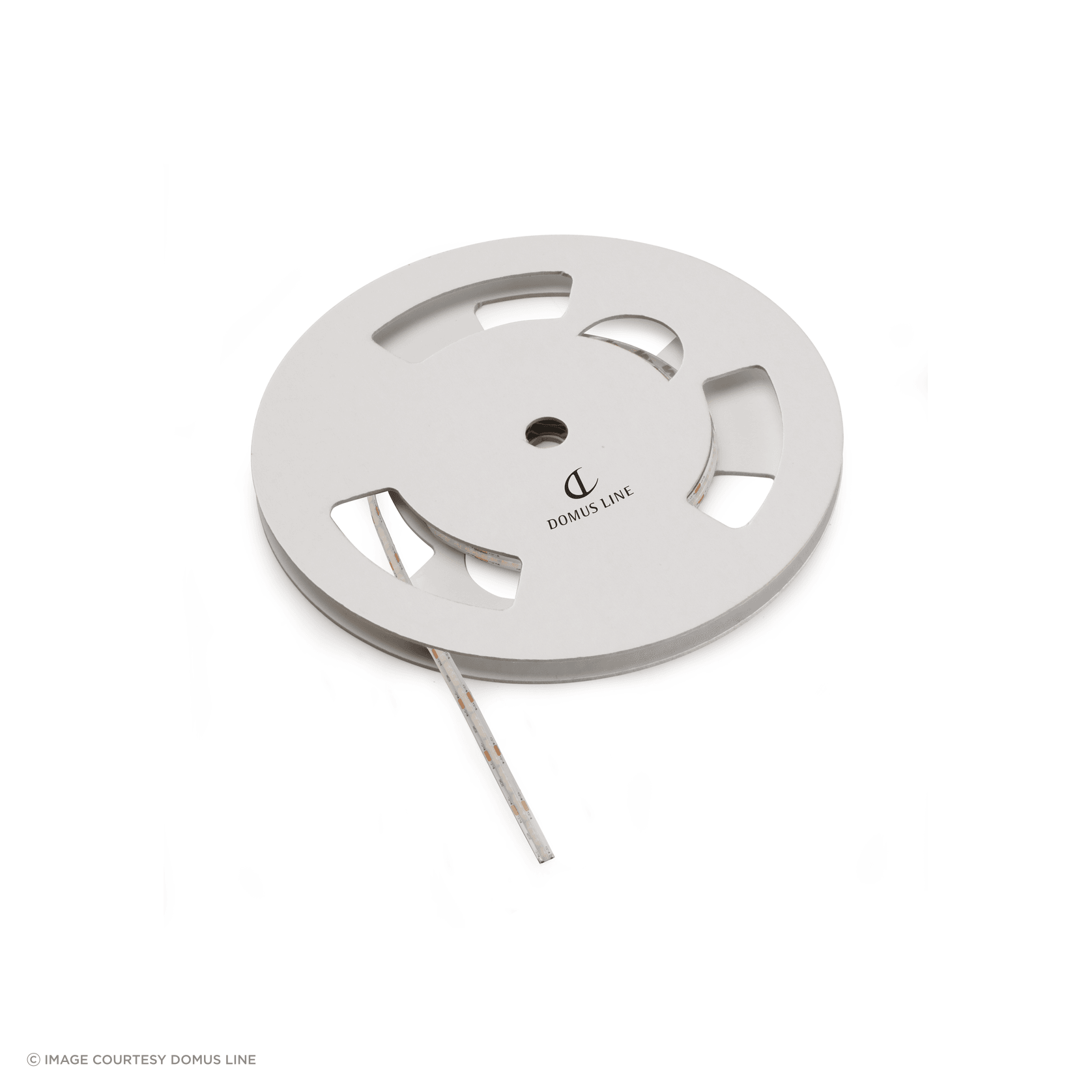

  • 10m rolls
  • 2m and 3m lengths pre-wired at one end
  • 5m lengths pre-wired at both ends
  • Supplied with a high adherence 3M adhesive base so may be surface mounted or integrated into profiles with a removable diffuser (leaving adhesive on if this is the application).
  • Compatible with Domus Line Nexus profile, Apex Dark profile (leave adhesive on) and any CH-suitable extrusion.
