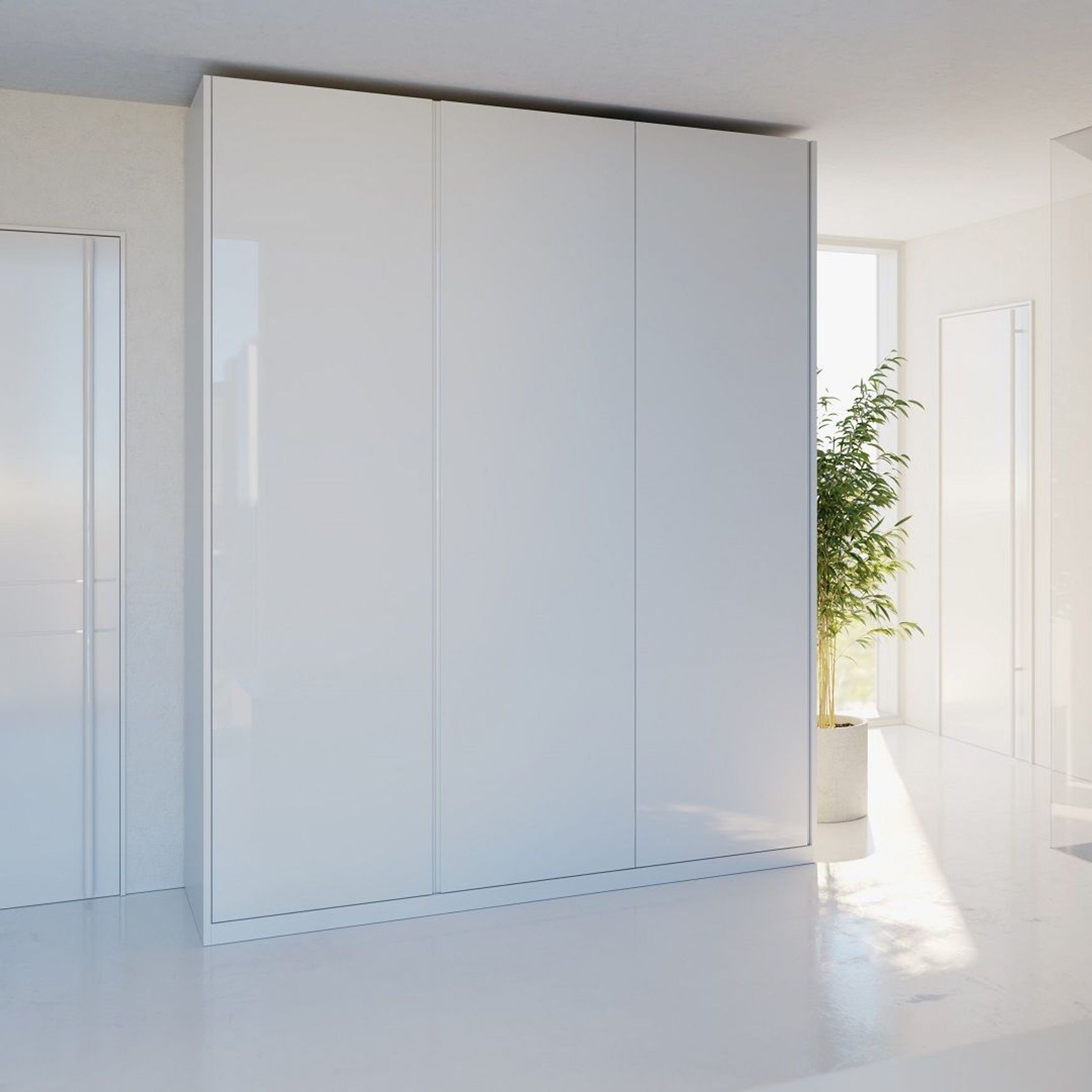

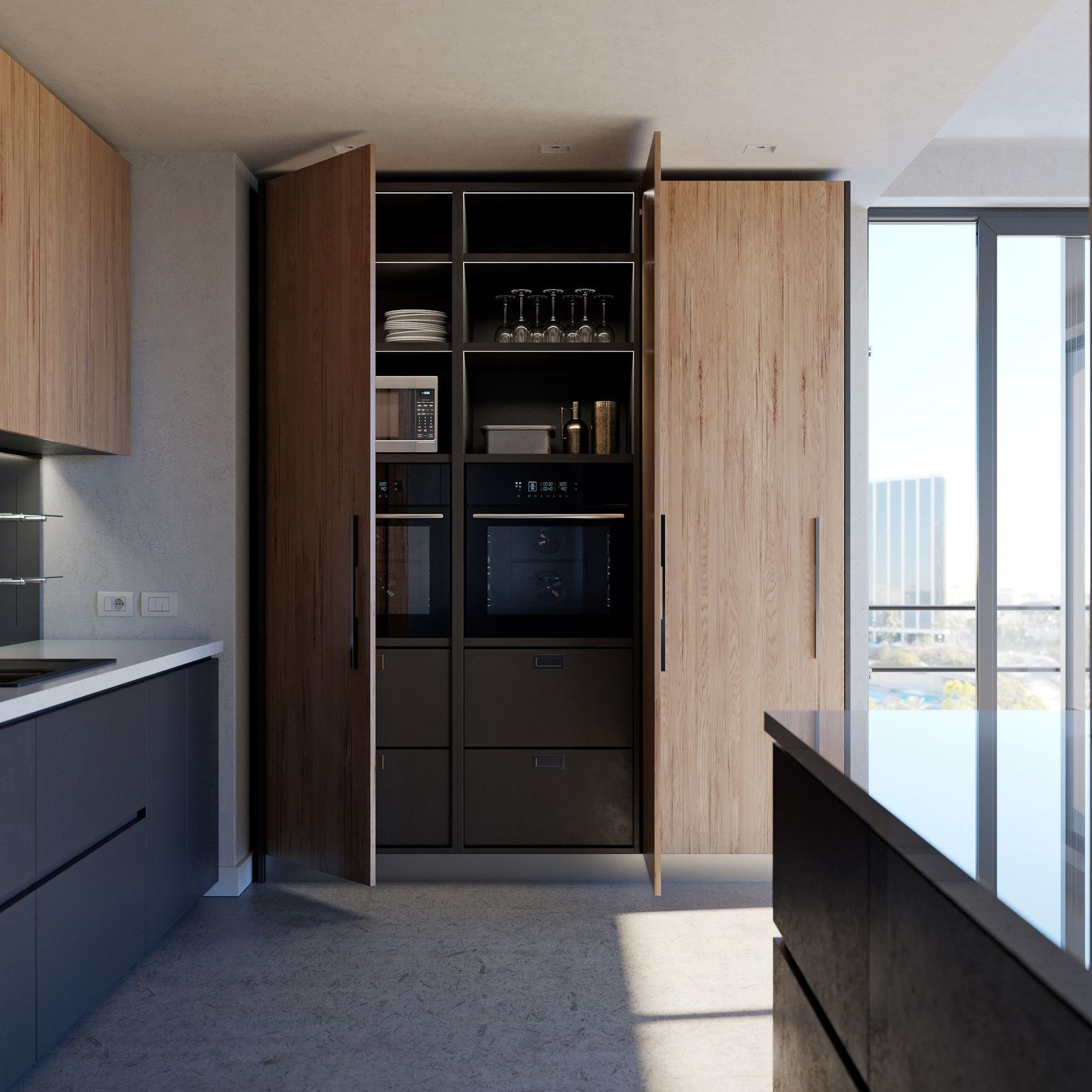

Salice Gravity Pocket Door

Salice's Gravity Pocket Door, designed and made in Italy, is a versatile mechanism that brings together smart functionality and refined aesthetics.

Specs

• Suits doors from 16mm to 30mm thick
• Suits door heights from 1100mm to 3000mm high
• Suits doors from 300mm to 900mm wide
• Maximum weight per door: 40kg (distributed evenly)
• Internal pocket width required 55mm
• Tested and guaranteed for 80,000 cycles
• Door protrusion is determined by ratio between door height, door width and cabinet depth; always verify correct protrusion using the online configurator
• Standard protrusion is 107mm based on a 600mm deep x 600mm wide cabinet. Protrusion may be less or more depending on cabinet dimensions.

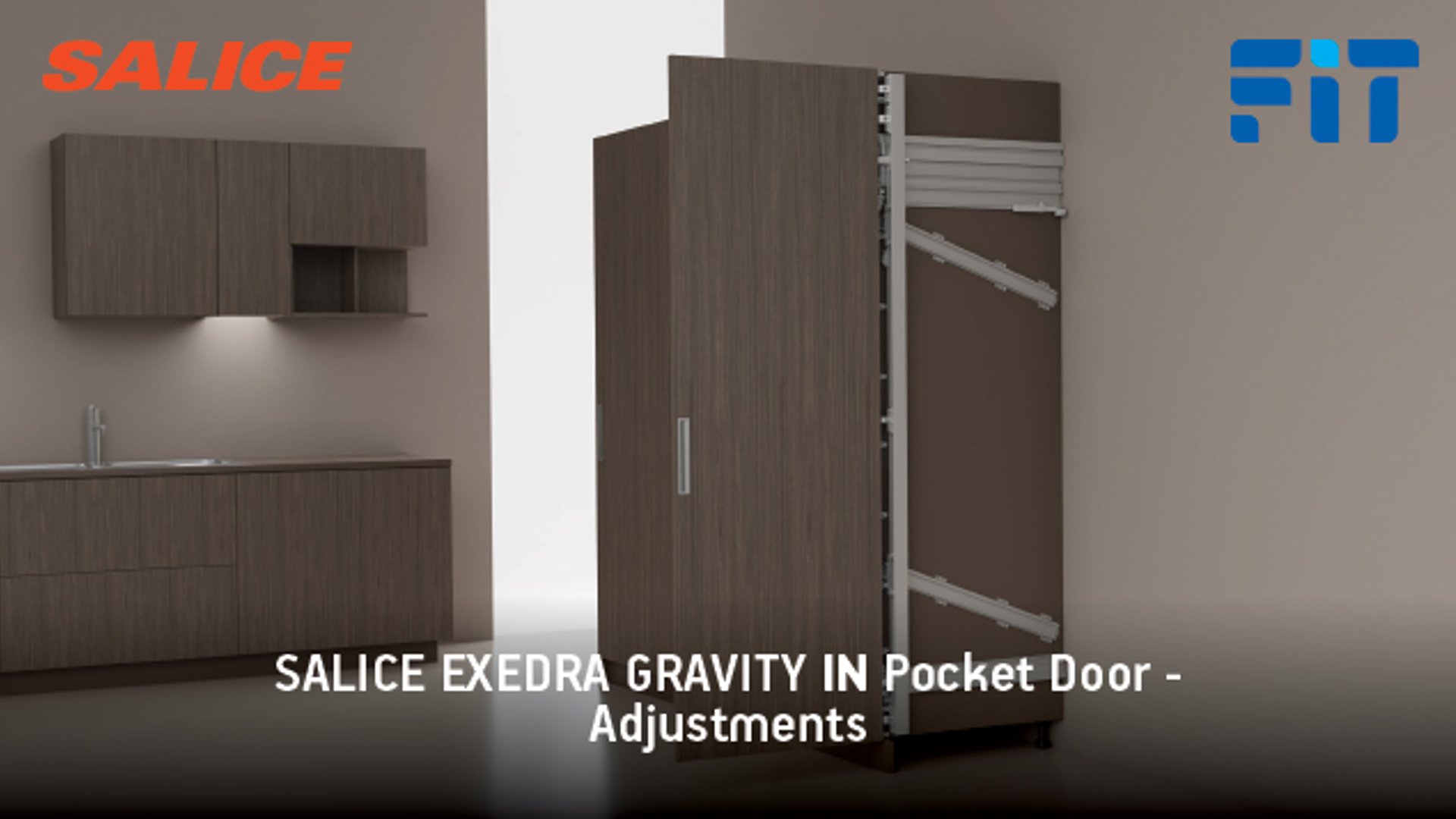

• Vertical adjustment +4mm/-1mm
• Front adjustment +/-4mm

Features

Exceptional design flexibility, with one of the widest parameter ranges in its category

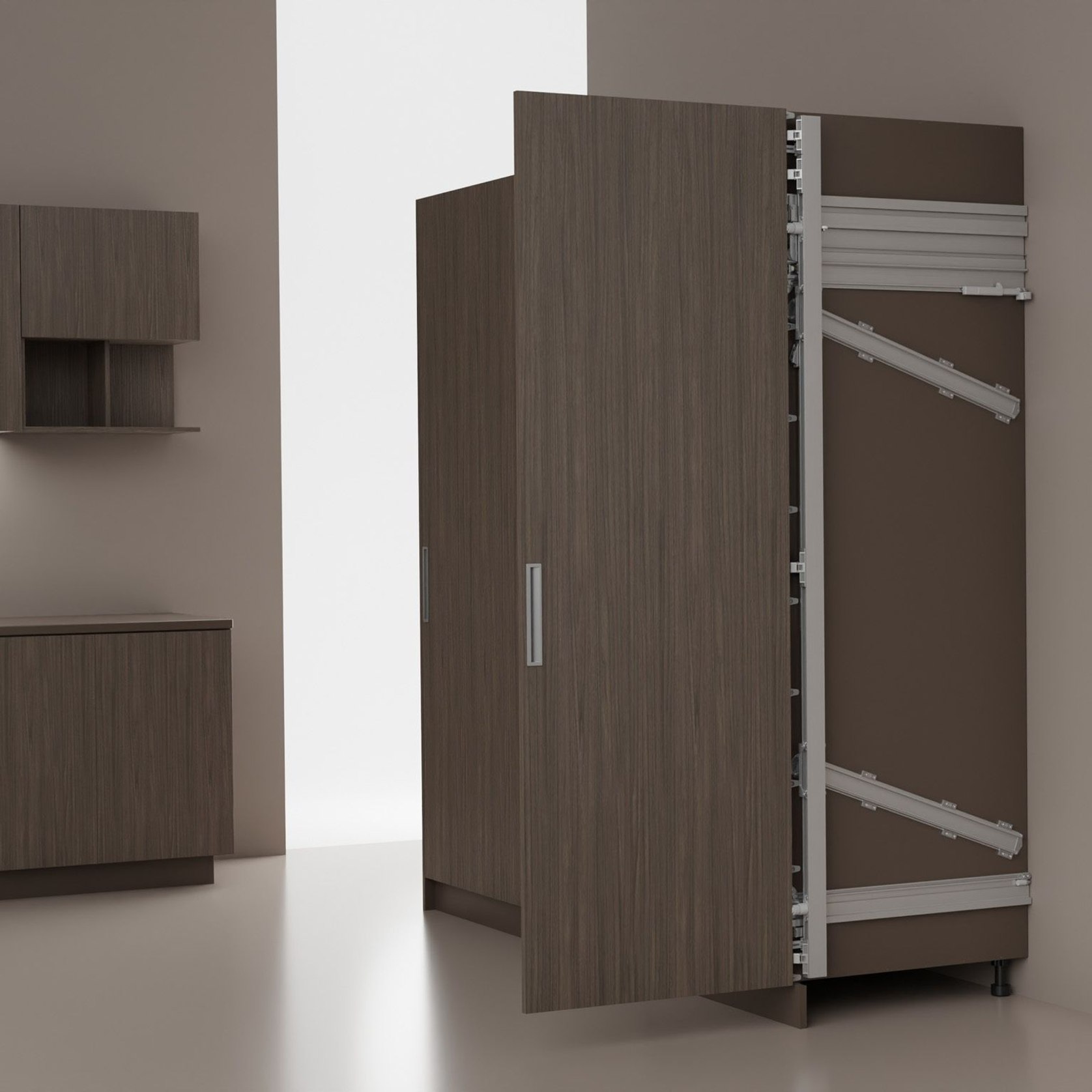

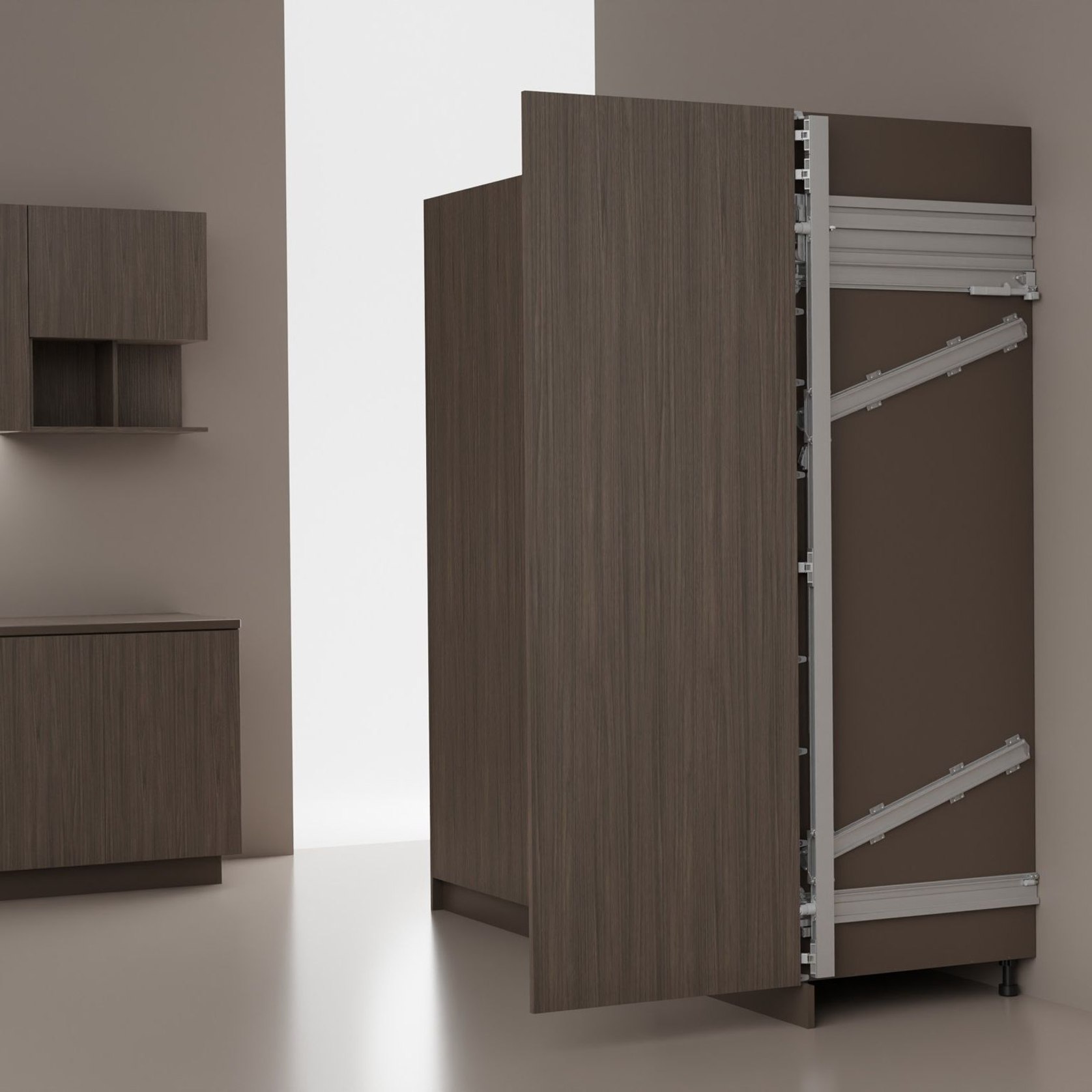

Space-saving solution, with a concealed mechanism housed within a slim 55mm pocket cavity

Premium performance, delivering smooth, fluid movement assisted by magnetic dampers for controlled operation

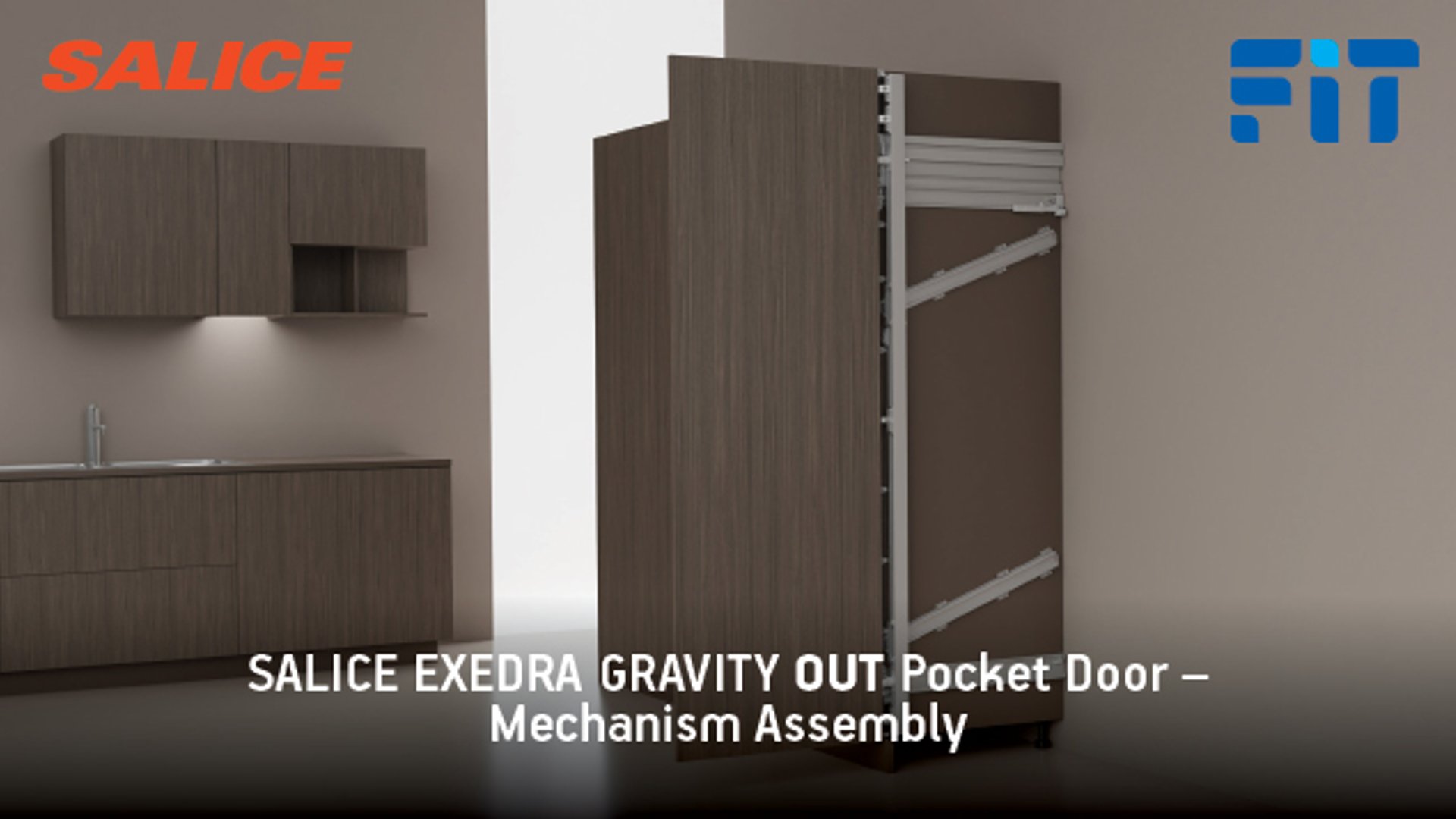

Simple installation, attaching directly to the cabinet side in just a few steps

Engineered simplicity – no cables, pulleys, springs, or tie-rods; just gravity

Configurable Functionality: you choose how Gravity assists with your application.

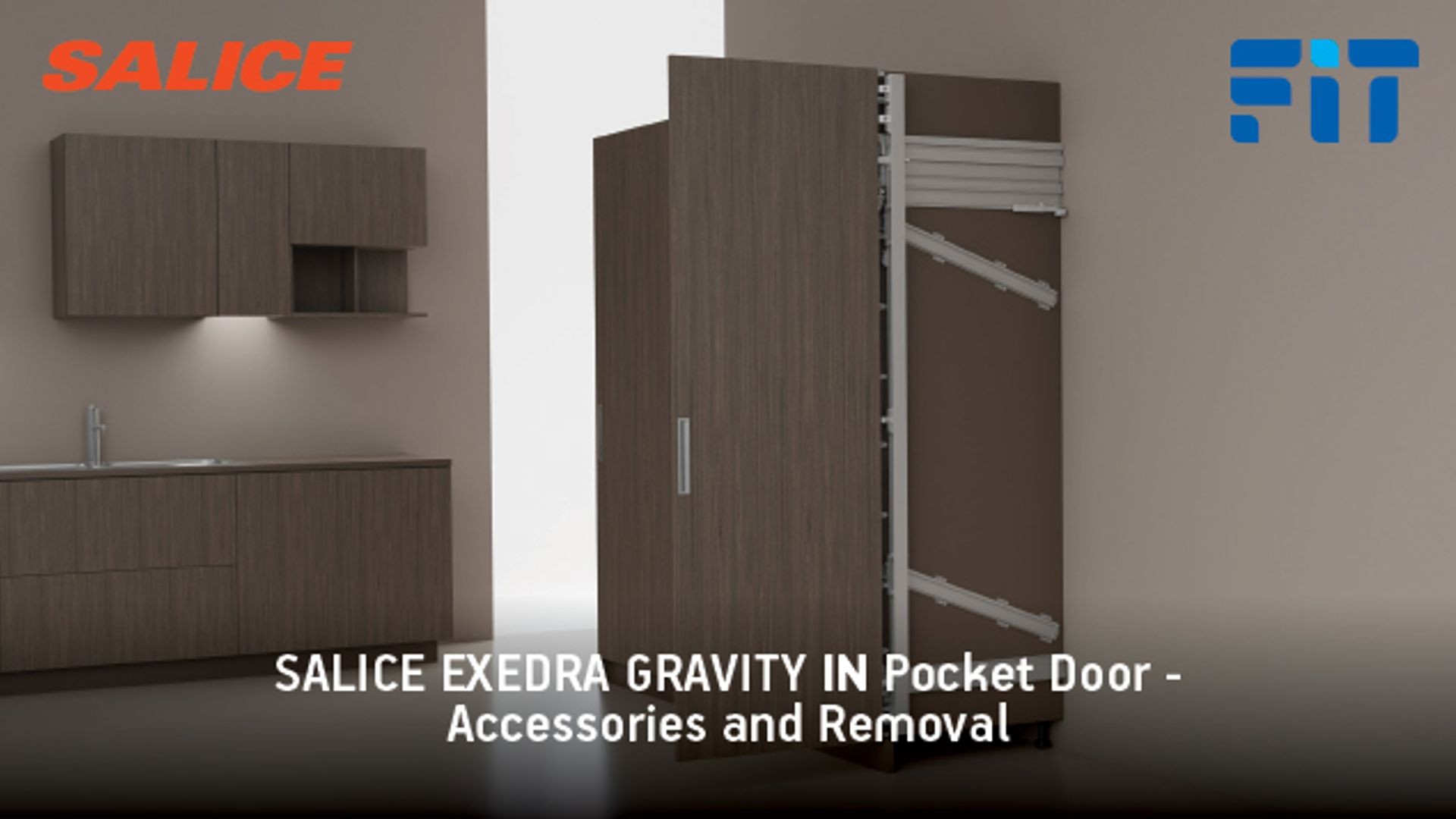

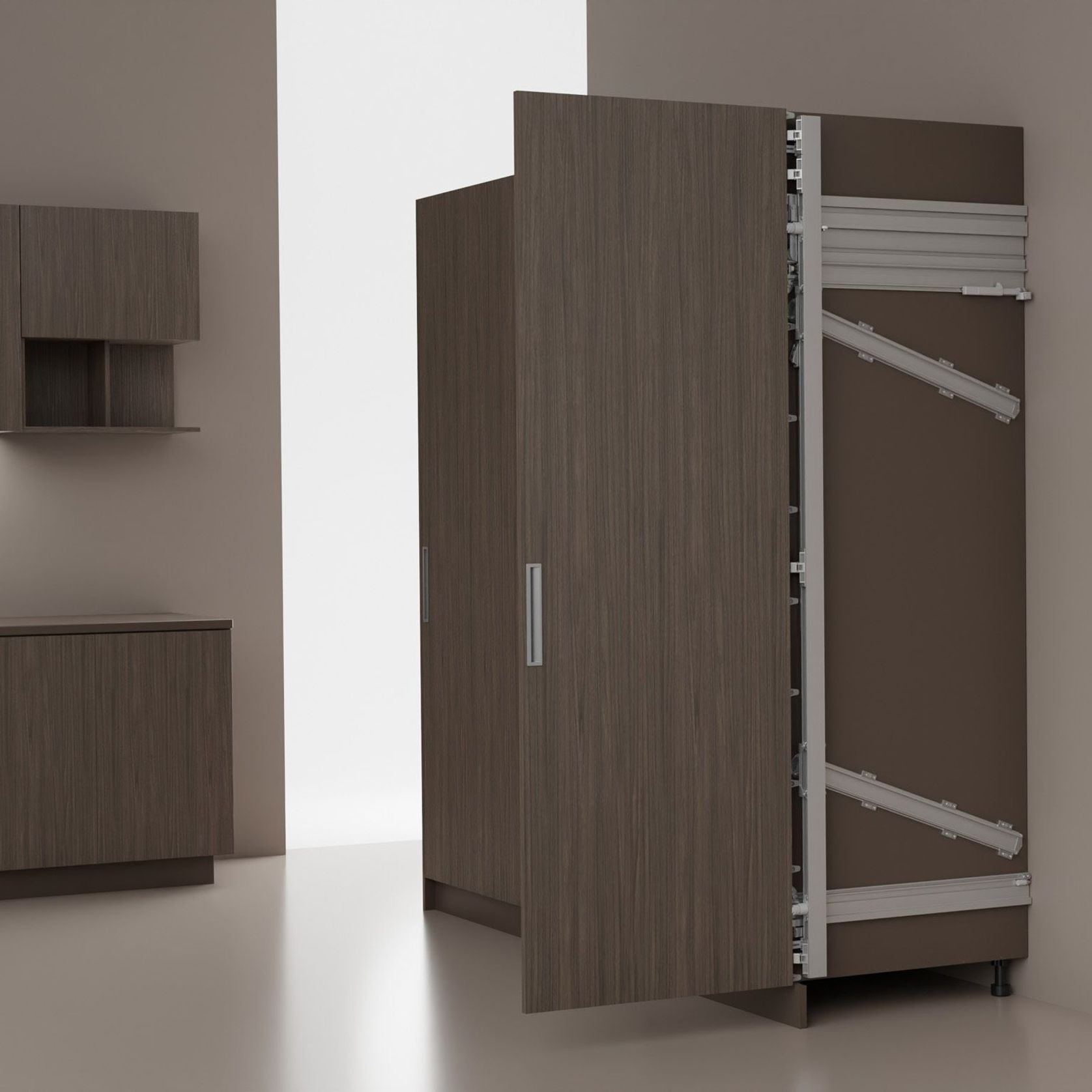

• Gravity IN – self soft-close functionality

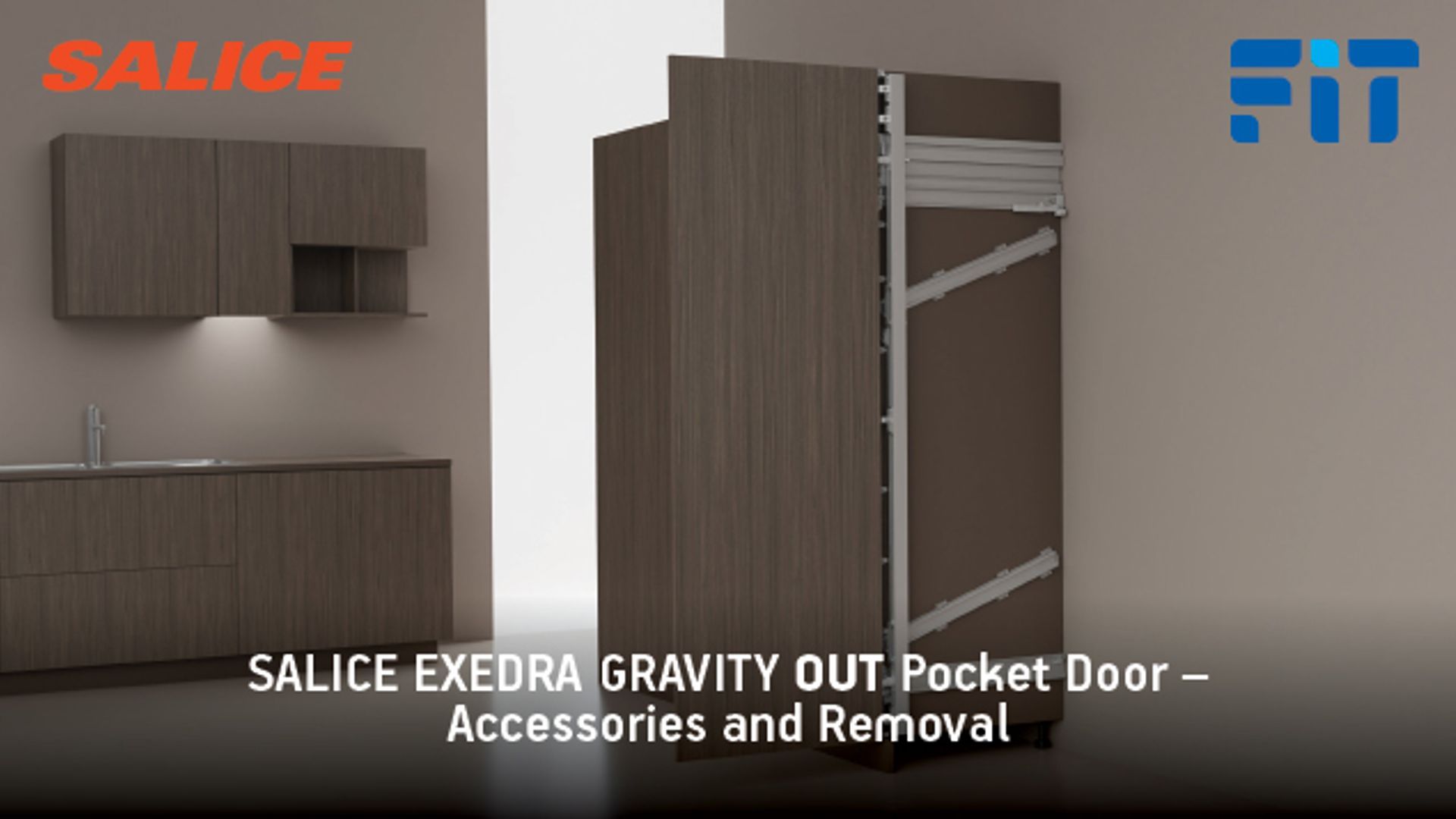

• Gravity OUT – soft push-to-open with manual close

Scope of use

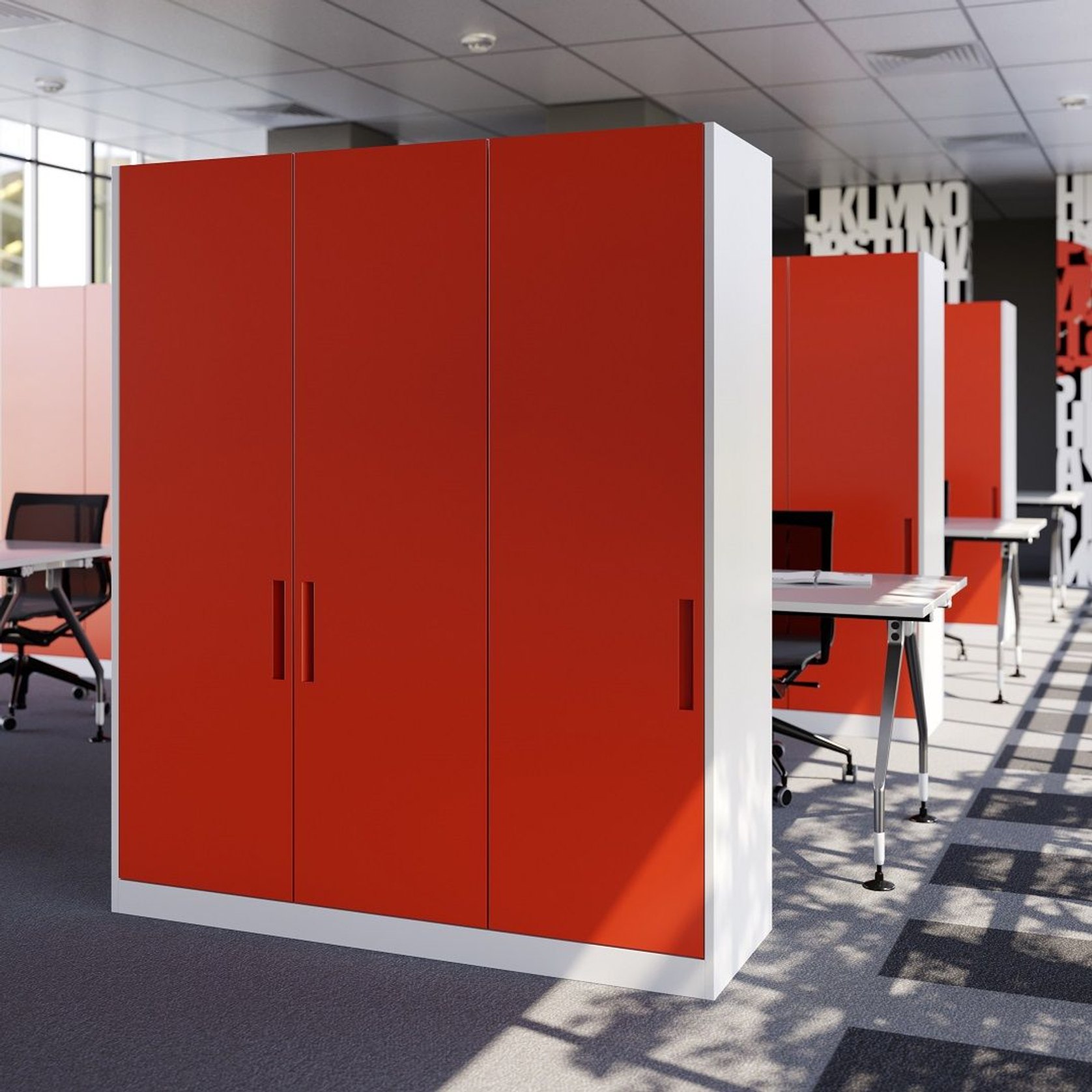

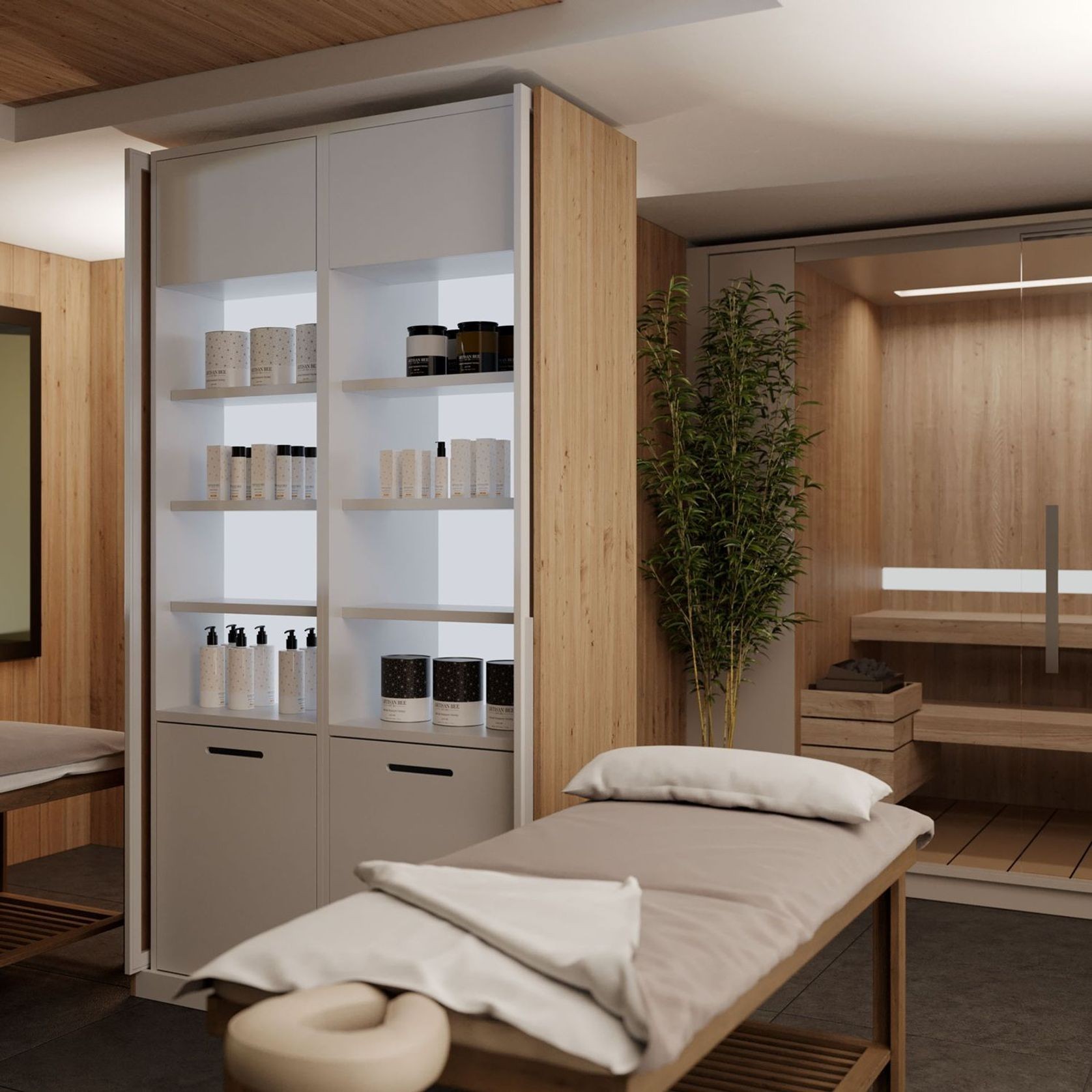

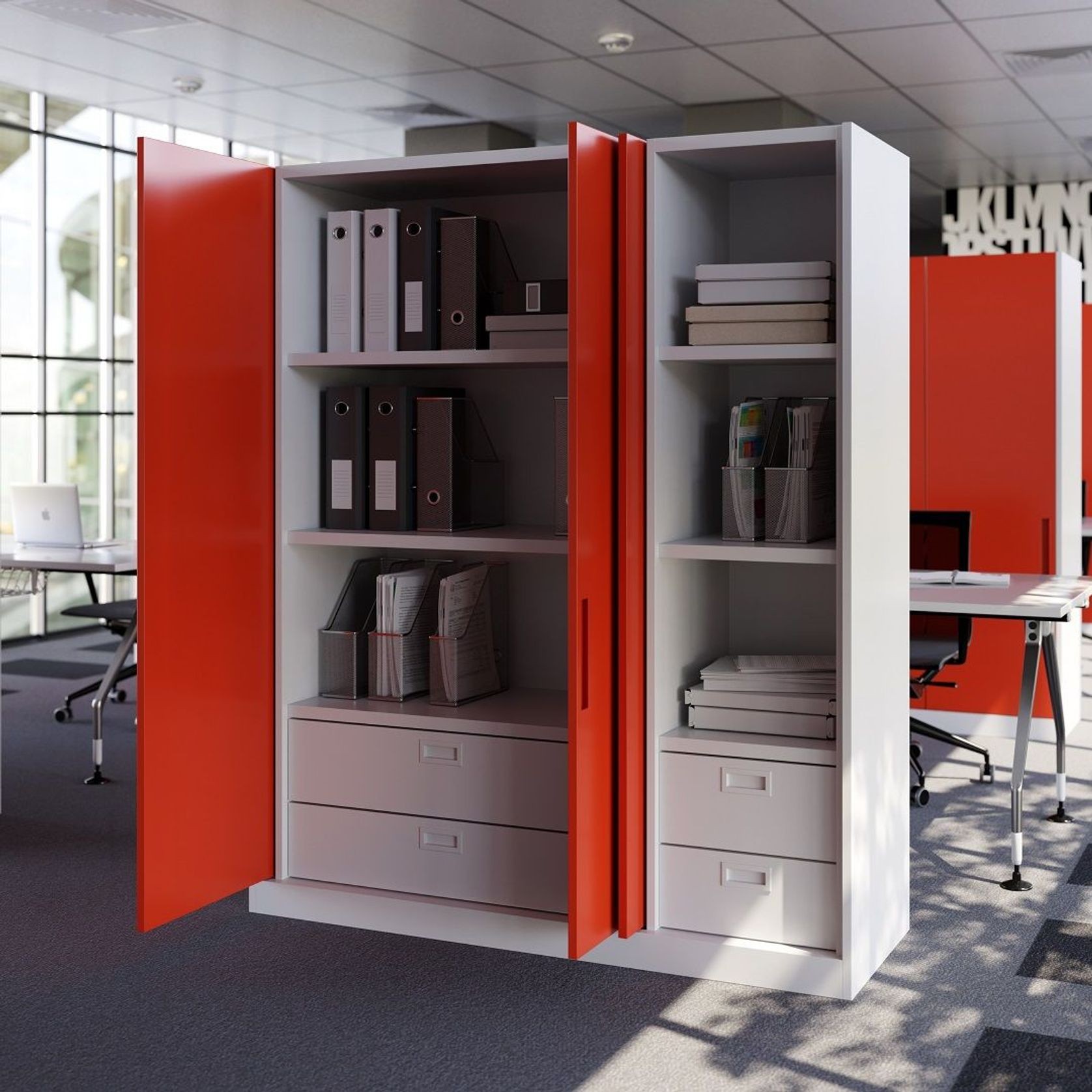

Gravity is suitable for residential and light commercial applications.
