Downhill Dan 22 Linear LED Light
Napier, New Zealand
- 161.4K profile views
- 29 saves

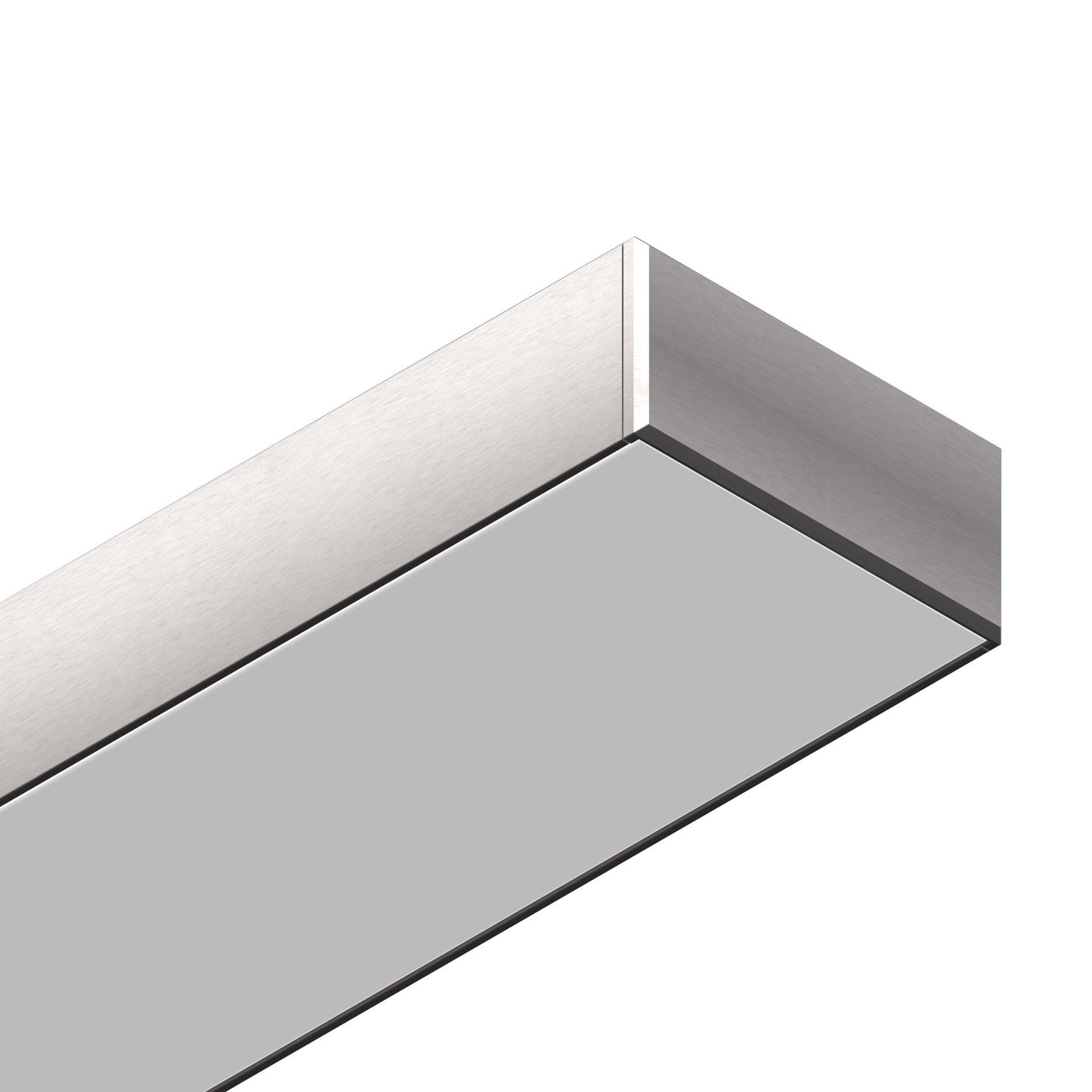

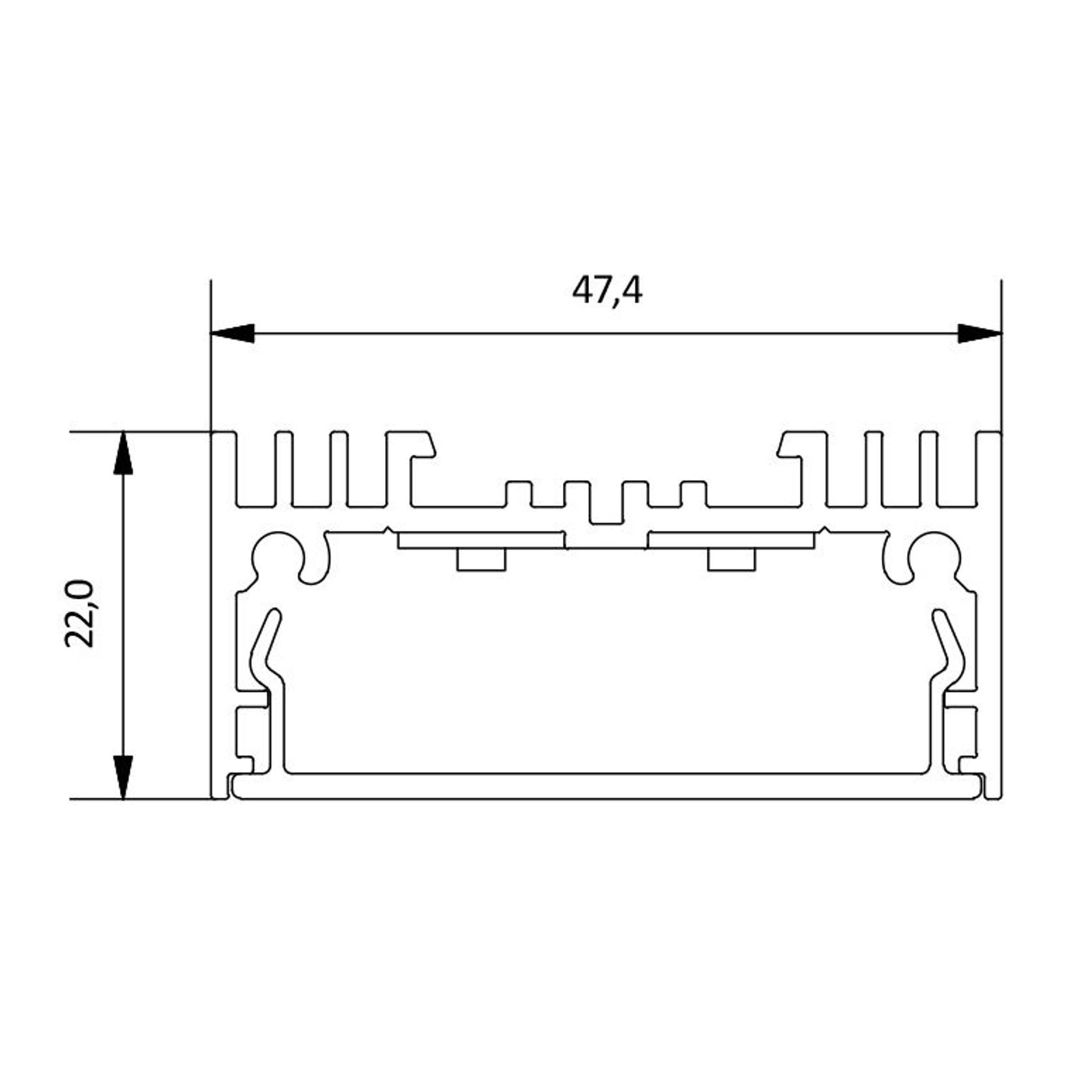

The Downhill Dan 22 Linear LED Light profile is our most powerful downlighting system. Utilizing two LED ribbon strips mounting in parallel, this profile is ideal for applications where maximum output is key. Both wire and rod suspension options are available and a simple method of recessing into plasterboard ceilings provides a clean, trimless look.
Product Details
- Product
- Downhill Dan 22 Linear LED Light
- Category
- Linear Lighting
- Sold by
- Offspring Profiles®
- Range
- Linear Lighting
- Brand
- Offspring Profiles
The Downhill Dan 22 Linear LED Light profile is our most powerful downlighting system.
Utilizing two LED ribbon strips mounting in parallel, this profile is ideal for applications where maximum output is key. Both wire and rod suspension options are available and a simple method of recessing into plasterboard ceilings provides a clean, trimless look.
- Specs
- Applications - General downlighting in kitchens, living rooms, dining rooms, receptions counters
- Installation - Interior and exterior (with IP65 or IP67 rated LED strip)
- Material - Aluminium body, PMMA diffuser, aluminium end caps
- Finish - Natural silver anodised or custom powder coat
- Light source - LED ribbon strip
- Power supply - 24V DC - remote driver options ranging from 6W up to 320W
- Dimming - Various options available including DALI, 0-10V, DMX - please enquire
- Mounting options - Surface mounted, recessed, rod suspended, wire suspened
- Features - New Zealand designed and made, uniform lighting (reduces or eliminates the appearance of LED 'dot's with opal diffuser)
- Provides heat sinking for high wattage LED strips
- Dust & grease protection
Downloads
Downloads (10)10 Direct downloads • 11 Available on request
Frequently asked questions about
Downhill Dan 22 Linear LED Light
The Downhill Dan 22 Linear LED Light is supplied by Offspring Profiles®. It is also on their website, and you can browse every product Offspring Profiles® lists on ArchiPro.
Offspring Profiles® does not publish a price for the Downhill Dan 22 Linear LED Light on ArchiPro. for pricing, or visit their website.
Yes. It is part of the Linear Lighting range from Offspring Profiles®, where you can see every product in the range together.

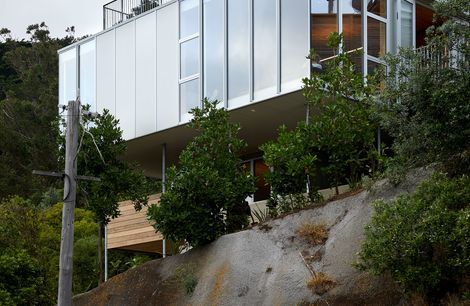

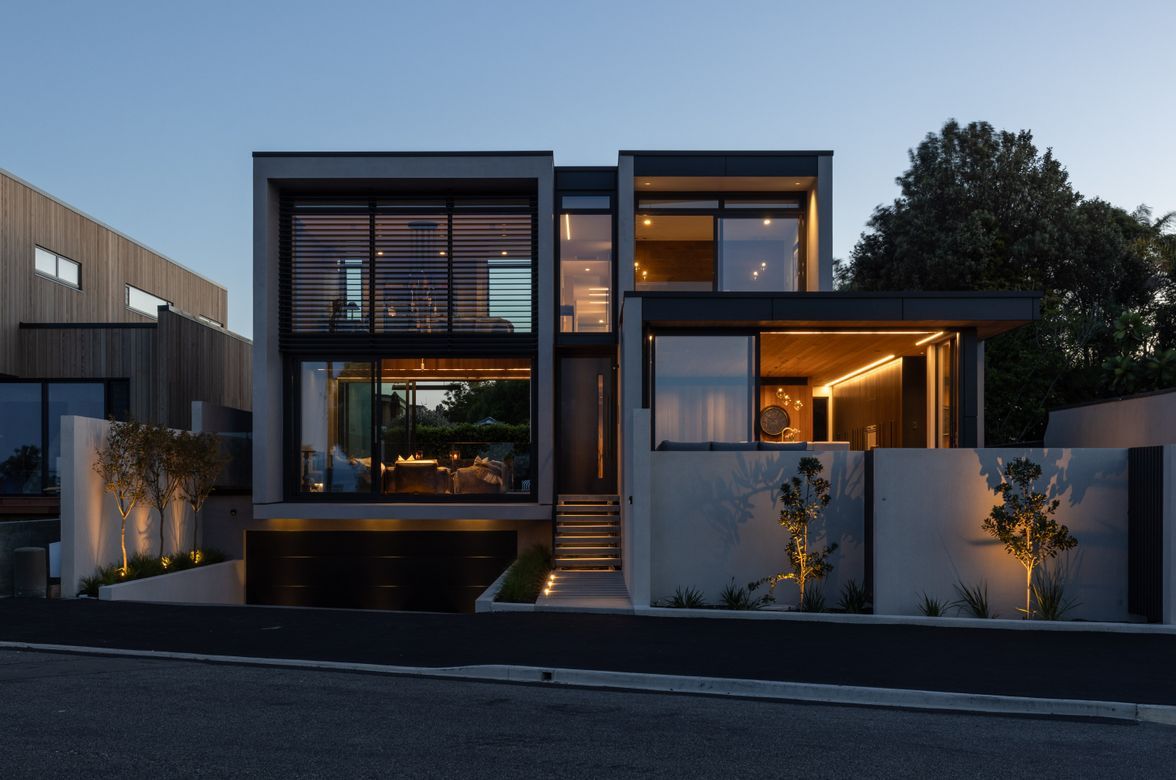

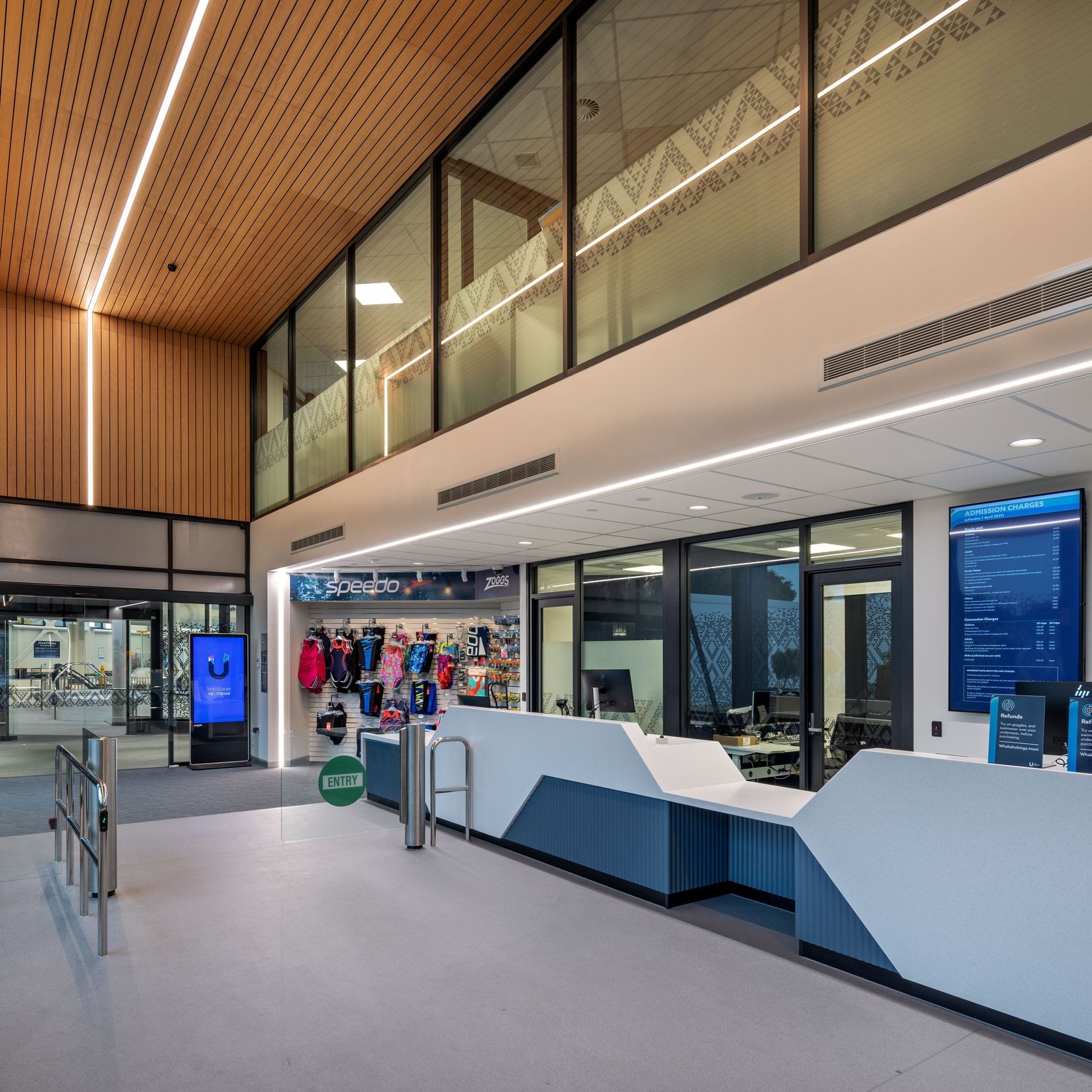

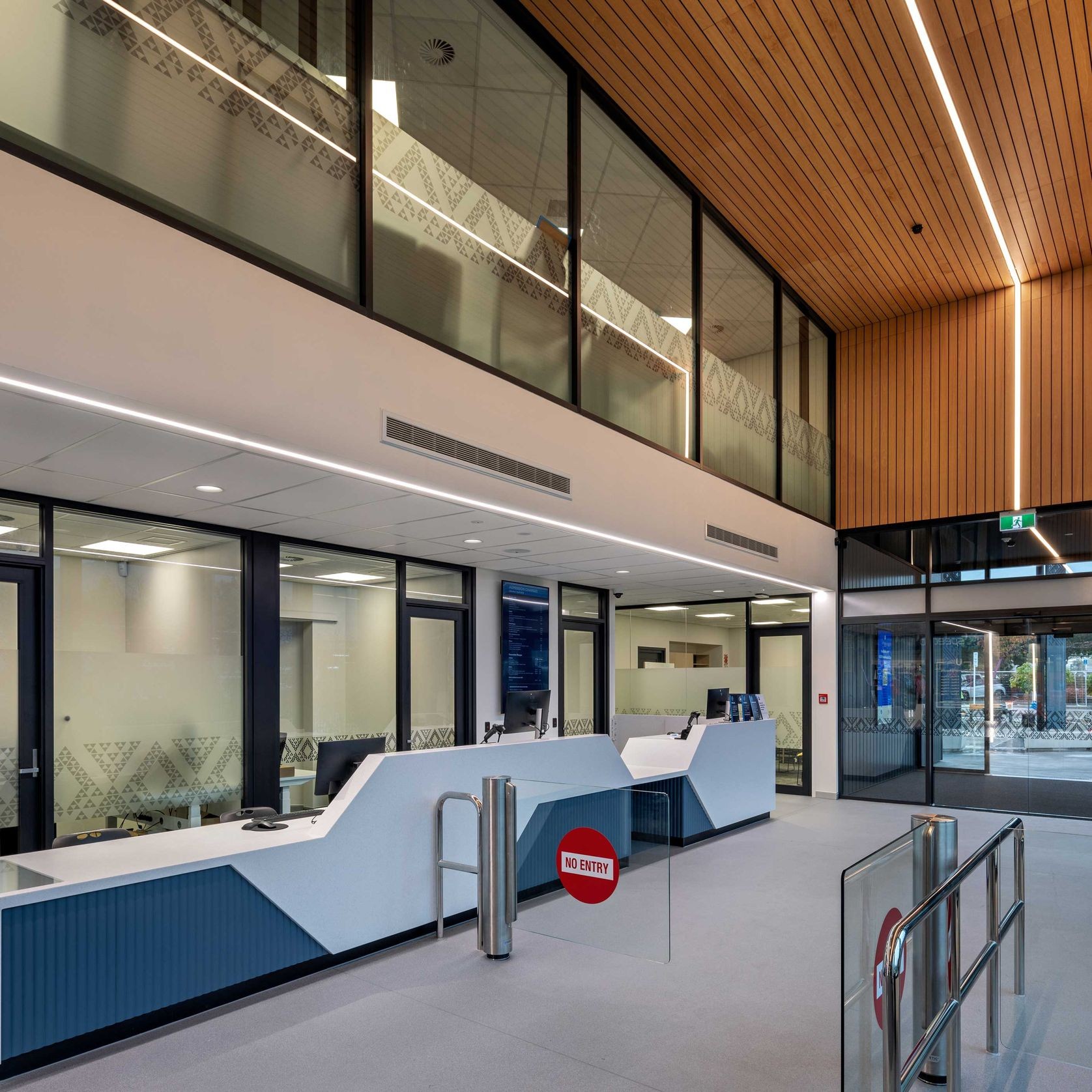

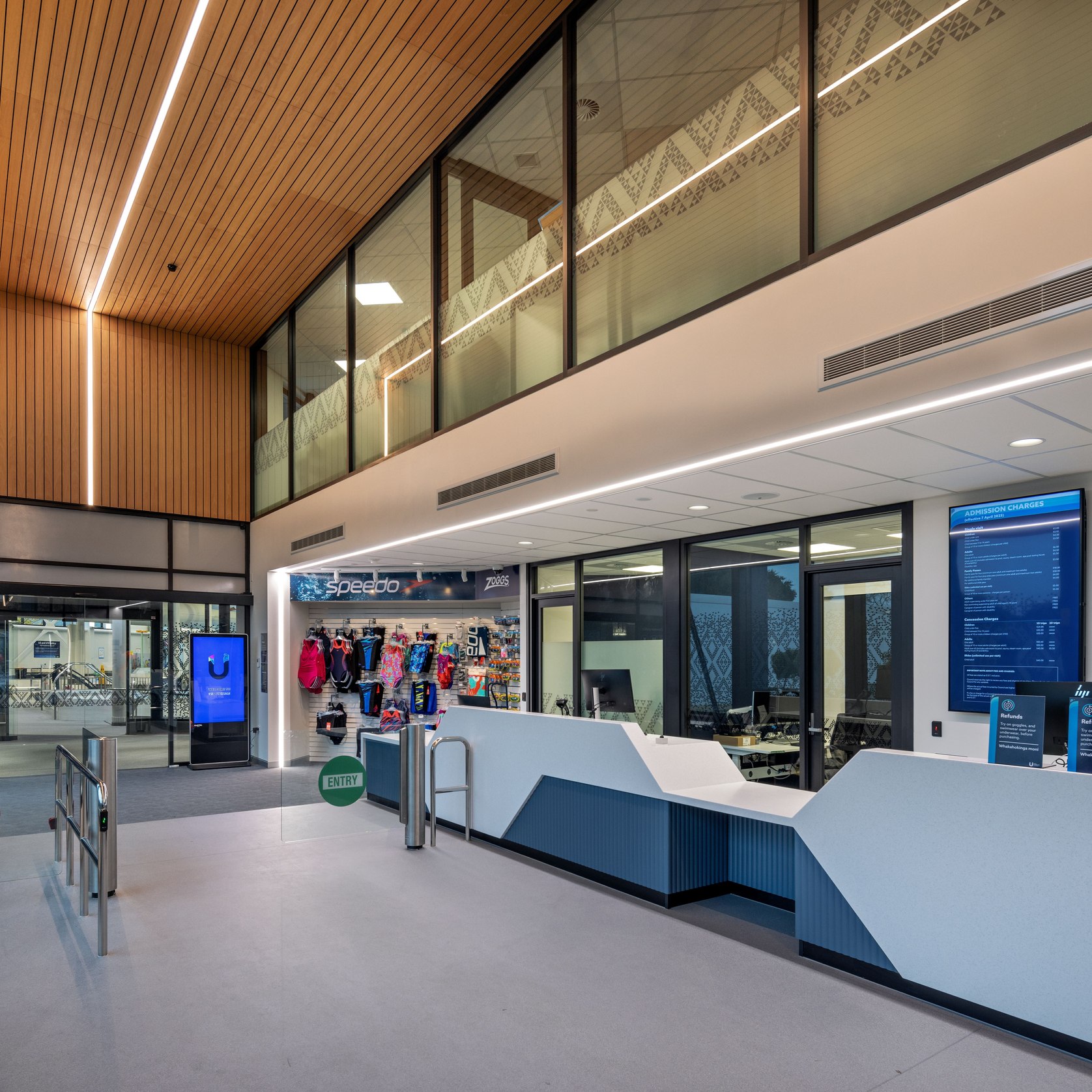

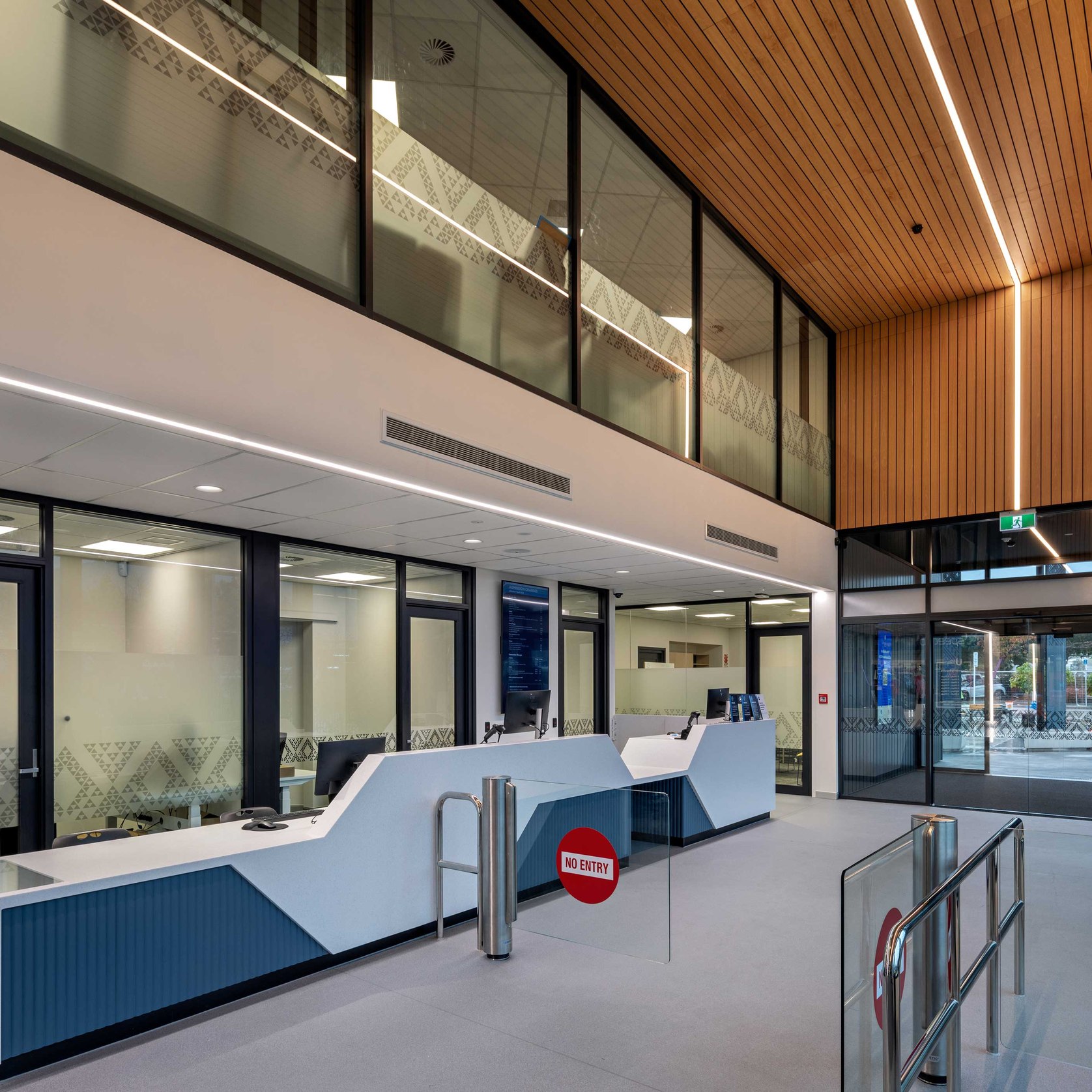

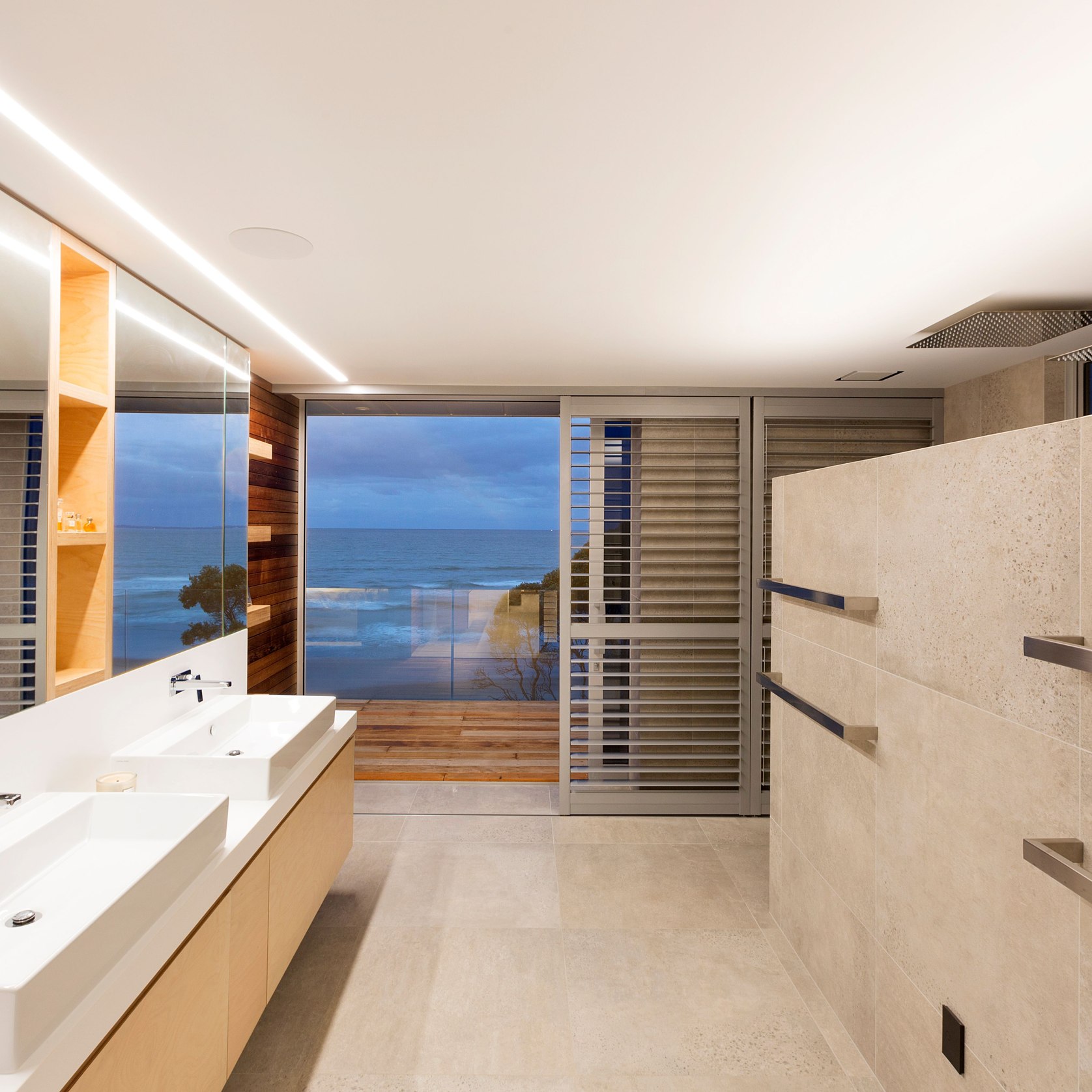

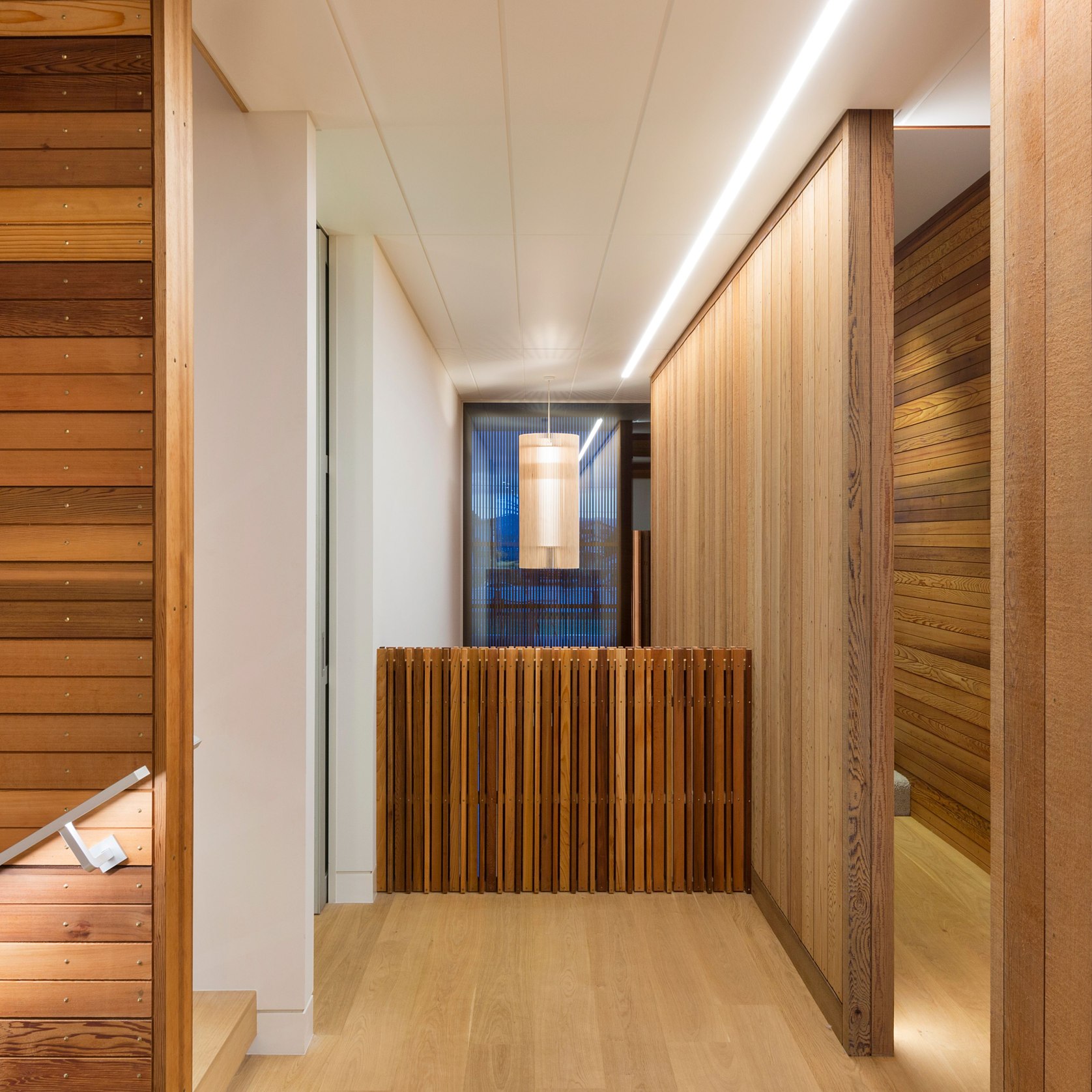

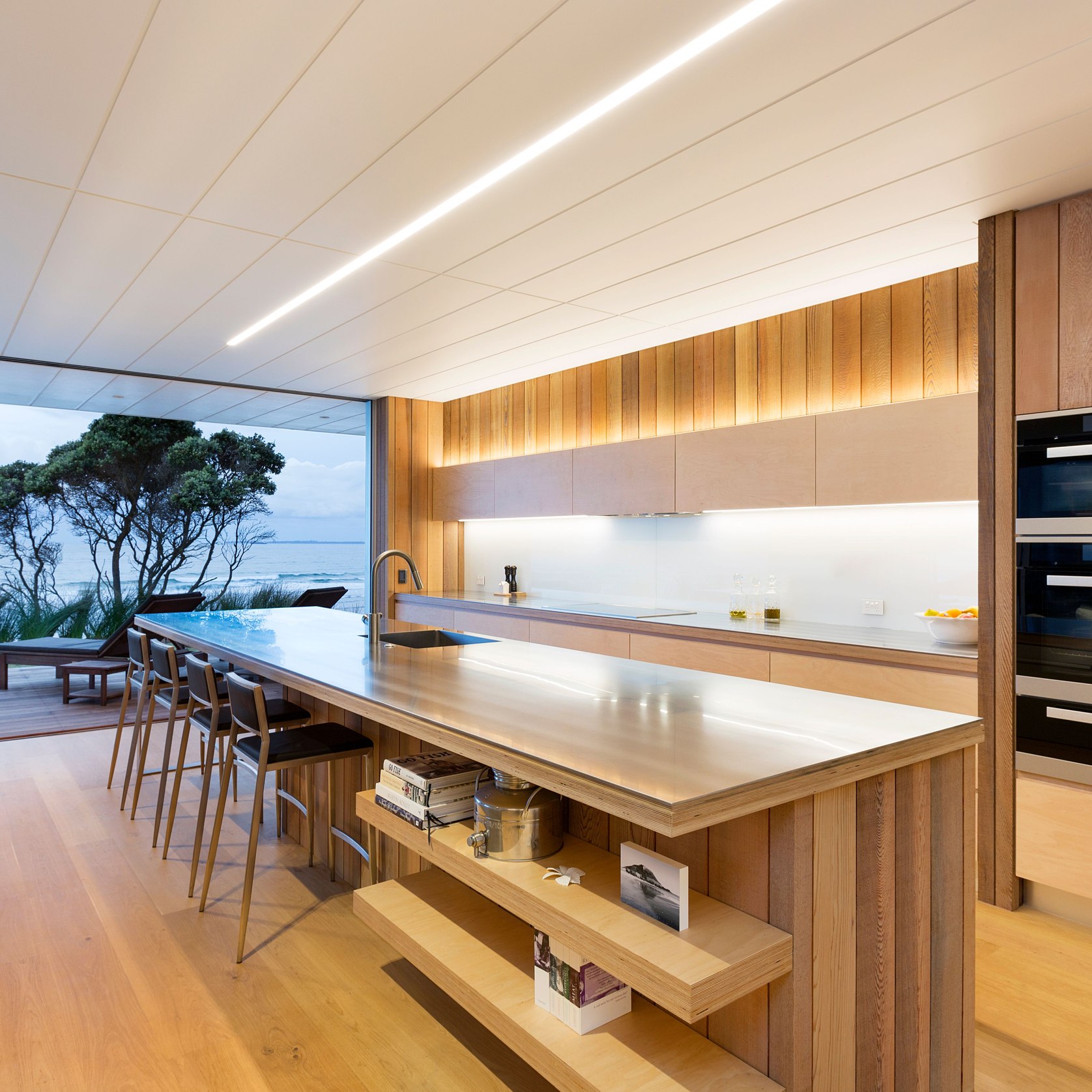

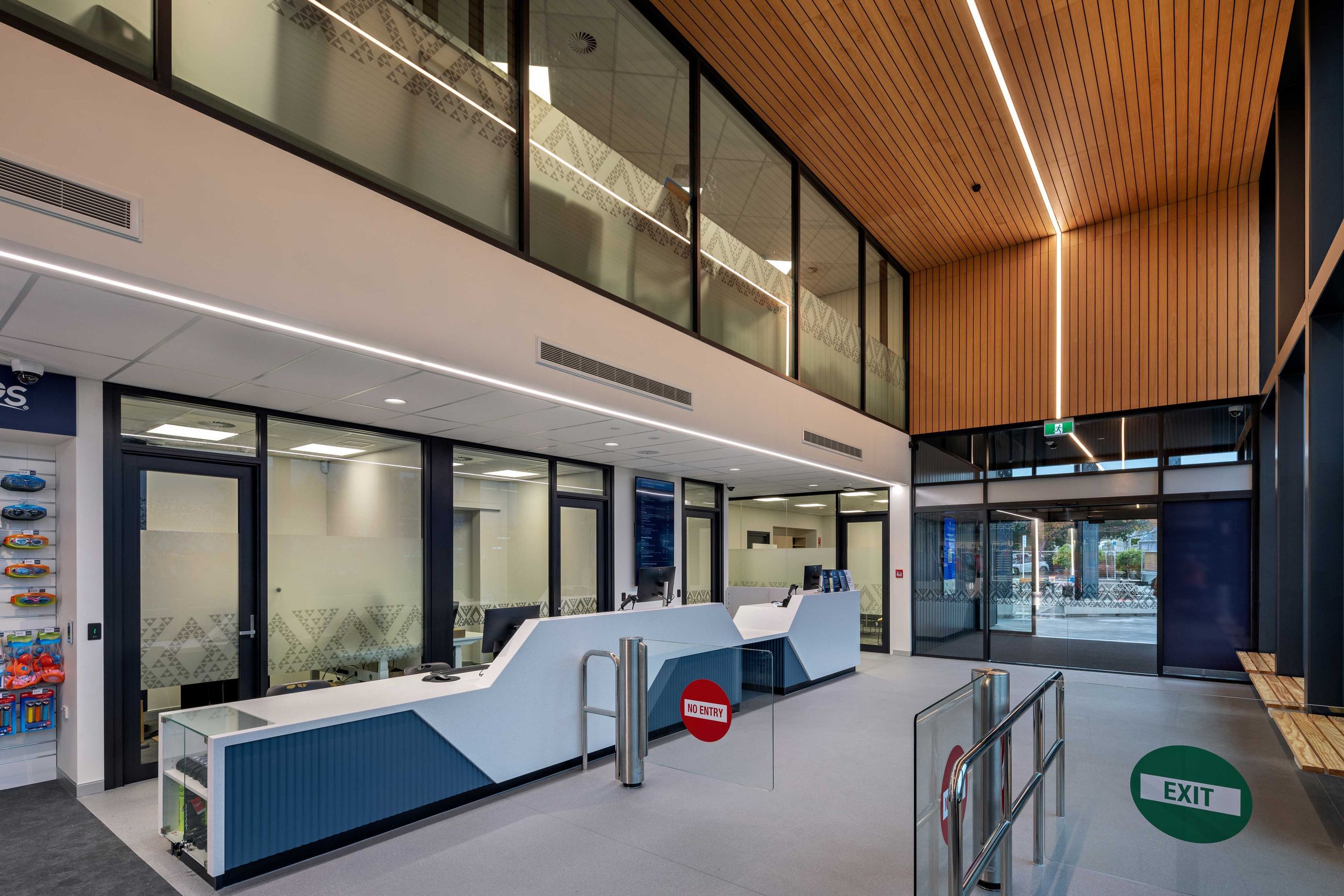

Yes. It has been specified in projects on ArchiPro, including H2O Xtream Aquatic Centre by Offspring Profiles®, Westshore House by JPW Builders and Elara Village Neighbourhood Centre by Offspring Profiles®. See how it was used in a finished space.
