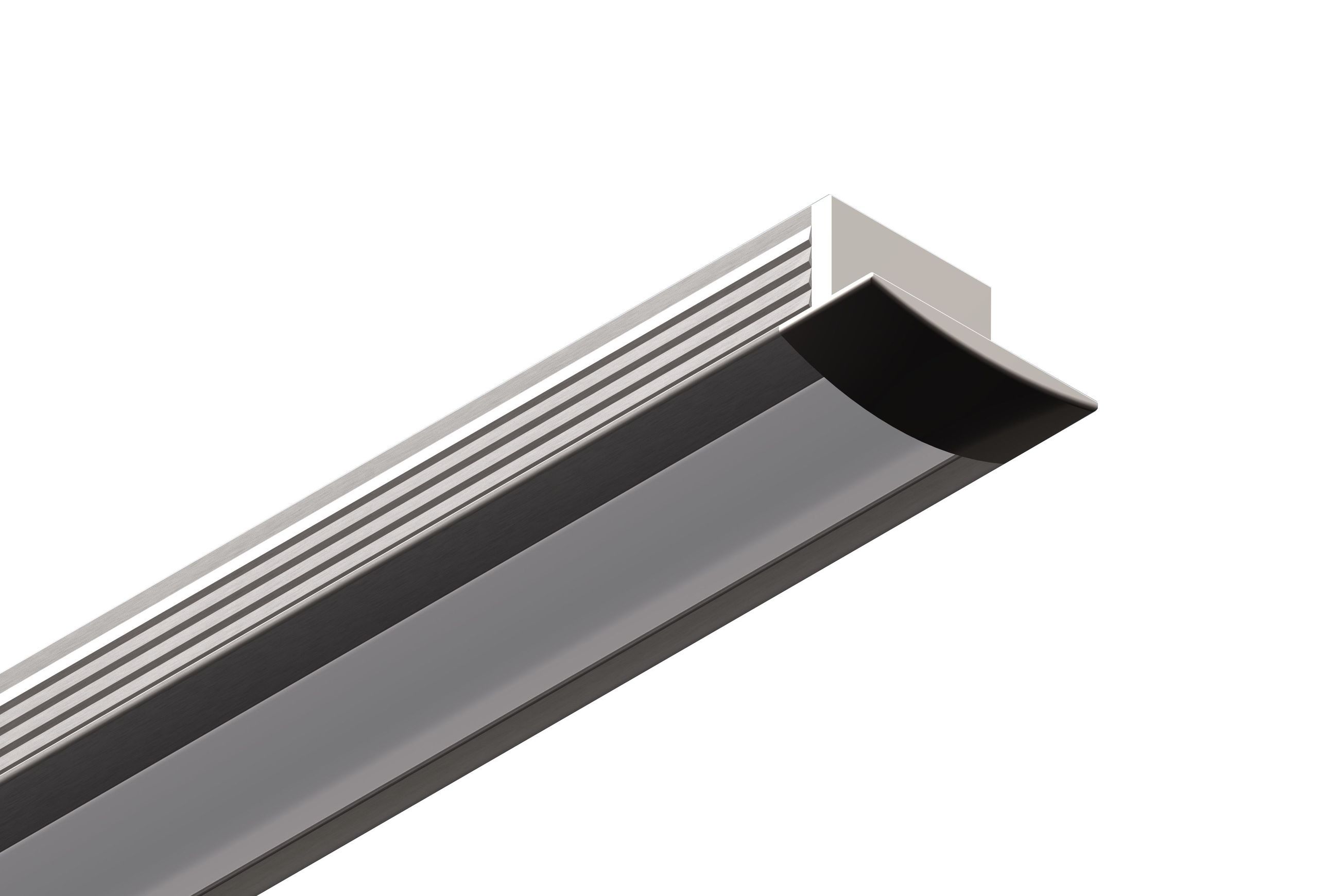

Trim Tim 13 Linear LED Light

By Offspring Profiles®
Website

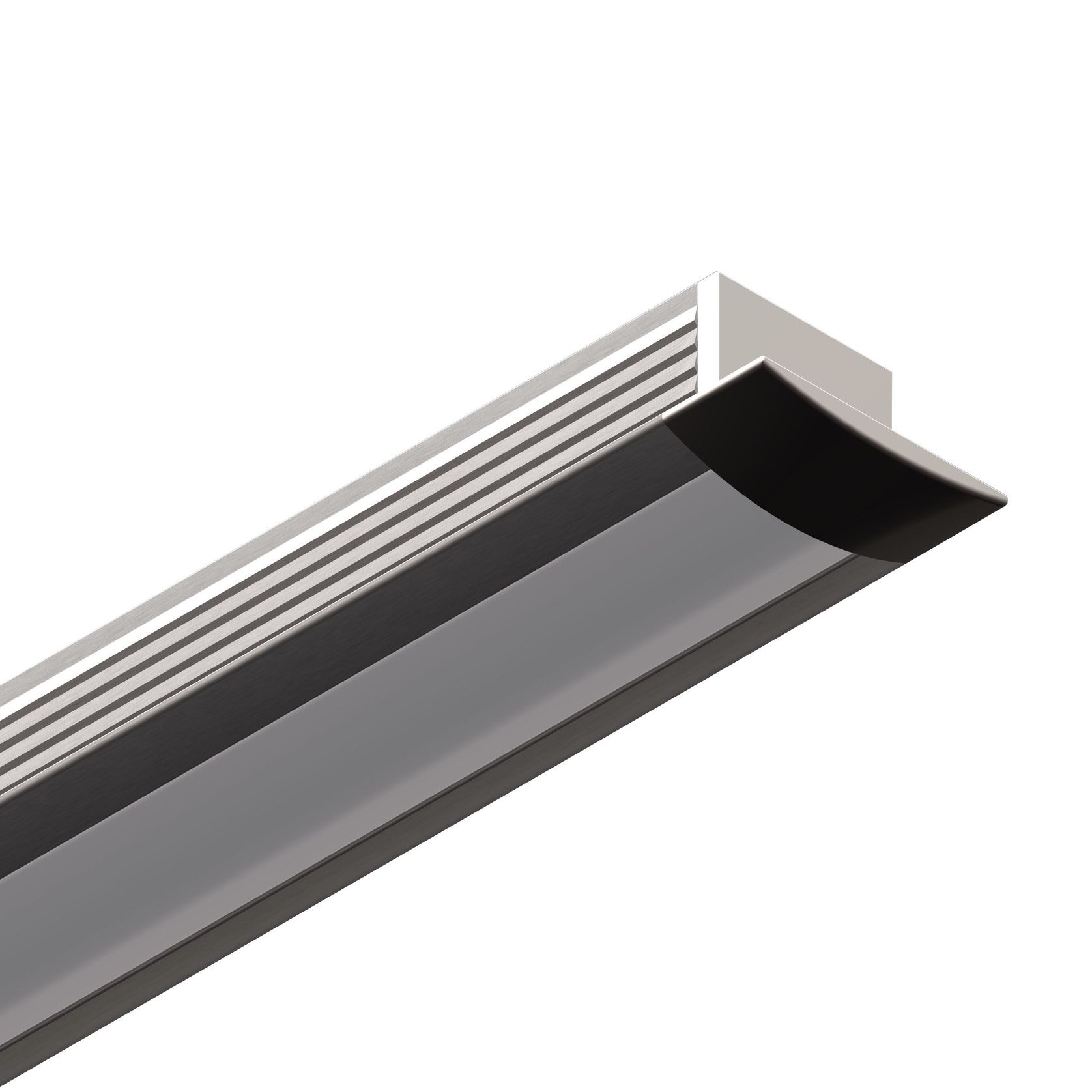

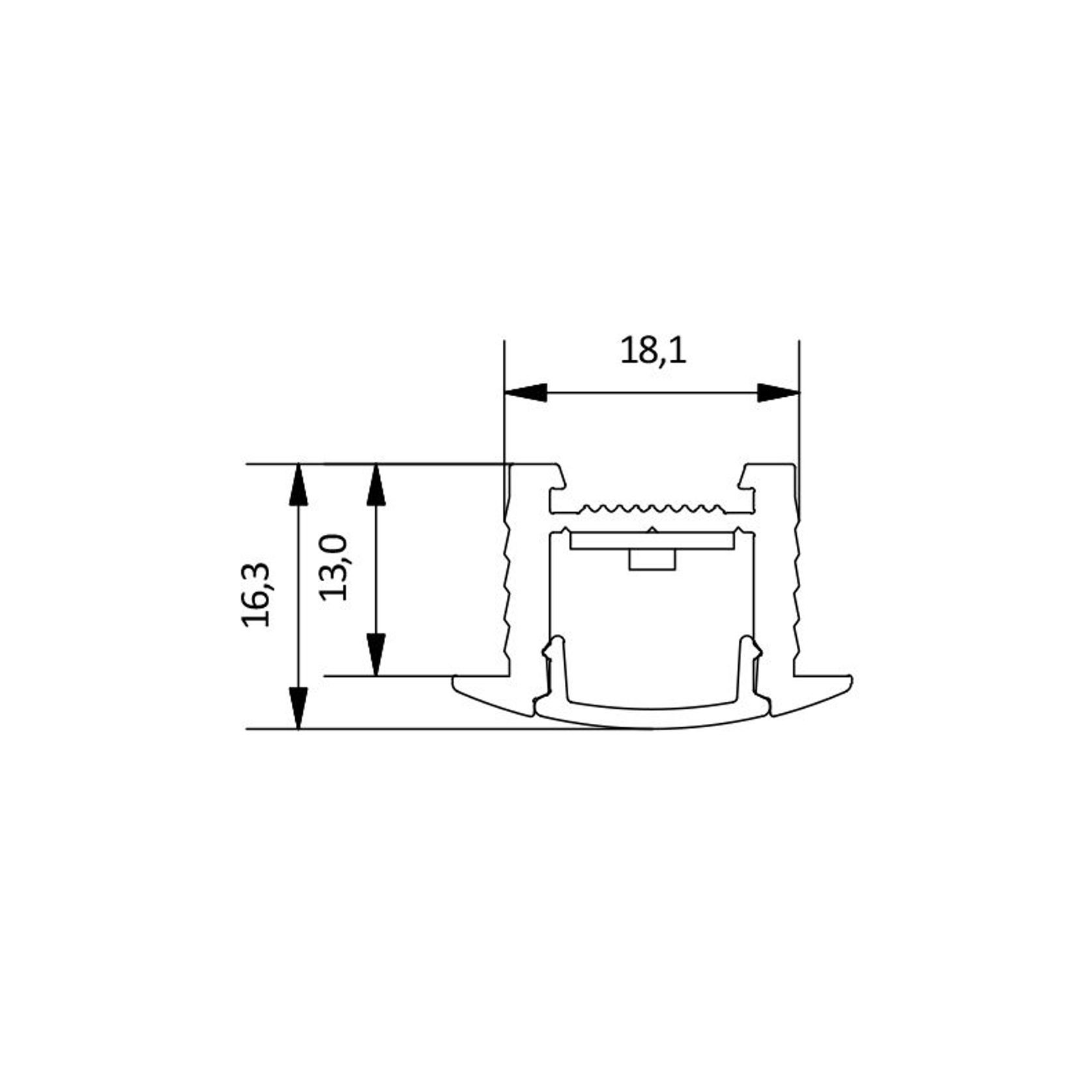

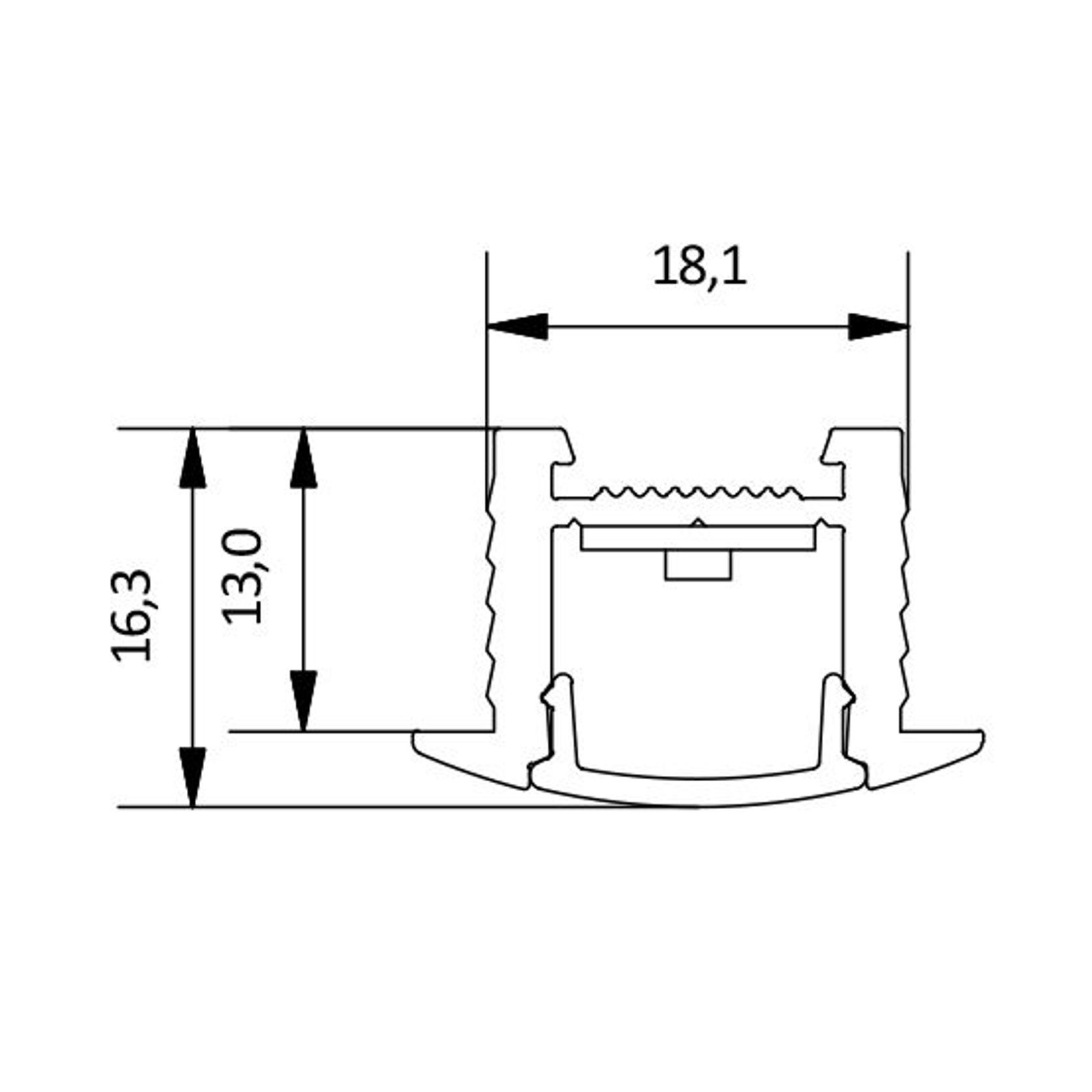

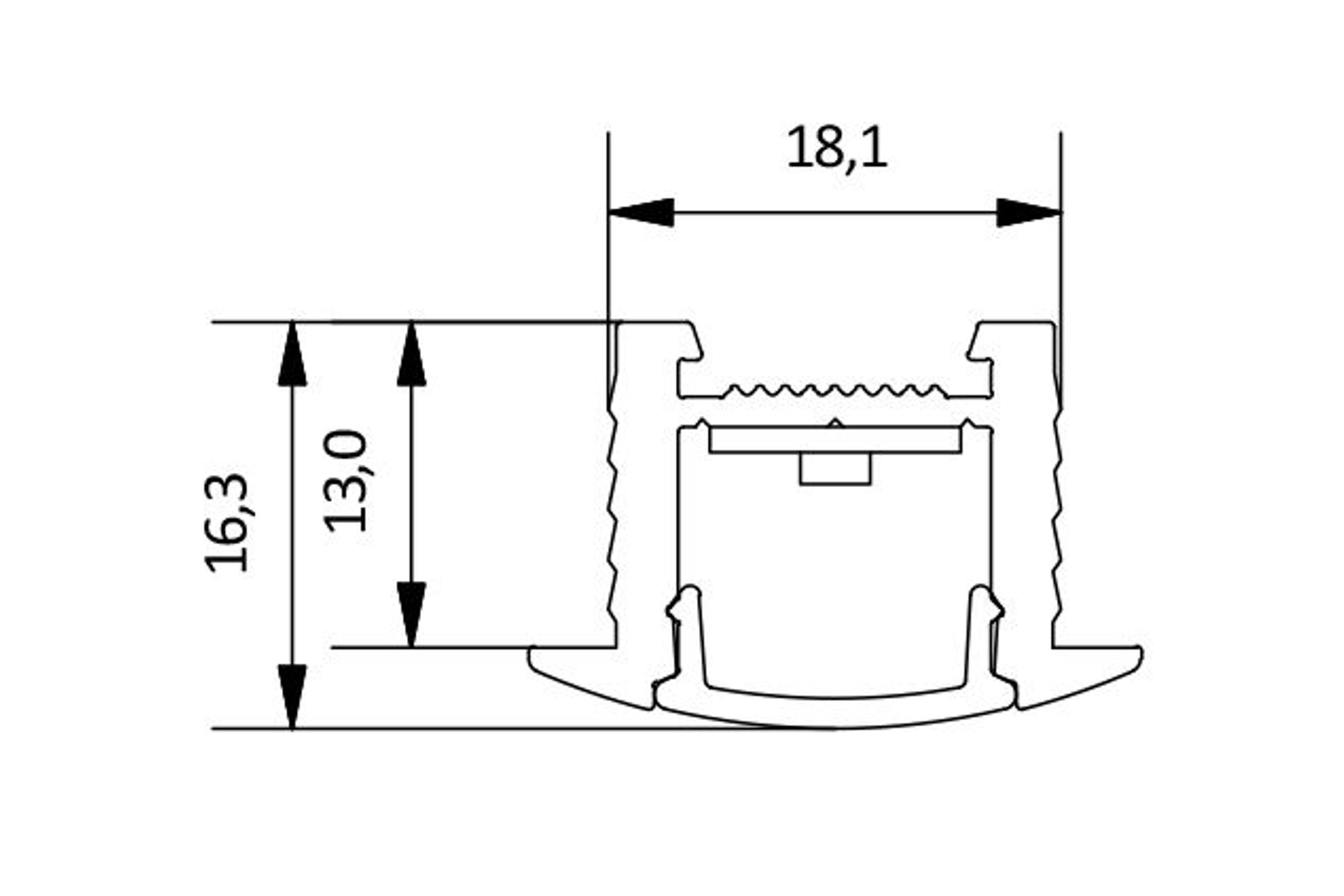

Trim Tim 13 Linear LED Light has similar dimensions and features to Downhill Dan 14 with the added feature of recessing trims to cover the cut edges of joinery when recessing. Also featured are small ribs either side of the profile which allow Trim Tim 13 to be friction-fitted into an 18mm routed slot in joinery without the need for screws. The 13mm depth provides “dot-free” lighting in building materials as thin as 18mm.

Details
  • Category
    Linear Lighting
Specifications

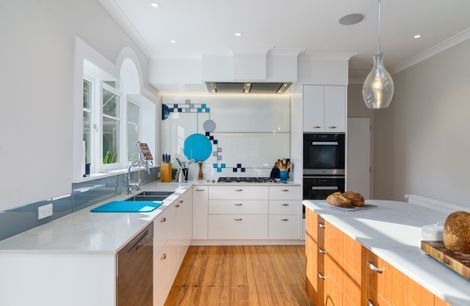

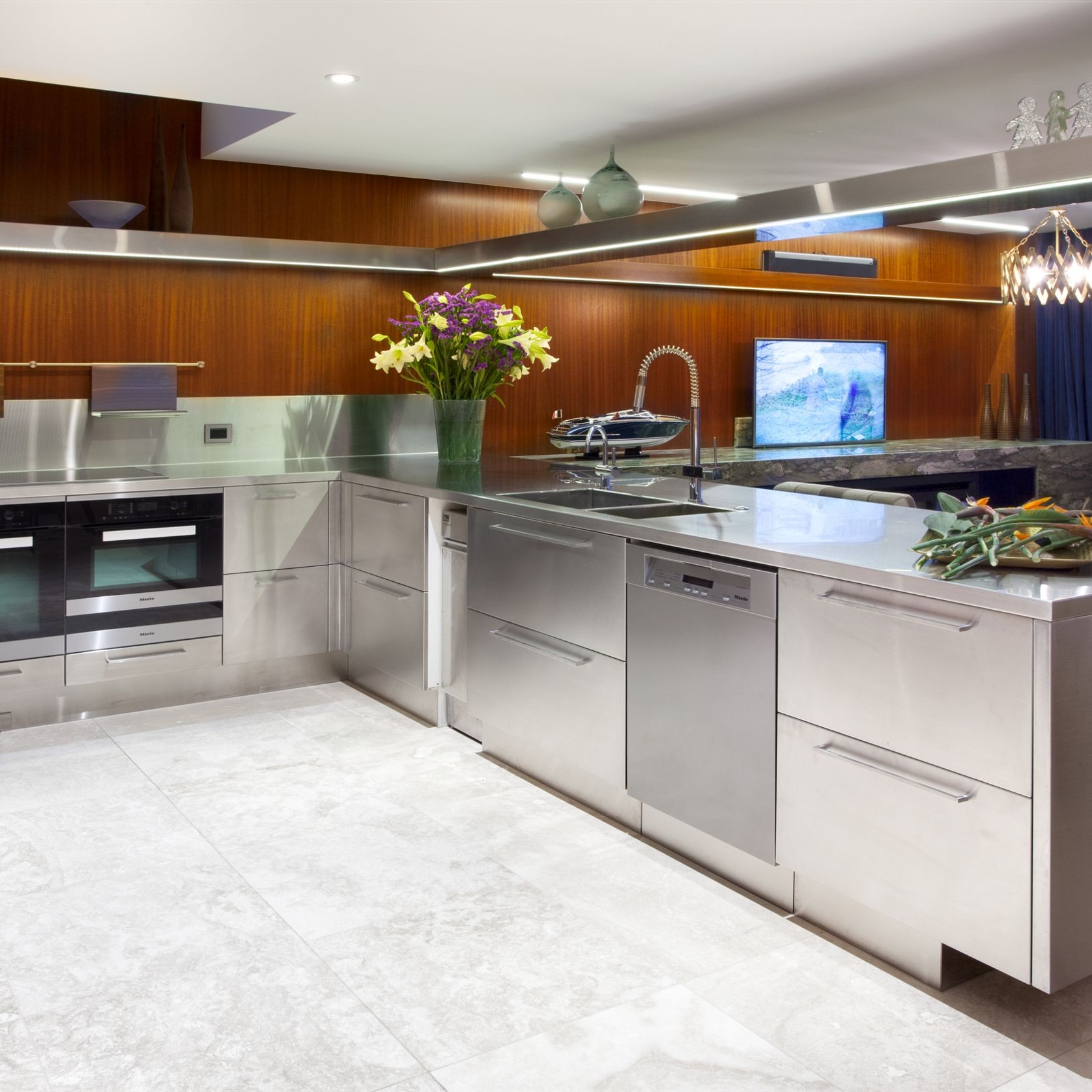

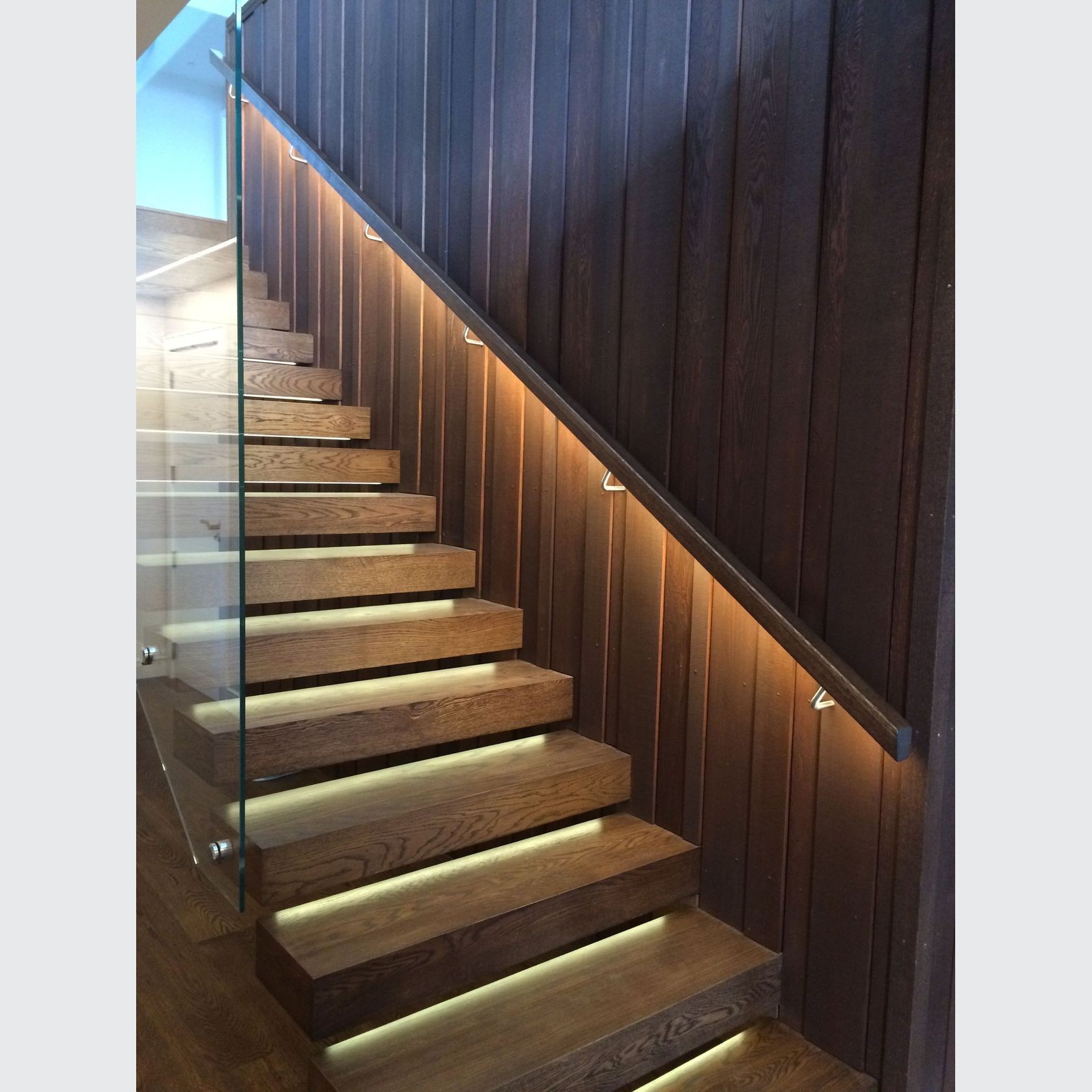

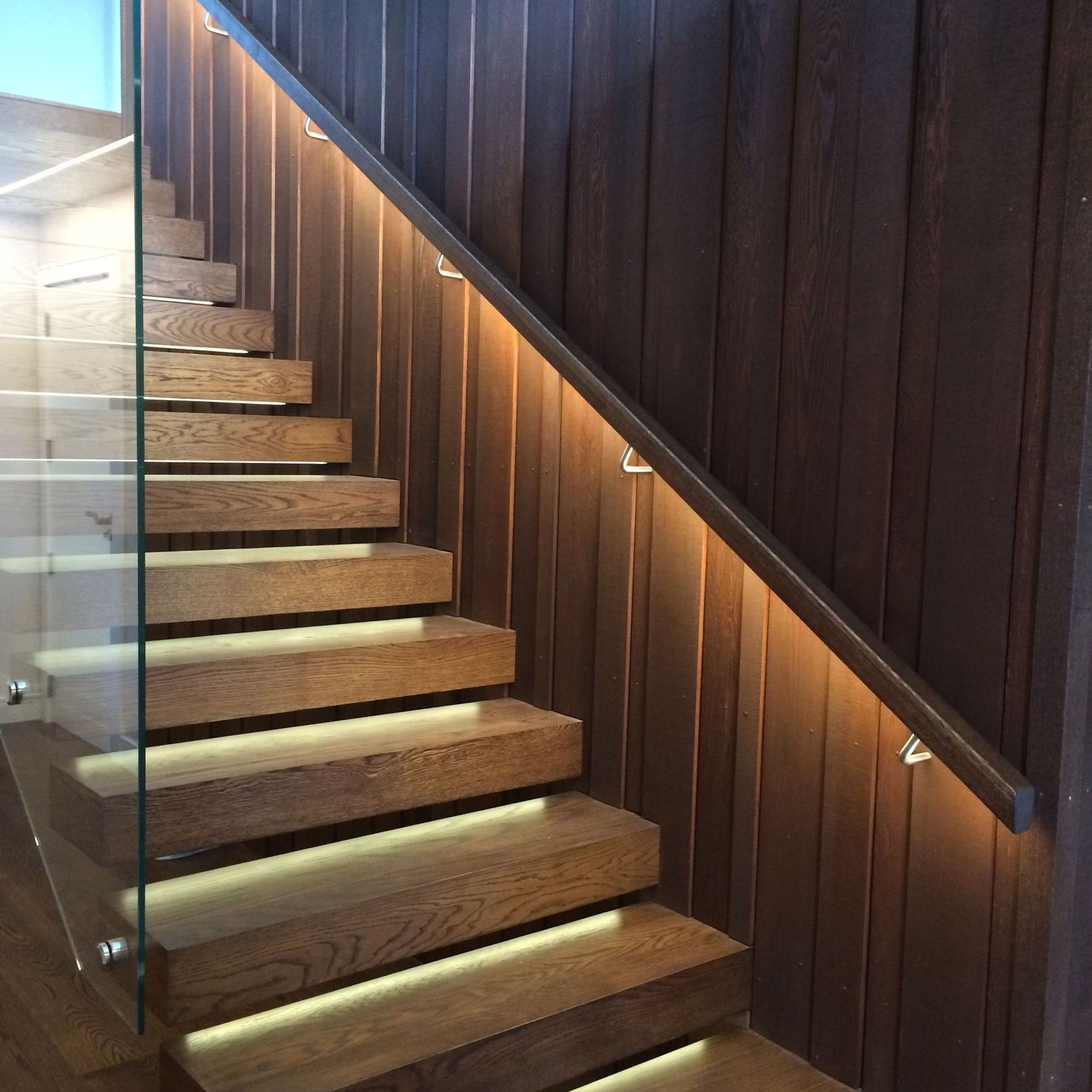

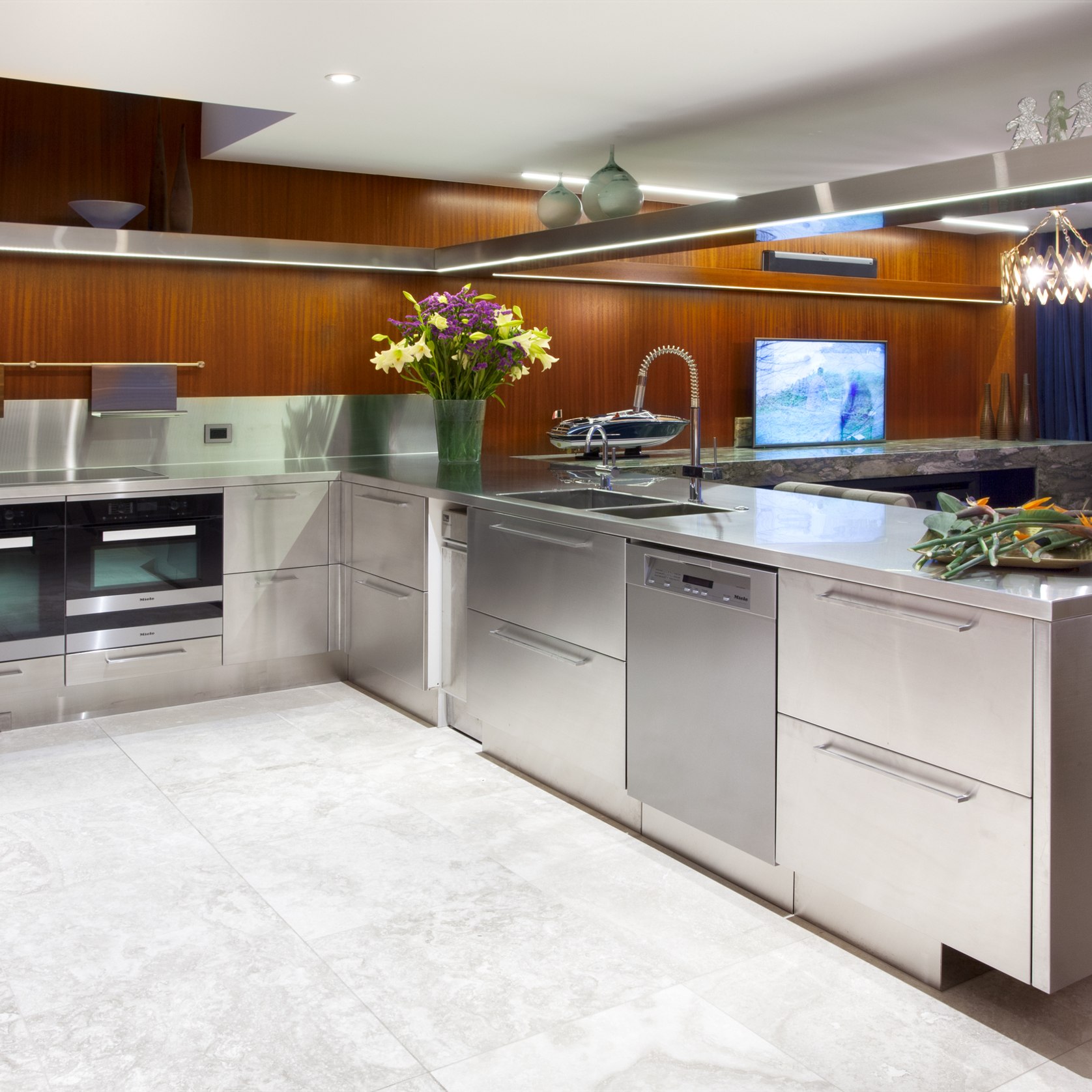

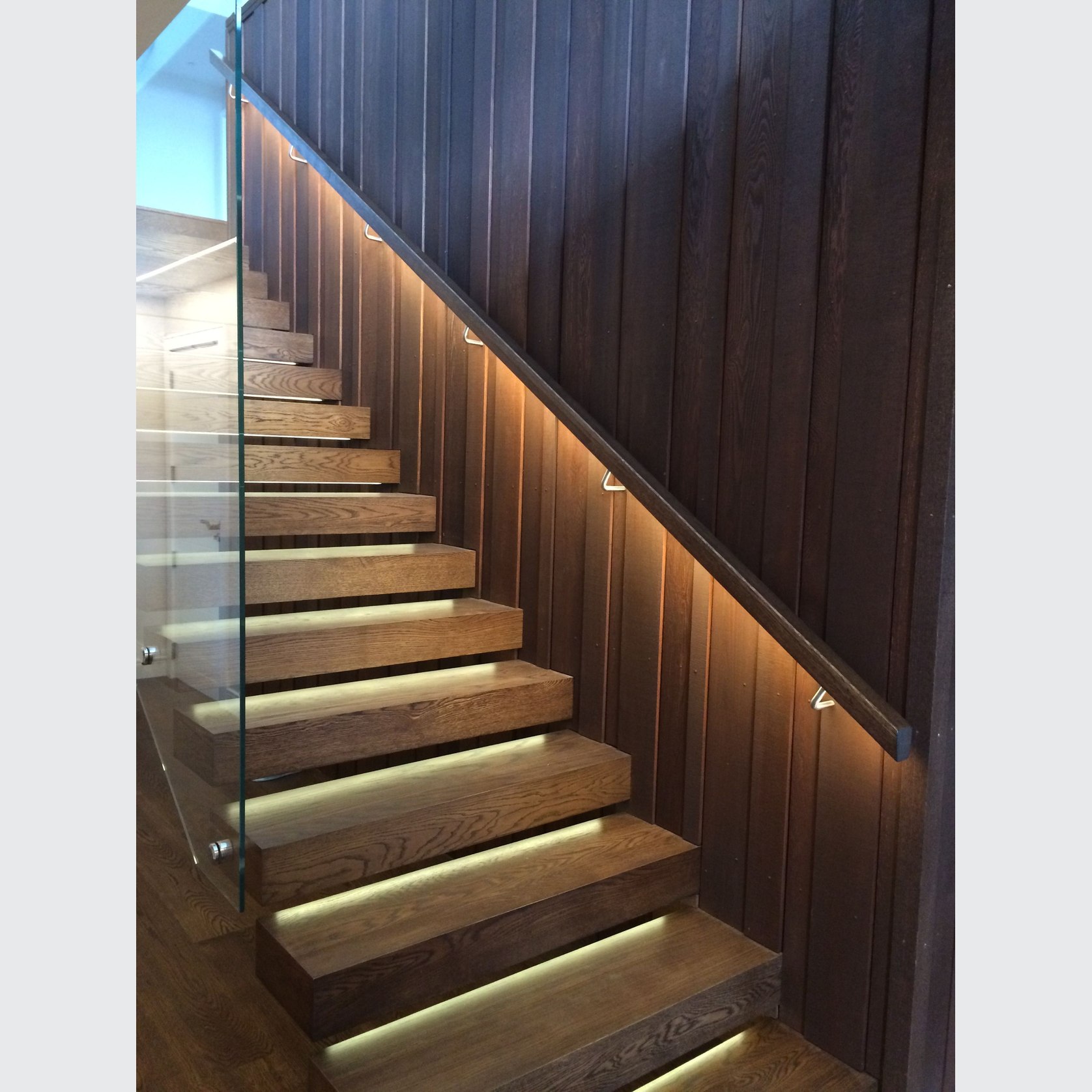

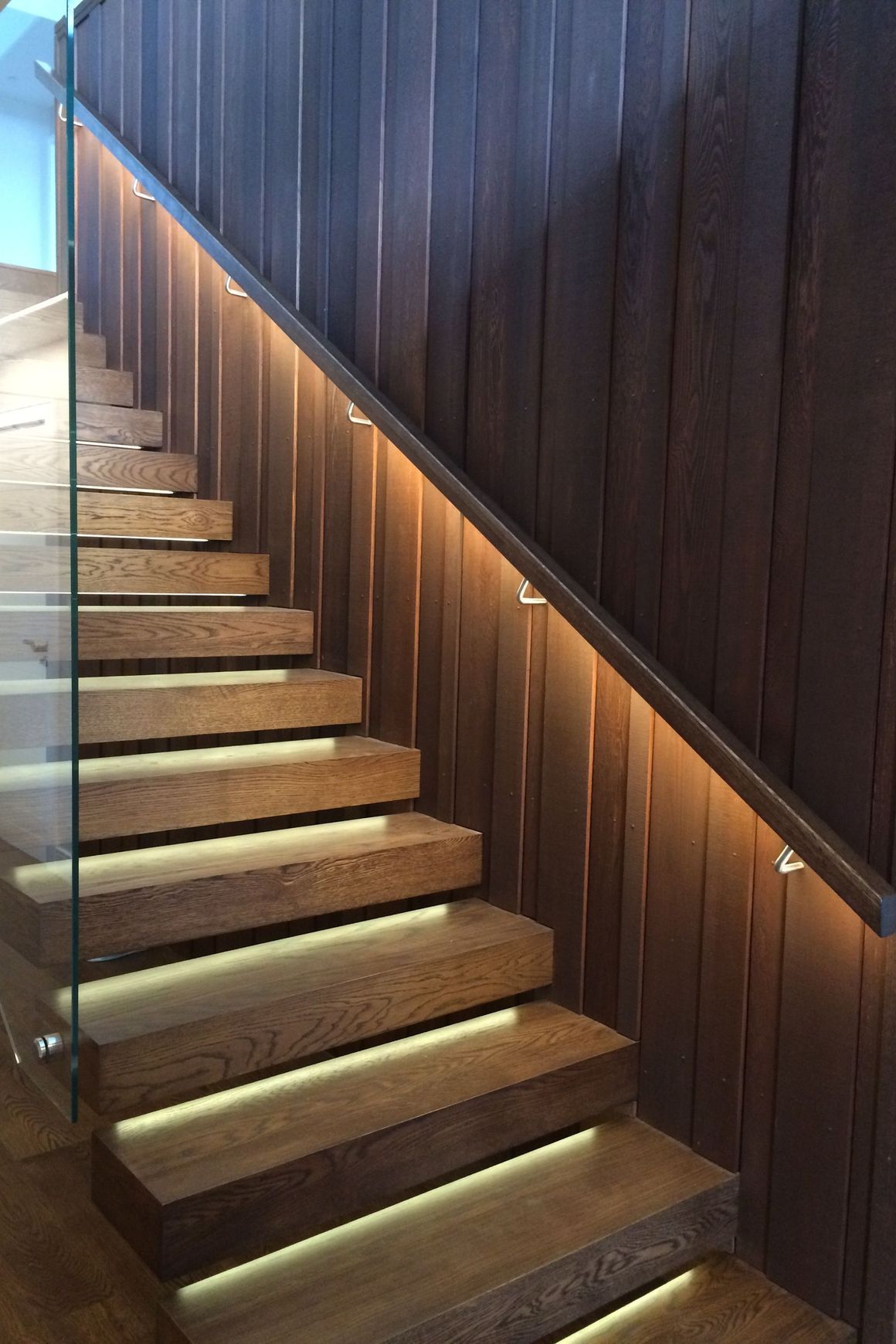

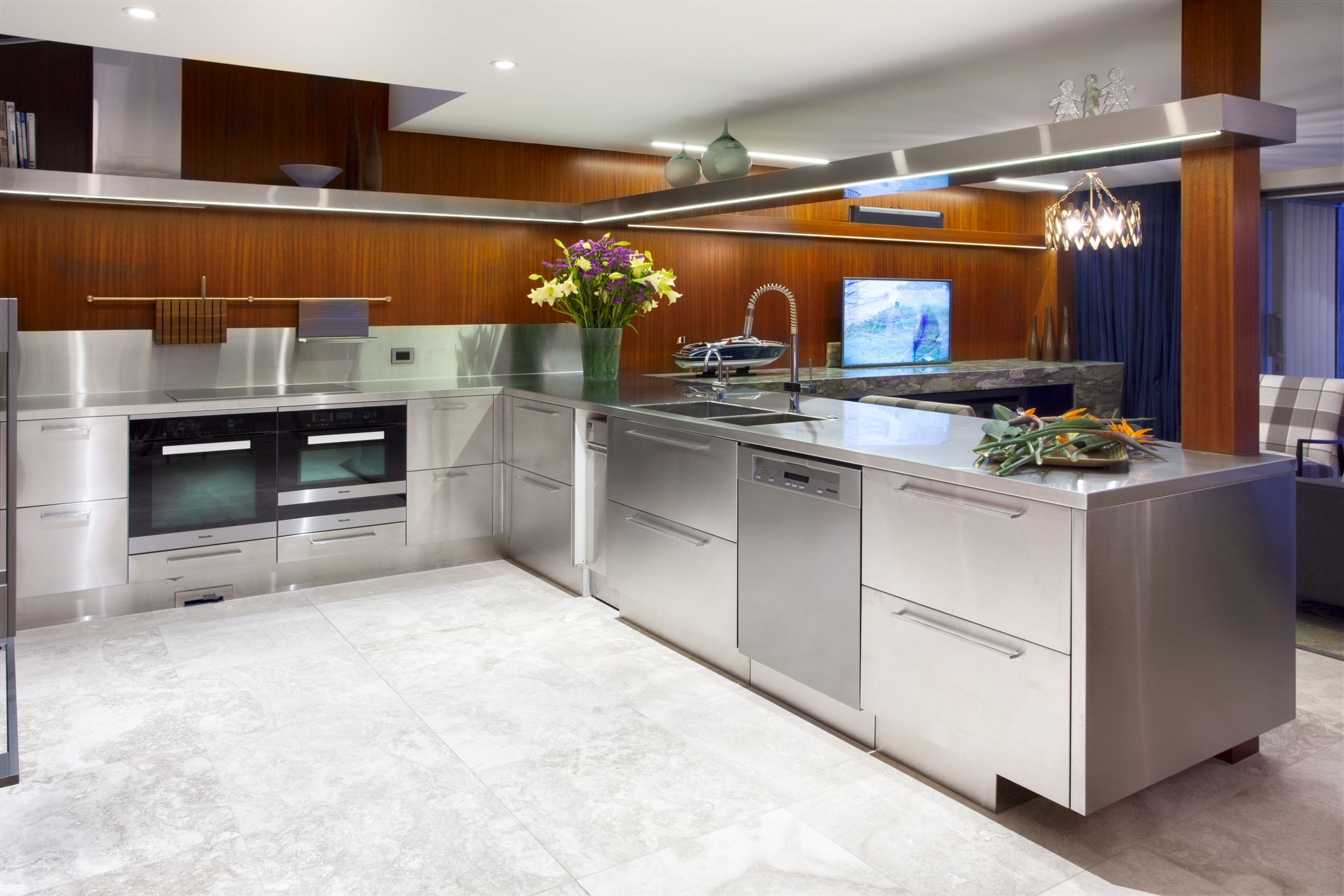

  • Applications - Task lighting in kitchen cabinetry, lighting for shelving or display units, hallway lighting.
  • Installation - Interior and exterior (with IP65 or Ip67 rated LED strip)
  • Material - Aluminium body, polycarbonate diffuser, AES plastic end caps
  • Finish - Natural silver anodised or custom powder coat
  • Light source - LED ribbon strip
  • Power supply - 24V DC - Remote driver options ranging from 6W up to 320W
  • Dimming - Various options are available including DALI, 0-10V DMX - please enquire
  • Features - New Zealand designed and made, uniform lighting (reduces or eliminates the appearance of LED 'dots' with opal diffuser), provides heat sinking for high wattage LED strips, dusy & grease protection
  • Diffuser options - Opal polycarbonate, clear polycarbonate
