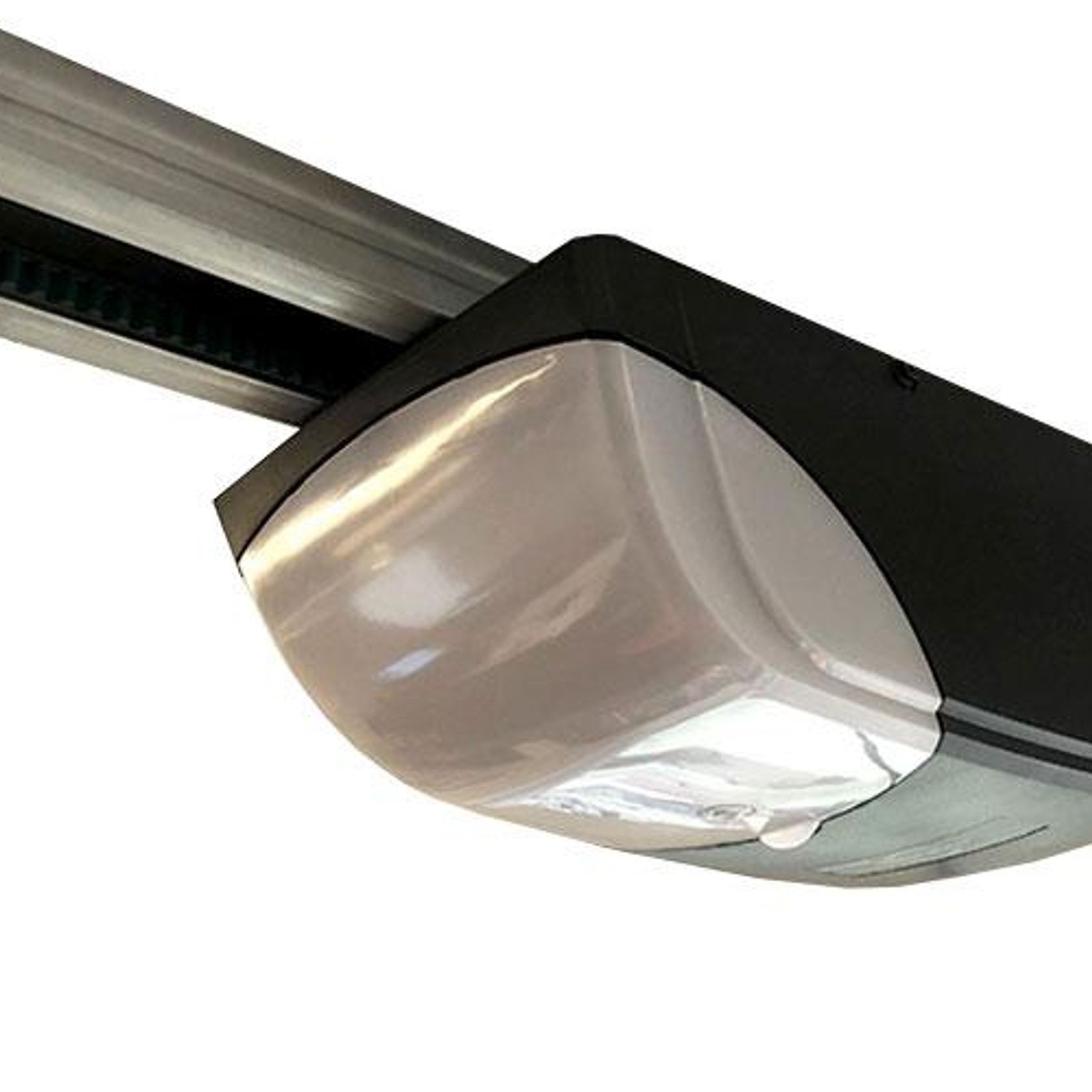

Available in 2 models, d.C. Motor for sectional & tilt doors
Model: DoorWorks GDC6/GDC12
Electrical Rating:
AC: 220-240V – 50HZ, ~1A, ~200W
Motor:
DC: 24V Brush, 600/100Nmm
Lifting Capacity:
35kg Balanced Door
Travel Rate:
150mm/s Approx
Maximum Door Size:
GDC6 – 14m2 / GDC12 18m2
Travel/Force Adjustments:
Digital Controls
Courtesy Light:
LED Array, 4.5 minutes
Transmitter Frequency:
433MHz
Operation Range:
50M (open field)
Coding Type:
Fixed Code
Transmitter Battery:
12V A23 Alkaline x1
Safety Features:
Soft open & close. Safety reverse on closing, Auto stop on opening.
Temperature Range:
-20 °C – +50 °C
Dimensions:
411mm (L) x 212mm (W) x 175mm (H)
Weight:
5kg Approx
Driving System:
2.4M C-Rail Belt
