E-LOK 7-Series Smart Lock for Sliding Doors
by E-LOK
- 120.9K profile views
- 23 saves

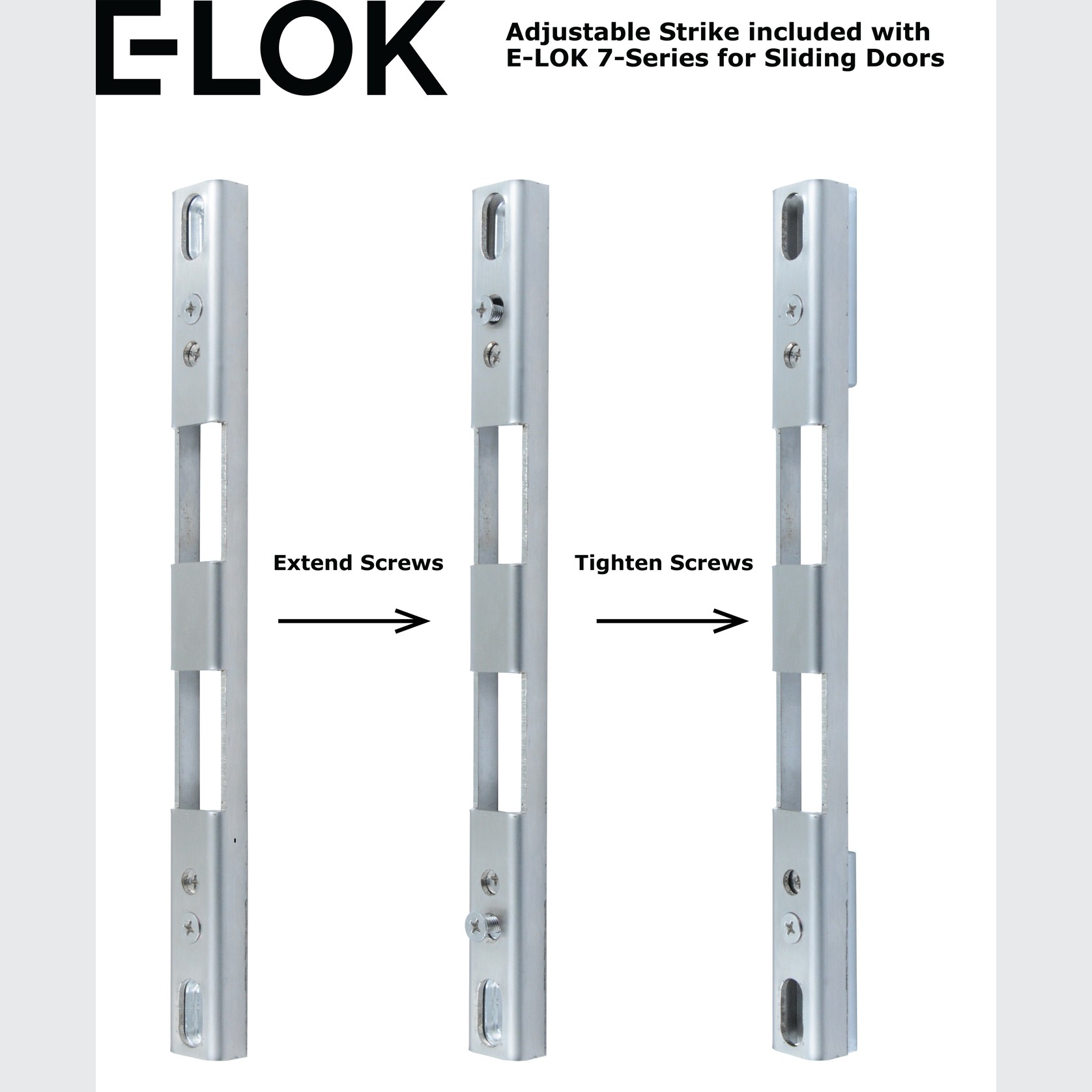

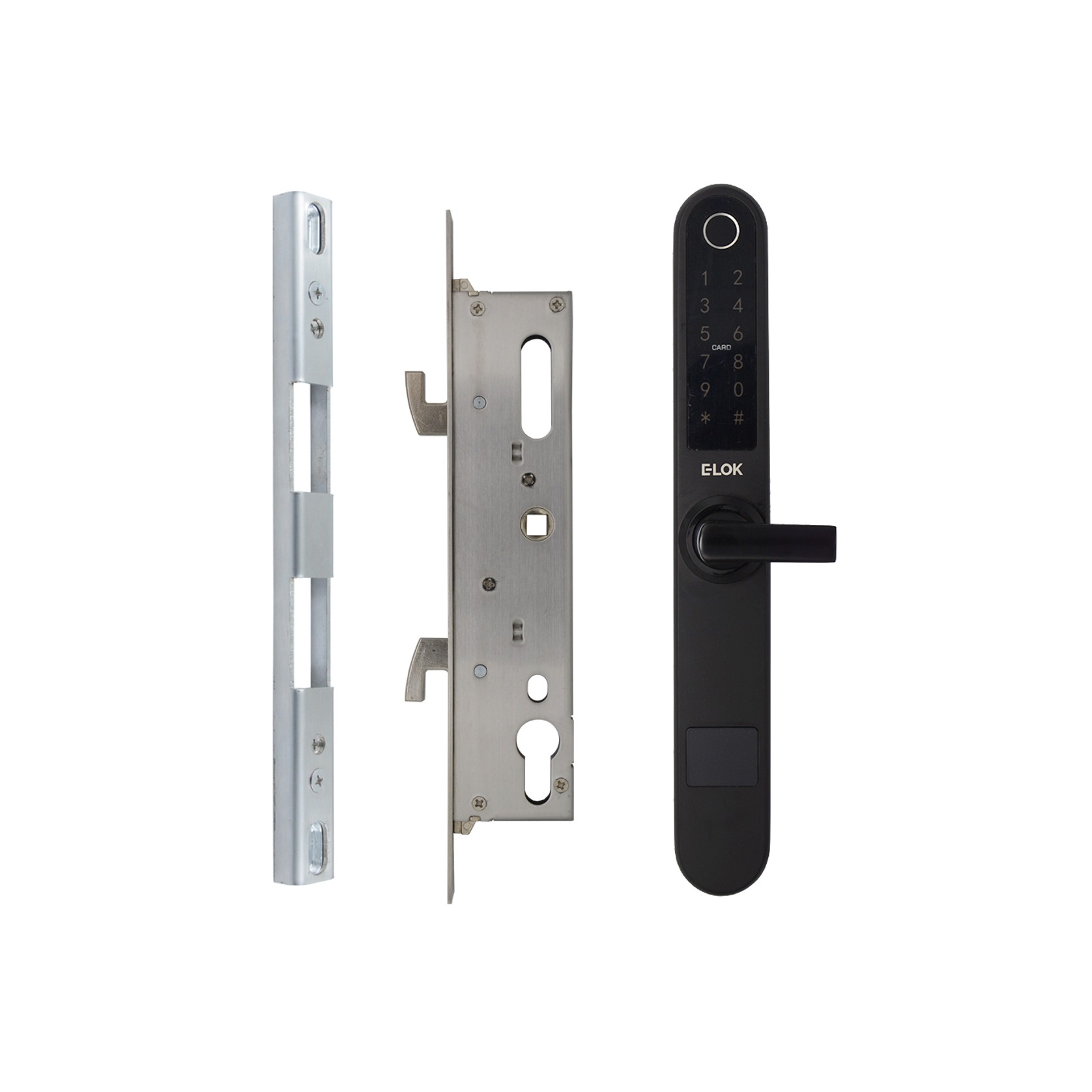

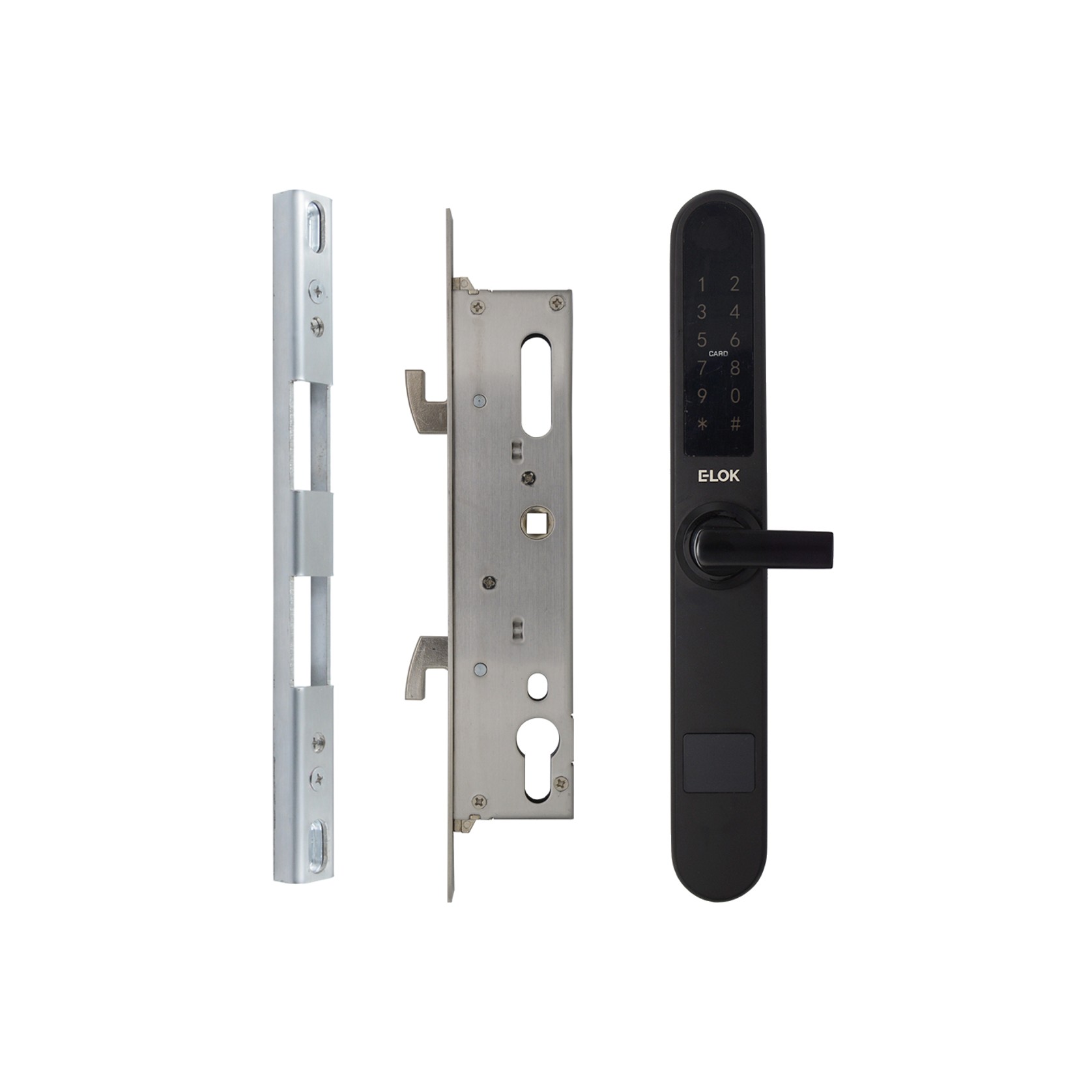

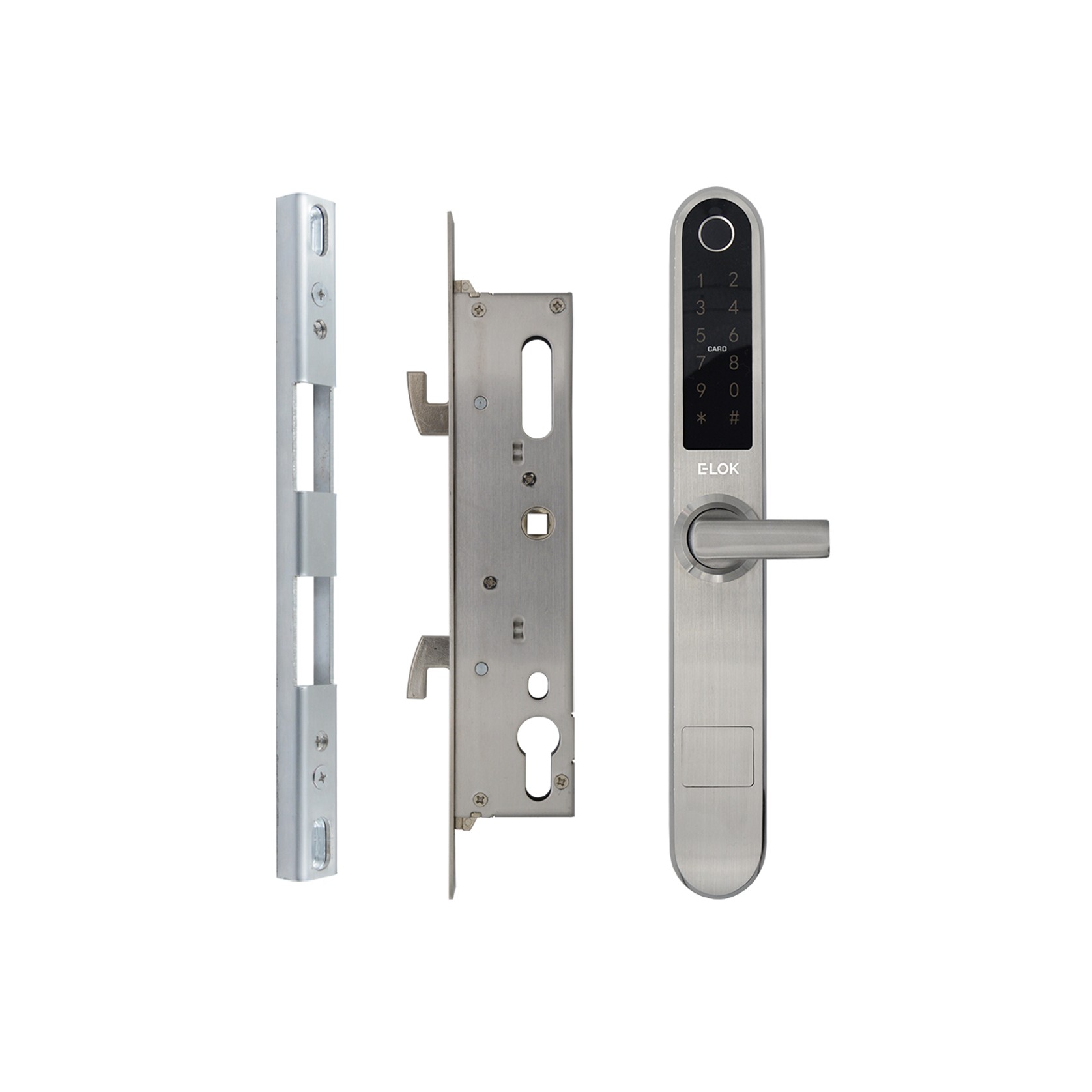

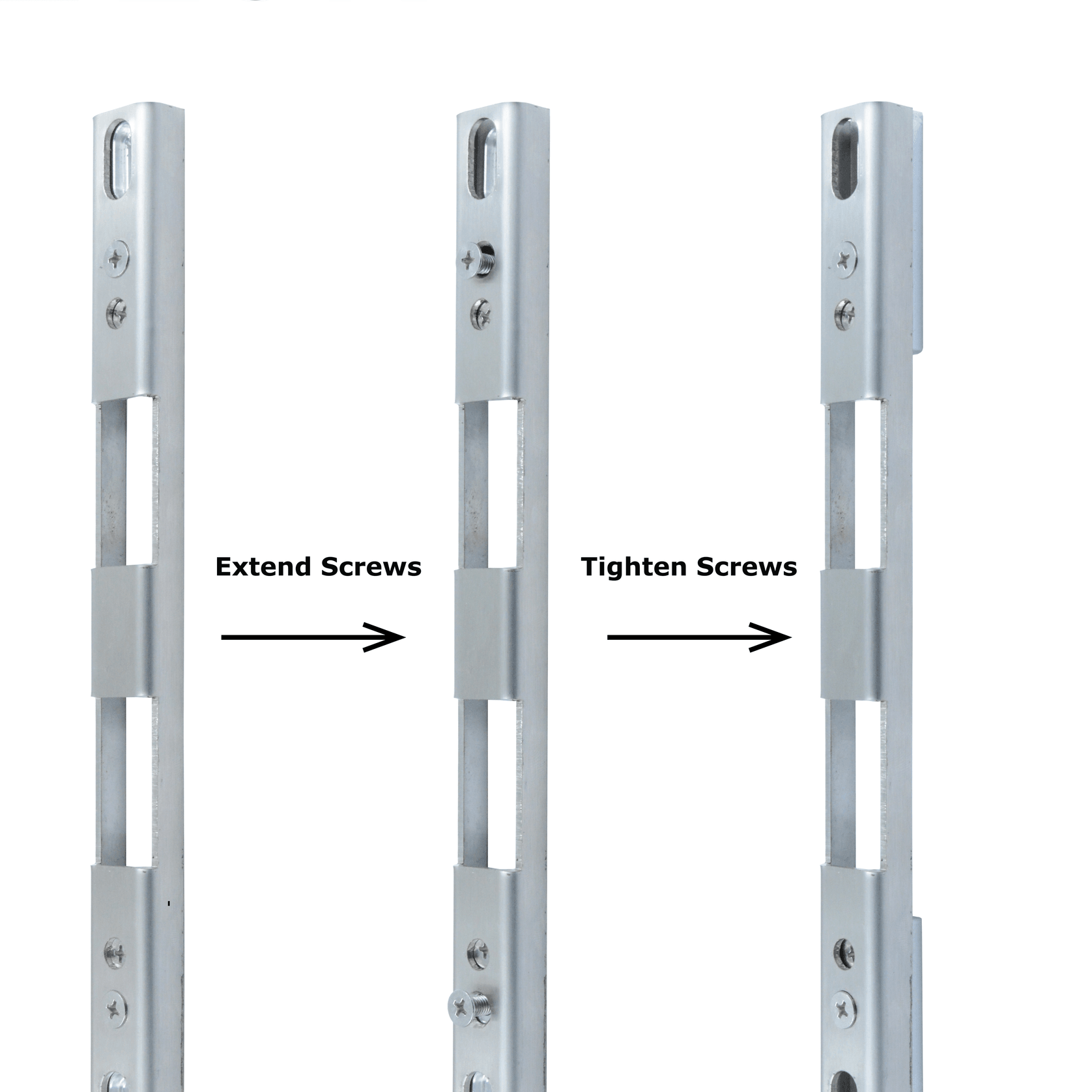

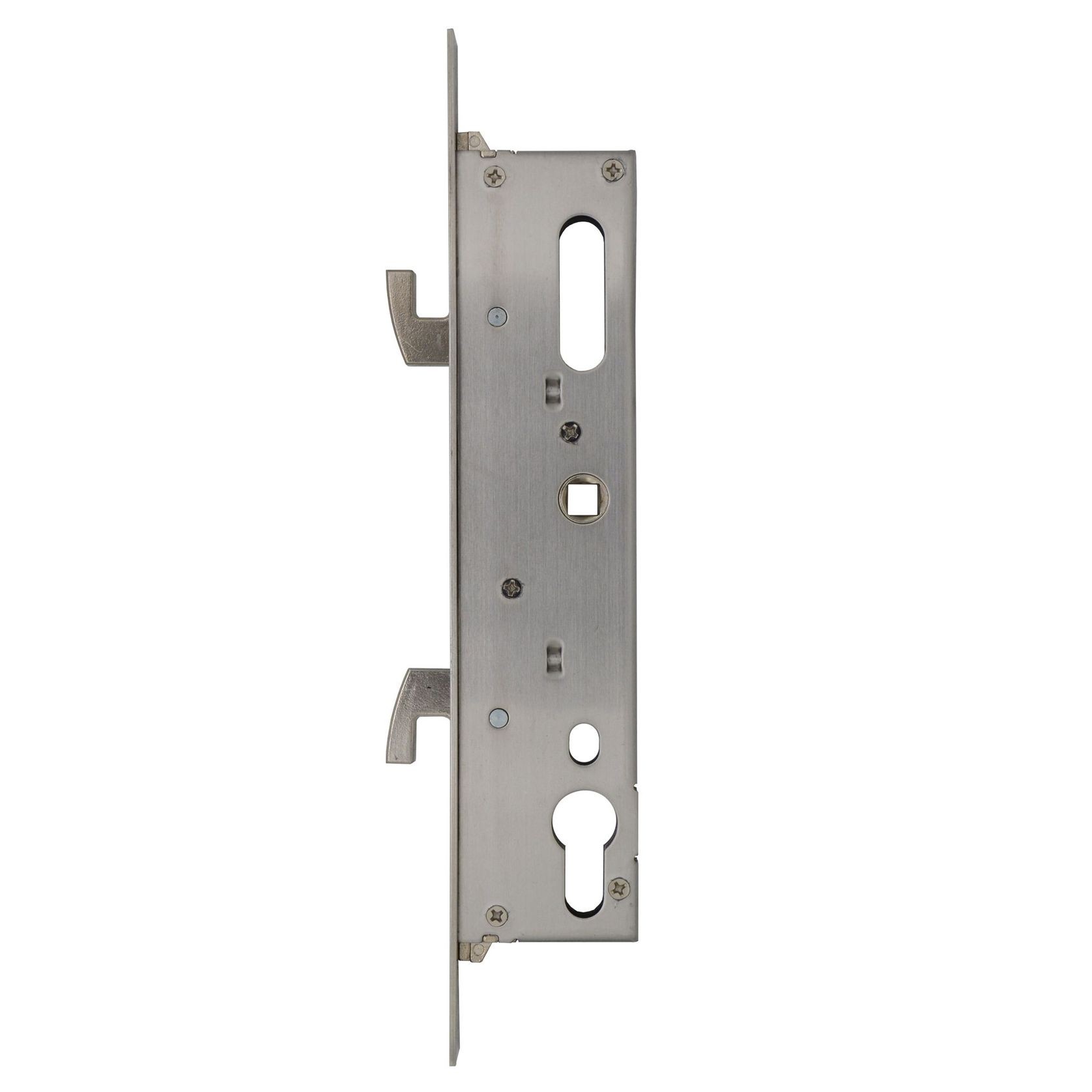

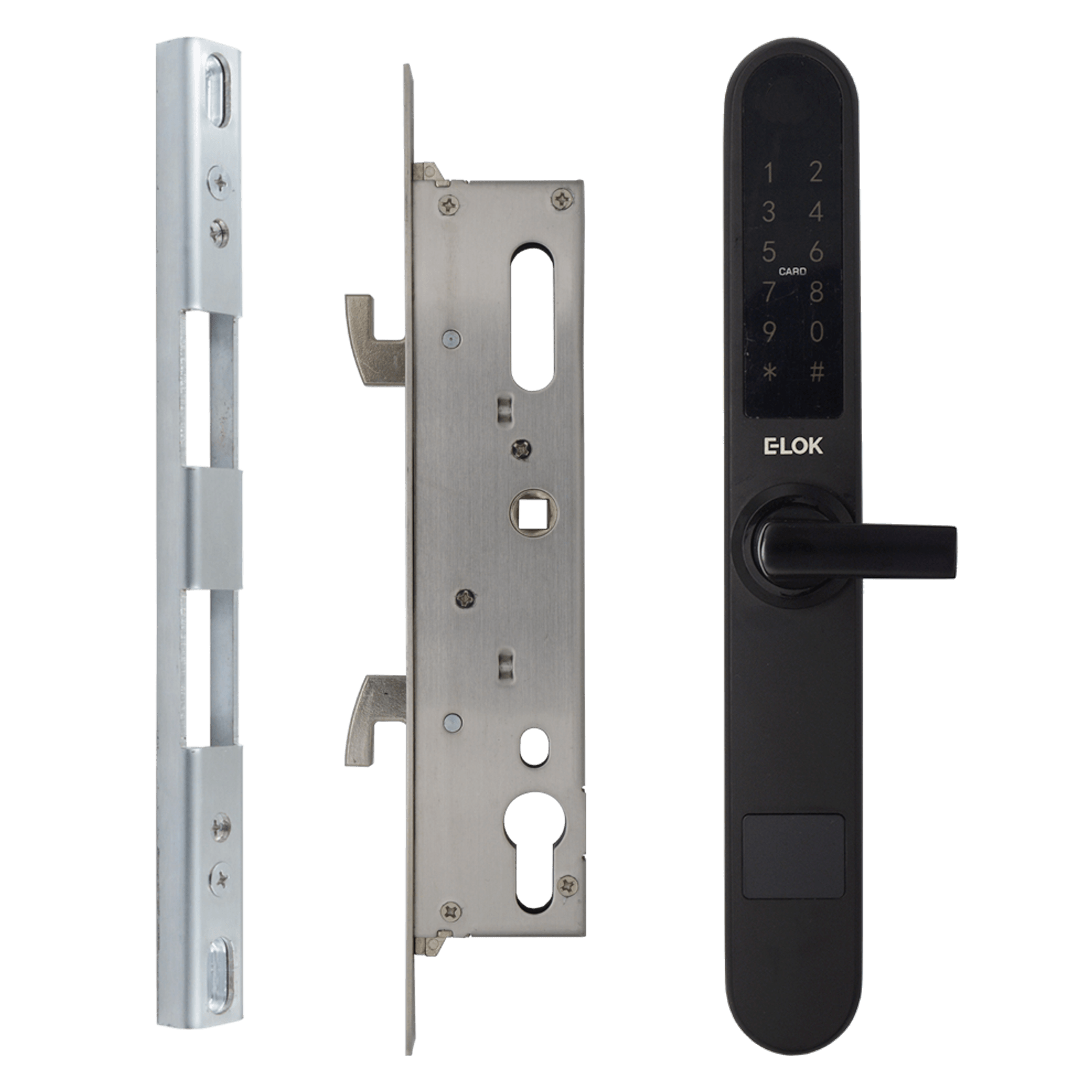

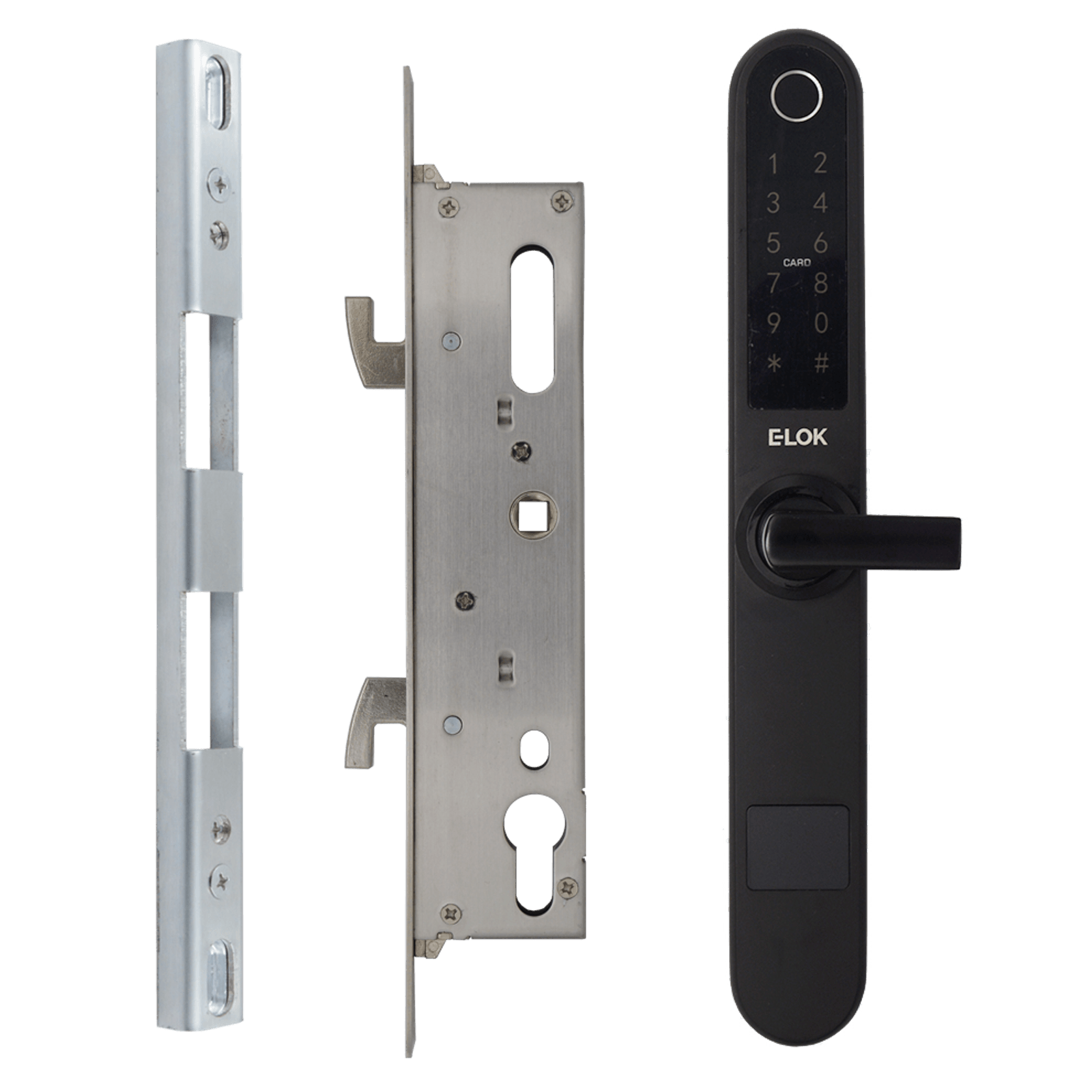

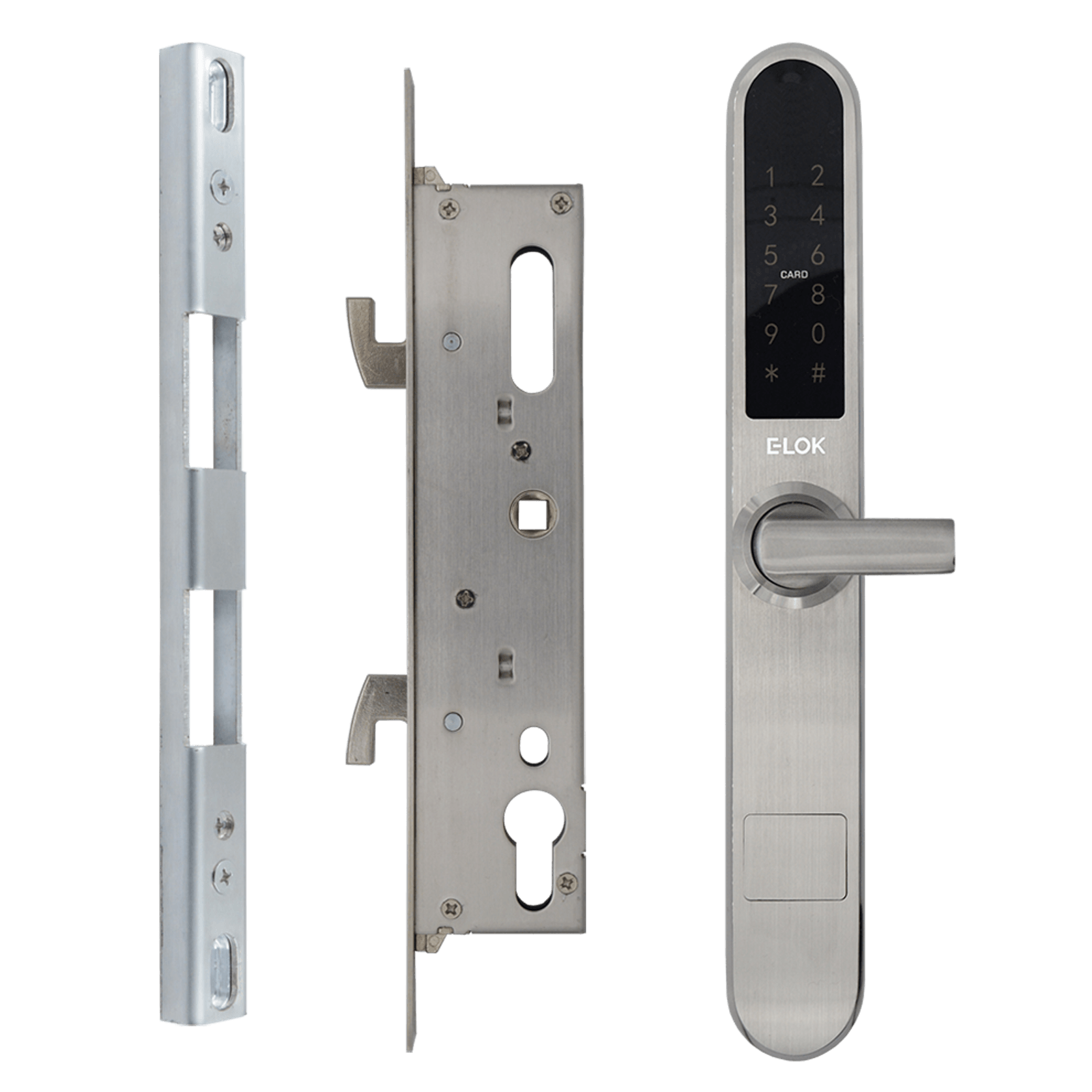

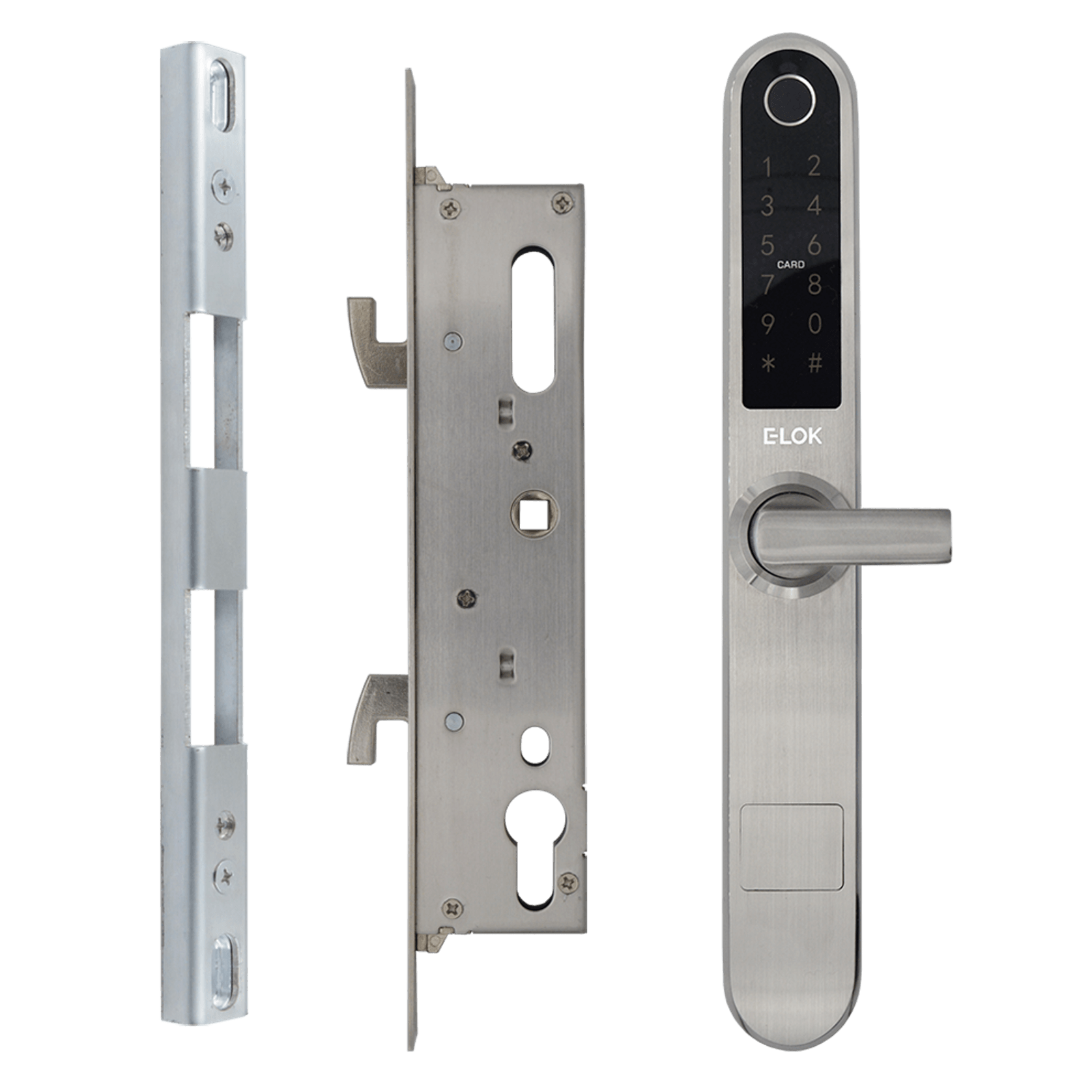

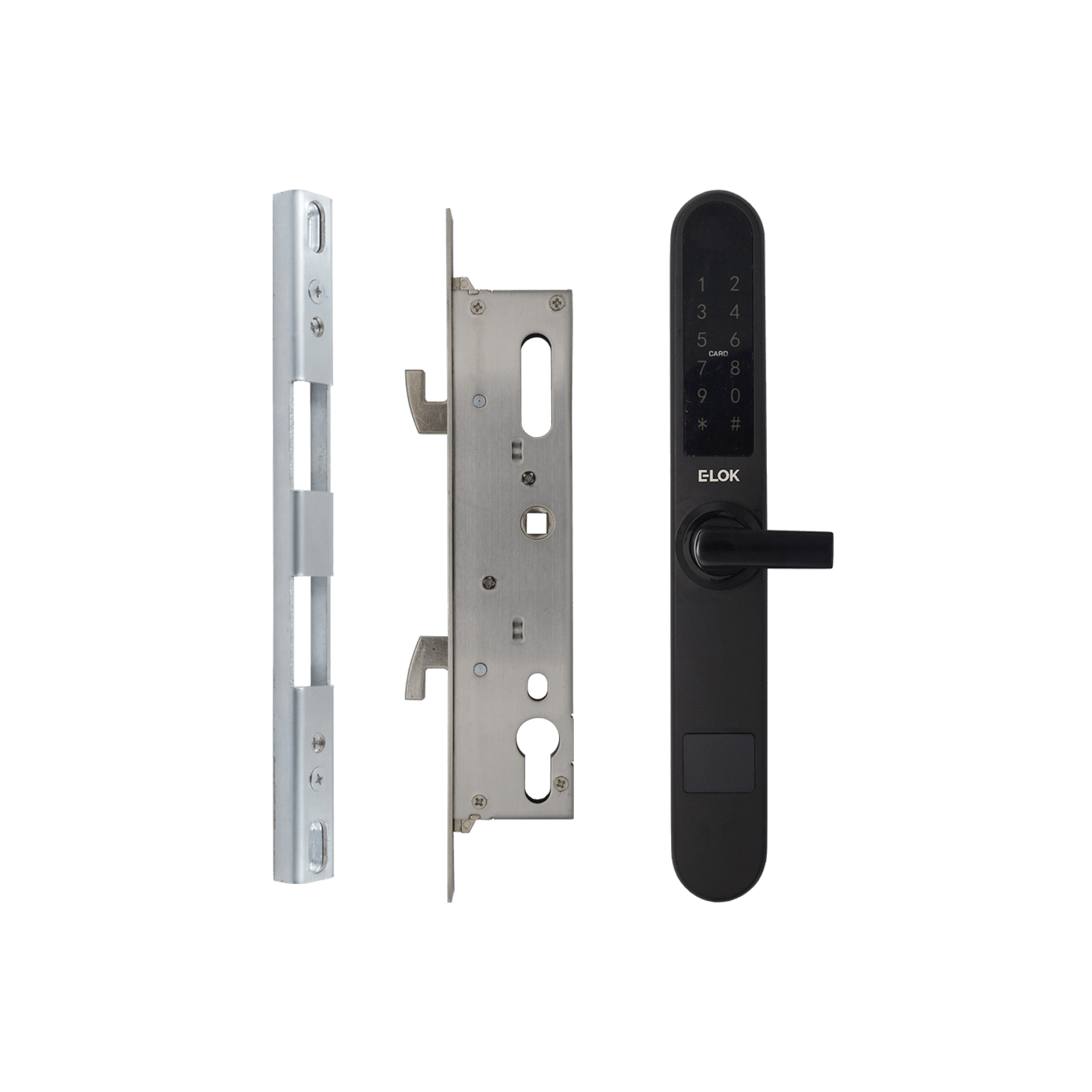

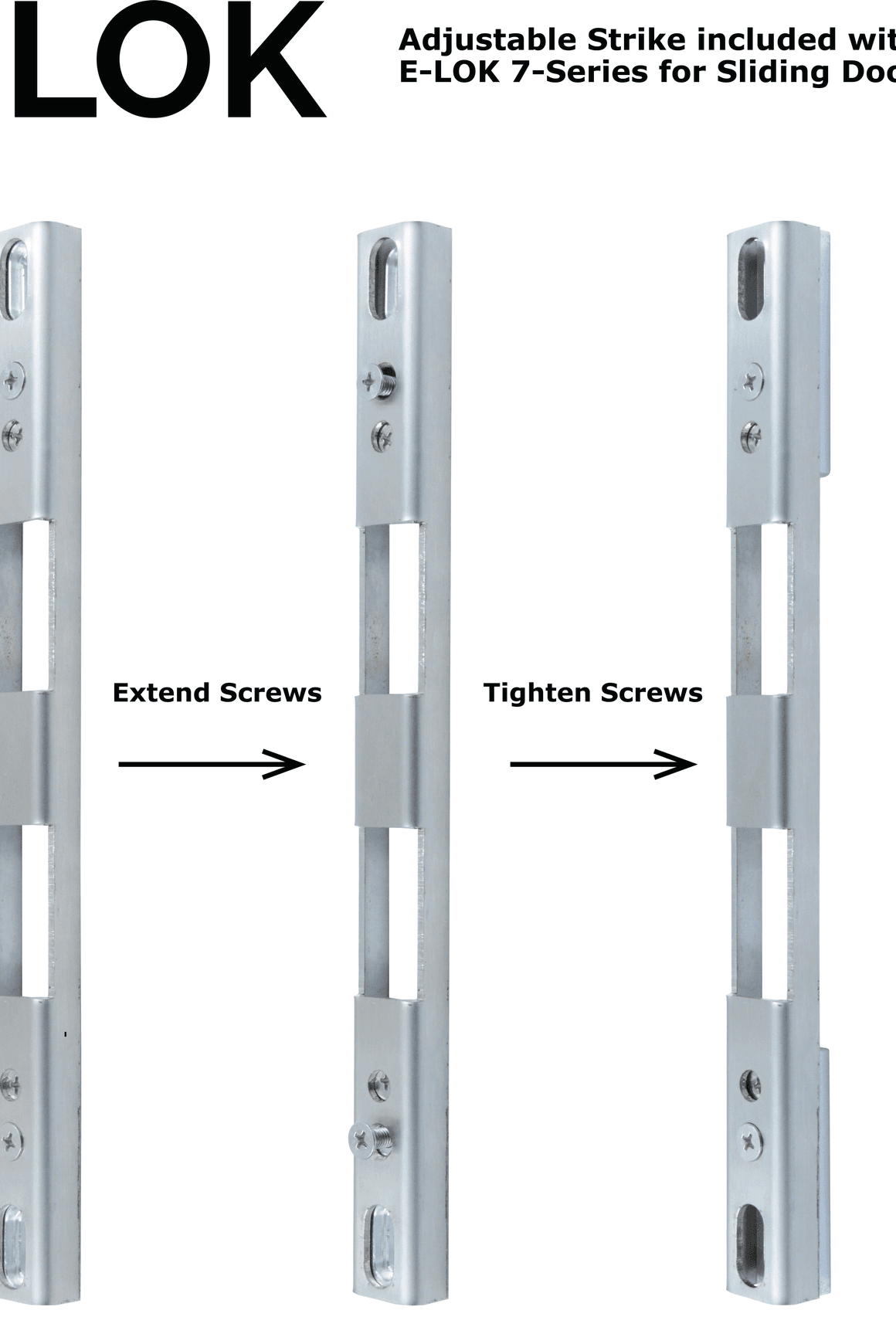

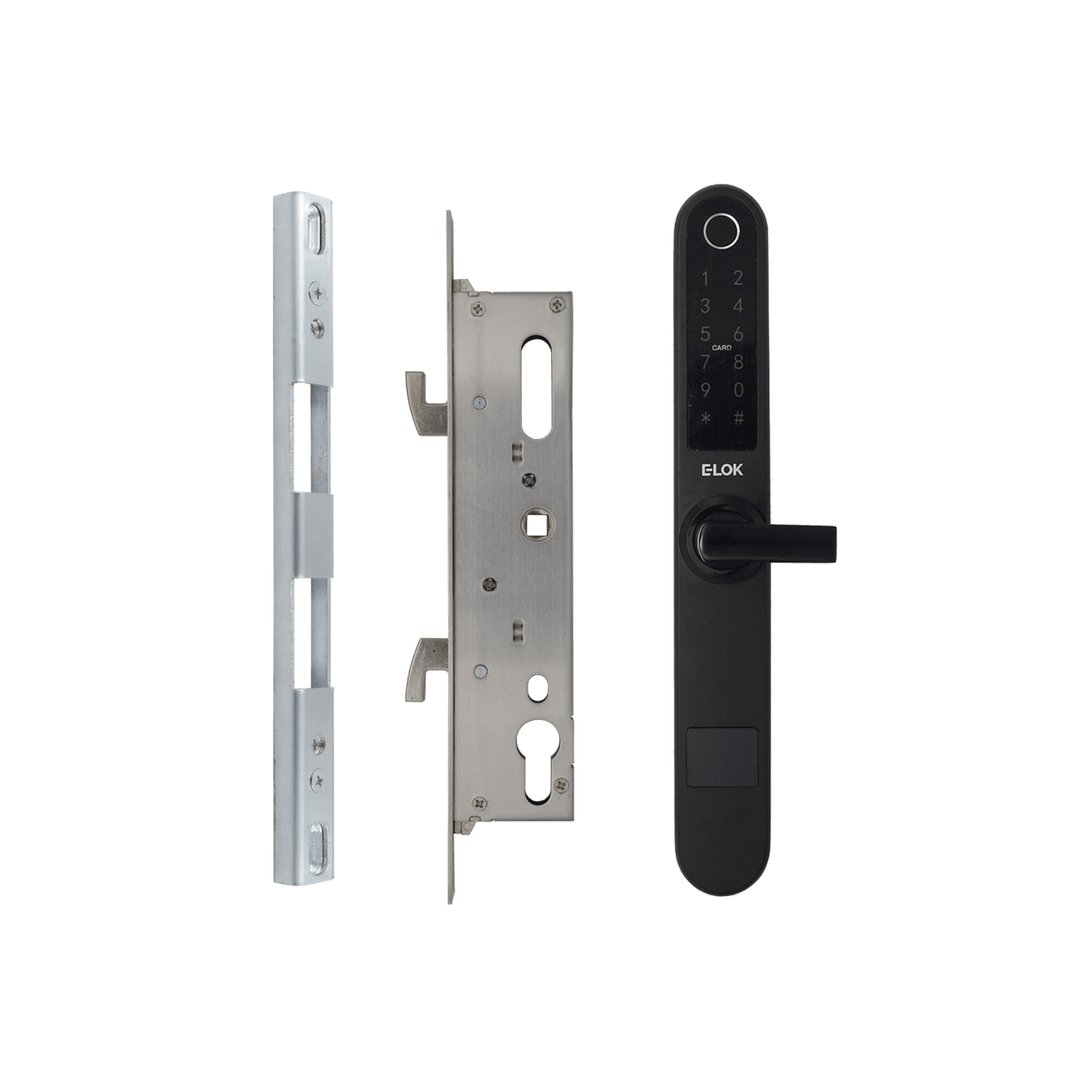

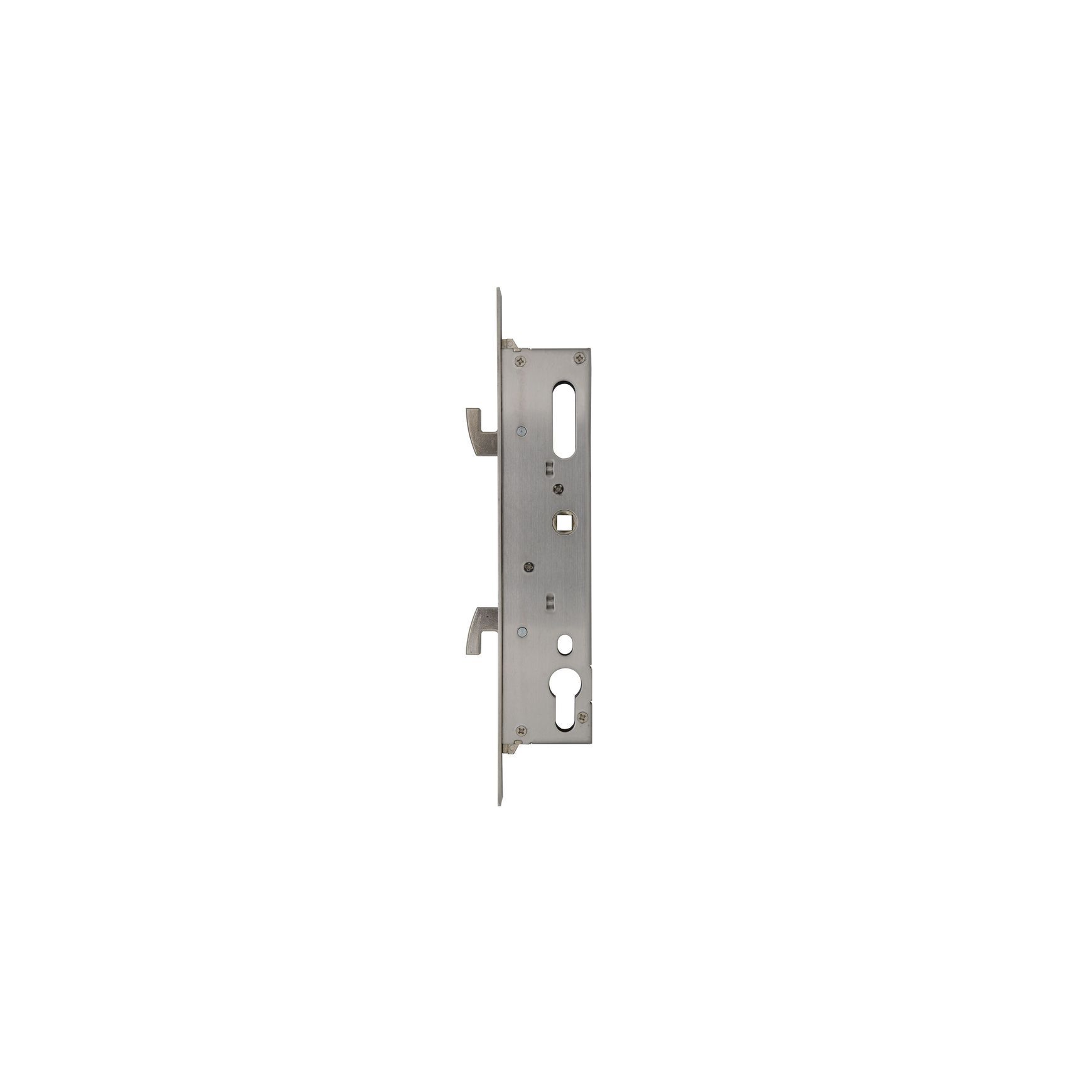

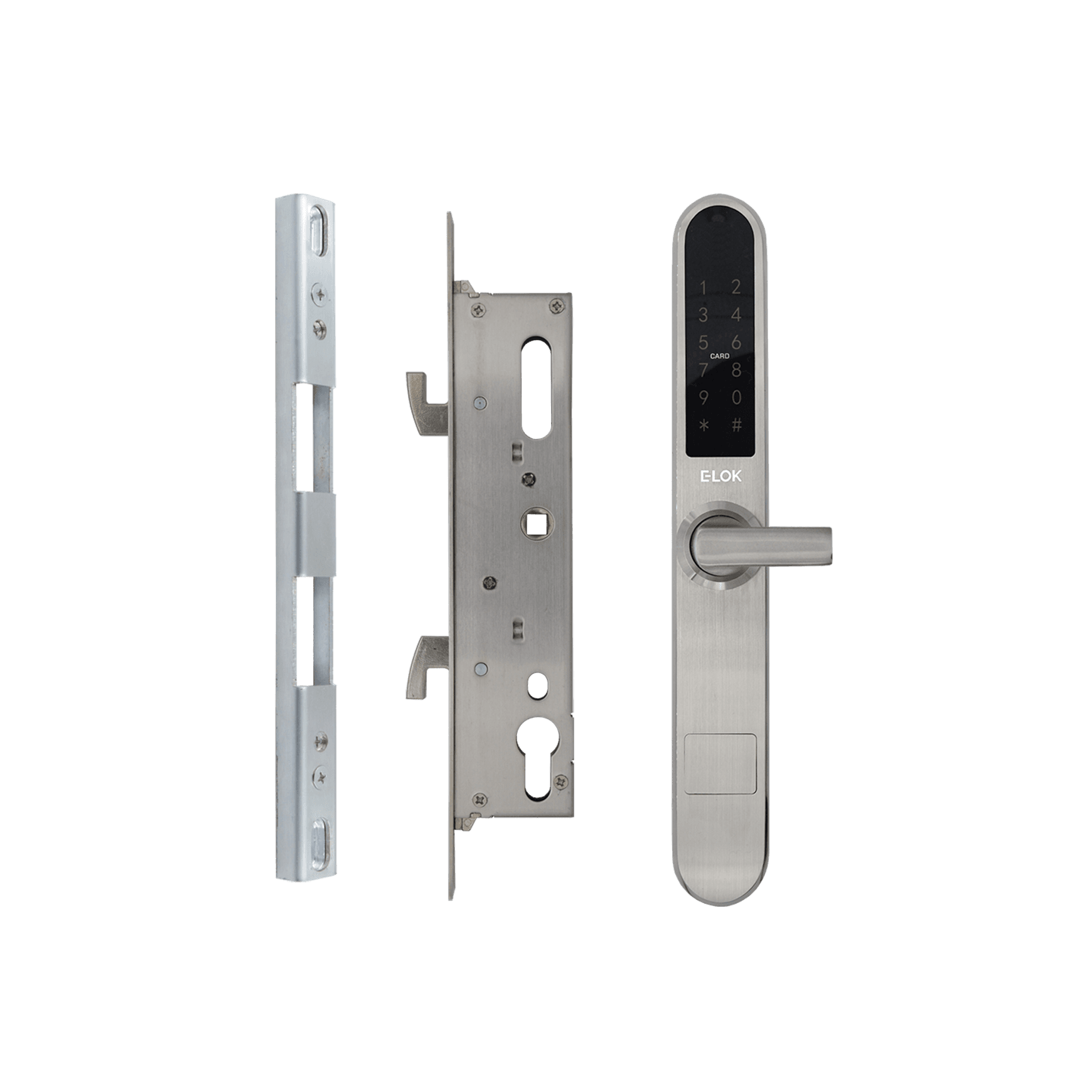

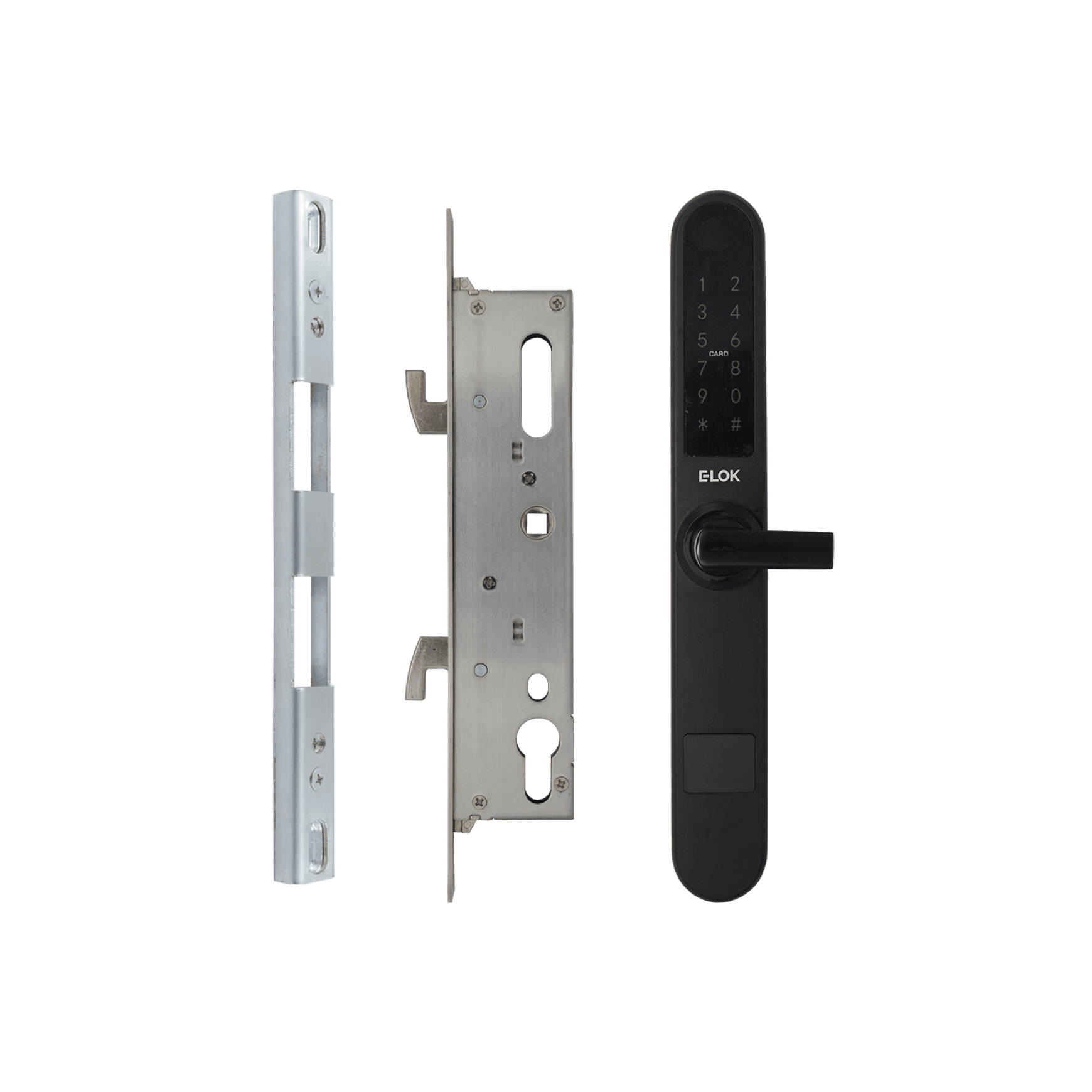

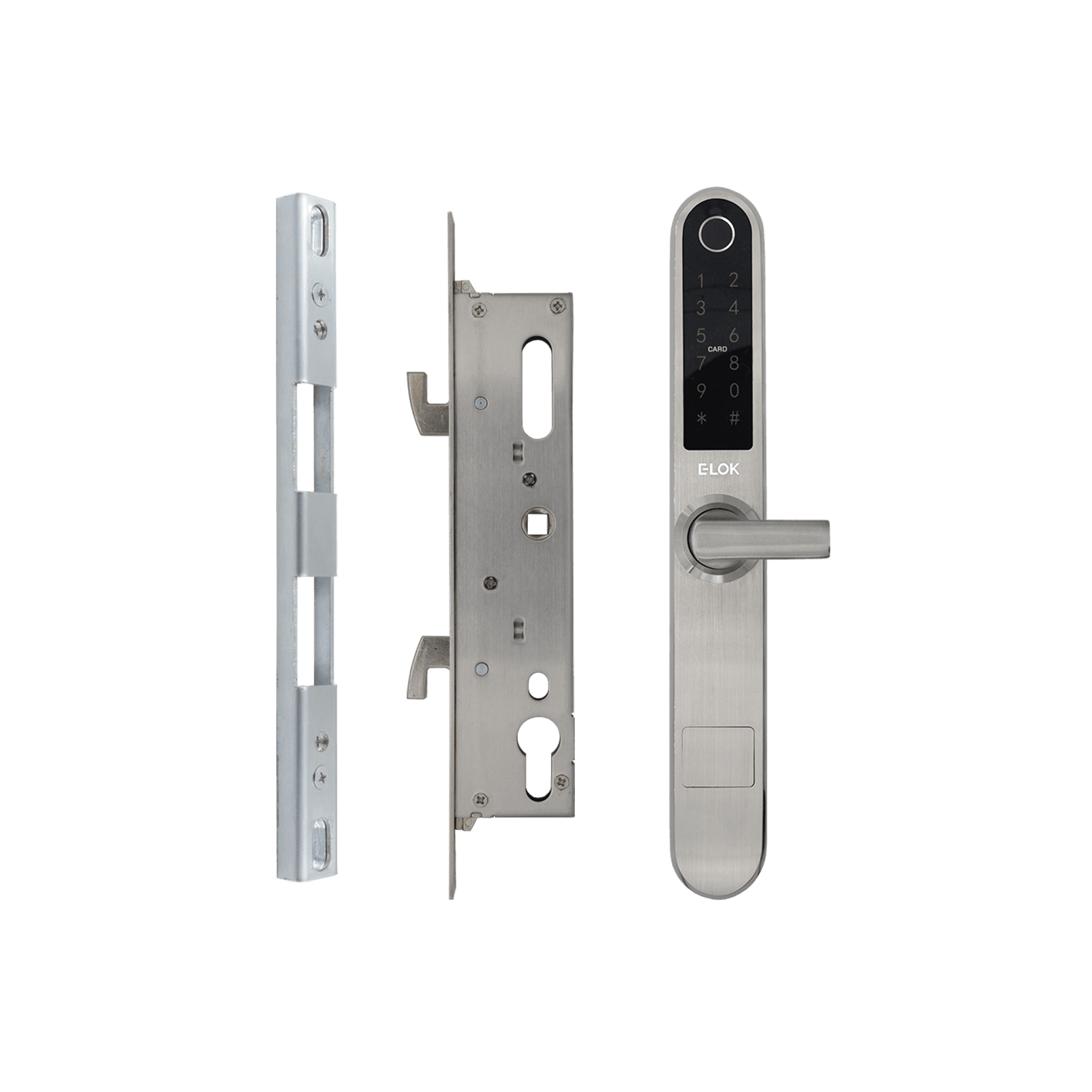

E-LOK 7-Series for Sliding Doors is purpose built to expand your homes' indoor-outdoor flow. This E-LOK comes paired with Snib-Levers to allow for installation on narrow styles. A 28 or 35mm backset sliding door mortice lock is included, along with an adjustable strike for the door frame. E-LOK for sliding doors can be spec'd with or without a fingerprint sensor. This E-LOK is easy to use and programme, with adjustable auto-lock timer or passage mode operations. Paired with the easy to use E-LOK App, indoor-outdoor flow has never been smarter.
The E-LOK 7-Series for Sliding Doors can be paired with the E-LOK Gateway for remote Wi-Fi access and control.
The E-LOK 7-Series for Sliding doors has the following unlock functions:
- PIN-Code
- RFID card
- App unlock
- Mechanical key
- Fingerprint Sensor (717 Model only).
A range of cover plates are available to assist retrofit, sizes as follows:
- 40mm -40x330mm Cover Plate
- 52mm -52x295mm Cover Plate
- 62mm -62x305mm Cover Plate
- 78mm -78x320mm Cover Plate
Download the E-LOK phone app from Google Playstore or Apple App Store. This is required for the initial set-up, set up passcodes and unlock E-LOK via Bluetooth.
Product Details
- Product
- E-LOK 7-Series Smart Lock for Sliding Doors
- Category
- Digital Door Locks
- Sold by
- E-LOK
- Warranty
- 2 years
Product specified by
E-LOK 7-Series for Sliding Doors is purpose built to expand your homes' indoor-outdoor flow.
This E-LOK comes paired with Snib-Levers to allow for installation on narrow styles. A 28 or 35mm backset sliding door mortice lock is included, along with an adjustable strike for the door frame. E-LOK for sliding doors can be spec'd with or without a fingerprint sensor. This E-LOK is easy to use and programme, with adjustable auto-lock timer or passage mode operations. Paired with the easy to use E-LOK App, indoor-outdoor flow has never been smarter.
The E-LOK 7-Series for Sliding Doors can be paired with the E-LOK Gateway for remote Wi-Fi access and control.
The E-LOK 7-Series for Sliding doors has the following unlock functions:
- PIN-Code
- RFID card
- App unlock
- Mechanical key
- Fingerprint Sensor (717 Model only).
A range of cover plates are available to assist retrofit, sizes as follows:
- 40mm -40x330mm Cover Plate
- 52mm -52x295mm Cover Plate
- 62mm -62x305mm Cover Plate
- 78mm -78x320mm Cover Plate
Download the E-LOK phone app from Google Playstore or Apple App Store. This is required for the initial set-up, set up passcodes and unlock E-LOK via Bluetooth.
- Specs
Operating Application: E-LOK App
Manufactured Material: 304 Stainless Steel
Finish Styles: Electroplate Black, Stainless Steel
Unlock Methods: PIN Code, RFID Card, E-LOK App, Mechanical Key, Fingerprint (707 and 717 Models Only)
Max Num. Locks on App: Unlimited
Max Num. PIN Codes: 200 PIN codes
Max Num. RFID Cards: 200 PIN codes
Max Num. Fingerprints: 200 Fingerprints
Batteries: 6V (4 x AAA Batteries) -Must be Alkaline
Battery life: 5,000 Lock and Unlock Operations
Operating Temp: —20°C - 50°C
Operating Humidity: 10% - 95%
Suitable Door Thickness: 30mm - 70mm
Suitable Door Types: Aluminium Door, Wooden Door
Product Size: 280mm(H) x38mm(W) x25mm(D)
7-Series Residential Warranty: 2 Year Mechanical & Electrical
E-LOK Gateway Warranty: 2 Year
Weather Rating: Exterior Rated IP55 (705 and 715 Models Only)
Downloads
Downloads (5)5 Direct downloads • 10 Available on request
Frequently asked questions about
E-LOK 7-Series Smart Lock for Sliding Doors
The E-LOK 7-Series Smart Lock for Sliding Doors is supplied by E-LOK. It is also on their website, and you can browse every product E-LOK lists on ArchiPro.
E-LOK does not publish a price for the E-LOK 7-Series Smart Lock for Sliding Doors on ArchiPro. for pricing, or visit their website.
It is listed under Digital Door Locks on ArchiPro, where you can compare it with digital door locks from other suppliers.

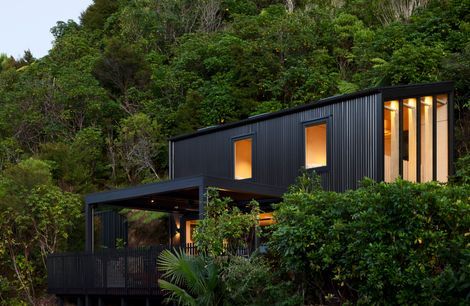

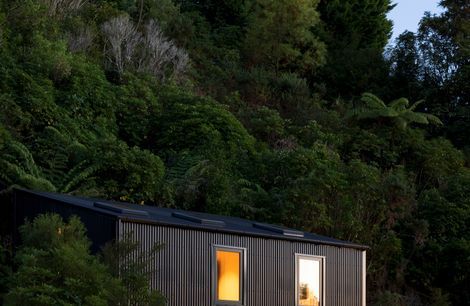

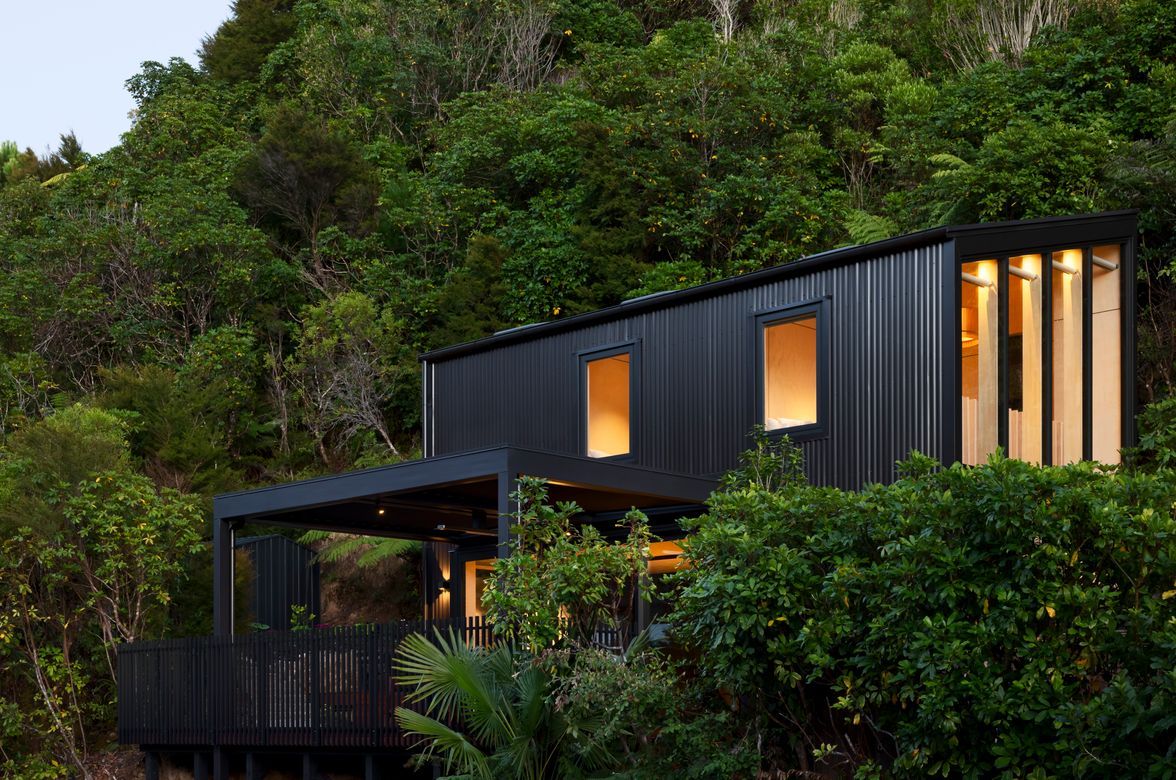

Yes. It has been specified in projects on ArchiPro, including Honeymoon Bay House by COLORSTEEL® and Honeymoon Bay Bach by JTB Architects. See how it was used in a finished space.
