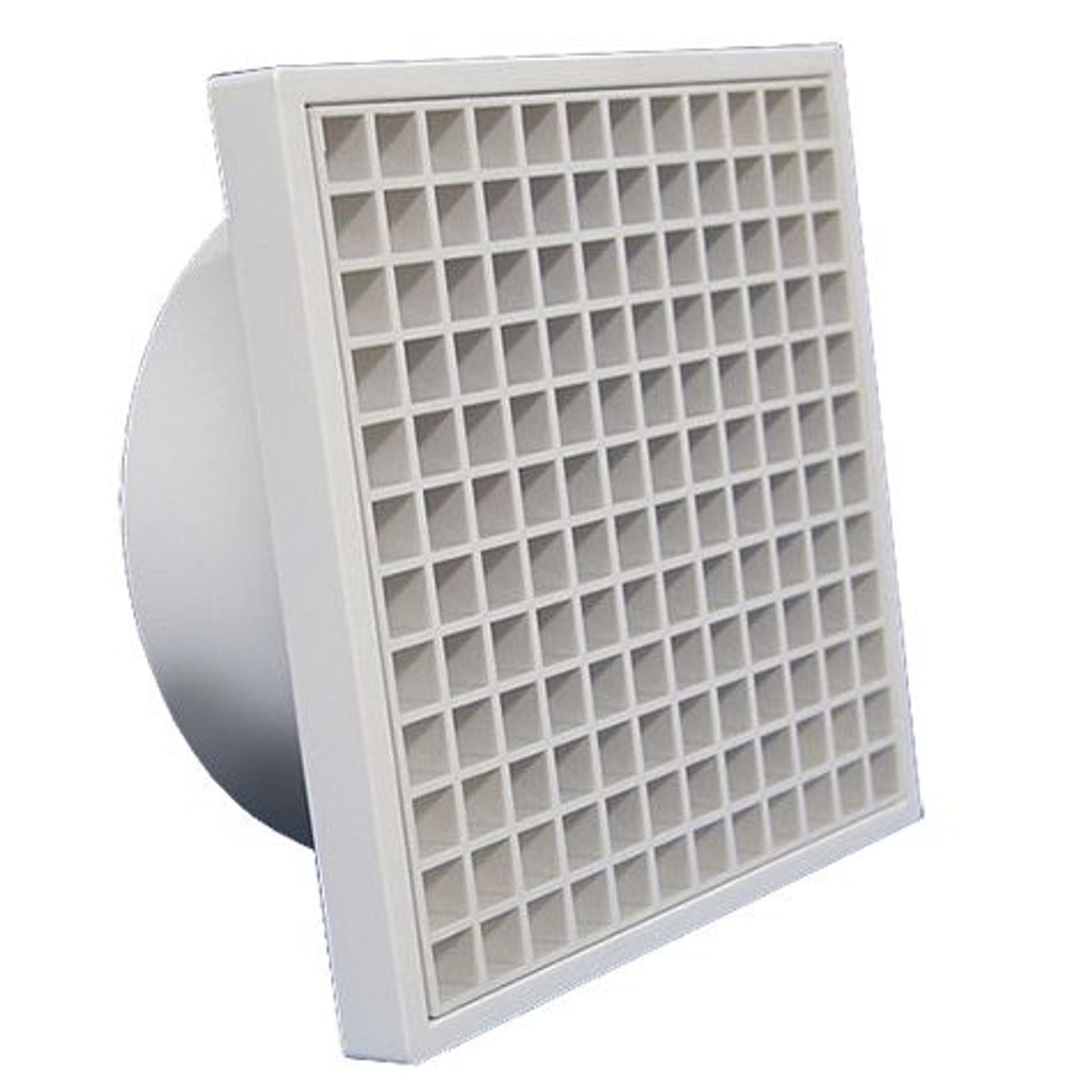

Eggcrate Grille

Applications

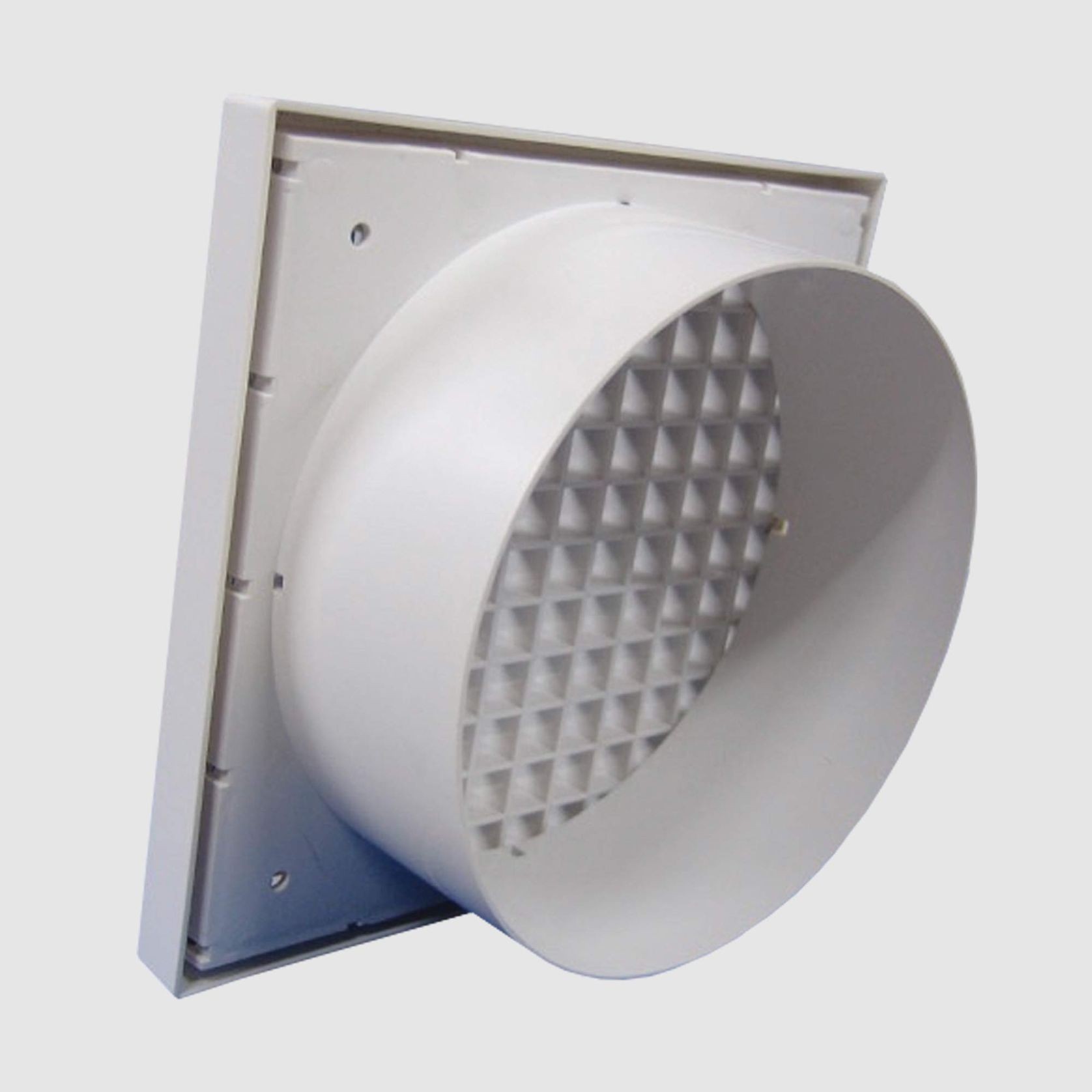

Suitable for both internal and external applications and can be either mounted on ceiling or wall. Duct can be installed onto the neck located at the rear of the grille.

1. Mark and cut out the hole from ceiling or wall
2. Clip out the louvre insert with the assistance of a screwdriver
3. Remove the insect mesh screen
4. Fix flexible duct to the spigot of diffuser
5. Fix grille to wall or ceiling with screws provided
6. Insert the Insect screen and louvre cover back into the unit
