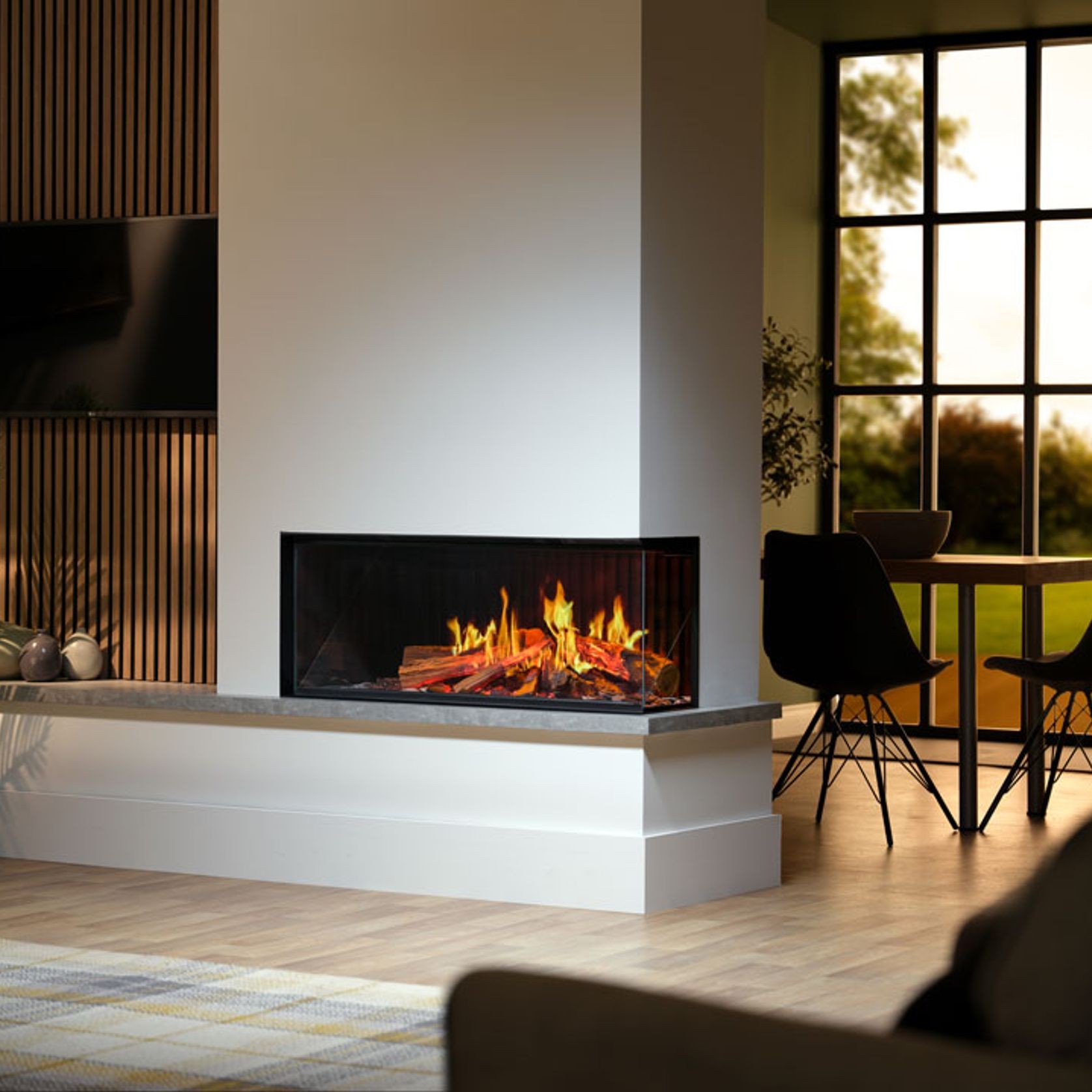

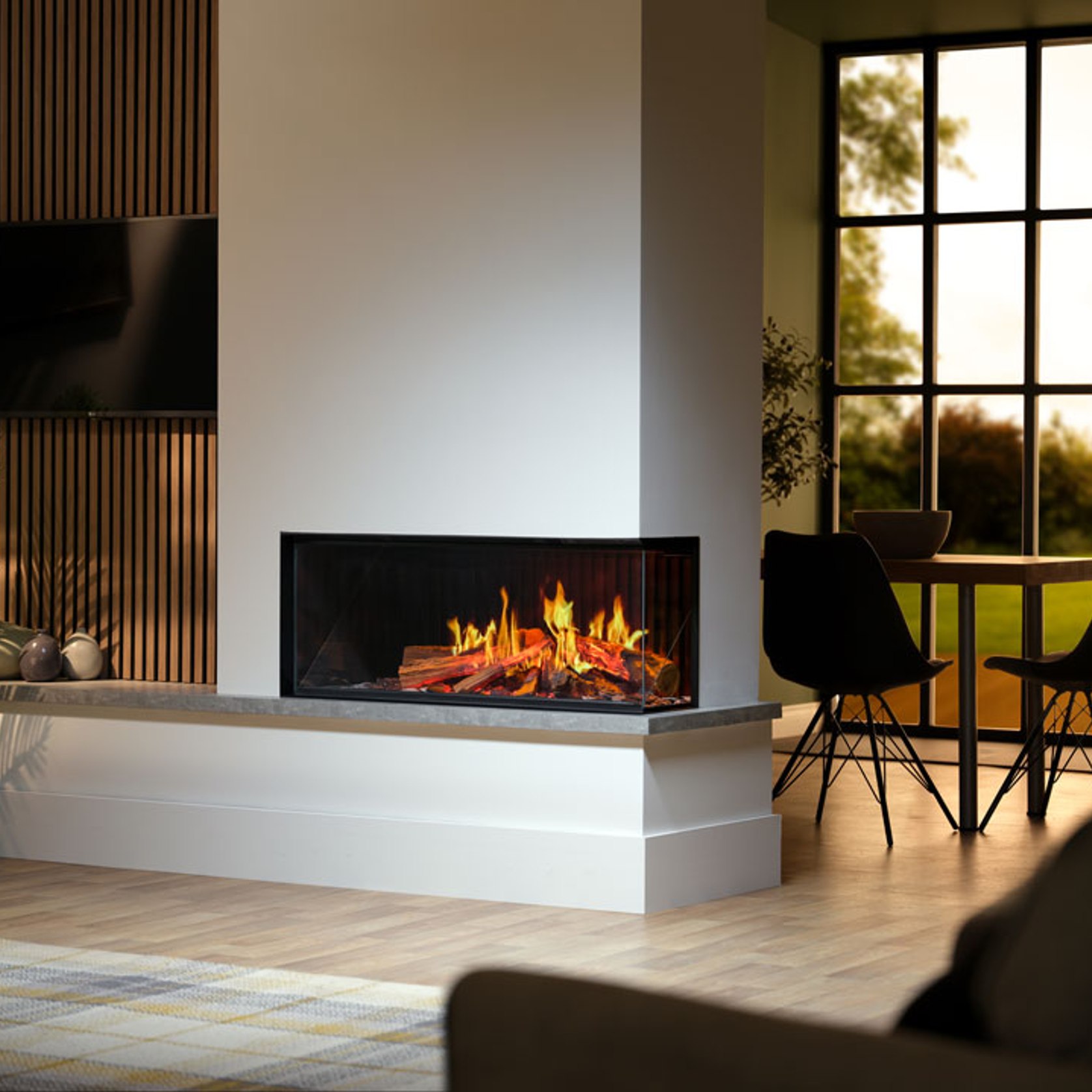

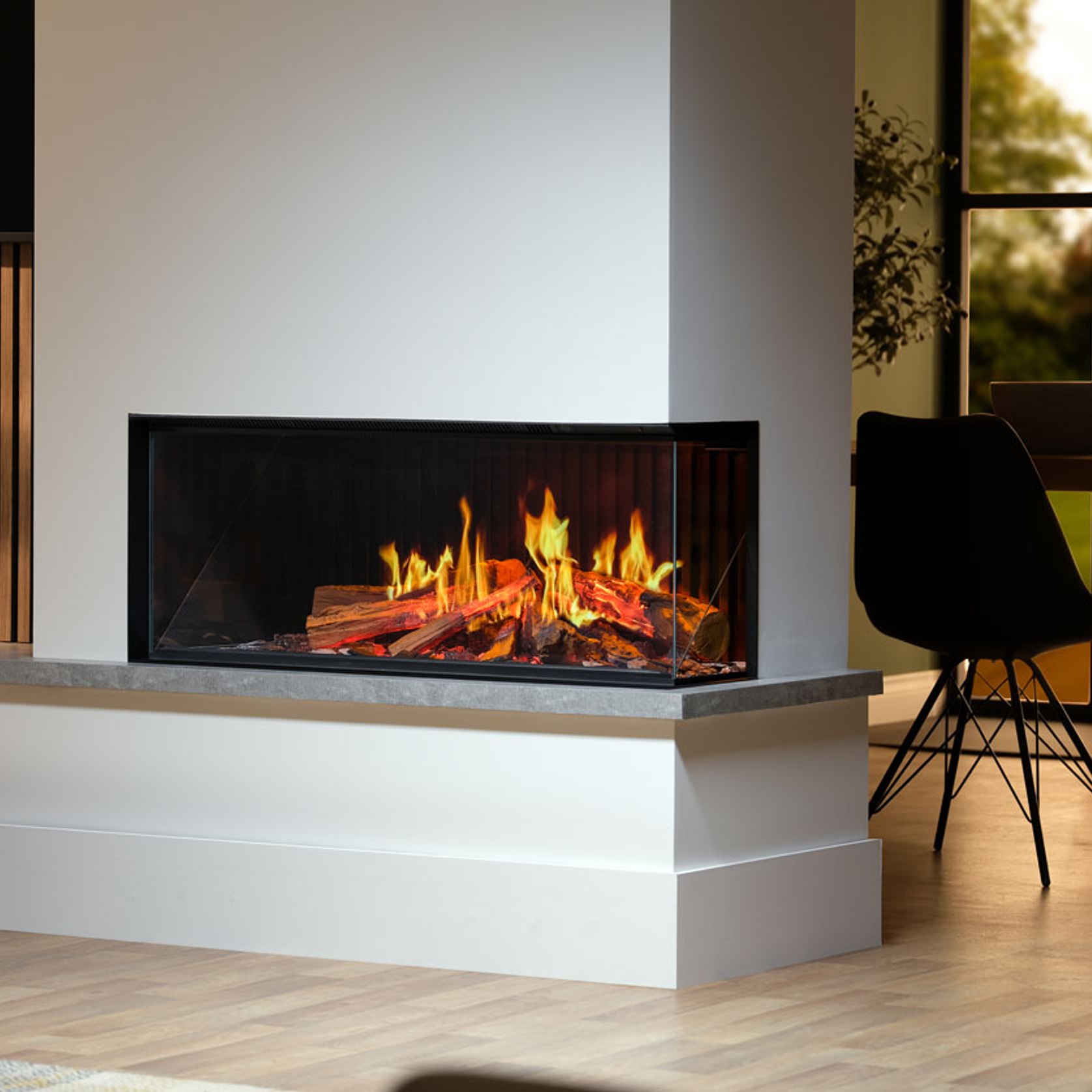

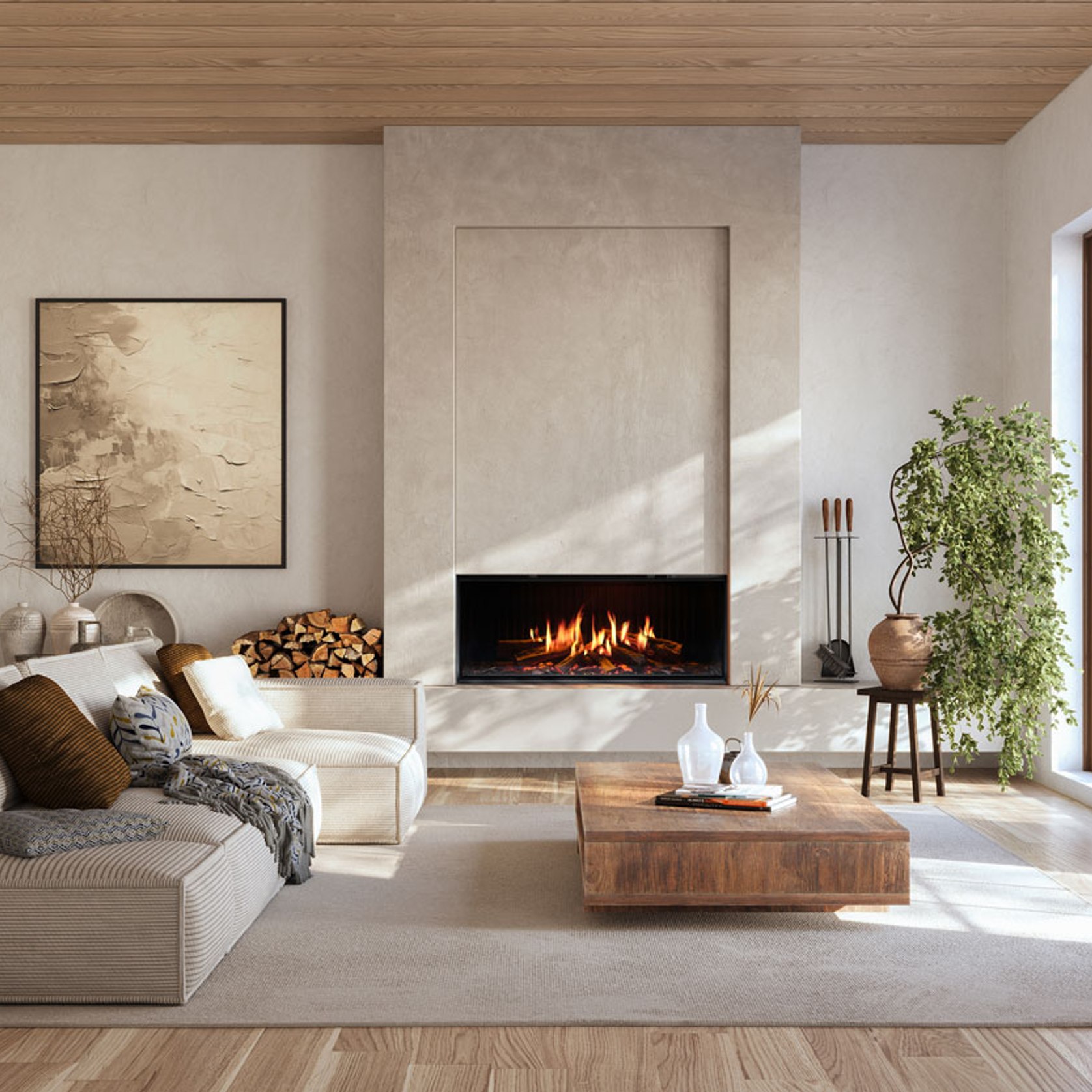

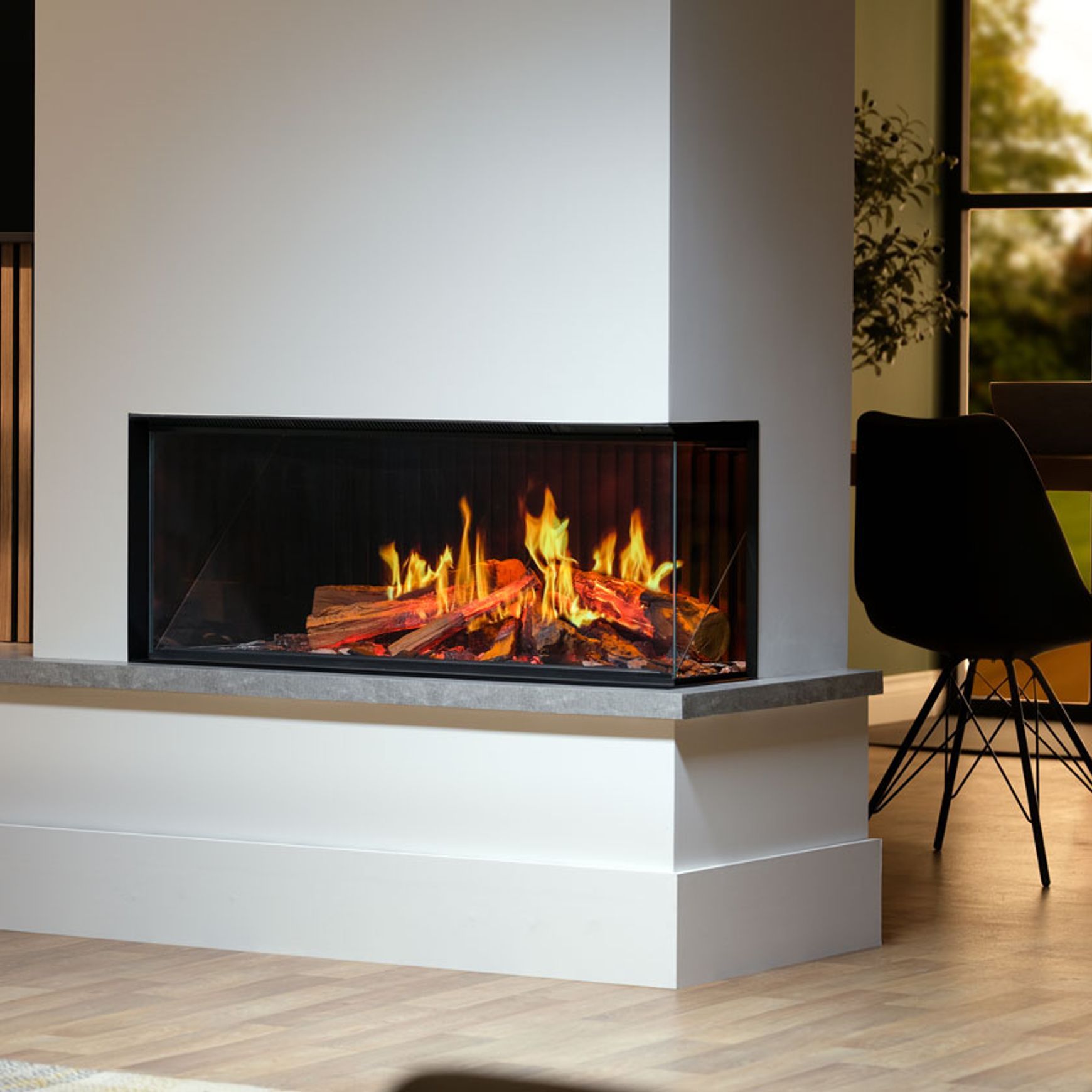

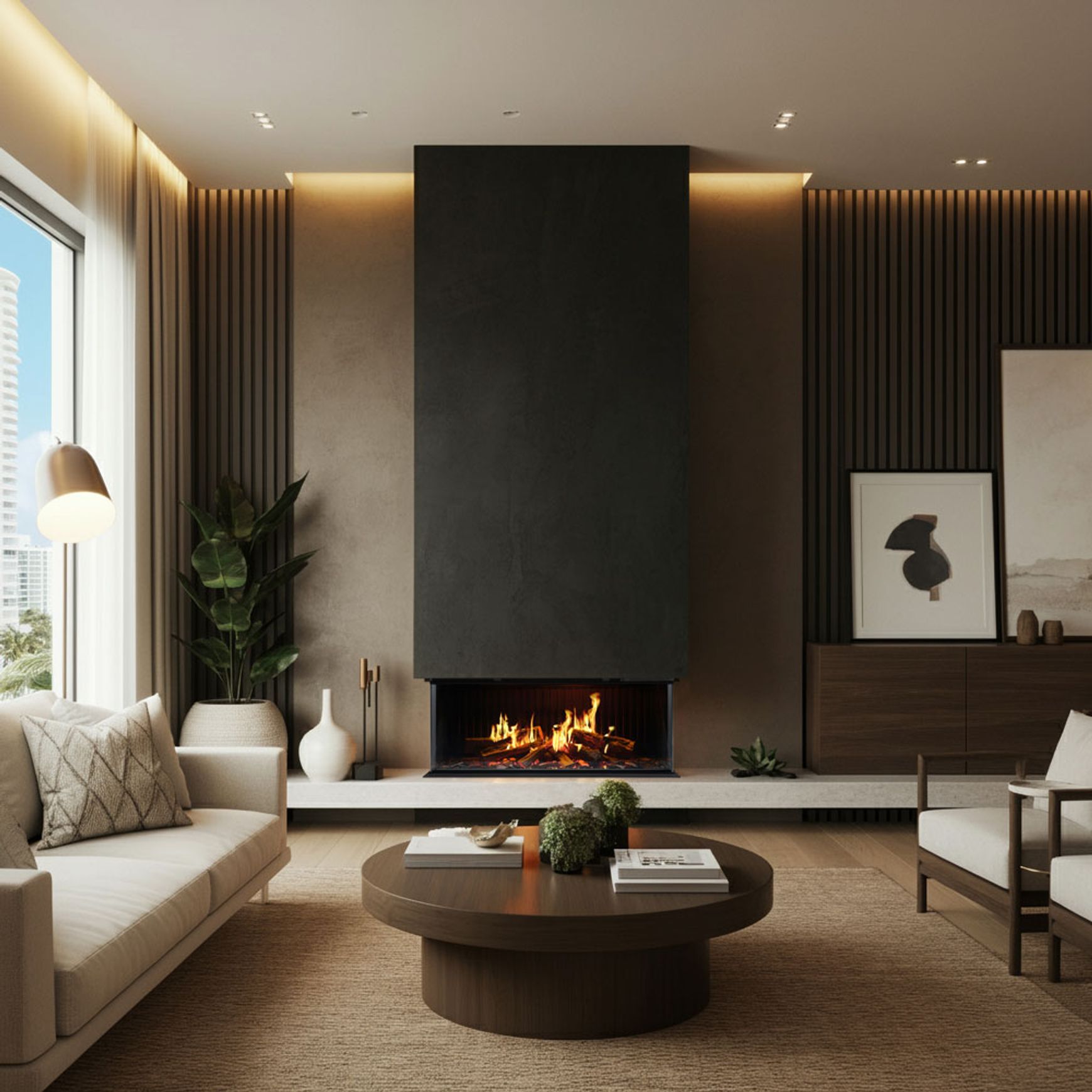

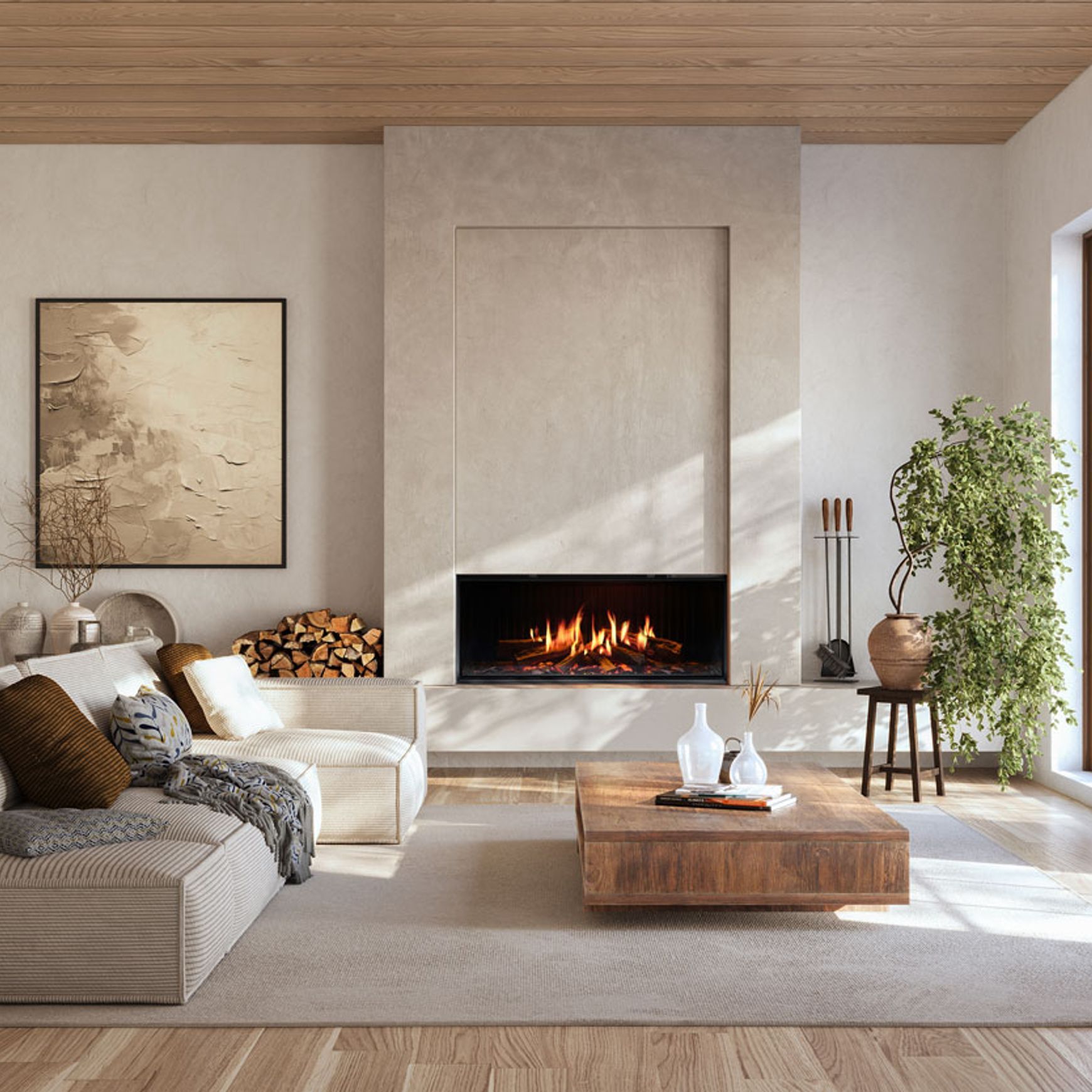

EL 1000 Holographic Electric Fire

Experience the next generation of electric fires with the EL1000.

Key Features

• Fireplace display area 400 x 1000 x 513mm (dimensions H x W x D)
• 2 heat settings – 1kW & 2kW with cool blow option
• Flame effect can be operated with or without heat function
• 9 fuel bed colour options
• Independent control of illumination for fuel bed, logs and downlight with colour change and brightness settings
• Realistic spark sounds with advanced speaker
• Easy to use remote control handset
• User-friendly App*, controlled via your smart device
• ‘Favourite’ mode to save your preferred flame/fuel bed settings
• Thermostatic control
• Smart device or voice-controlled timers
• Open window detection mode for optimised energy efficiency
• Optional accessories: ambient light kit, and 14 mm slim trim

*Tuya Smart App is a third party application independent of Rinnai

Technical Specifications

Code

• EL1000

Suitability

• Suitable for indoor domestic applications only.
• Do not install near a wet area such as a bath, shower, or swimming pool.

Unit operation

• Can be controlled four ways; manually on the appliance, with the remote control, through a smart device using wireless connectivity, and through voice control.

Heat output

• 1-2 kW

Data label position

• Left hand side on the underside of the appliance

Electrical supply

• 230-240 V AC, 50 Hz
• Ensure voltage and frequency of the power supply correspond to the ratings on the data plate of the appliance.

3-pin plug type

• EL 1000: 10 A Power cord 1.8 m (right-hand side, looking at the unit).

Power

• Standby 3 W
• Power for flame effect 45 W
• Power for ambient light kit 9.6 W

Weights net / gross

• 64.6 / 84.4 kg

Dimensions

• Please refer to the downloads section below.
