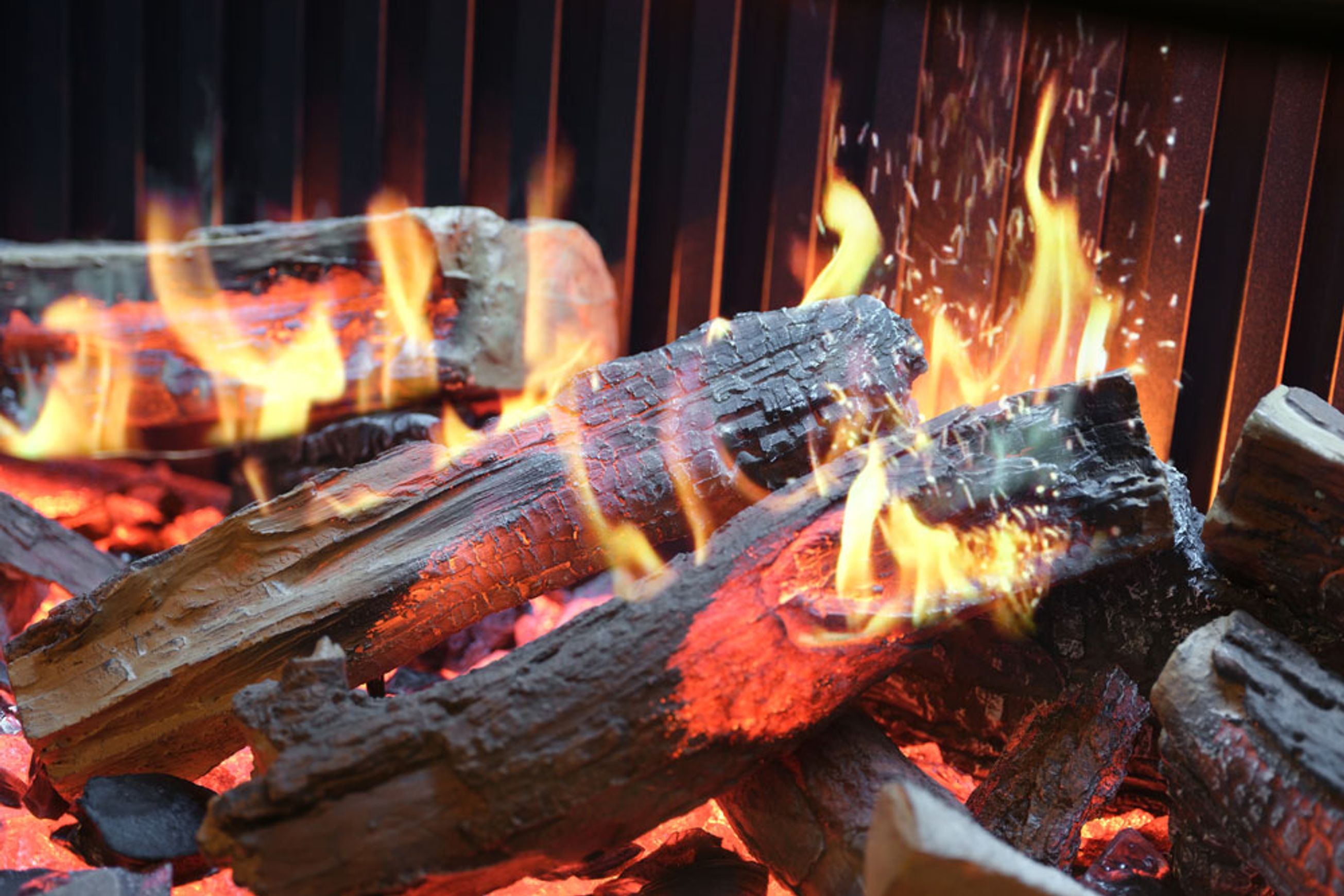

EL 1500 Holographic Electric Fire

Model Code

• EL1500

Suitability

• Suitable for indoor domestic applications only
• Do not install near wet areas such as baths, showers, or swimming pools

Unit Operation

• Can be controlled via:
  Manually on the appliance
  Remote control
  Smart device using wireless connectivity
  Voice control

Heat Output

• 1.5–3 kW

Data Label Position

• Left-hand side, on the underside of the appliance

Electrical Supply

• 230–240 V AC, 50 Hz
• Ensure voltage and frequency match appliance data plate

3-Pin Plug Type

• 15 A plug (EL1500)
• Power cord: 1.8 m, exits from right-hand side (when facing the unit)

Power Consumption

• Standby: 3 W
• Flame effect: 75 W
• Ambient light kit: 9.6 W

Weights

• Net: 89.2 kg
• Gross: 115 kg

Dimensions

• Front-facing

• Fireplace display area 400 x 1500 x 513mm (dimensions H x W x D)
• 2 heat settings – 1.5kW & 3kW with cool blow option
• Flame effect can be operated with or without heat function

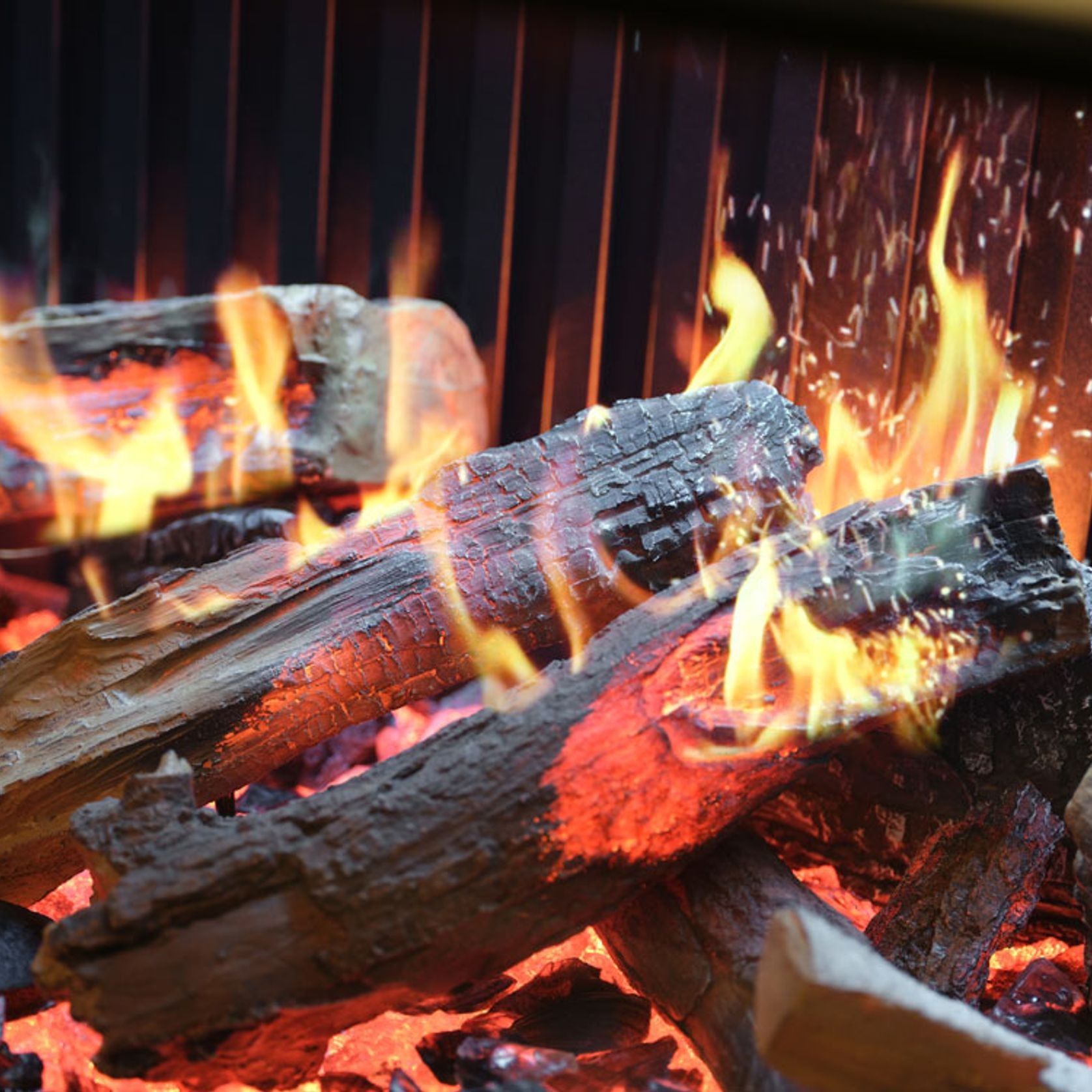

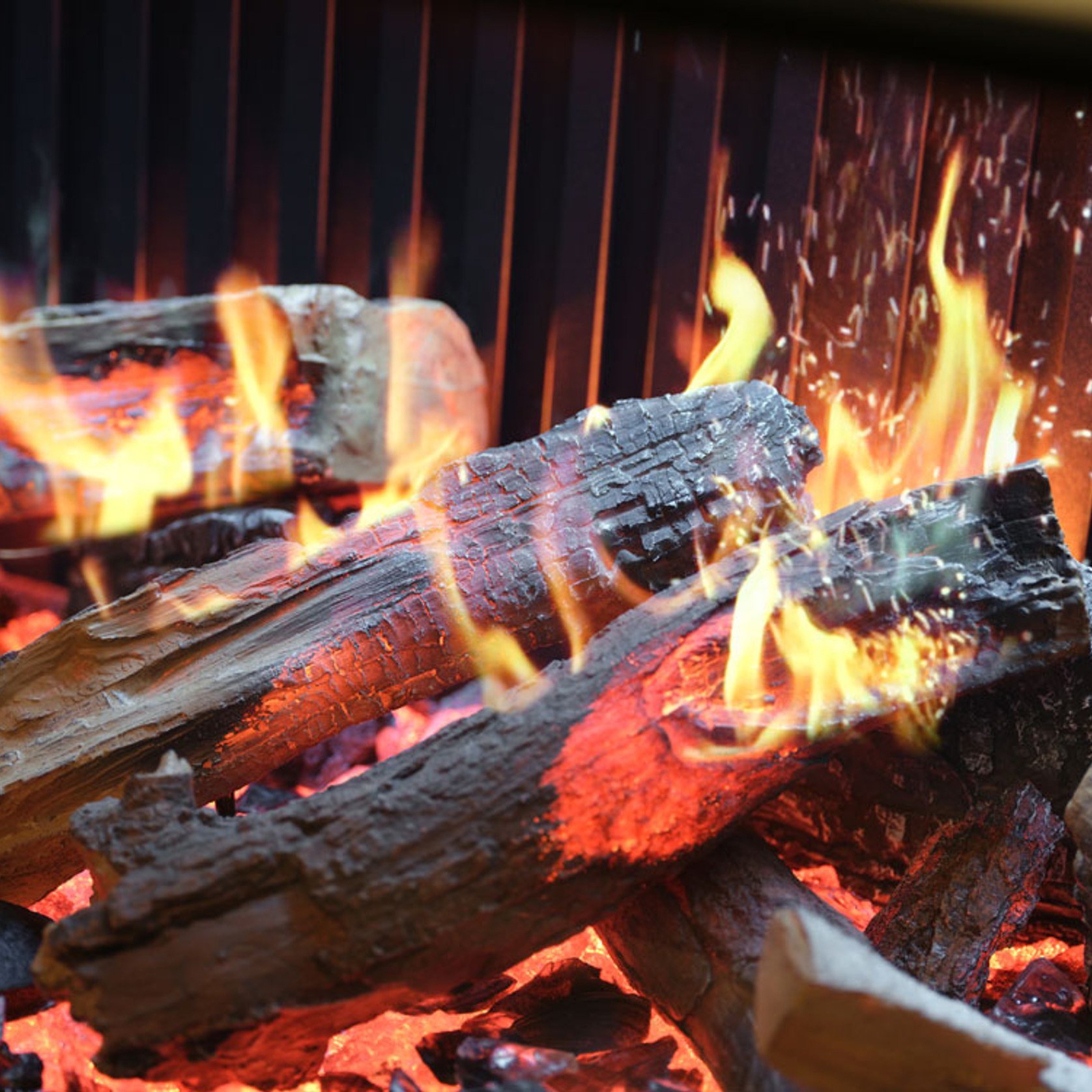

• 9 fuel bed colour options
• Independent control of illumination for fuel bed, logs and downlight with colour change and brightness settings
• Realistic spark sounds with advanced speaker
• Easy to use remote control handset
• User-friendly App*, controlled via your smart device
• ‘Favourite’ mode to save your preferredflame/fuel bed settings
• Thermostatic control
• Smart device or voice-controlled timers
• Open window detection mode foroptimised energy efficiency
• Optional accessories: ambient light kit, and 14 mm slim trim
• *Tuya Smart App is a third party application independent of Rinnai
