Elevate | Series 704FBR | SlideMASTER™ Sliding Door
by Architectural Window Systems
City of Liverpool, Australia
- 392.4K profile views
- 36 saves
The Elevate Series 704FBR SlideMASTER Sliding Door is the very latest in European-inspired design from AWS. Tested and manufactured in Australia, this beautiful, energy-efficient door provides uninterrupted views, meets all relevant compliance demands, and is more than a match for our harsh climate.

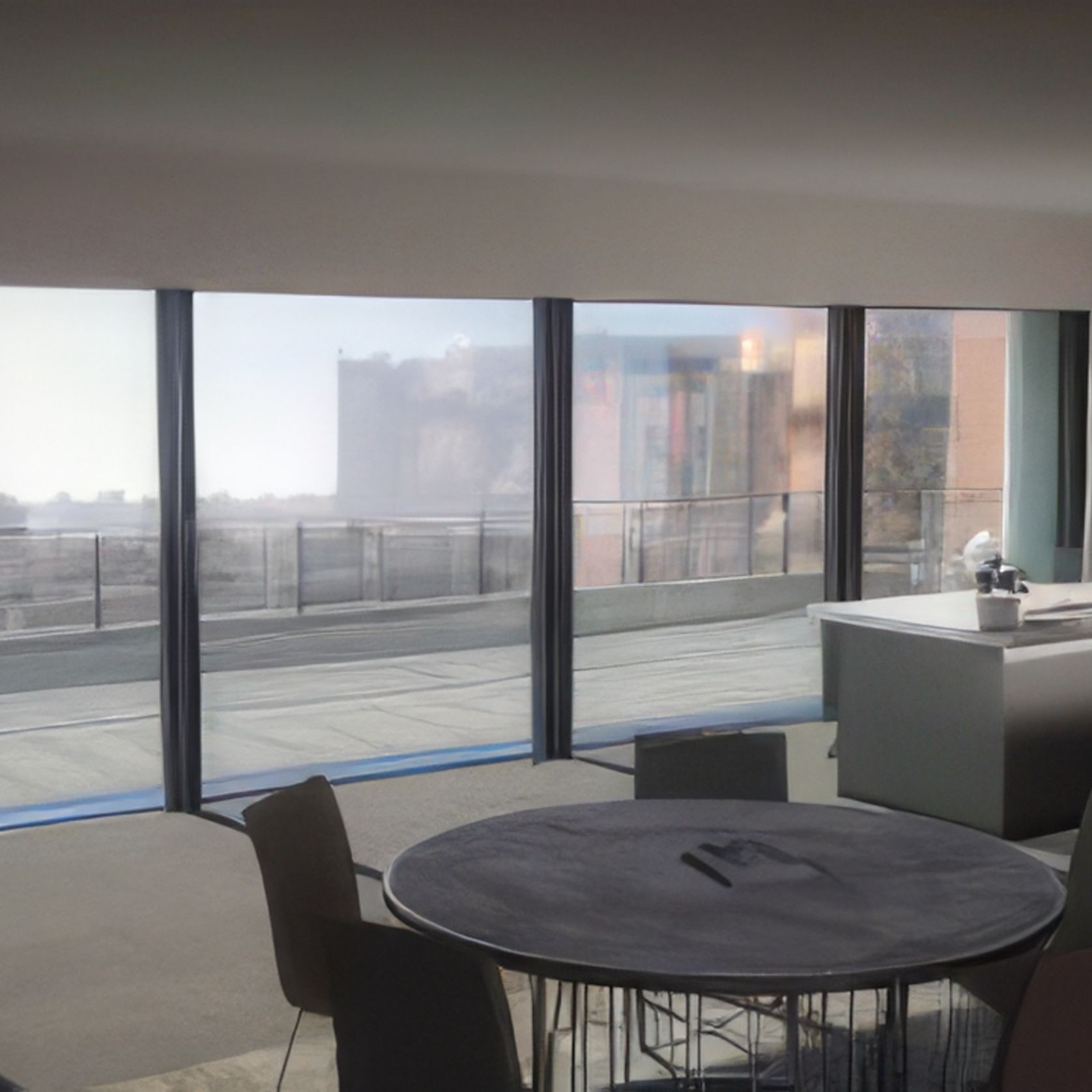

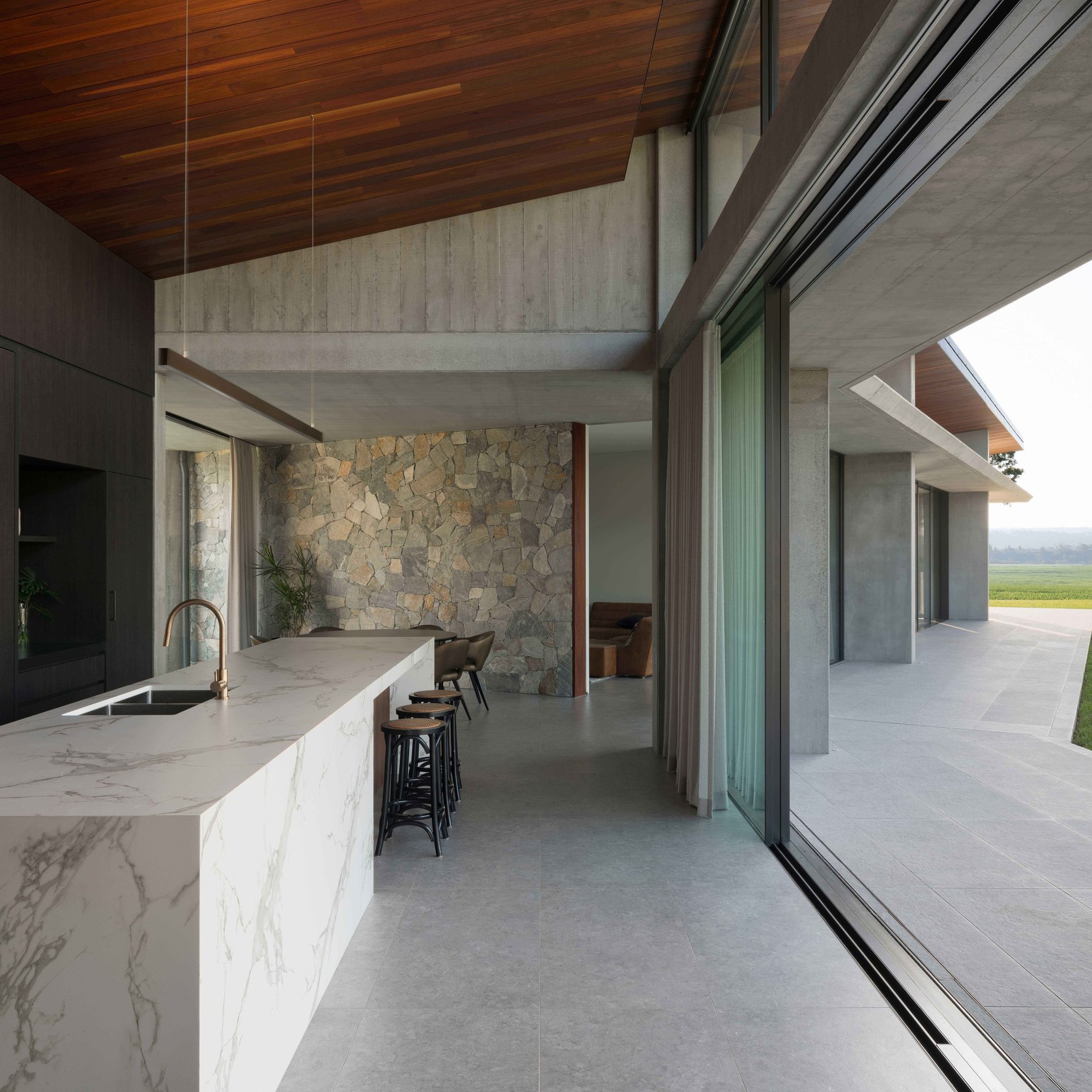

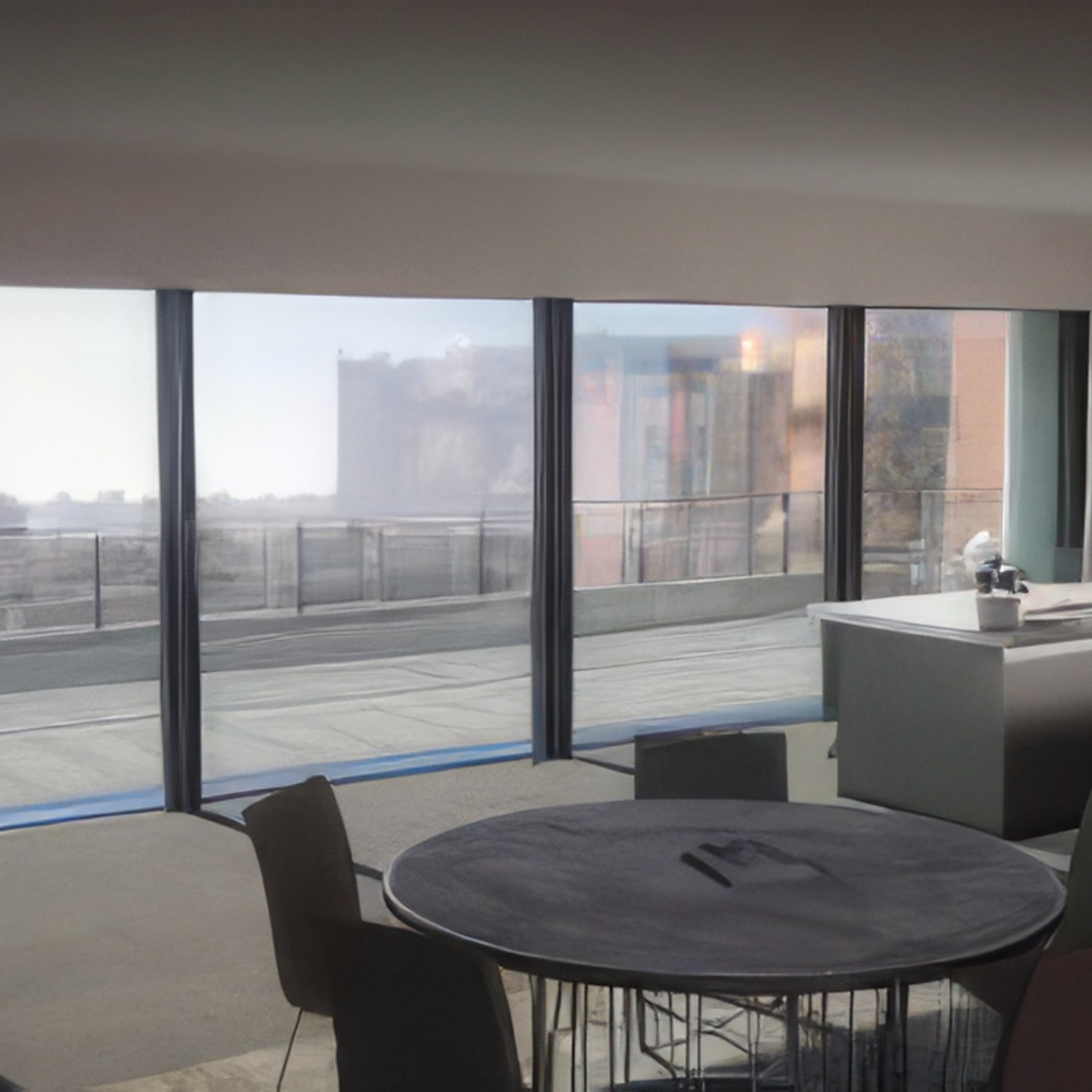

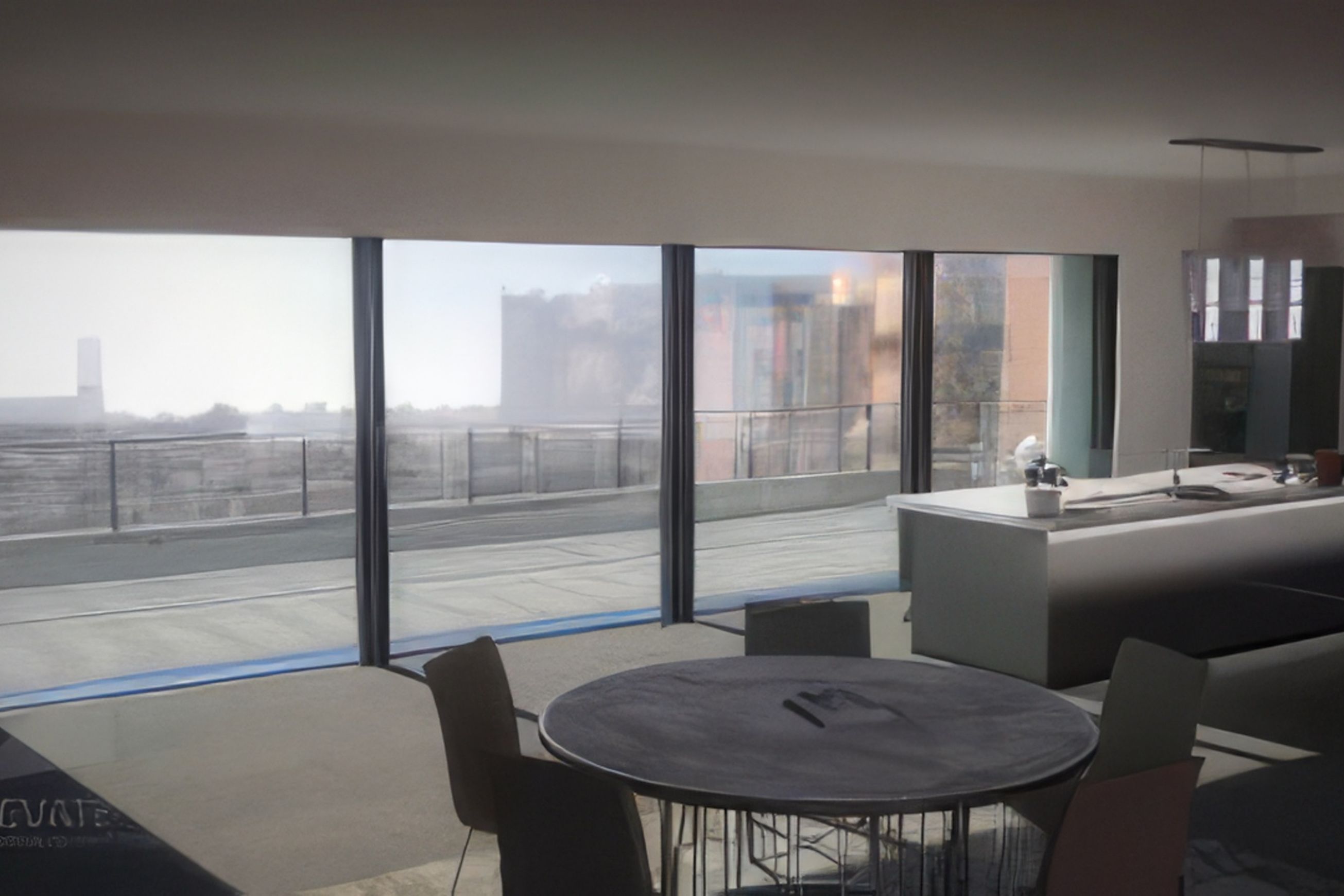

The head, sill and jambs are fully concealed in the building envelope to deliver uninterrupted, clear, glass sightlines around the entire frame and outstanding energy efficiency.
- Recessed head, sill and jambs allow clear glass sightlines.
- Extra large sliding panels up to 3300mm high x 2500mm wide.
- A range of configuration options including single and double sliding panels, bi-parting doors and corner sliding doors.
- Compatible with Centor Screens
- Heavy duty stainless steel rollers.
- Compatible with high performance single glazed and double glazed, FrontGLAZE™ framing.
Product Details
- Product
- Elevate | Series 704FBR | SlideMASTER™ Sliding Door
- Category
- Sliding Doors
- Sold by
- Architectural Window Systems
Product specified by
The Elevate Series 704FBR SlideMASTER Sliding Door is the very latest in European-inspired design from AWS.
Tested and manufactured in Australia, this beautiful, energy-efficient door provides uninterrupted views, meets all relevant compliance demands, and is more than a match for our harsh climate.
The head, sill and jambs are fully concealed in the building envelope to deliver uninterrupted, clear, glass sightlines around the entire frame and outstanding energy efficiency.
- Recessed head, sill and jambs allow clear glass sightlines.
- Extra large sliding panels up to 3300mm high x 2500mm wide.
- A range of configuration options including single and double sliding panels, bi-parting doors and corner sliding doors.
- Compatible with Centor Screens
- Heavy duty stainless steel rollers.
- Compatible with high performance single glazed and double glazed, FrontGLAZE™ framing.
- Specs
*Maximum Frame Height and Panel Widths indicated are interdependent and subject to individual site conditions.
- Maximum Frame Height* 3300mm
- Maximum Panel Width* 2500mm
- Maximum Glass Thickness ≤ 26mm
- SHGC Range 0.24 - 0.74
- Uw Range 2.2 - 4.2
- Features

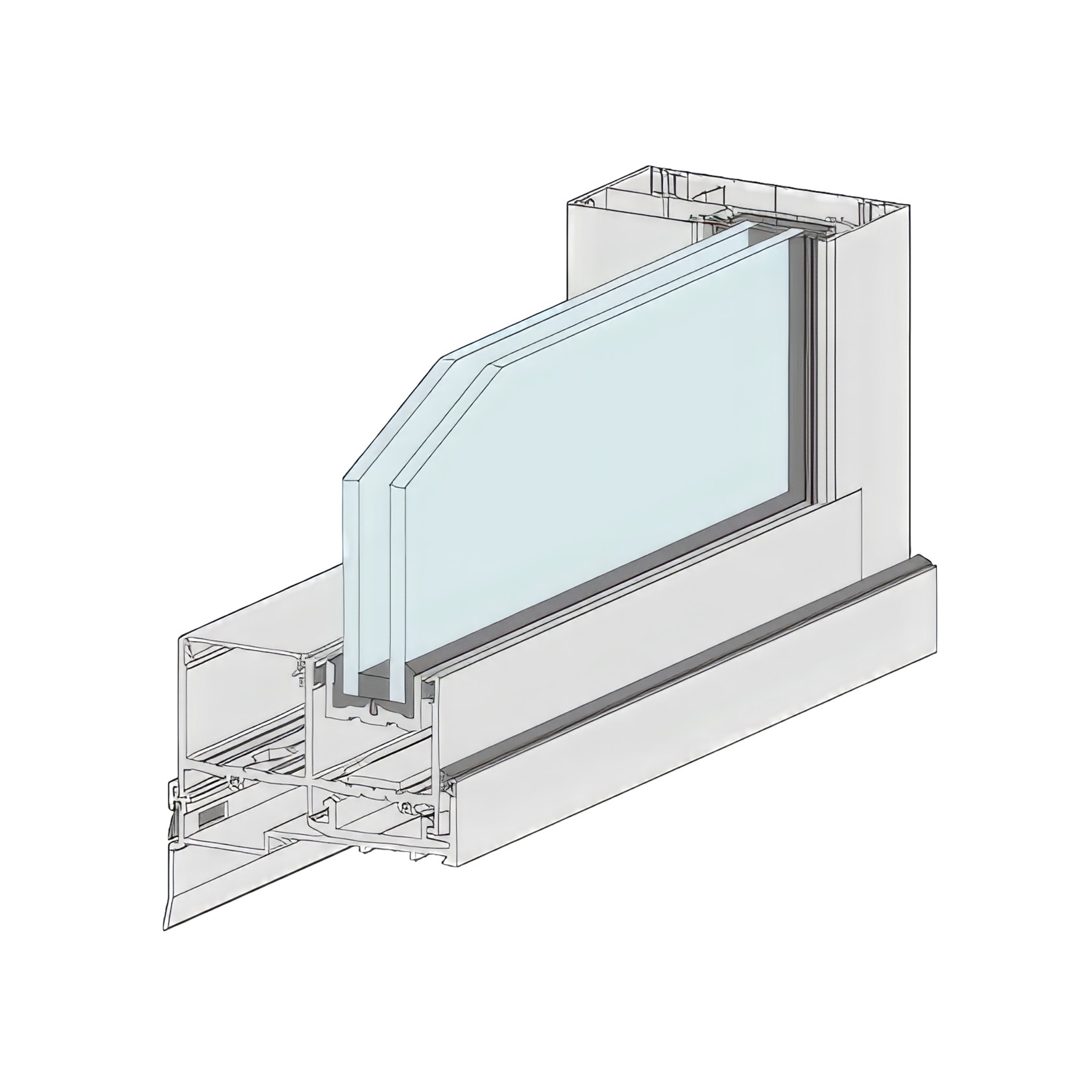

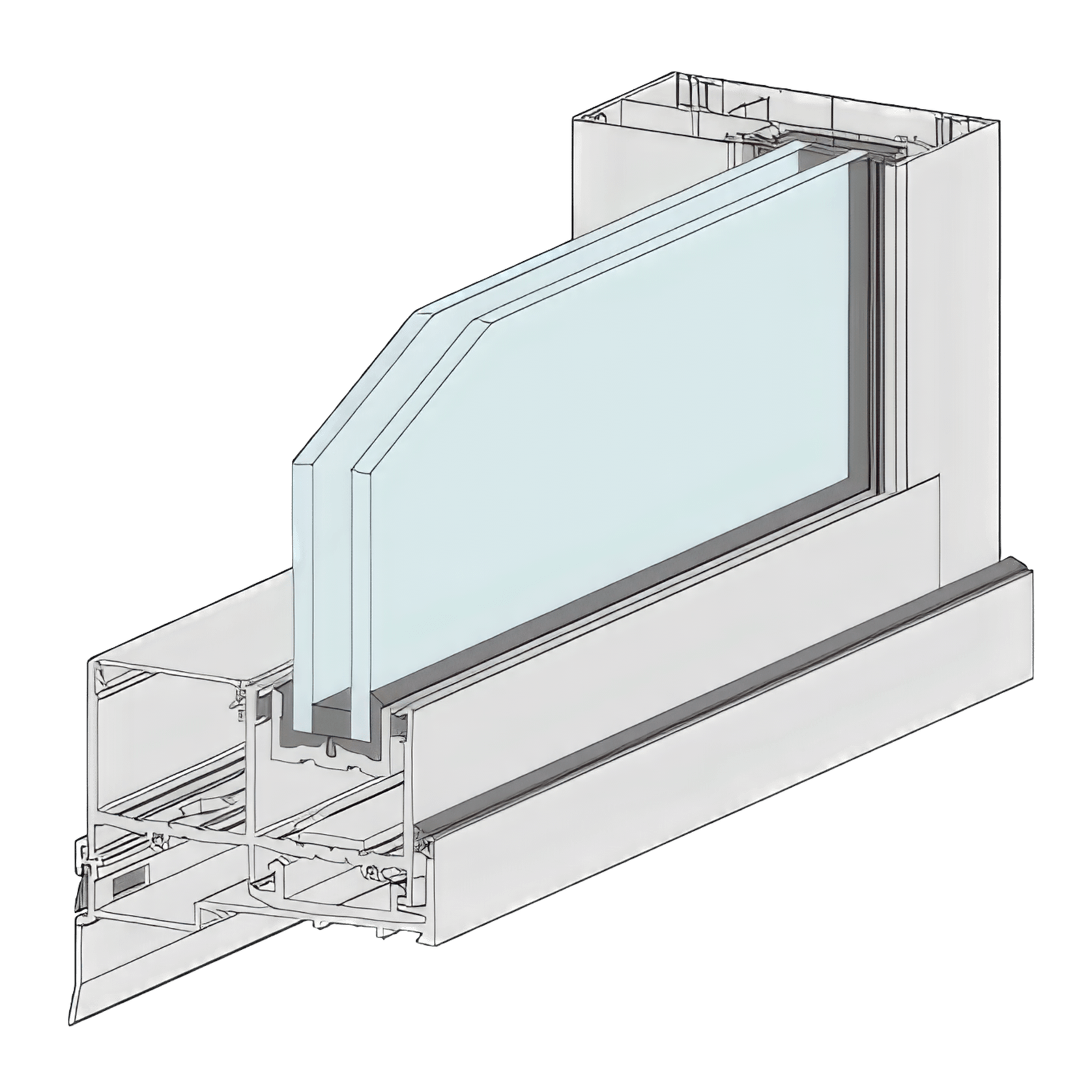

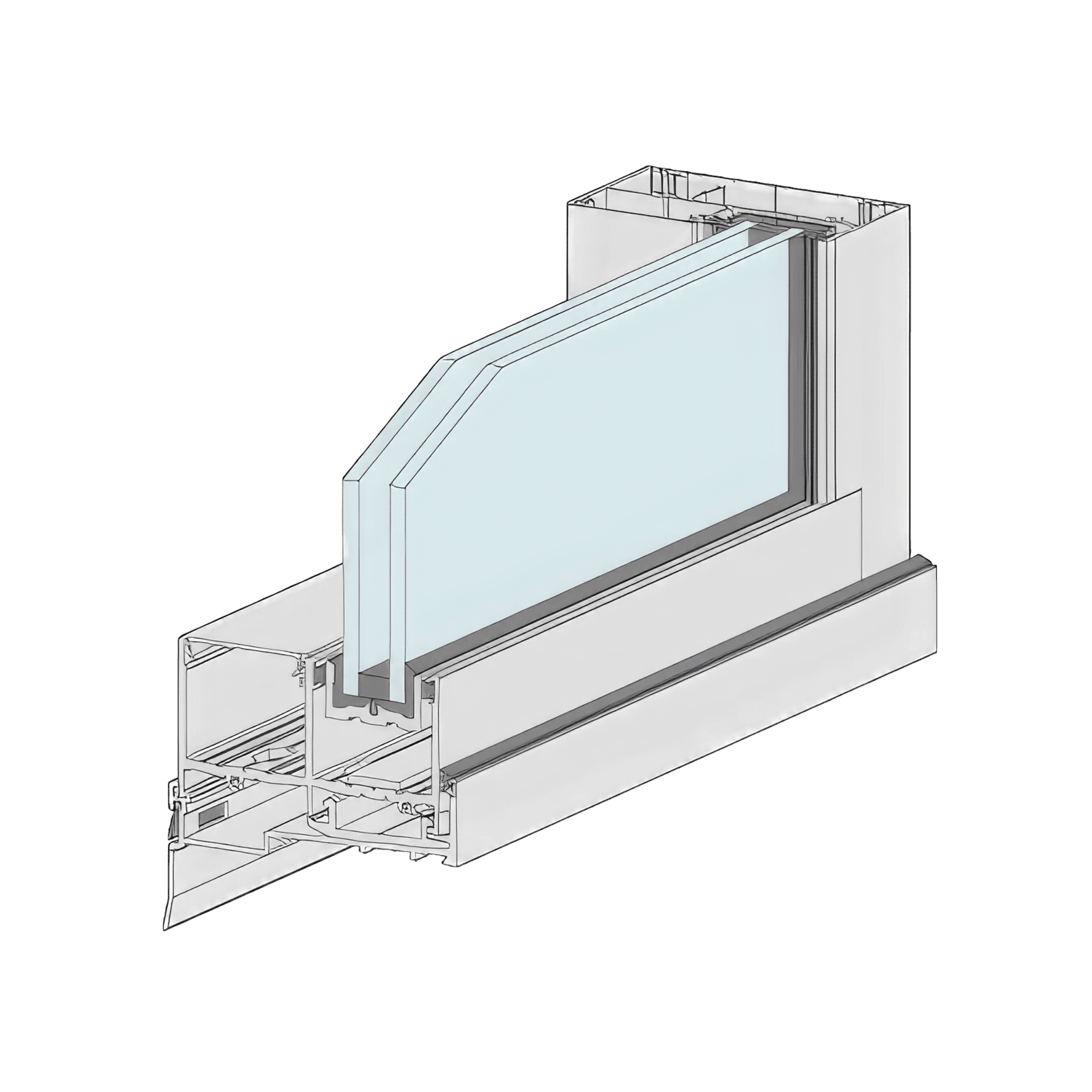

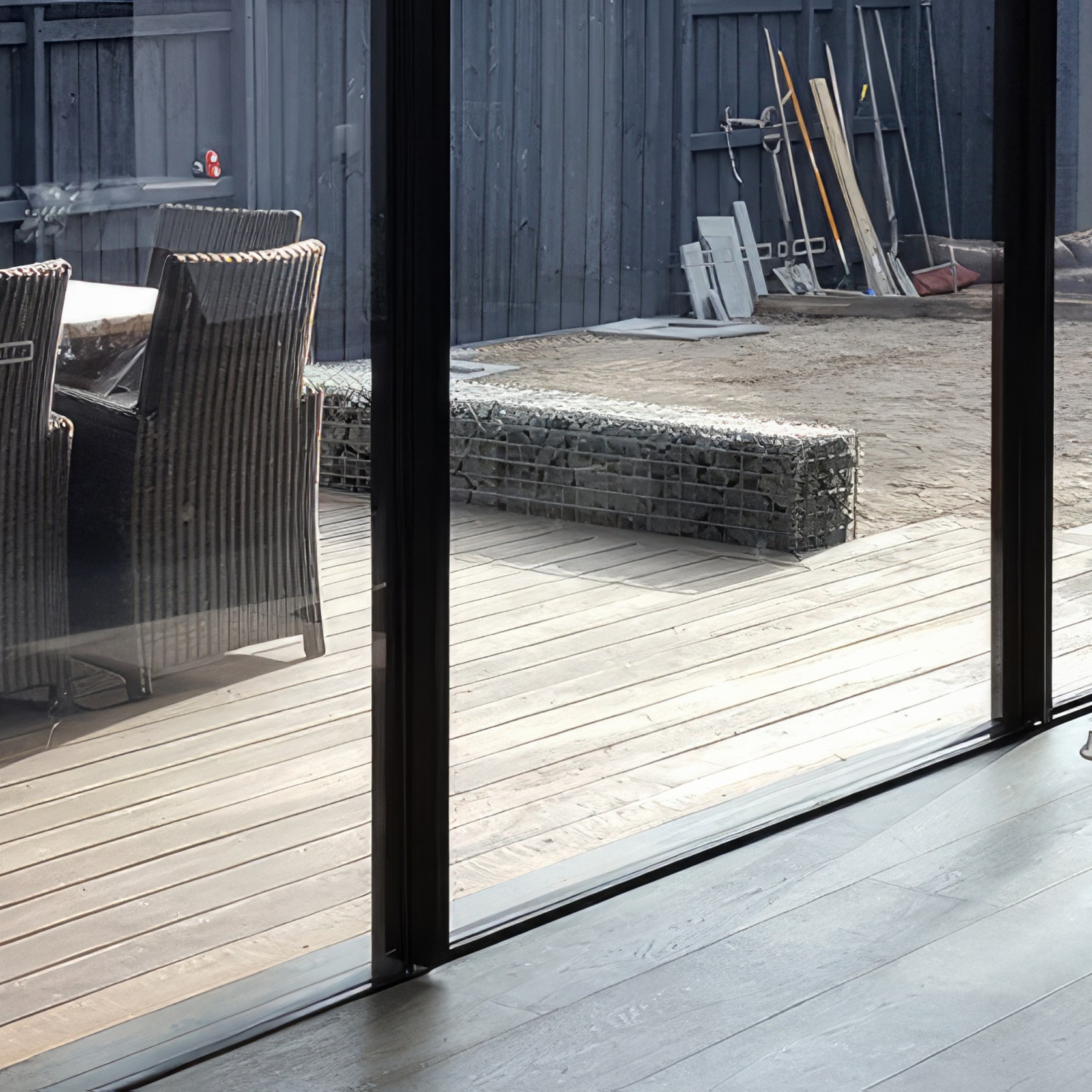

Recessed Jamb
Door jamb is fully concealed into the building envelope and stile recesses into the jamb to deliver clear glass sightlines.Recessed Head
The door head is fully concealed into the building envelope to ensure clear glass sightlines right to the ceiling.Recessed Sill

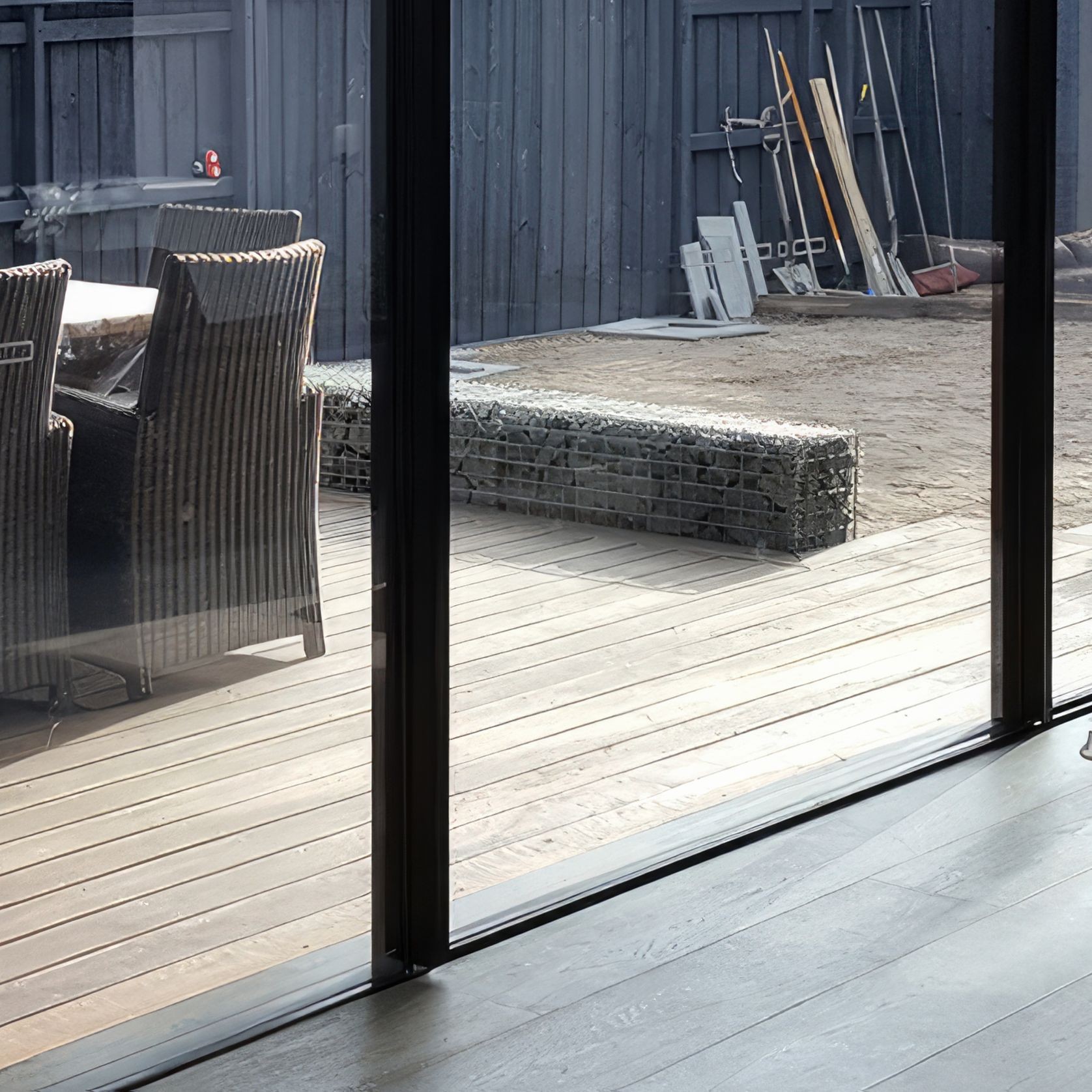

When recessed into floor, clear glass sightlines can be achieved and sill can be combined with a FlowTHRU drain for the ultimate flush sill solution.
Downloads
Downloads (2)2 Direct downloads • 7 Available on request
Installers for
this Product
Frequently asked questions about
Elevate | Series 704FBR | SlideMASTER™ Sliding Door
The Elevate | Series 704FBR | SlideMASTER™ Sliding Door is supplied by Architectural Window Systems. It is also on their website, and you can browse every product Architectural Window Systems lists on ArchiPro.
Architectural Window Systems does not publish a price for the Elevate | Series 704FBR | SlideMASTER™ Sliding Door on ArchiPro. for pricing, or visit their website.
Yes. It is part of the Elevate | Architectural Series range from Architectural Window Systems, where you can see every product in the range together.

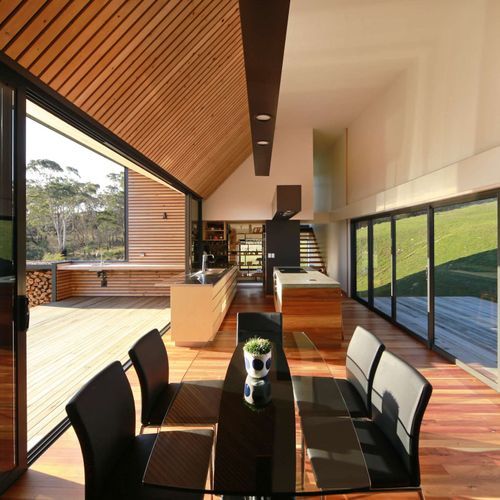

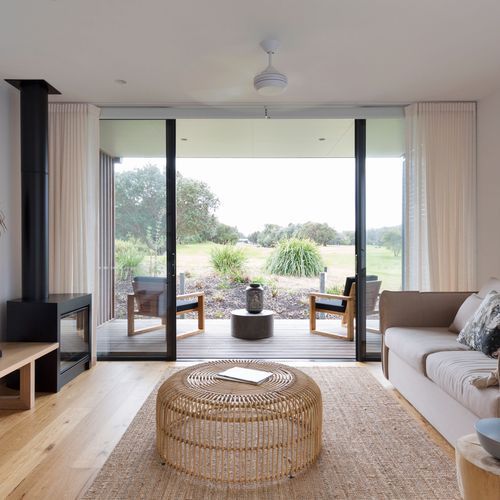

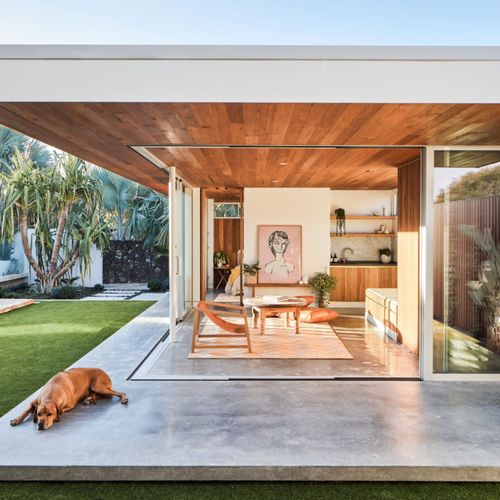

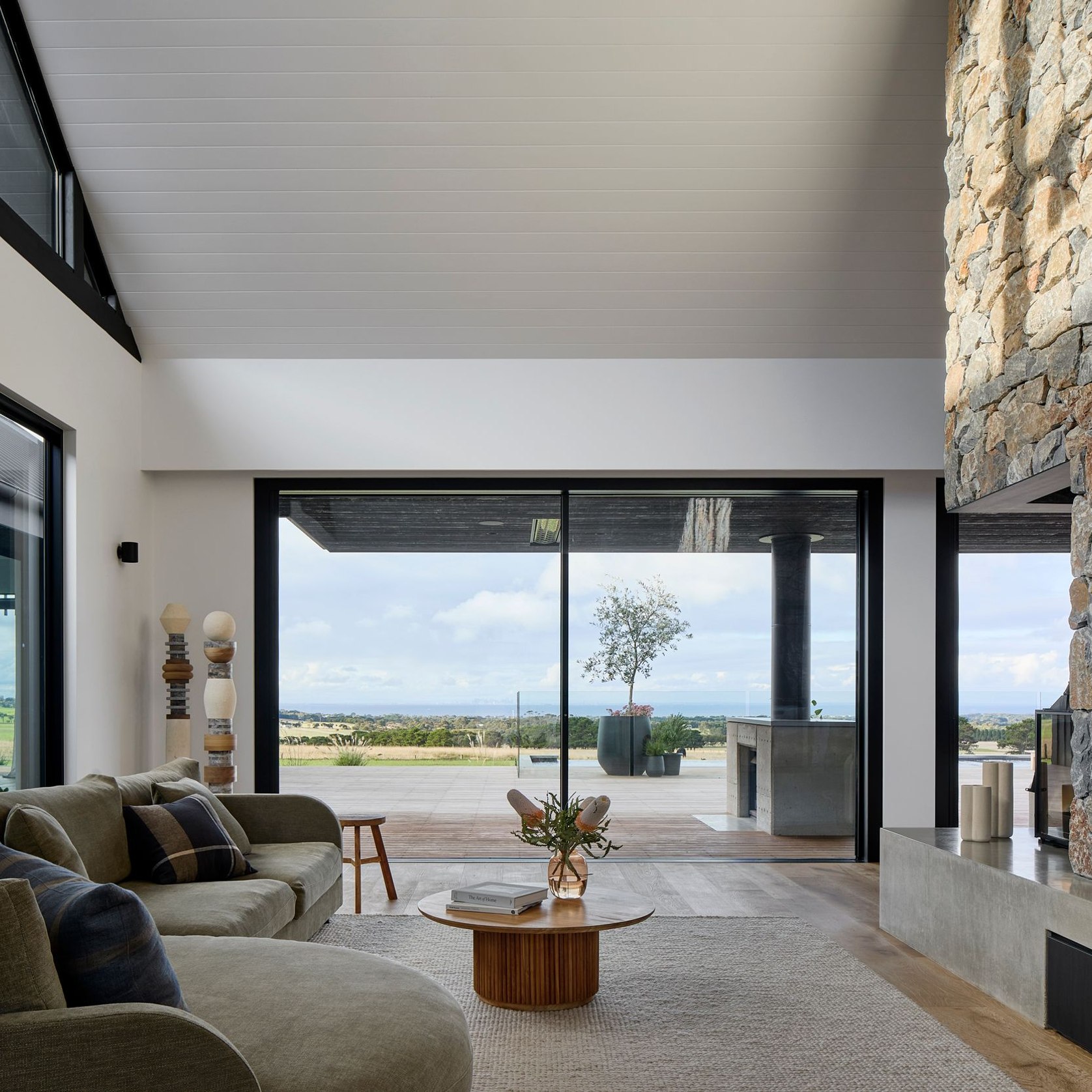

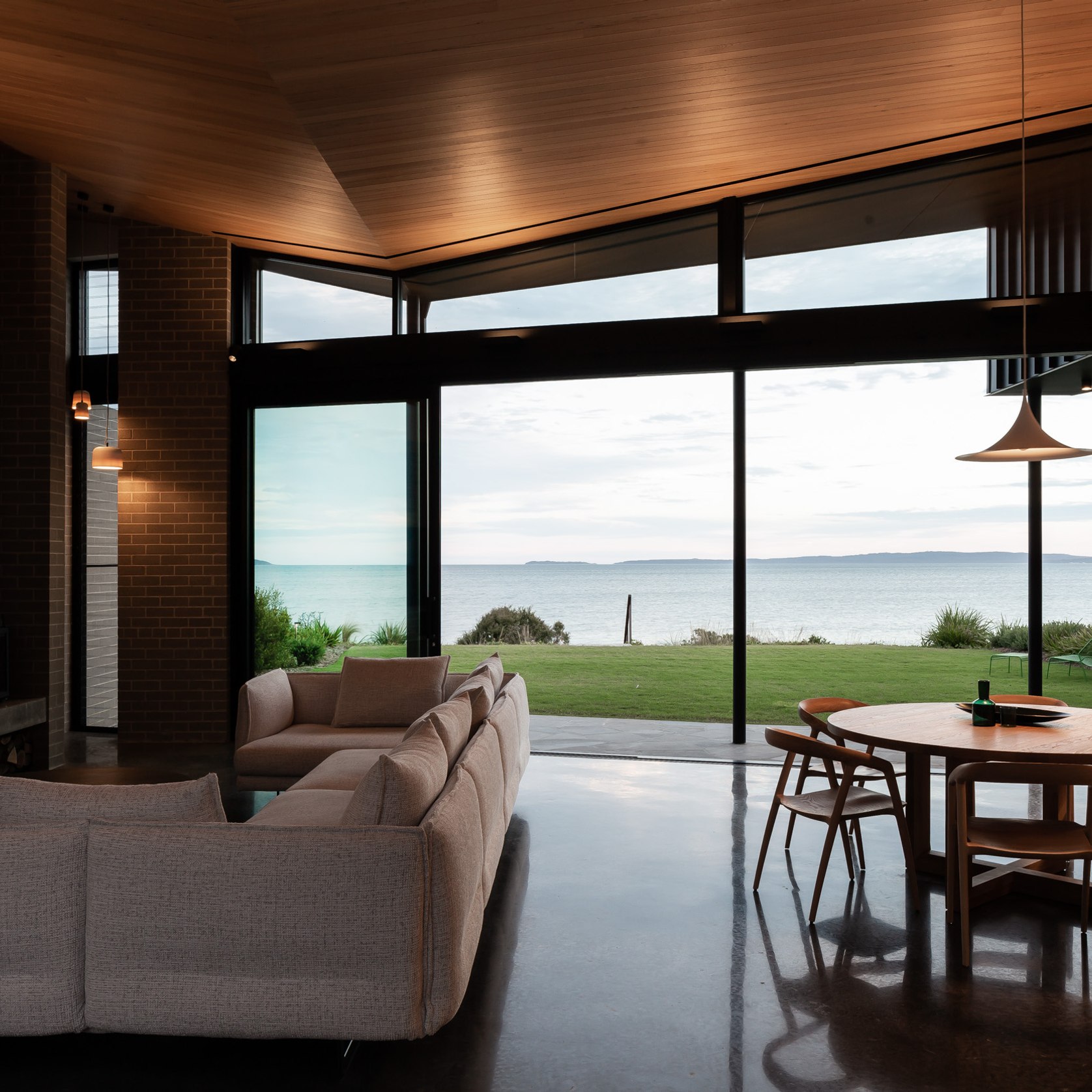

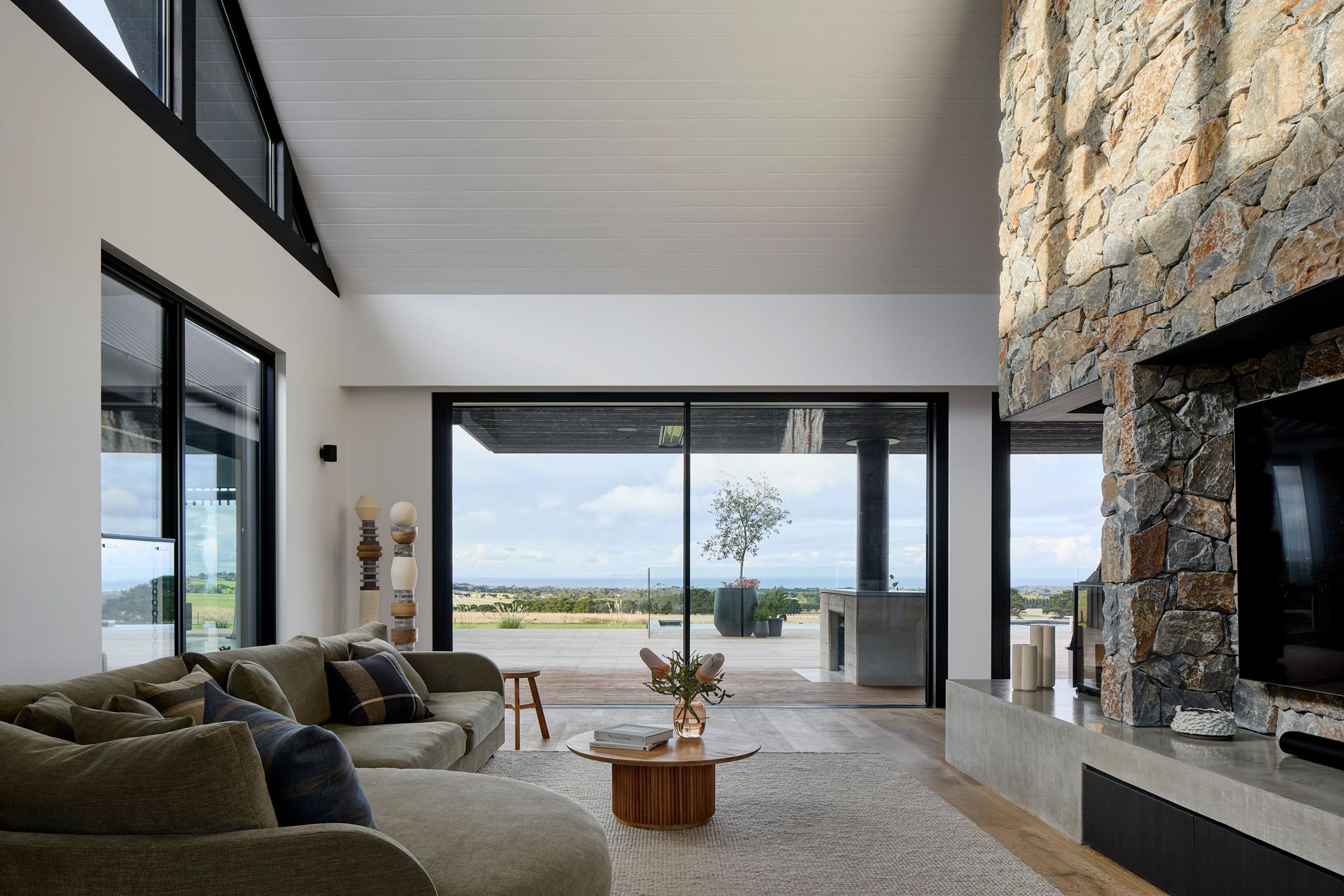

Yes. It has been specified in projects on ArchiPro, including Q House by Architectural Window Systems, Scotchman's View Farmhouse by Architectural Window Systems and Century House by DX Architects. See how it was used in a finished space.
