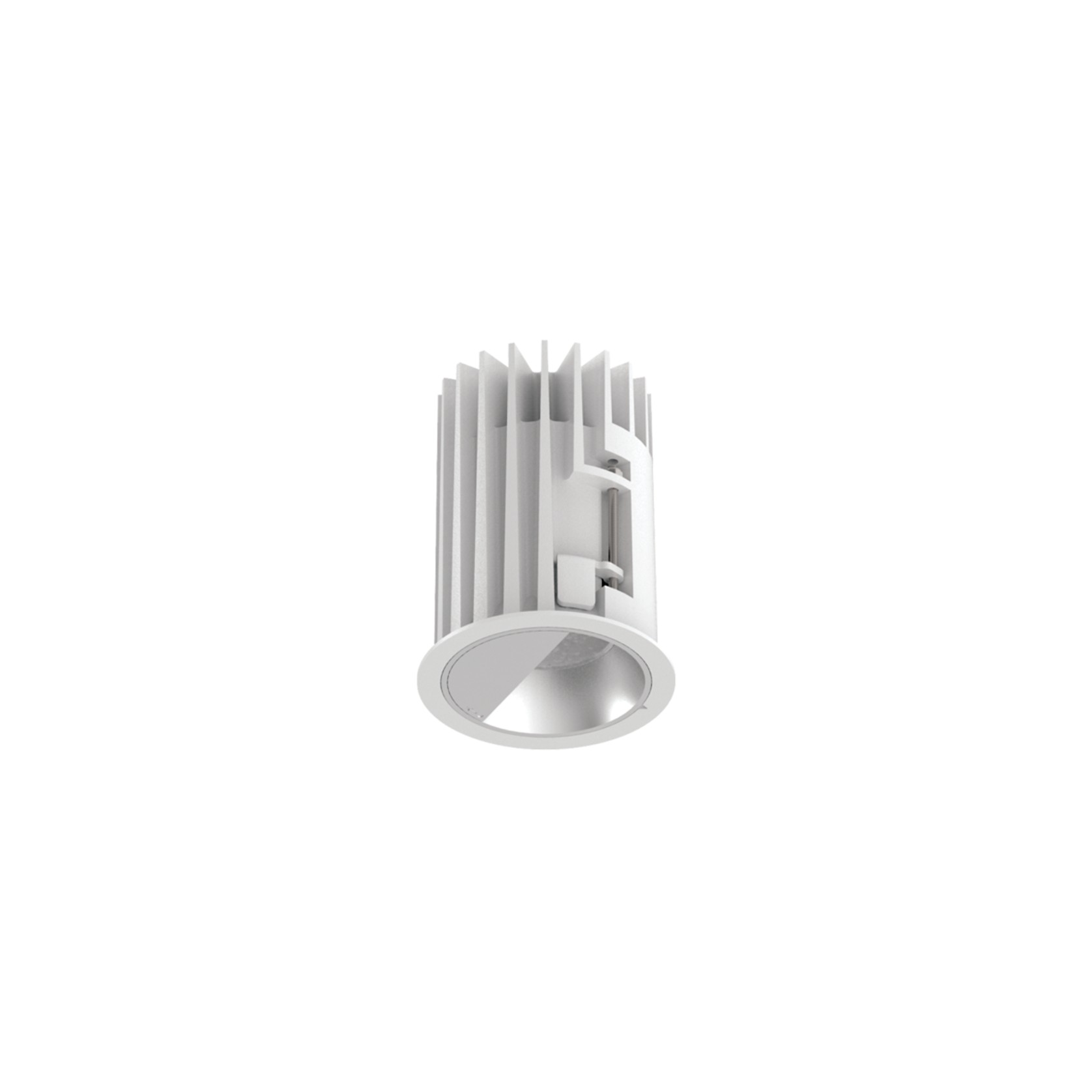

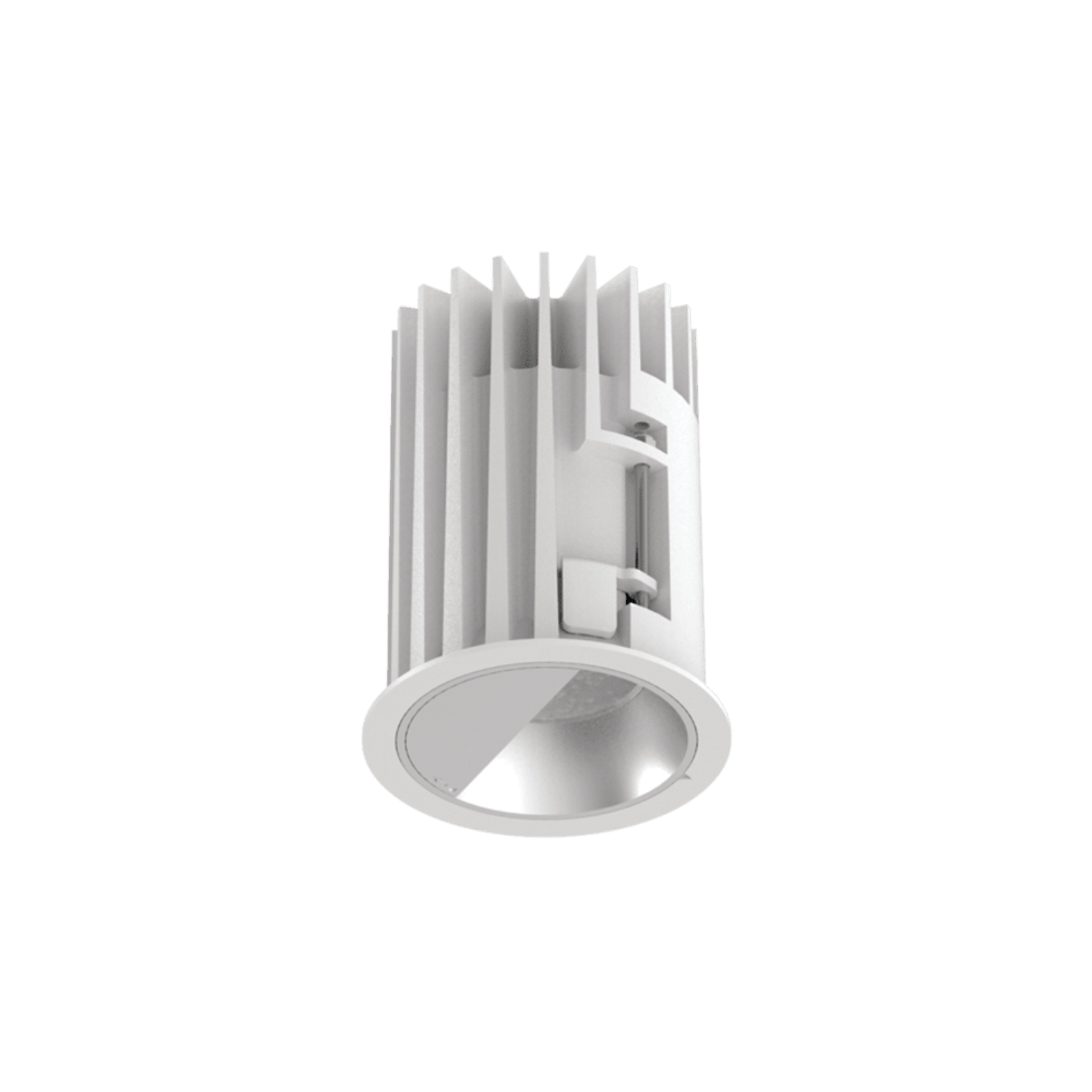

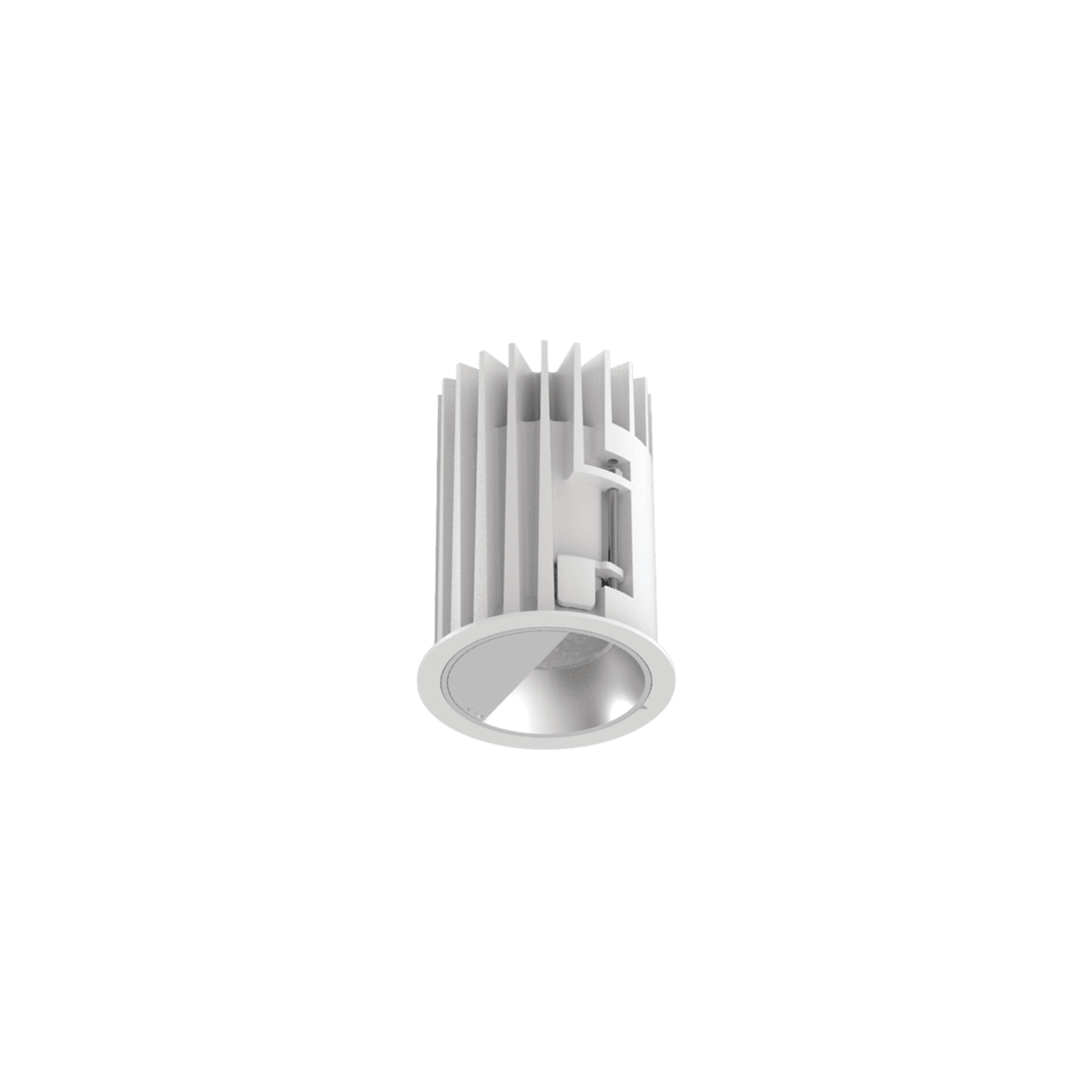

13W/18W Fixed LED Recessed Wall Washer Downlight

A fixed recessed LED architectural wall washer series providing asymmetric distribution with advanced optics for uniform illuminance. The Evolution wall washer offers optimised performance, delivering high lumen emittance from a compact and efficient luminaire. Constructed from a die-cast aluminium housing with a high purity aluminium reflector and a high-grade polycarbonate secondary reflector.

The Evolution-W68 integrates Zhaga compliant Citizen LED technology, with various dimming options from DALI-2/DSI, corridorFUNCTION, ready2mains and basicDIM Wireless control gear alternatives. 5 year warranty as standard.

Details
  • Category
    Downlights
  • Range
    Downlights
  • Warranty
    5 years
Specifications

Technical Specifications

Wattage:

  • 13W (System 15W)
  • 18W (System 21W)

Luminous Flux:

  • 820-880 Lm
  • 1100-1200 Lm

Luminaire Efficacy:

  • 63.07 Lm/W
  • 61.11 Lm/W

CCT:

  • 3000K
  • 4000K

CRI: >90

Beam: Asymmetric

Colour Deviation: 3-SDCM

UGR: <13

Size: Ø77mm x Height 100mm

Cut out size: Ø68mm

Dimming:

  • Non-dimmable
  • DALI-2
  • BLE (basicDIM Wireless / Casambi)

Longevity: >50,000Hrs L80 B10

Finish Options:

  • Black
  • White

Baffle Colour:

  • White
  • Black
  • Matt

Warranty: 5 Years

SKU: evoluti-1
