Exterior X25 series is available in Black 316 STS, Polished 316 STS or Copper in 2700K, 3000K, 4000K and RGBW with multiple beam angle options the Mini X25 series can be configured and customised to your precise requirements. Inground installation housings, DIY style plug and play extension cable and socket accessories available.

Product Details

Product: Exterior Mini Recessed Multi-use Light
Category: Deck Lights
Sold by: Halcyon Lighting
Range: X25 X55
Light bulb type: LED
Warranty: 5 years

Product Variants

Colours

Halcyon Lighting is specified by

Inground installation housings, DIY style plug and play extension cable and socket accessories available.

Specs

X25 Series

Watts 1W
Input 8-25V DC Variable Voltage (Non Dim), 24V DC Constant Voltage (RGBW)
Dimensions X25: D25 x H41mm, X26 X27 X28 X29 X30 X32: D25 x H45mm, X31: L25 x W25 x H41mm
Cut Out Ø19mm
Colour Temp 2700K, 3000K, 4000K or RGBW
Lumens <60lm
CRI >80
Lifespan 40,000hrs (L80 B10)
Beam Angle 17°, 36°, 360° or ambient light source
Material 316 Stainless Steel or Copper
IP Rating IP67
IK Rating IK10
Clearance 0mm clearance required
Classification IC-F Rated
Driver Sold separately
Dimming/Control Non-dimmable
Application Exterior or interior, multi-use
Weight Capacity <2000kg
Complete With 500mm feed cable. Single colour pre-wired with quick connect IP67 plug. See wiring accessories for compatible extensions/sockets. RGBW not compatible with quick connect accessories.
Warranty 5 Year Warranty

Features

IP67
IK10
IC-F

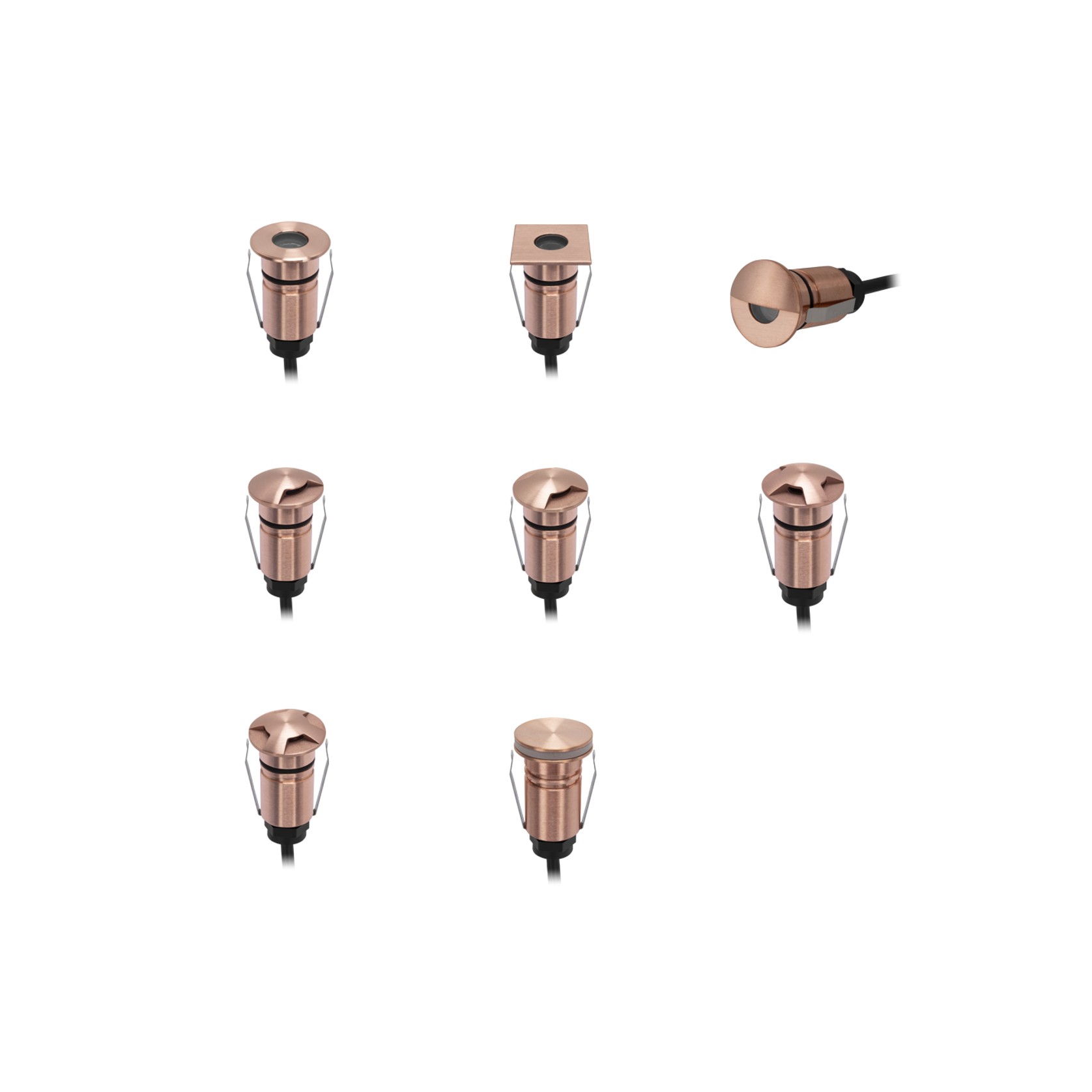

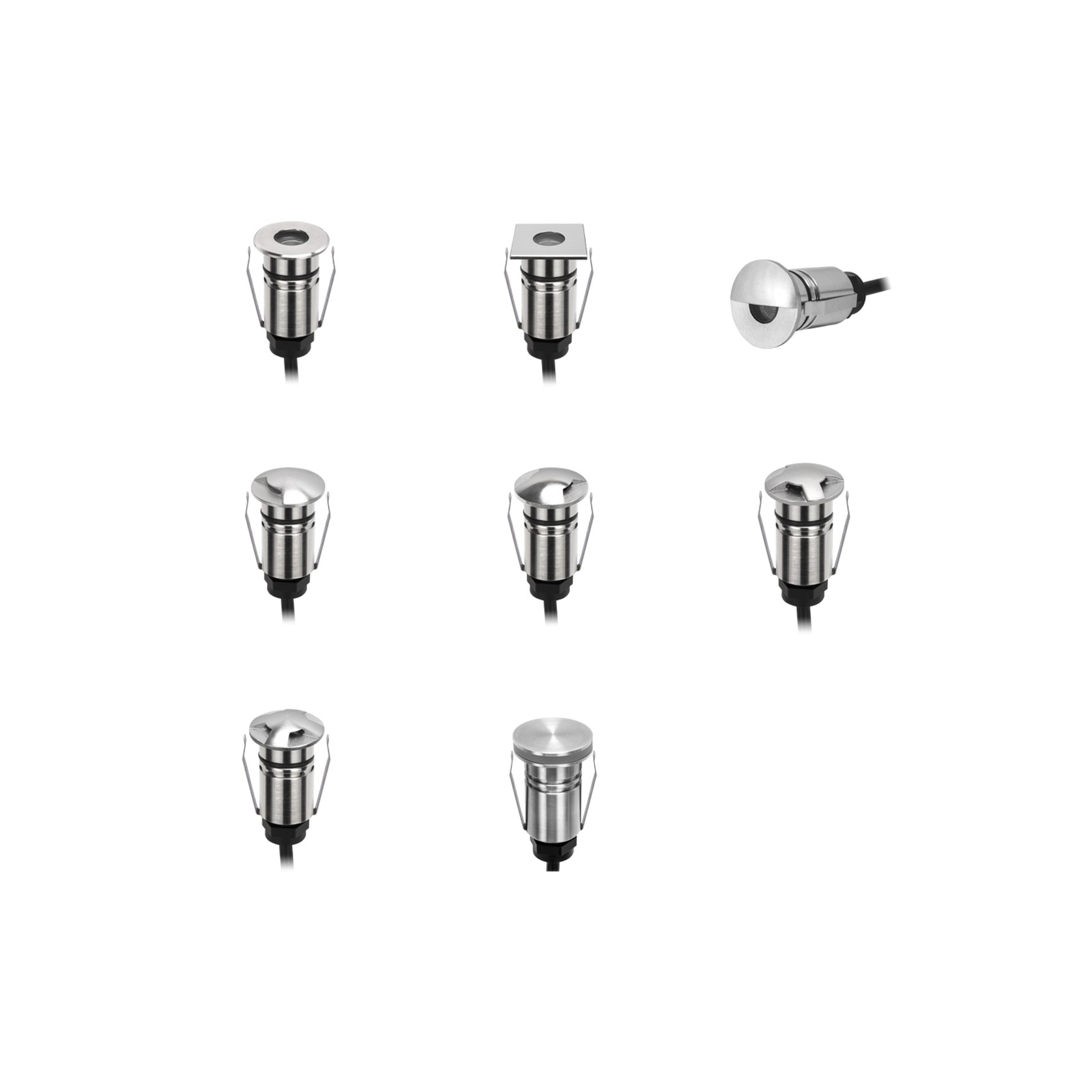

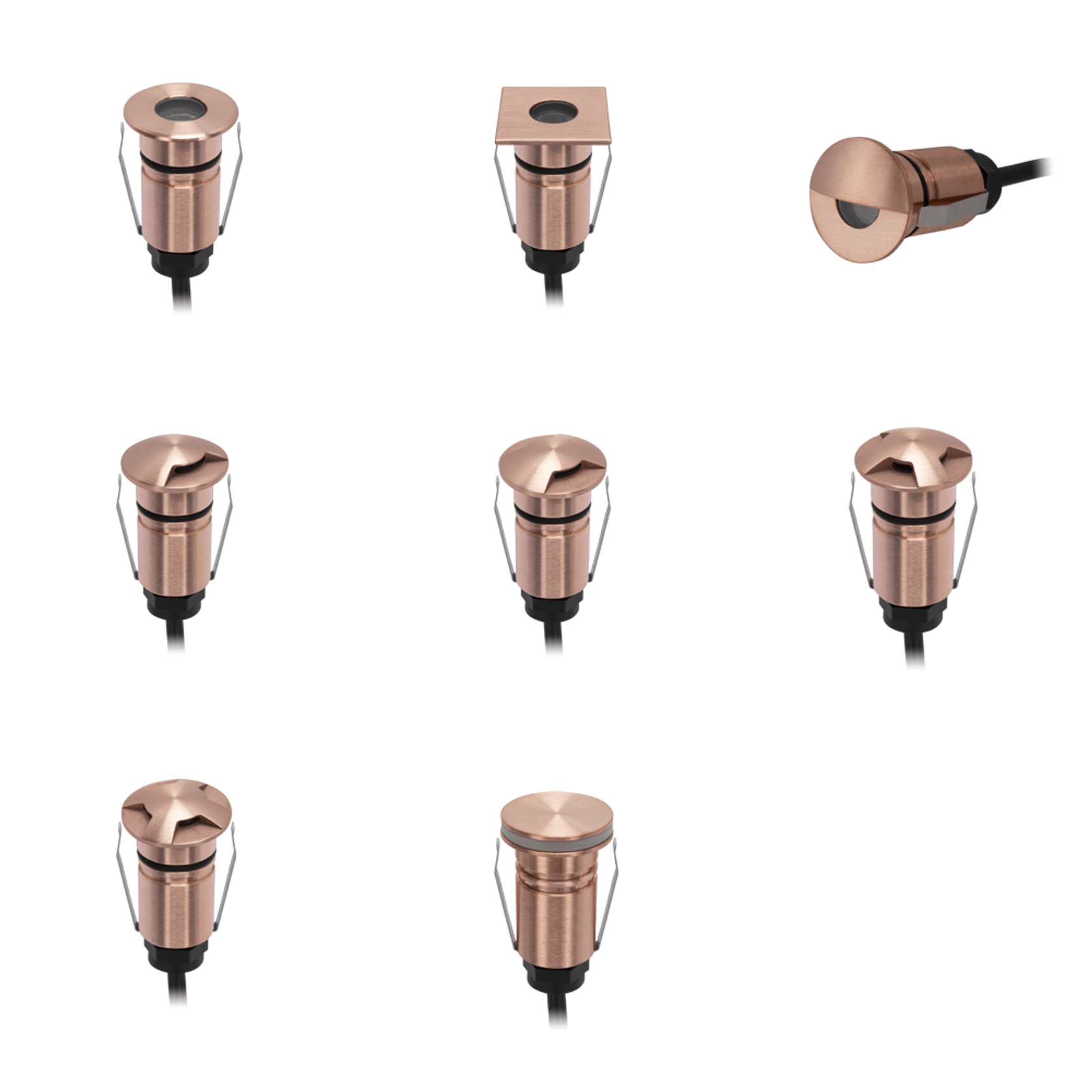

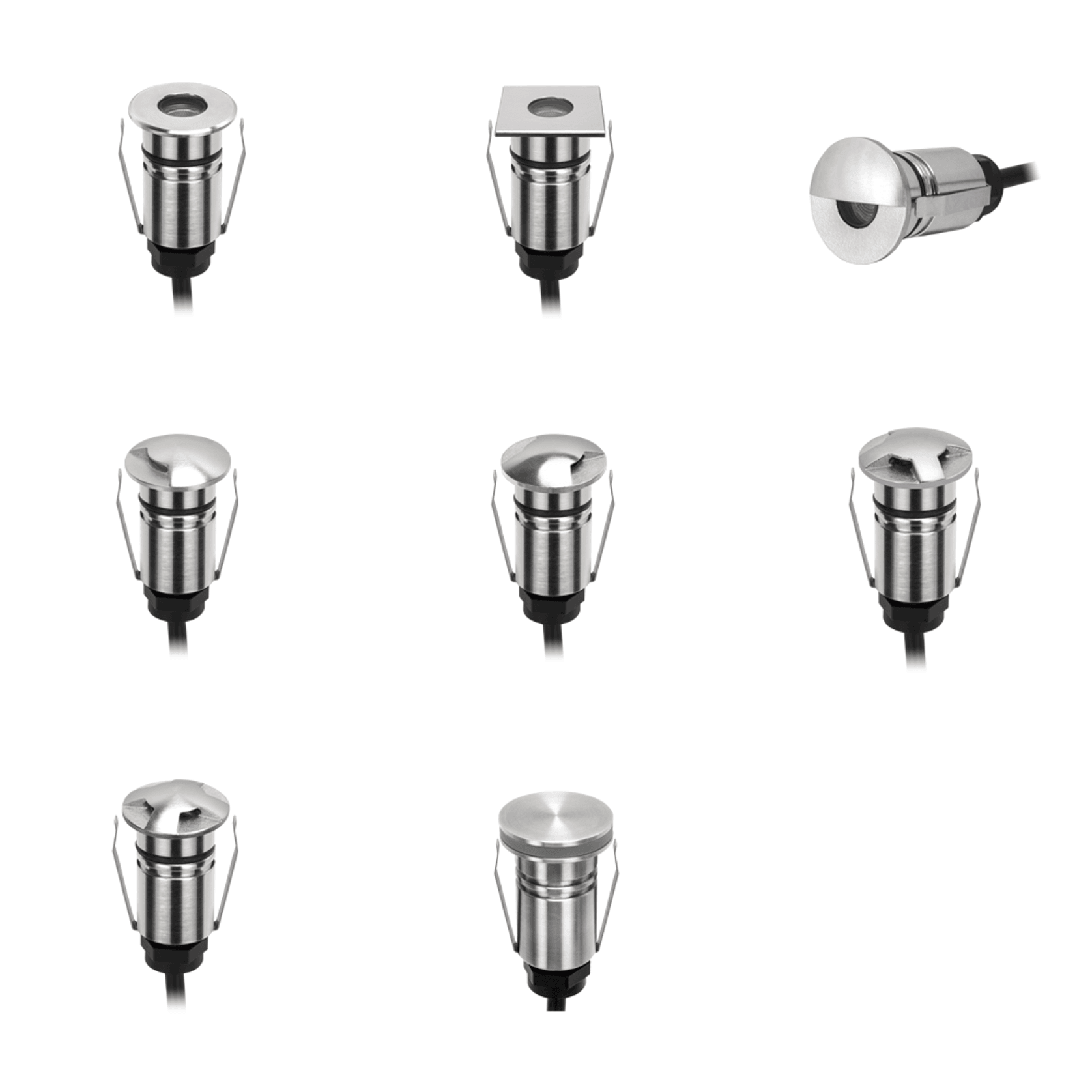

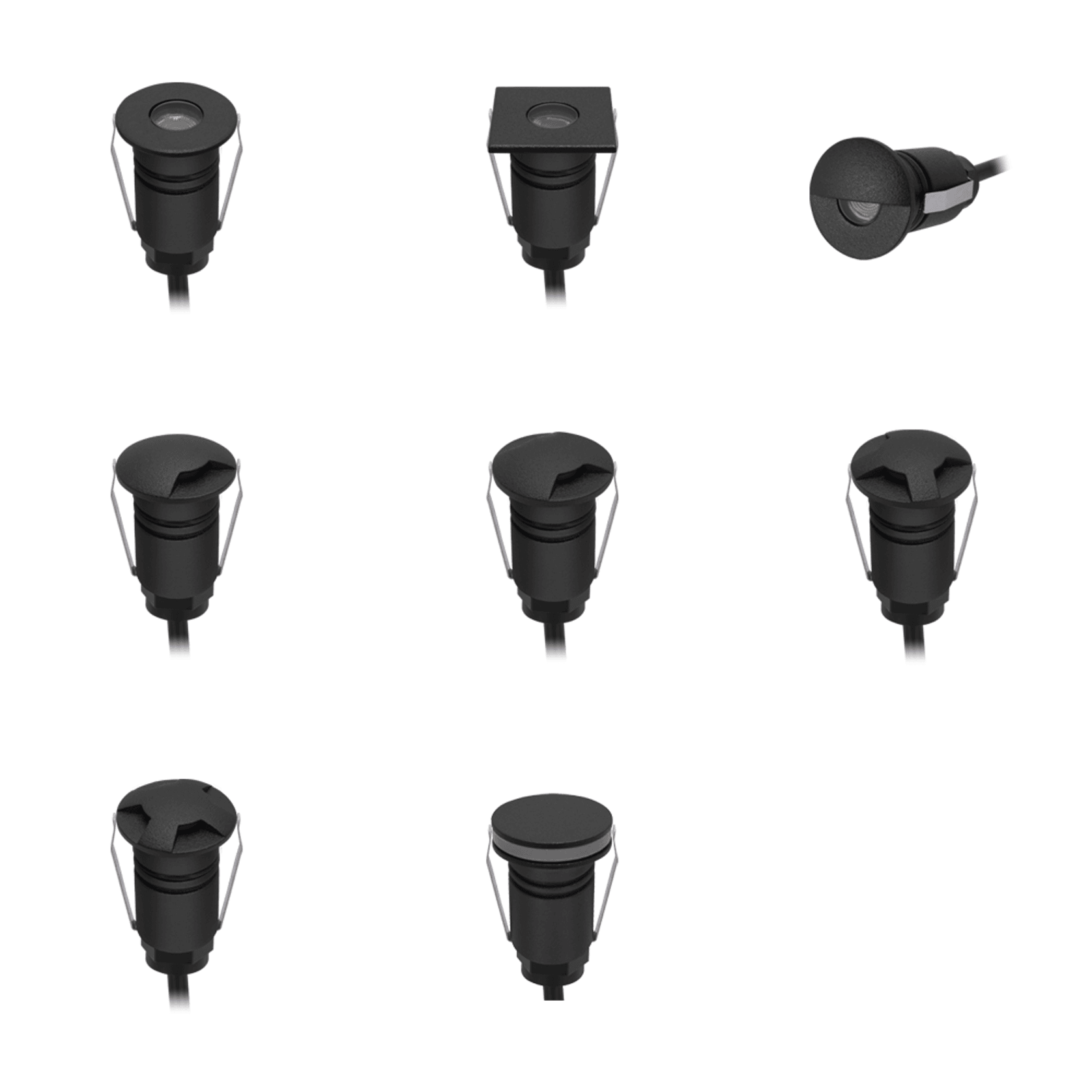

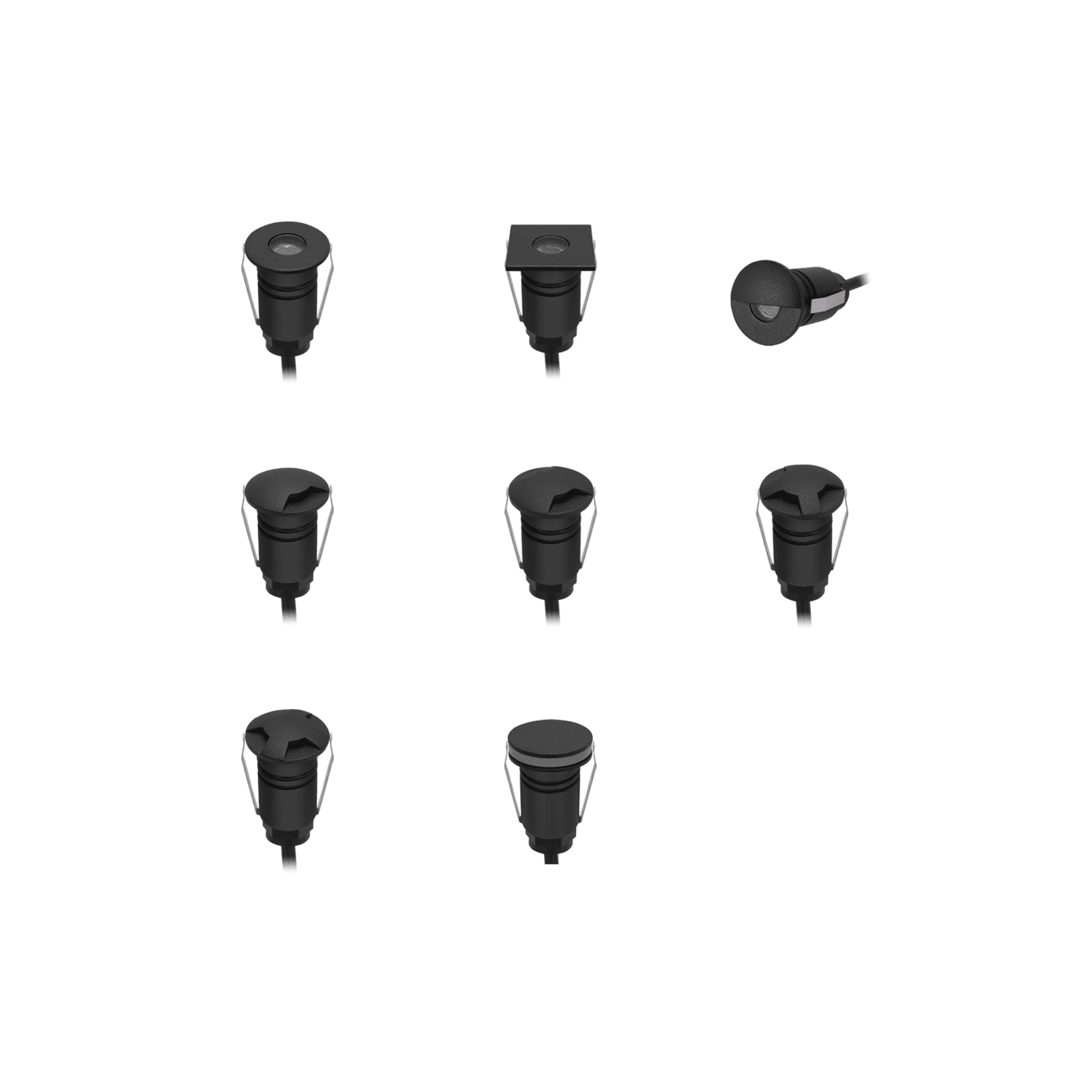

Available in 7 different styles - Round, Square, Eyelid, 1-Way, 2-Way, 3-Way, 4-Way, Halo
Available in Black 316 STS, Polished 316 STS or Copper
Available in 2700K, 3000K, 4000K or RGBW
Available in 17° or 36°
Non-dimmable options are powered by a 8-25V DC module. Suitable for use with 12V or 24V DC power supplies or long circuits with a high volt drop.

Scope of use

Exterior or interior, multi-use
