Exterior Recessed Multi-use Light

Exterior X55 series is available in Black 316 STS, Polished 316 STS or Copper in 2700K, 3000K, 4000K and RGBW with multiple beam angle options the Small X55 series can be configured and customised to your precise requirements.

Specs

X55 Series

Watts 2.5W
Input Voltage 10-25V DC Variable Voltage (Non Dim), 24V DC Constant Voltage (Dim, RGBW)
Dimensions X55: D55 x H82mm. X61: L55 x W55 x H82mm. X56 X57 X58 X59 X60 X62: D55 x H90mm
Cut Out Ø43mm
Colour Temp 2700K, 3000K, 4000K or RGBW
Lumens <170lm
CRI >80
Lifespan 40,000hrs (L80 B10)
Beam Angle 19°, 36°, 60°, 360° or 20x40°
Material 316 Stainless Steel or Copper
IP Rating IP67
IK Rating IK10
Clearance 0mm, zero clearance required
Classification IC-F Rated
Driver Sold separately
Dimming/Control Non-dimmable or Dimmable (Phase cut)
Application Exterior or interior, multi-use
Weight Capacity <2000kg
Complete With 500mm feed cable. Single colour pre-wired with quick connect IP67 plug. See wiring accessories for compatible extensions/sockets. RGBW not compatible with quick connect accessories.
Warranty 5 Year Warranty

Features

• IP67
  • IK10
  • IC-F

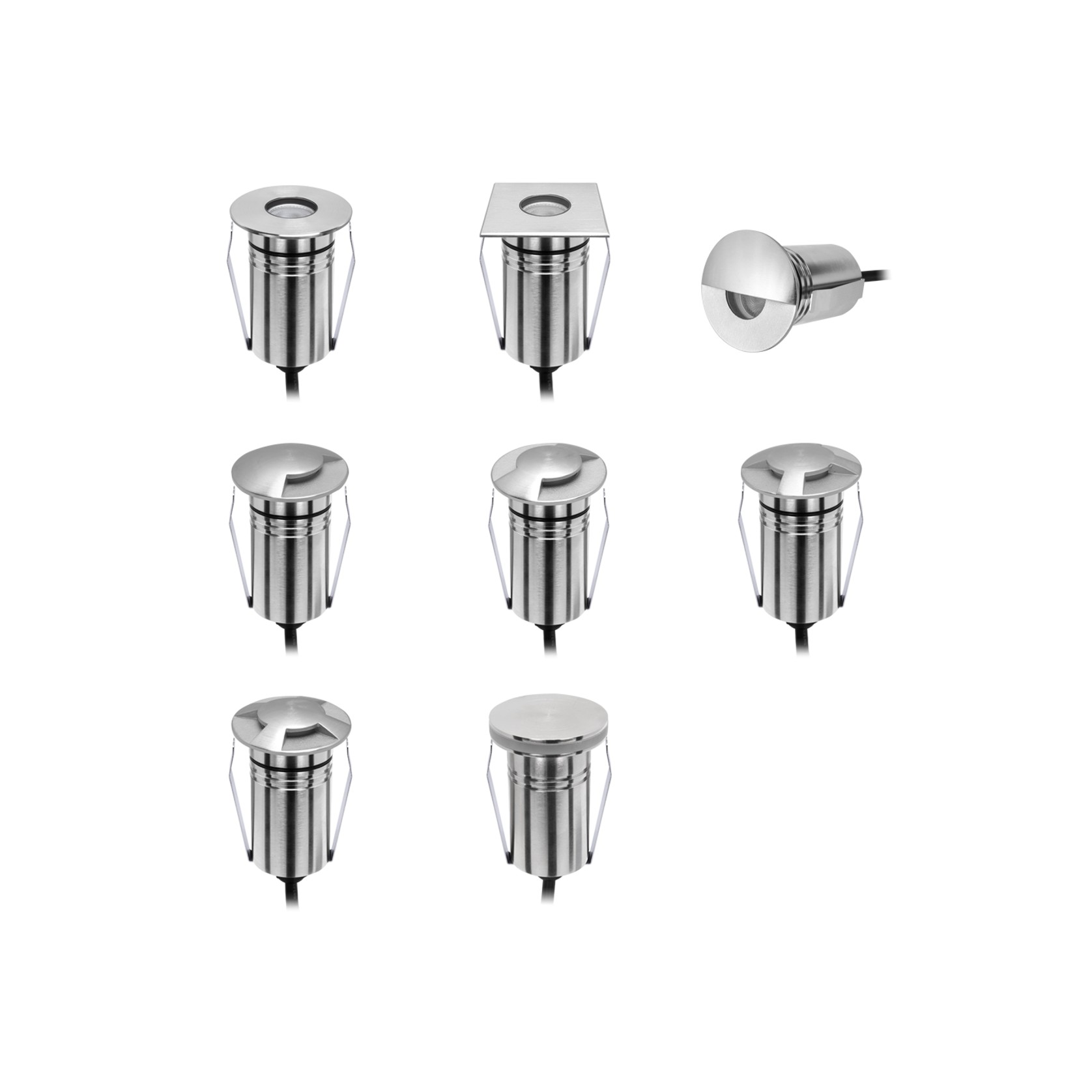

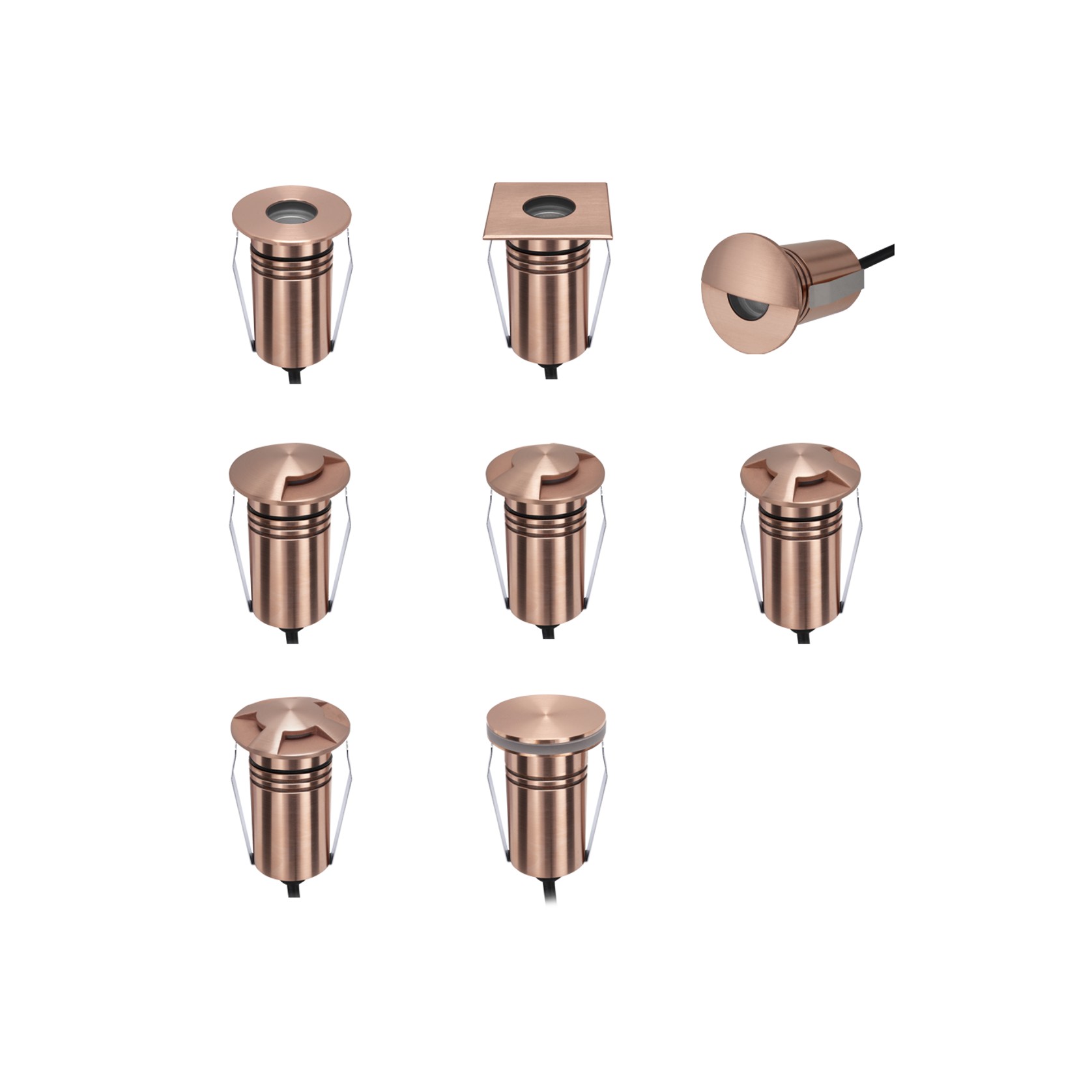

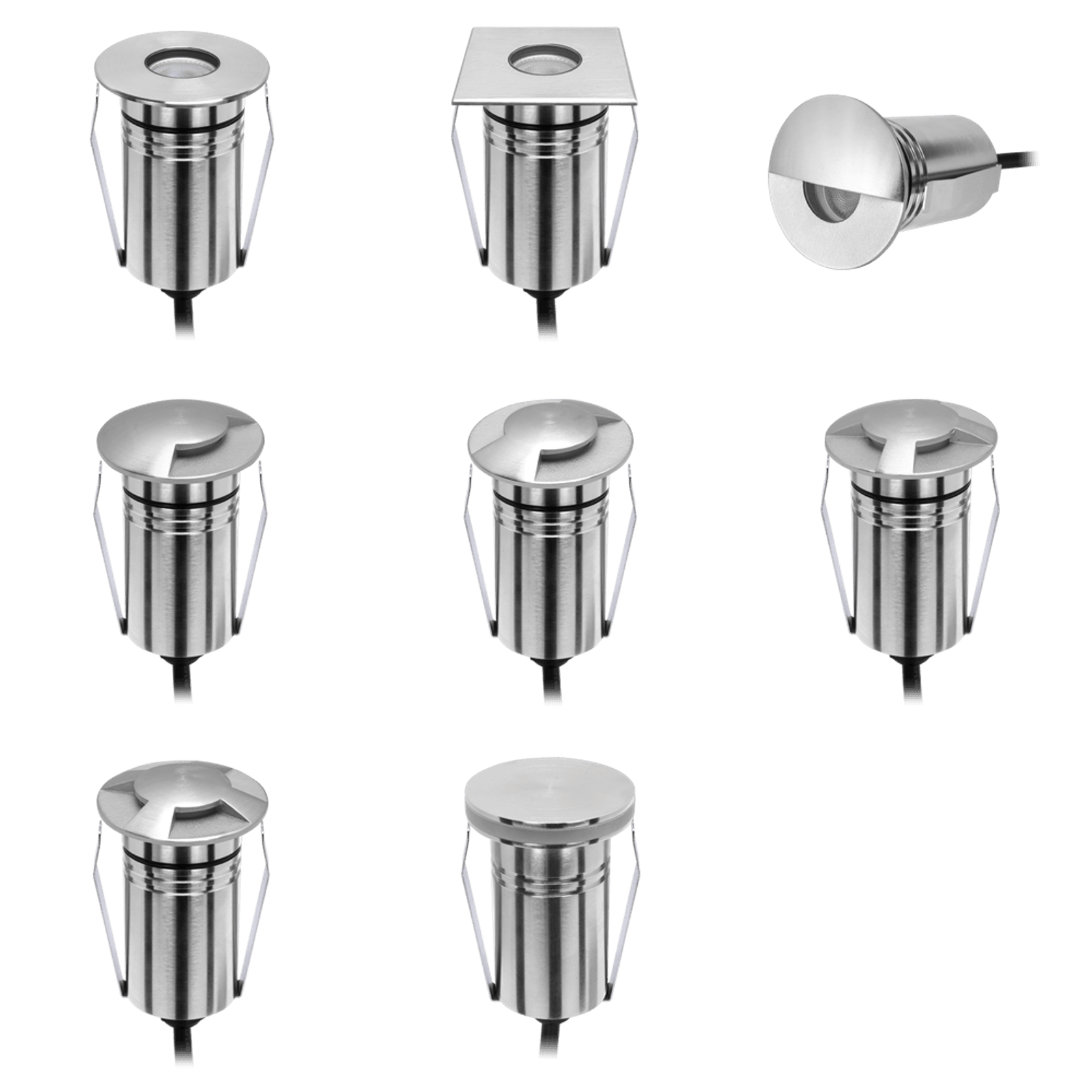

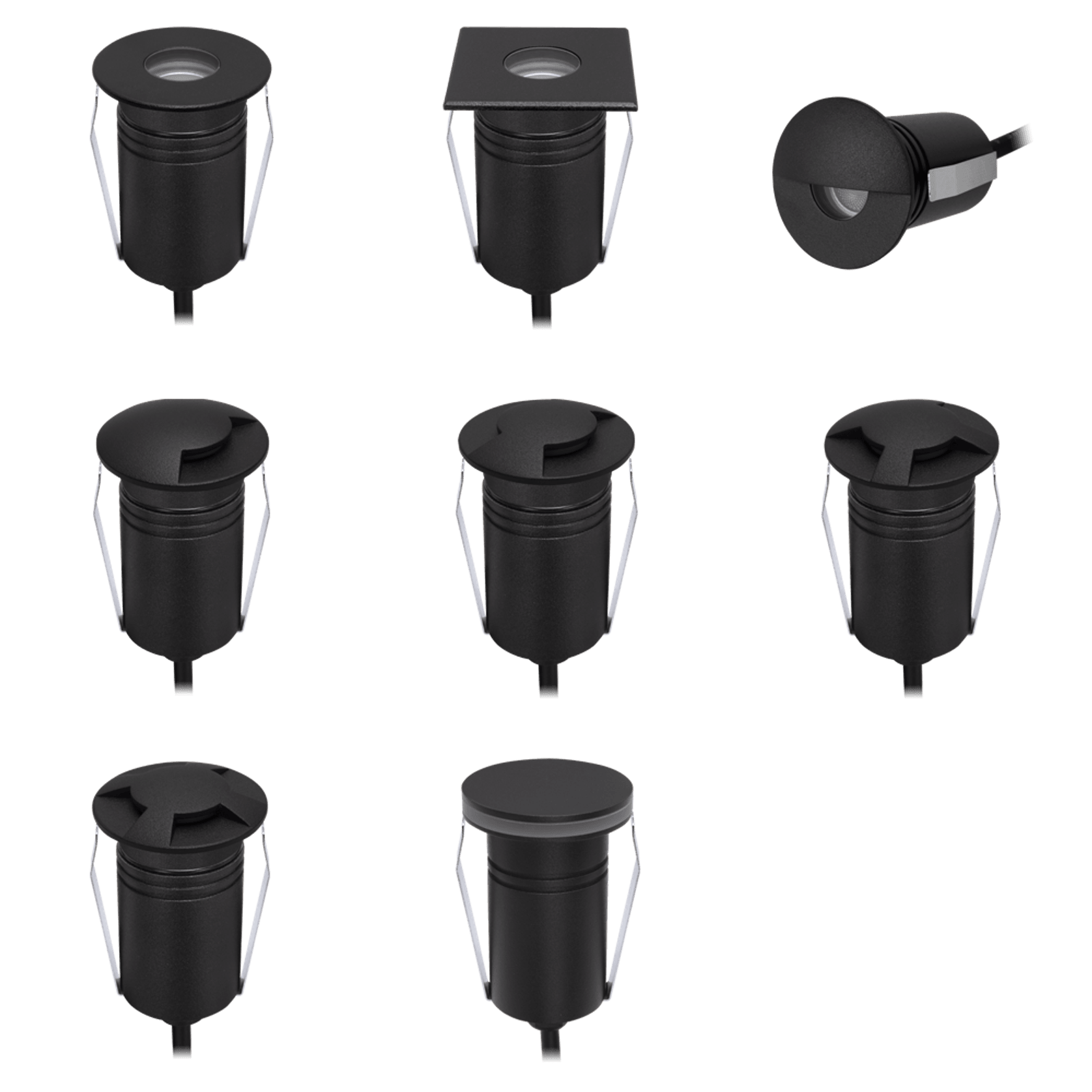

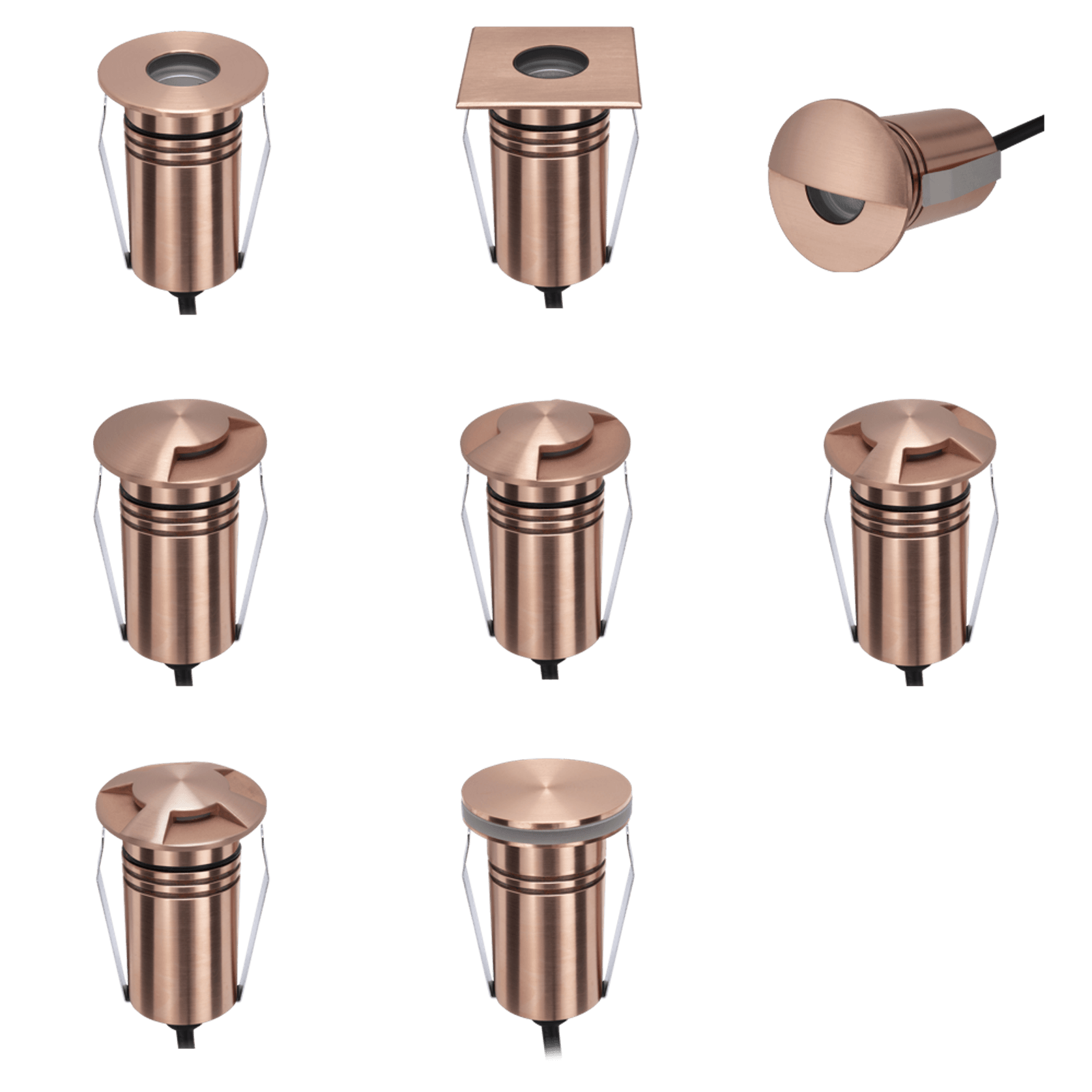

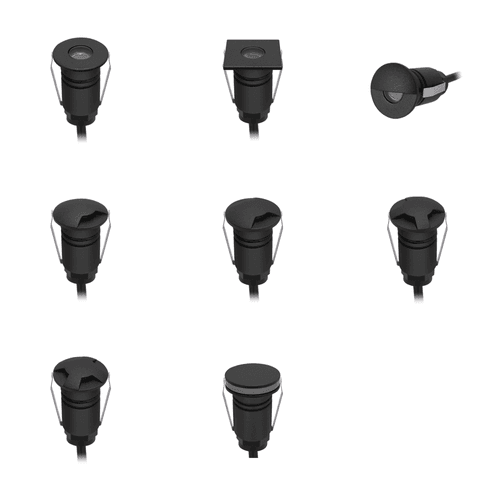

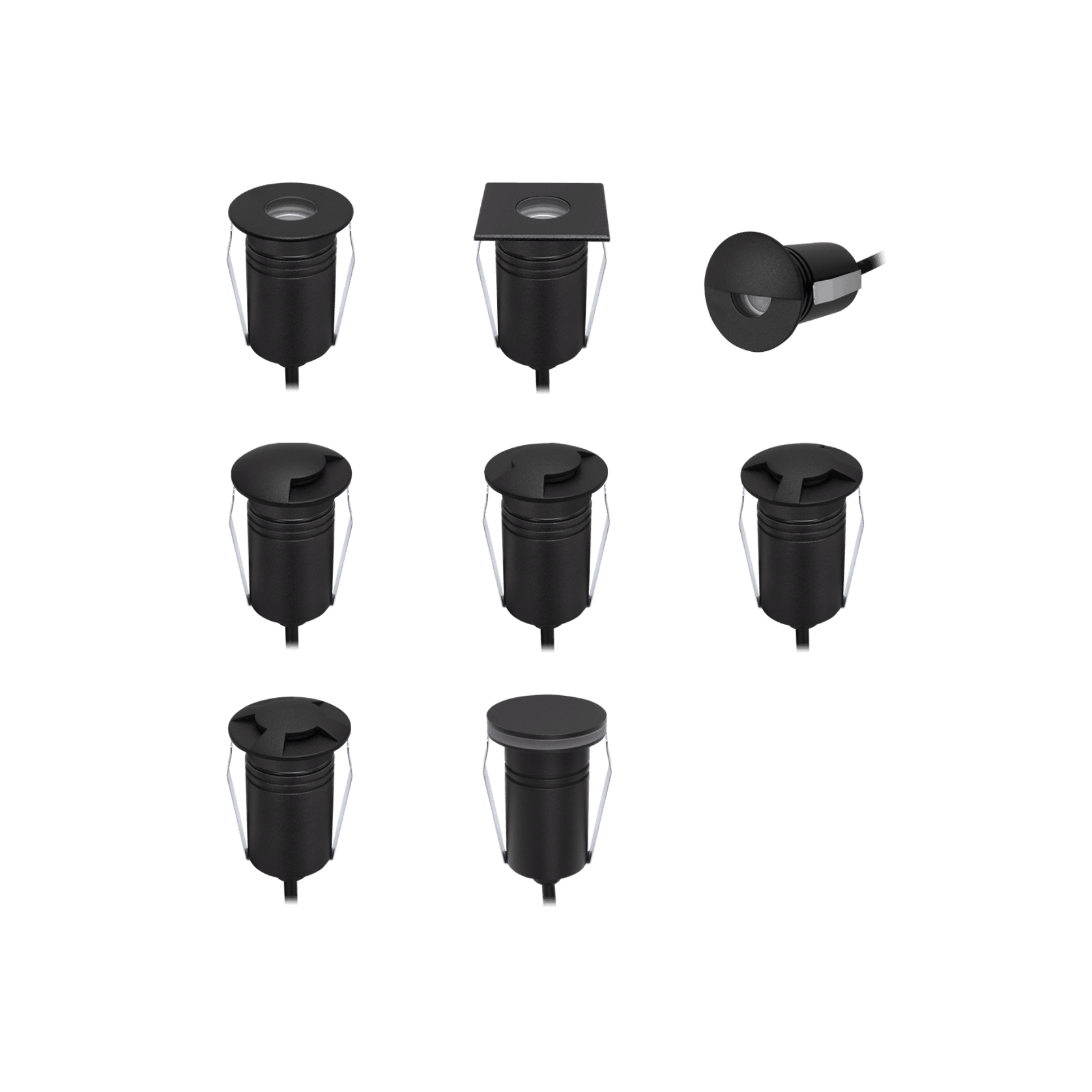

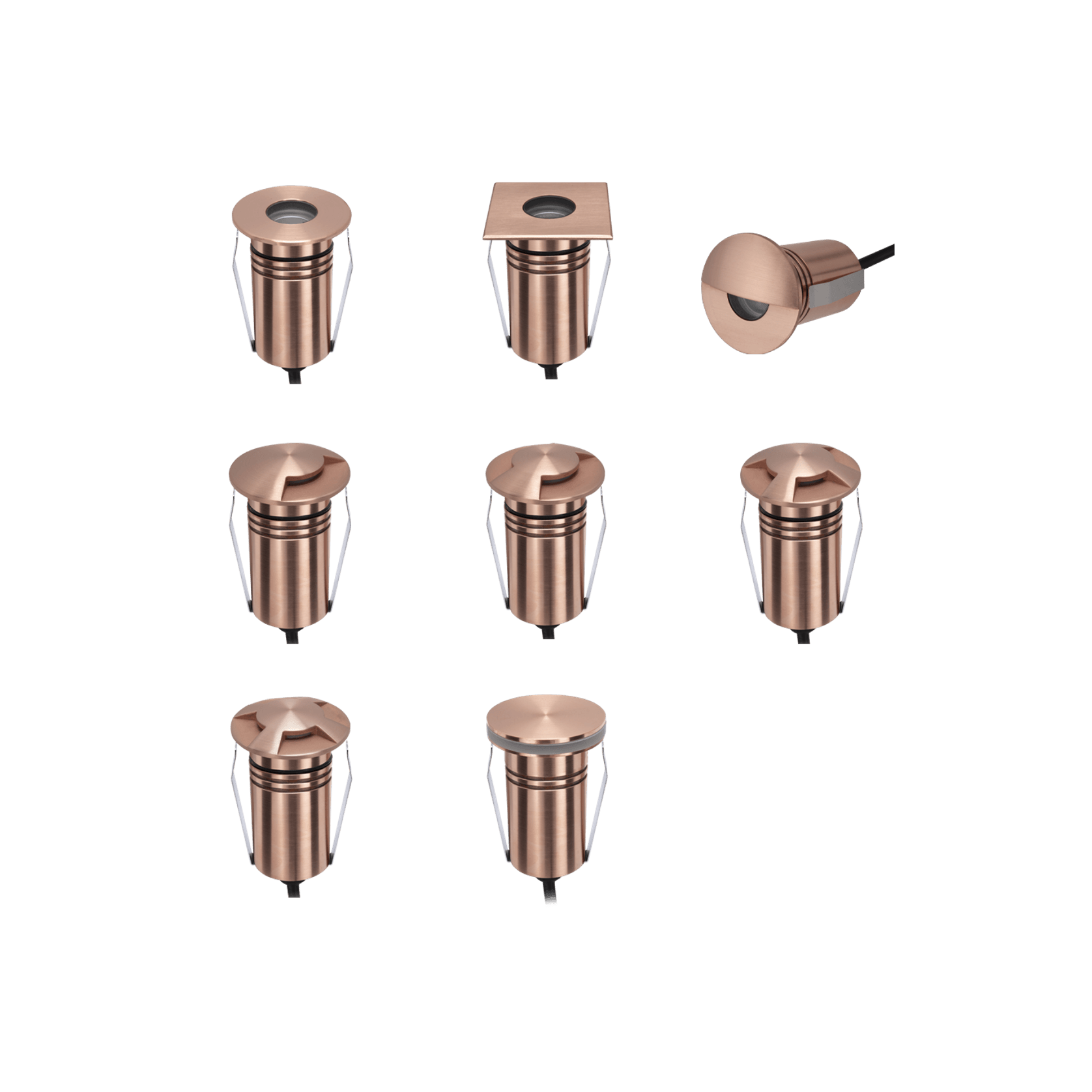

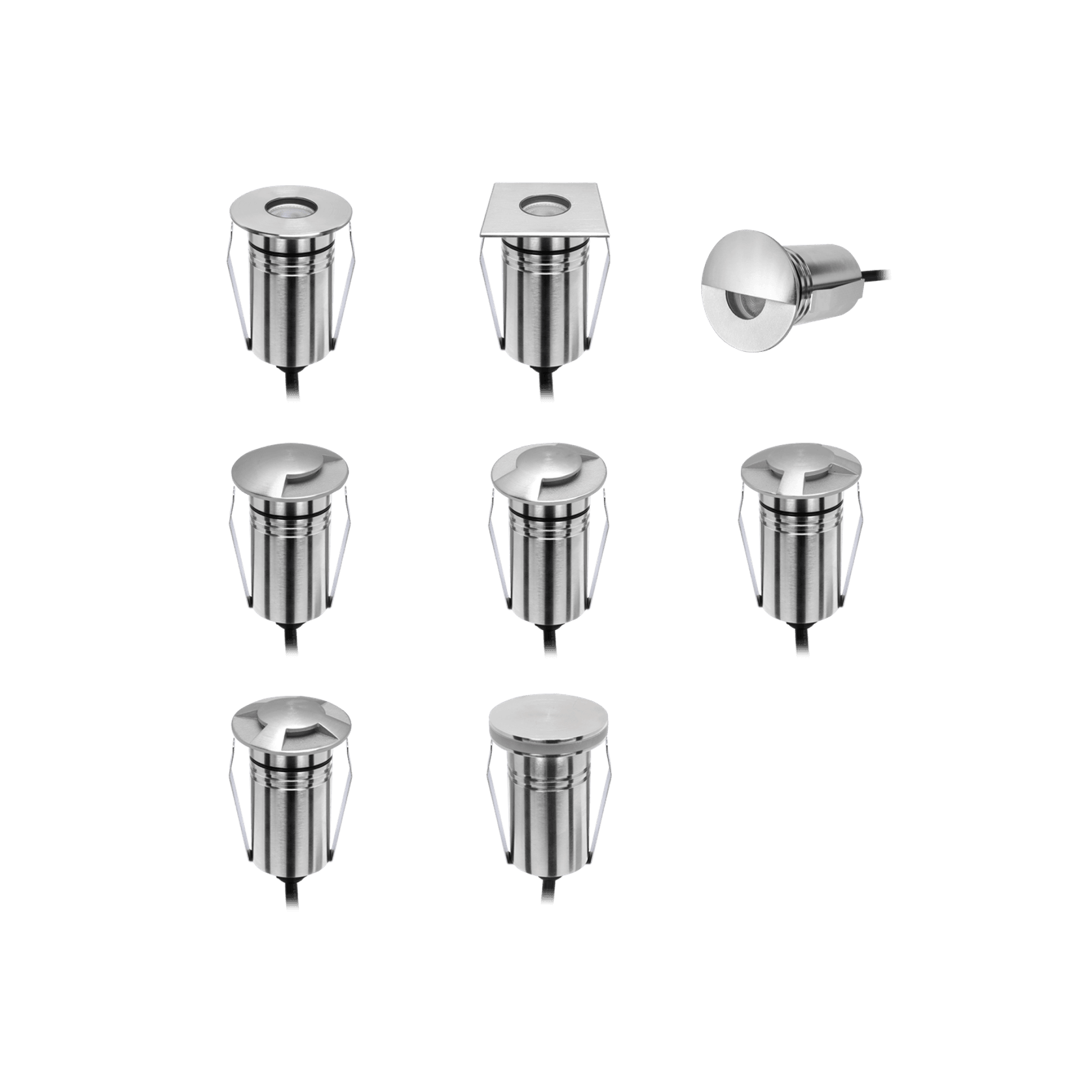

  • Available in 7 different styles - Round, Square, Eyelid, 1-Way, 2-Way, 3-Way, 4-Way, Halo
  • Available in Black 316 STS, Polished 316 STS or Copper
  • Available in 2700K, 3000K, 4000K or RGBW
  • Available in 19° 36°, 60°, Asymmetric 20x40°, Frosted Diffuser, Honeycomb or Linear Spread lens
  • Non-dimmable options are powered by a 10-25V DC module. Suitable for use with 12V or 24V DC power supplies or long circuits with a high volt drop.

Scope of use

Exterior or interior, multi-use
