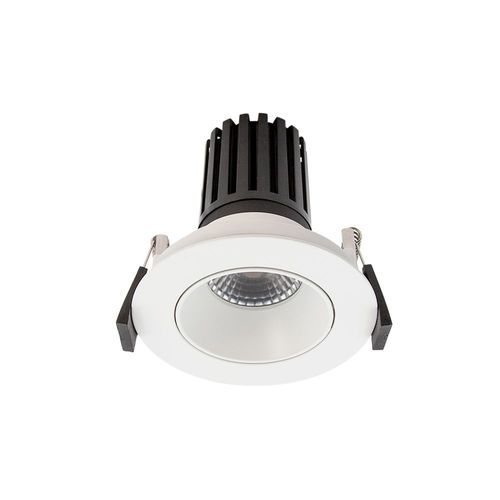

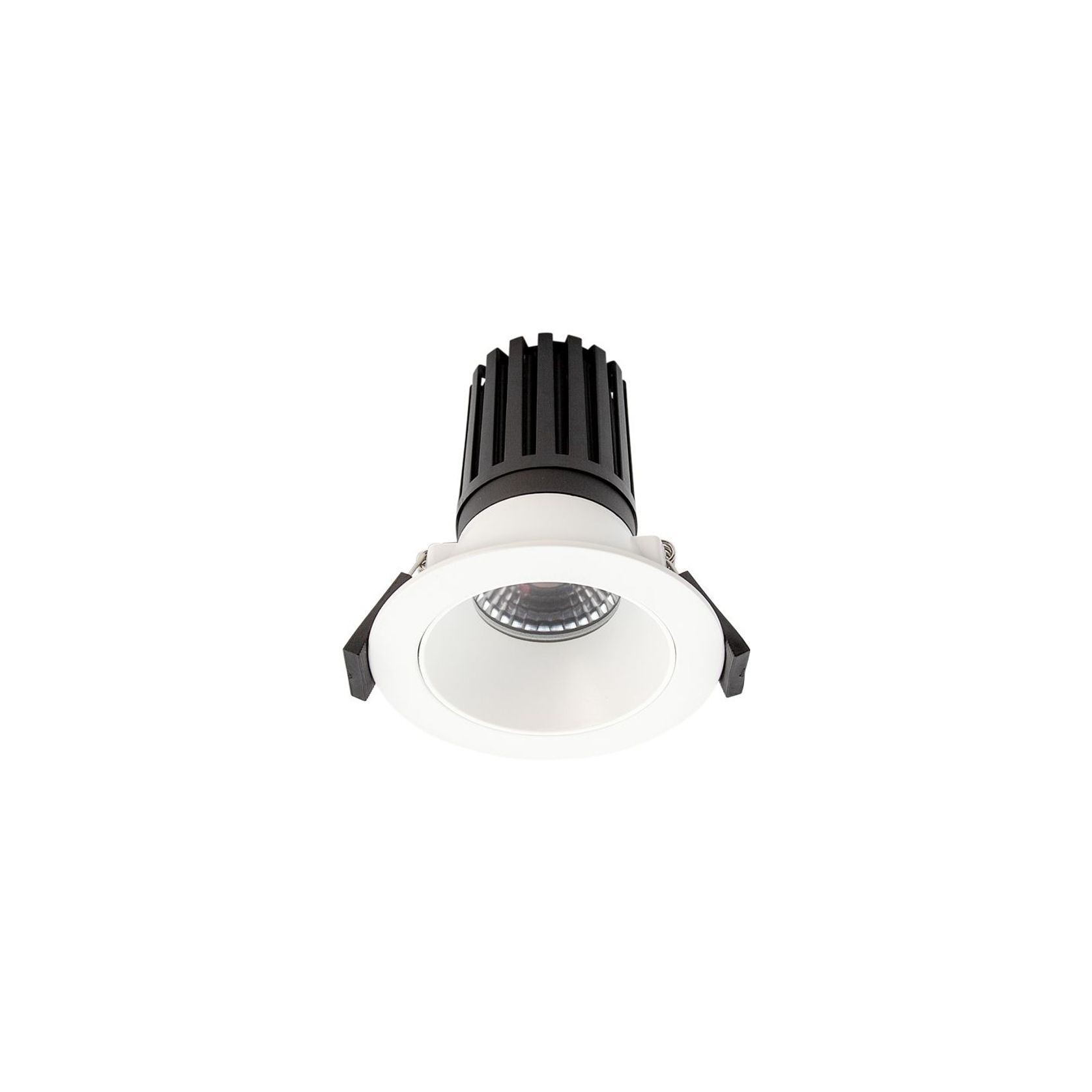

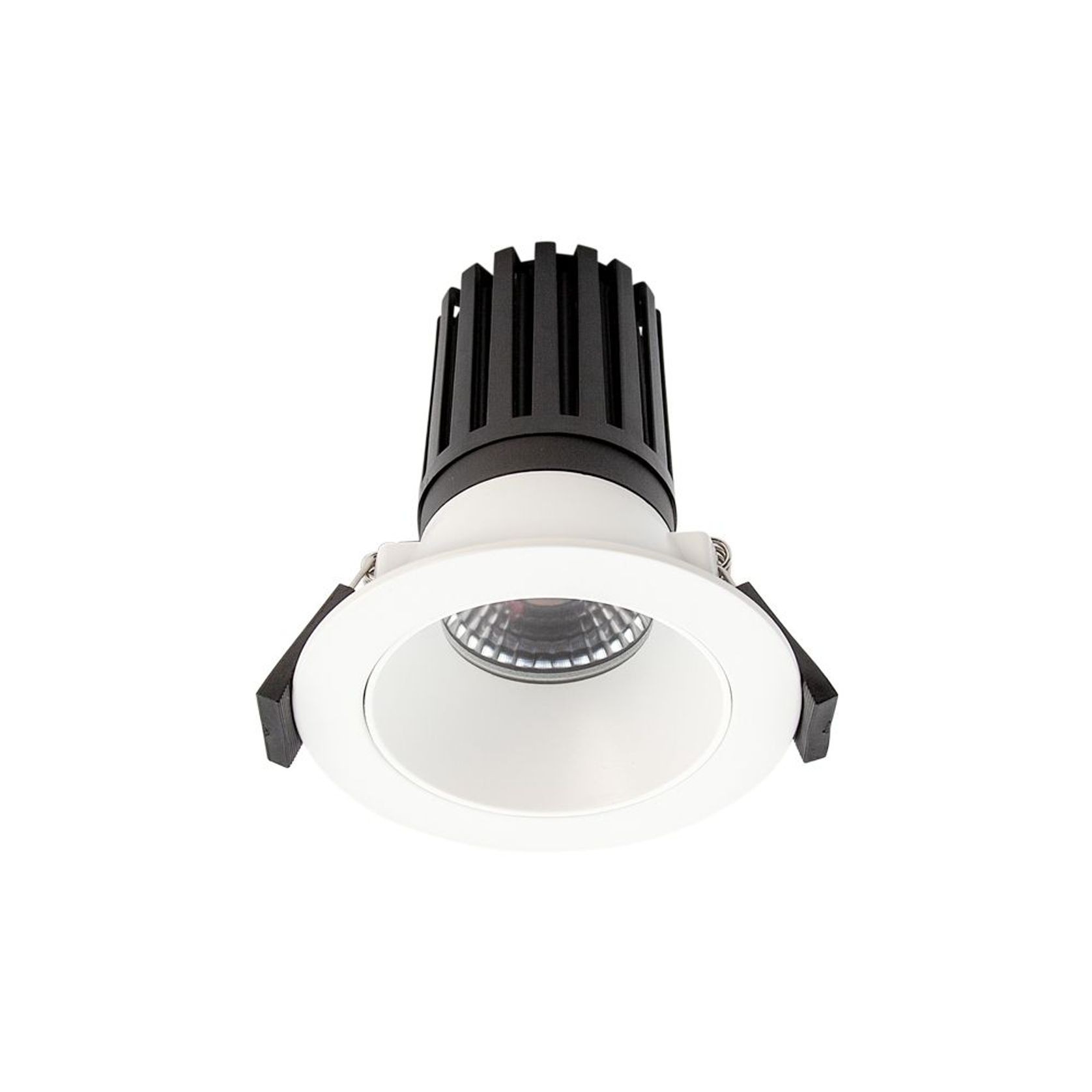

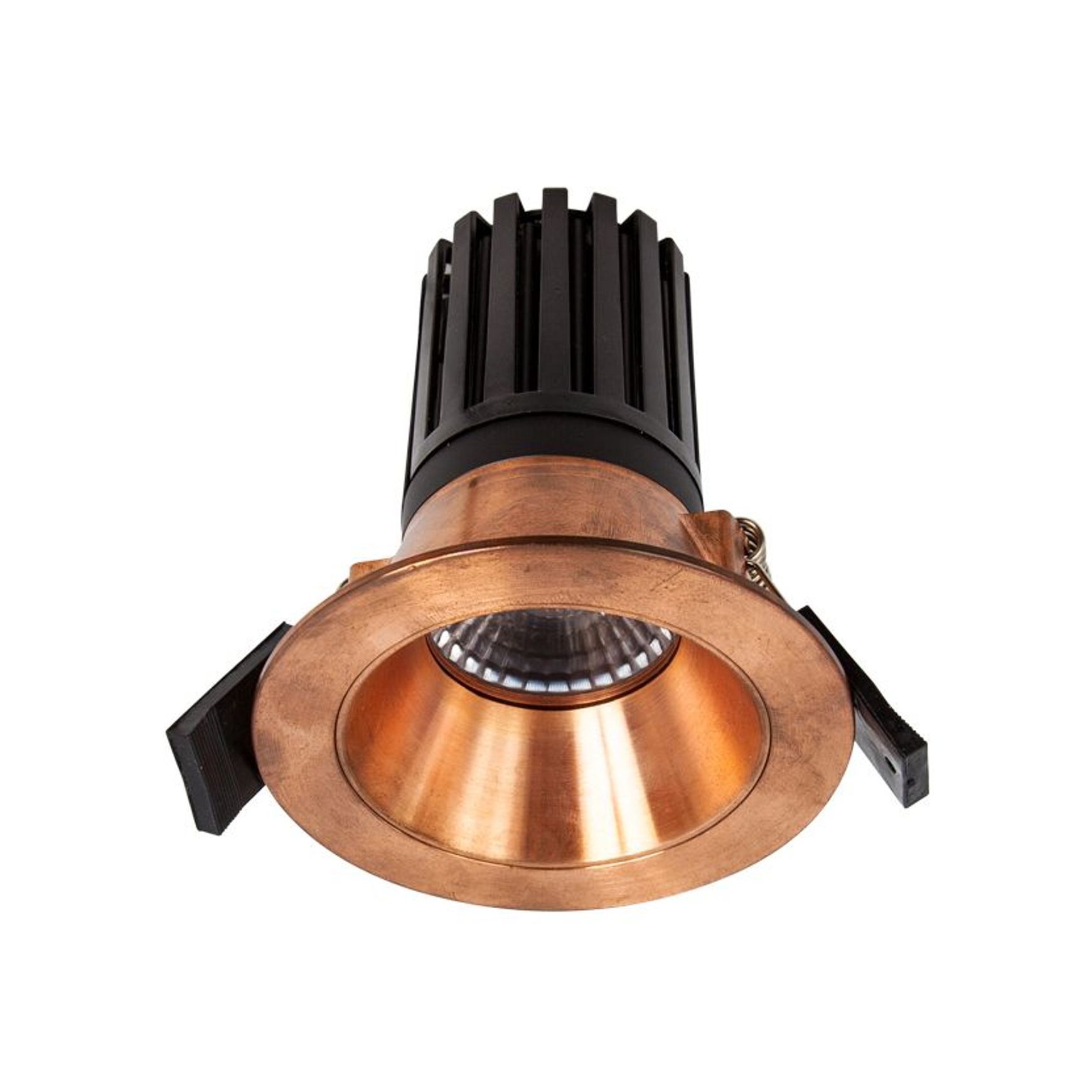

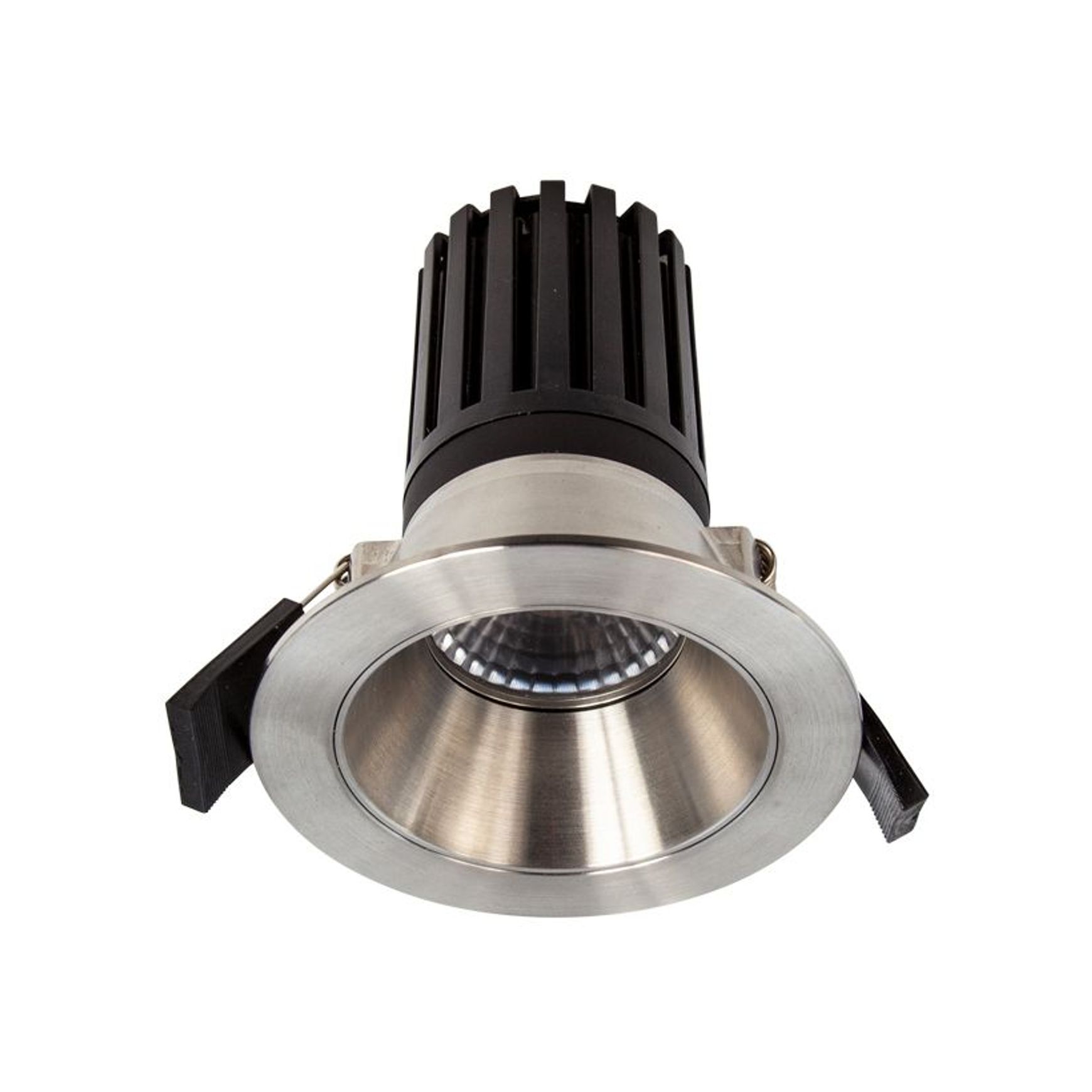

Exterior X-low Glare RetroSpec Downlight
- 1.0M profile views
- 115 saves
R730
Exterior Recessed Fixed Downlight Kit
X-low Glare Retrospec Design Standard Series
Product Details
- Product
- Exterior X-low Glare RetroSpec Downlight
- Category
- Outdoor Downlights
- Sold by
- Halcyon Lighting
- Light bulb type
- LED
- Fitting type
- Recessed light
- Warranty
- 5 years
Product Variants
- Colours
Halcyon Lighting is specified by
RTA StudioArchitects
YokeArchitects
T Plus ArchitectsArchitects
Johnston ArchitectsArchitects
Origin HeritageArchitects
Ground Up StudioArchitects
Borrmeister ArchitectsArchitects
South by Southeast ArchitectsArchitects
Gibbons ArchitectsArchitects
Sheppard & Rout ArchitectsArchitects
Dorrington Atcheson ArchitectsArchitects
Condon Scott ArchitectsArchitects
Young ArchitectsArchitects
Dalman ArchitectsArchitects
RB StudioArchitects
Salmond ArchitectureArchitects
Architect PeopleArchitects
Inception ElectricalElectricians
Simon Devitt PhotographerPhotographers
Pretty Sweet LightingElectricians
Topmark ElectricalElectricians
Matt Harrison ConstructionConstruction
No Shock ElectricalElectricians
Bob Burnett ArchitectureArchitectural Designers
Liddington Electrical SouthernElectricians
Bagley ConstructionConstruction
ao architectureArchitectural Designers
DJ Hewitt BuildersBuilders
Johnston Electrical ServicesElectricians
Parsons ConstructionBuilders
Fleetwood ConstructionBuilders
Downright ConstructionConstruction
DCDDesign & Build
Lume DesignInterior Designers
PHD BuildingBuilders
Barry Connor DesignArchitectural Designers
Thomas ElectricalElectricians
Turton BuildersBuilders
Weir ArchitectureArchitectural Designers
ObjectsArchitectural Designers
Luijten LandscapingLandscape Architects
Marina Mathews PhotographyPhotographers
Goldsack BuildersBuilders
Turton Oliver Interior DesignInterior Designers
O'Neil + Shirley ArchitectureArchitectural Designers
Red ArchitectureArchitectural Designers
Chris TateArchitectural Designers
DesignwellInterior Designers
House of NauticaBuilders
JD Landscape ArchitectureLandscape Architects
R730
Exterior Recessed Fixed Downlight Kit
X-low Glare Retrospec Design Standard Series
- Specs
R730 Exterior
Watts 9.5W
Dimensions D93 x H104mm
Cut Out Ø 72-82mm
Colour Temp 3000K
Lumens White: 840lm. Black, Copper & 316 STS: 770lm
CRI 90 (R9 <66)
Lifespan 60,000 hours (L80 B30)
Beam 50°
Material 316 Stainless Steel or Copper
IP Rating IP65 (front face only)
Clearance 25mm recommended for optimum lifespan. 0mm required. Rear of fitting may abut structural members and building elements.
Classification IC-F / IC-4
Driver DX Series Under Insulation Dimmable TRIAC Driver Included (pre-wired), 230mA
Application Exterior
Warranty 5 Year Warranty- Features
- Dimmable
- Exterior
- IC-F/IC-4
- 5 Year Warranty
- Scope of use
Exterior Downlights
Downloads
Downloads (3)3 Direct downloads • 6 Available on request
Frequently asked questions about
Exterior X-low Glare RetroSpec Downlight
The Exterior X-low Glare RetroSpec Downlight is supplied by Halcyon Lighting. It is also on their website, and you can browse every product Halcyon Lighting lists on ArchiPro.
Halcyon Lighting does not publish a price for the Exterior X-low Glare RetroSpec Downlight on ArchiPro. for pricing, or visit their website.

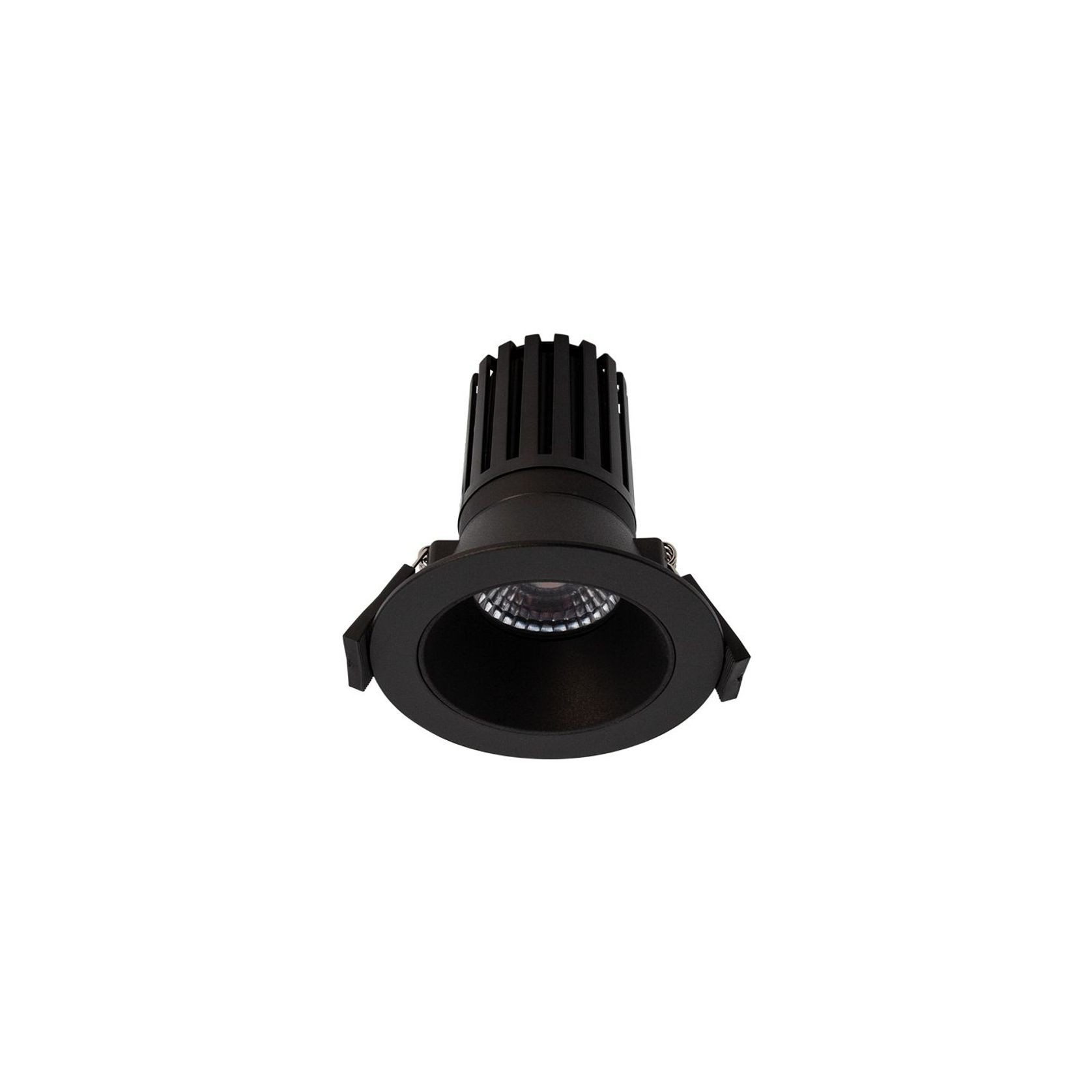

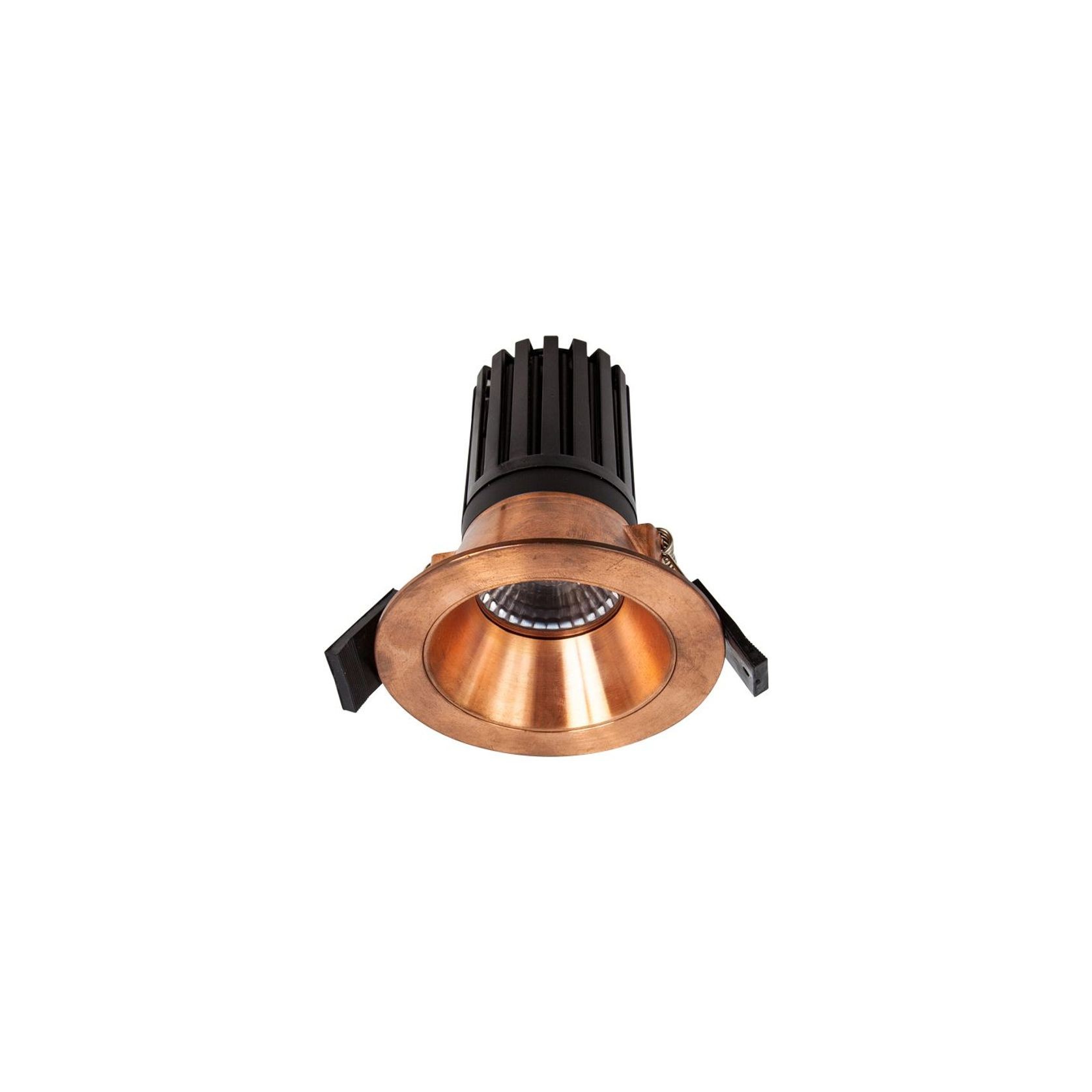

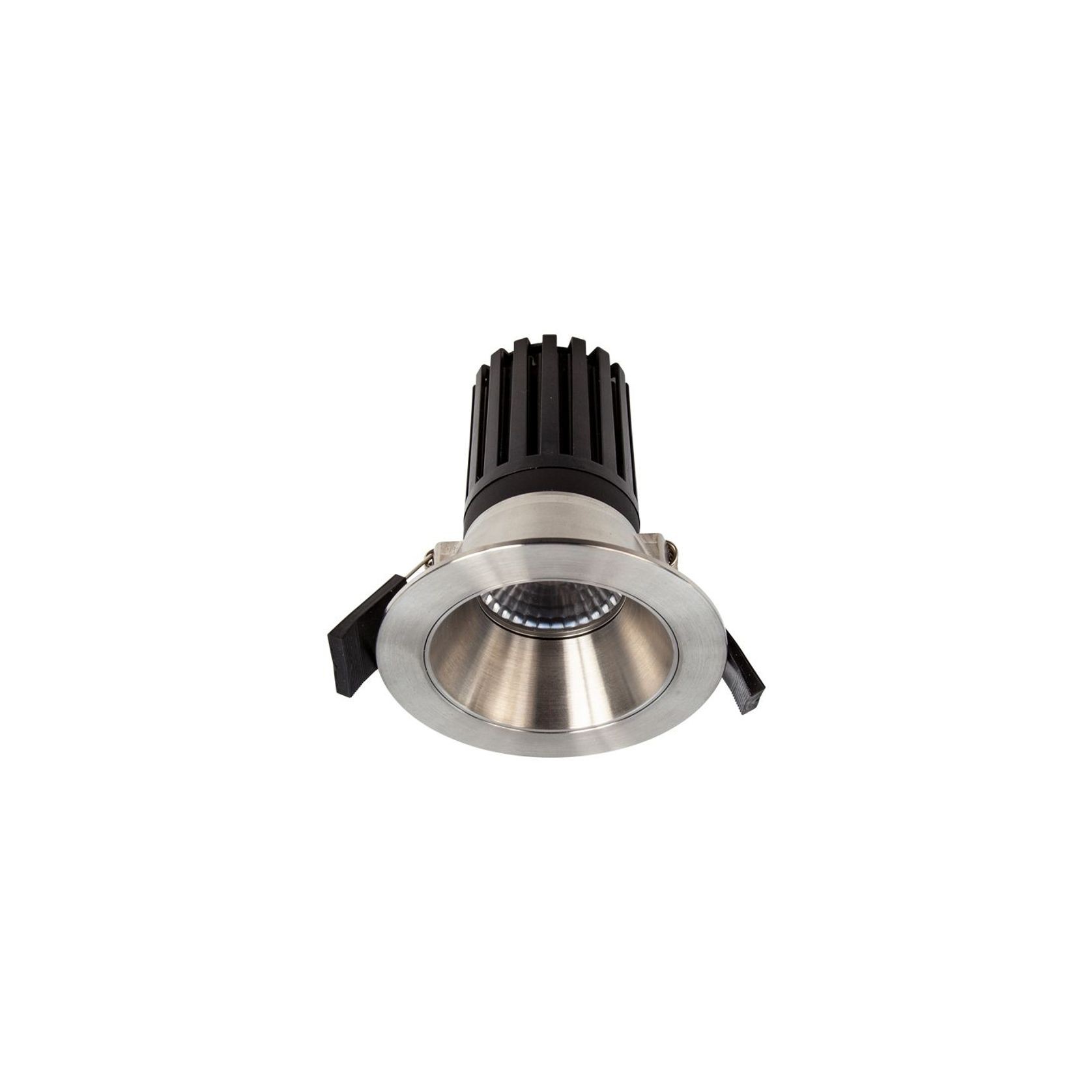

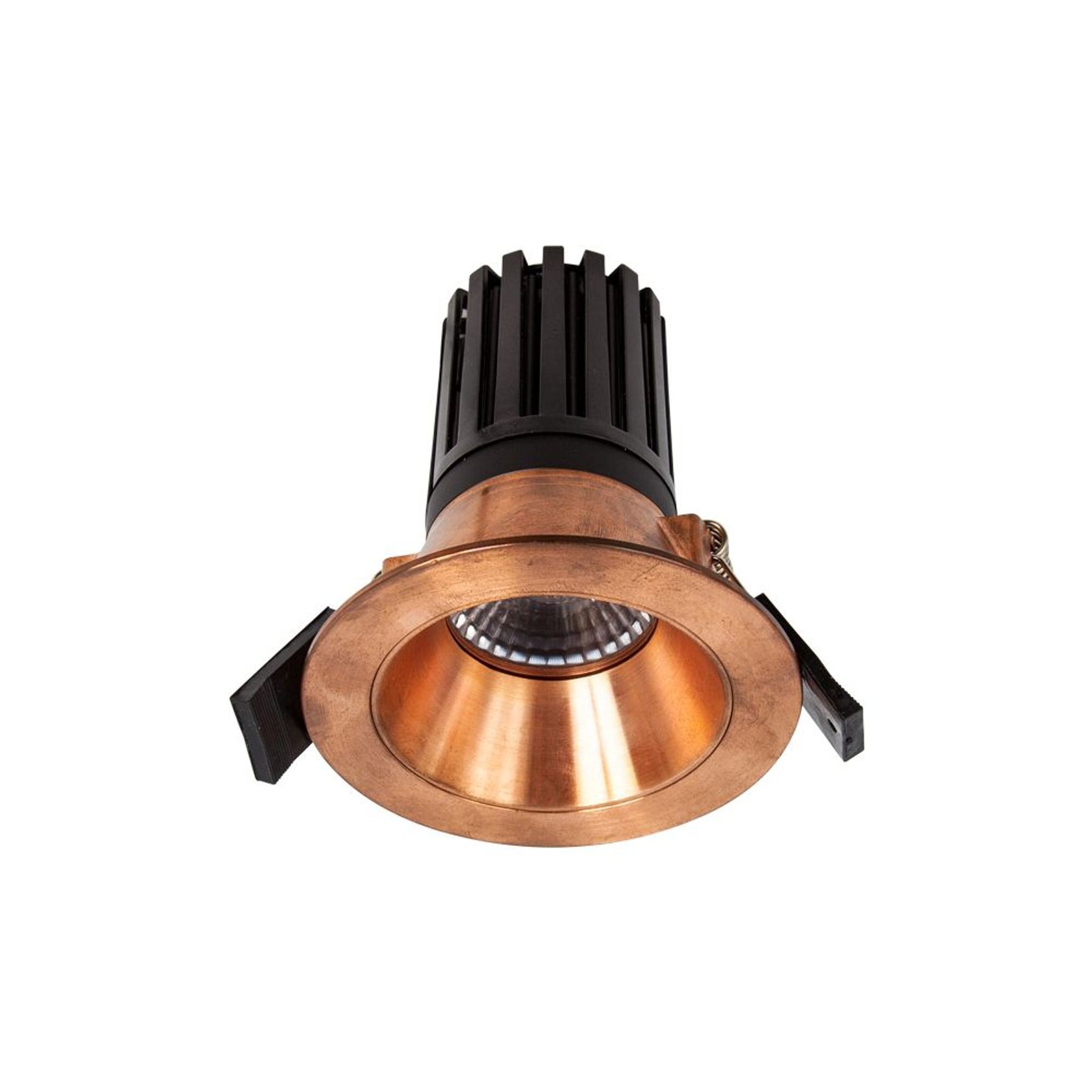

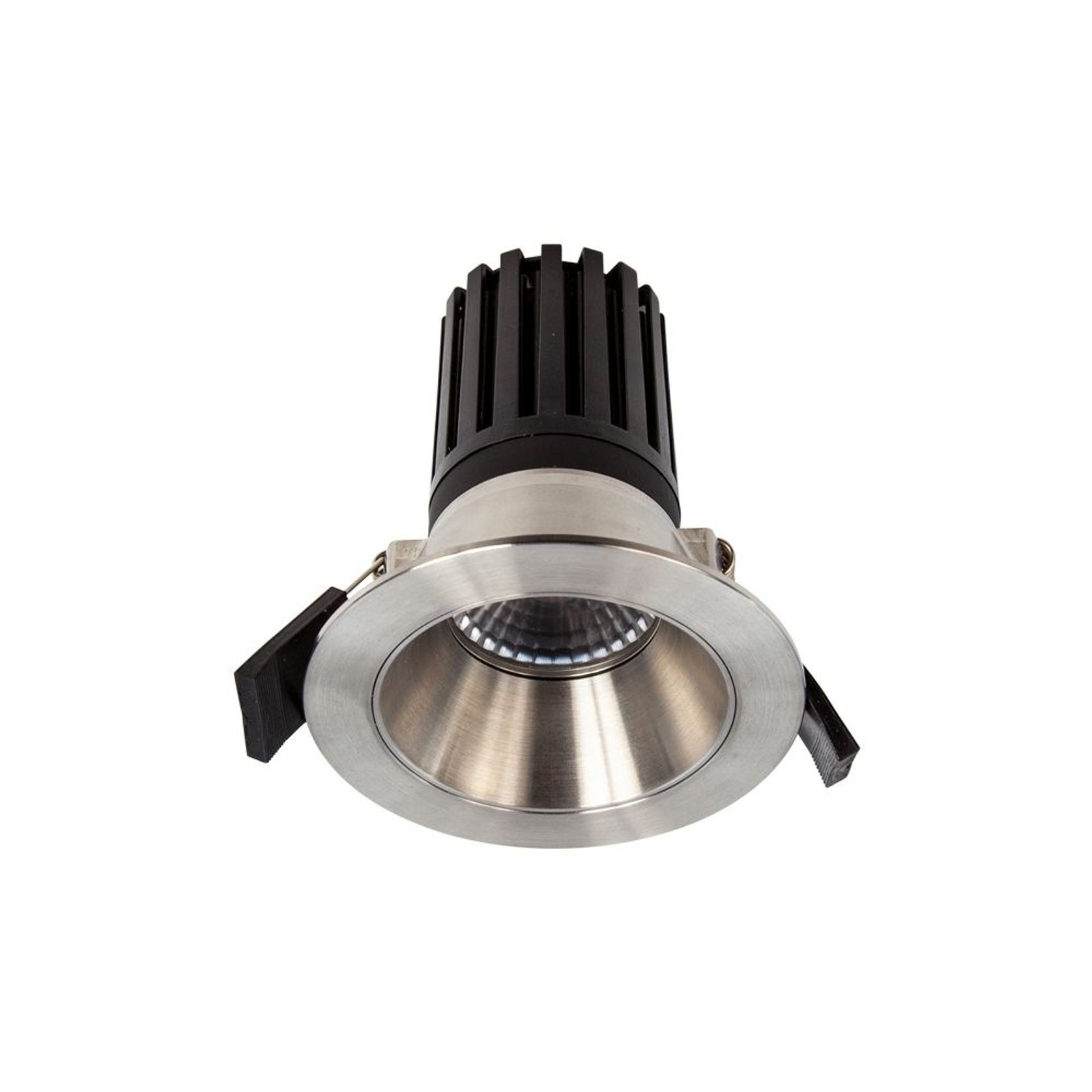

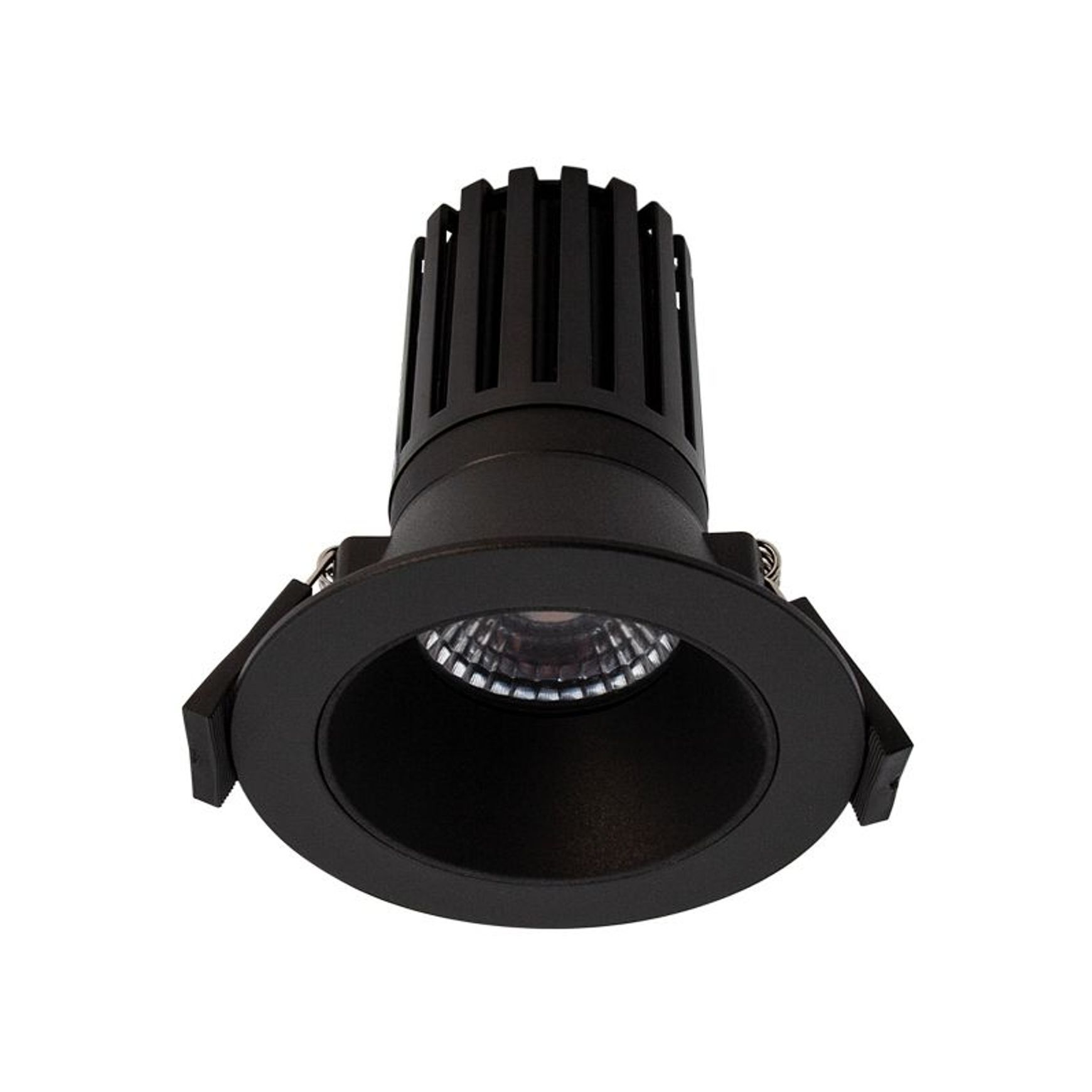

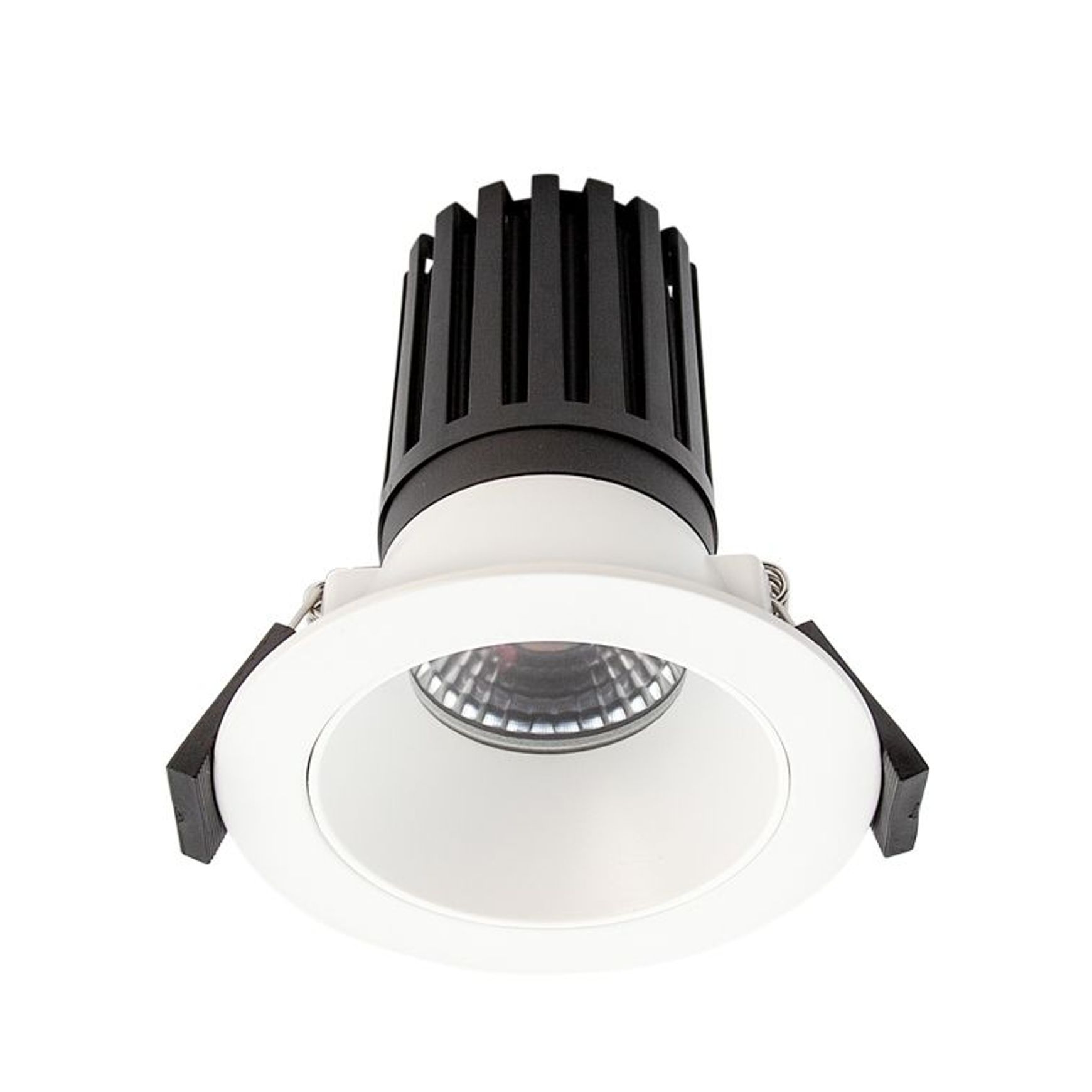

It comes in 4 colour options (Brushed Stainless Steel, Copper, Black, White). Pick one in the row under the description to see it.
Yes. It is part of the X-low Glare Design Standard Series range from Halcyon Lighting, where you can see every product in the range together.
from this page, see their contact details on ArchiPro, or visit their website. The Halcyon Lighting profile on ArchiPro has the rest of their products.
