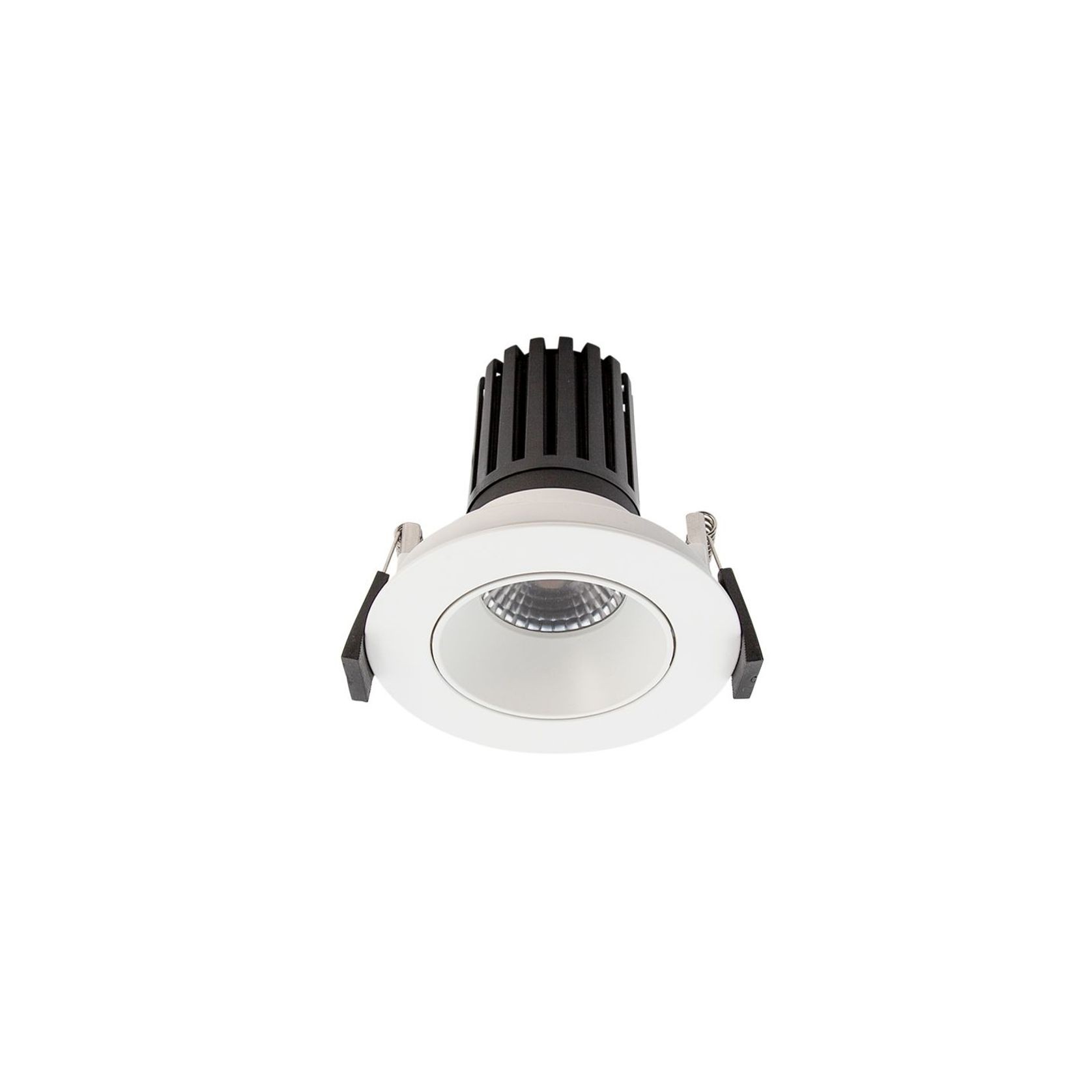

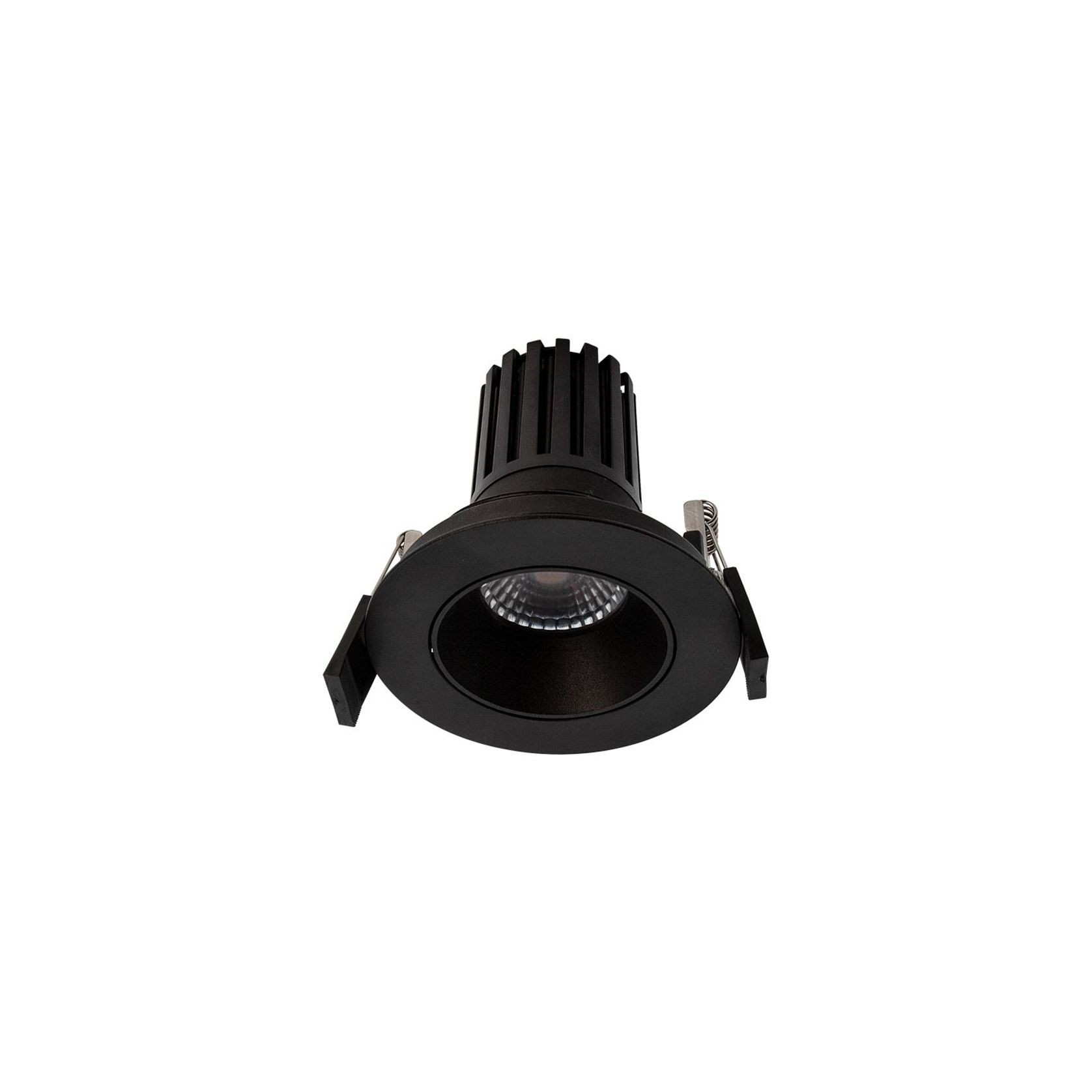

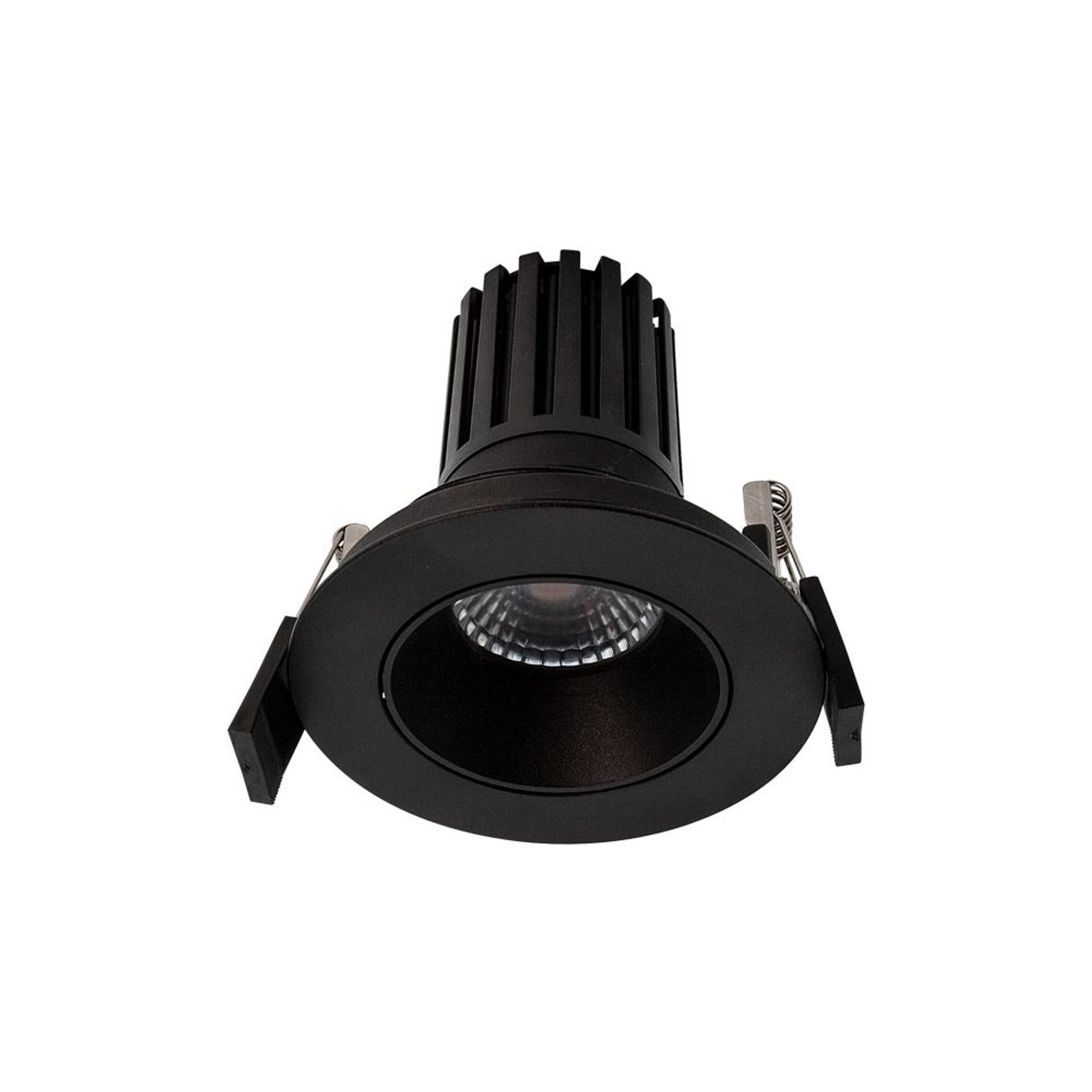

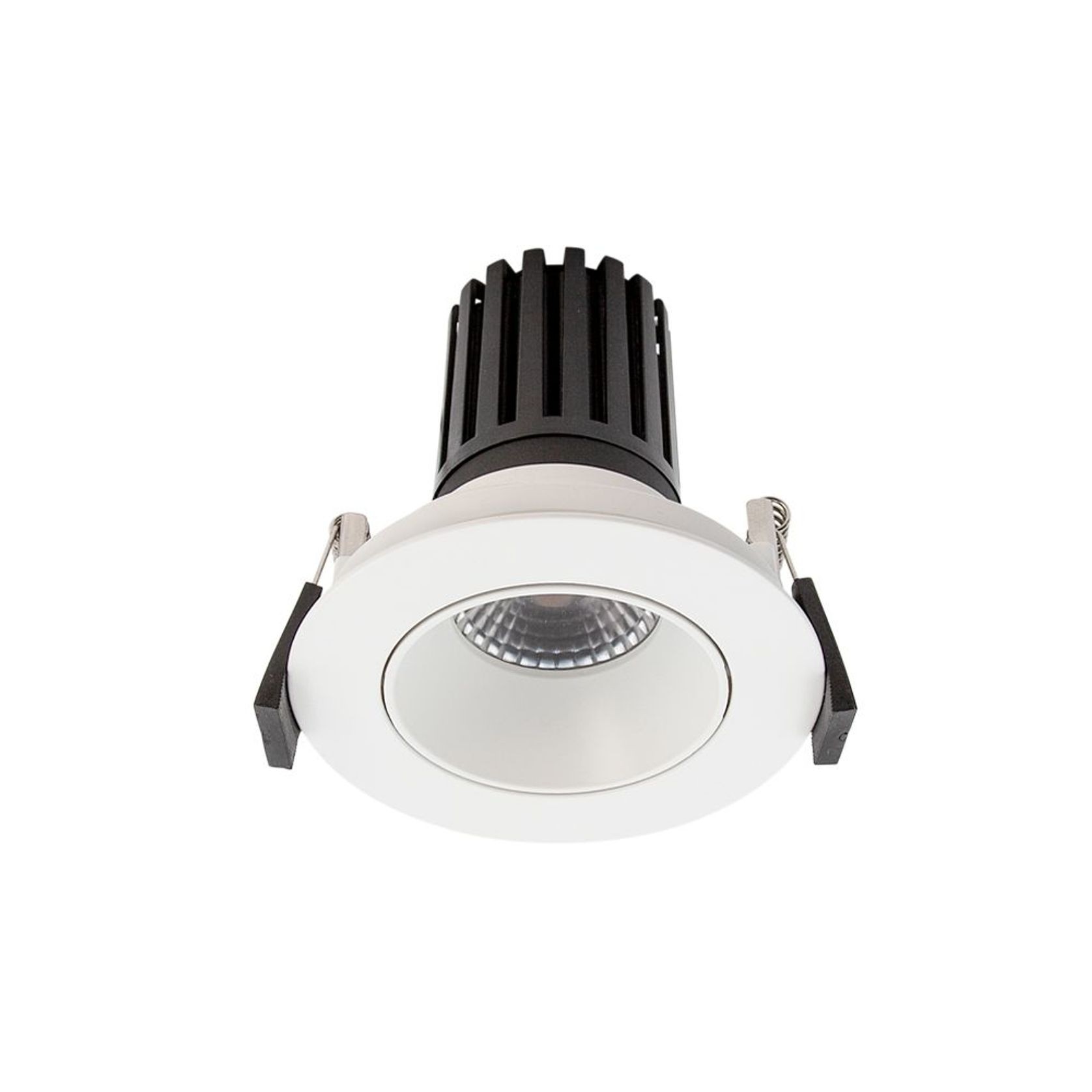

X-low Glare Tilt Design Standard Downlight

1.0M profile views
115 saves

R750
X-low Glare Smart Tilt Design Standard Series
Recessed Downlight Kit

Featuring a clean modern aesthetic, deep set ultra-low glare light source, high efficiency optic lens and reflector assembly, precise CRI 90+ illumination and a IP54 / IC-F rating the X-low Glare Design Series downlights are engineered by Halcyon as a realistically priced high end high spec solution where an economy frosted diffuser style downlight will not meet the brief.

Product Details

Product: X-low Glare Tilt Design Standard Downlight
Category: Downlights
Sold by: Halcyon Lighting
Range: X-low Glare Design Standard Series
Orientation: Vertical
Light bulb type: LED
Fitting type: Recessed light
Type: Ceiling lights
Type of use: Commercial and Residential
Installation: Professional installation required
Warranty: 5 years

Halcyon Lighting is specified by

X-low Glare Tilt Design Standard Downlight

R750 X-low Glare Smart Tilt Design Standard Series Recessed Downlight Kit Featuring a clean modern aesthetic, deep set ultra-low glare light source, high efficiency optic lens and reflector assembly, precise CRI 90+ illumination and a IP54 / IC-F rating the X-low Glare Design Series downlights are engineered by Halcyon as a realistically priced high end high spec solution where an economy frosted diffuser style downlight will not meet the brief.

R750
X-low Glare Smart Tilt Design Standard Series
Recessed Downlight Kit

Specs: Watts 9.5W
Lumens 840lm
Dimensions D100 x H101mm
Cut Out Ø 85-92mm
Colour Temp 2700K, 3000K or 4000K
CRI 90
Lifespan 60,000 hours (L80 B30)
Beam Angle 50°
Tilt Angle 32°
Material Aluminium + PC
IP Rating IP54 (Complete with patented tilt gasket)
Classification IC-F / IC-4
Driver DX Series Under Insulation Dimmable TRIAC Driver Included (pre-wired) 230mA
Warranty 5 Year Warranty
Scope of use: Residential / Commercial Interior
Performance: CRI90
60,000 hour lifespan
IP54
5 Year Warranty
