Firemaster Fastwrap XL

Potter Interior Systems
Visit Website
Firemaster Fastwrap XL gallery detail image

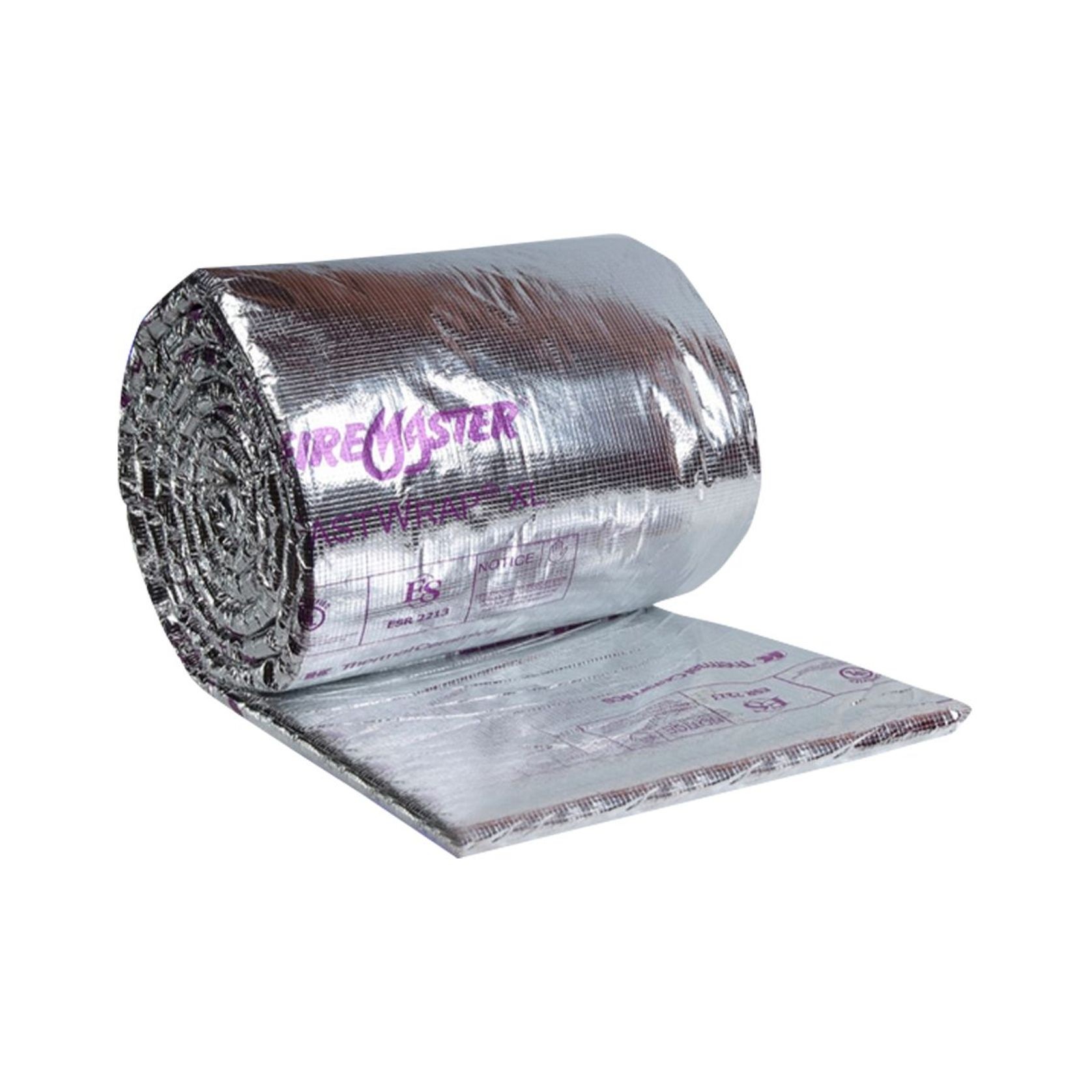

Firemaster Fastwrap XL is a flexible blanket composed of high temperature fibers classified for applications to 2192°F (1200°C) and fully encapsulated in a durable glass fiber reinforced foil facing for easy handling and installation.

Thermal Ceramics FastWrap XL is UL and ULC Listed for 1 and 2 hour fire resistive enclosure protection, zero clearance for kitchen exhaust ducts, electrical circuit protection, and as a component in UL firestop designs for fire resistance rated floors, ceilings, and walls. The core fibers in FastWrap XL are manufactured using Thermal Ceramics patented Superwool® fiber which is an alkaline-earth silicate wool with low biopersistence and therefore increased safety for installers. FastWrap XL is under UL’s Follow-Up Service Program to ensure the consistent quality essential to this life-safety application.

Details
  • Category
    Fire Safety
Product Features
  • Thin and Lightweight at 1-1/2” (38mm) thick, 6 pcf (96 kg/m3) density
  • Contours easily to complex duct designs
  • Grease duct installation UL and ULC Listed with butt joints at all seams on both layers
  • Fully foil encapsulated for a fast and clean installation
  • Contains 2192°F (1200°C) rated fibres
  • Microbial Resistance validated by UL Environment
  • Good sound absorption
  • Compliant to IMC, NFPA 96, UMC, CMC, CN
Applications
  • 2-hour enclosure and firestop system for kitchen exhaust duct
  • Zero clearance to combustibles
  • 1, 2 and 3-hour enclosure and firestop system for hazardous exhaust ducts, pressurization ducts, clothes dryer exhaust ducts, trash and linen chutes, and other fire-rated HVAC ducts
  • 1-hour electrical circuit integrity protection
  • Engineered and tested solutions for fire protection of structural steel and storage vessels per ASTM E119, ISO 834, and UL17093
  • Specifications – Division 23 07 00 (or 15080)
