FurnSpin
by Hettich
Auckland, New Zealand
- 172.2K profile views
- 555 saves

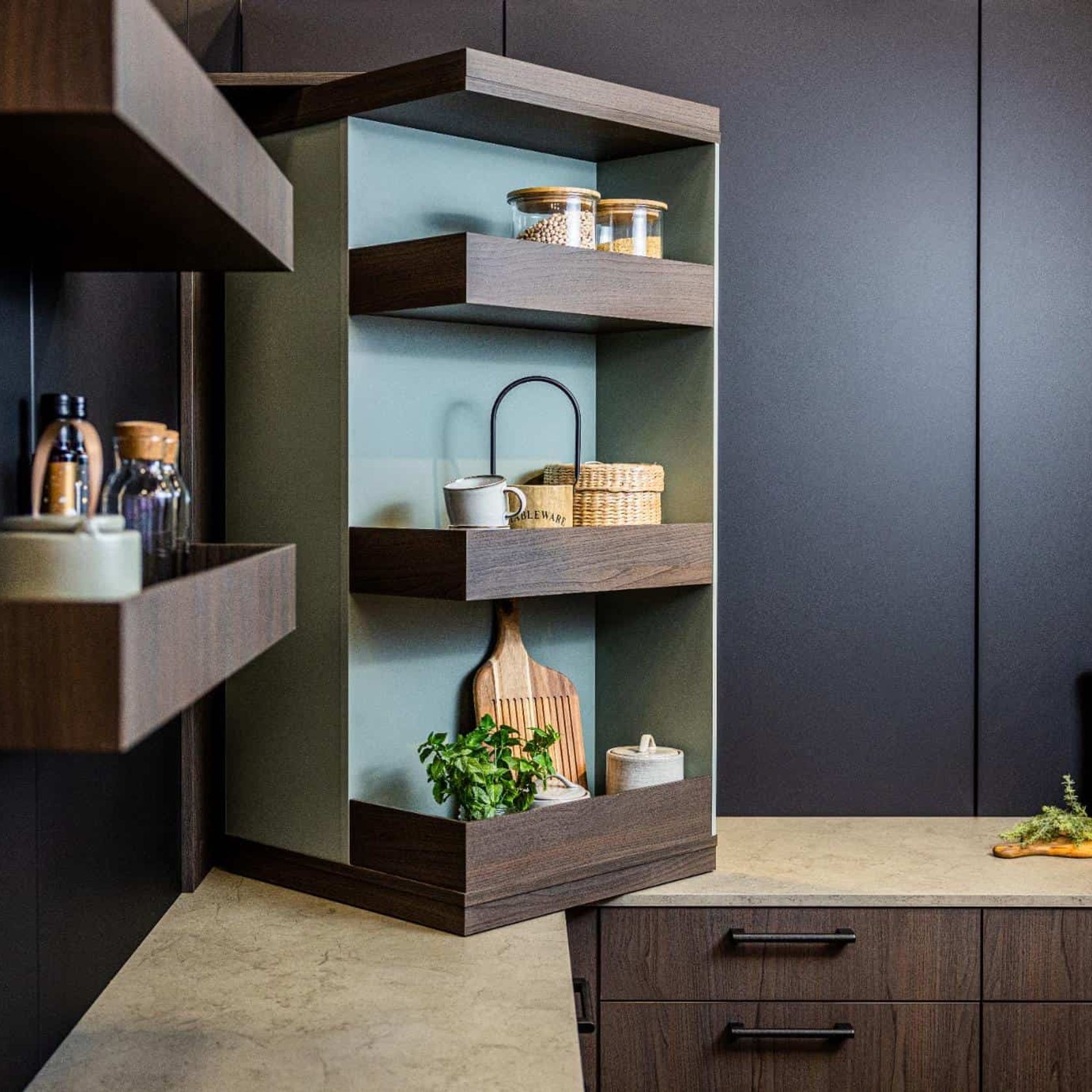

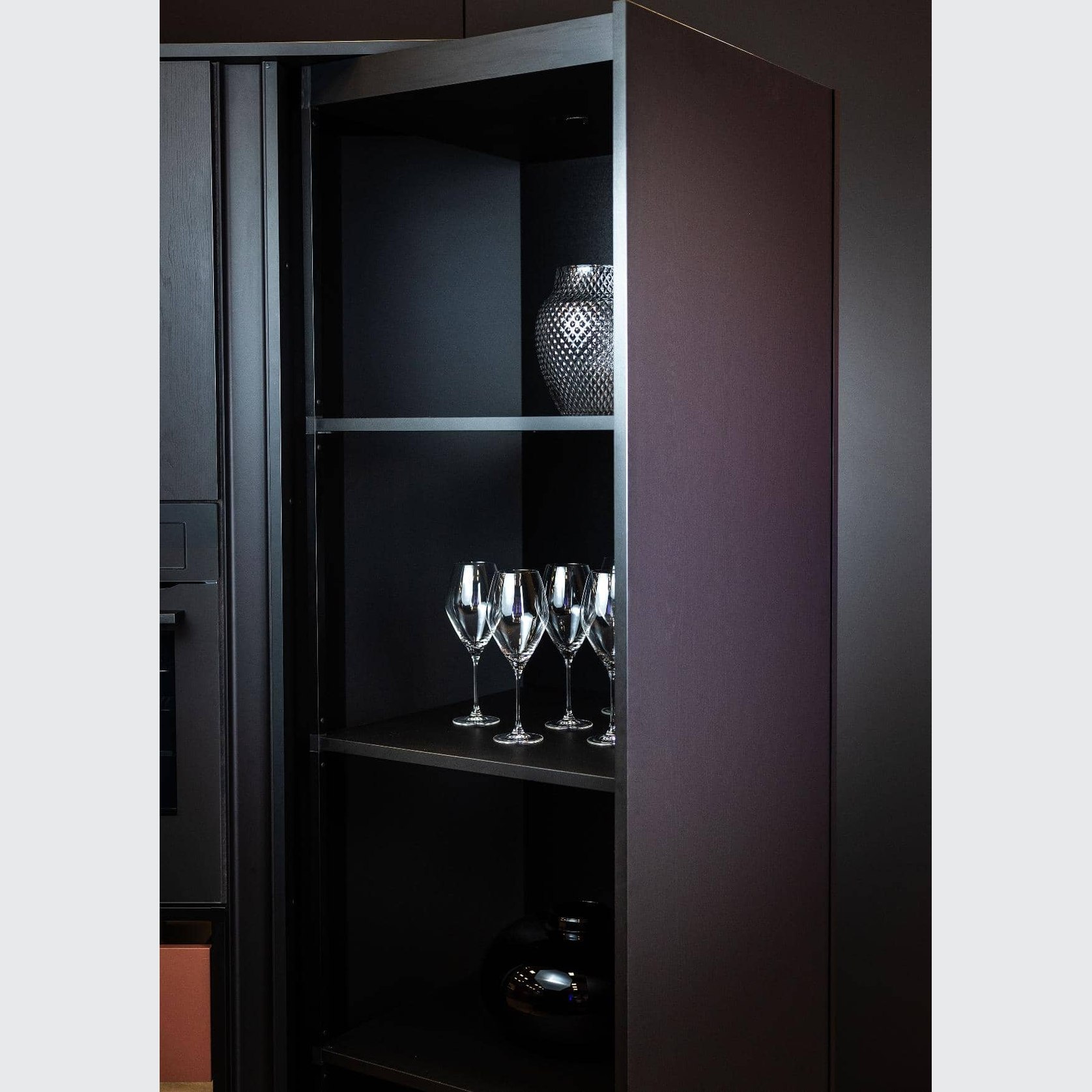

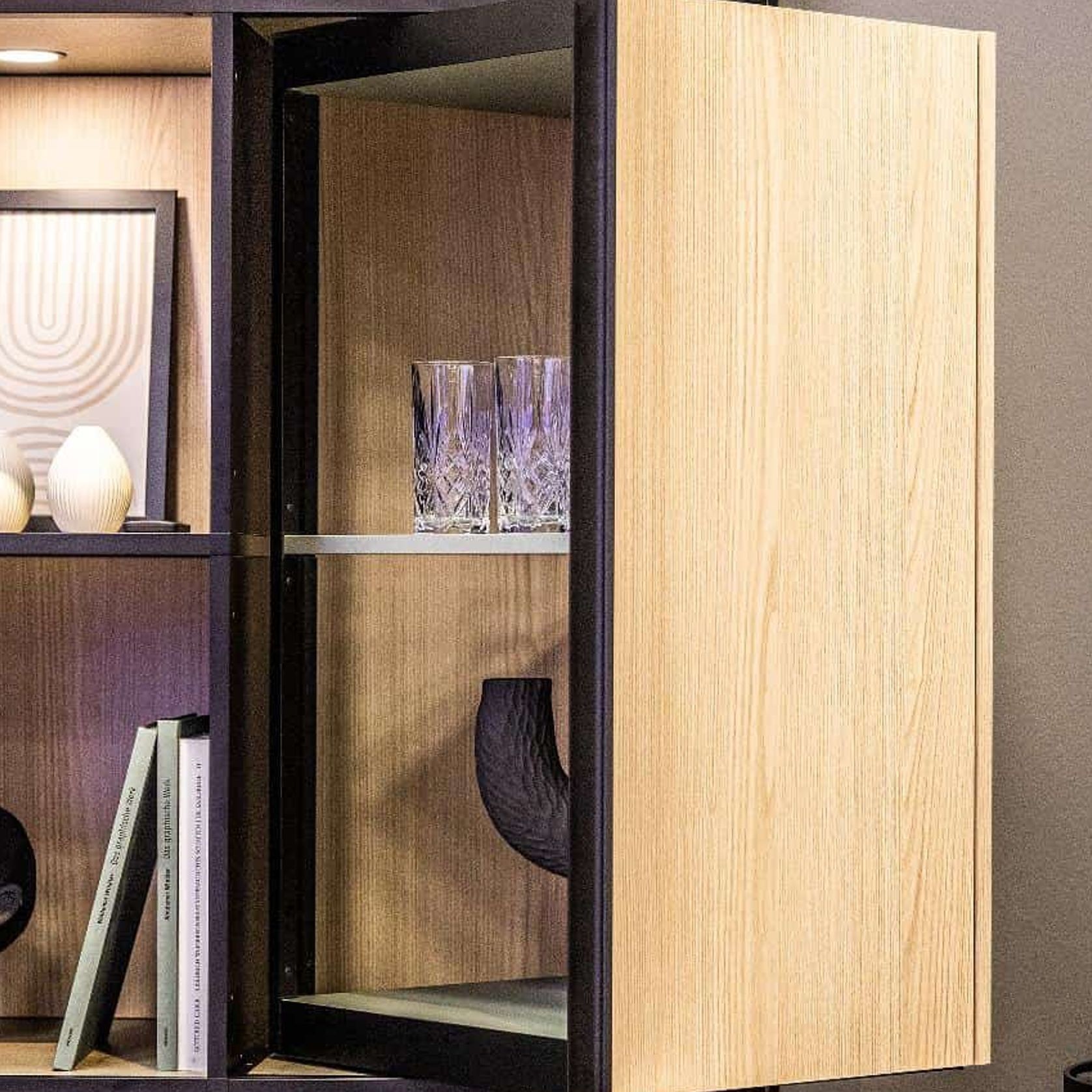

FurnSpin synchronises two different forms of movement: swivel action as well as rotation through 180 degrees. Benefiting from perfected kinematics, Furnspin is balanced so carefully that even very light objects don’t fall over, but stay firmly in place. And with absolutely no doors or corners extending from the cabinet, it opens up space in an all new way.
- Hide away mess or certain décor until the right moment
- Spins and stays – objects don’t need to be secured

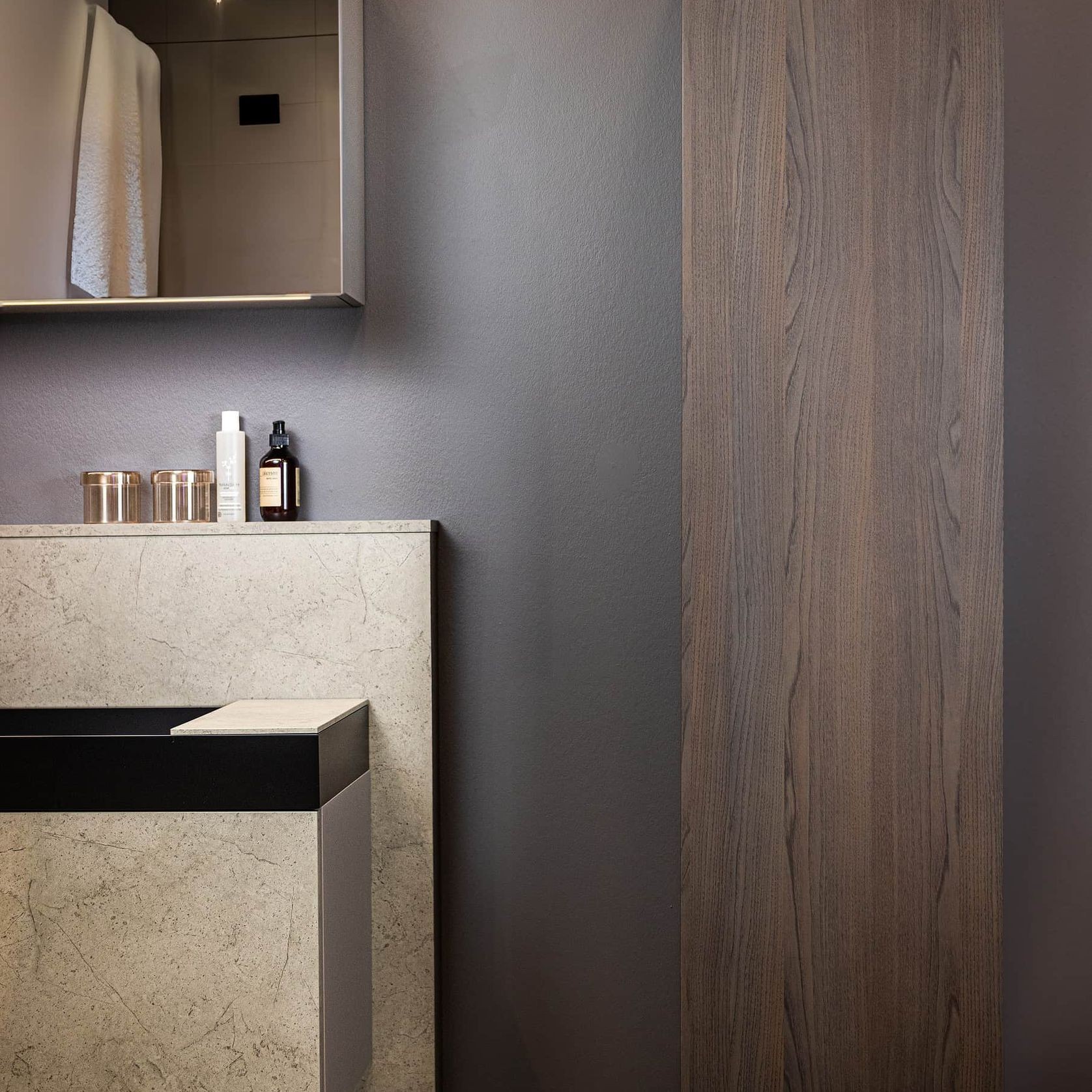

- Seamless look
Product Details
- Product
- FurnSpin
- Category
- Wall Units
- Sold by
- Hettich
- Range
- FurnSpin
- Brand
- Hettich
- Country of origin
- Germany
- Installation
- Professional installation required
- Assembly
- Professional assembly required
- Warranty
- Lifetime
Hettich is specified by
Bonnifait + Associates ArchitectsArchitects
Sunday ArchitectsArchitects
Salmond Reed ArchitectsArchitects
Studio AArchitects
ArchitectusArchitects
Stufkens+Chambers ArchitectsArchitects
Jack McKinney ArchitectsArchitects
Wilson & Hill ArchitectsArchitects
NZ Panels GroupManufacturers and Suppliers
Stylehouse DesignInterior Designers
SMJCarpenters & Cabinetmakers
Arcline ArchitectureArchitectural Designers
Marshall BuildersBuilders
Neo DesignCarpenters & Cabinetmakers
Downright ConstructionConstruction
Melanie Craig DesignInterior Designers
Newtech BathroomwareManufacturers and Suppliers
PDL by Schneider ElectricManufacturers and Suppliers
nzcabinetmakerCarpenters & Cabinetmakers
Woodland ShopfittingCommercial Interior Fitouts
CaromaManufacturers and Suppliers
Molloy JoineryCarpenters & Cabinetmakers
Silverdale KitchensCarpenters & Cabinetmakers
PlyLabCarpenters & Cabinetmakers
Marton LeeCarpenters & Cabinetmakers
Kerikeri CabinetsKitchen & Bathroom Designers
FITManufacturers and Suppliers
INSPACECommercial Interior Fitouts
OBD Landscape ArchitectureLandscape Architects
Stash Wardrobes & StorageCarpenters & Cabinetmakers
Yellowfox InteriorsInterior Designers
Innovative Interiors Custom Wardrobes + StorageManufacturers and Suppliers
Natural Edge JoineryJoiners
Rabbitte JoineryKitchen & Bathroom Designers
Smith ConstructionBuilders
DStevensConstruction
Daniel Smith BuildersBuilders
FortéManufacturers and Suppliers
Kitchen CreatorsKitchen & Bathroom Designers
Plantation BambooManufacturers and Suppliers
Haydn & RollettCarpenters & Cabinetmakers
DesignmarkedKitchen & Bathroom Designers
Matakana Kitchens & JoineryCarpenters & Cabinetmakers
Mosman InteriorsManufacturers and Suppliers
Boston WardrobesManufacturers and Suppliers
Hideaway BinsManufacturers and Suppliers
The Custom SpaceDesign & Build
Spayo - The Space Is YoursInterior Designers
KMD KitchensKitchen & Bathroom Designers
Maria Pomeroy InteriorsKitchen Renovations
Silver Fern KitchensKitchen Installers
Tweakit Joinery SolutionsJoiners
Maddren HomesBuilders
Outdoor ConceptsManufacturers and Suppliers
JS KitchensKitchen & Bathroom Designers
Burley Kitchens & CabinetryKitchen Cabinet Makers
Clements Windows & DoorsGlaziers
Home and LifestyleDesign & Build
Spin DesignInterior Designers
Fluid InteriorsKitchen & Bathroom Designers

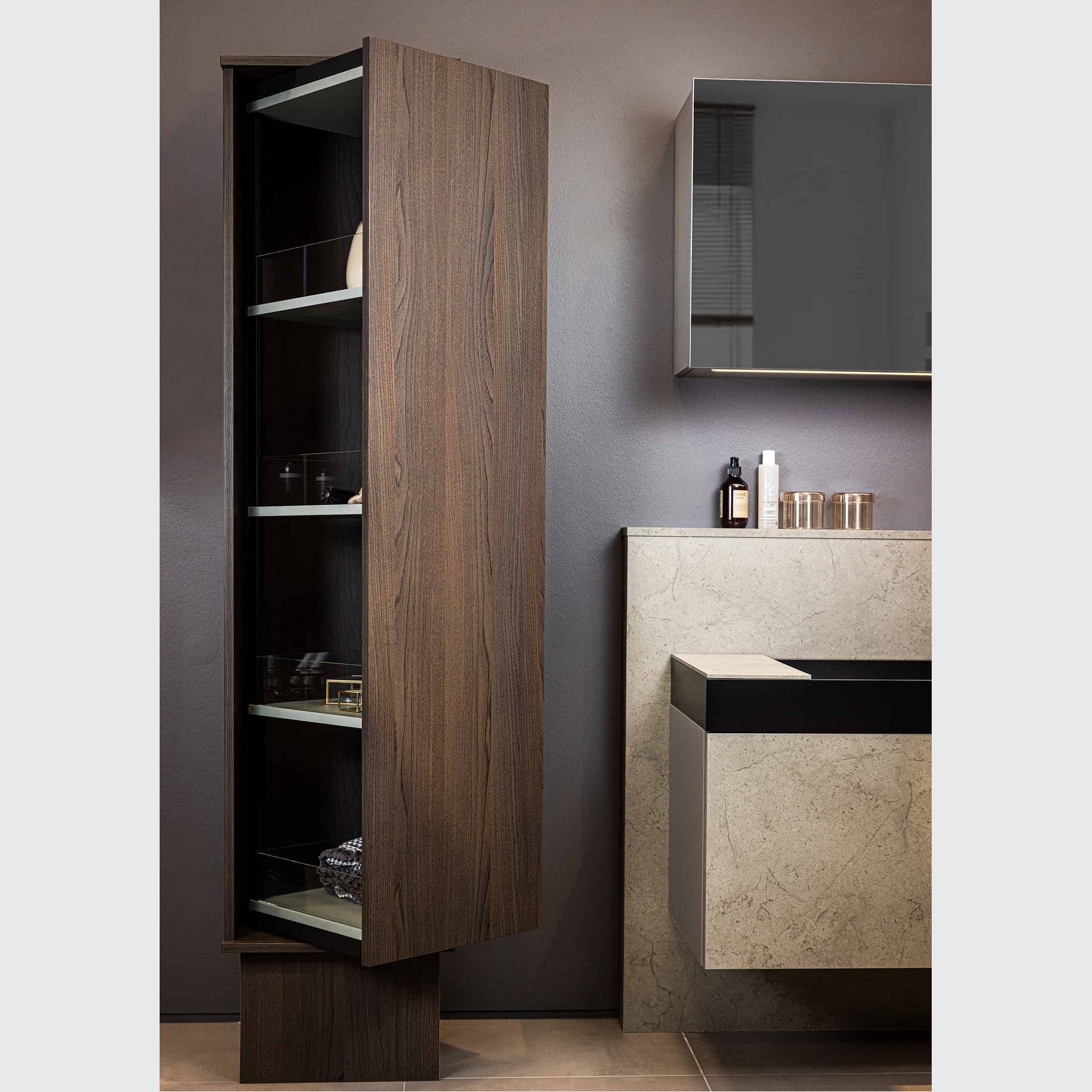

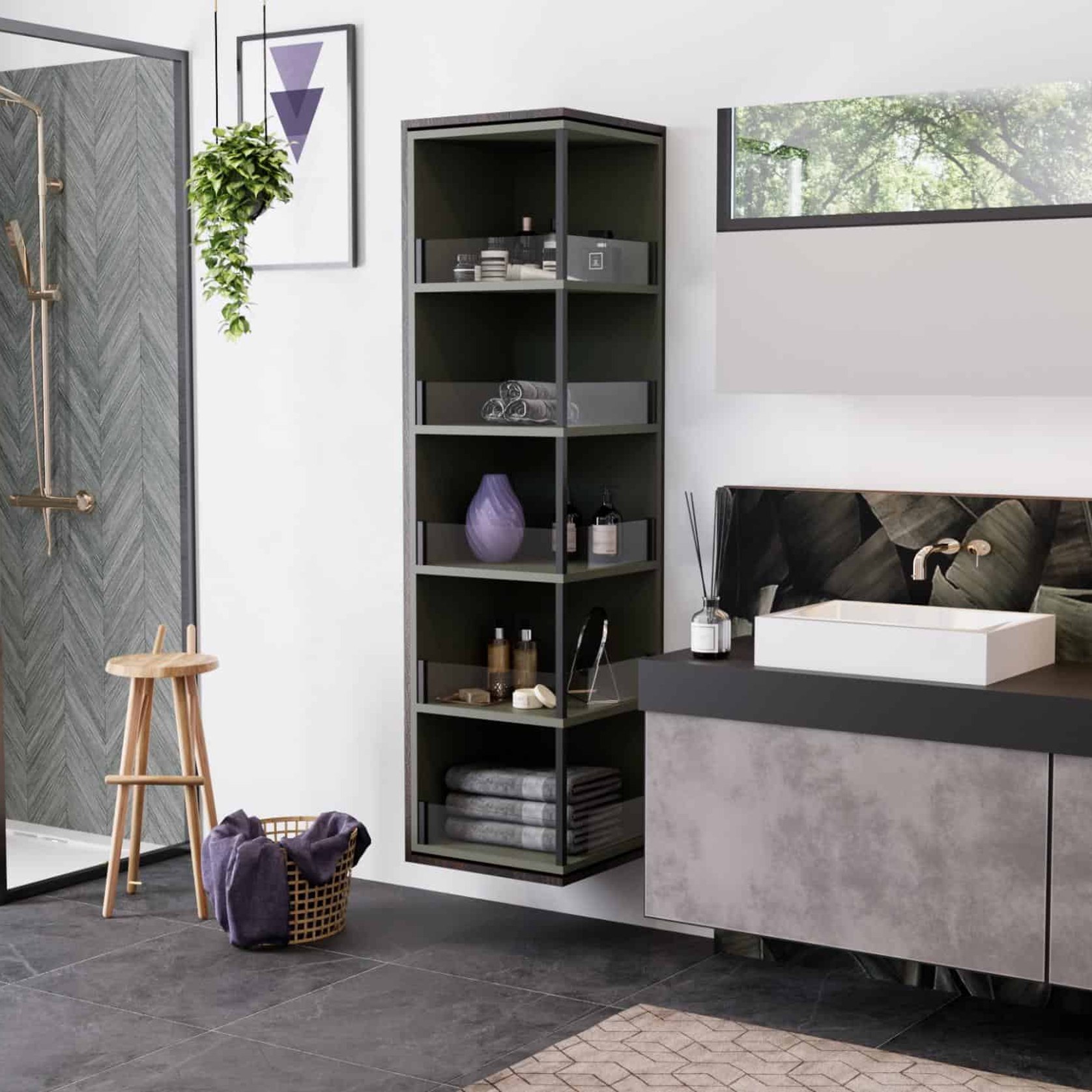

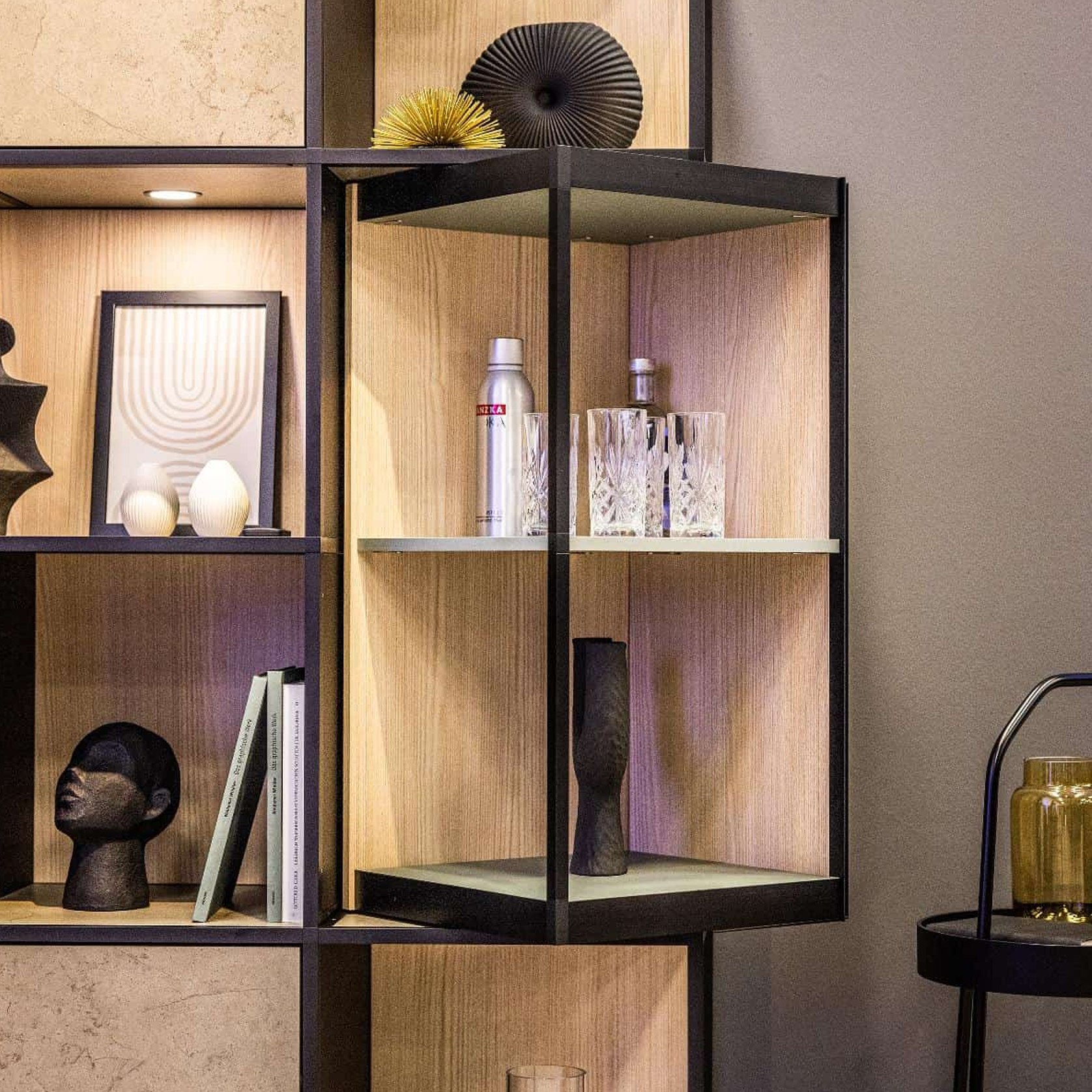

FurnSpin synchronises two different forms of movement: swivel action as well as rotation through 180 degrees.
Benefiting from perfected kinematics, Furnspin is balanced so carefully that even very light objects don’t fall over, but stay firmly in place. And with absolutely no doors or corners extending from the cabinet, it opens up space in an all new way.
- Hide away mess or certain décor until the right moment
- Spins and stays – objects don’t need to be secured
- Seamless look
- Specs
material mixed
size S | XL
spinning cabinet width 377 – 450mm square | 564 - 644 mm square
load capacity 80kg | 120kg
opening & closing left & right spin available, integrated silent system for soft-closing and push to open for handle-less design (optional)
adjustments four levels of adjustments cleverly integrated and easily accessible: height, X/Y tilt (sideways), diagonal tilt, end position (flush)
maximum recommended height 2000mm | 2400mm
additional accessories the Cadro accessory kit can be purchased to create the structural integrity between shelves- Scope of use
Suitable for various different areas from

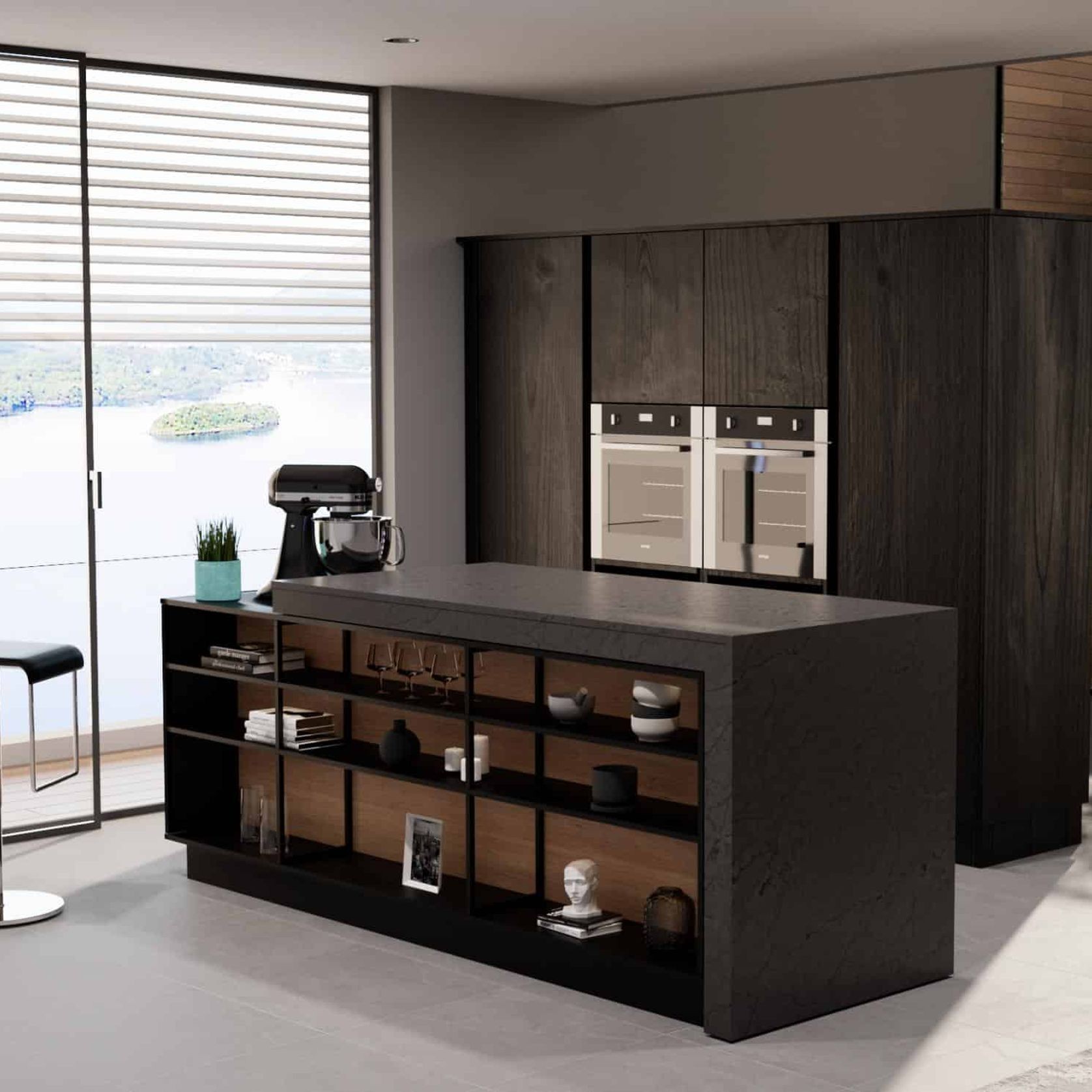

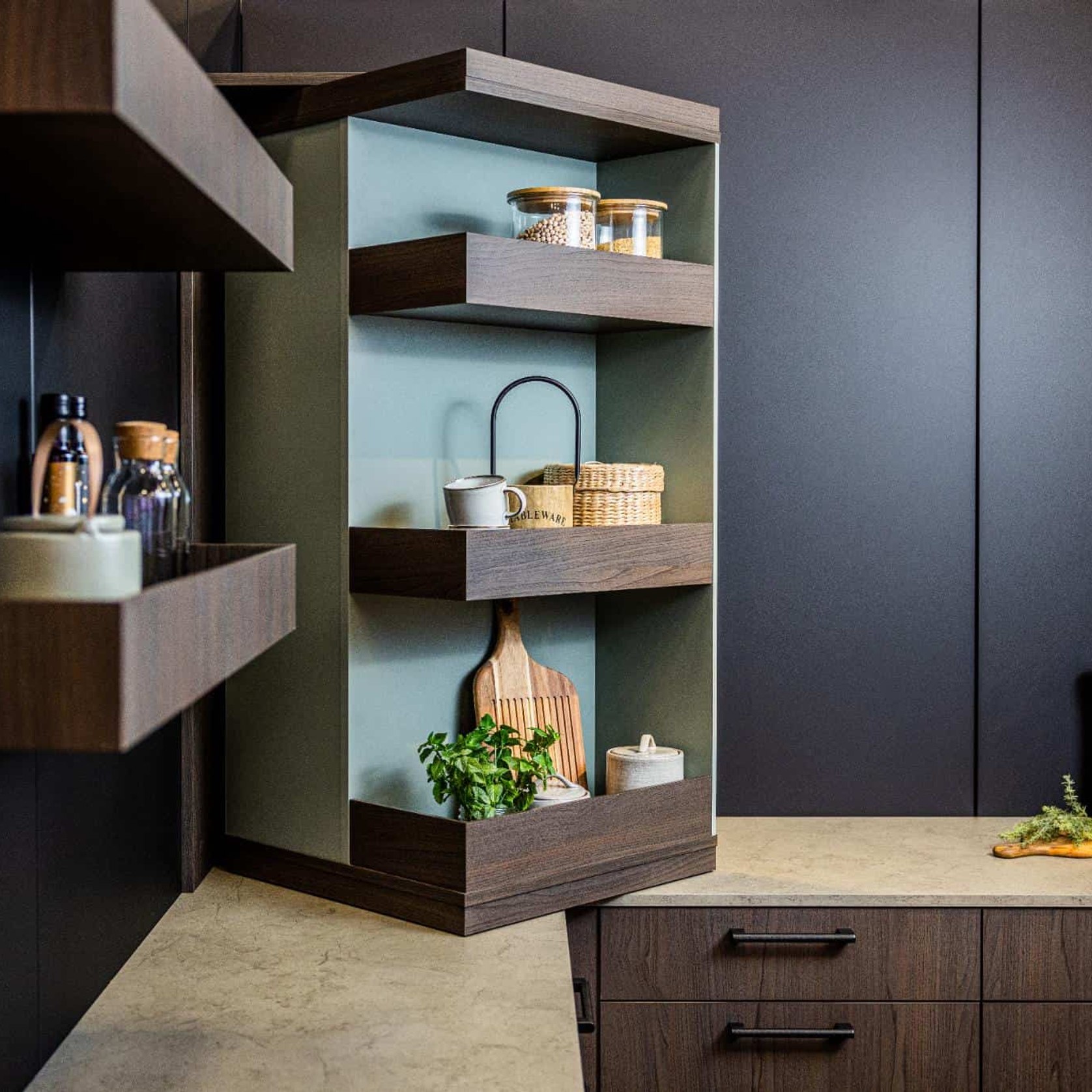

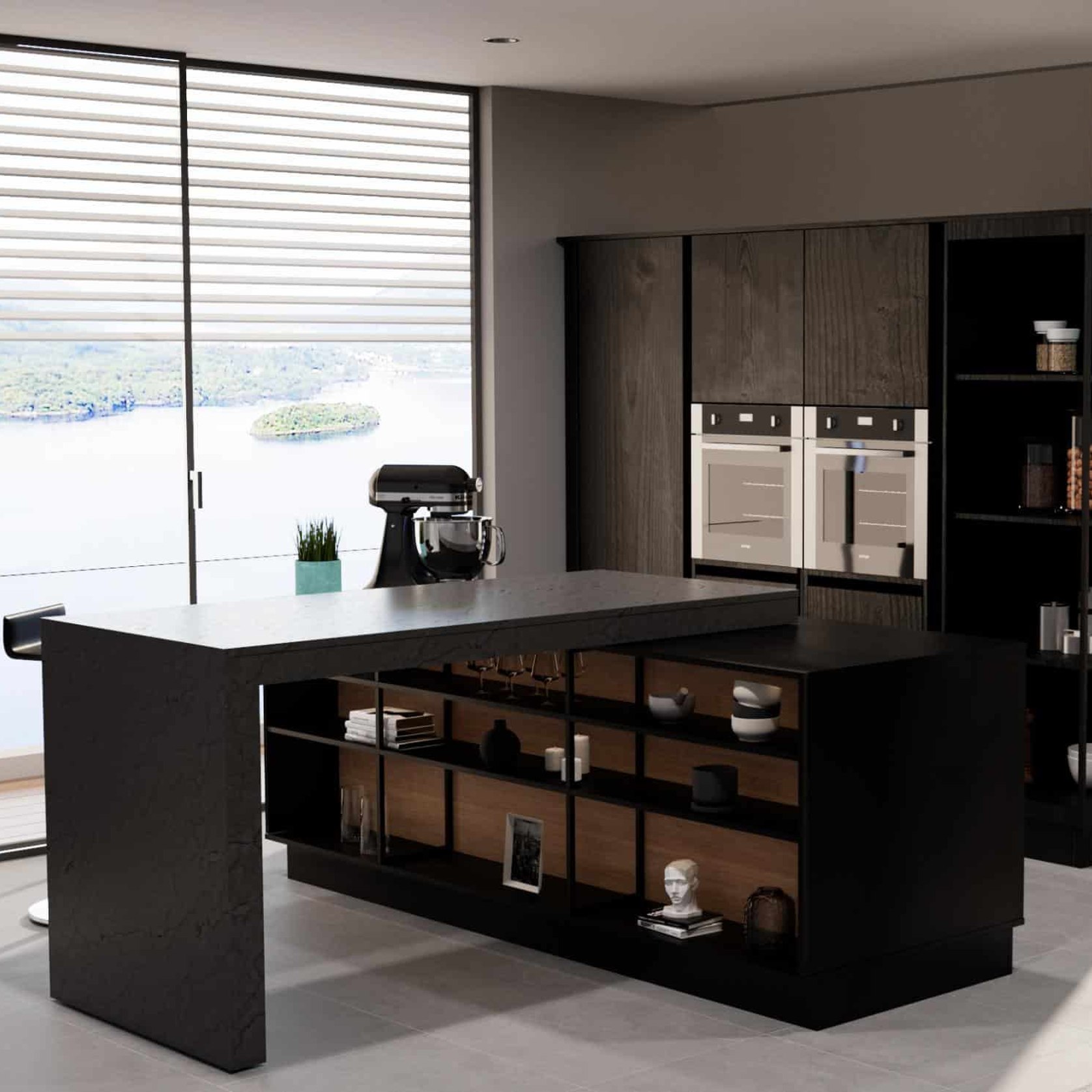

- kitchens, from small on or under bench cabinets to full height pantries

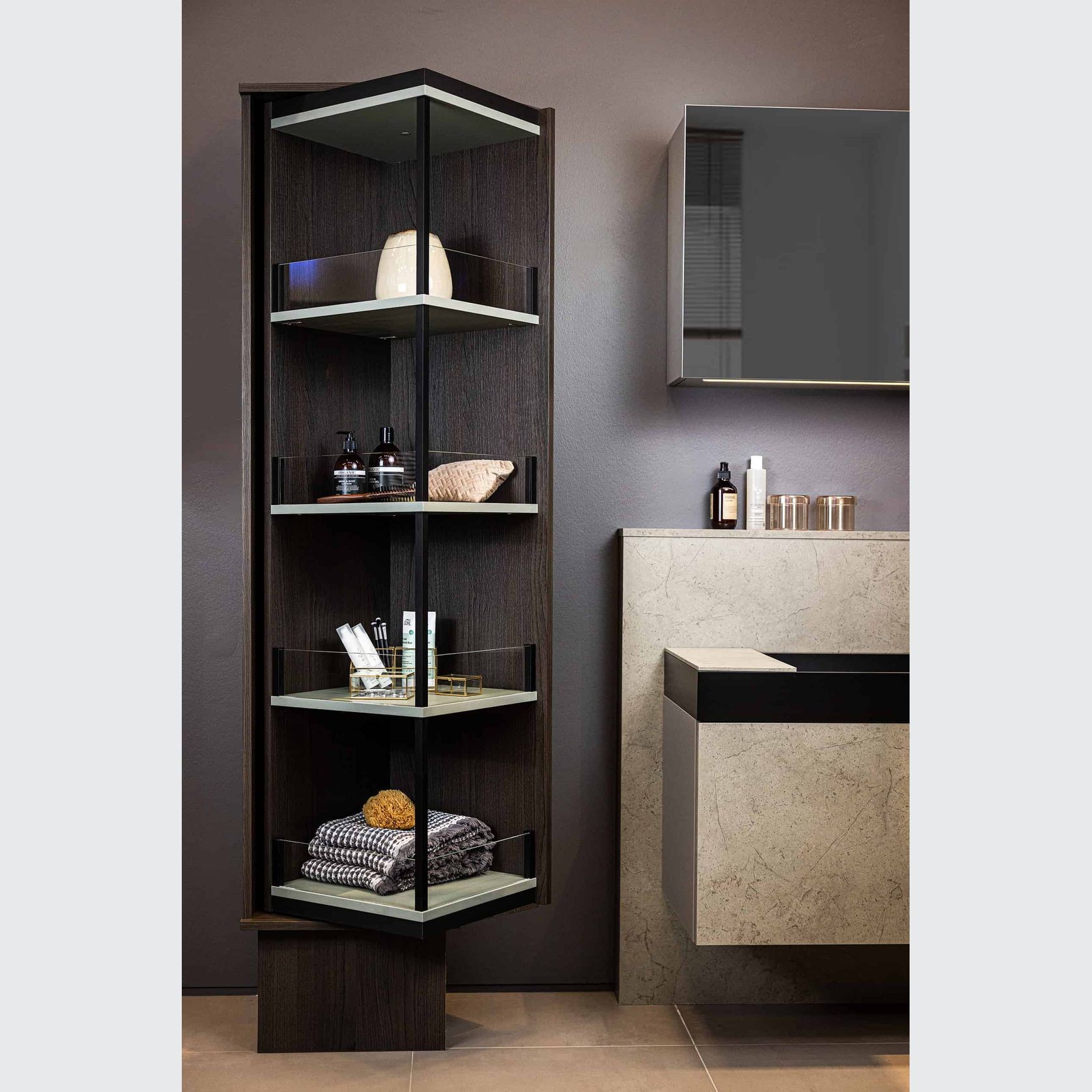

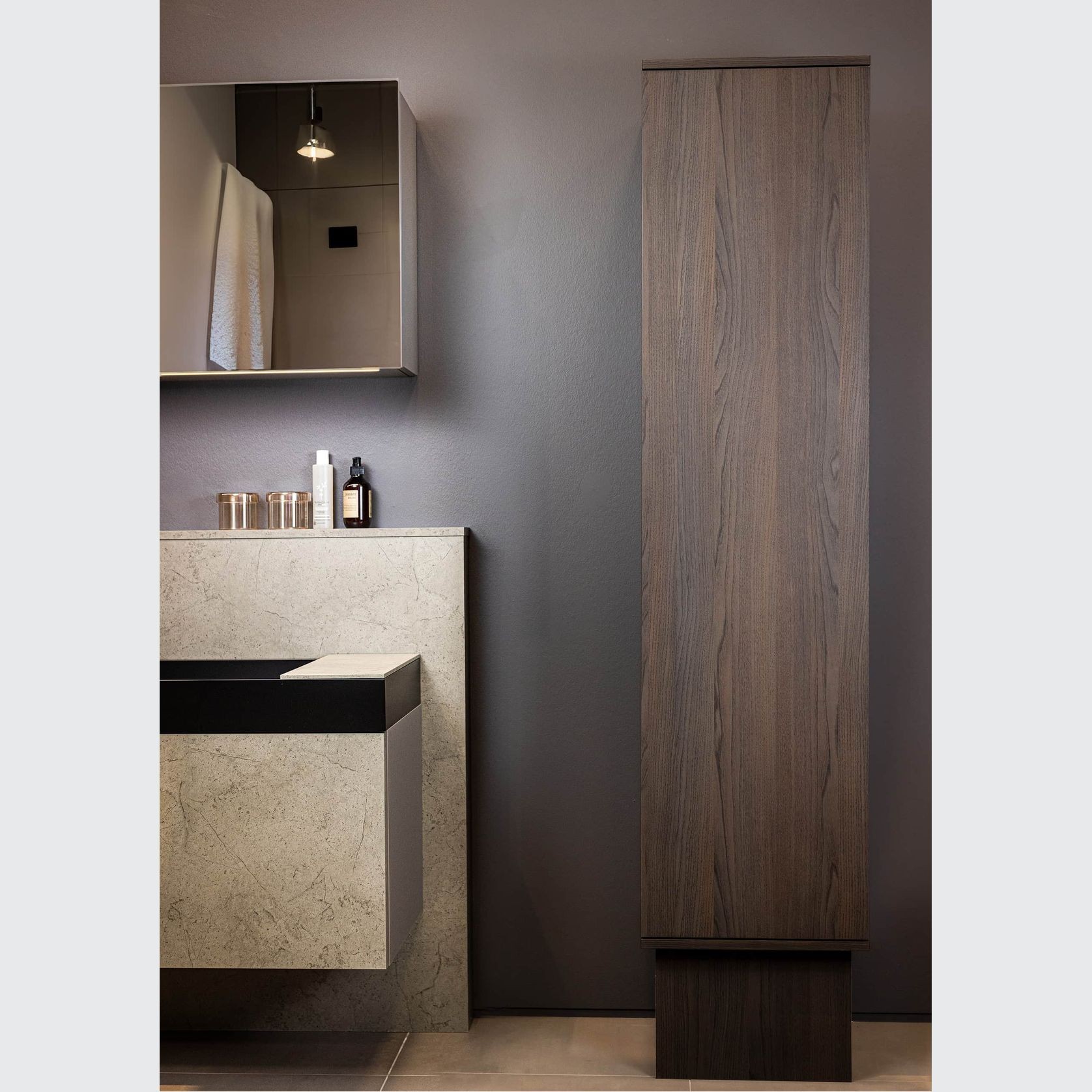

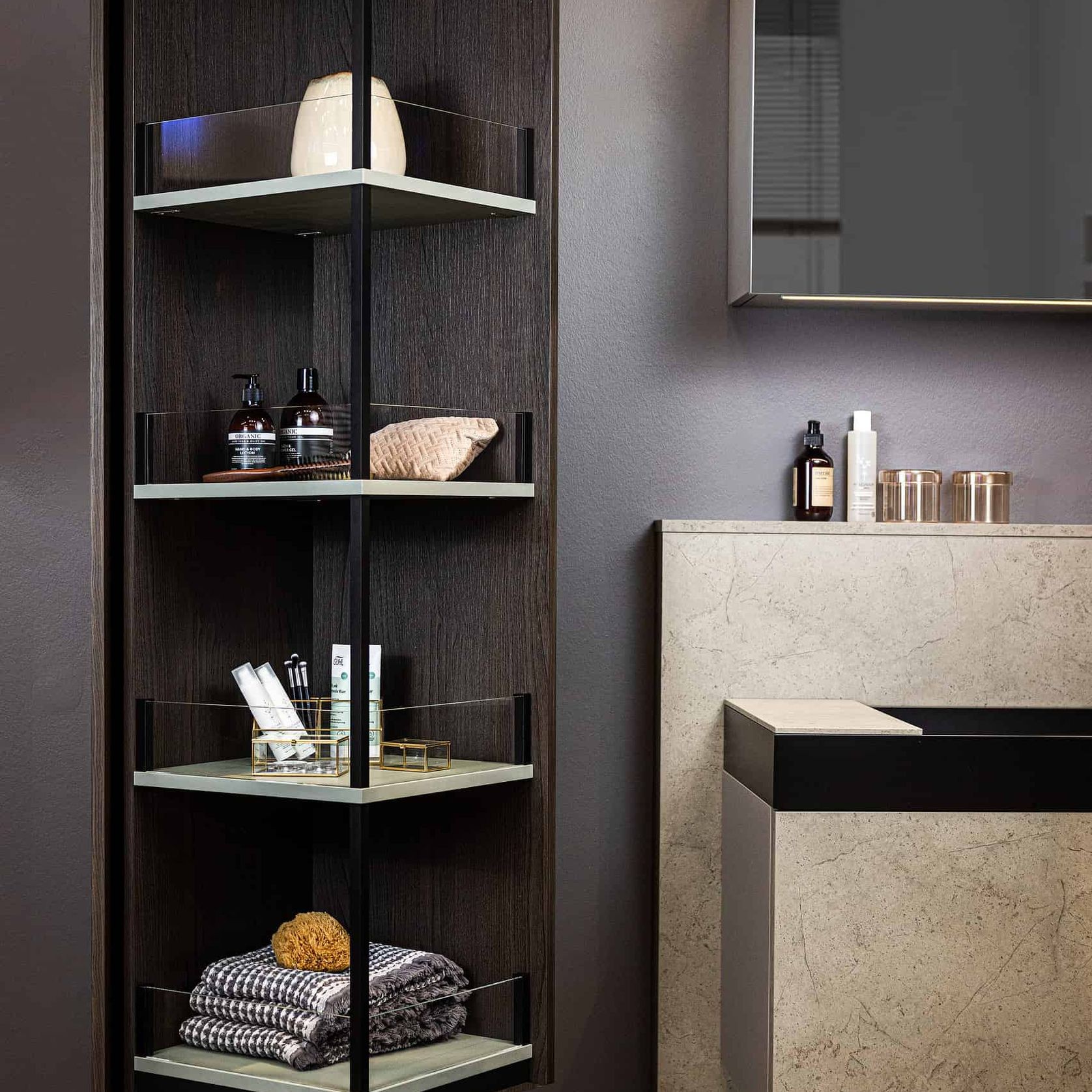

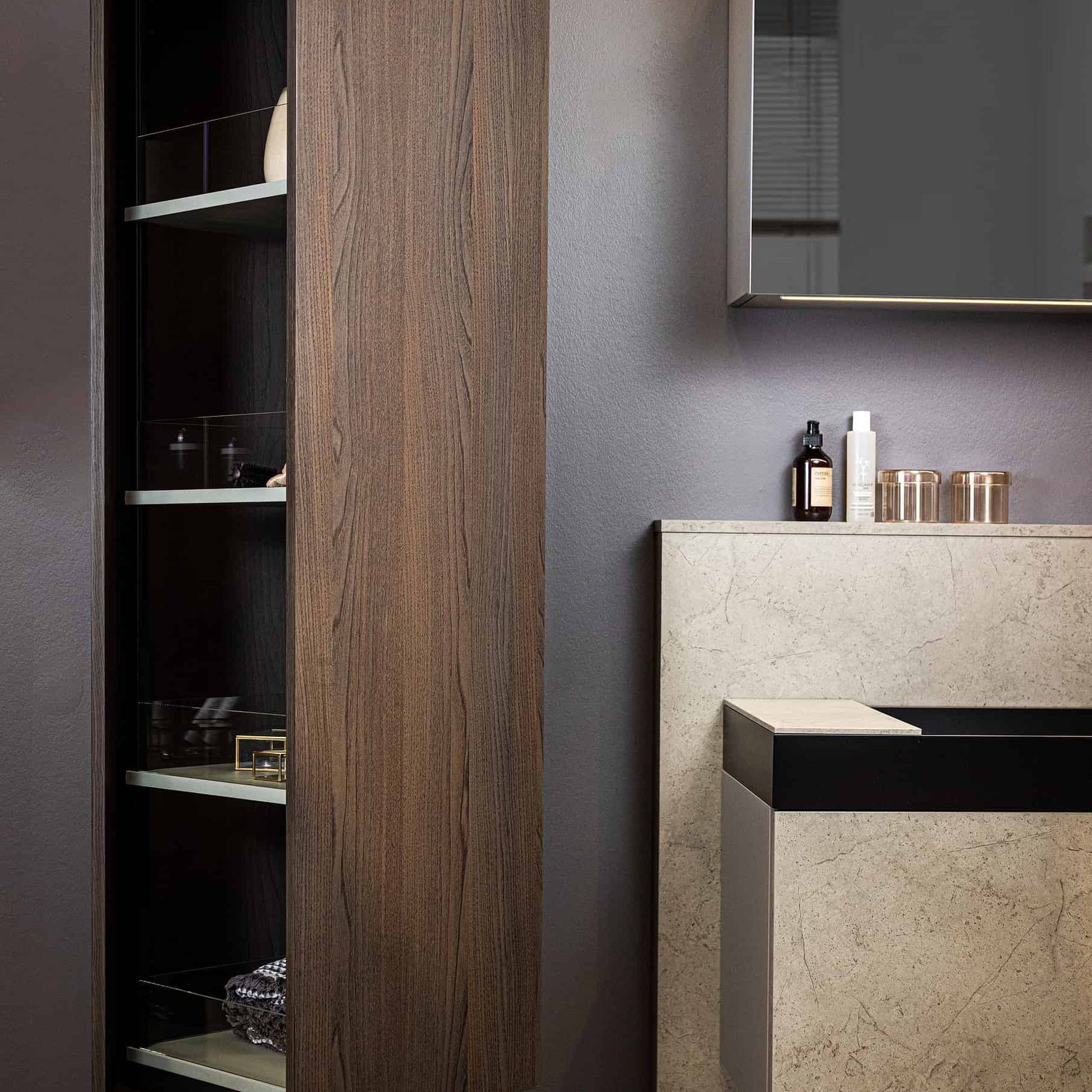

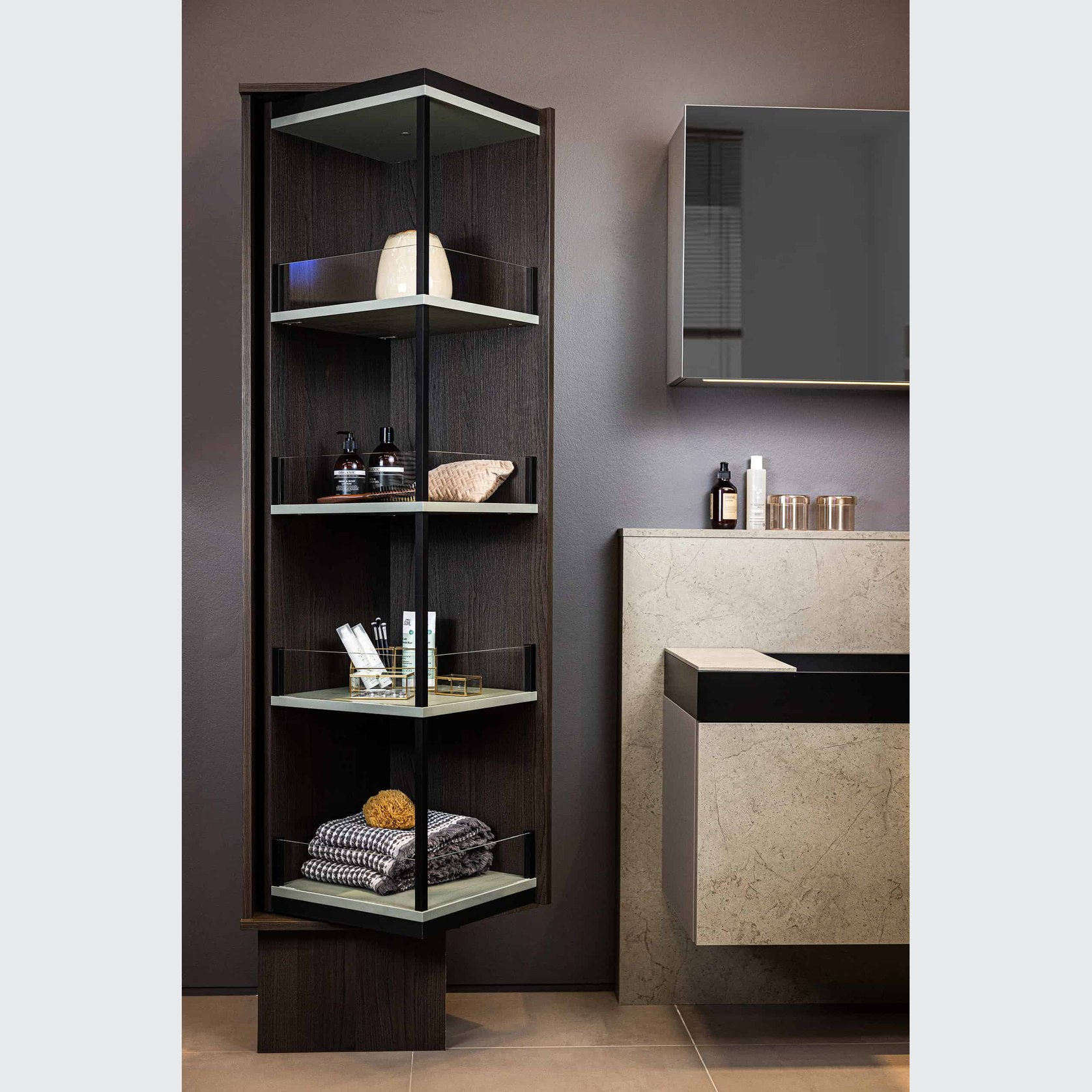

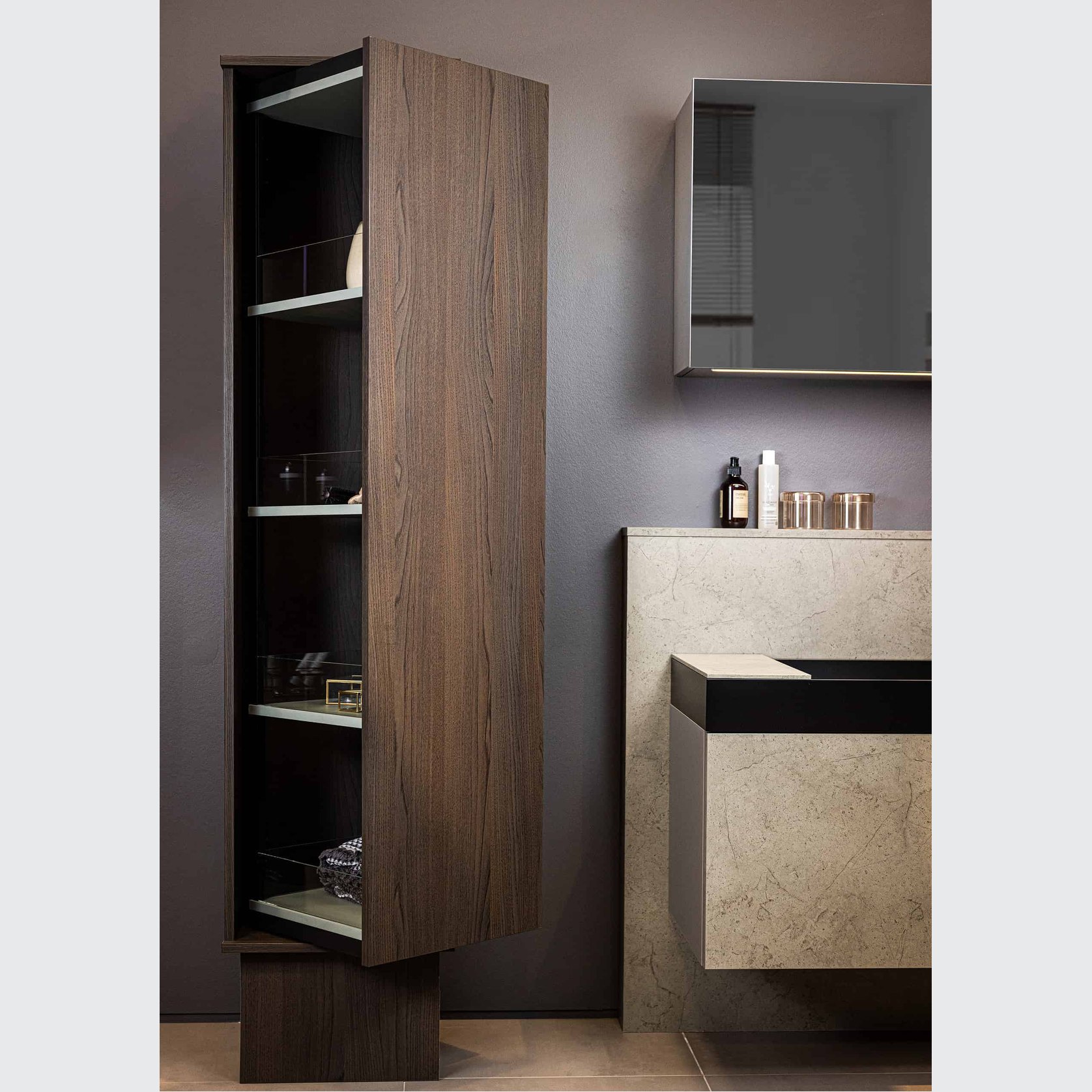

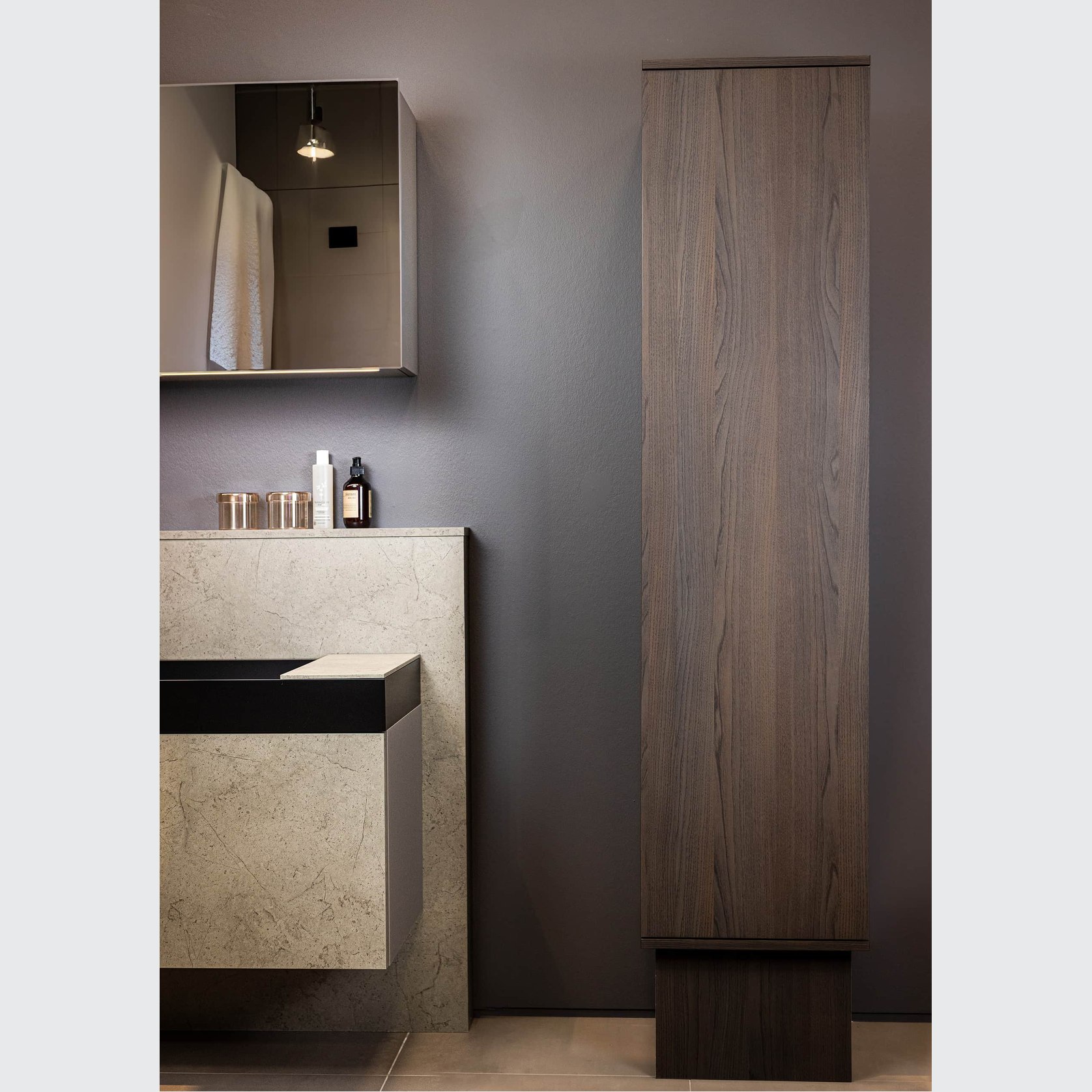

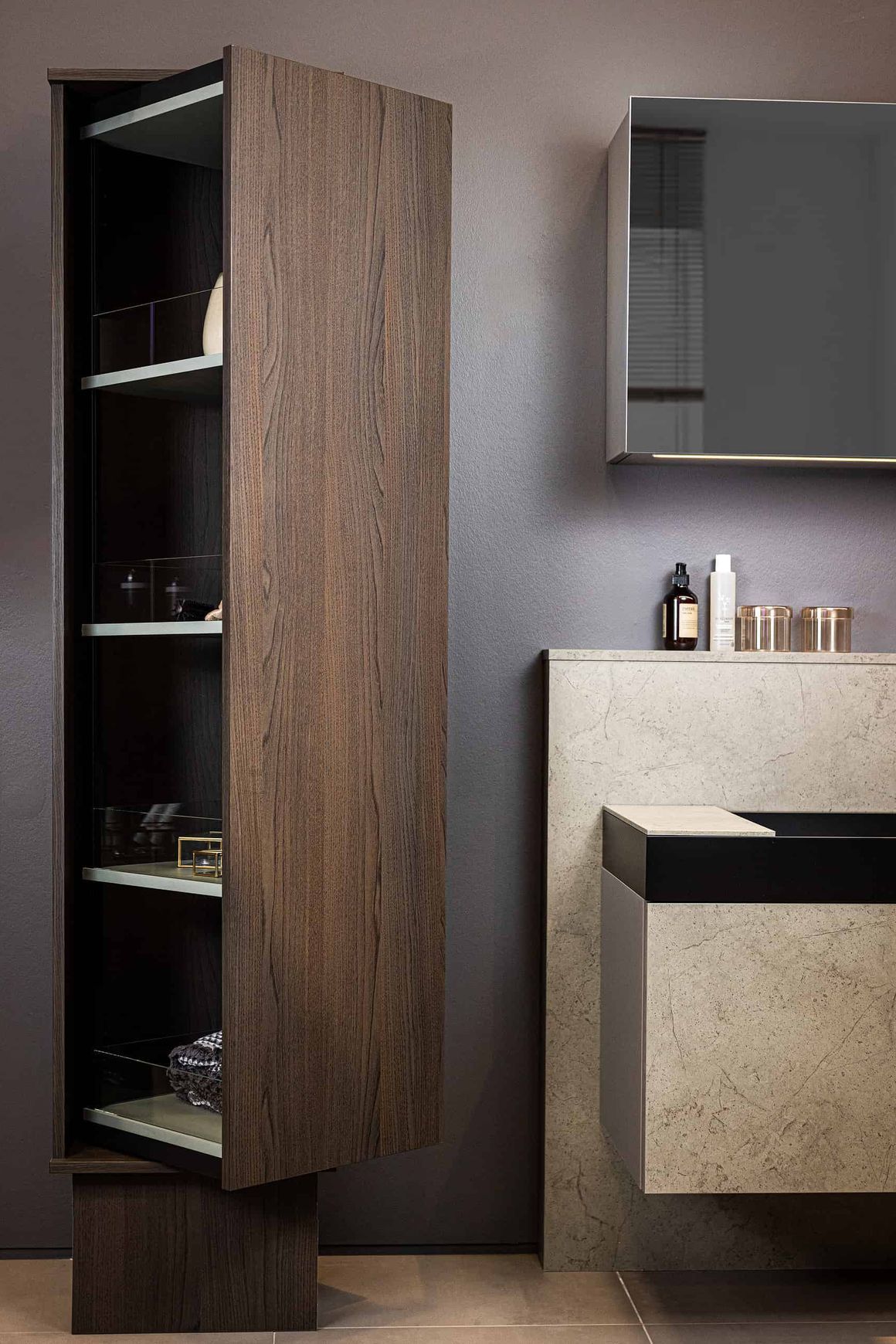

- bathrooms, such as tall mirrored cabinets

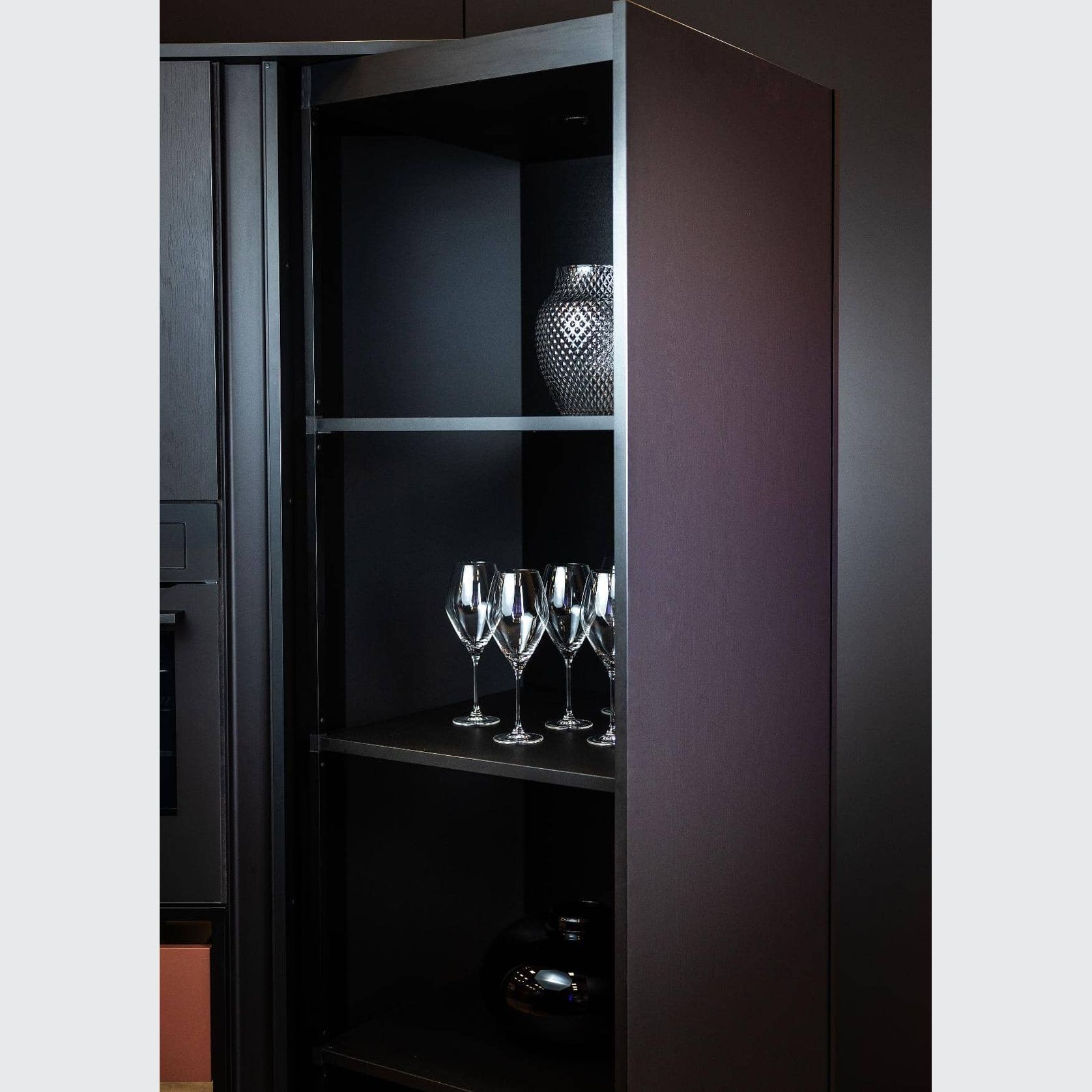

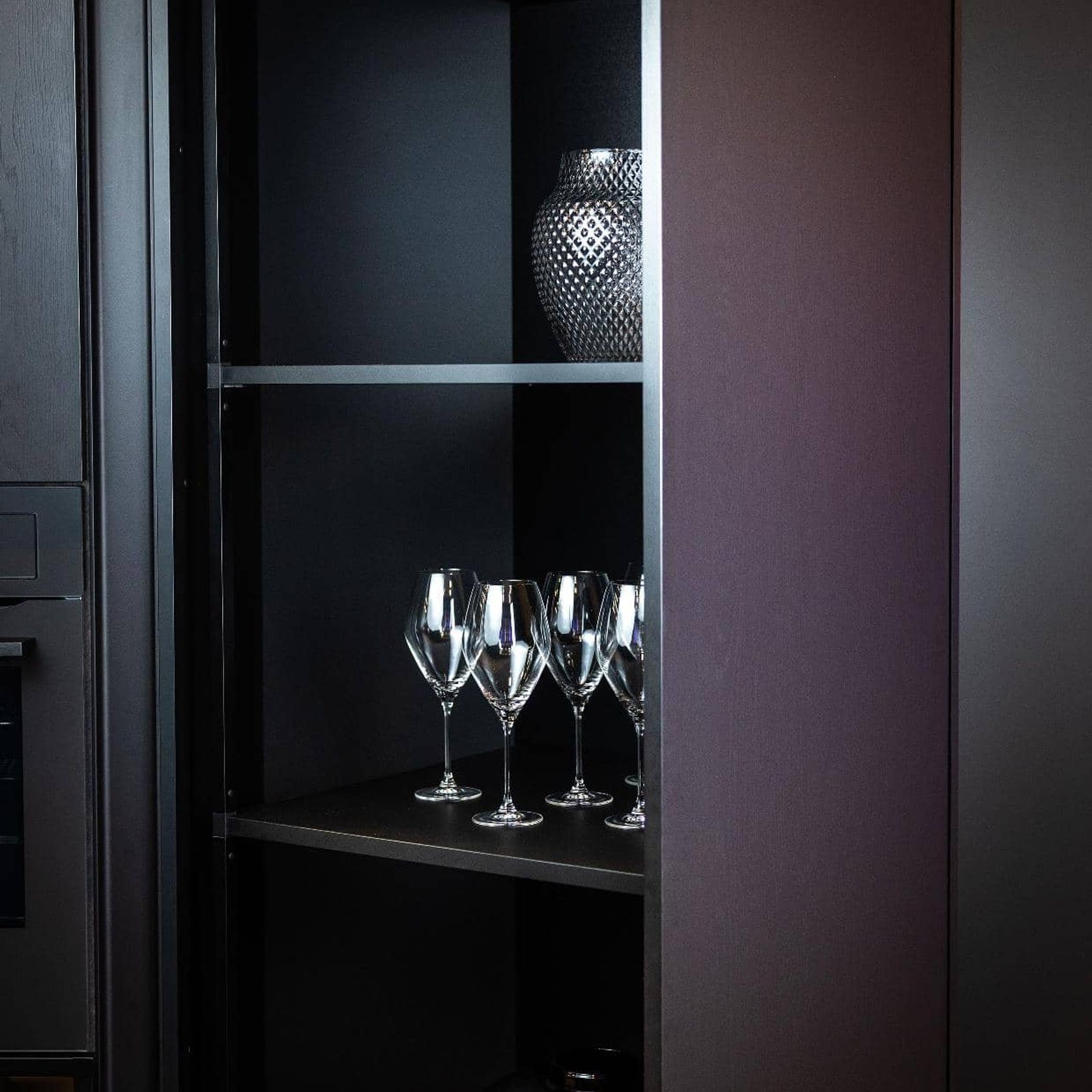

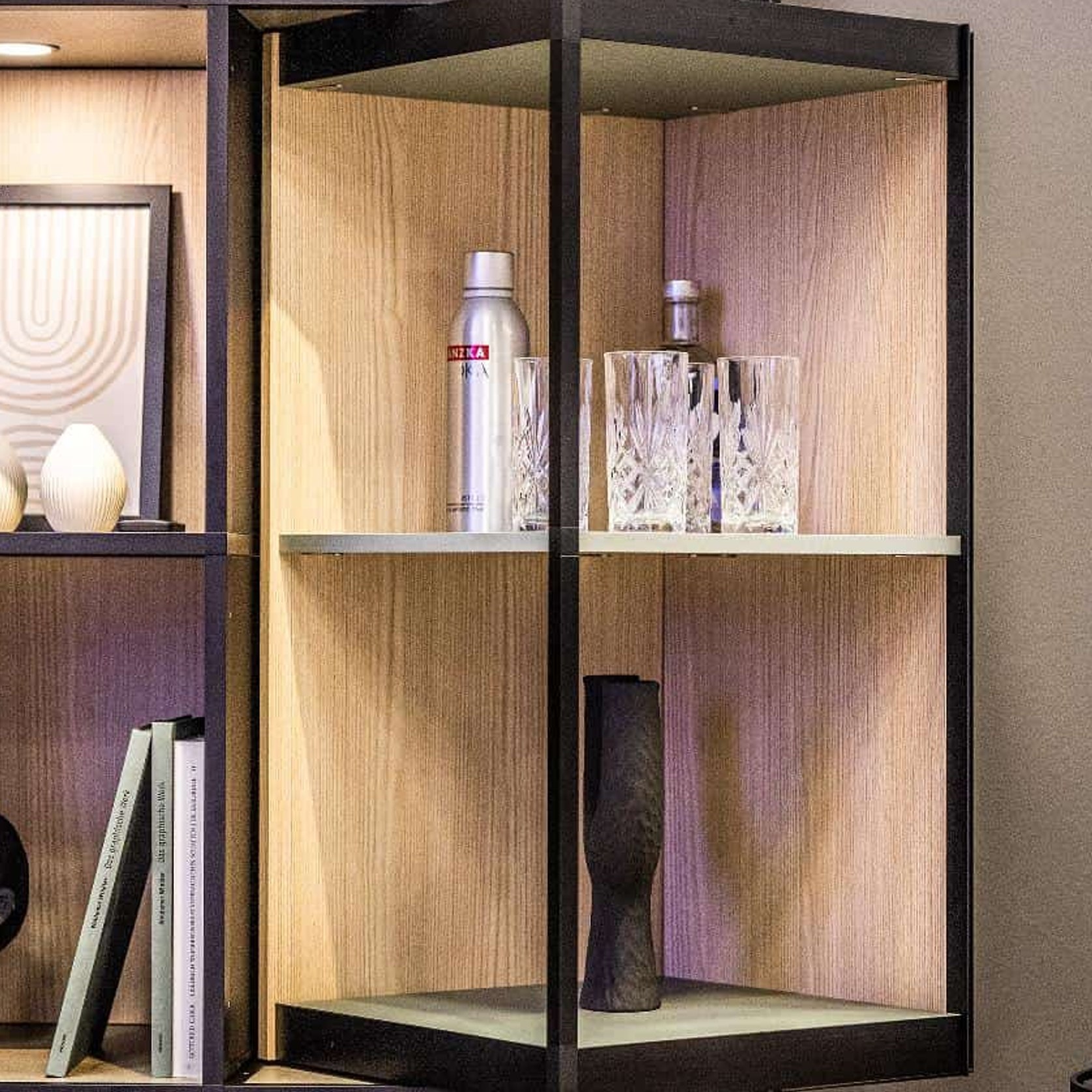

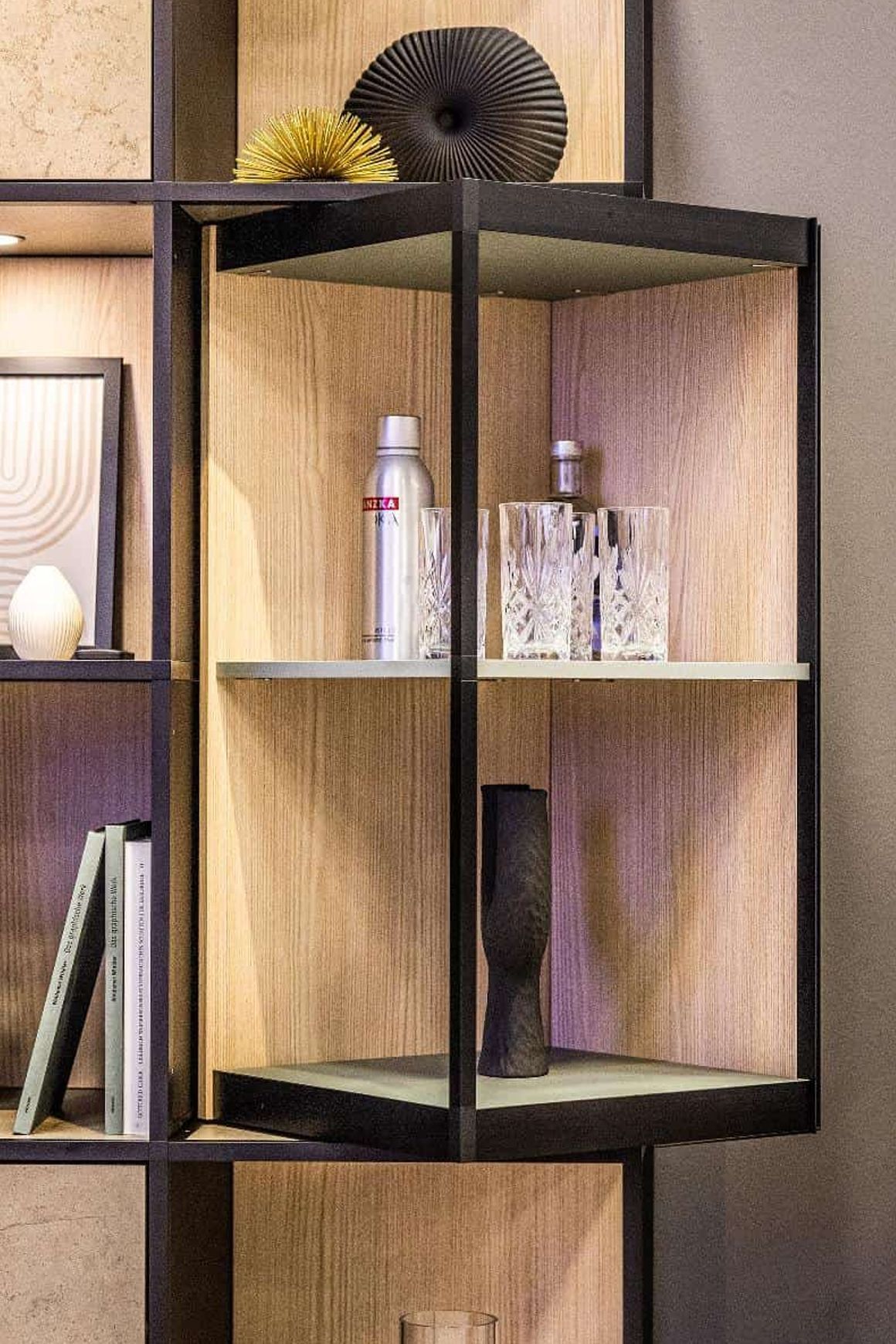

- hidden liquor cabinets

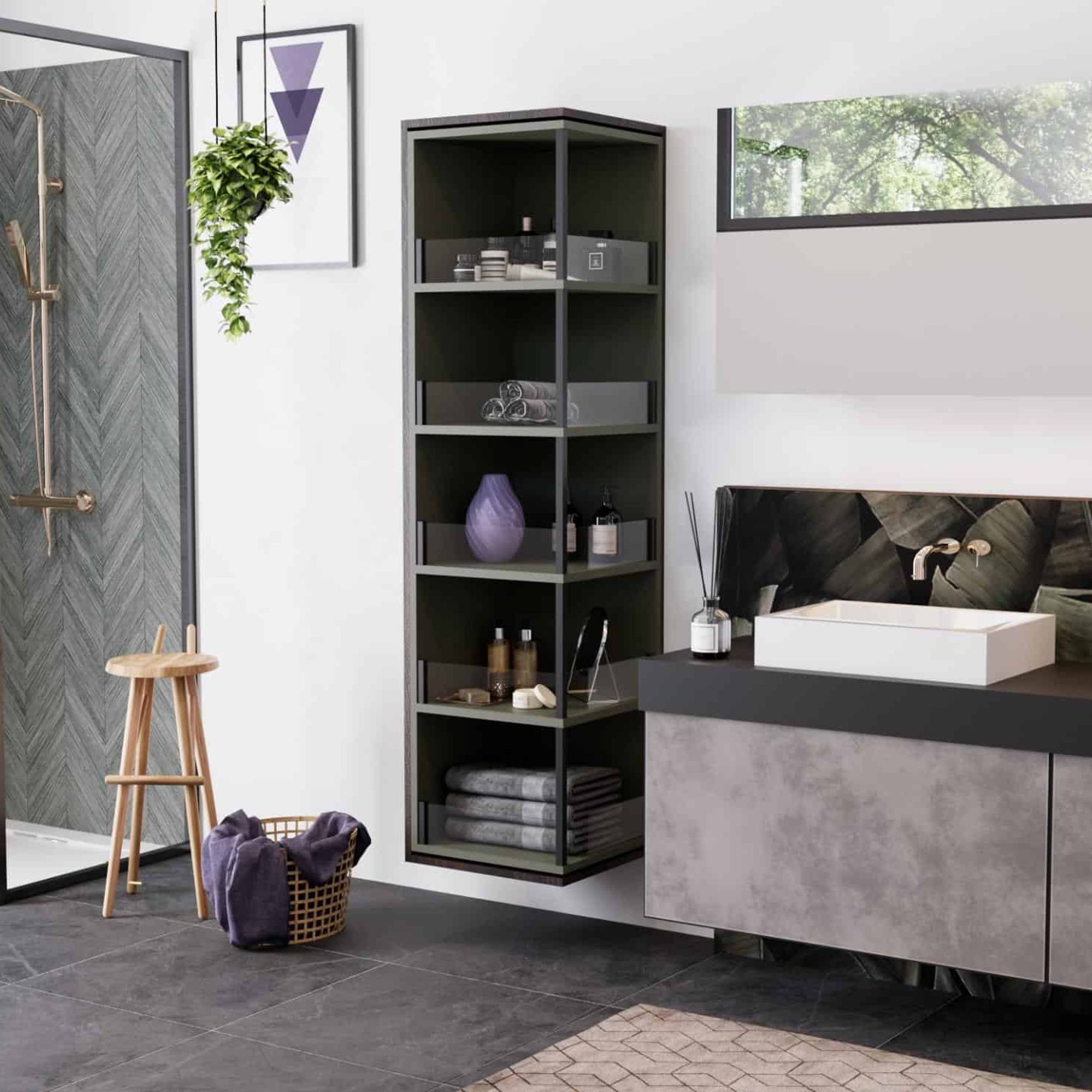

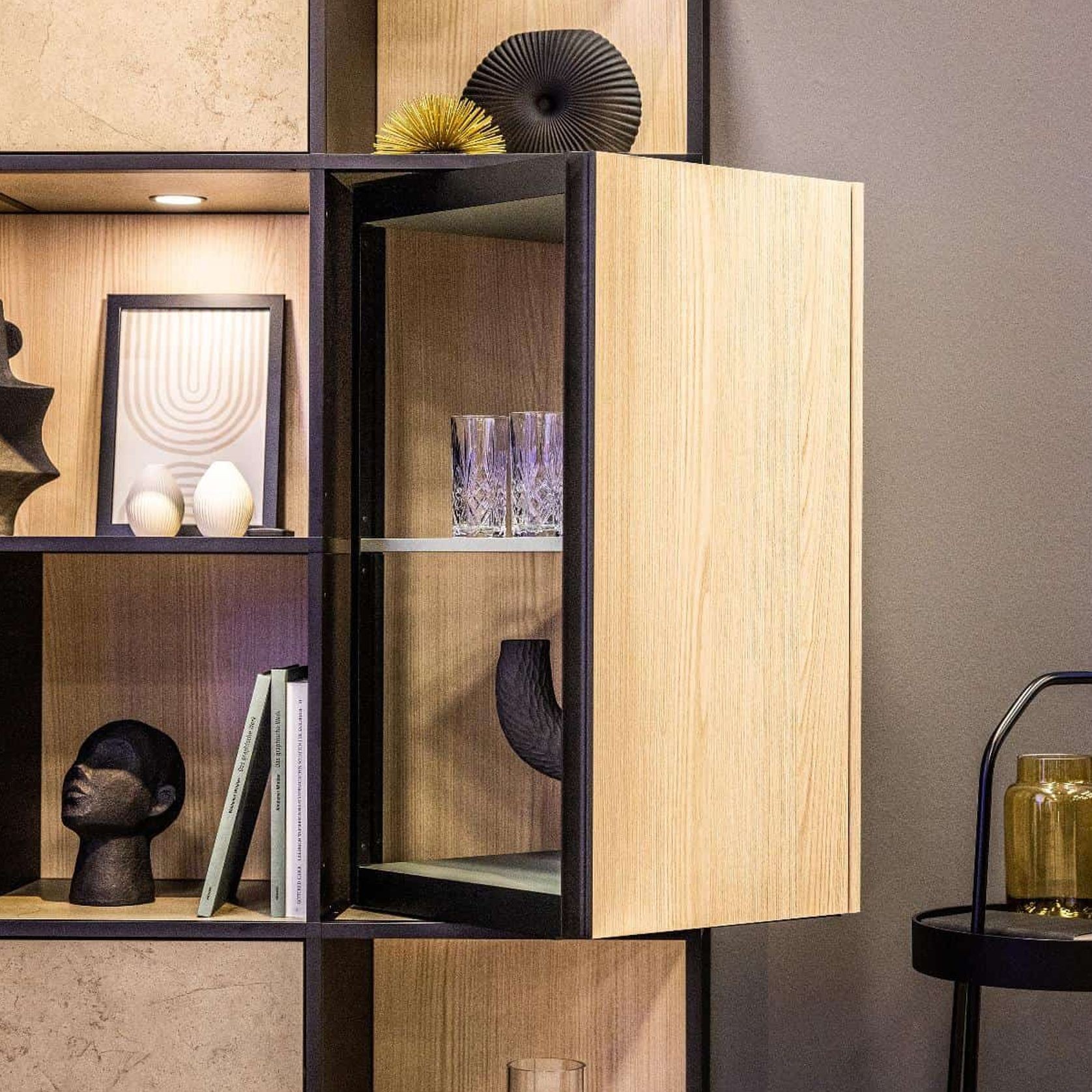

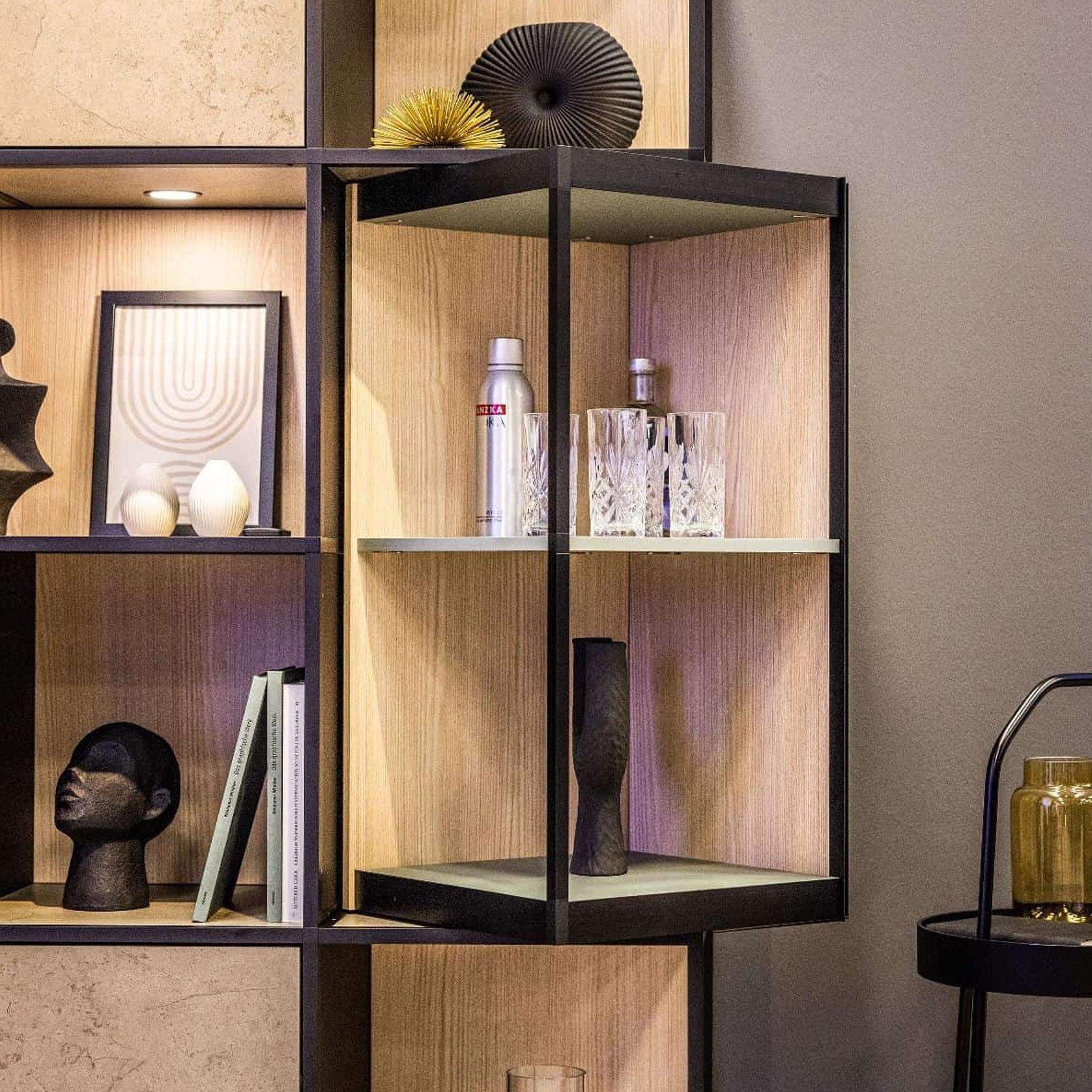

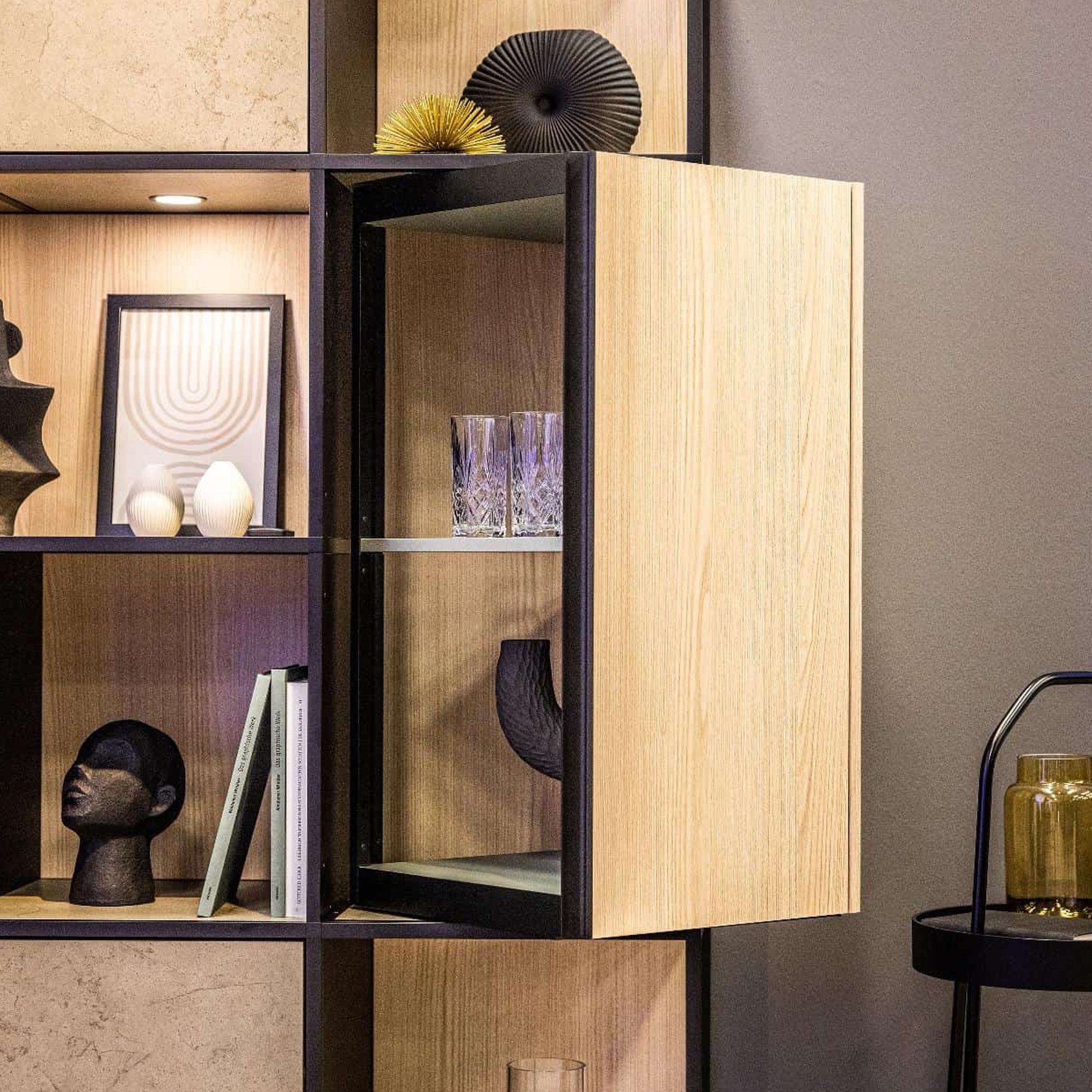

- living area displays
- utilised in tight corners with less clearance space, enabling full access to the cabinet interior without any furniture parts in the way.
